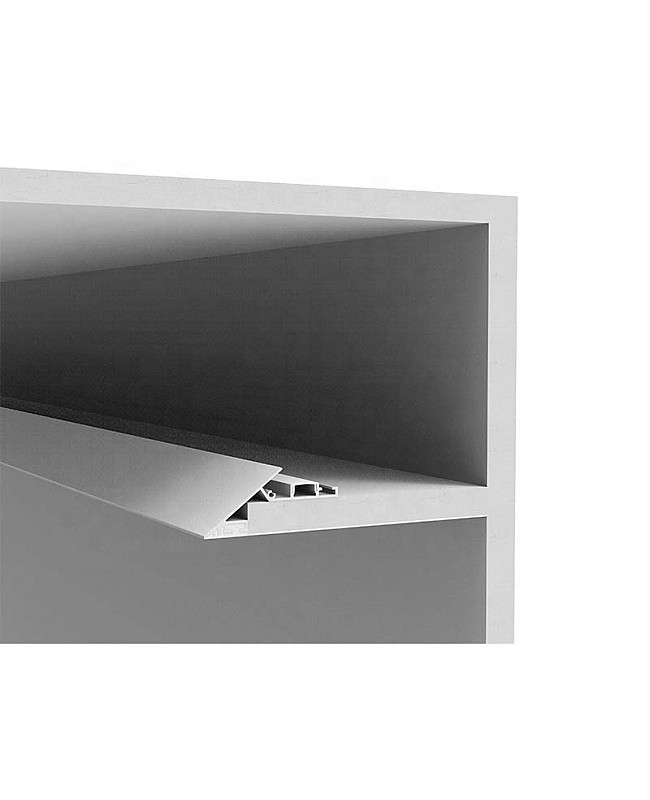

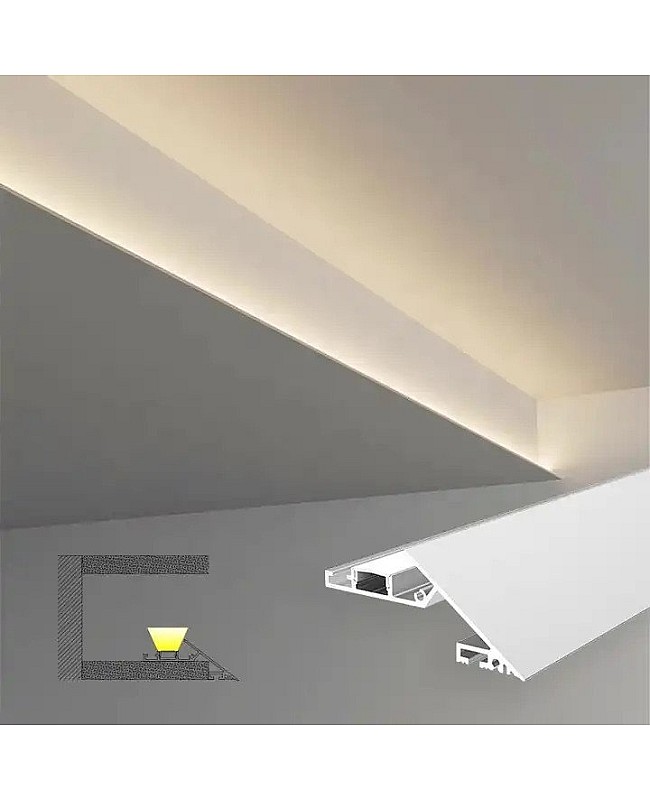

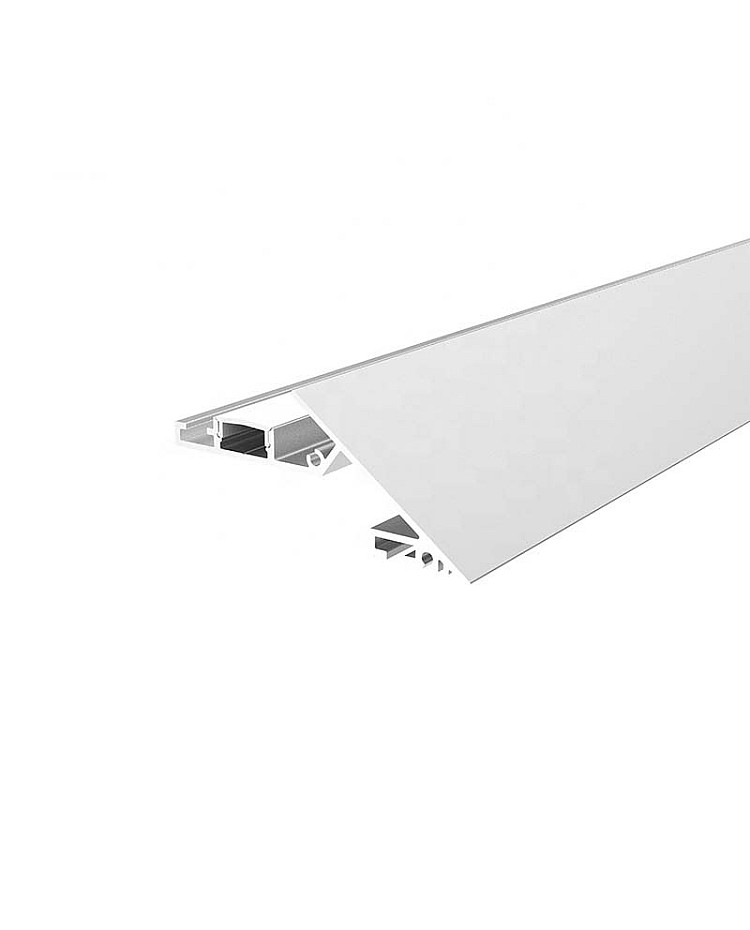

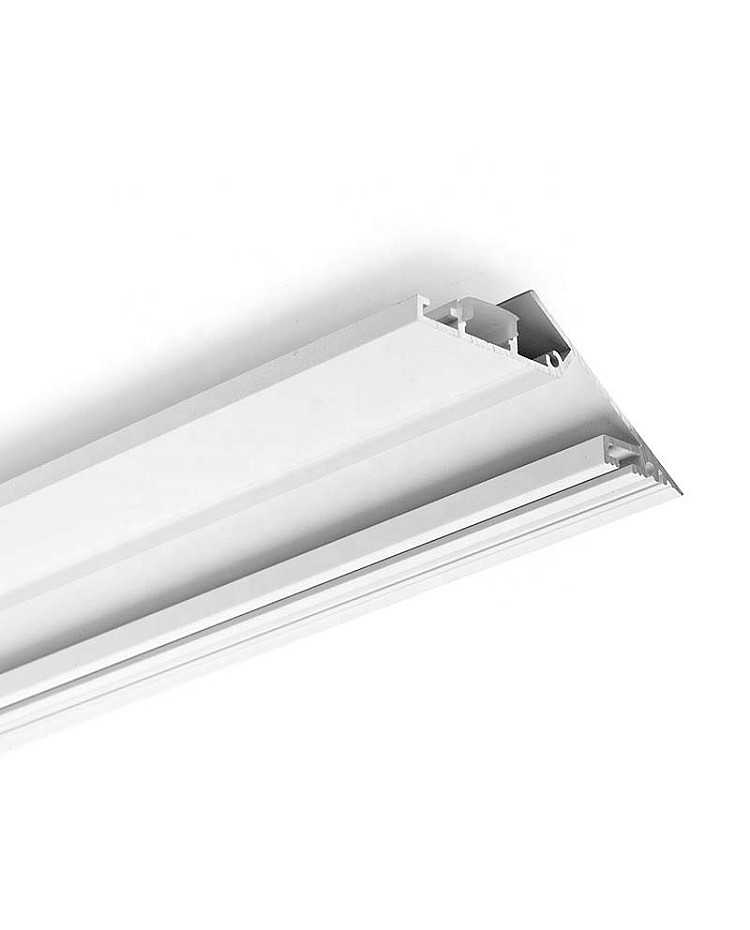

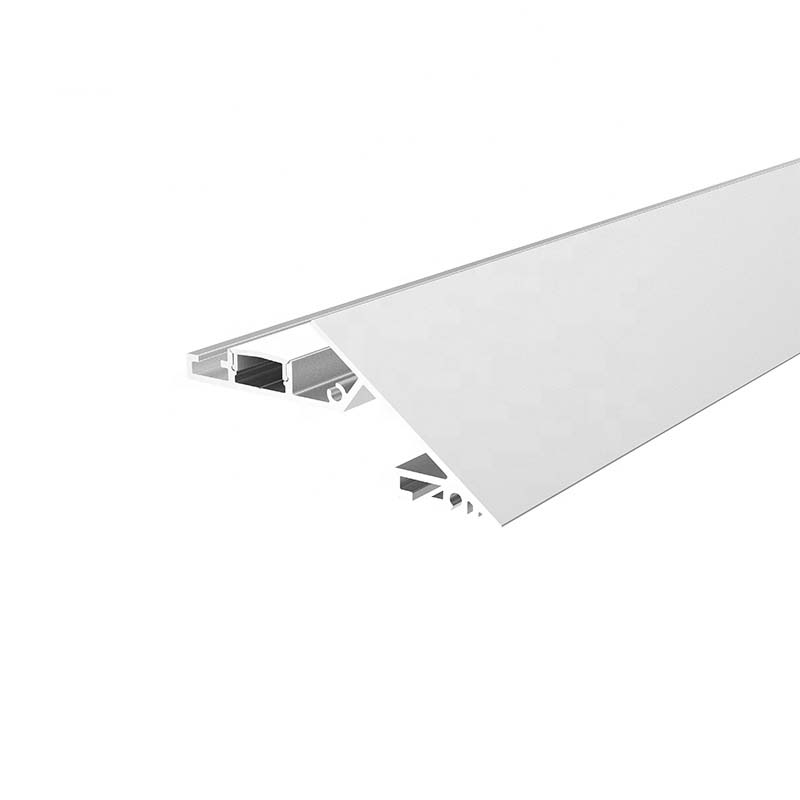

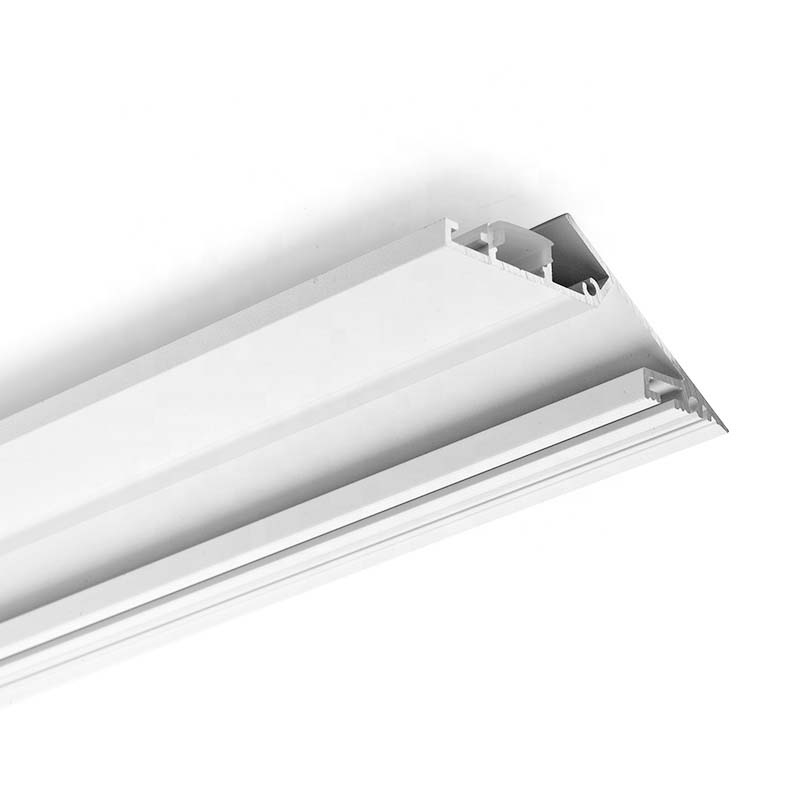

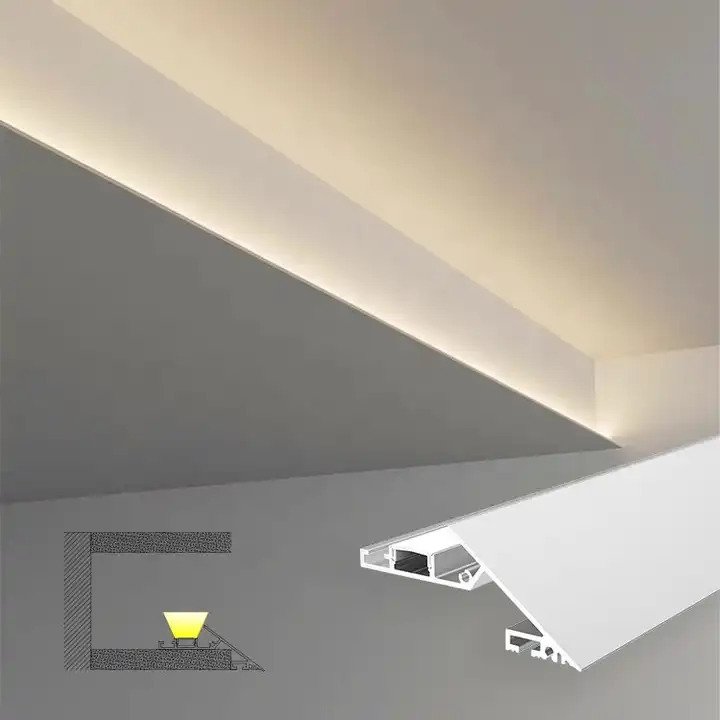

The White Plaster-In Aluminium Profiles are an ideal choice for Interior Soffit Lighting and provide an aesthetically pleasing way to install LED Strips within a soffit area. Those Surface Profiles can be seamlessly integrated into the surrounding ceiling, creating a clean and polished look. Whether used in residential or commercial settings, they will provide a sophisticated and modern lighting solution. The Drywall Profiles are made of 6063-T5 aluminum alloy material with silver anodized surface treatment, anti-oxidation resistance, durability, and long-lasting, helping to ensure that the LED Strips are secure and protected from damage. The standard length is 1M and 2M and can be cut to any size for your projects. Only one type of diffuser is available: PC diffused cover, which is made of brand-stable material and is anti-yellowing. It helps to diffuse the light, providing a soft, even glow. The diffuser has a clip-in design and is easy to install and maintain. The aluminum profiles can be heat sinkers for better heat dissipation and longer LED lifespan. The inner width is 13.3mm, allowing the max-width up of Strip Lights to 13mm. Recommend adding high-density COB Strip Lights as the light source without visible light dots. End caps are included, and 180°, 90°, and 90° vertical are sold separately; you can use them to reconnect the knife edge cove profiles and for DIY designs. The Soffit Lighting Profiles can be recessed into 5/8" drywall and can be used to create a perfect ambient atmosphere.
Features:

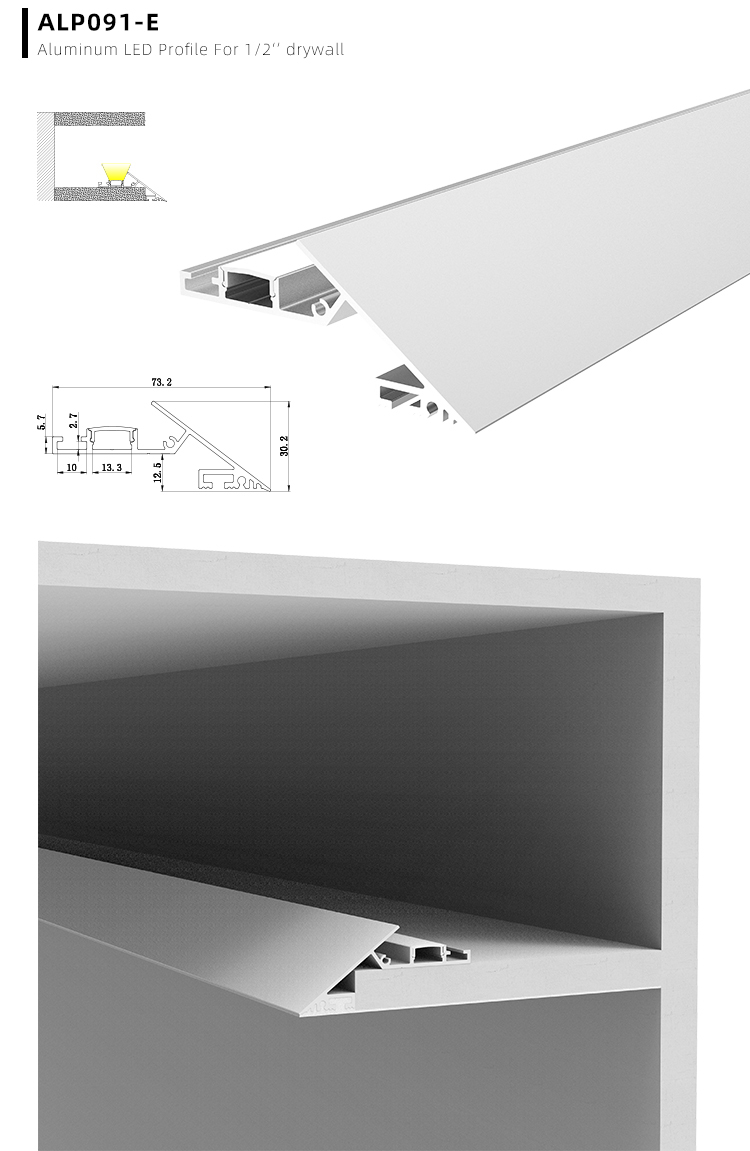

- Model: ALP091-E
- Material: 6063-T5 Aluminium Alloy
- Surface Treatment: Silver Anodized
- Colors: Silver, Black, White(Default)

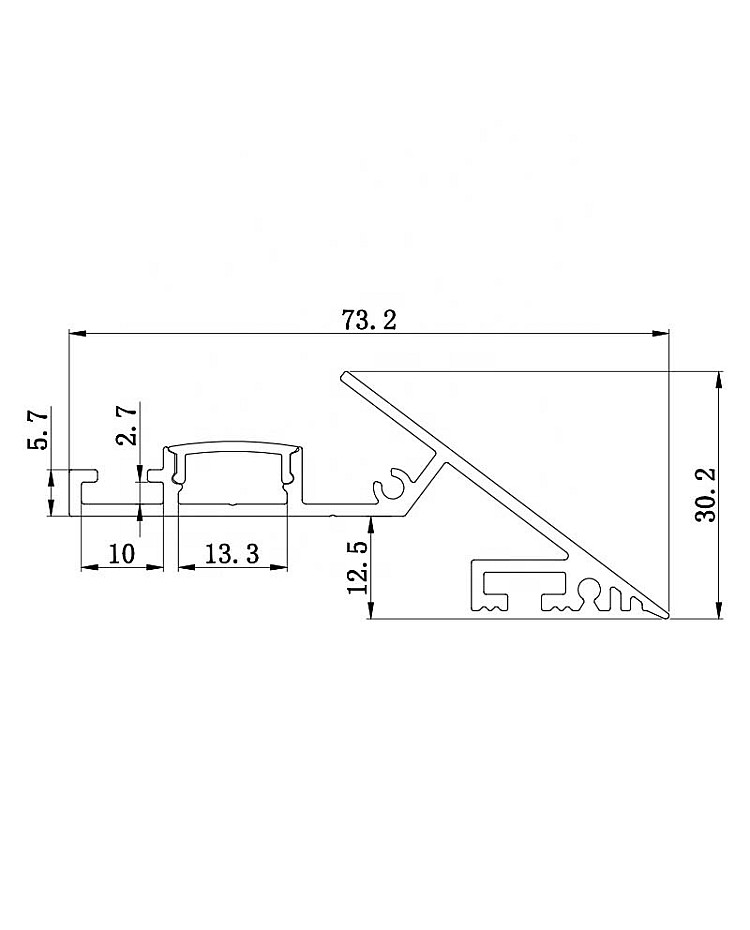

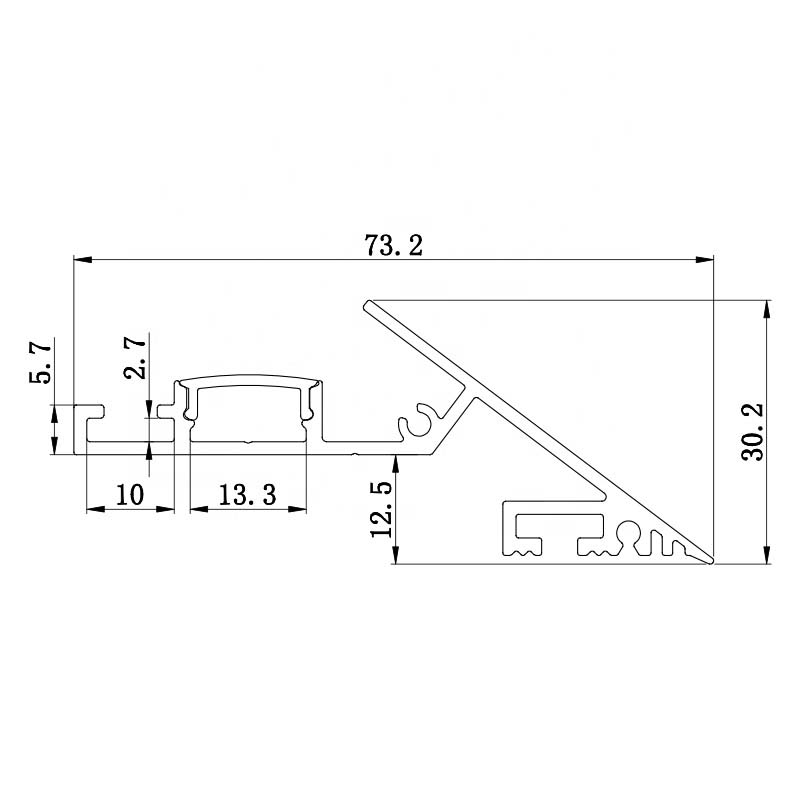

- Size: 73.2*30.2mm
- Inner Width: 13.3mm
- Allows The Max Width Of Strip Lights To Be 13mm
- Max Power: <15W/Meter
- Standard Length: 1Meter
- Other Lengths Available: 1.5Meter, 2Meter
- Custom Length Available: YES
- Diffusers: PC Diffused Cover
- 90°, 90° Vertical And 180° LED Channel Couplers Sold Separately

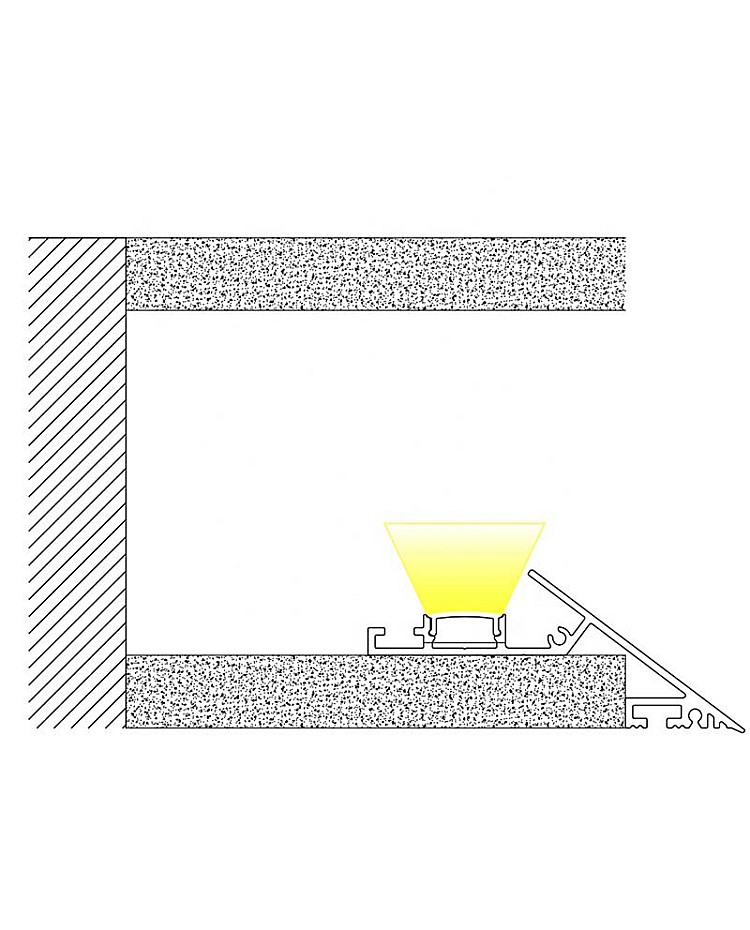

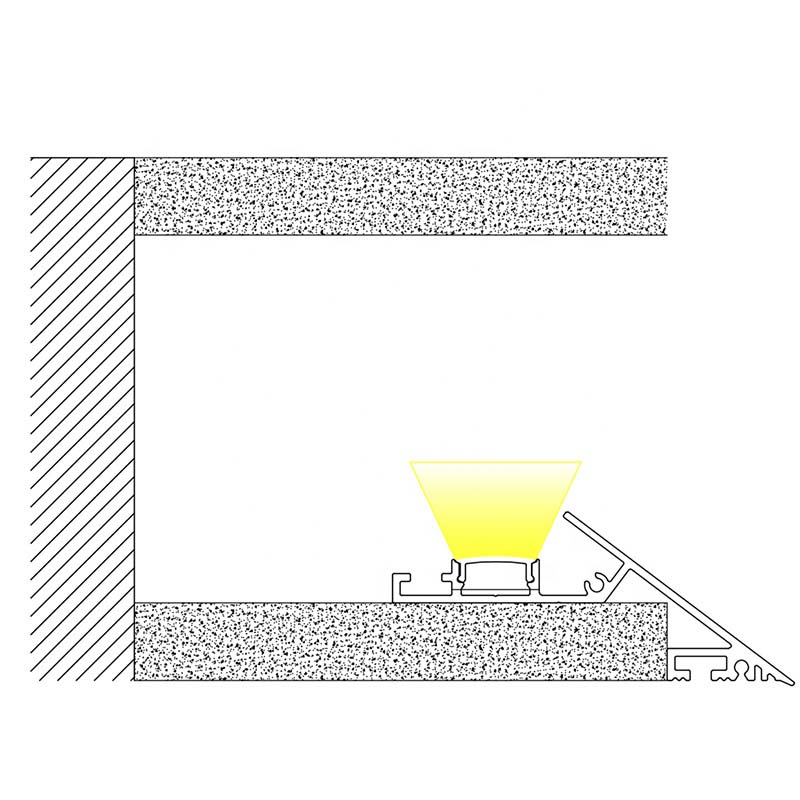

- Installation: Recessed Into 1/2" Drywall
- Application: Interior Soffit Lighting
- 5 Years Warranty

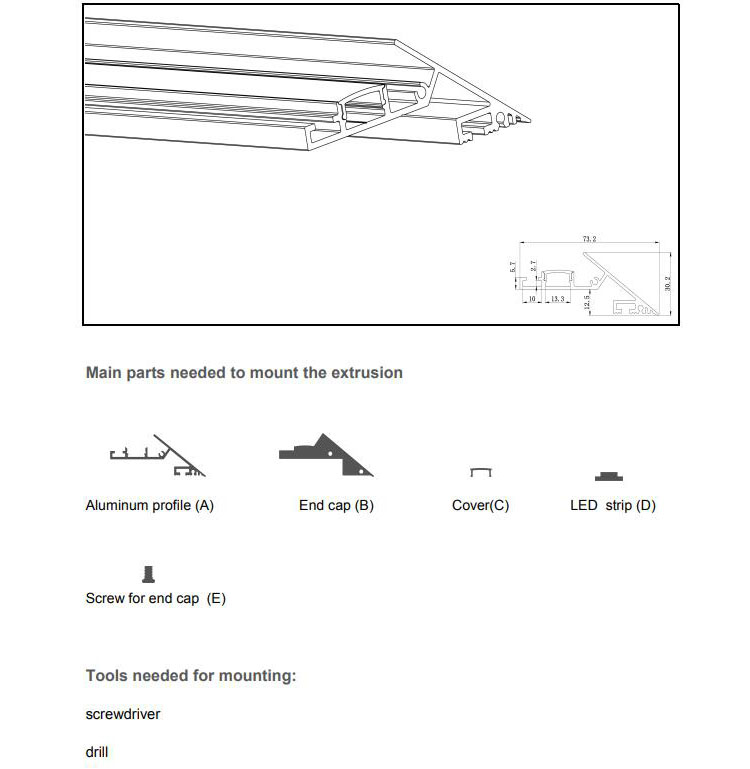

Includes:
1*Soffit Lighting Profile With Diffuser

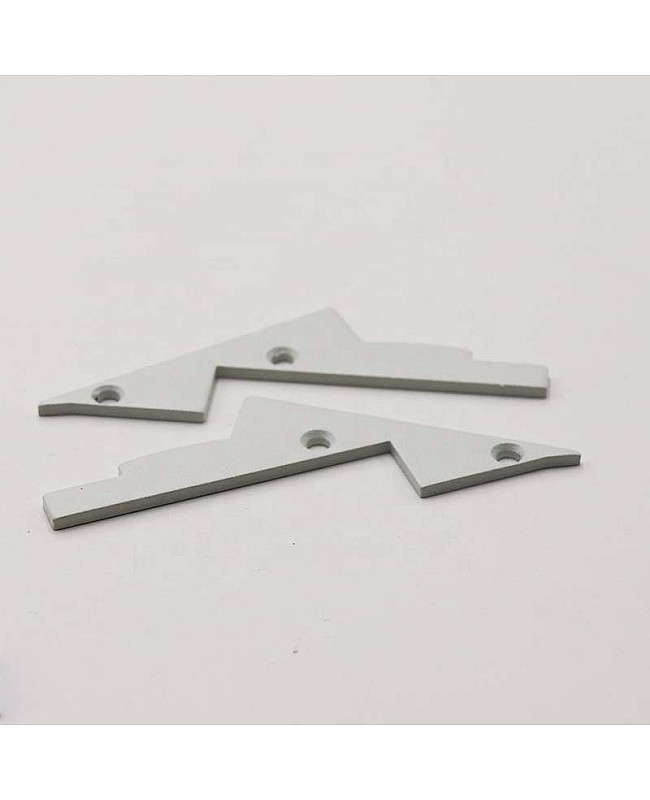

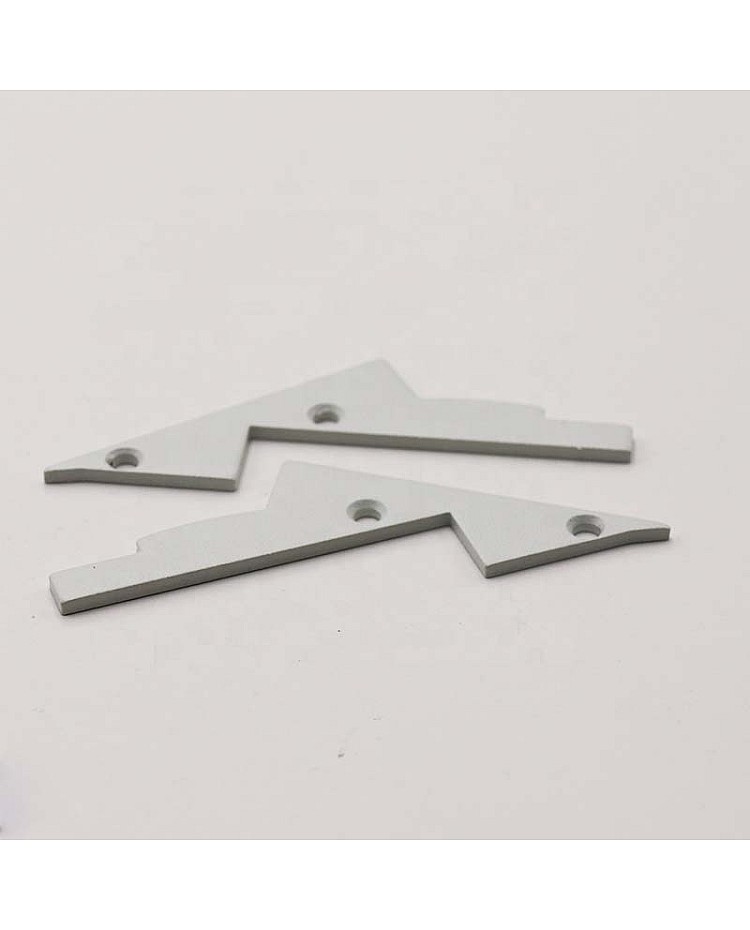

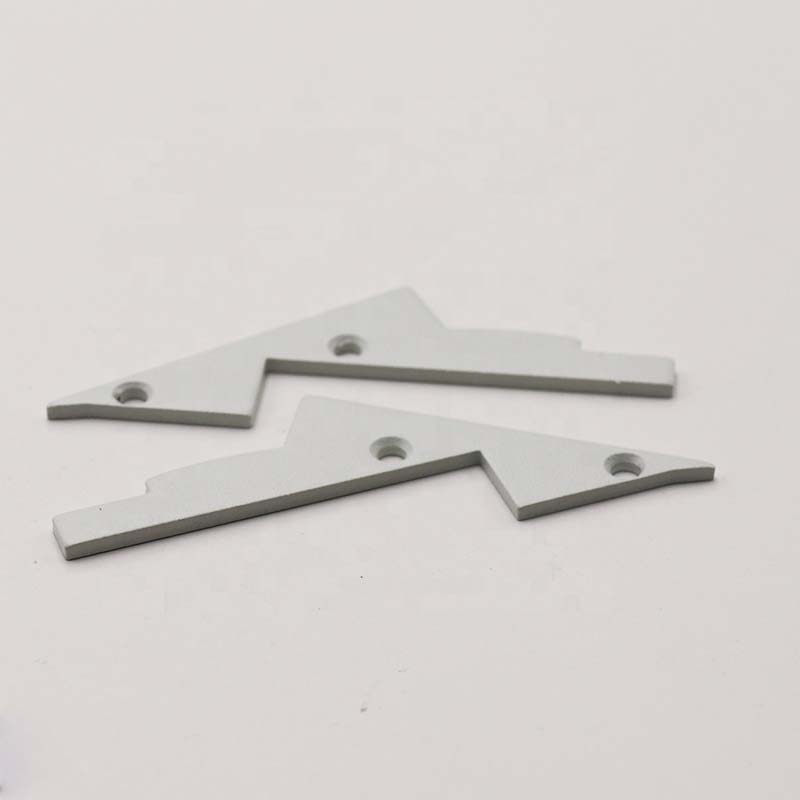

End Caps

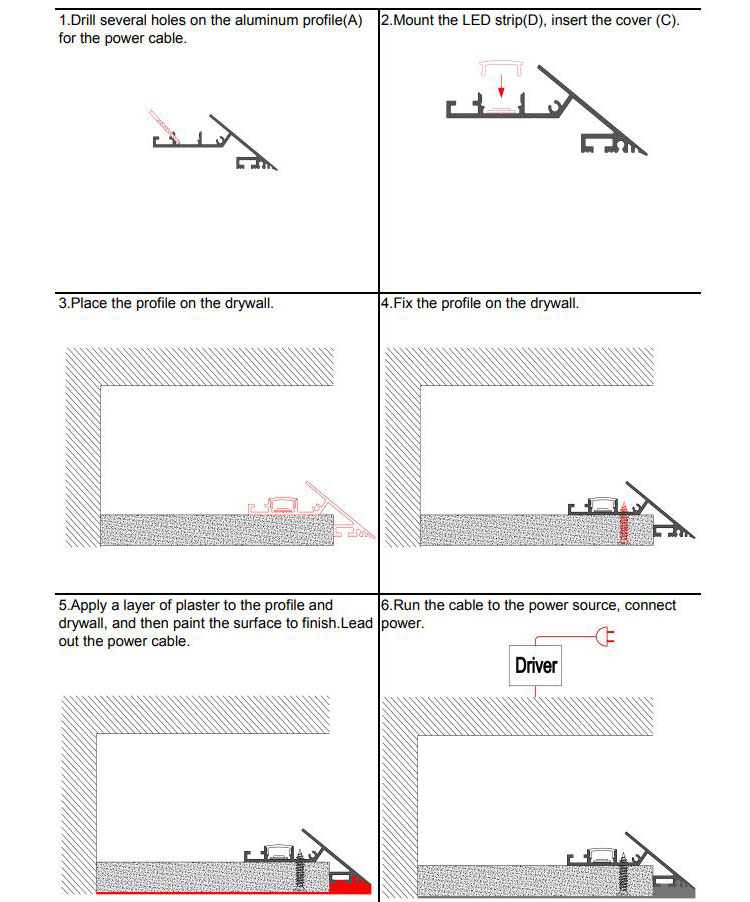

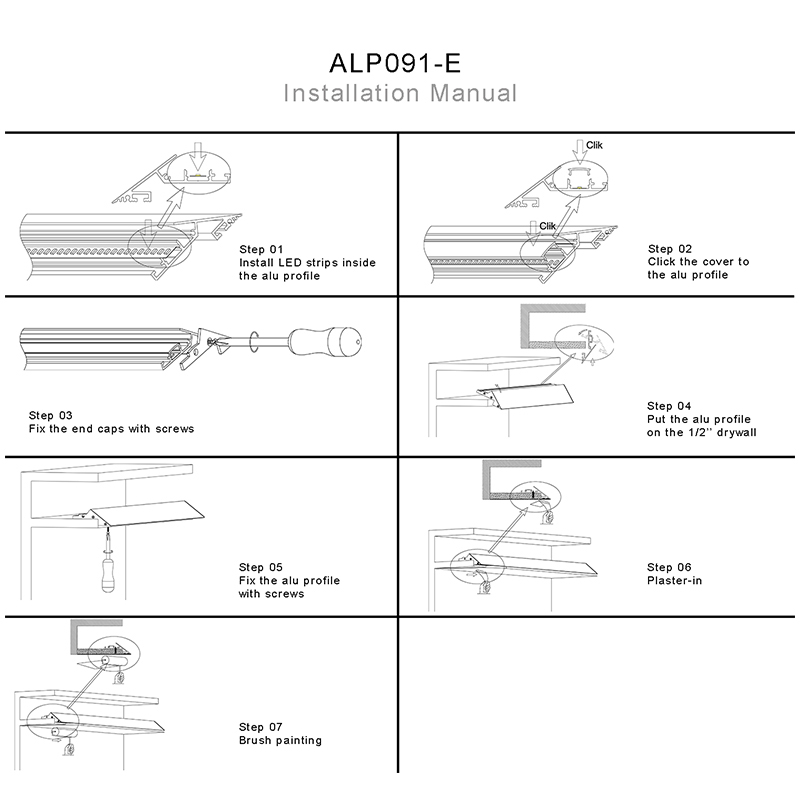

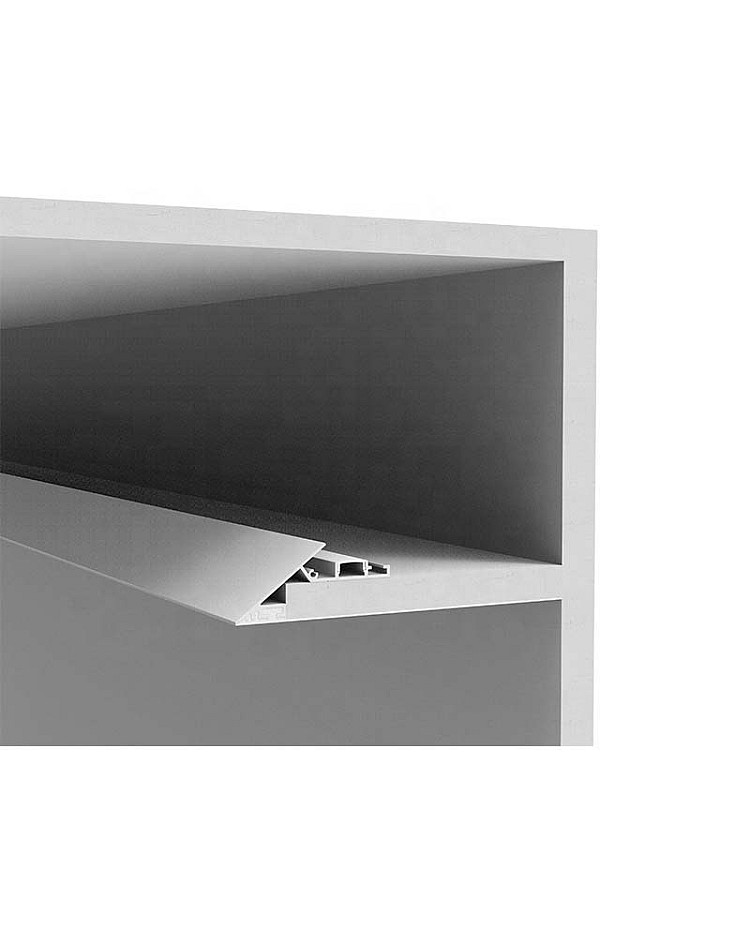

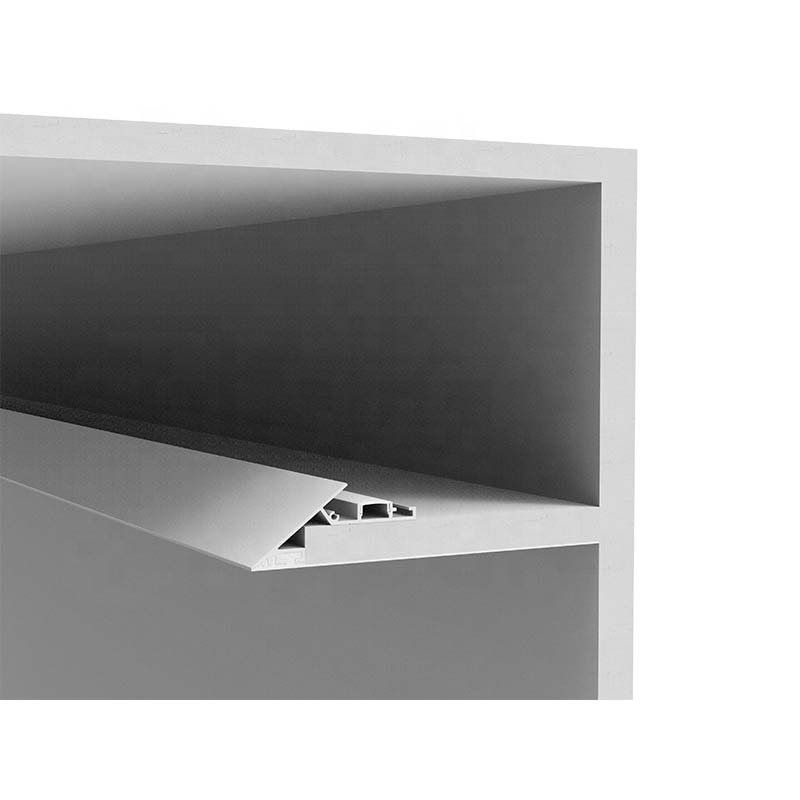

How To Install:
1. Install The LED Strips Inside The Drywall Plaster Aluminum Profiles.
2. Click the Diffuser Into The LED Profiles.
3. Fix The End Caps With Screws.
4. Put The Alu Light Profiles On The 1/2" Drywall.
5. Fix The Aluminum Profiles With Screws.
6. Plaster-In.
7. Brush Painting.
