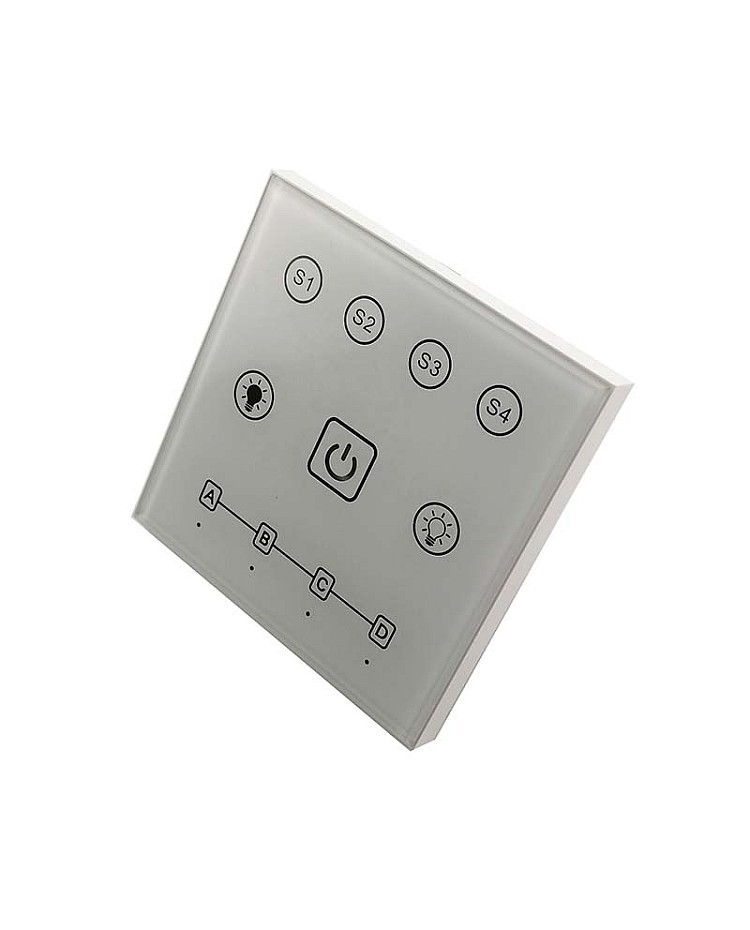

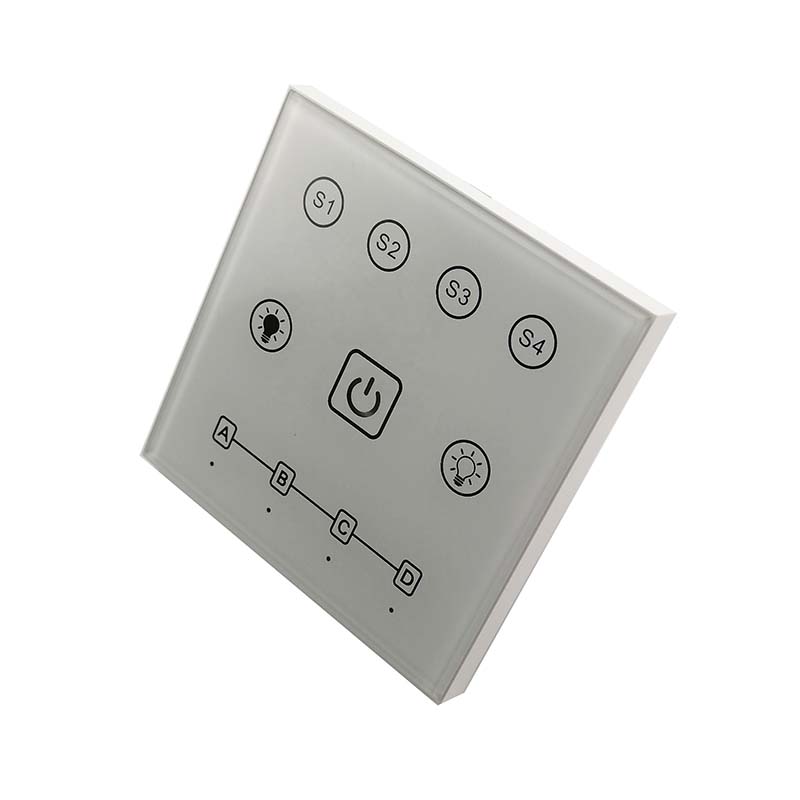

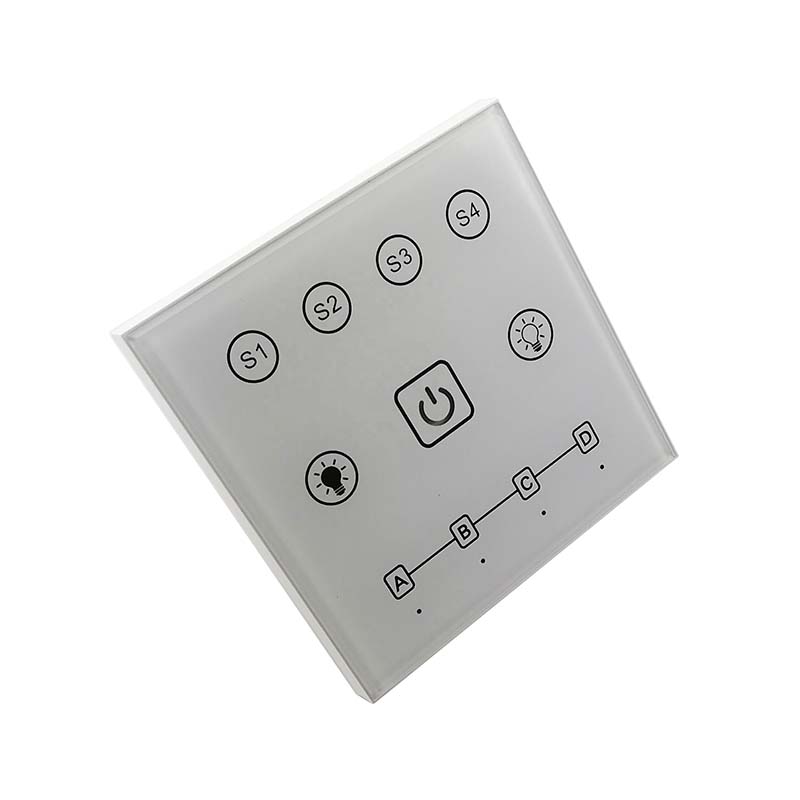

The wireless wall panel touch LED dimmer switch features a 4-zone design, a working voltage range of AC90V to AC265V, and direct connection to the public power system without an extra adapter. The LED touch switch's structure, dimensions, and installation methods are compatible with European standards, and the complete touch panel design features a unique, easy-to-use interface. The touch-dimmer switch supports 4 separate or overall control zones and 4 scene controls. The group control function is intuitive and concise, and the key touches with a buzzer to remind. The Hoion LED dimmer switch uses a 2.4 GHz wireless control module, which offers a long, non-directional control distance. Can work with Hoion dimming drivers.
Quick Links:
DC12-48V Constant Current RF LED Controller For DIM/CCT/RGB/RGBW
Specifications:
- Working Temperature: -20℃-60℃

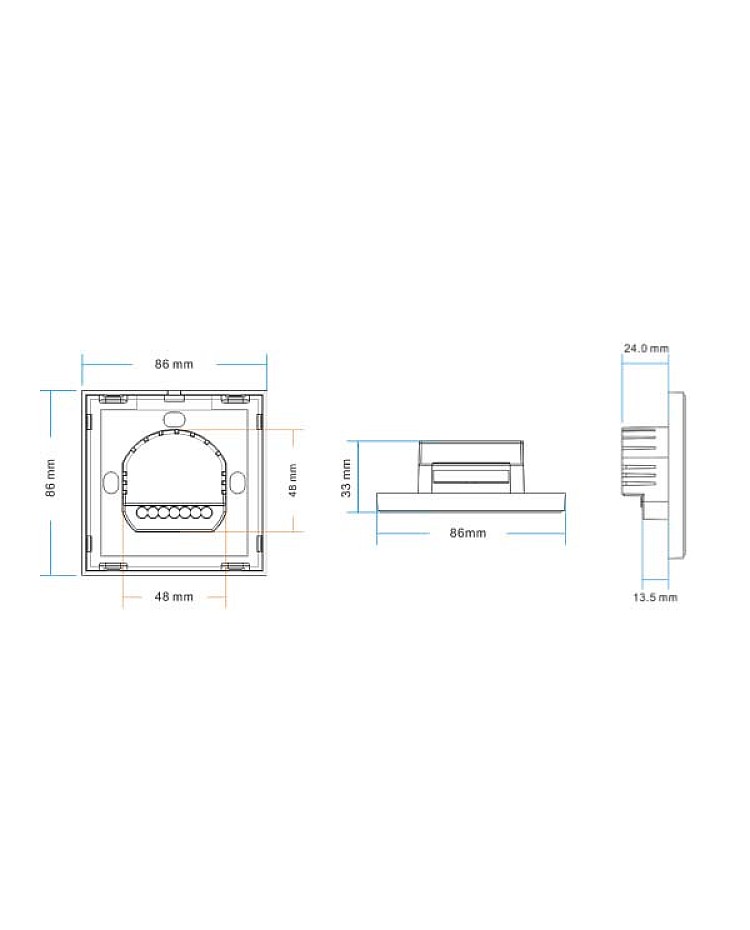

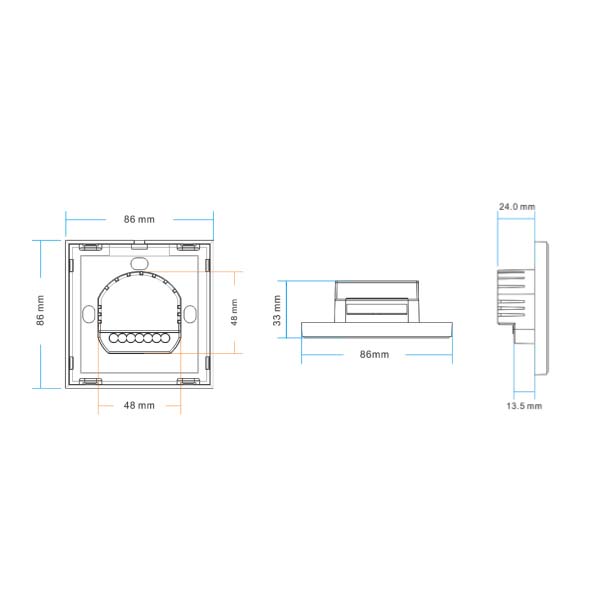

- Size: 86*86*33mm(L*W*H)

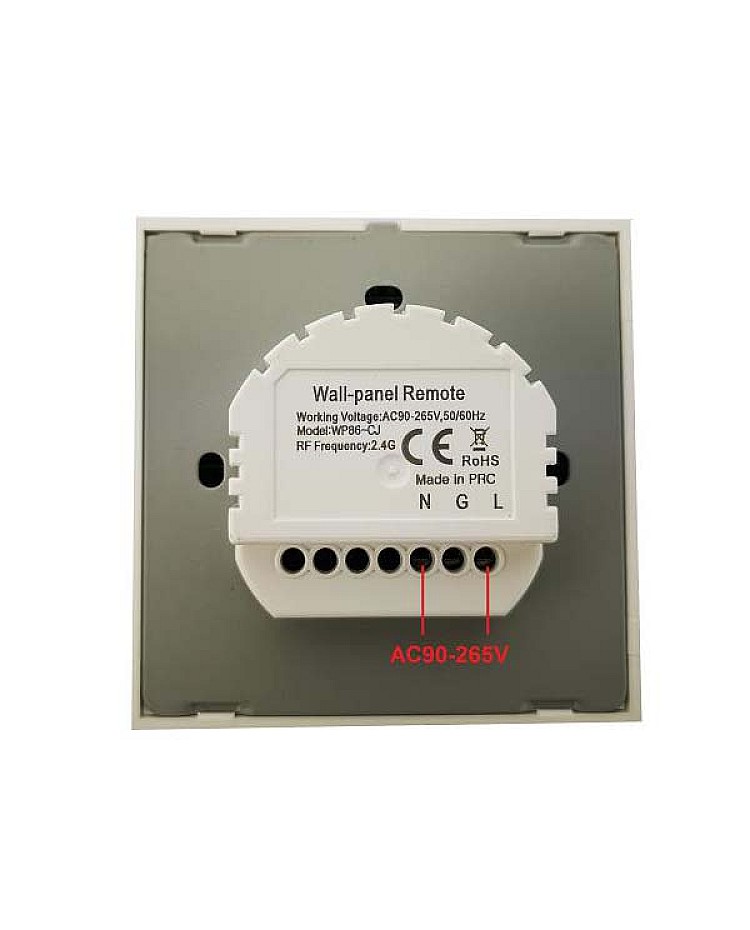

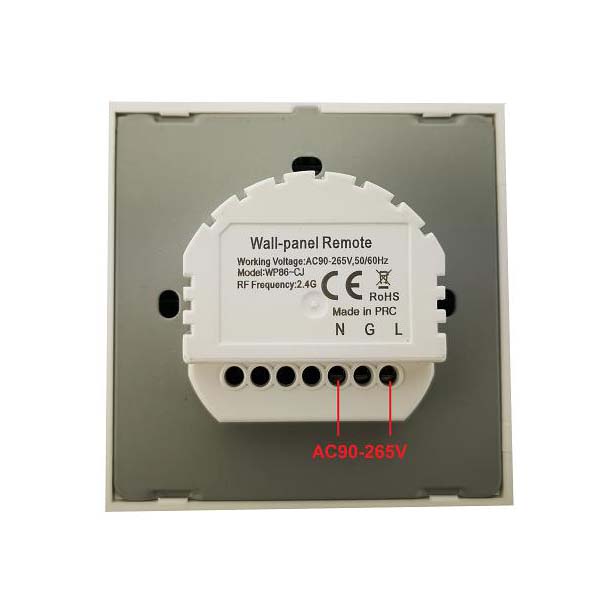

- Working Voltage: AC90-265V(50/60Hz)
- Standby Power: <0.2W
- Working Power: <2W
- Frequency: 2.4GHz
- Remote Control Distance: ≤20m
- Dimming Grade: 1024

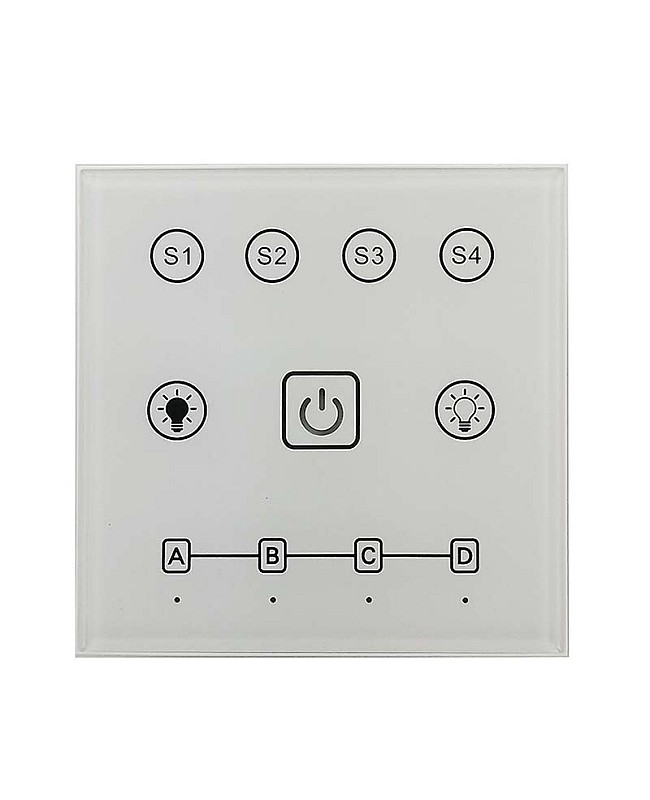

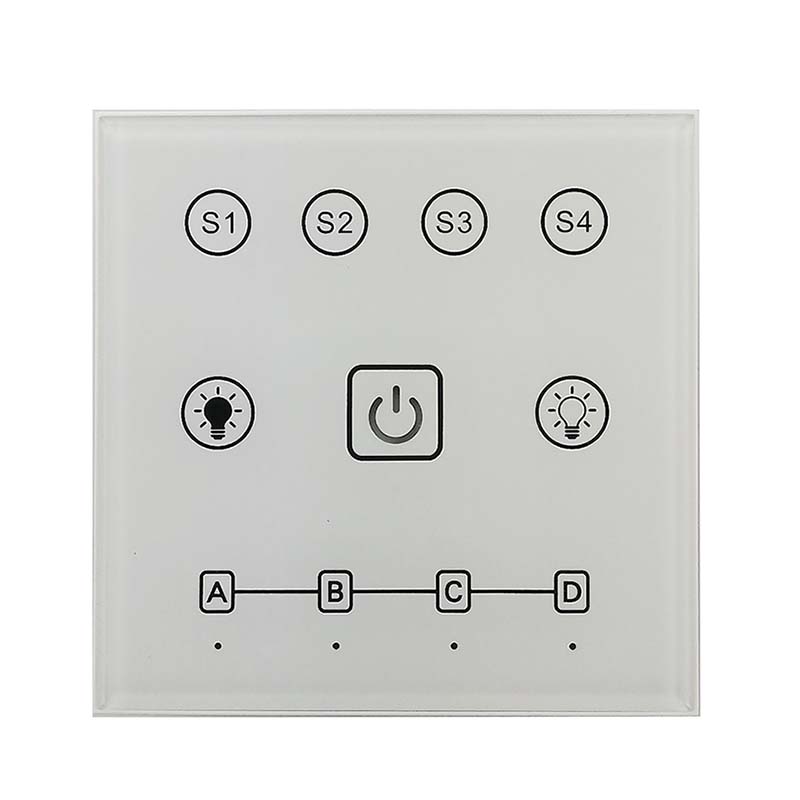

- Full Touch Panel Design, unique Interface

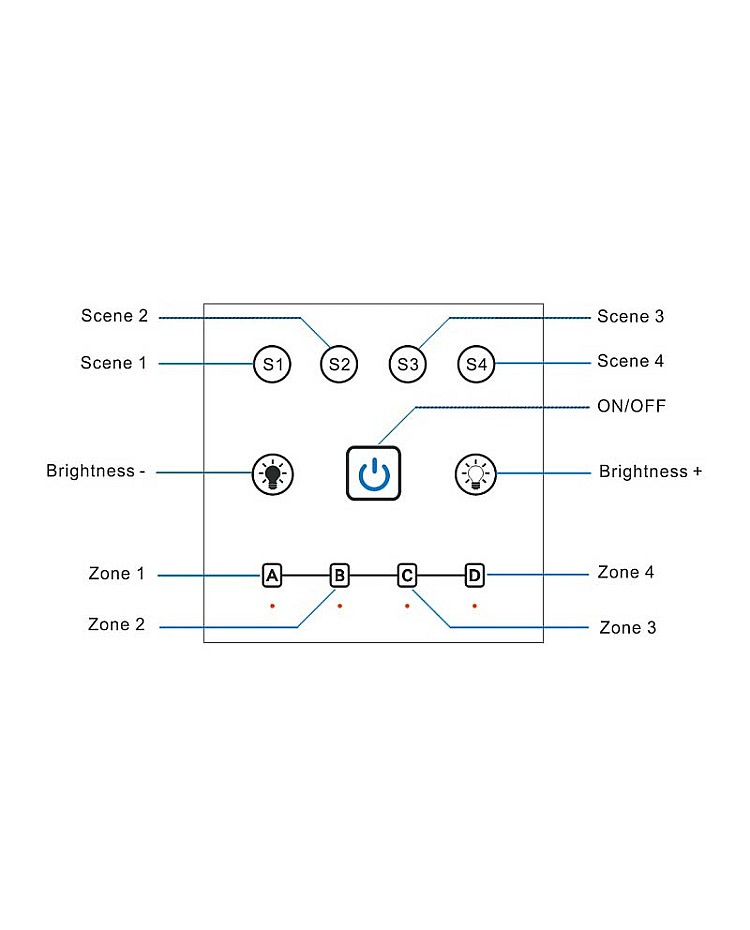

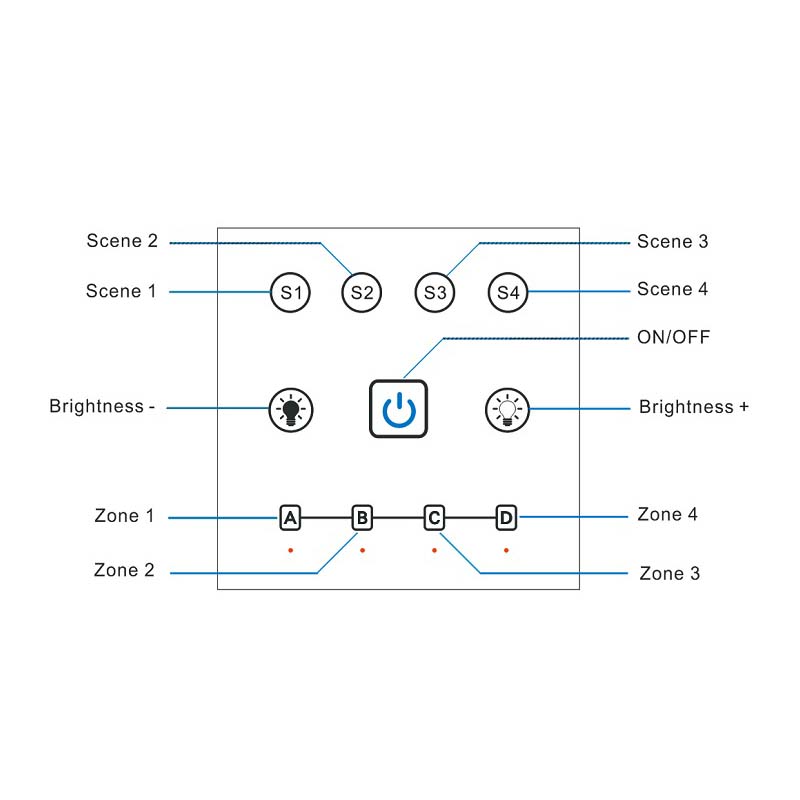

- 4 Zone Separately Control / Overall Control, Support 4 Scenes Control

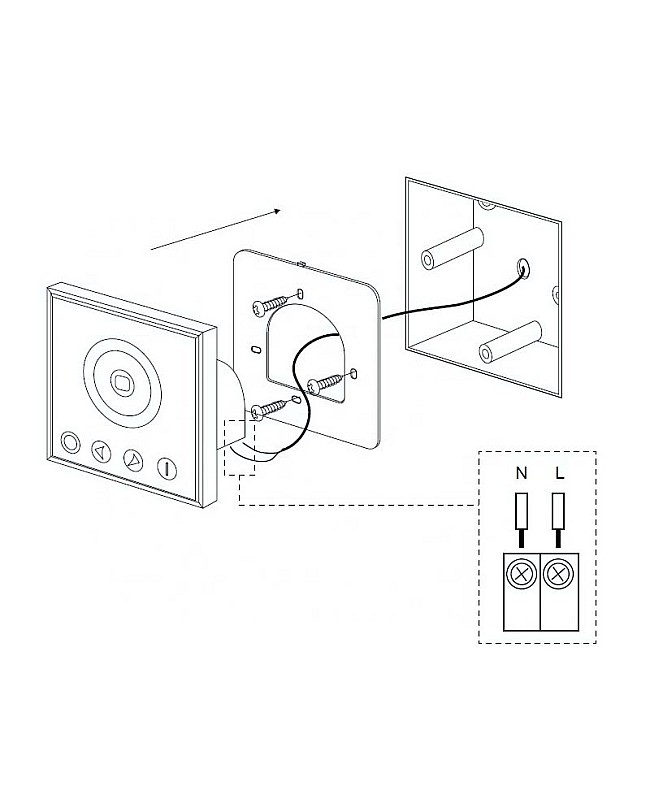

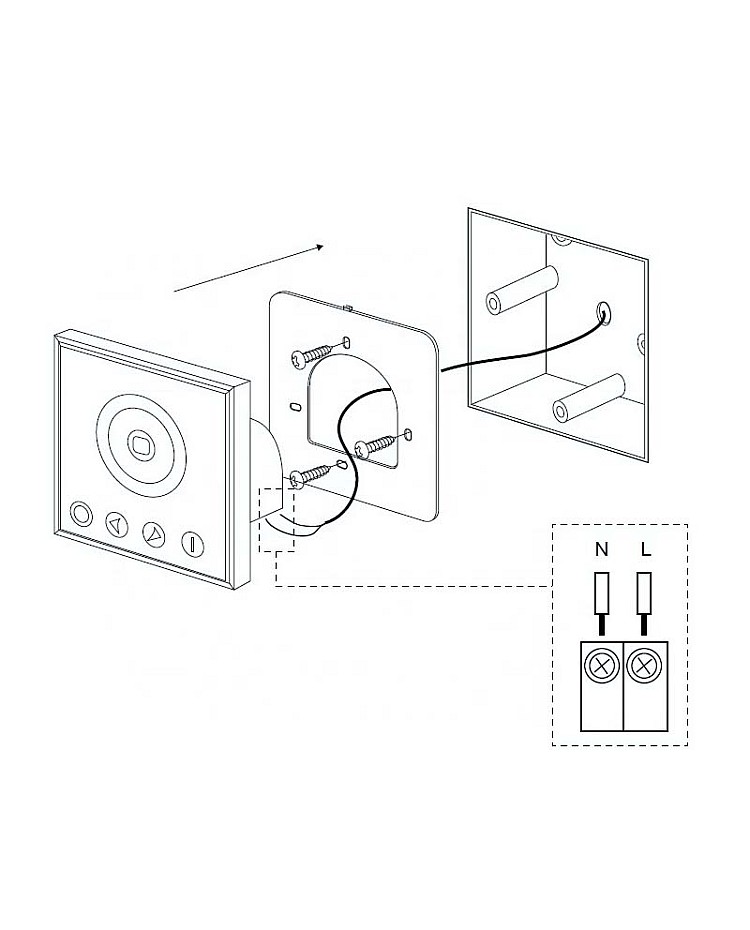

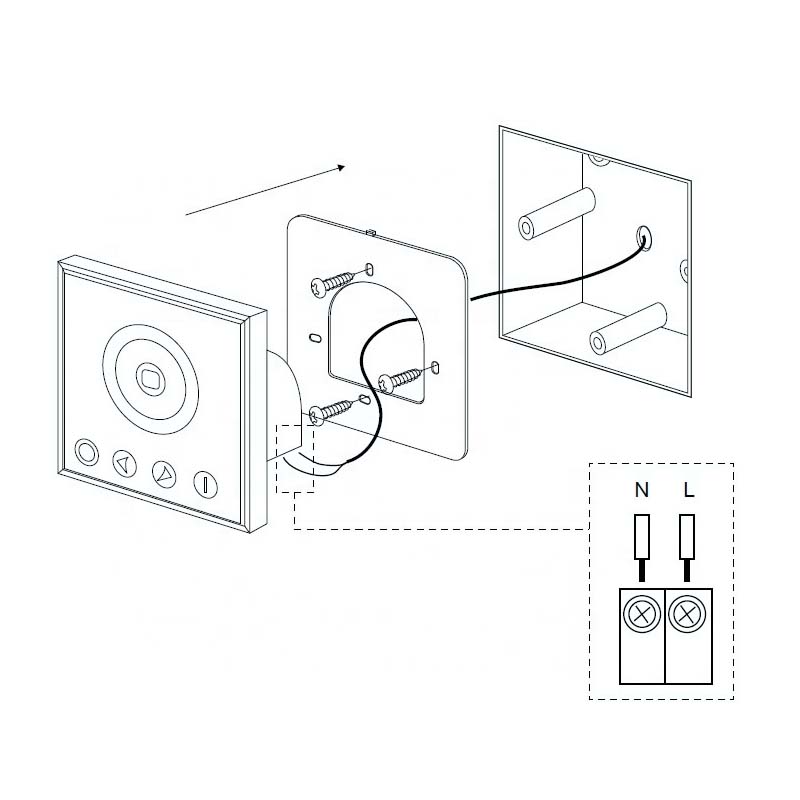

- Structure / Dimension / Installation Methods Are In Line With European Standards
- Compatible With HD/QD/DLC Series Dimming Drivers
- Weight: 170g
- 3 Years Warranty
Includes:
1 * Wall Panel Dimmer Switch For LED Lights
