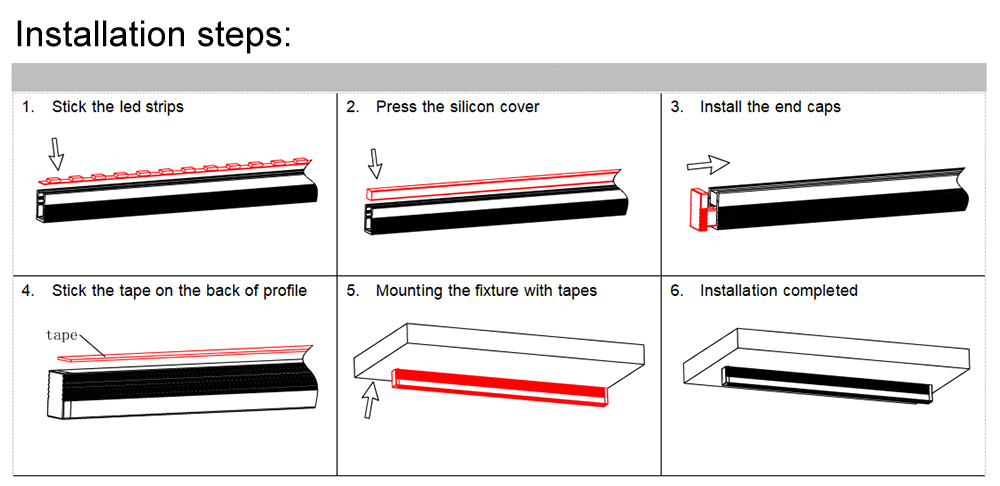

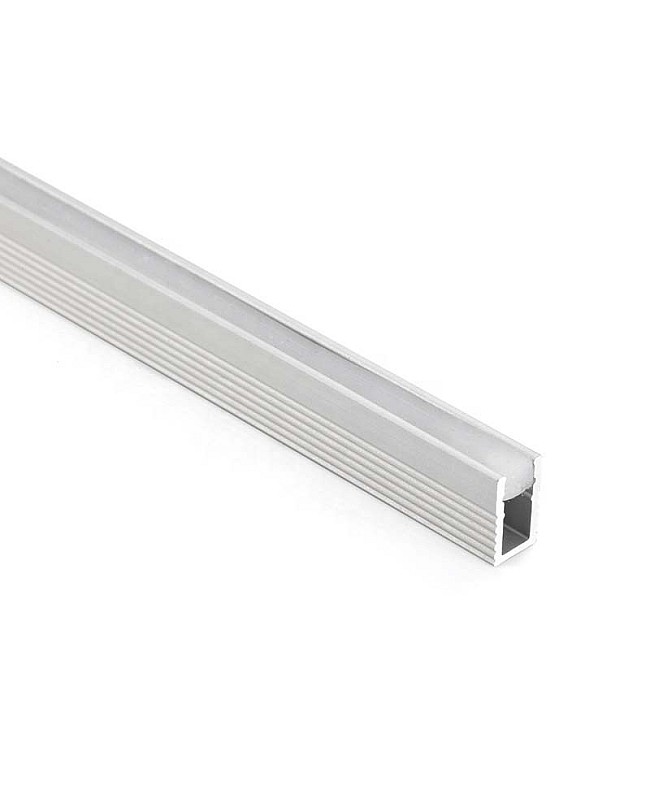

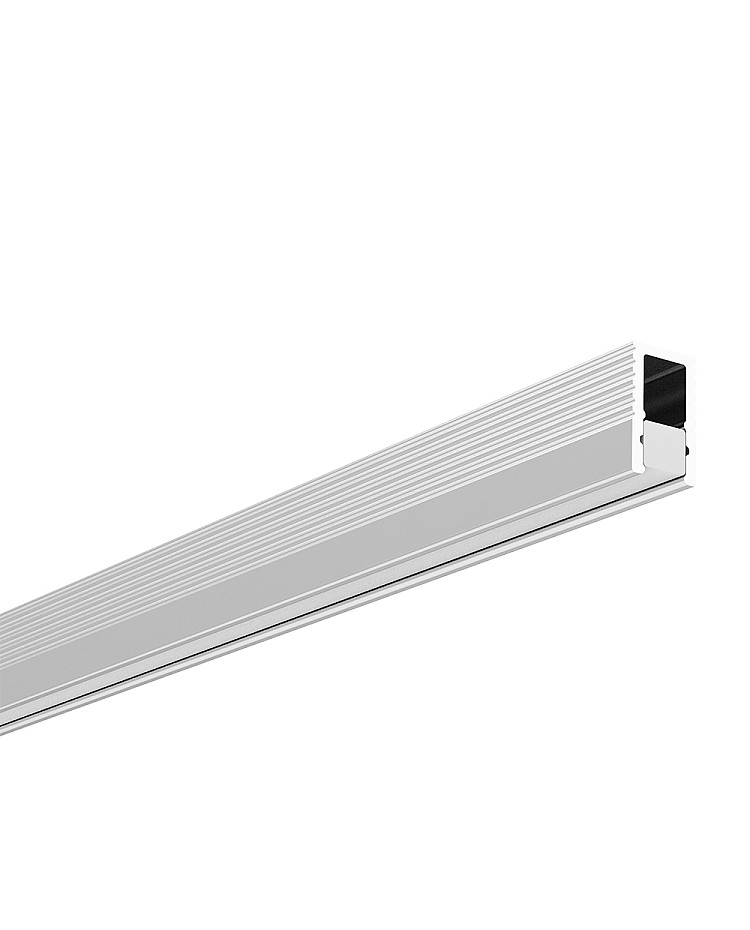

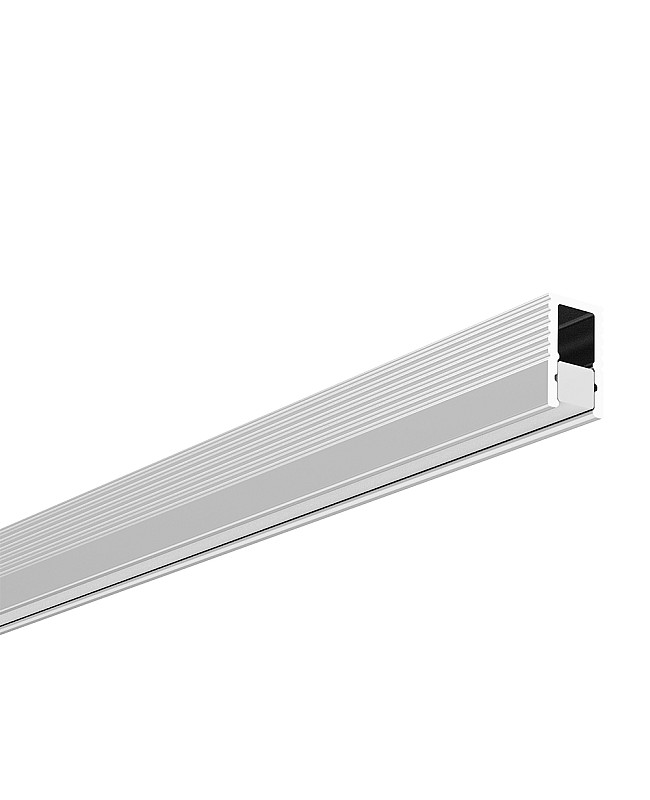

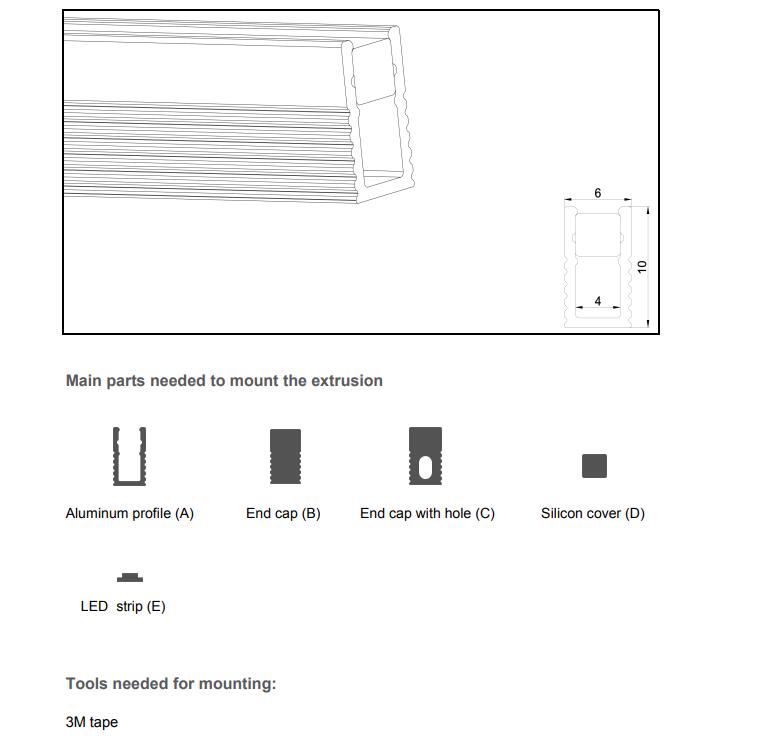

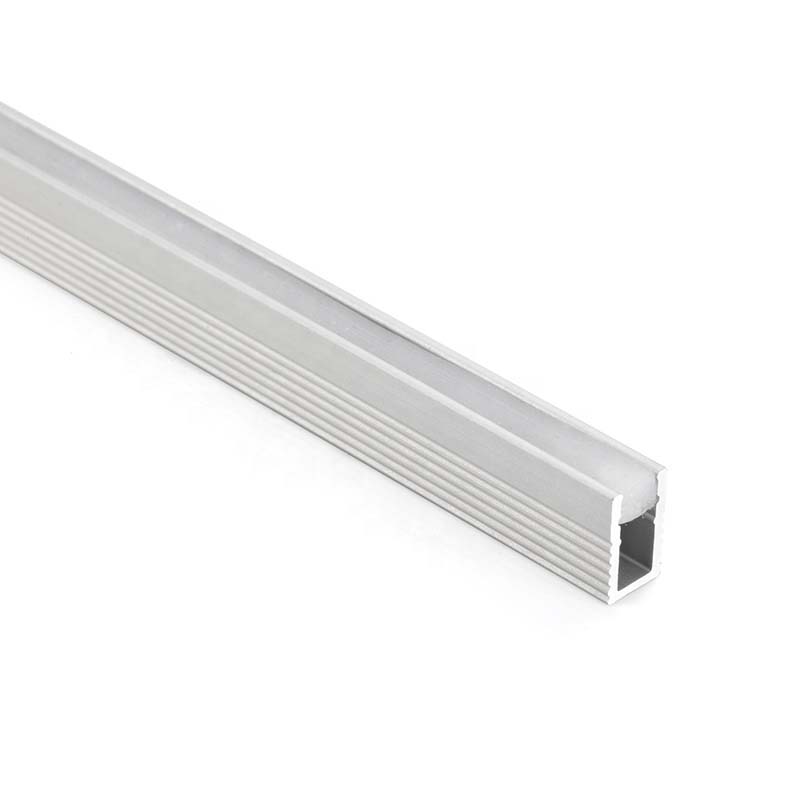

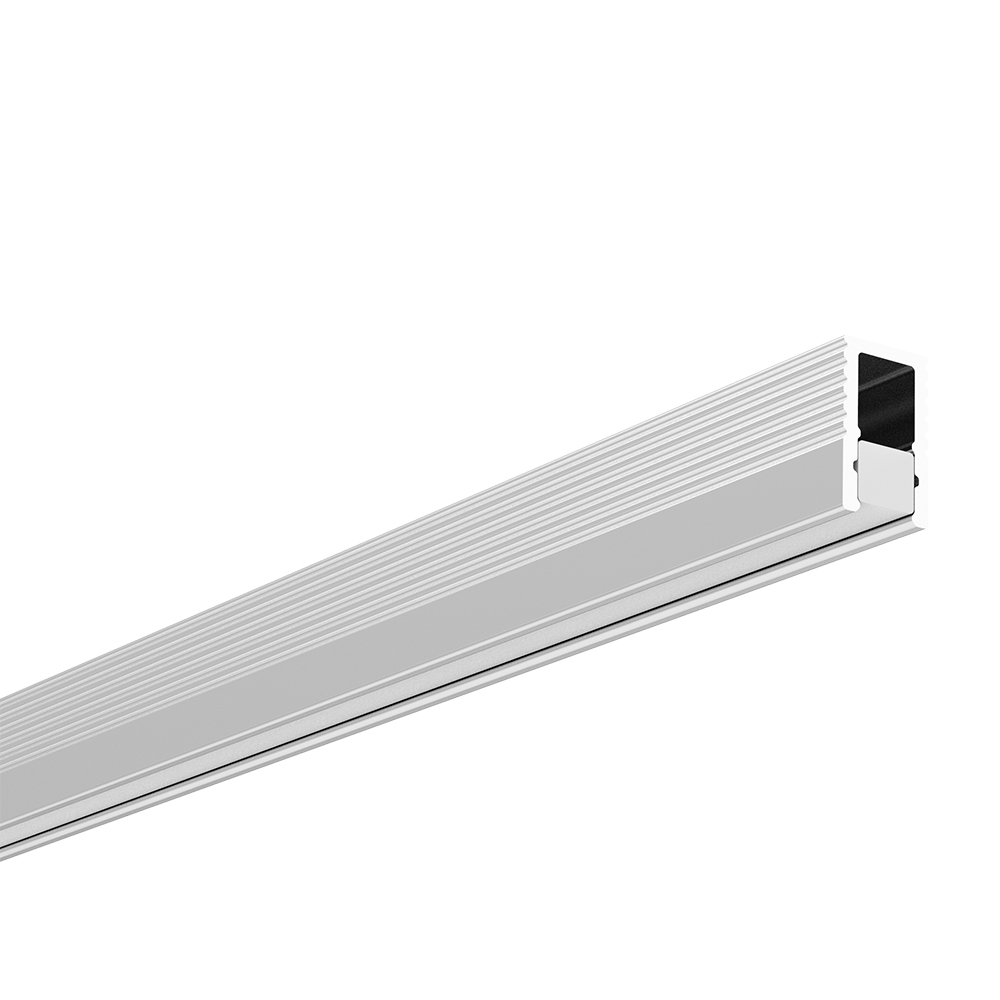

The super slim aluminum profiles are designed for seamless LED shelf lighting applications. Featuring an ultra-low profile design that measures just 10mm in height, with an inner width of only 4mm. They are only 0.24" wide for invisible illumination and install flush against shelf edges or undersides. We recommend adding our 2.7mm or 4mm thin COB LED stripes as the light source, which eliminates hotspots. The silicone cover will diffuse the lighting softly and evenly. The shelf LED profiles are made of 6063-T5 aluminum alloy with an anodized surface treatment and anti-oxidation. The standard lengths are 1 m and 2 m, and they can be cut to any size to fit any space. For installation, you can use double-sided adhesive tape to attach them to shelves or cabinets.
Specifications:

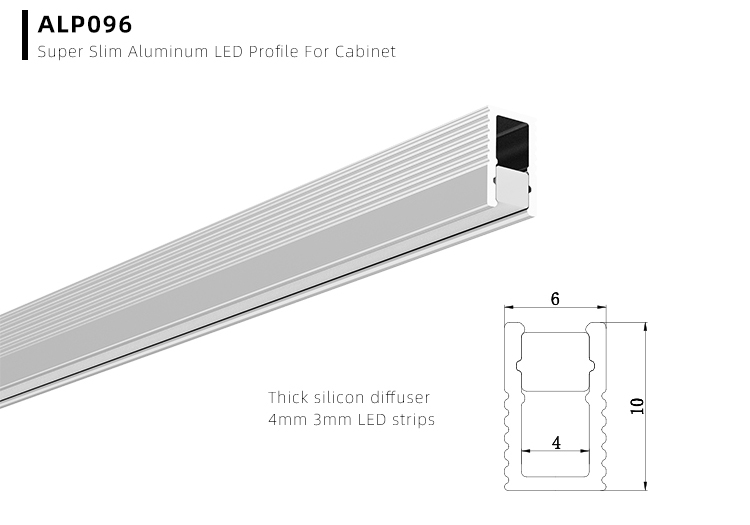

- Model: ALP096
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Color: Silver

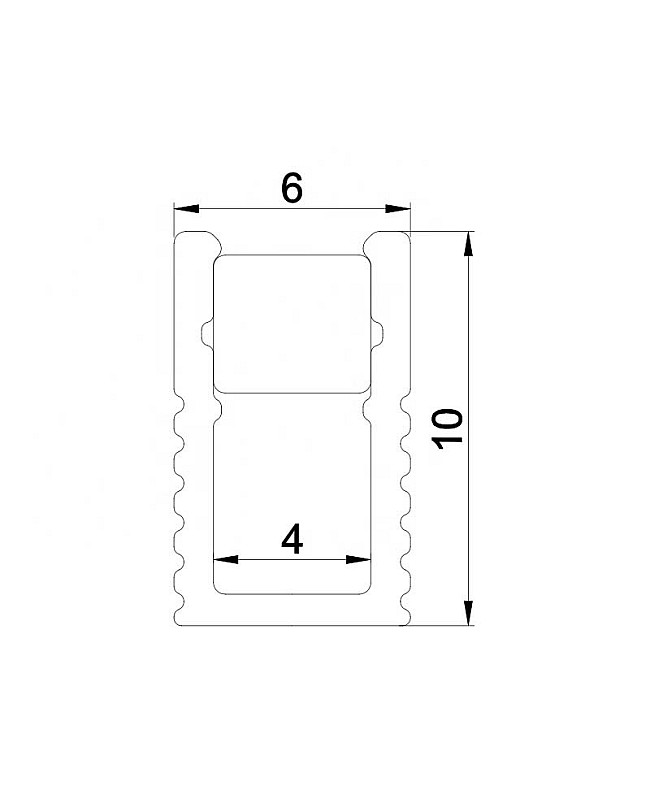

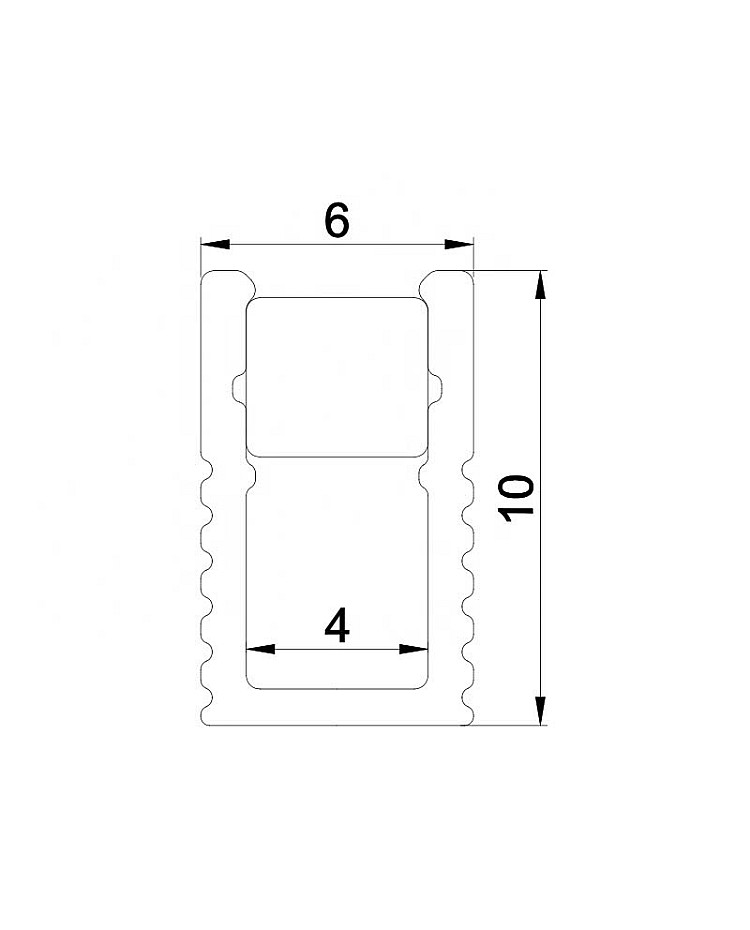

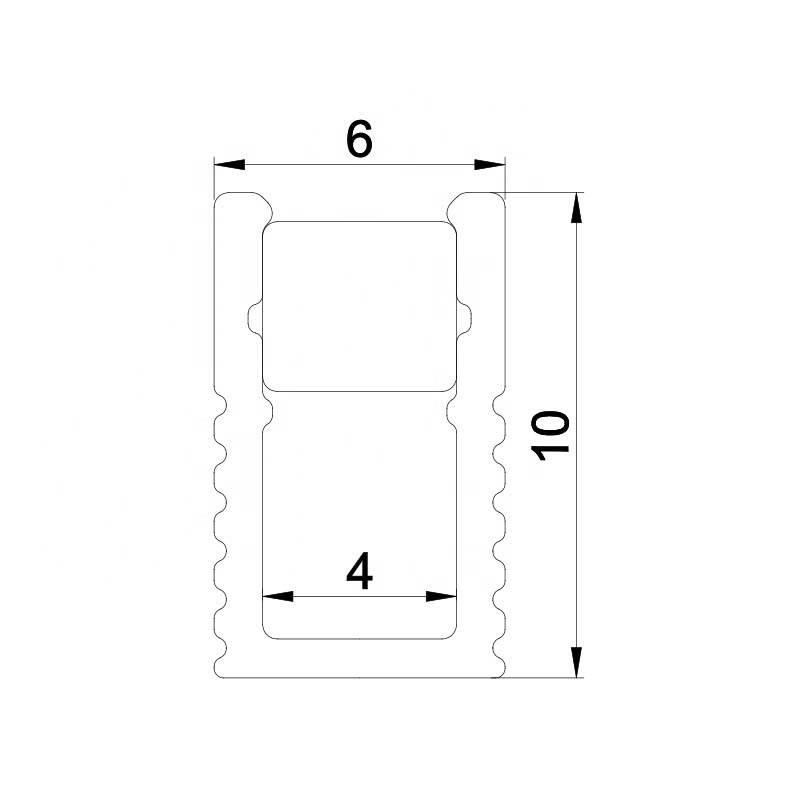

- Size ( W x H ): 10 mm x x6 mm ( 0.39" x 0.24" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 4 mm ( 0.16" )
- Max power: 8W/m
- Diffusers: Silicone cover
- Tolerance: ±1%
- Beam angle: 100°
- IP rate: IP20 non-waterproof
- Installation: Surface-mounted
- Accessories: End caps included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Under-cabinet & bookshelf lighting
- Retail displays & accent lighting
- Furniture & architectural detailing
Includes:
1 * LED shelf light profile

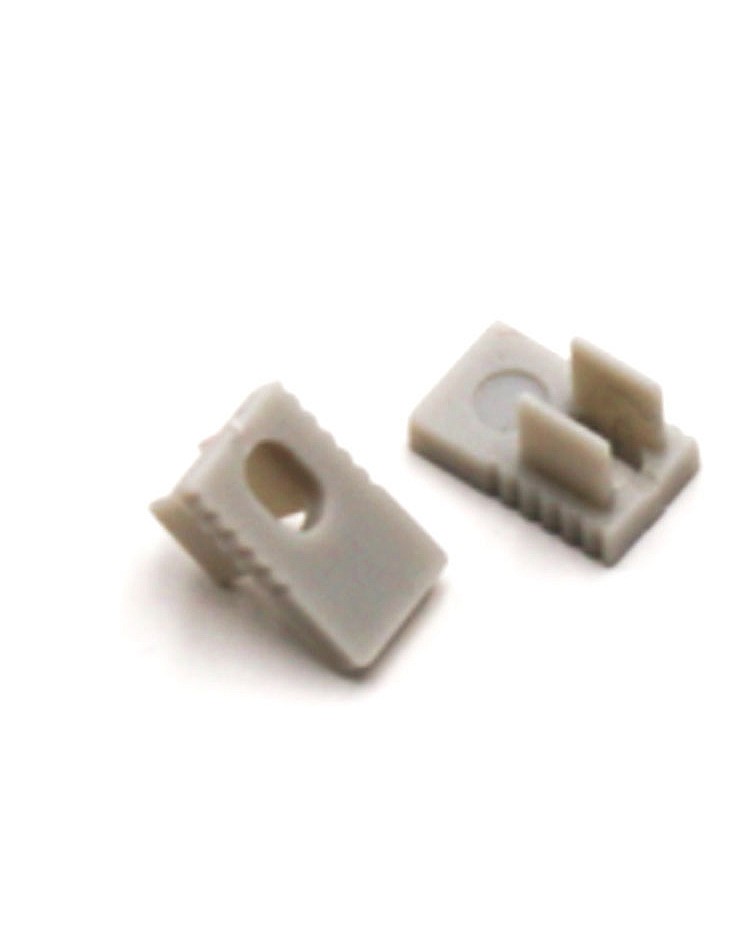

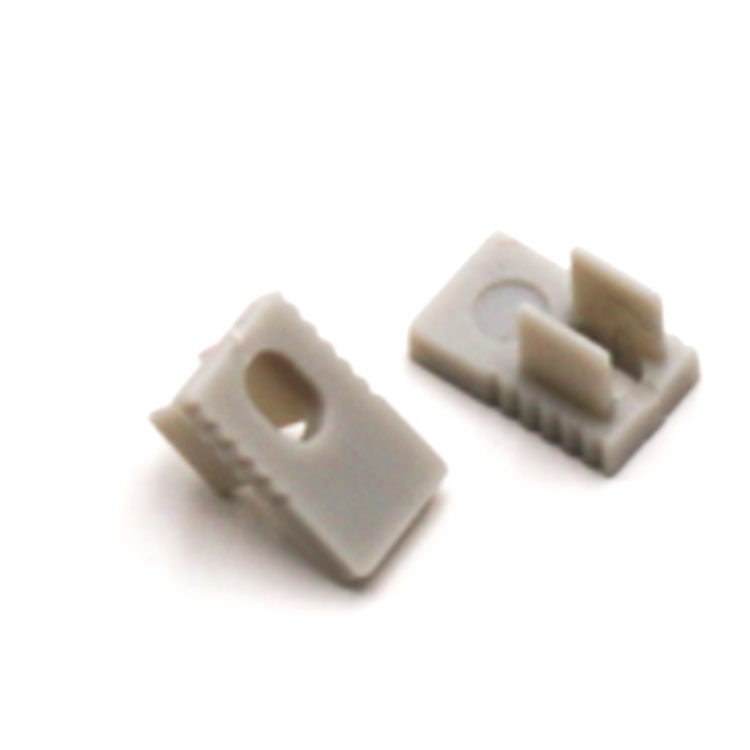

End caps(with and without wire holes)
