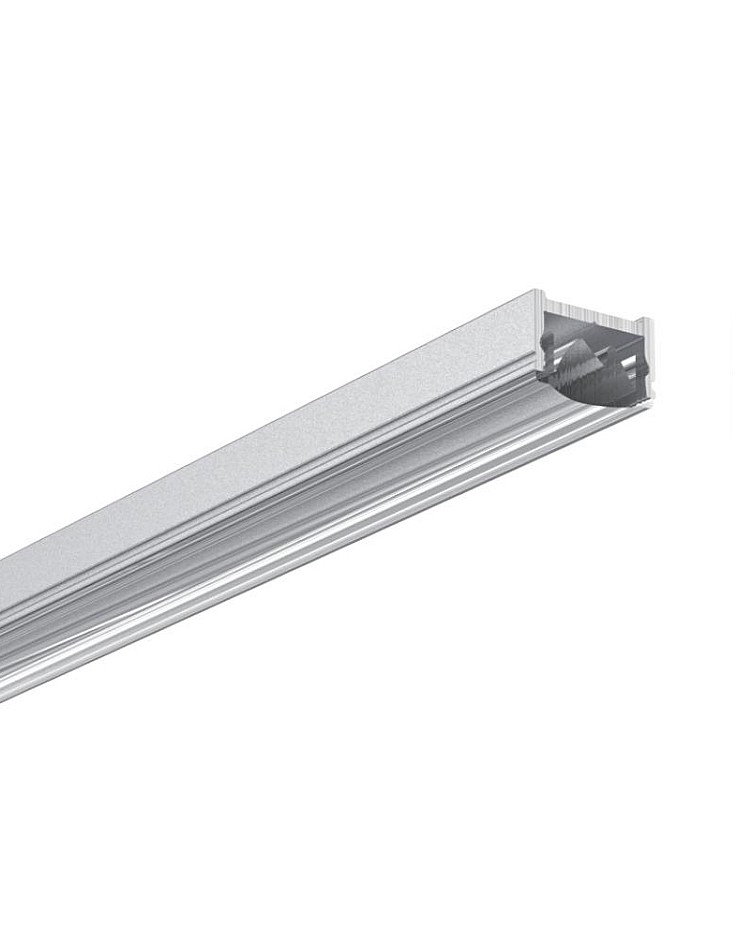

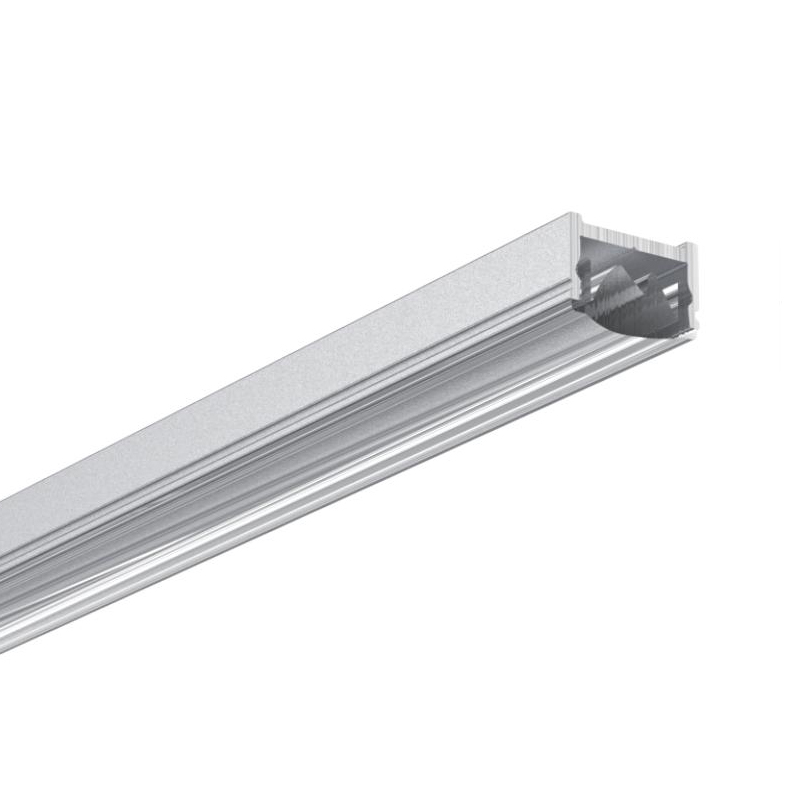

The small LED channels with lenses are designed for under-cabinet lights, offering a sleek, modern appearance. Three optional lenses ensure optimal light distribution, reducing hotspots and glare for a professional, uniform lighting effect. You can use them for undercabinet lighting, or task lighting at shopping counters, on shelves, and more. Three types of LED strip light diffusers are available: asymmetric, 30° PMMA, and 55° PMMA lenses. Those light lenses are made of imported material, are anti-yellowing, and are designed to direct light in a particular direction. Minimizes glare by directing light away from direct view, making it more comfortable for your eyes, and creates a refined, elegant lighting effect that enhances the visual appeal of the space. The standard length is 2.5 m per piece and can be cut to any size to meet your needs. They are made of 6063-T5 extruded aluminum material and feature an anodized surface treatment for enhanced oxidation resistance and a longer lifespan. The inner width is 10.7 mm, allowing for a maximum strip light width of 10 mm. We recommend installing 10mm 24V white COB strip lights as the light source, as they have low power consumption and are free of hotspots and dark areas. The end caps (with or without wire holes) and metal mounting clips are included.
Specifications:

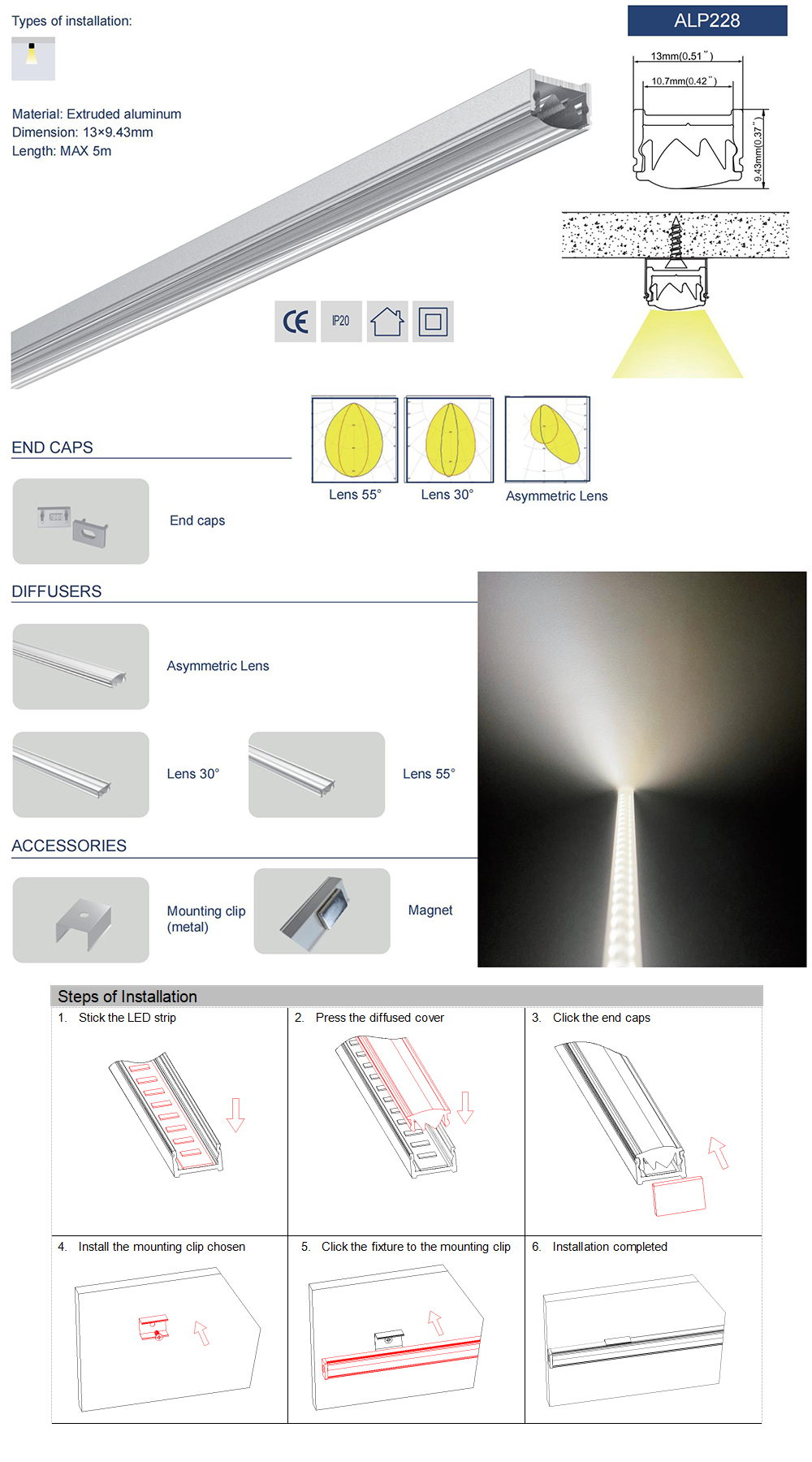

- Model: ALP228

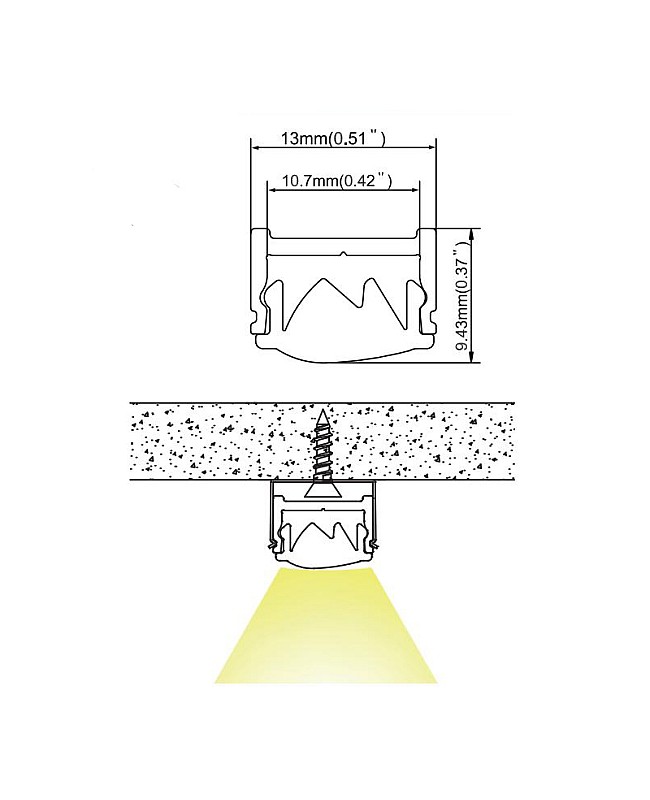

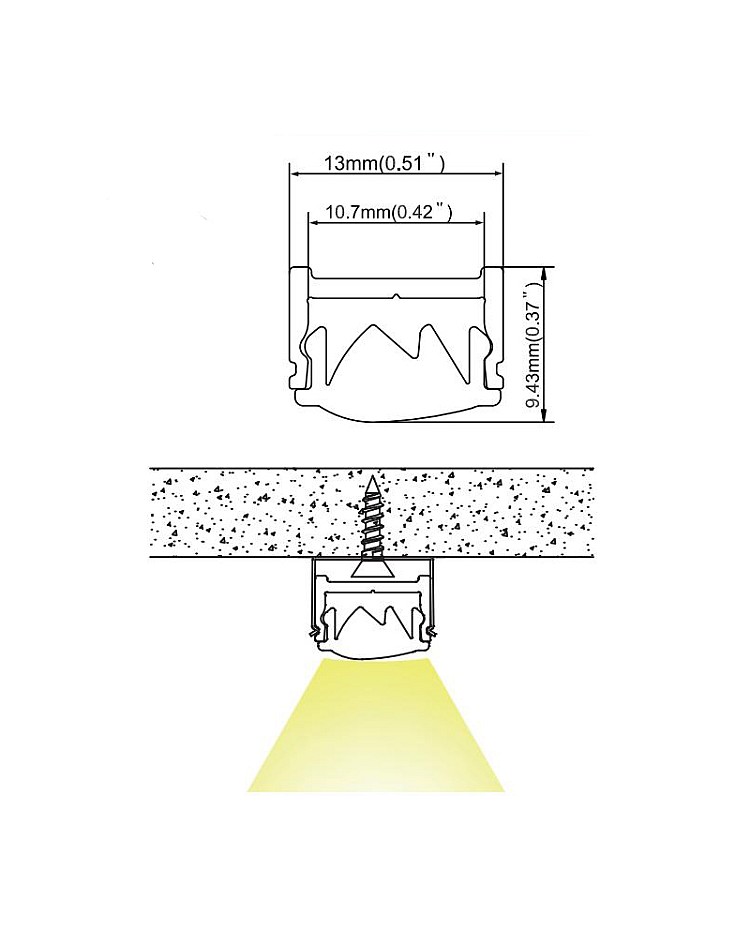

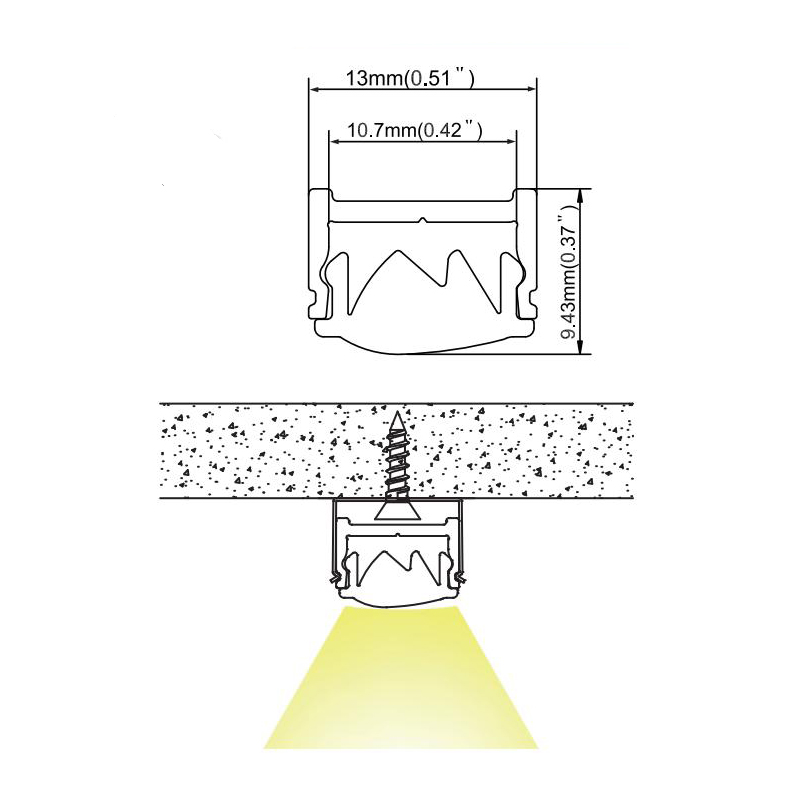

- Size ( W x H ): 13 mm x 9.43 mm ( 0.51" x 0.37" )
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Silver
- Length: 1 m ( 39" ), 2 m ( 78" )
- Custom length: YES
- Inner width: 10.7 mm ( 0.42" )
- Max width of strip lights: 10 mm ( 0.39" )
- Power: 15W/m

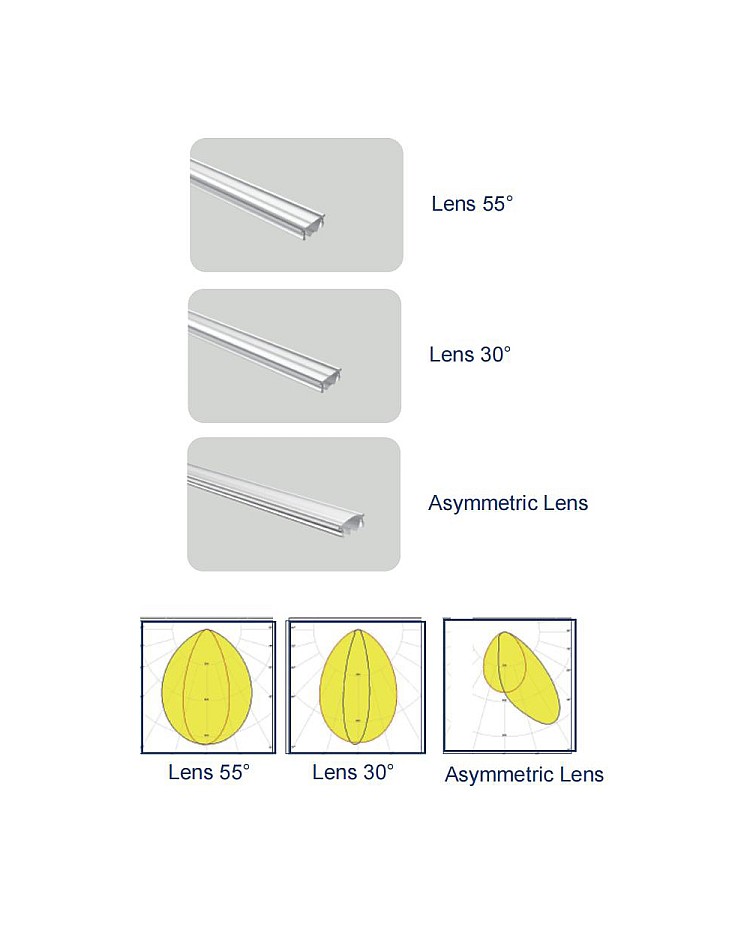

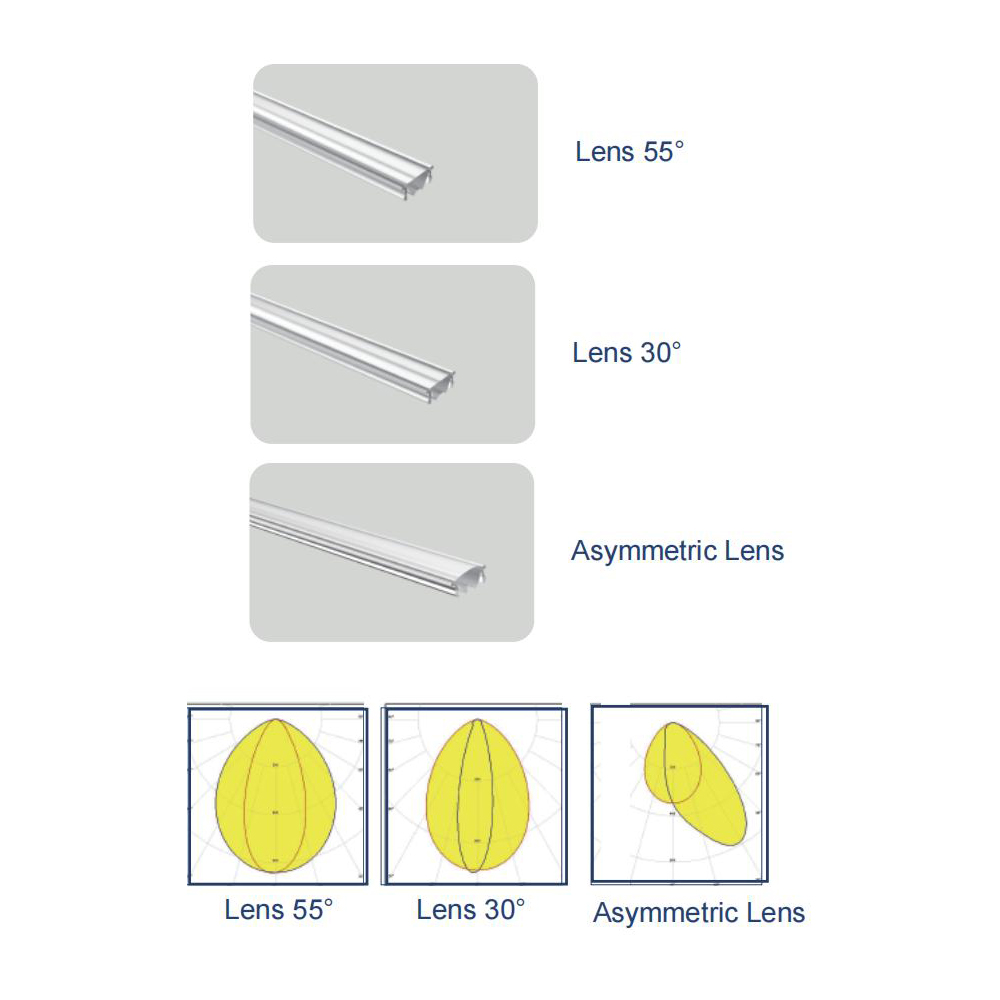

- Lenses available: Asymmetric lens, PMMA 30° lens, PMMA 55° lens
- Beam angle: 100°

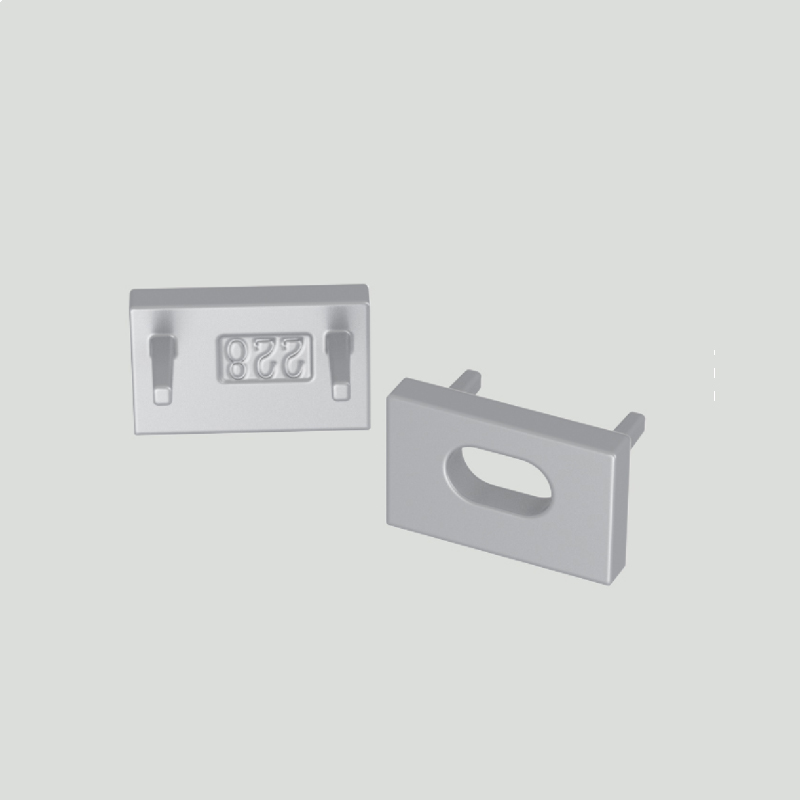

- End caps with/without wire holes included

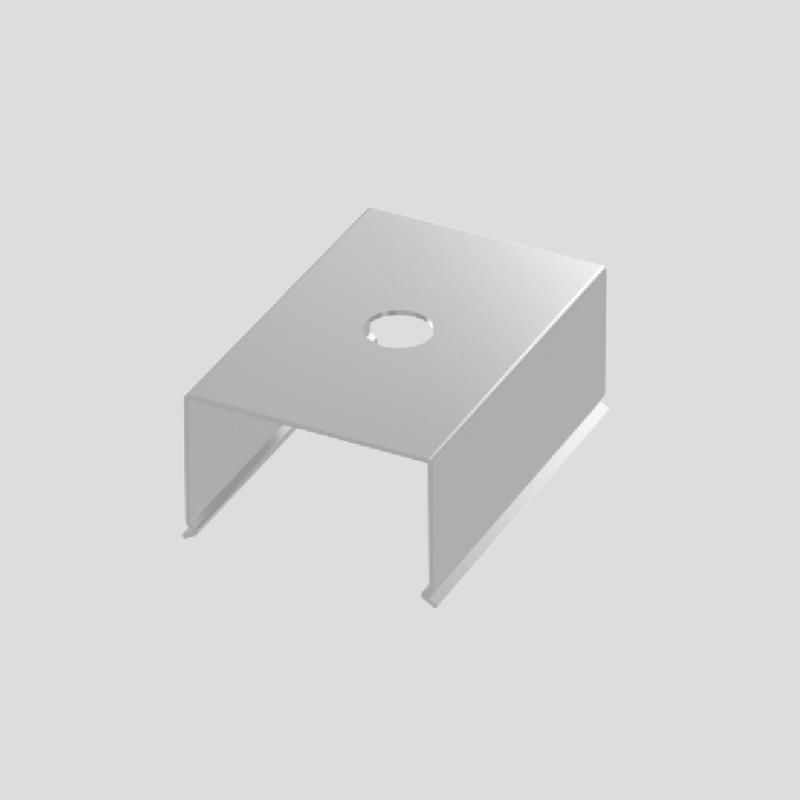

- Metal mounting clips included
- Installation: Surface-mounted
- Application: Undercabinet lighting, etc
- Certifications: CE, ROHS
- Warranty: 5 years
Includes:
1 * LED strip channel with lens

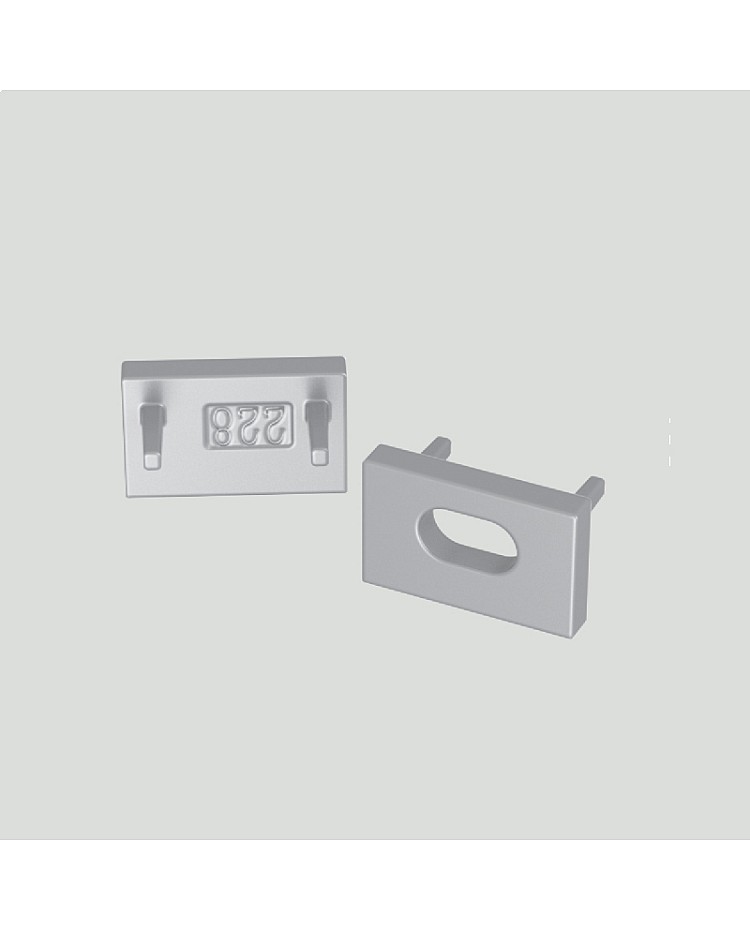

End caps with/Without Wire Hole

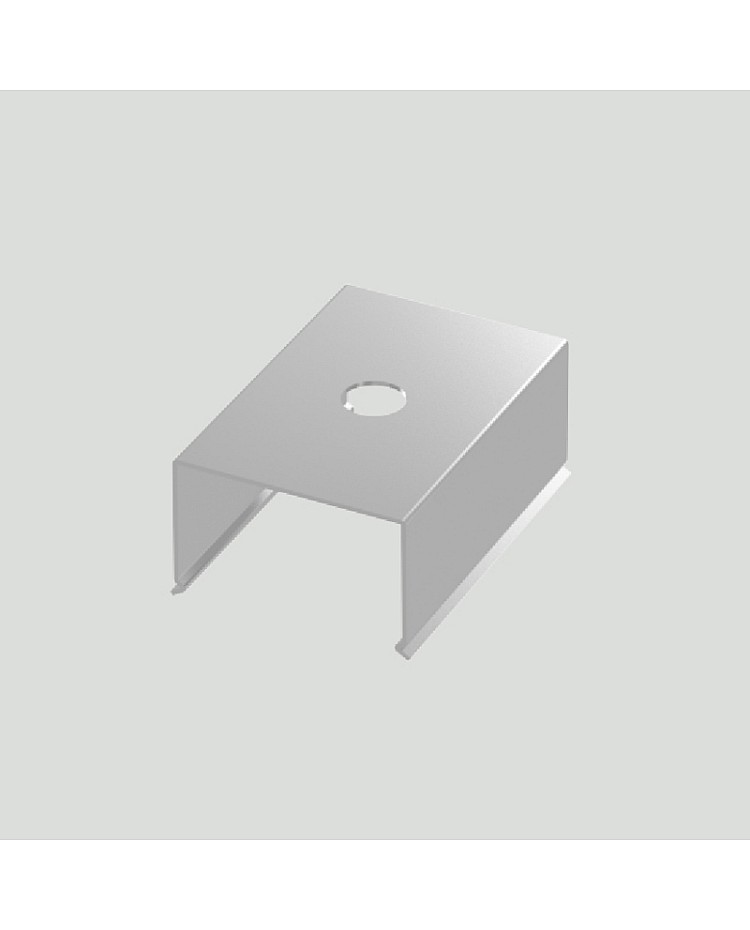

Metal mounting clips
