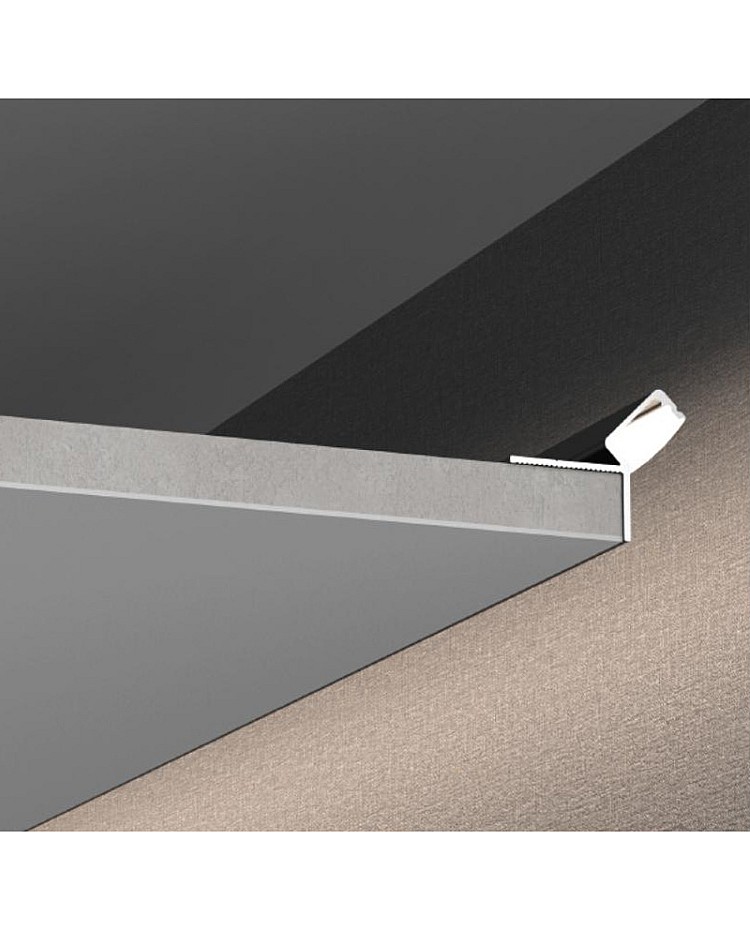

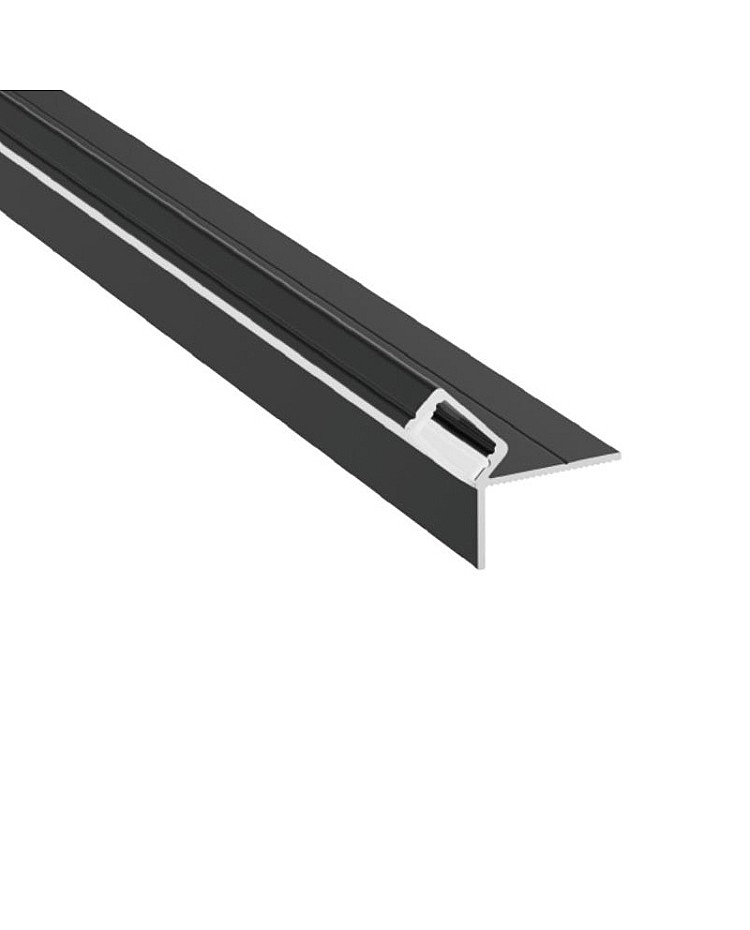

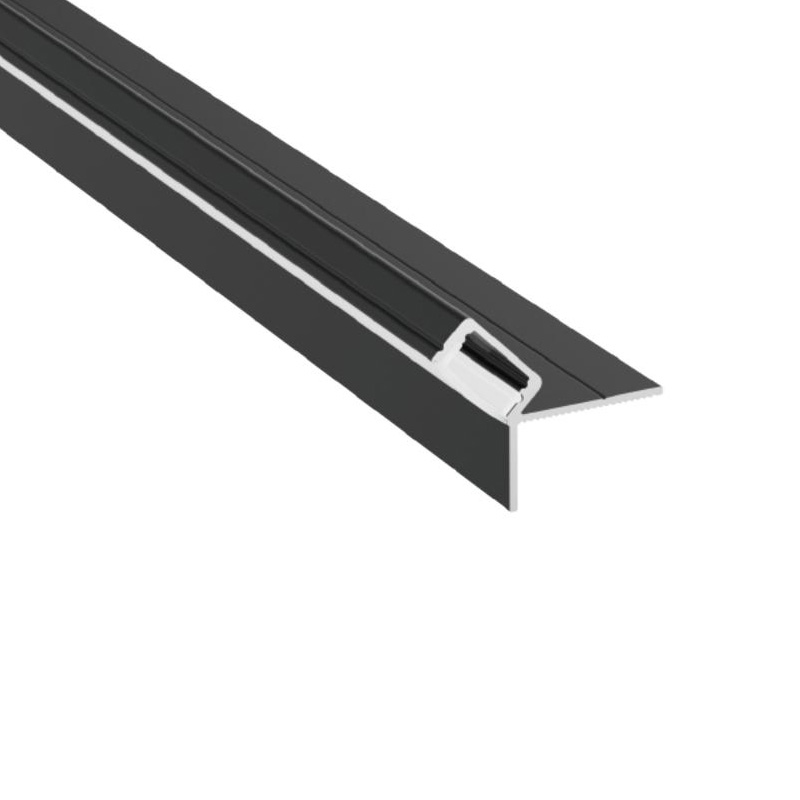

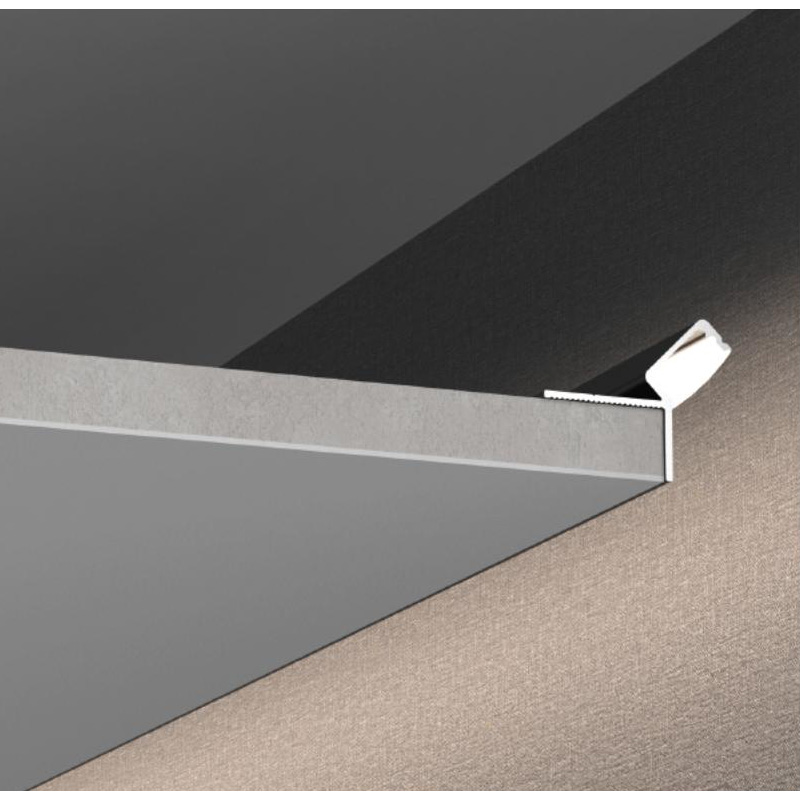

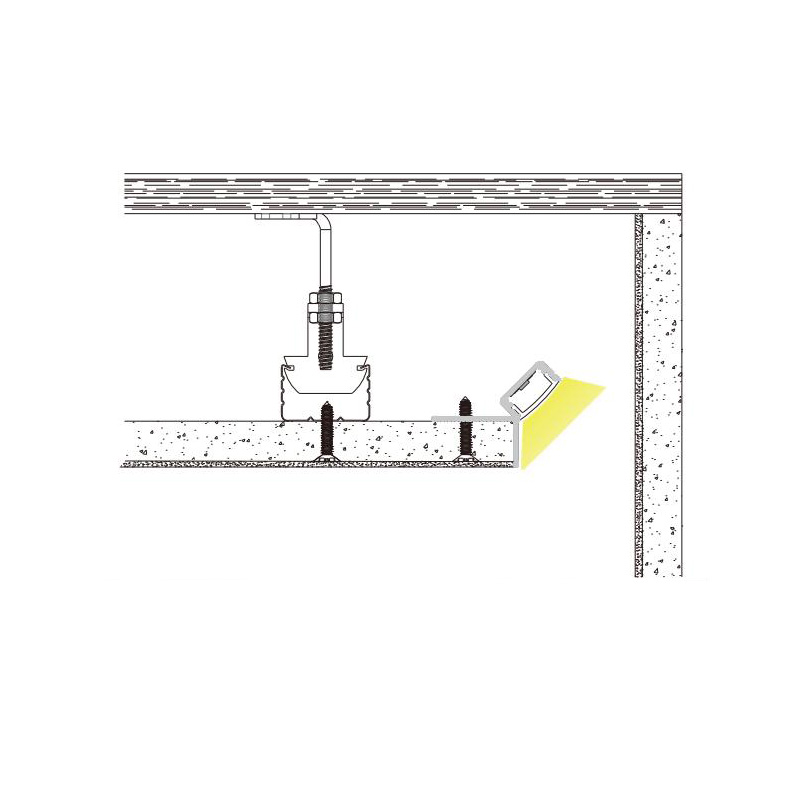

The black aluminum channels are designed for 12.5mm plasterboard and can be easily installed on false, coffered, or tray ceilings. They have a 45° inclined lighting design toward the walls, creating a soft, diffused glow that minimizes harsh shadows. They are ideal for cove or perimeter lighting to enrich the interior design of your rooms.
The ALP206 channels are made of 6063-T5 extruded aluminum with anodized surface treatment for anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and they can be cut to any length to suit your needs. The inner width is 12.3 mm, allowing a maximum LED light width of 12 mm. Recommend adding high-density SMD or COB LED tapes for uniform distribution without visible light dots or dark areas. The black channels will house and conceal the LED strips and serve as heat sinks to improve heat dissipation.
Two types of diffusers are available: PC diffused and PC semi-clear covers. They are made of brand material, anti-yellowing, and have perfect light distribution.

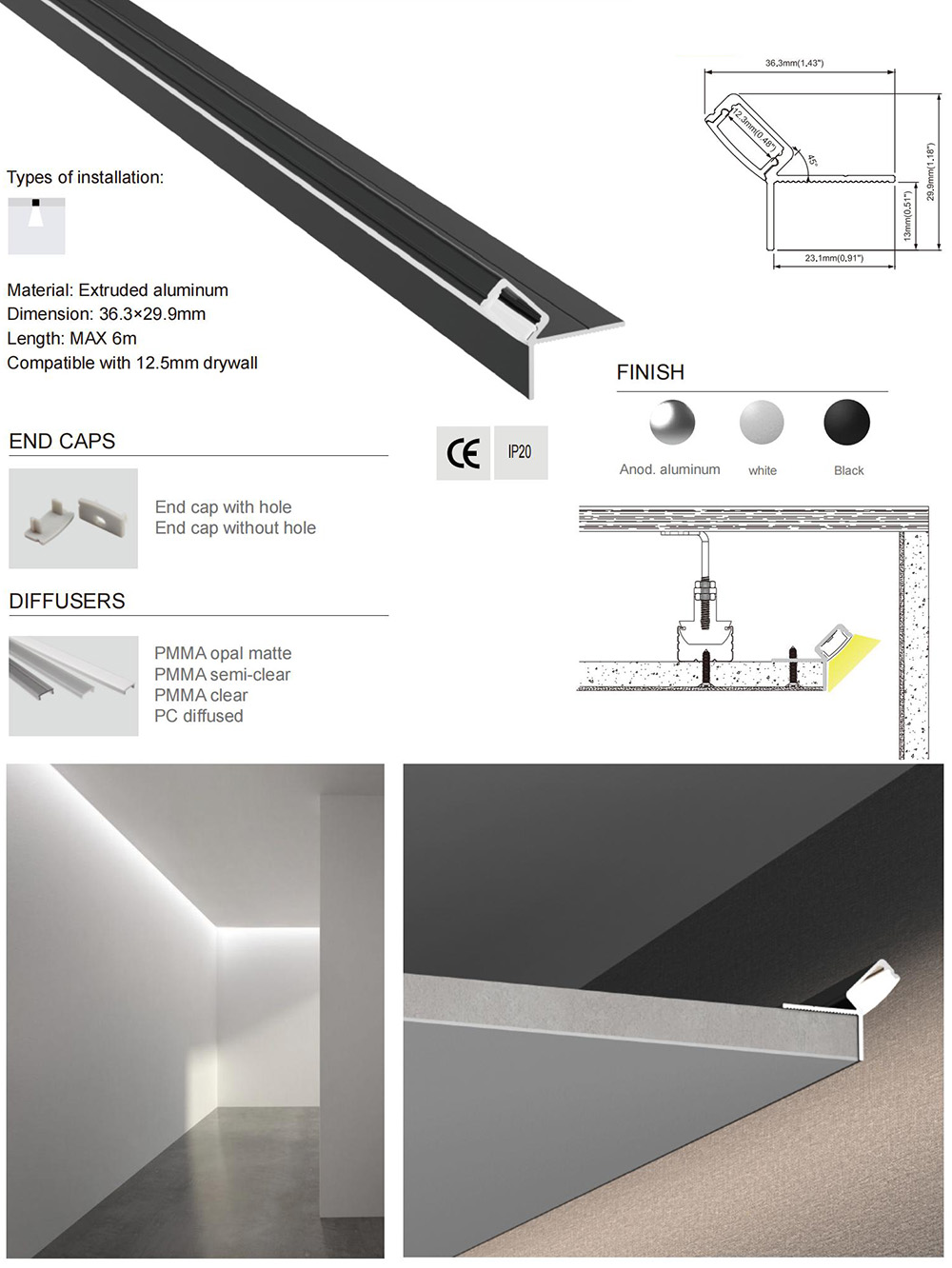

Specifications:
- Model: ALP206
- Material: Extruded aluminum
- Surface Treatment: Anodized
- Colors: Black

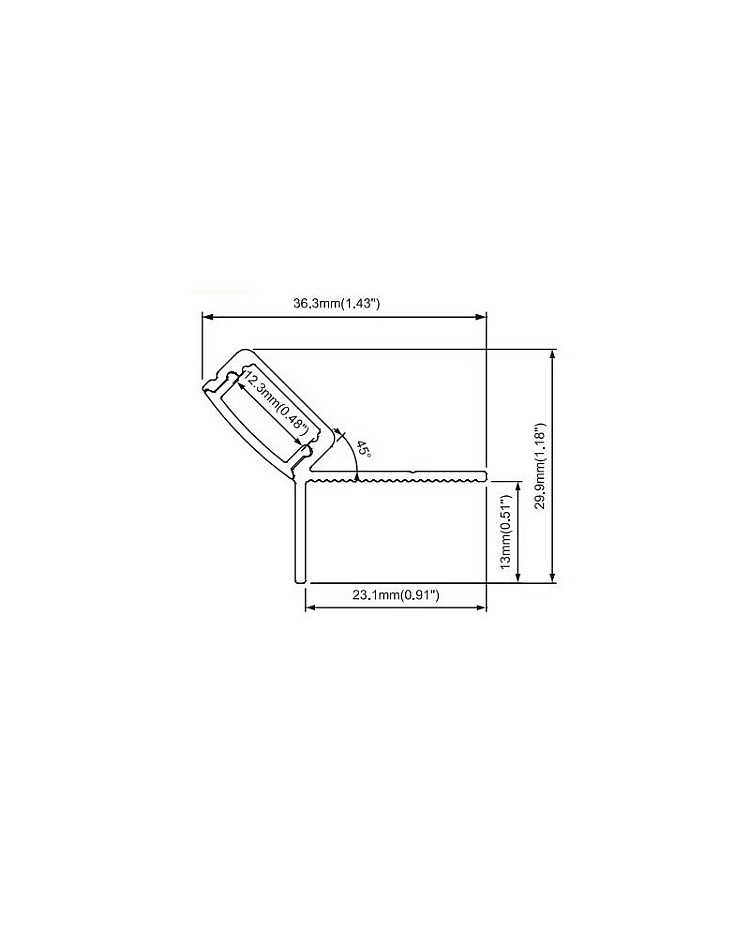

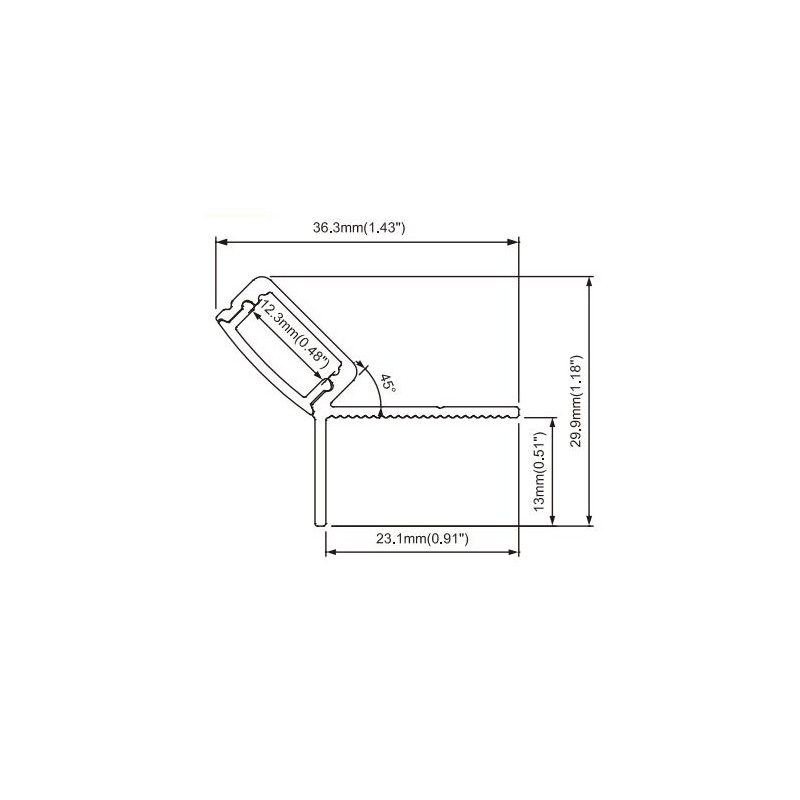

- Size(W*H): 36.3*29.9mm / 0.91" * 1.18"
- Length: 1 M / 2 M
- Custom Length: YES
- Inner Width: 12.3mm / 0.48"
- Allows the max width of strip light to be 12mm / 0.47"
- Diffusers: PC diffused / PC semi-clear covers

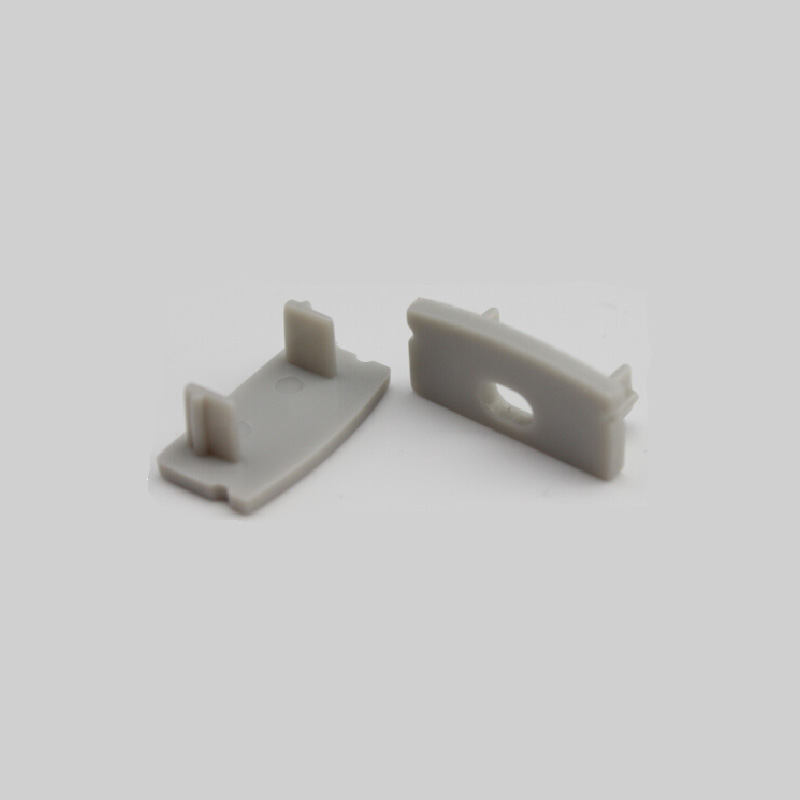

- End caps with/without wire holes included
- IP Rate: IP20 non-waterproof
- Tolerance: ±1%

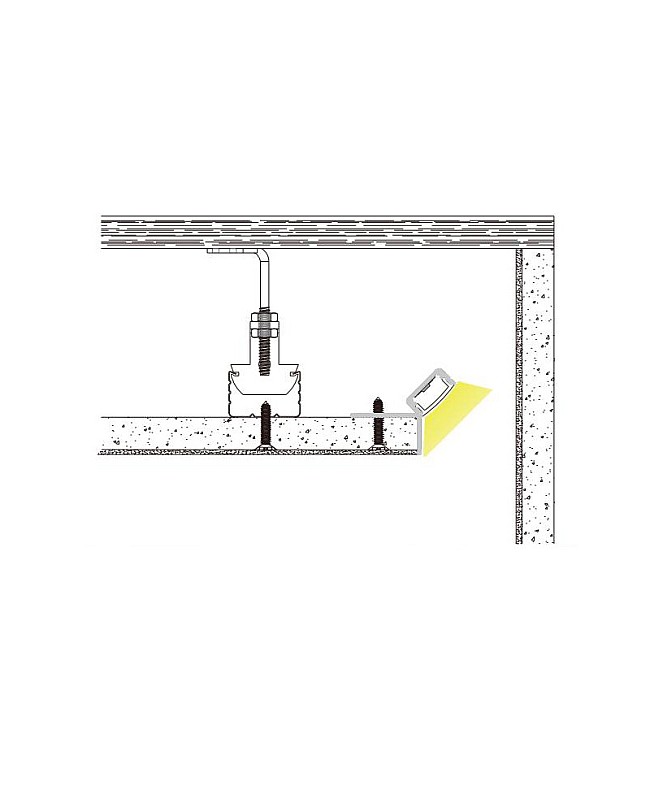

- Installation: Surface-mounted

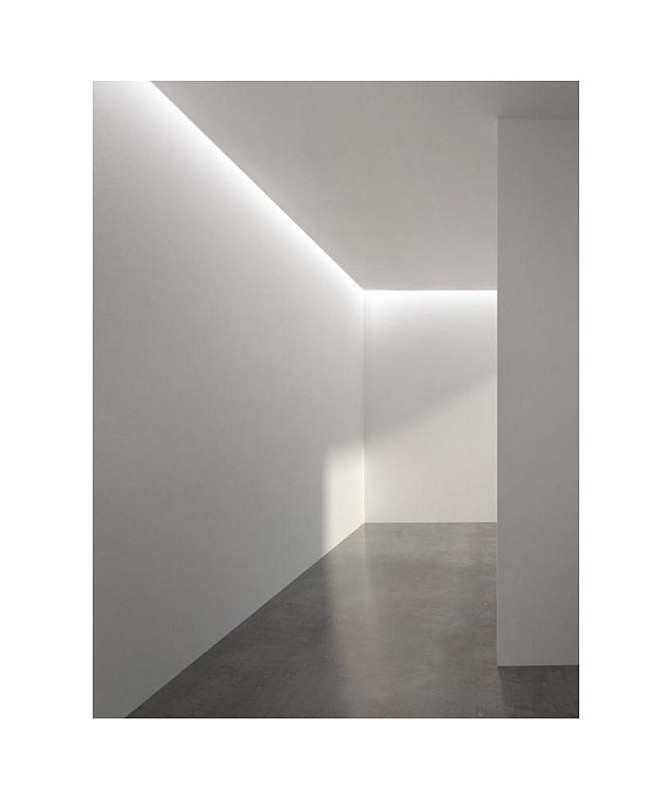

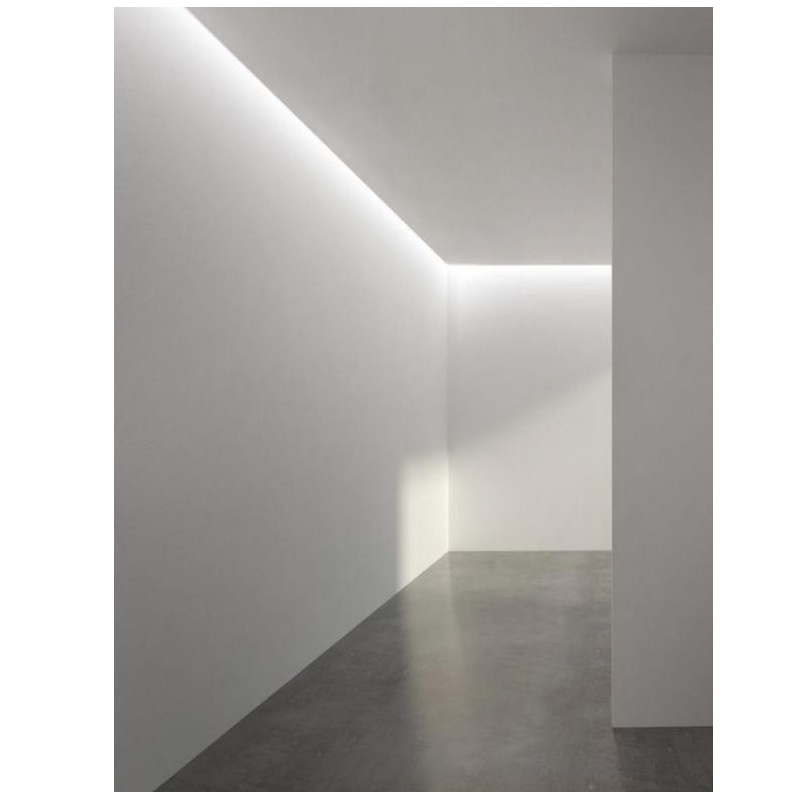

- Applications: Cove or perimeter lighting on false/coffered/tray ceilings, etc
- Certifications: CE, ROHS
- 5 Years Warranty
Includes:
1 * Cove Lighting Channel With Cover

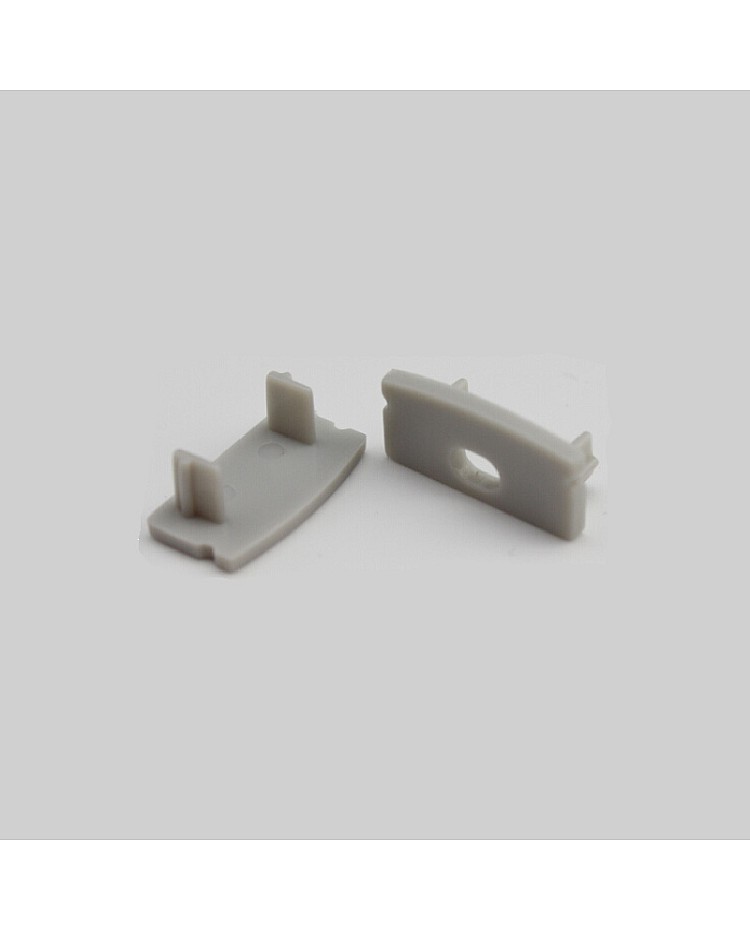

End Caps(With / Without Wire Hole)
