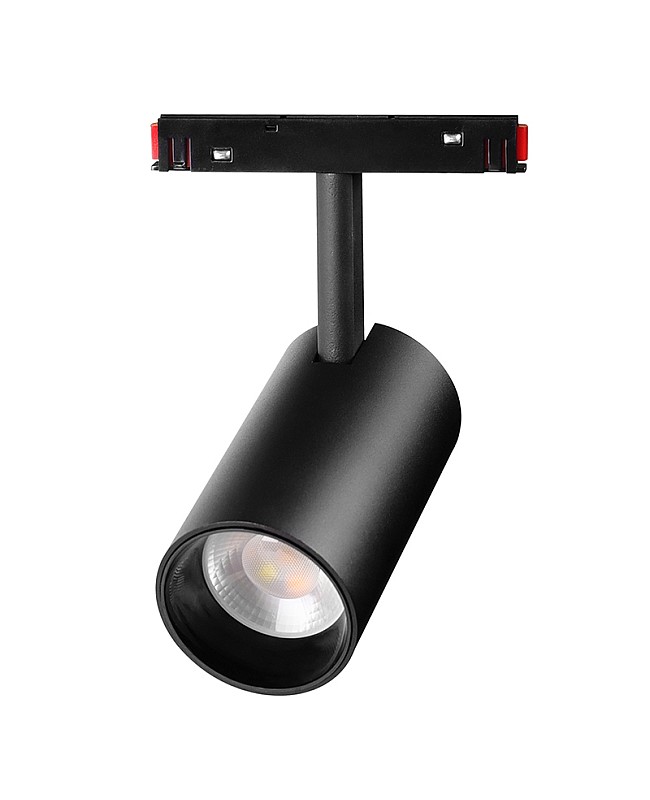

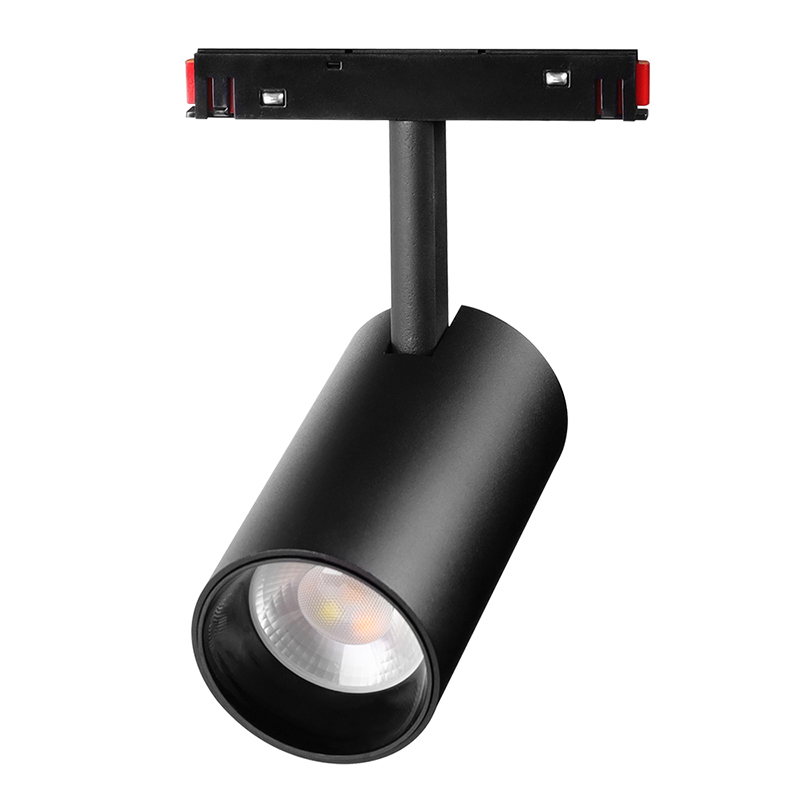

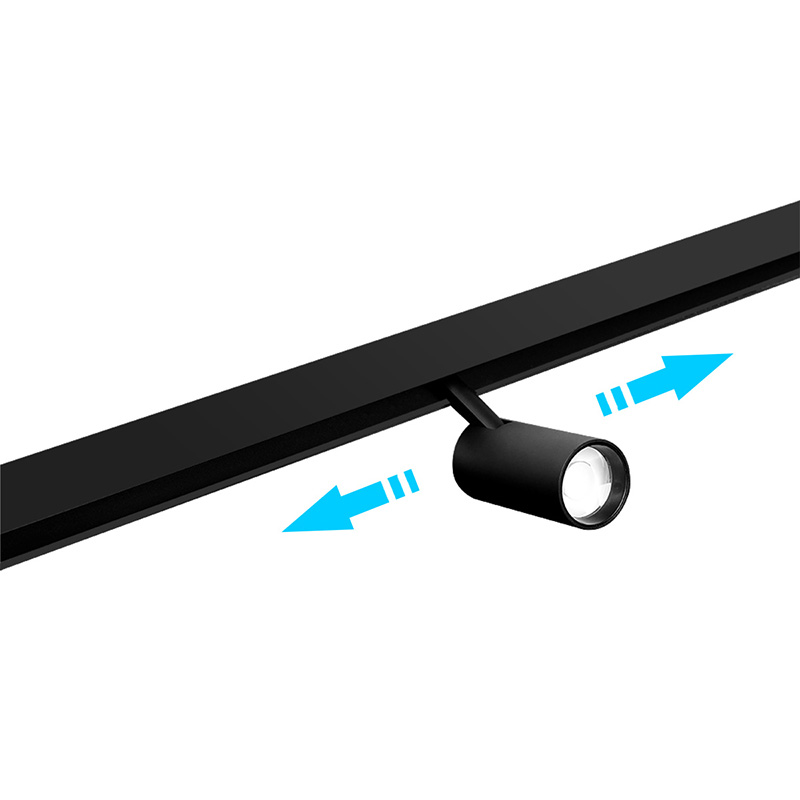

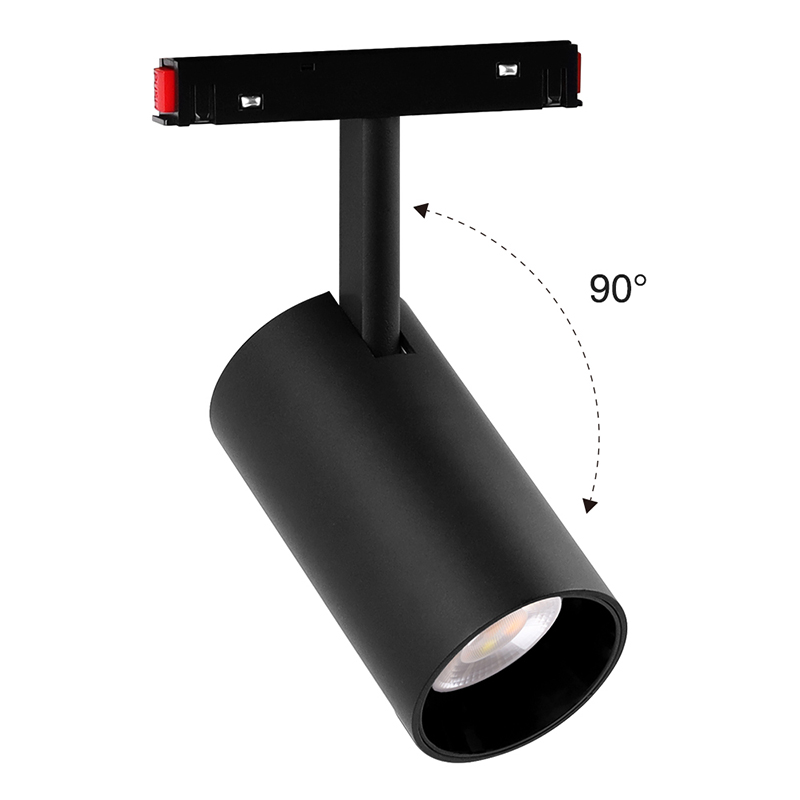

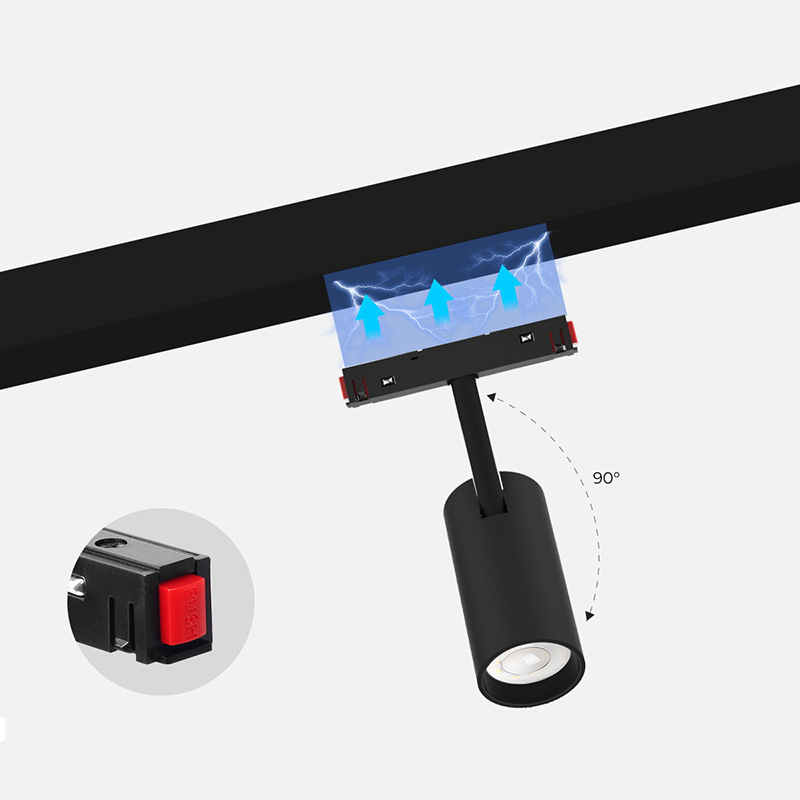

The MiBoxer magnetic track lighting ceiling is available in two versions: Zigbee 3.0 + 2.4G and 2.4G only. They have a magnetic insulating base that is easy to insert into the rail and pull out, powered by the rail, and moves randomly. With the magnetic track spotlights with a multi-angle rotation design, you can adjust the lighting direction for various scenes. You can use them in homes, offices, galleries, museums, hotels, restaurants, and other public spaces. The MiBoxer color-changing track lamps can be controlled by 2.4G RF remotes, which allow for selection of static and dynamic modes, 18 dynamic modes, and 16 million colors. The color temperature, brightness, and saturation are adjustable. The tracking light fixtures will transmit the signals from a remote to another track lighting within 30 meters, and different lights can work synchronously. After pairing with a 2.4G or Zigbee 3.0 gateway, the magnetic rail lights can be controlled via a smartphone app and third-party voice commands, and are compatible with Amazon Alexa and Google Assistant. You can achieve more functions on your phone, such as scene customization, music rhythm, timing, device sharing, group control, etc. It can also connect to standard Zigbee gateways, such as Philips Hue, IKEA TRADFRI, and Amazon Echo series, among others.
Specifications:

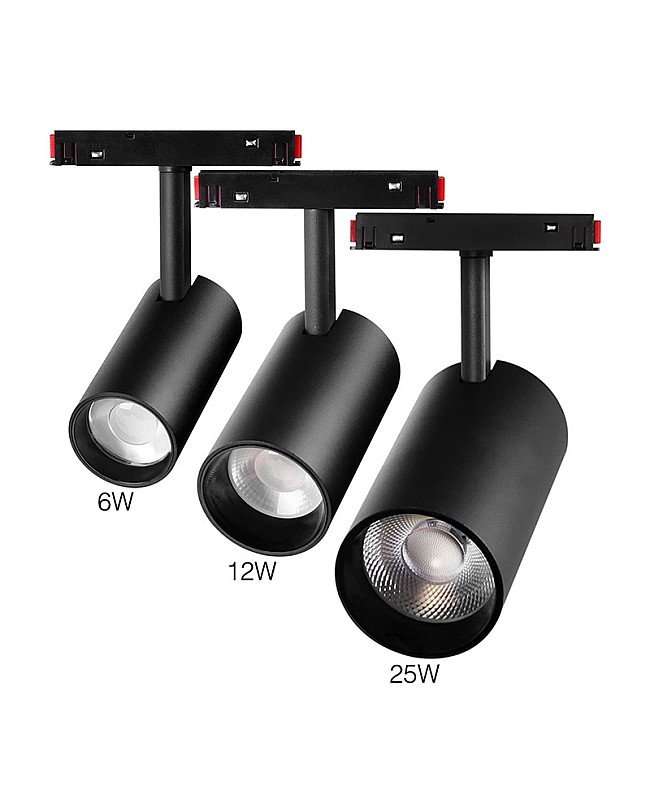

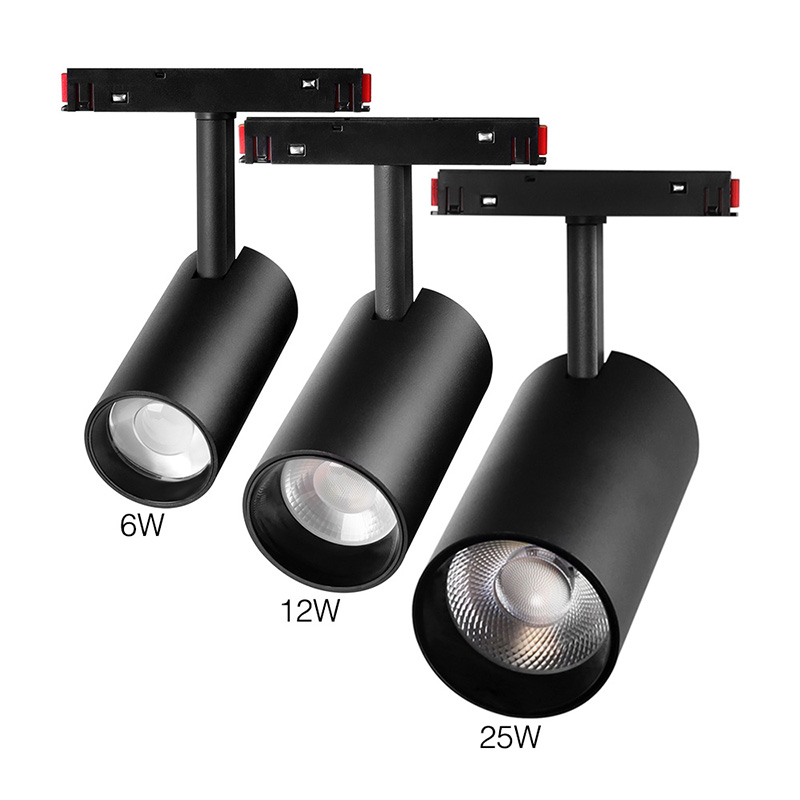

- Models: MS5-06B-ZR ( 6W ) / MS5-12B-ZR ( 12W ) / MS5-25B-ZR ( 25W ) / MS5-06B-RF( 6W ) / MS5-12B-RF( 12W ) / MS5-25B-RF ( 25W )
- Size(H*Φ): 172 mm x 51 mm(6W) / 180 mm x 63 mm(12W) / 212 mm x 76 mm(25W)
- Input Voltage: DC48V
- Power: 6W, 12W, 25W
- 16 million colors available
- Color Temperature Adjustable Range: 2700-6500K
- Brightness and saturation are adjustable
- Luminous Flux: 420 LM ( 6W ) / 1000 LM ( 12W ) / 1800 LM ( 25W )
- Luminous Efficiency: 72 LM/W ( 6W ) / 82 LM/W ( 12W ) / 75 LM/W( 25W )
- CRI: > 80Ra
- Beam Angle: 30° ( 6W ) / 60° ( 12W )/ 36°( 25W )
- Communication Protocol: Zigbee 3.0 + 2.4G
- 2.4G RF Remote Controllable: FUT100, FUT089S, FUT089, FUT088, FUT092, FUT096, B8, B0, B3, T3, T4, B4, S2, FUTD01
- Auto signal transmitting and mode synchronization
- Control Distance: Zigbee: ≤100m ( open area ) / 2.4G Remote: ≤30m
- Tuya smart APP control and third-party voice control(Zigbee 3.0 gateway needed)
- Can work with Amazon Alexa and Google Assistant
- Wireless Technology: Zigbee 802.15.4
- Wireless Frequency: 2.400- 2.480GHz
- Support DMX512 controllable(DMX512 LED transmitter needed)

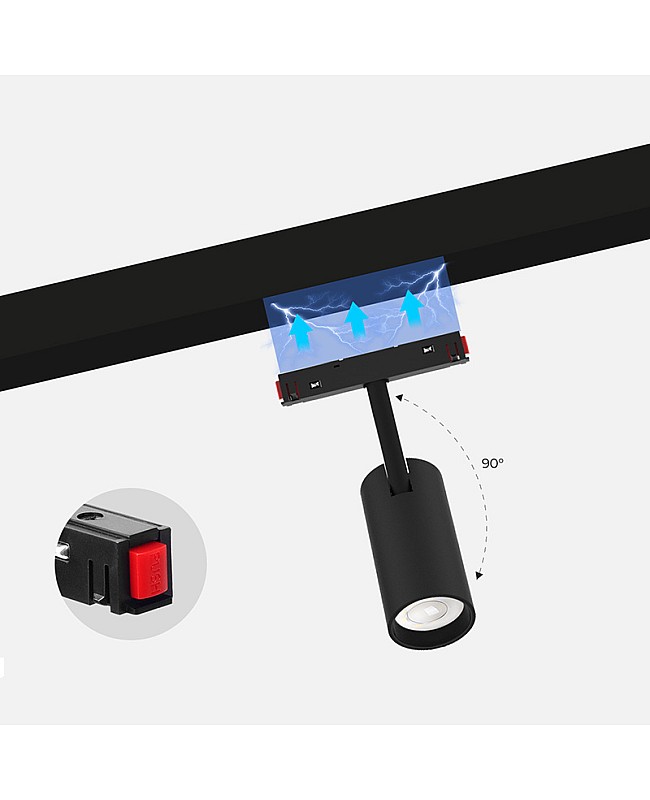

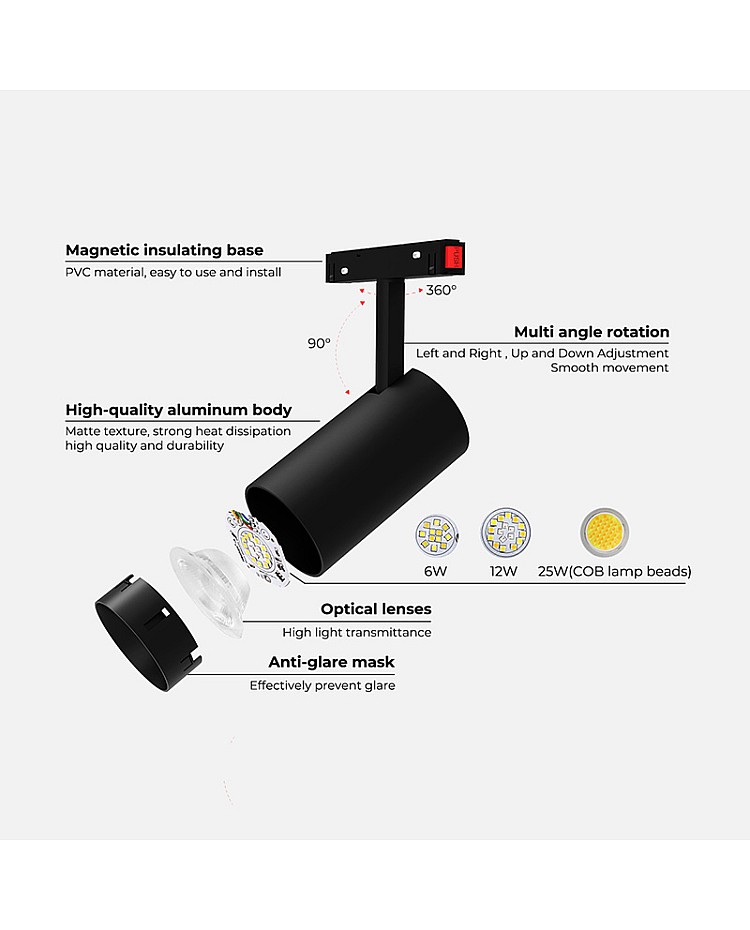

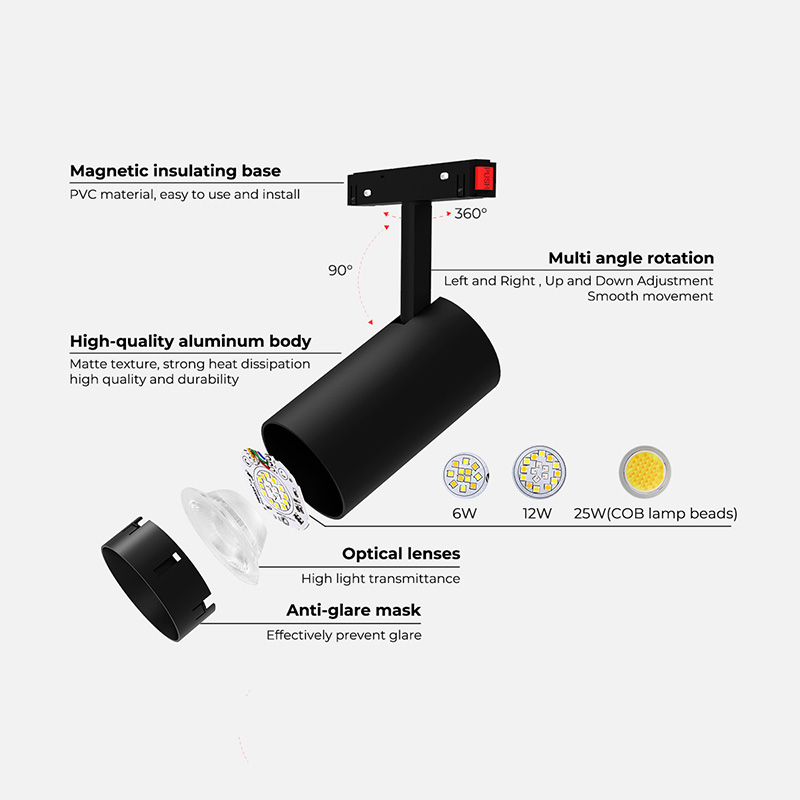

- Magnetic insulating base

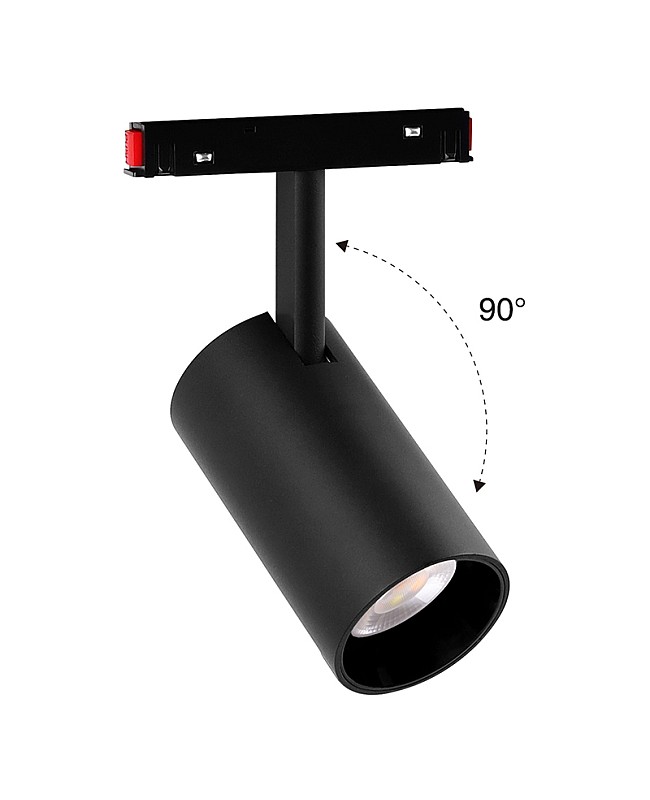

- Lamp base adjustable

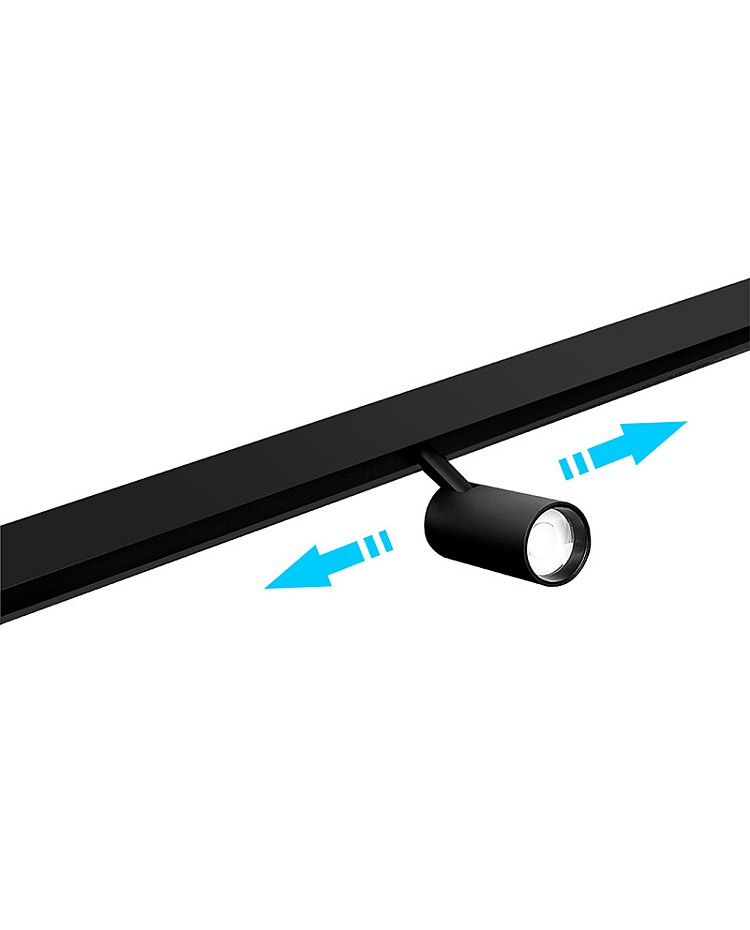

- Moving randomly on the rail and powered by the rail
- IP Rate: IP20 non-waterproof
- Working Temperature: -10-40℃
- Warranty: 3 years
Includes:
1 * RGB+CCT magnetic ceiling track lighting
