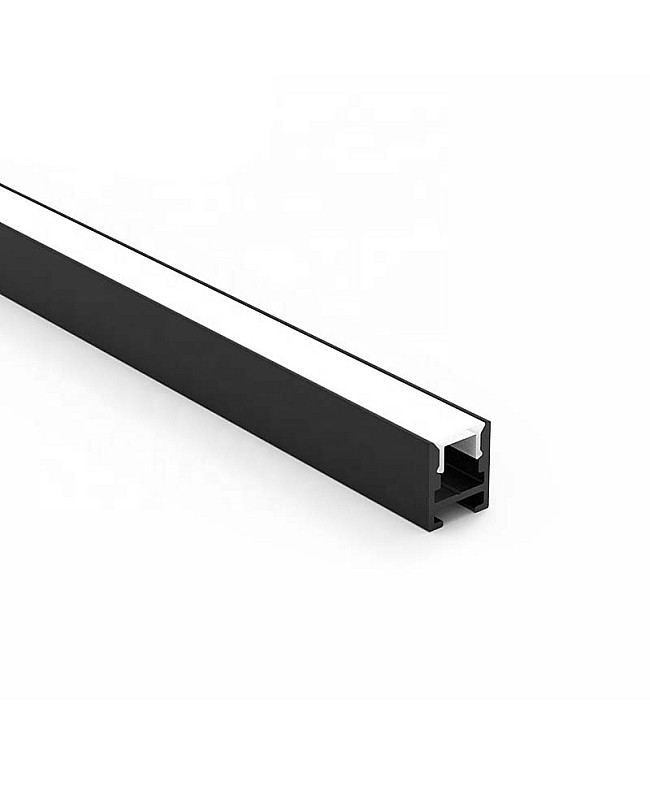

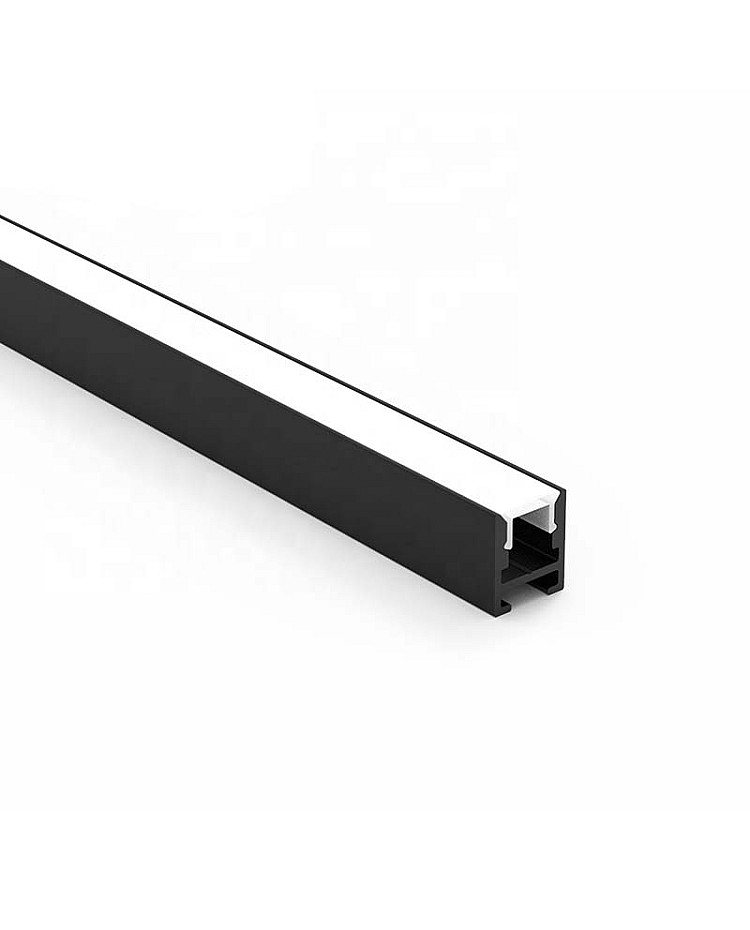

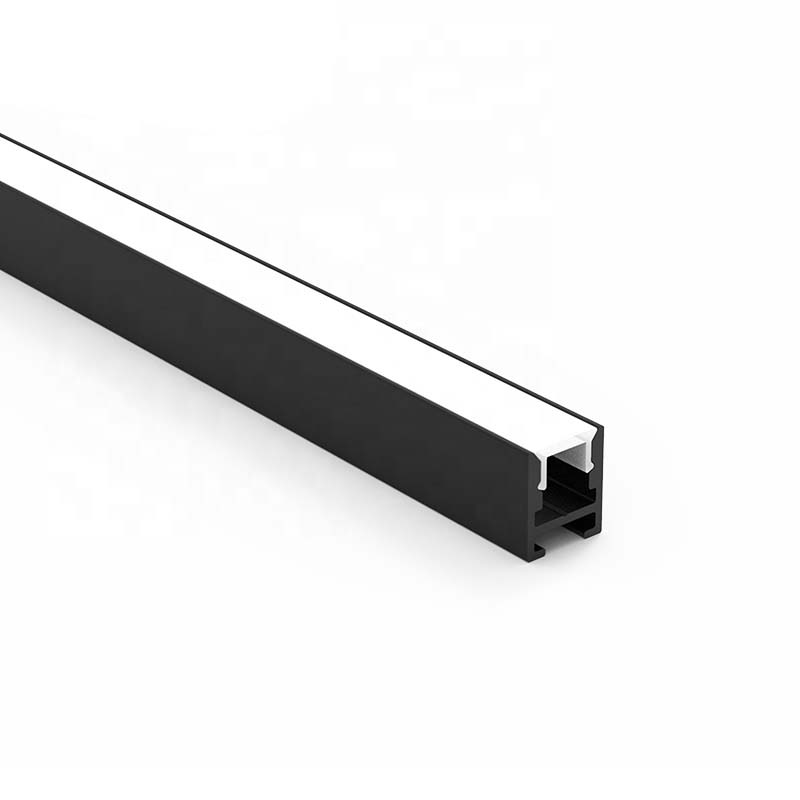

The super-slim black LED channels come with steel wire kits that allow them to be hung from the ceiling for modern interior lighting. With its ultra-slim design, they are ideal for creating discreet pendant lighting in residential, commercial, and architectural spaces. The inner width is 8.2 mm, allowing a maximum LED strip width of 8 mm. We recommend installing high-density COB LED tapes as the light source for uniform, dot-free light. The black aluminum channels can act as heat sinks to improve heat dissipation, extending the lifespan of LED lights. The standard lengths are 1 m and 2 m, and they can be cut to any size for your project. There are two types of diffusers available: PC frosted diffusers and black PC diffusers. They are made of a brand-stable, anti-yellowing material with perfect light distribution, ensuring even lighting. The black aluminum channel is made from 6063-T5 aluminum alloy with an anodized surface treatment, providing oxidation resistance and a longer lifespan. The 180°, 90°, and inside 90° connectors are available, allowing you to use them for angled or straight connections. The steel wire kits, end caps, and diffusers are included.
Specifications:

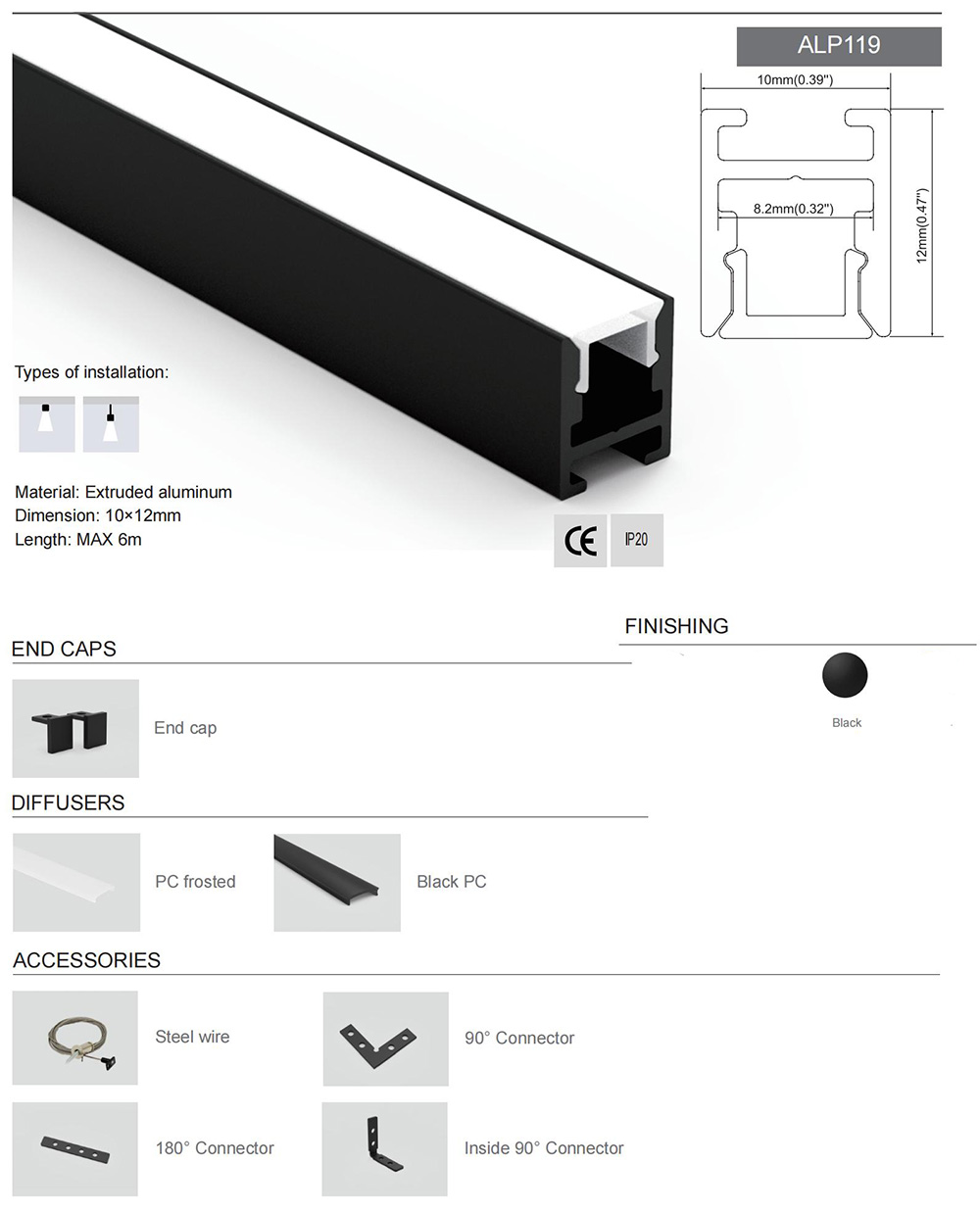

- Model: ALP119
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Color: Black

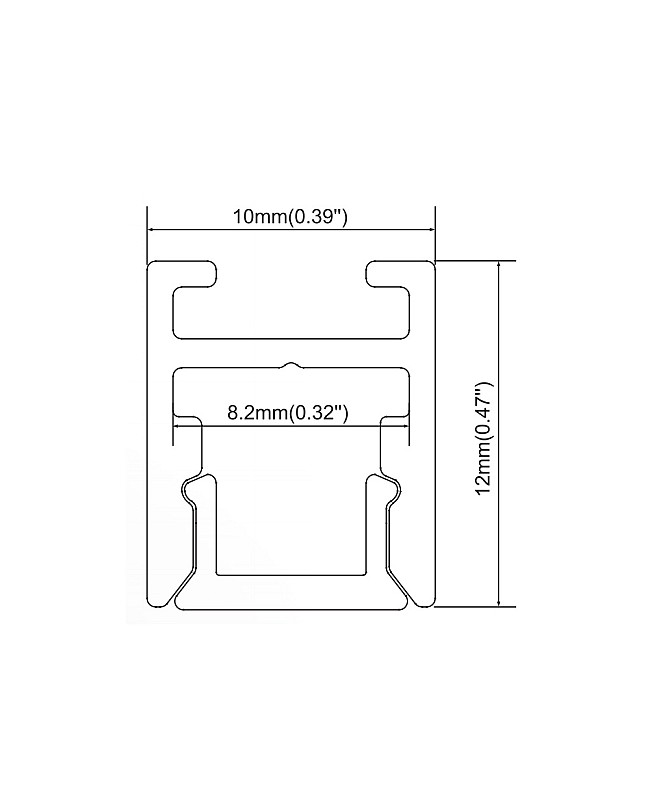

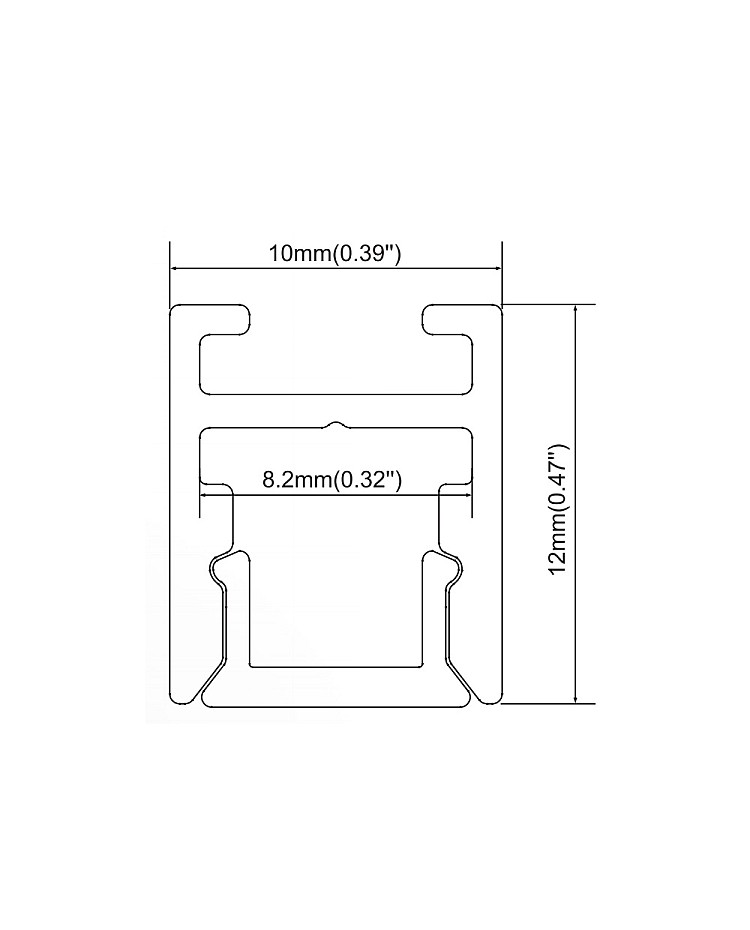

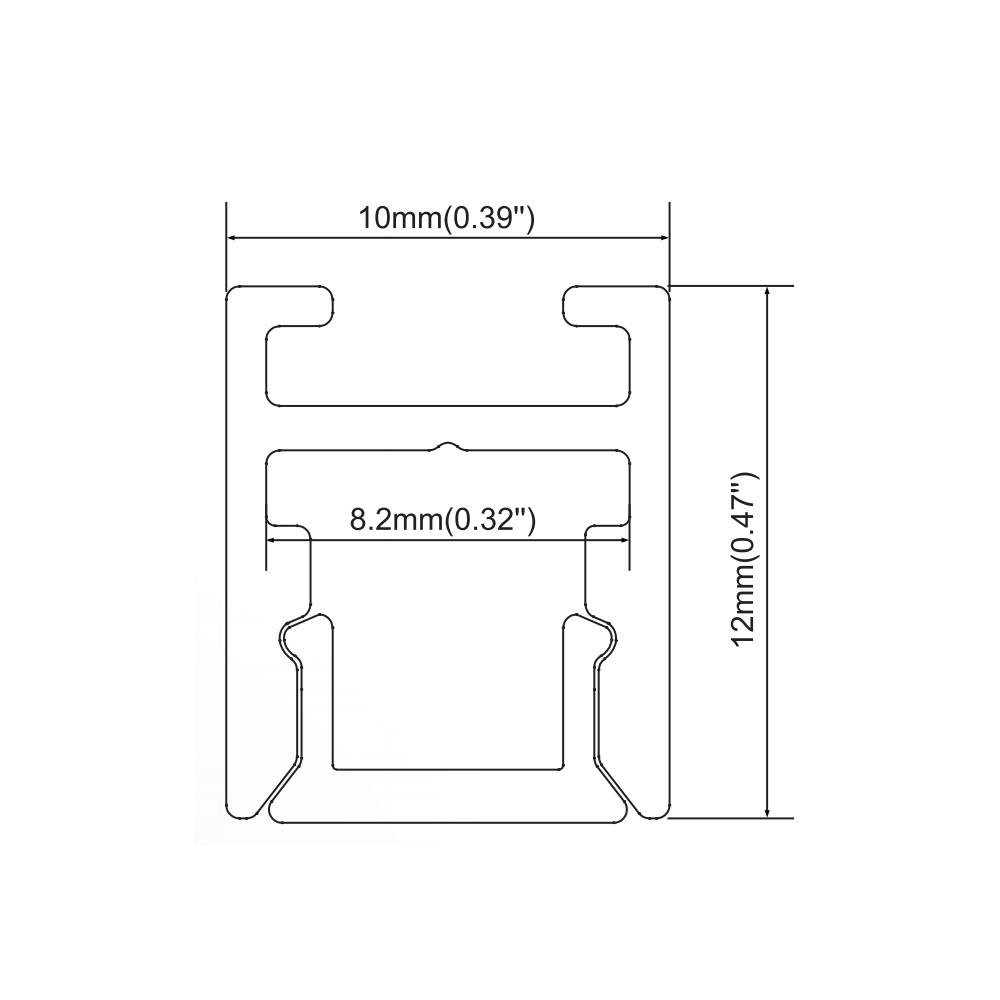

- Size( W x H ): 10 mm x 12 mm ( 0.39" x0.47" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 8.2 mm ( 0.32" )
- Maximum width of strip lights: 8 mm ( 0.31" )
- Max power: 12W/m

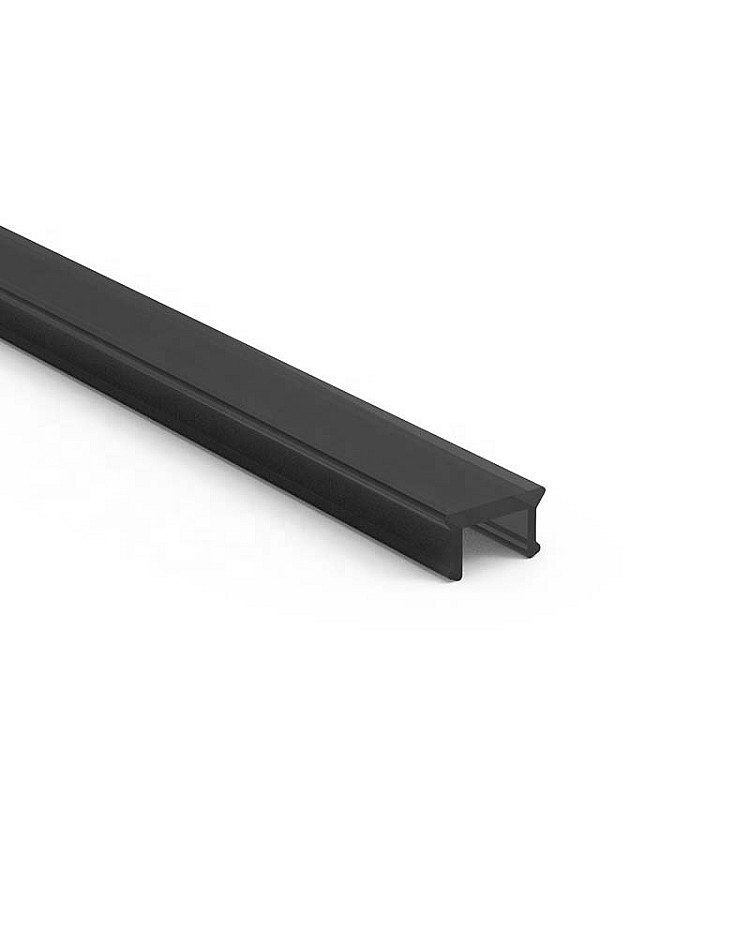

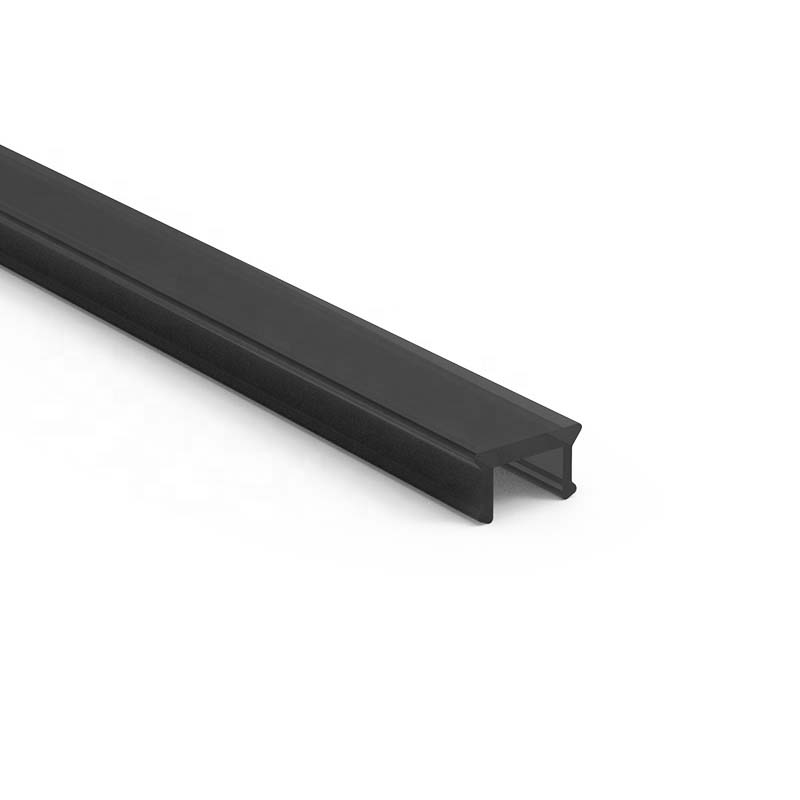

- Diffuser: PC Frosted diffusers, black PC diffusers

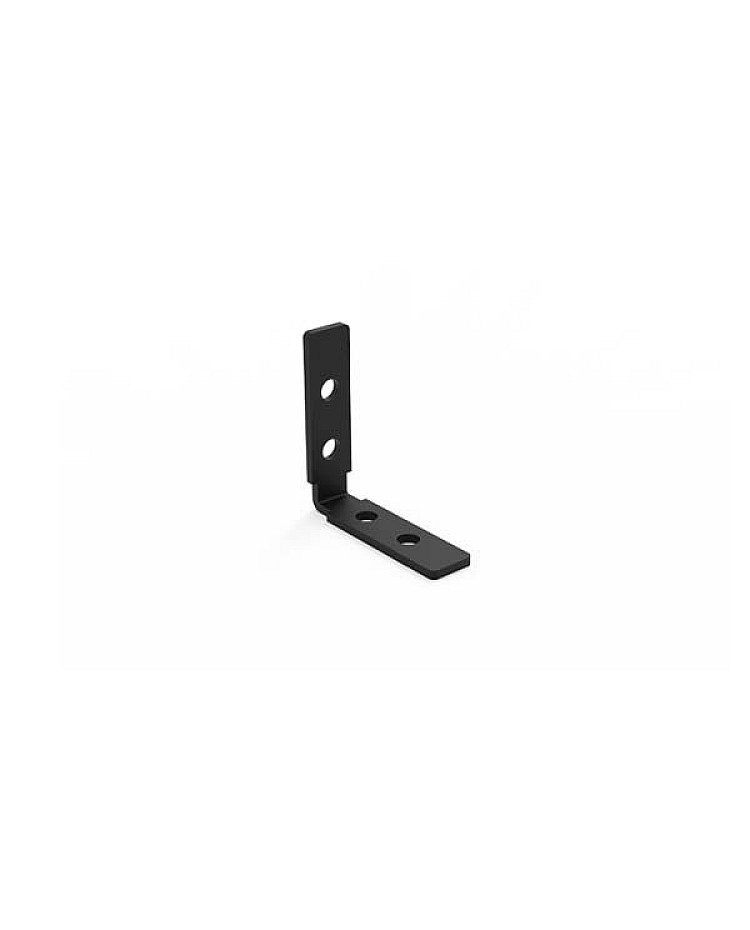

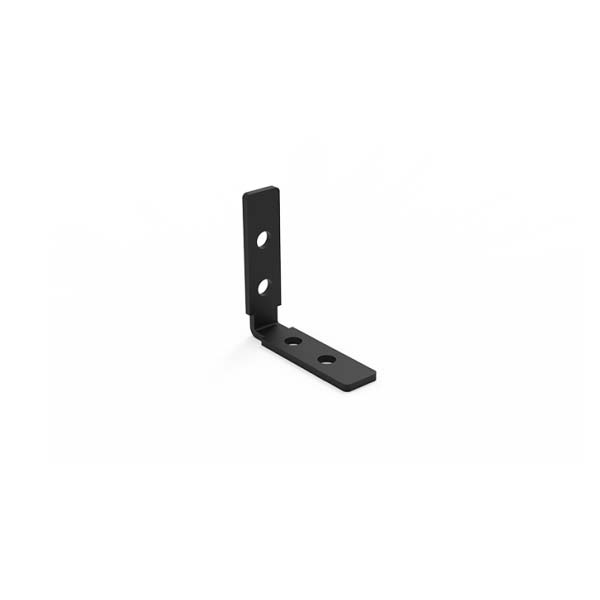

- 90°，180°, and Inside 90° vertical connectors are sold separately
- Tolerance: ±1%
- Beam angle: 100°
- End caps and steel wires are included

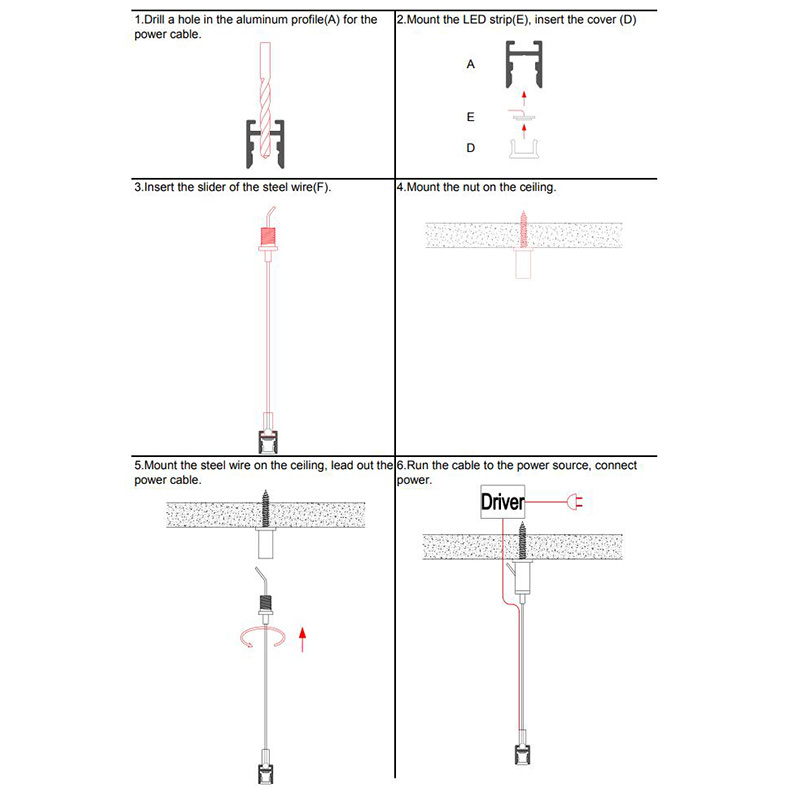

- Installation: Pendant
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Suspended linear lighting: Ideal for creating modern pendant-style fixtures.
- Commercial lighting: Used in showrooms, retail stores, and hotels.
- Residential pendant fixtures: Perfect for kitchens, dining tables, or living rooms, offering both functional and decorative lighting.
- Workspace and task lighting: Provides focused, glare-free light over desks, counters, or workstations.

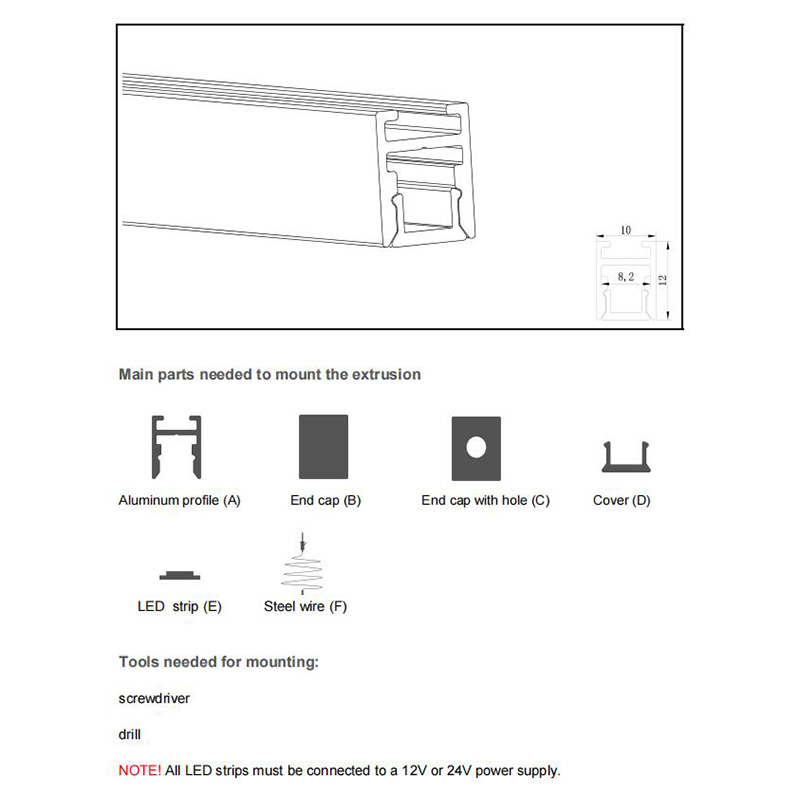

Includes:
1 * Slim LED channel with PC diffuser

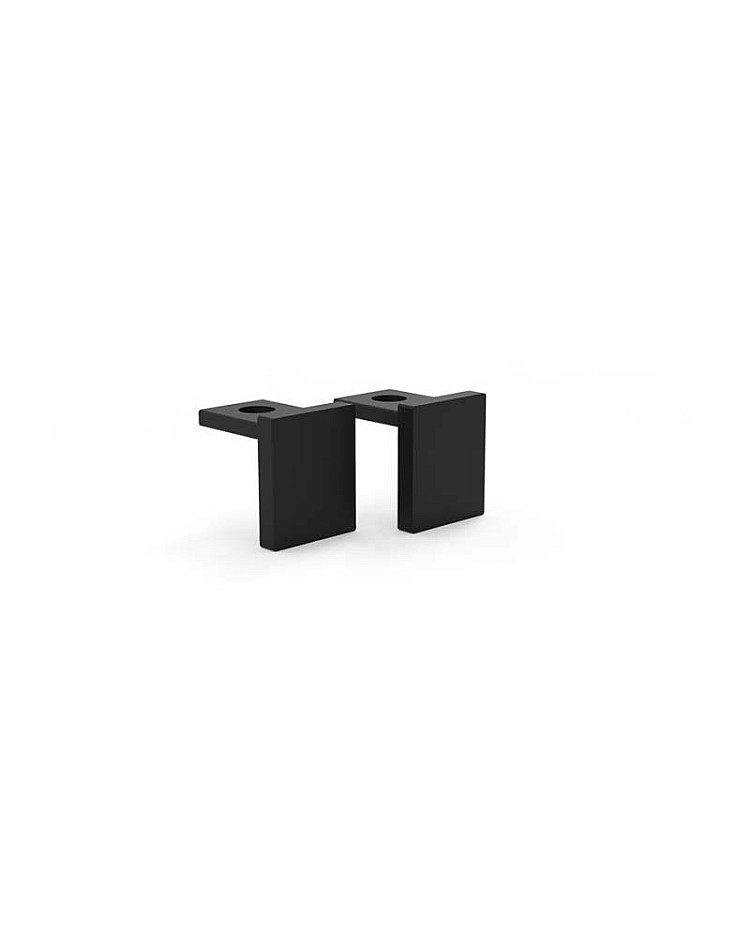

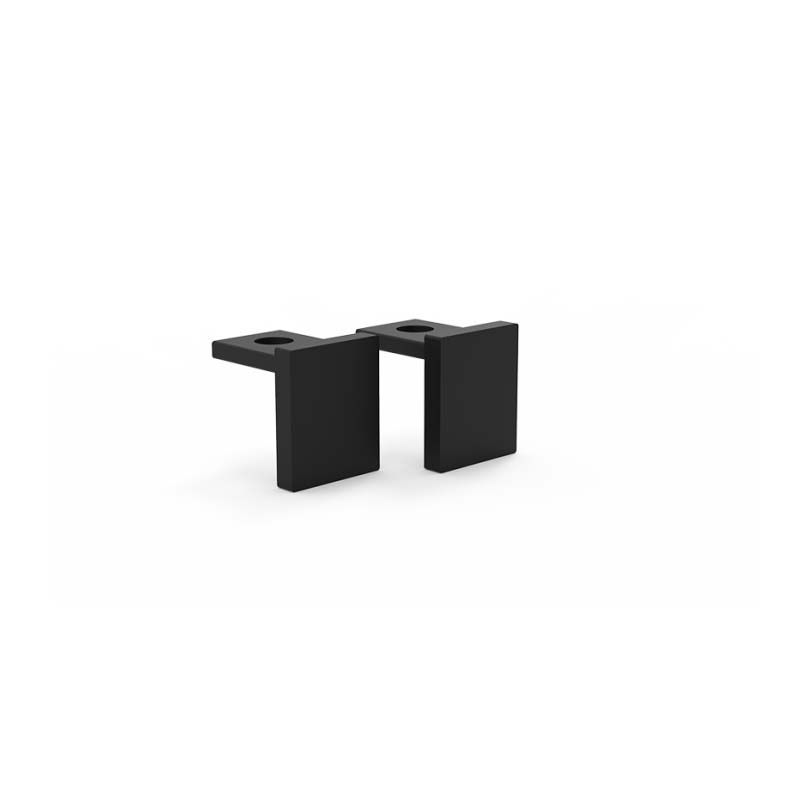

End caps(With and without wire holes)

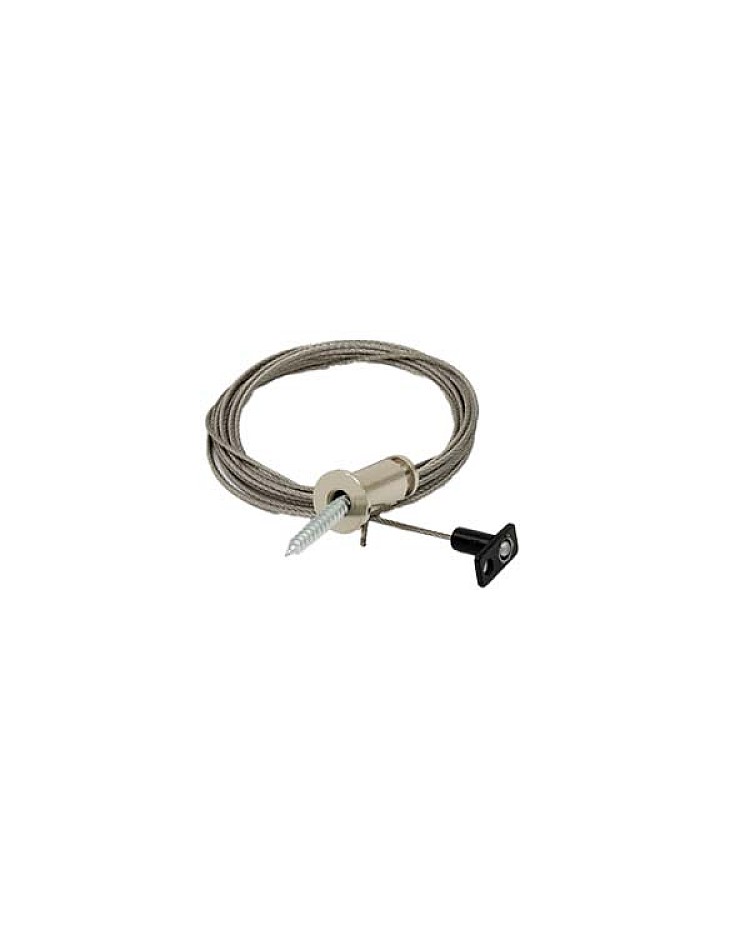

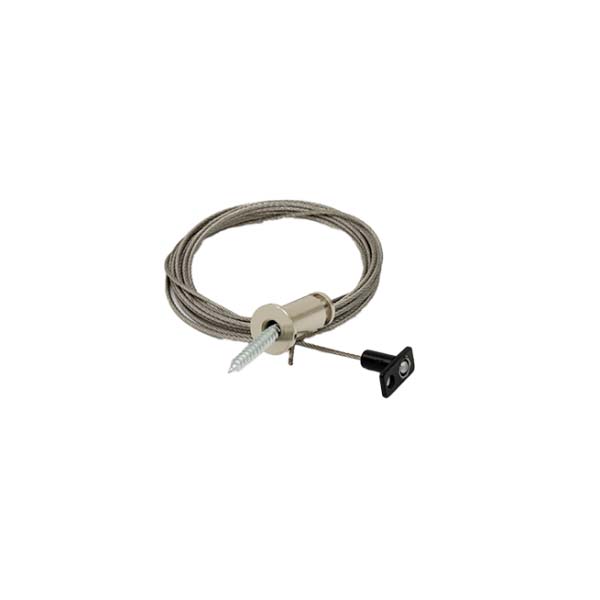

Steel wires
