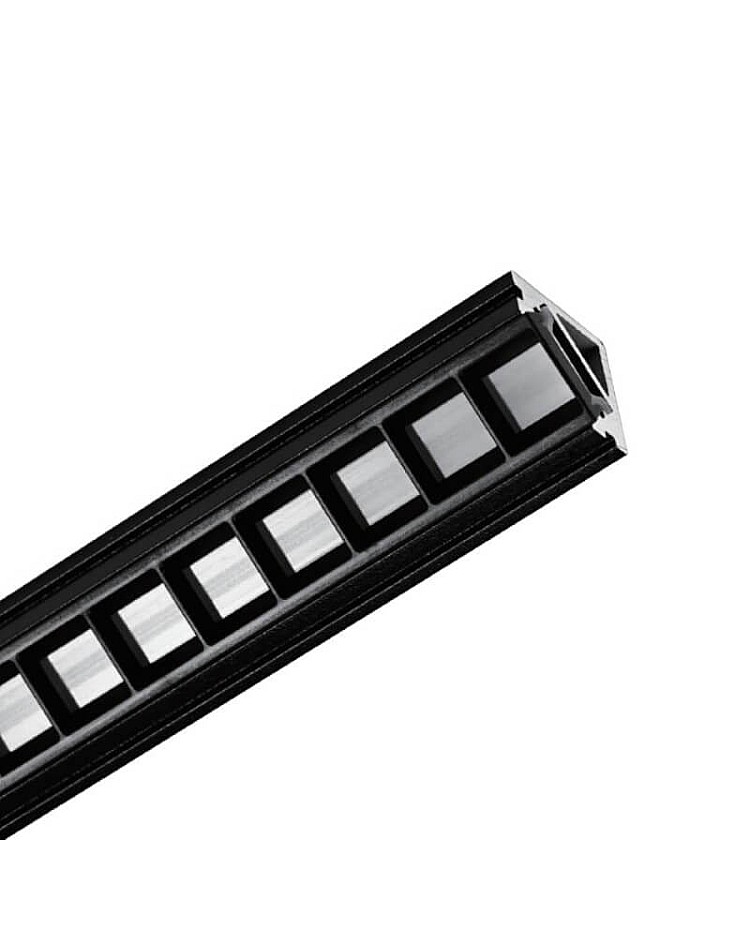

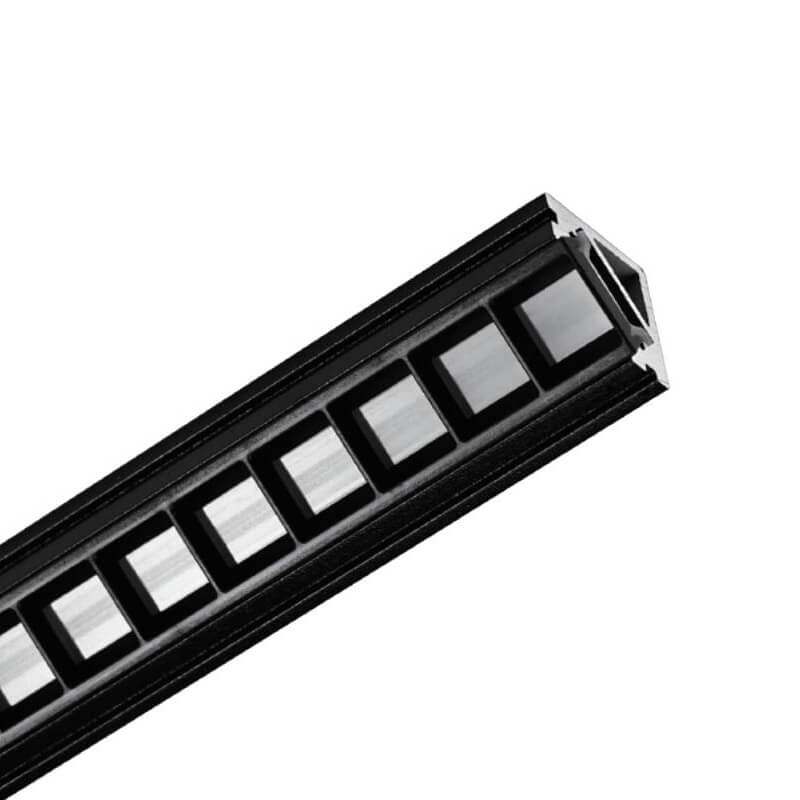

Elevate your space with precision and elegance using our low-glare corner-recessed LED channel. It is engineered for clean, comfortable, glare-free lighting. Perfect for wall-to-ceiling transitions, display cases, cabinetry, and architectural accents, this mini channel tucks directly into corners to deliver a seamless run of light without the hard hotspots.
Crafted from durable extruded aluminum and featuring a professional surface treatment for excellent heat dissipation and a long service life, this heatsink keeps your LED lights running reliably and extends their lifespan. The stock lengths are 1m and 2m, with lengths up to 5 m available to suit both short accents and long continuous runs. Custom lengths are available.

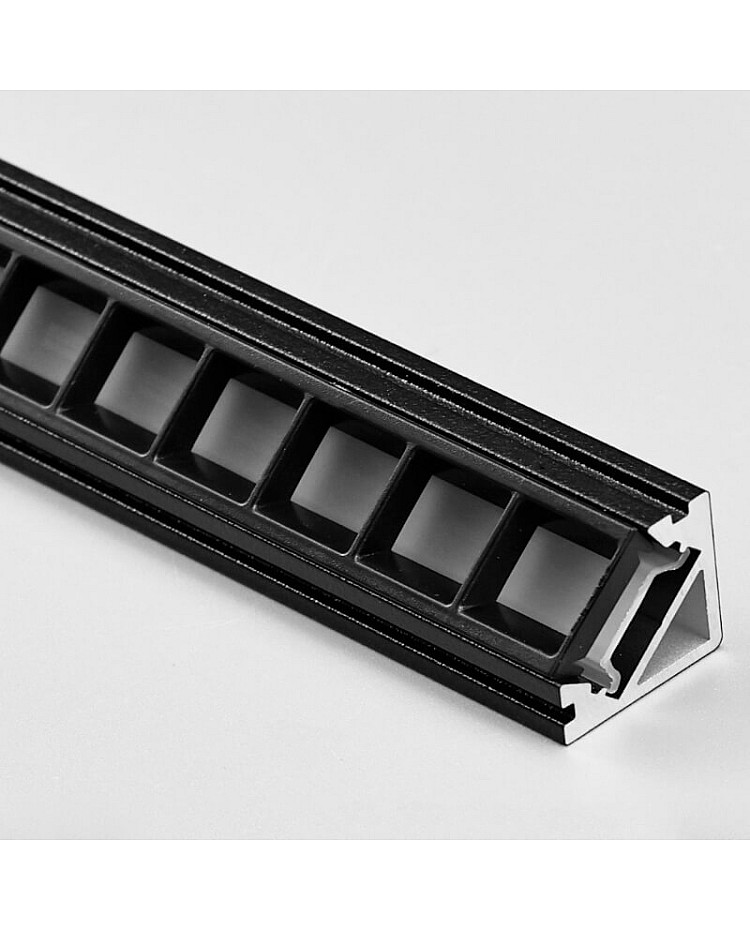

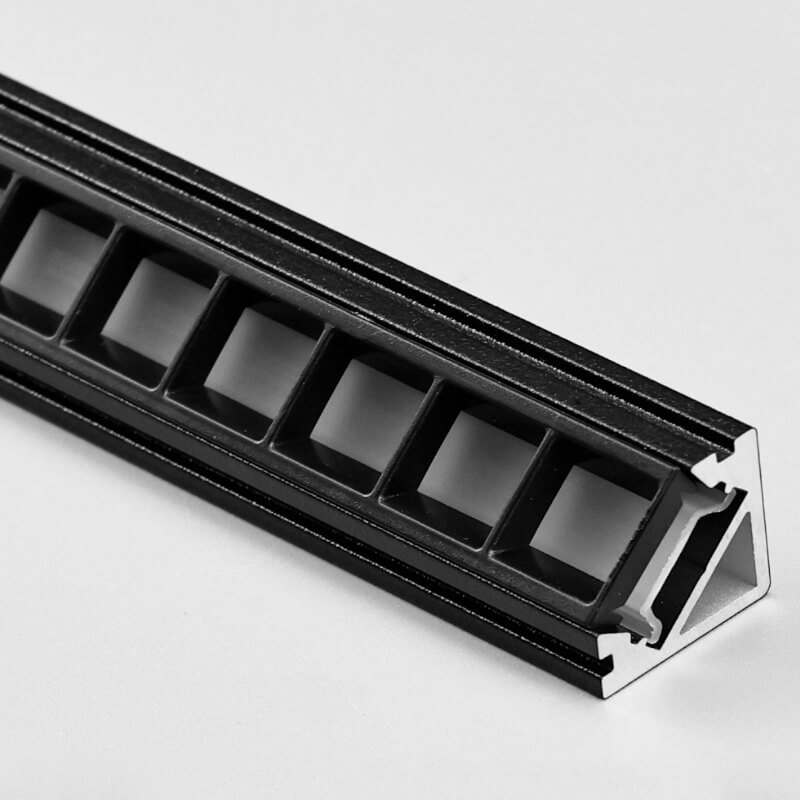

The anti-glare LED profile has a regressed cover design, which not only allows the PC diffusers to be installed slightly back from the channel edge but also enables the installation of plastic grilles or honeycomb louvers to minimize glare and protect the eyes, delivering steady, comfortable illumination.
The inner width is 13.2mm, allowing the maximum strip light width to be 13mm. Recommend adding our 8mm or 10mm high-density COB LED strip to achieve uniform, dotless illumination without dark areas or hotspots.
Whether you are designing a modern retail display, a cozy home theater, or a sleek office space, this corner anti-glare LED profile offers a professional finish and eye-friendly glow your project deserves.

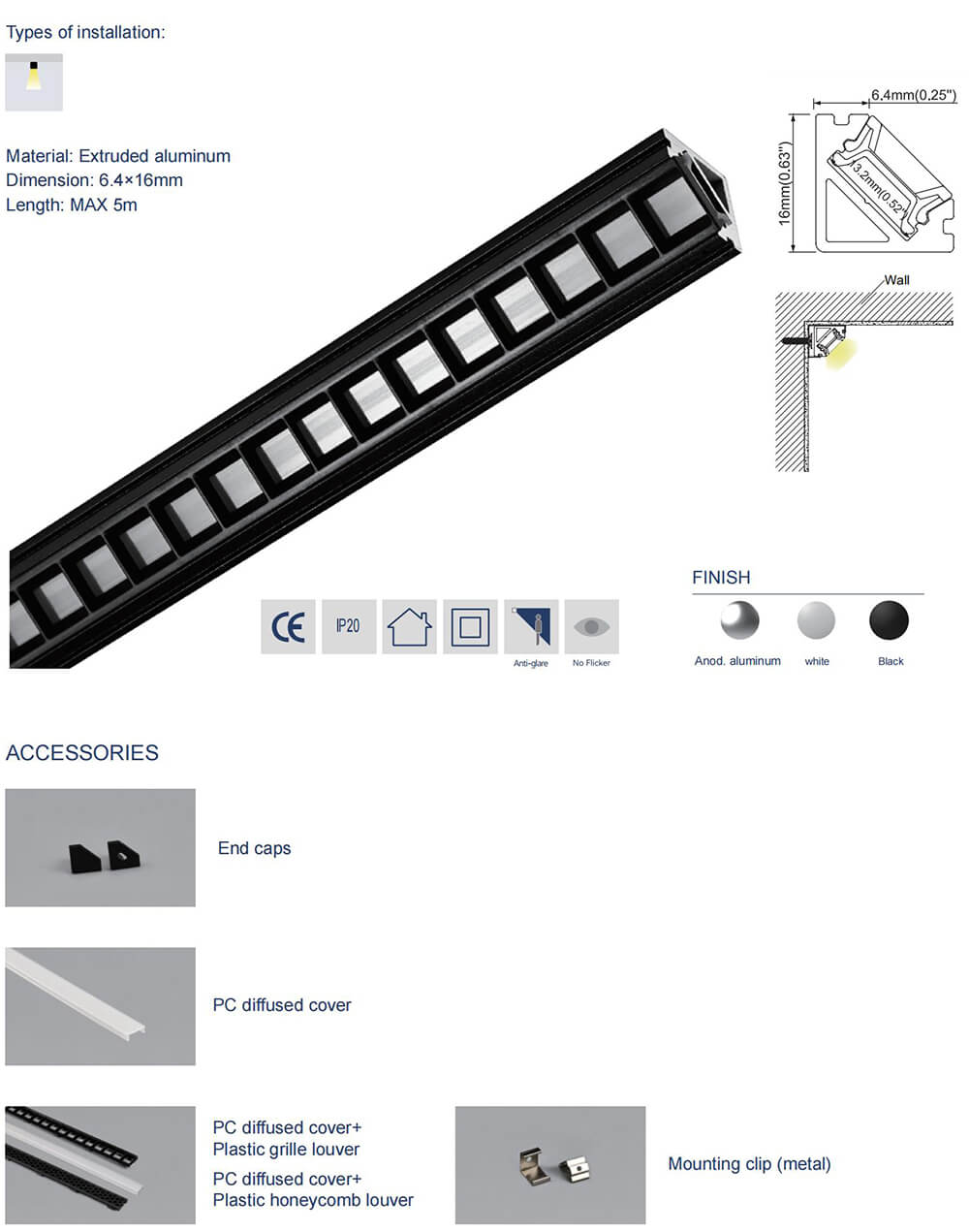

Specifications:
- Material: Extruded aluminum 6063-T5
- Surface treatment: Powder-coated
- Color: Black

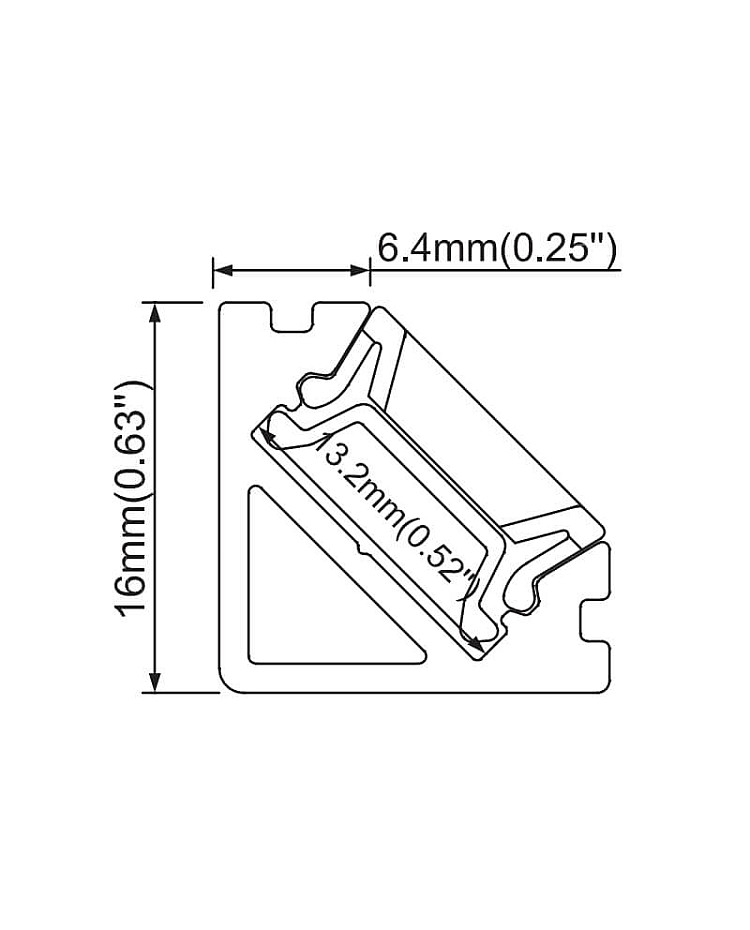

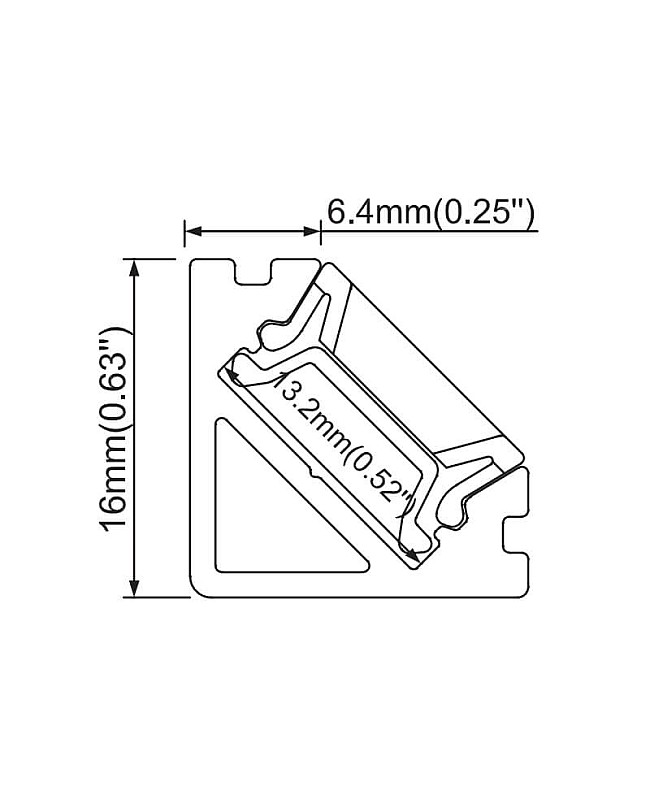

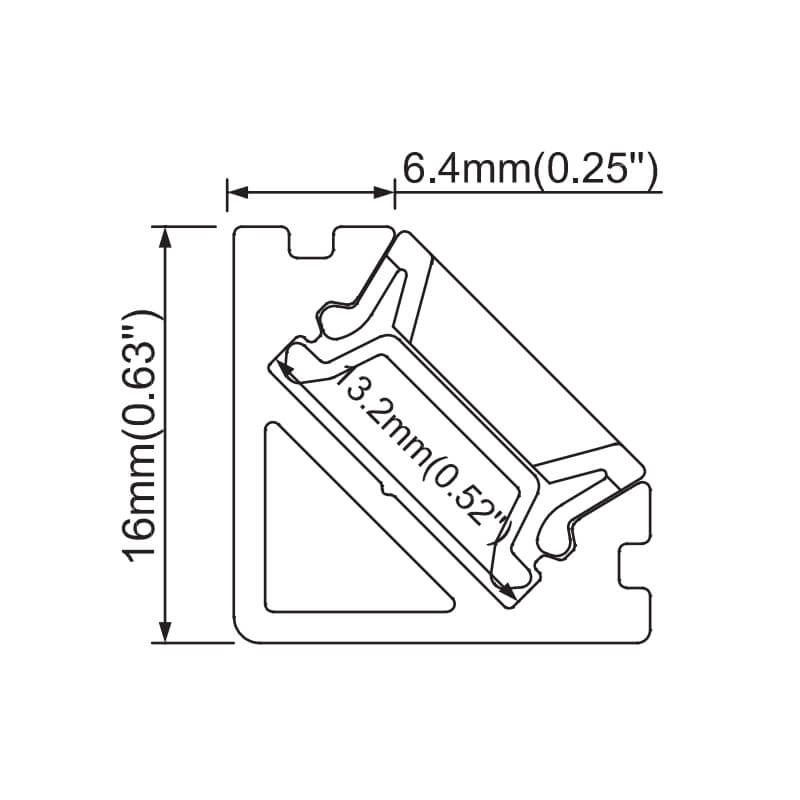

- Dimension ( Width x Height ): 16 mm x 16 mm ( 0.63" x 0.63" )
- Lengths available: 1 m ( 39.37" ), 2 m ( 78.74" )
- Custom lengths available: YES
- Inner width: 13.2mm ( 0.52" )
- Diffusers available: PC diffused cover only
- Louvers available: Plastic grille louver, plastic honeycomb louver
- End caps with and without wire holes are included
- Metal mounting clips are included
- IP rating: IP20 non-waterproof

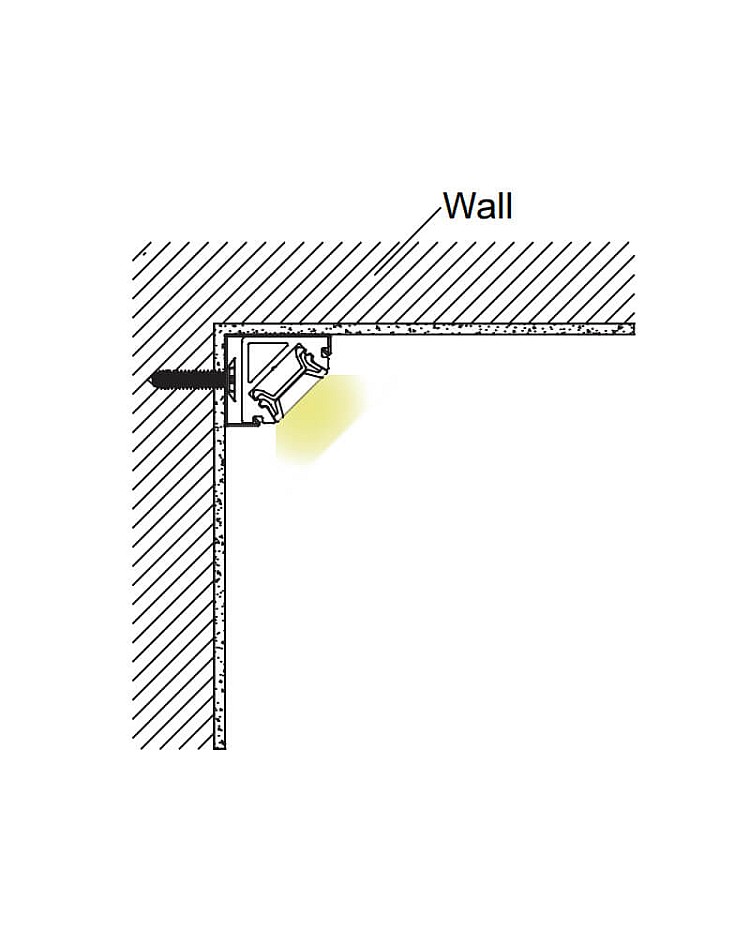

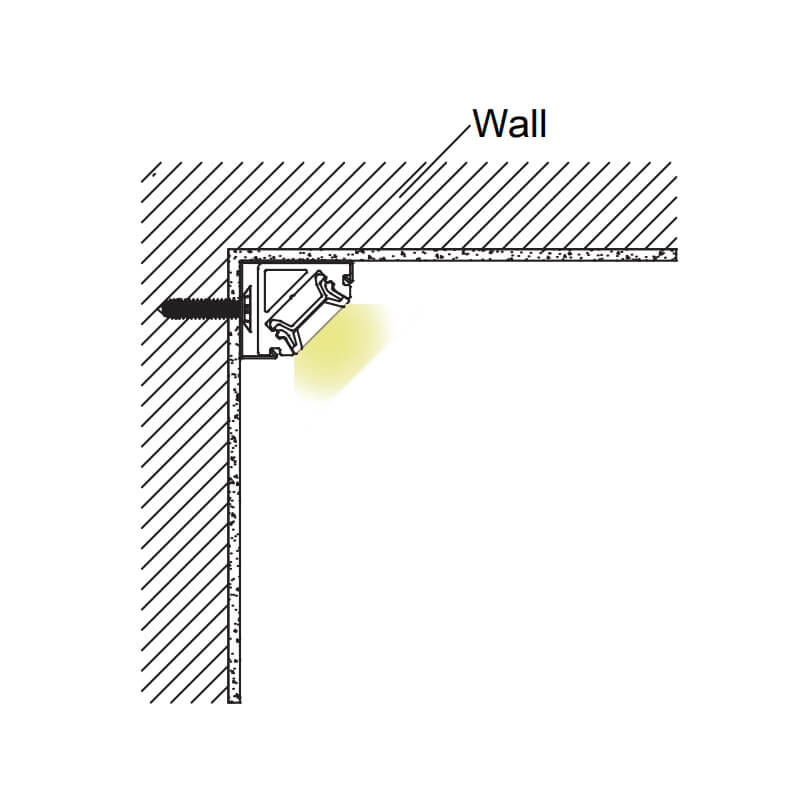

- Installation: Corner-mounted
- Warranty: 5 years
Includes:
1 x Anti-glare corner LED profile
1 x PC diffused cover
End caps ( With and without wire hole )
Plastic grille & honeycomb louver ( optional )
Metal mounting clips
