  • Brand: Ledbe
  • Product Code: ALP190

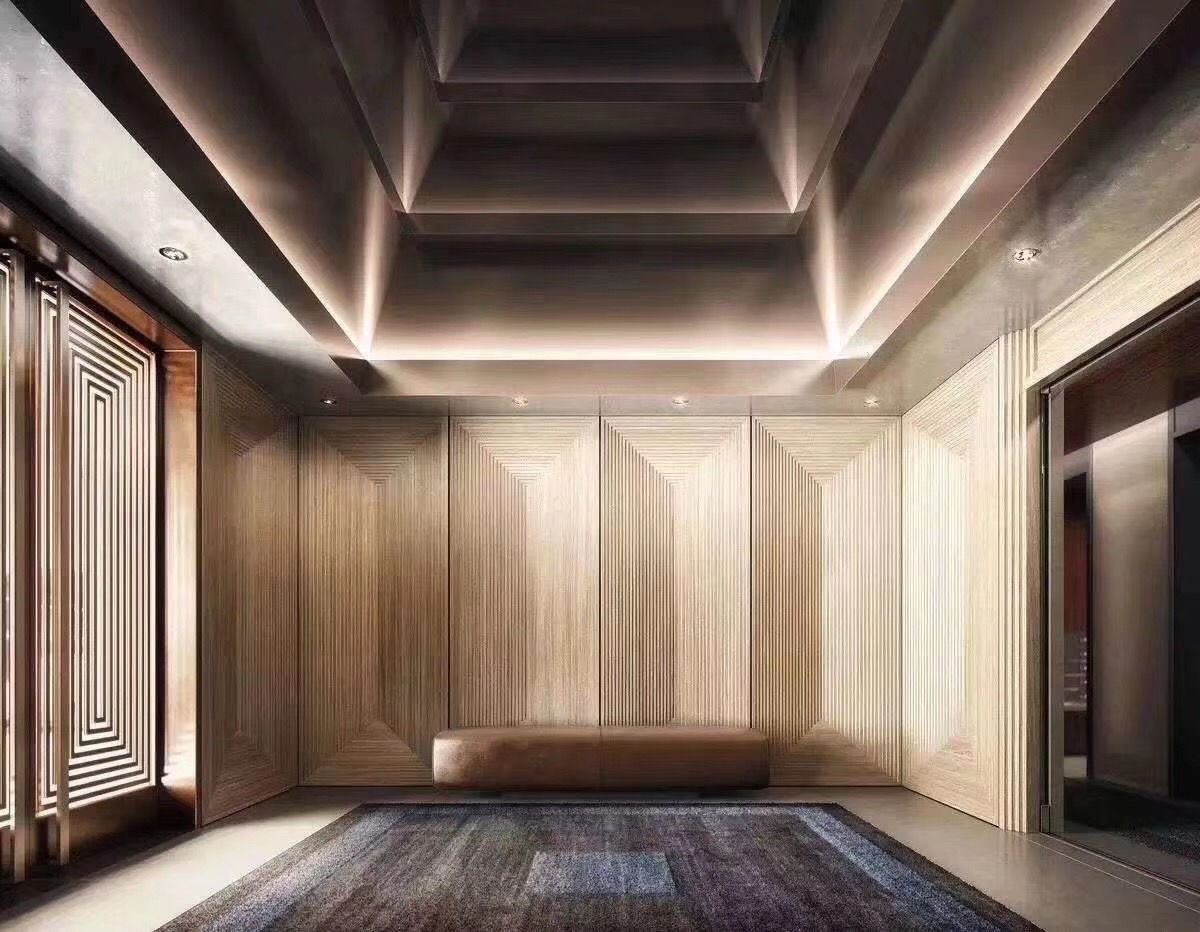

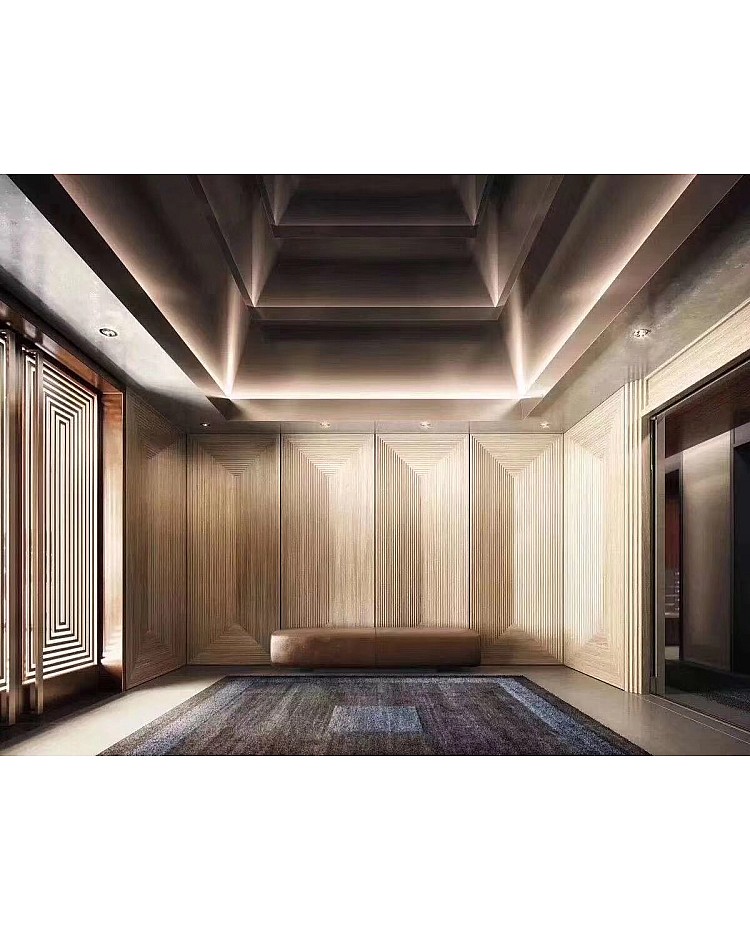

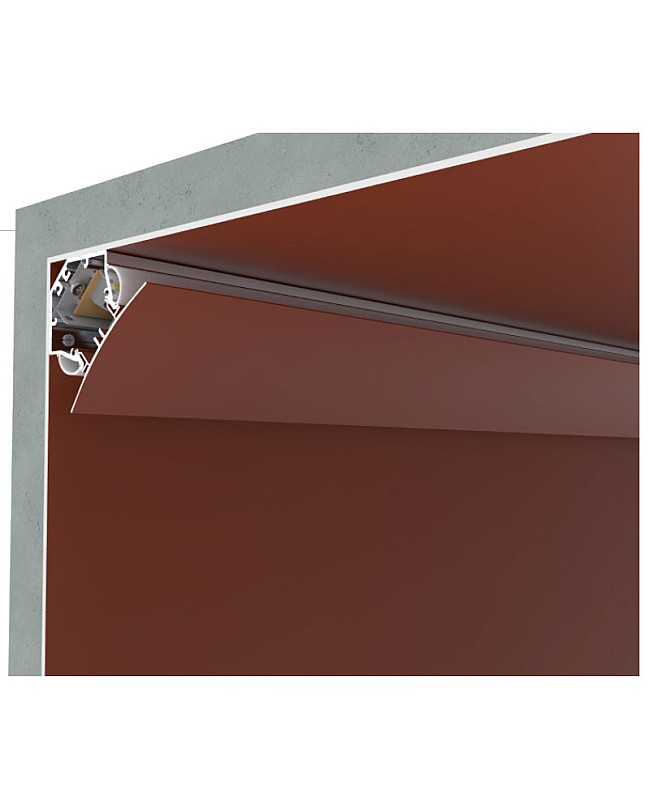

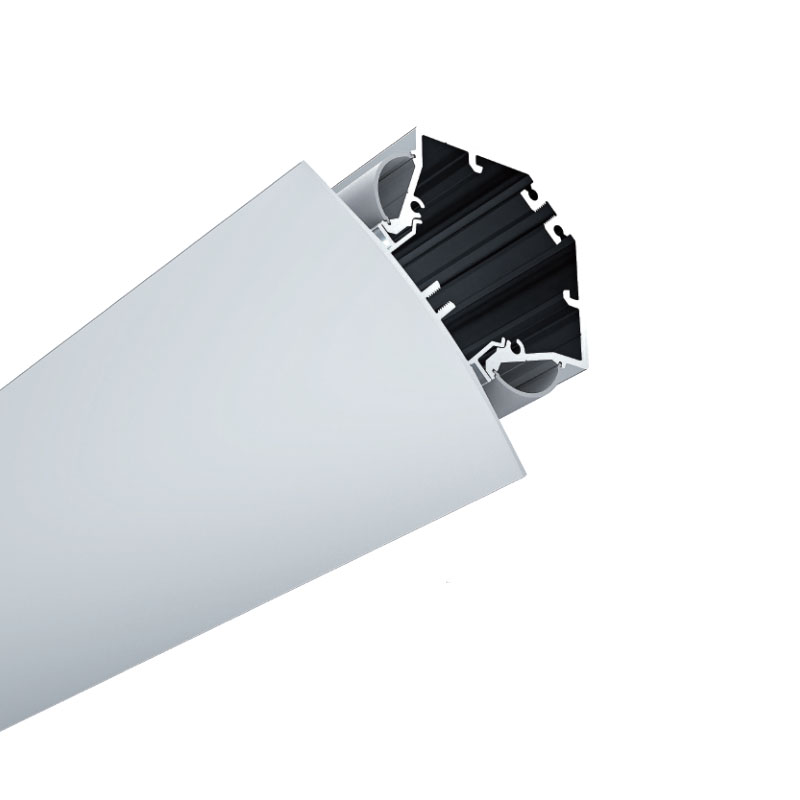

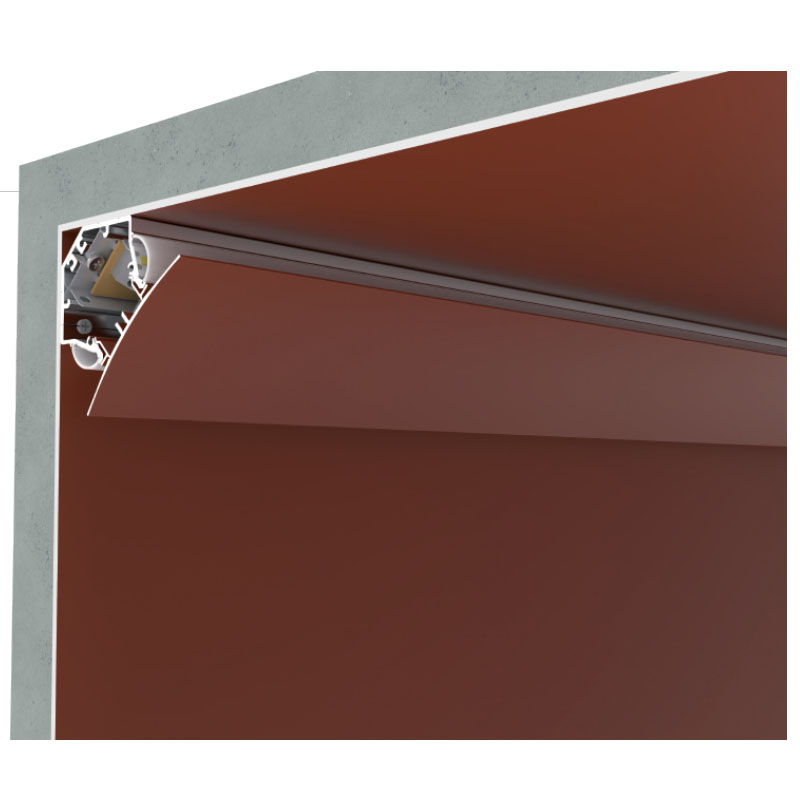

The DIY LED Profiles can be mounted on the corners of the ceiling for valance lighting. With dual lighting slots design, the light will shine from two directions, lighting up the roof and wall simultaneously, used to create a soft, warm lighting effect. It's typically used in commercial and residential settings and is a great way to add a unique look. DIY Light Profiles are made of 6063-T5 aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than similar products. The standard length is 1M and 2M, and custom lengths are available and can be cut to any length for your projects. Two types of diffusers are available: PC diffused cover and PC semi-clear cover, made of brand-imported material, anti-yellowing, perfect lighting distribution, and soft light output. The inner width is 14.9mm, allowing the max-width of  LED Light to be 14 mm. You can install Flexible LED Strips, LED COB Tapes, and Rigid Light Modules as a light source. Aluminum base can be worked as a heat sinker for better heat dissipation. End caps are included, and it is easy to connect the LED Lights to a Light Driver to light up or a Light Dimmer to adjust the brightness freely. The Valance Lighting LED Profiles are easy to install and can be used to create a unique, soft lighting effect.

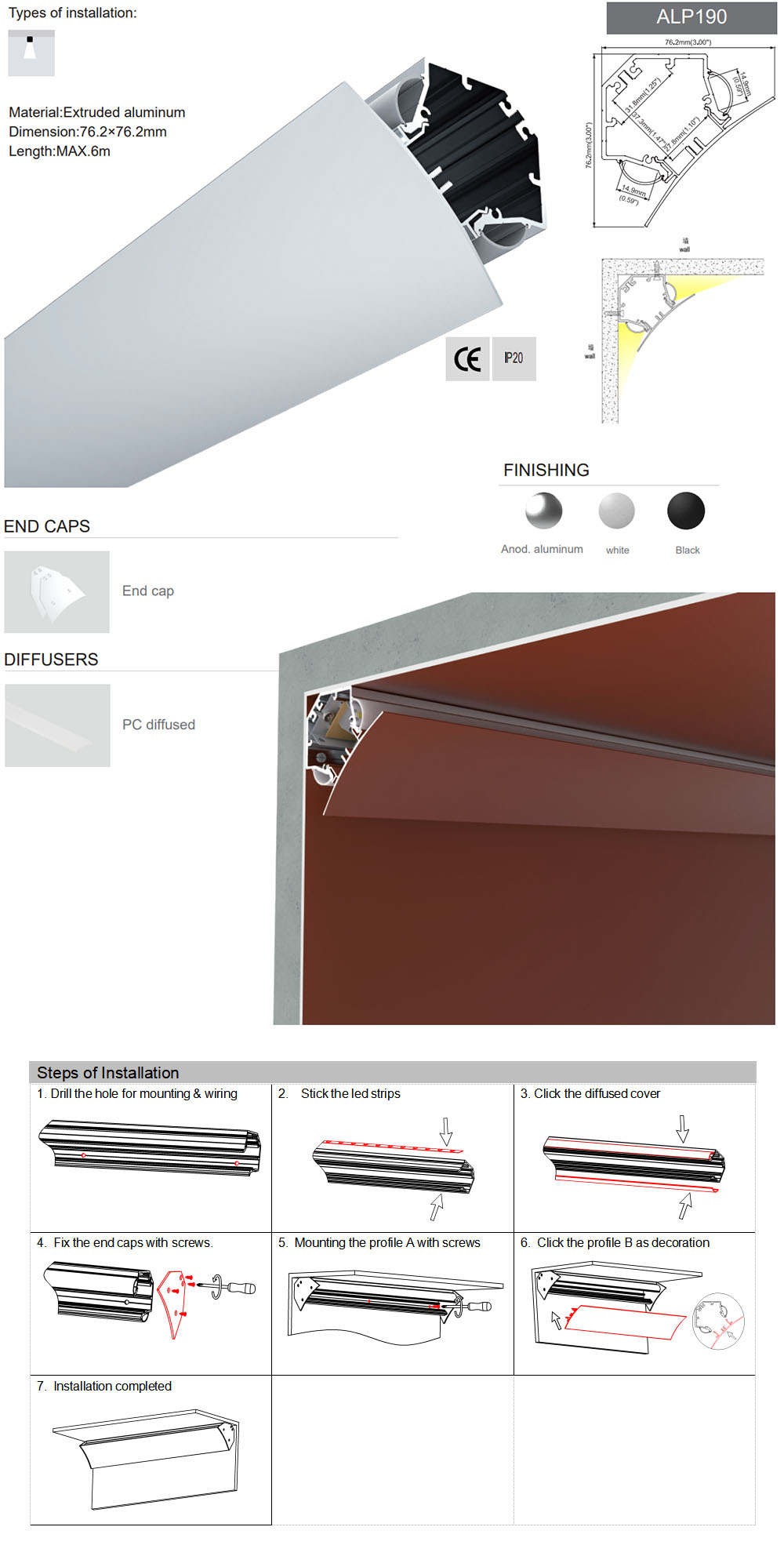

  • Model: ALP190
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

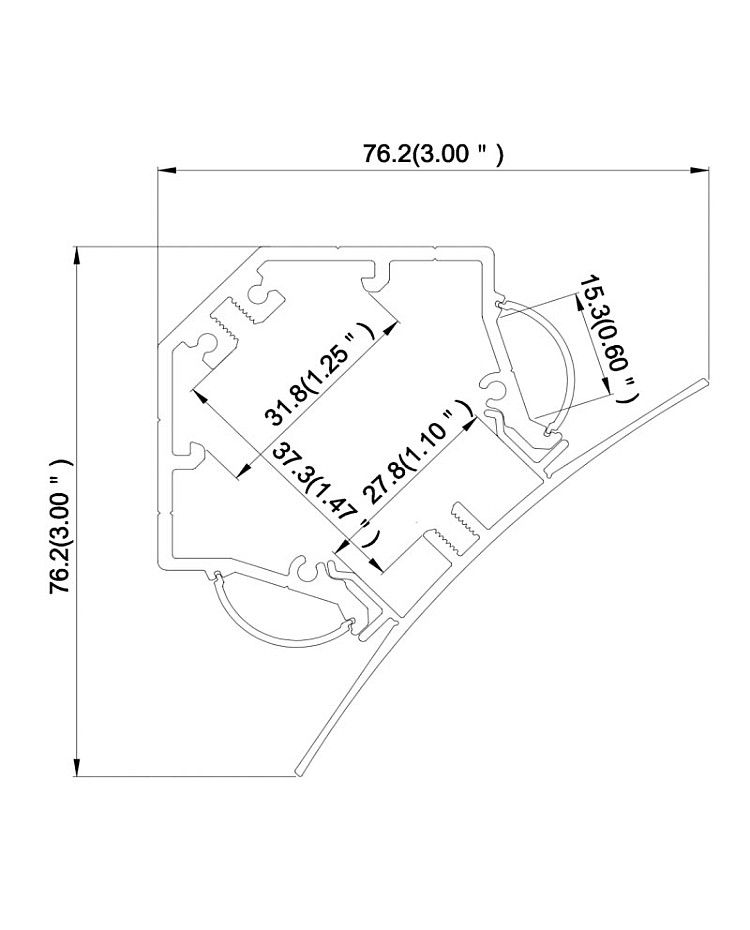

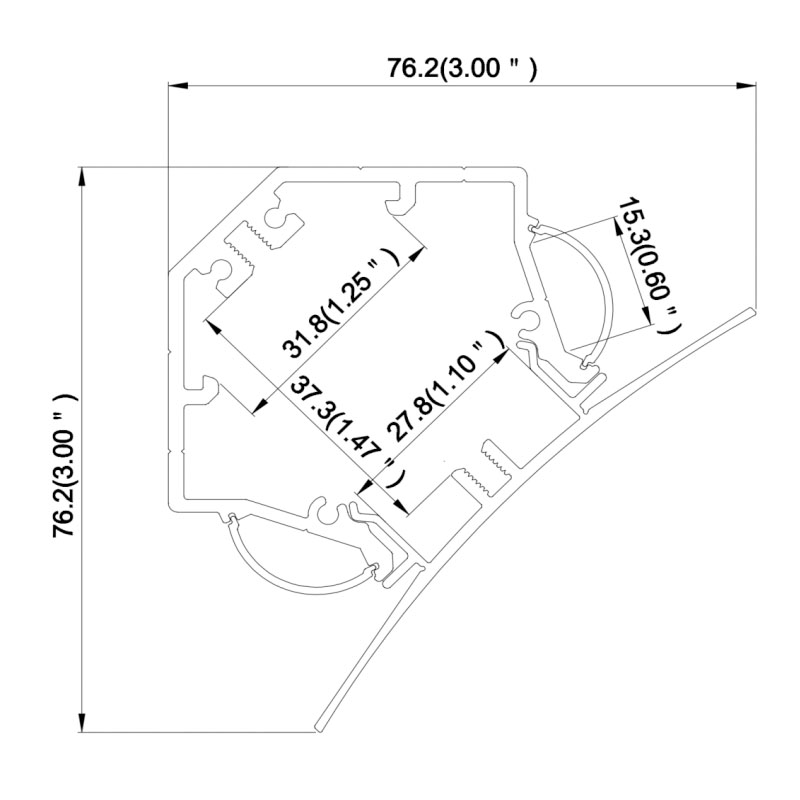

  • Size: 76.2*76.2mm(W*H)
  • Colors: Silver(Default), White, Black
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M, 3.5M, etc
  • Max Length Available: 6M
  • Custom Length Available: YES

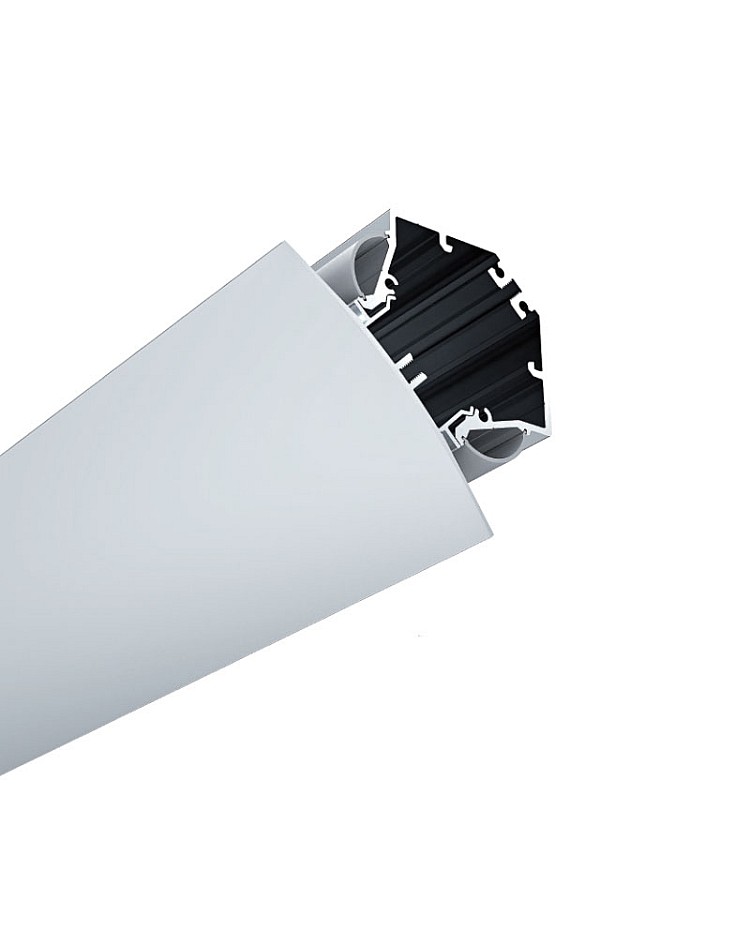

  • Diffusers: PC Diffused Cover, PC Semi-clear Cover
  • Inner Width: 15.3mm
  • Max Width Of LED Strips: 15mm
  • Max Power: 25W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rate: IP20 Non-waterproof
  • End Caps Included
  • LED Tape Lights, Dimmers, Controllers, And Transformers Sold Separately

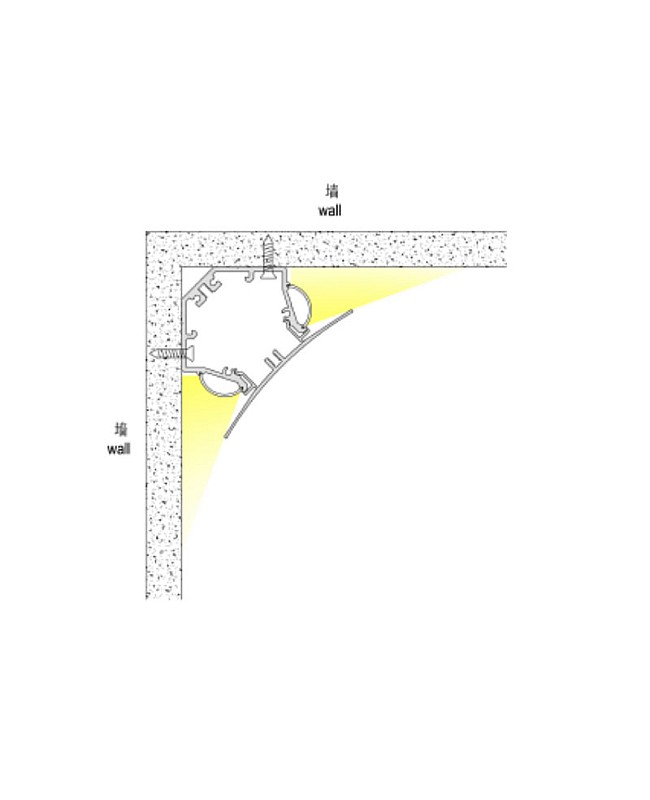

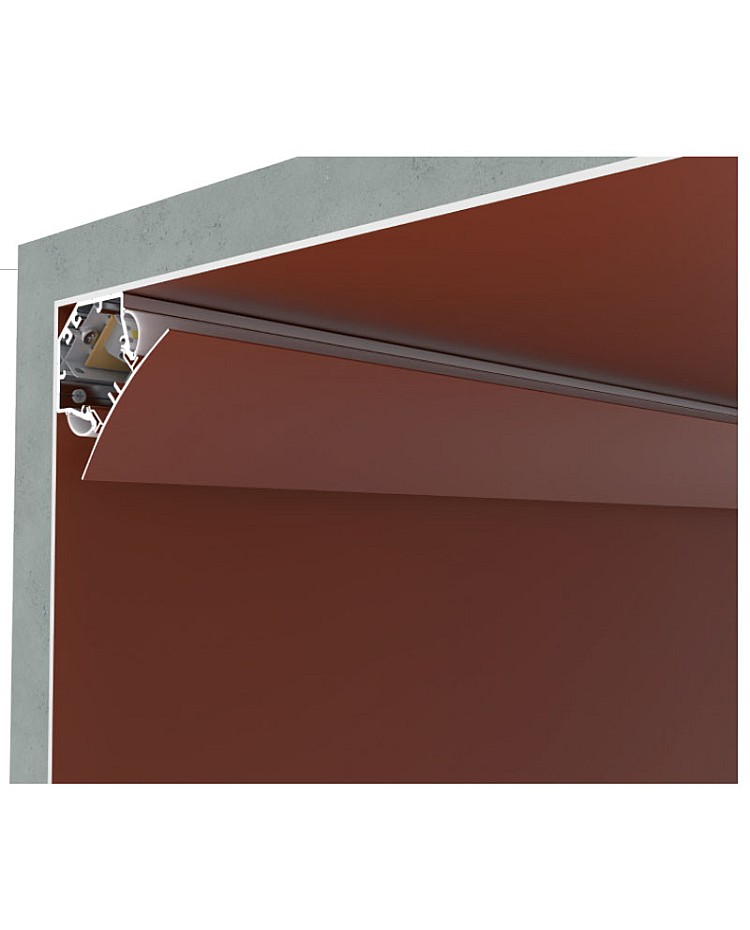

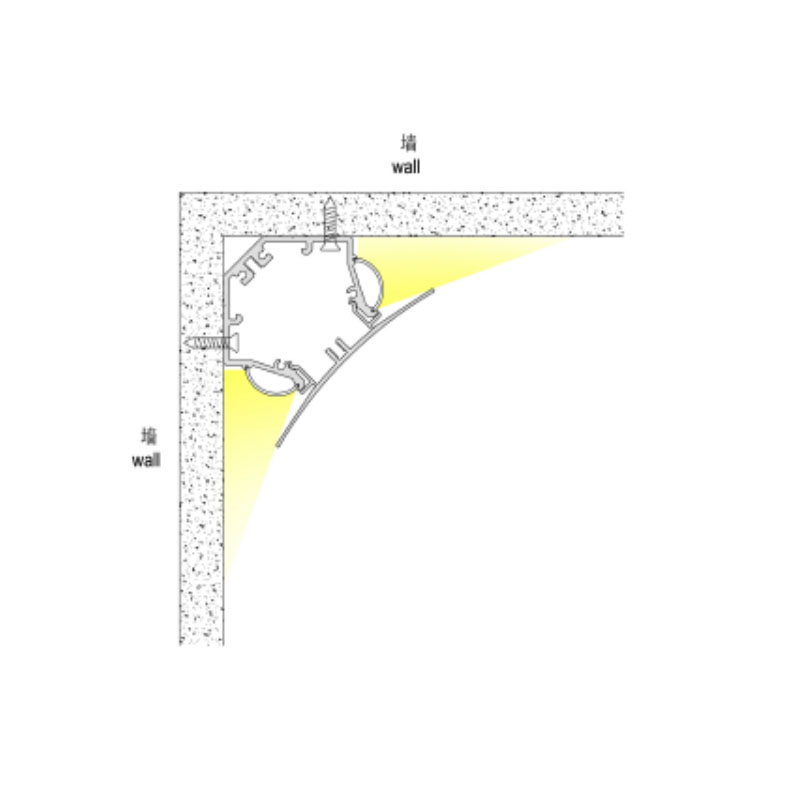

  • Installation: Corner Mounted
  • 5 Years Warranty


1*DIY LED Profile

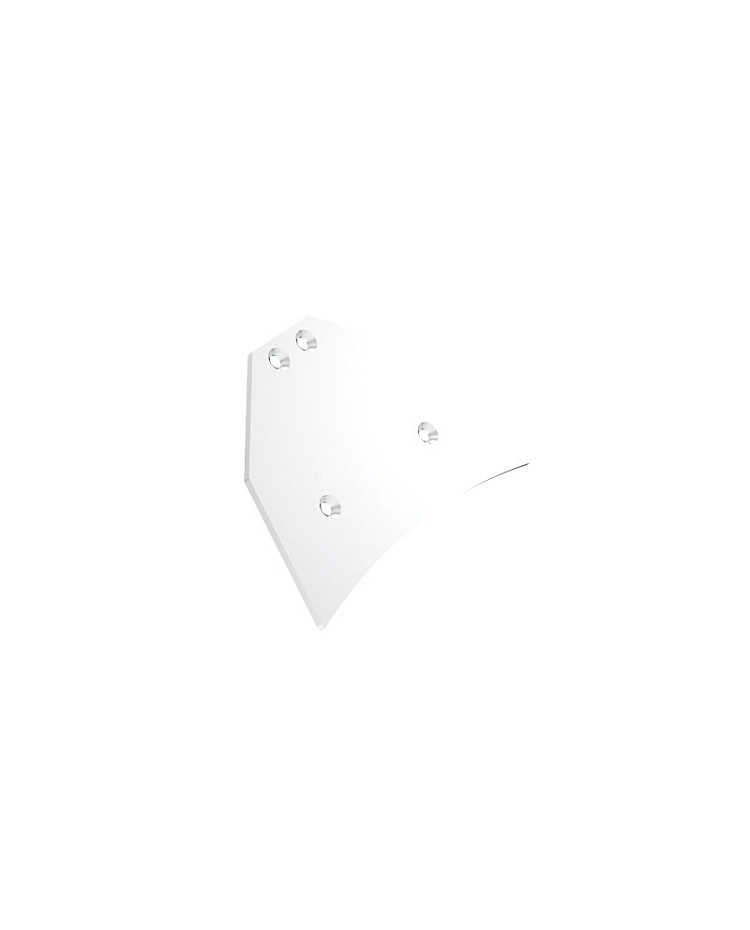

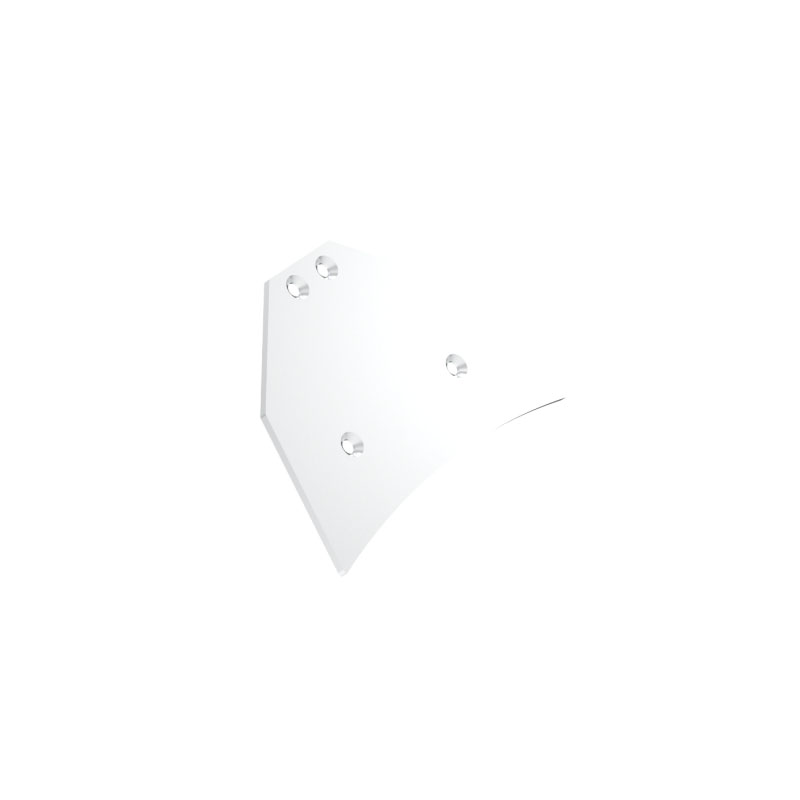

Metal End Caps
