In Stock
$4.99
Reward Points: 5
-
+
  • Brand: Ledbe
  • Product Code: YS-MINI-21S

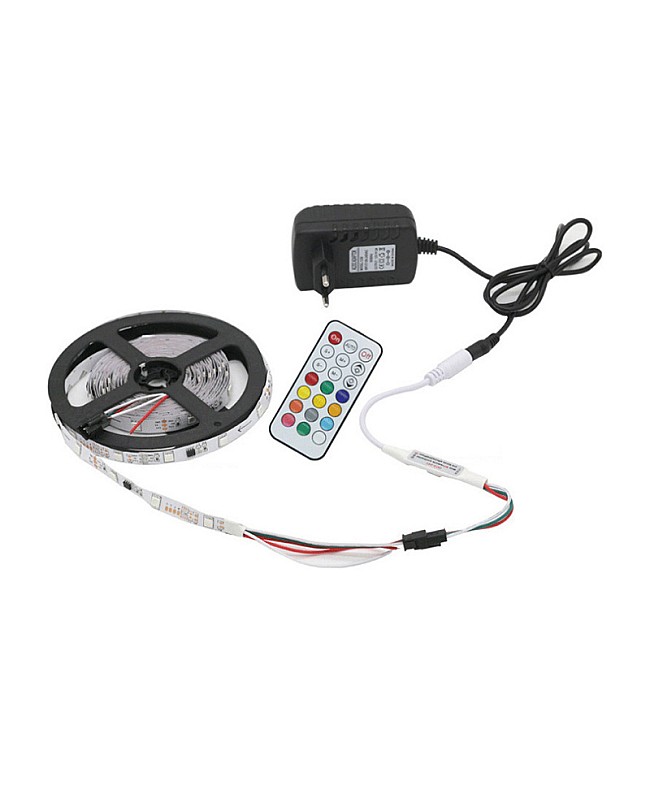

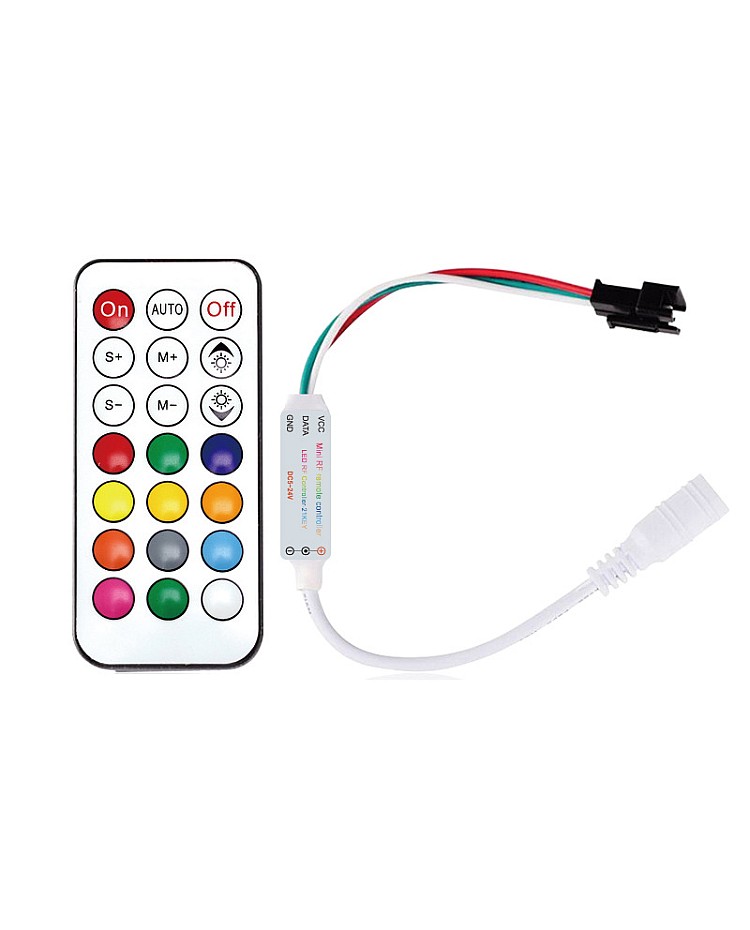

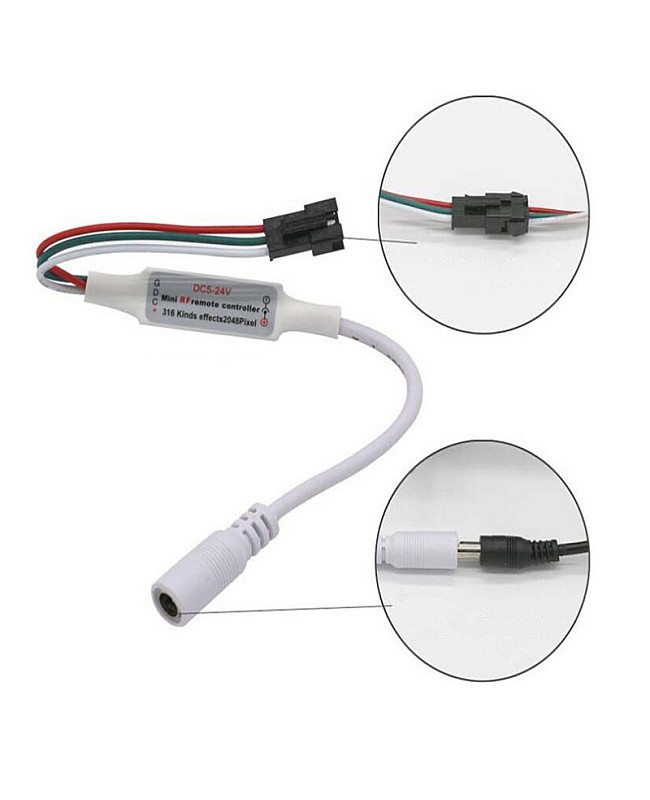

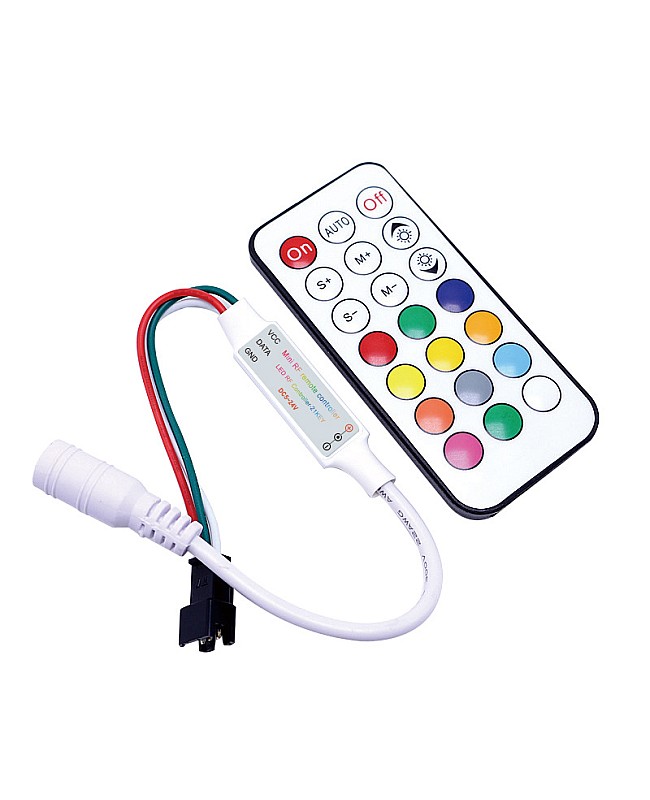

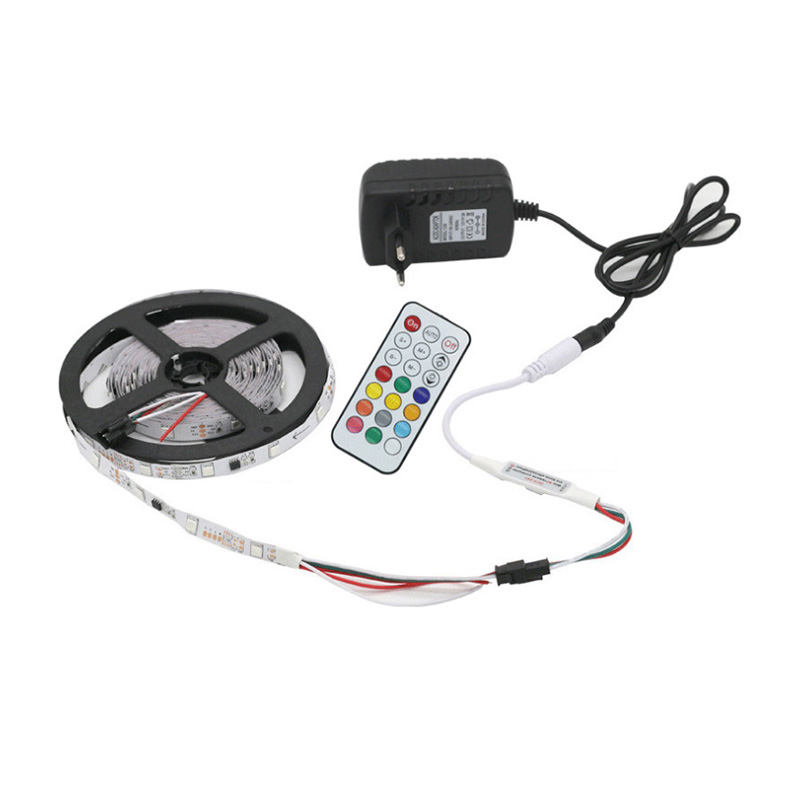

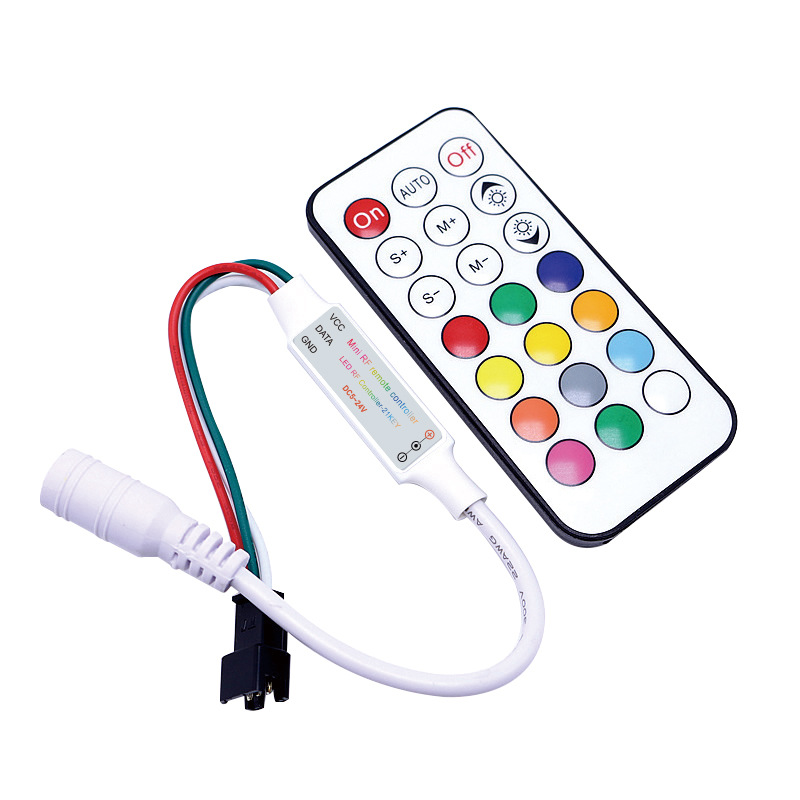

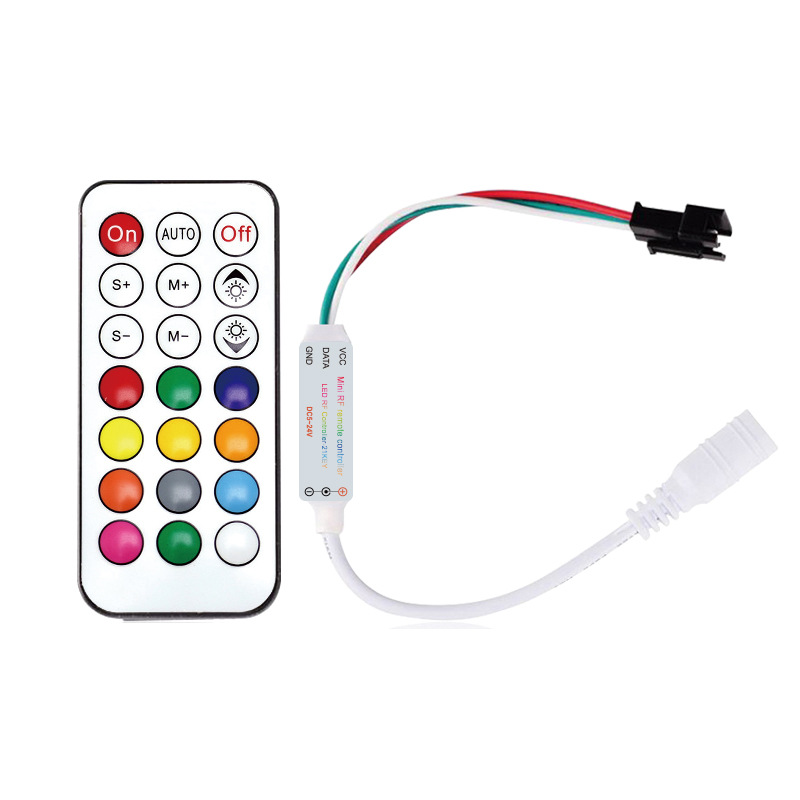

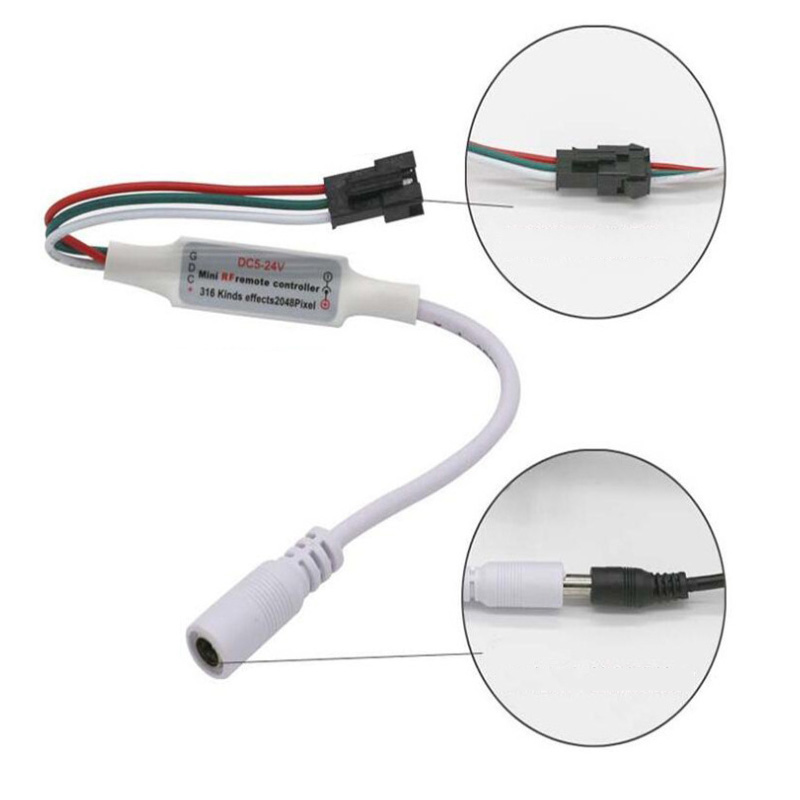

The addressable pixel WS2812B controller is a small size and an inline design, and you can install it in a small or narrow location. It comes with a female DC connector and a 3-pin female connector, which makes it easy to connect to the LED light driver and programmable LED strip lights. The 21-key RF remote control is included, and you can use it to control the LED light remotely. The pixel controller is compatible with WS2811, SK6812, WS2812B, 6803, 6812, 1903, and other main types of pixel LED strips with 3-wire connectors, with a maximum loading number of pixels of up to 1024PCS. There are 366 types of adjustable lighting effects. You can use the remote to adjust the brightness of static colors or the speed of dynamic modes.


Specifications:

  • Size: 42*12*3mm(L*W*H)
  • Working Voltage: DC5-24V
  • Static Power Consumption: <1W
  • Signal Output: One Channel SPI
  • Max Loading Number Of Pixels: 1024PCS
  • Compatible With WS2811, WS2812Bs, SK6812, 6803, 6812, 1903 ICs
  • Female DC Connector And 3Pin Female Connector Included

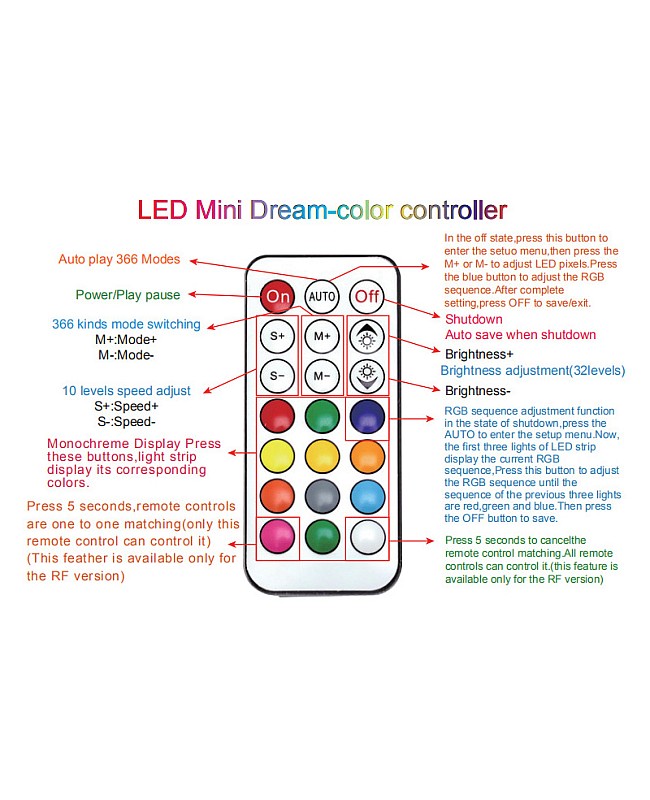

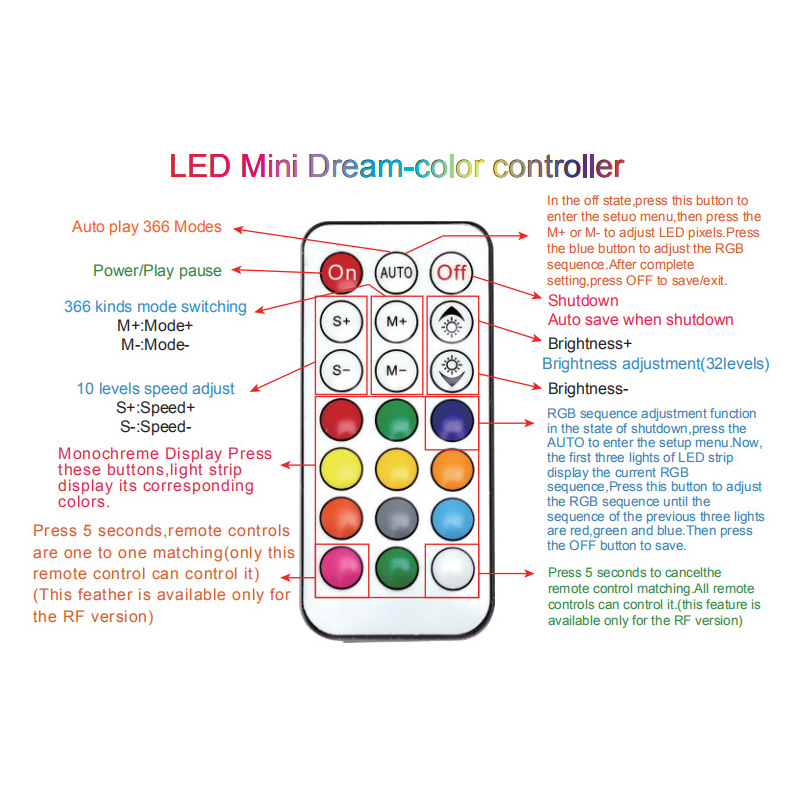

  • 21 Keys RF Remote Control Included
  • 366 Kinds Of Lighting Effect Modes Adjustable
  • 32 Levels of Brightness And 10 Levels of Speed Adjustable
  • Remote Control Distance: ≤15 Meters
  • 0-100% Dimmable
  • 2 Years Warranty


Includes:

1 * WS2812B Controller

1 * 21 Keys RF Remote
