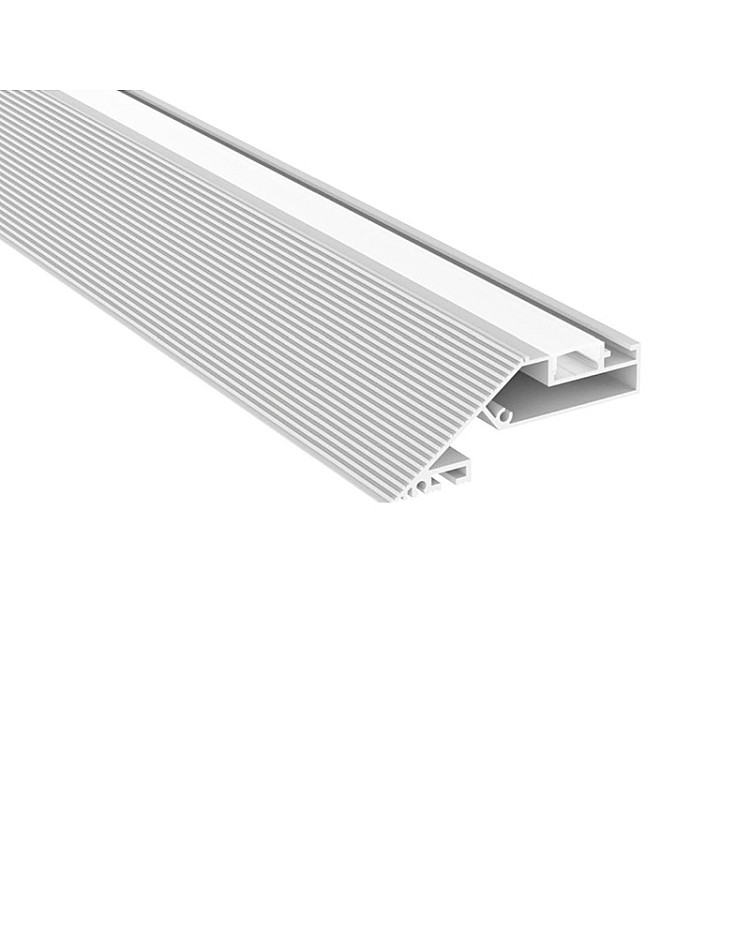

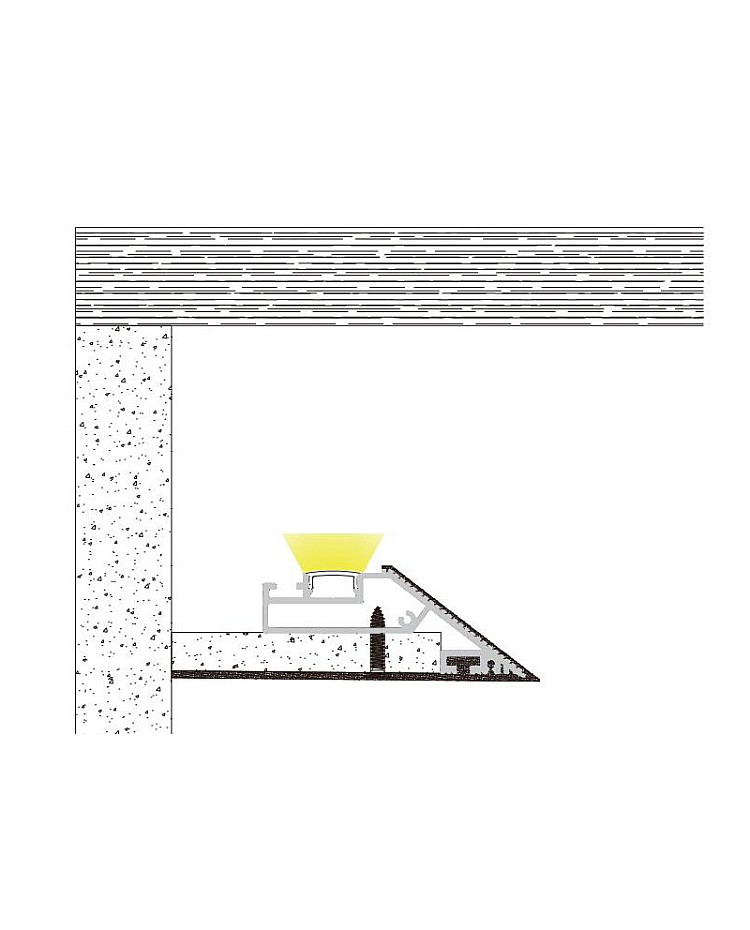

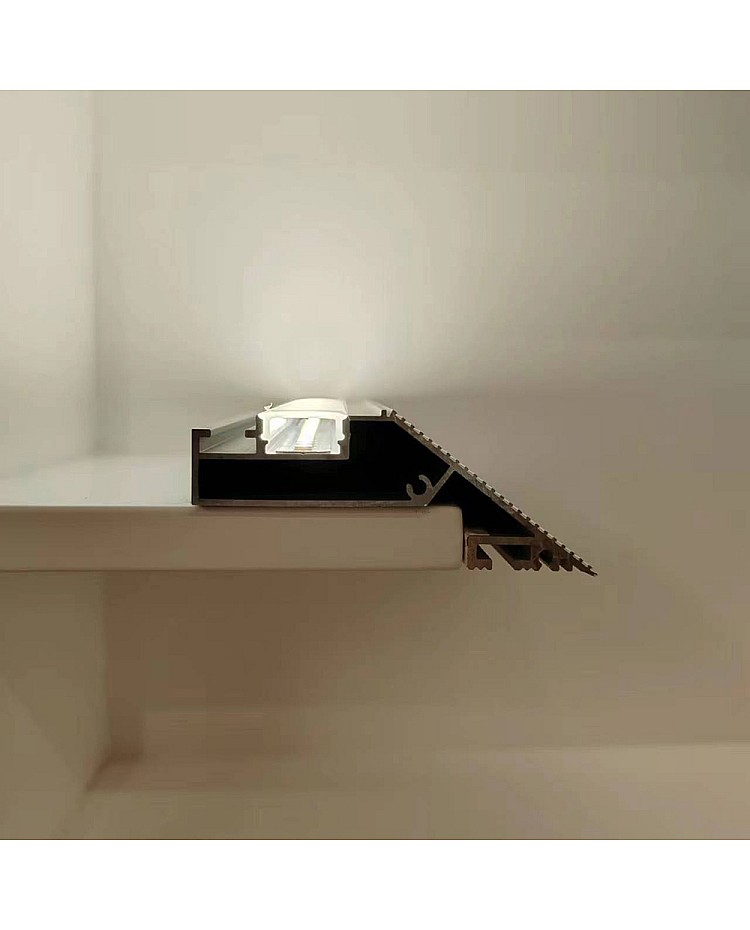

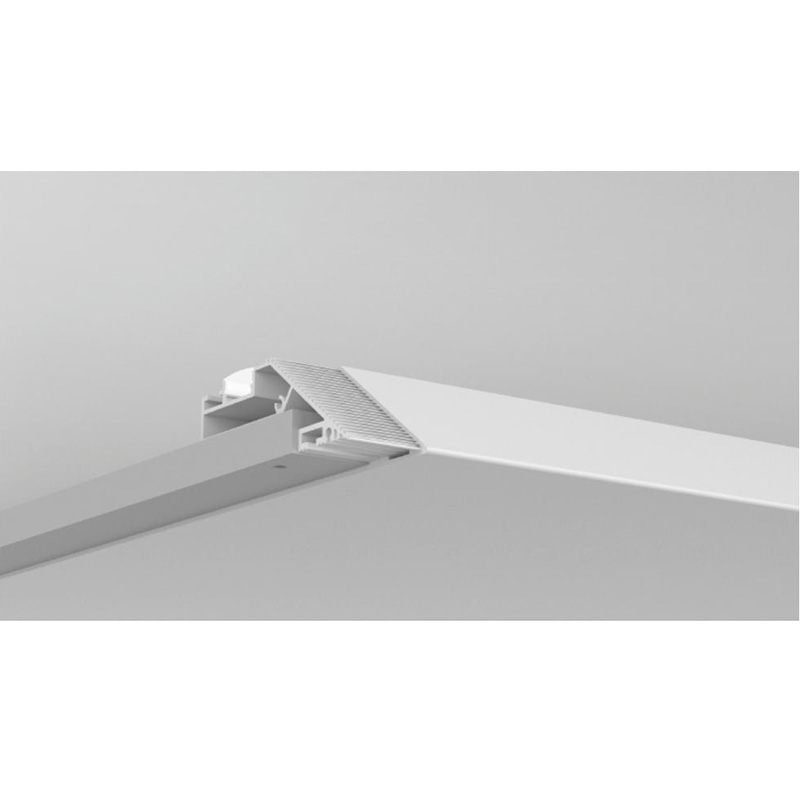

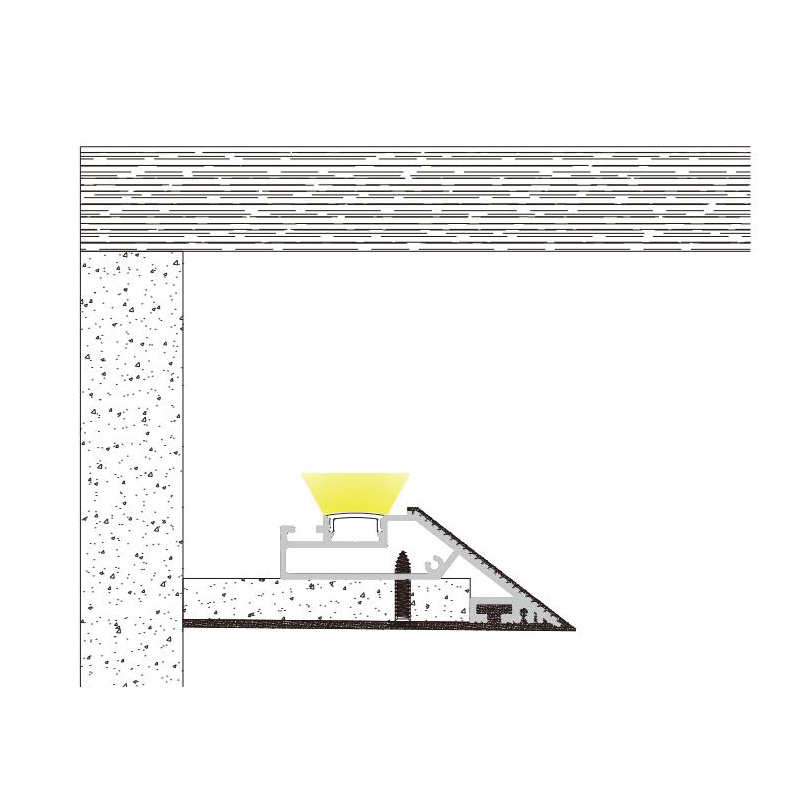

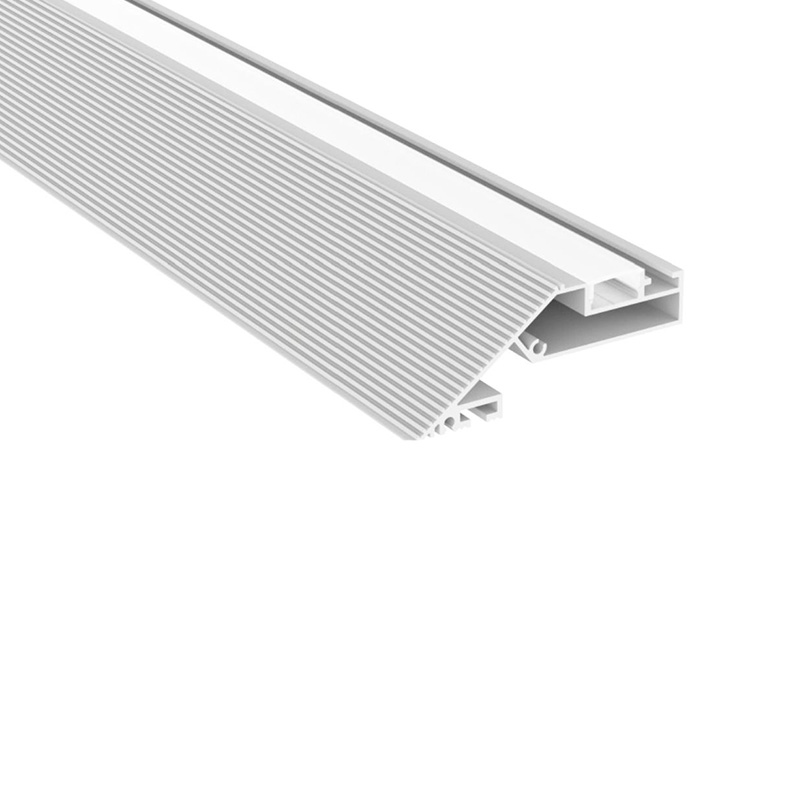

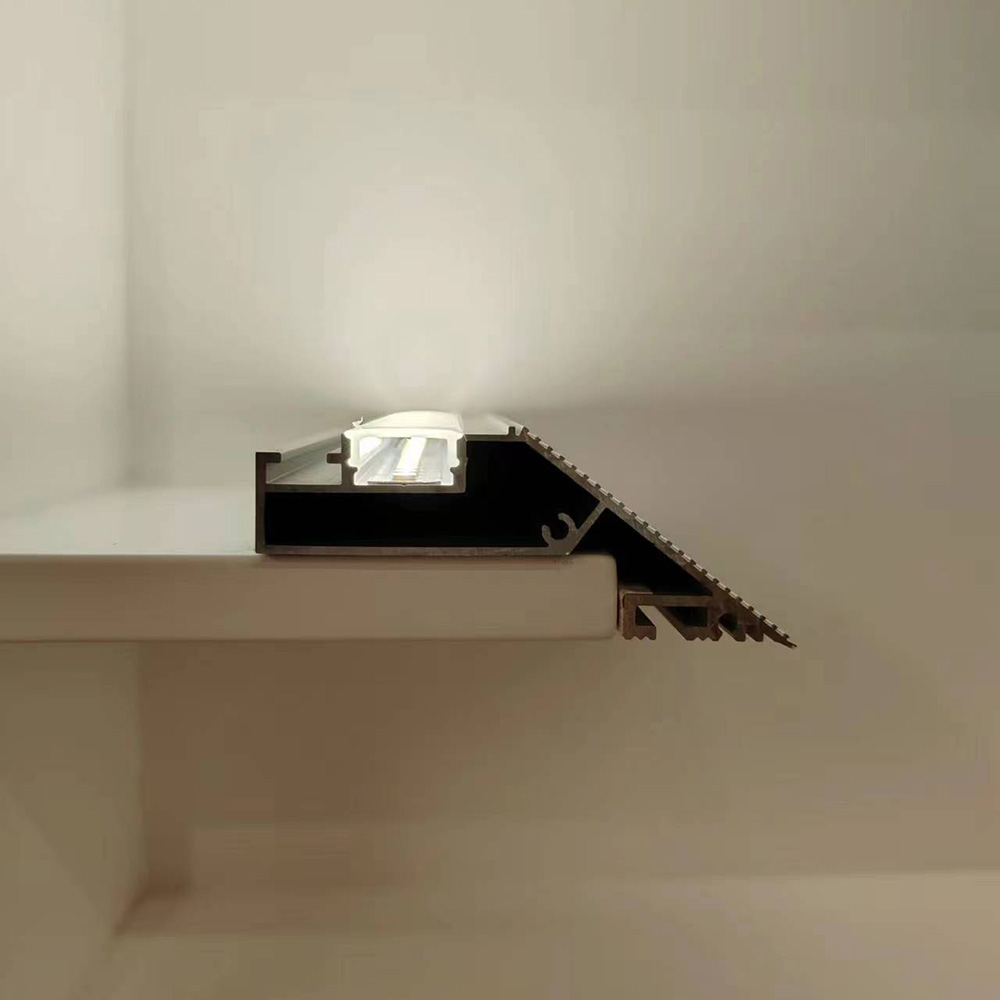

The Cove lighting LED channels are designed for creating elegant indirect lighting effects in modern architectural spaces. They feature a sloped-surface design and can be seamlessly integrated along the edge of gypsum board ceilings. The knife-edge LED channels have an upward-lighting design, which delivers a smooth light output that reflects off the ceiling to minimize shadows and glare, creating soft, evenly diffused ambient lighting.
The standard length is 2 meters per piece, and custom lengths are also supported. The gypsum board light channels are crafted from high-quality extruded aluminum and feature an anodized finish for oxidation resistance and a longer lifespan. They can also serve as heat sinks to improve heat dissipation, extending the lifespan of strip lights. The inner width is 13.3 mm, allowing for a maximum strip light width of 13mm. We recommend adding high-density SMD or COB LED strips as light sources for uniform lighting without visible light dots.
Four types of diffusers are available: PC diffused cover, PMMA opal matte cover, PMMA semi-clear cover, and PMMA clear cover. They are made of brand-stable, anti-yellowing material and have perfect light distribution. You can choose them for various light transmittance and light effects. The 90° inside connectors, 90° outside connectors, and 180° couplers are sold separately; you can use them to design custom shapes.
Specifications:
- Model: ALP198
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

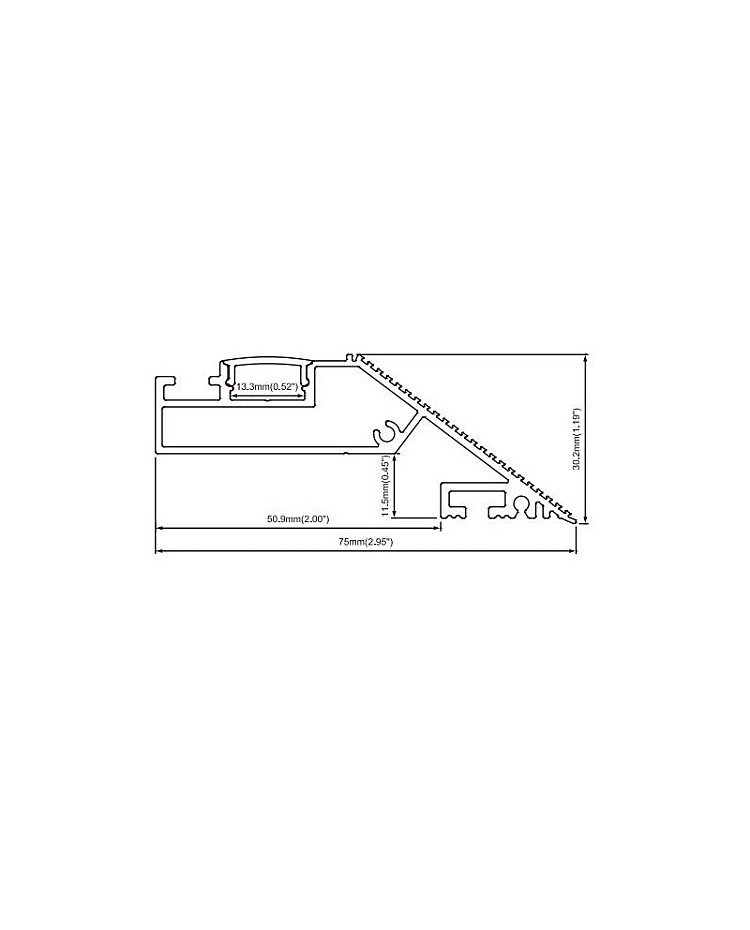

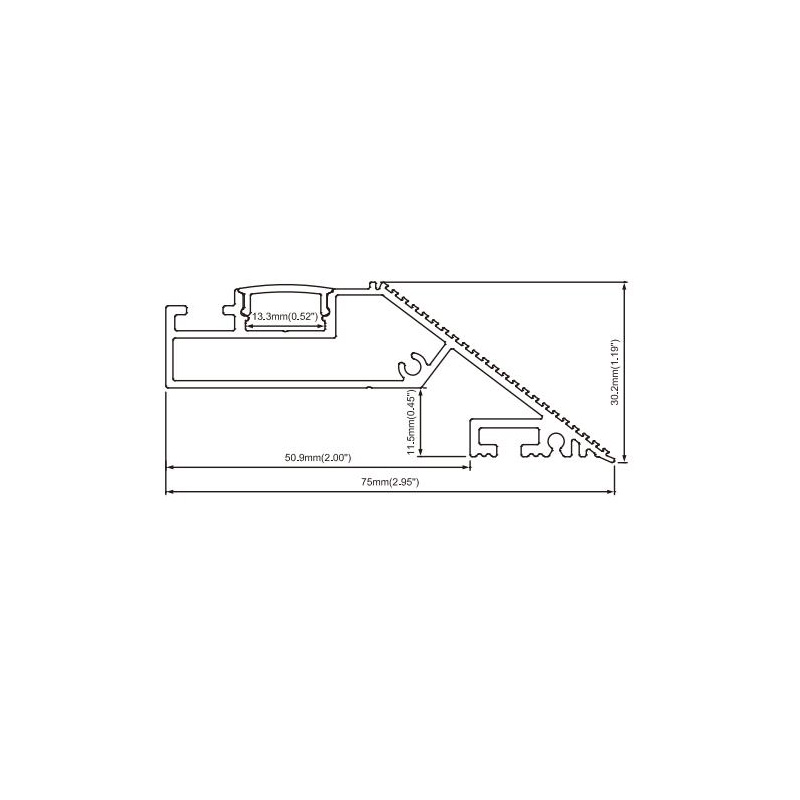

- Size ( W x H ): 75 mm x 30.2 mm (2.95" x 1.19" )
- Standard lengths: 1 m ( 39" ) , 2 m ( 78" )
- Custom length: YES
- Inner width: 13.3 mm ( 0.52" )
- Maximum width of strip lights to be 13 mm ( 0.51" )
- Max power: 15W/m
- Diffusers: PMMA opal matte diffuser / PMMA semi-clear diffuser / PMMA clear diffuser / PC diffused cover

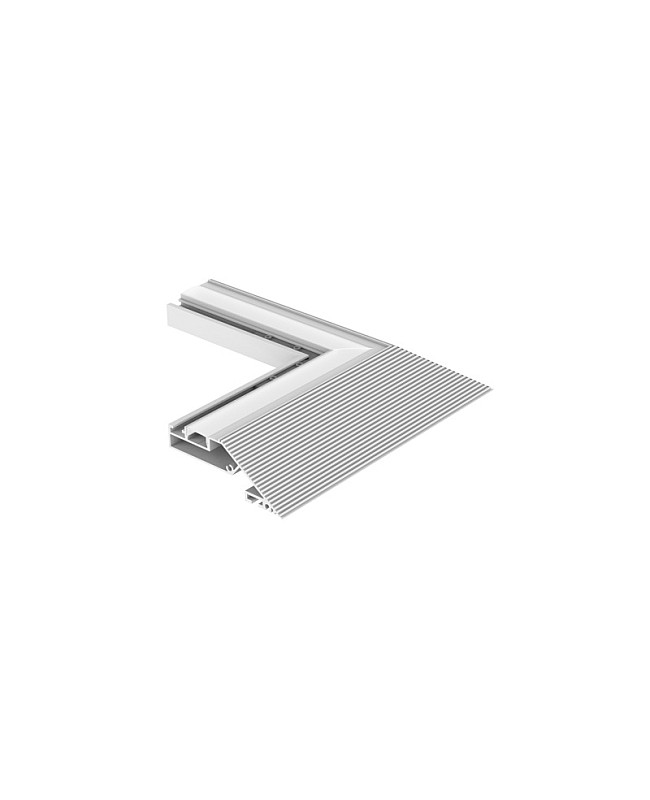

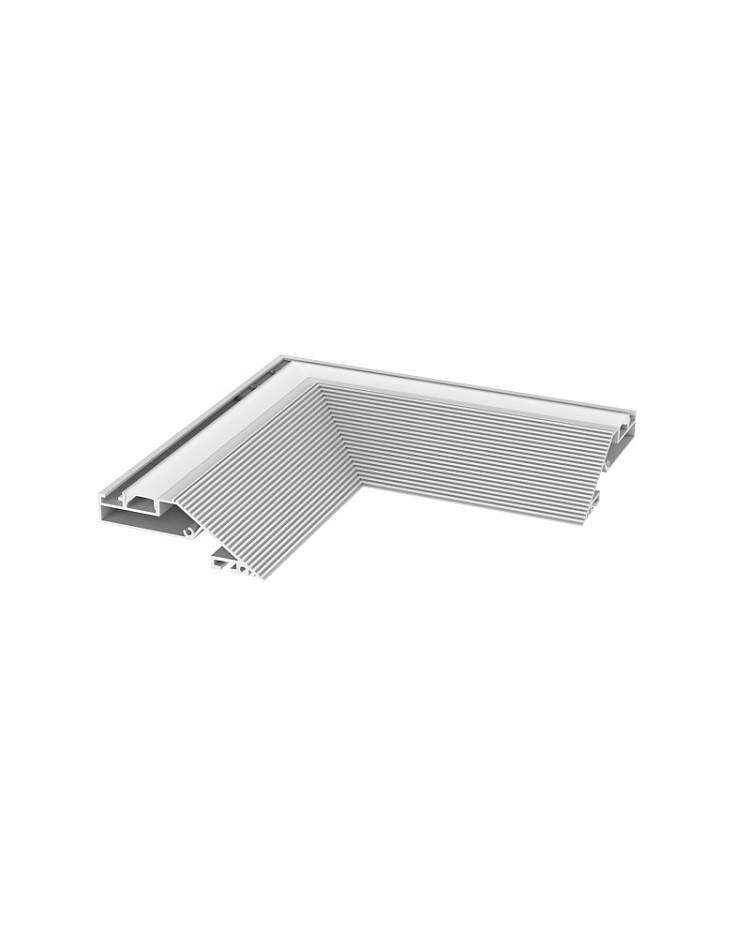

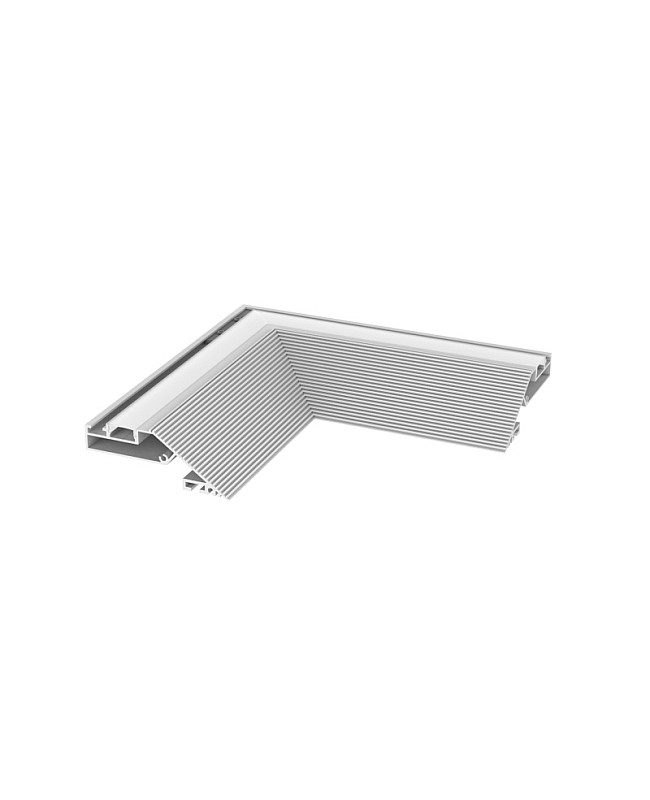

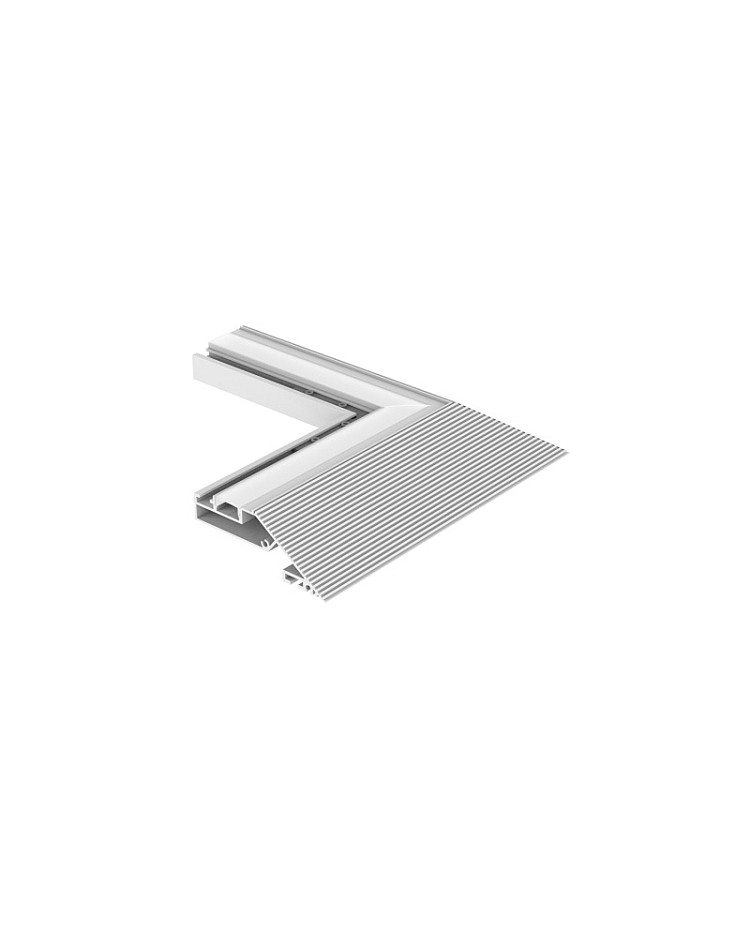

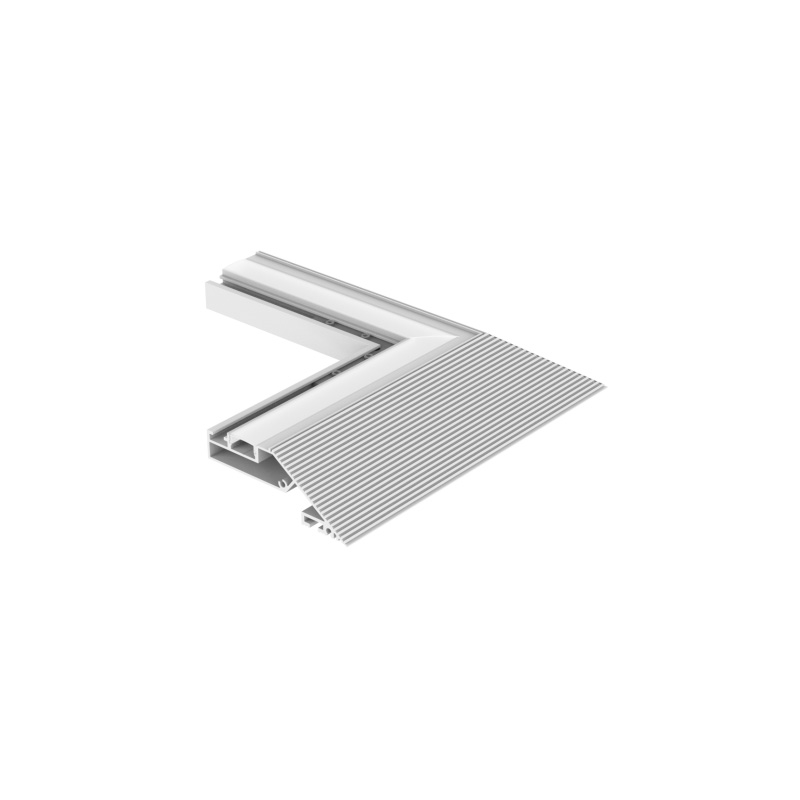

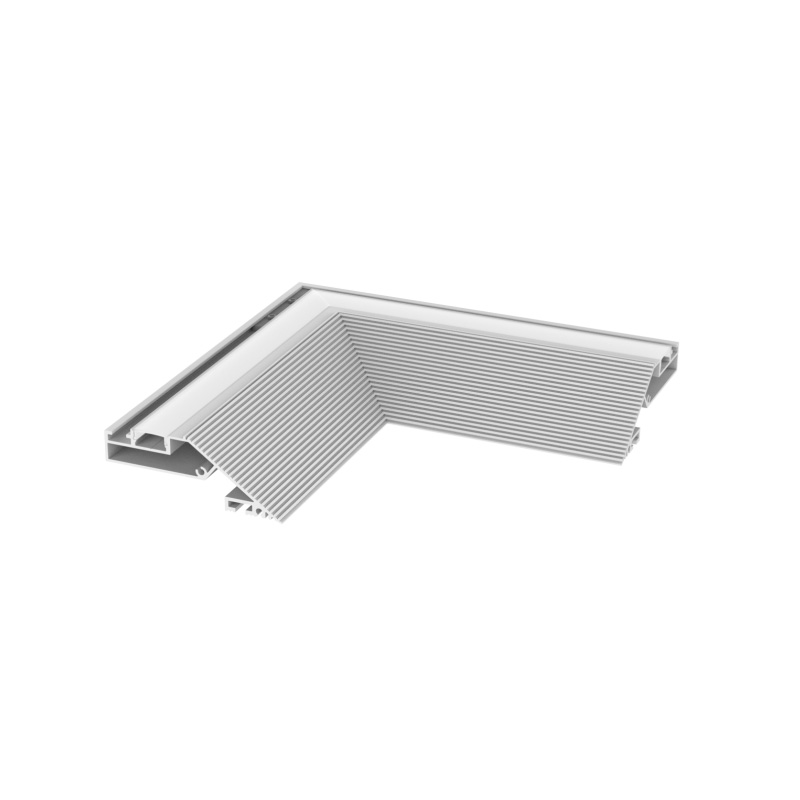

- 90° outside connectors, 90° inside connectors, and 180° couplers sold separately
- 180° joiners are sold separately
- Installation: Surface-mounted
- Warranty: 5 years
Applications:

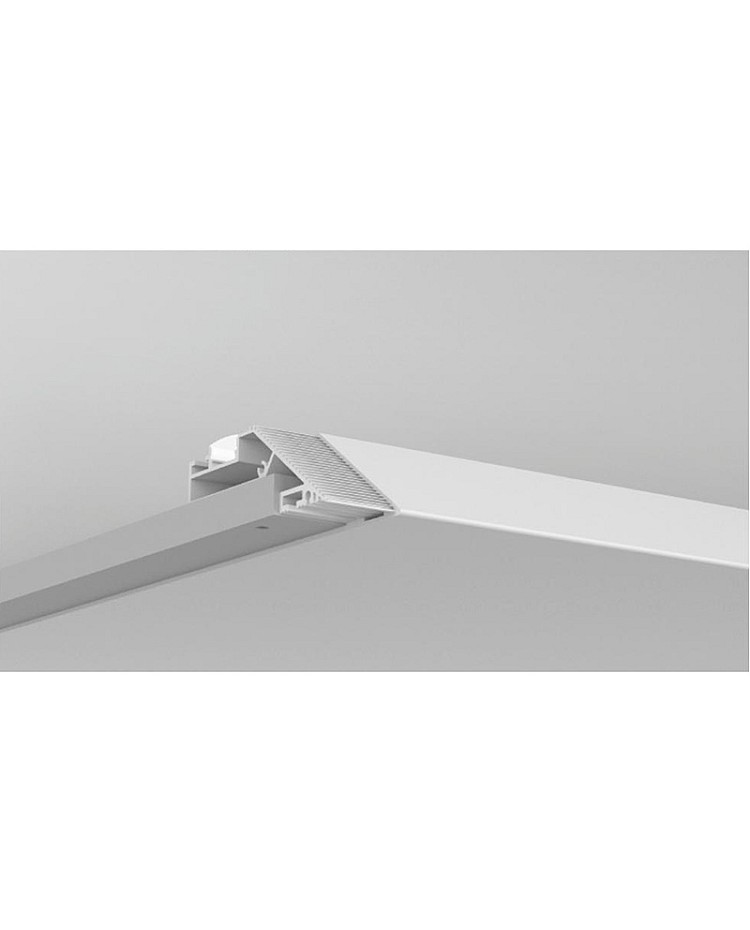

- Floating ceiling perimeter lighting
- Cove lighting in residential or commercial interiors
Includes:
1 * Cove light LED channel with diffuser

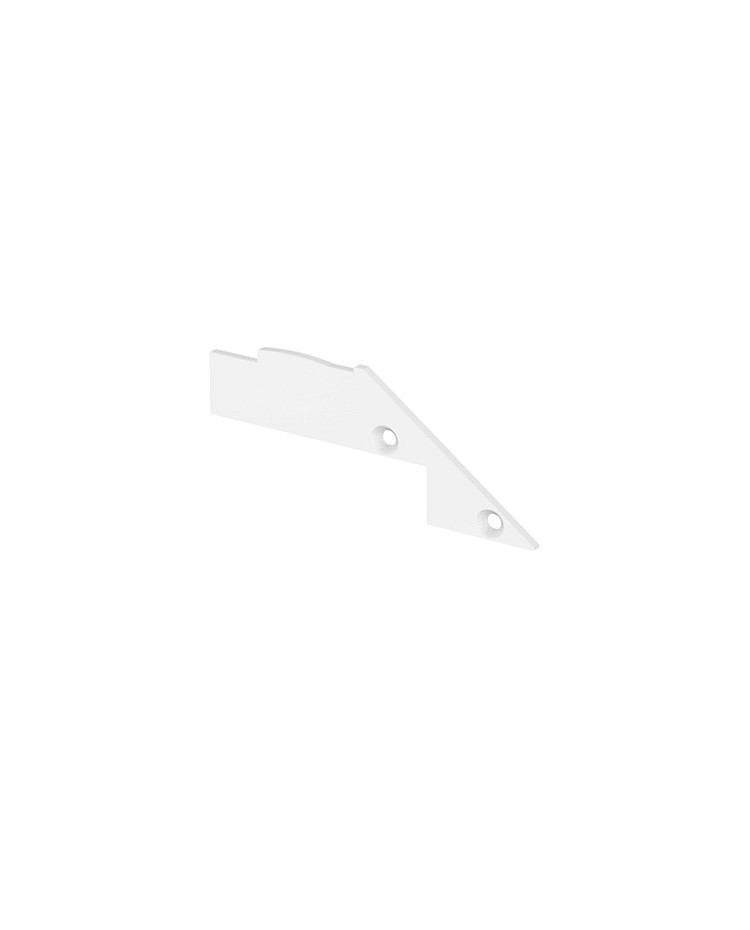

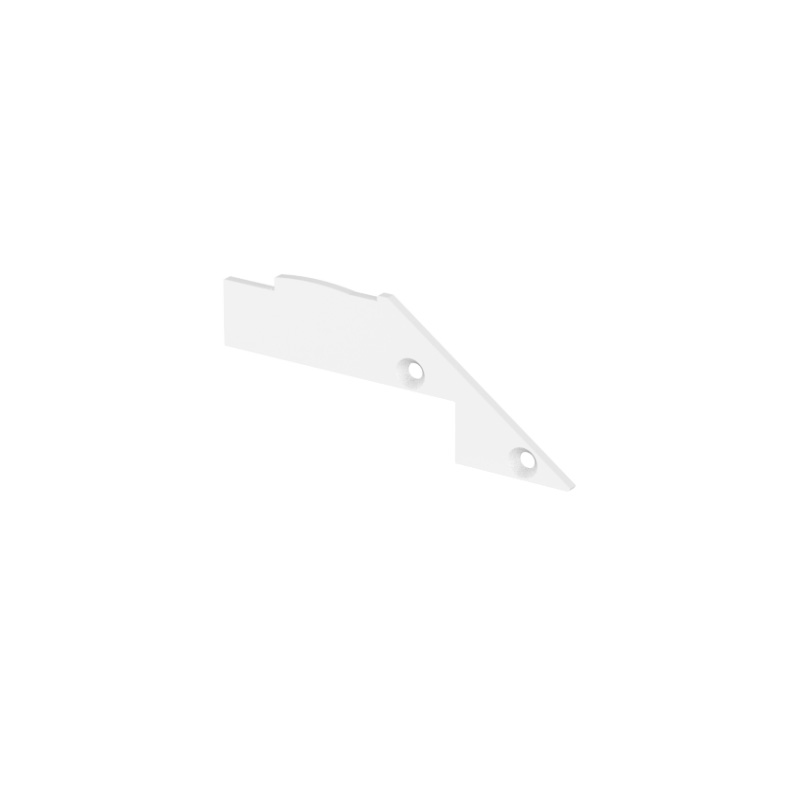

End caps (With and without wire holes)
