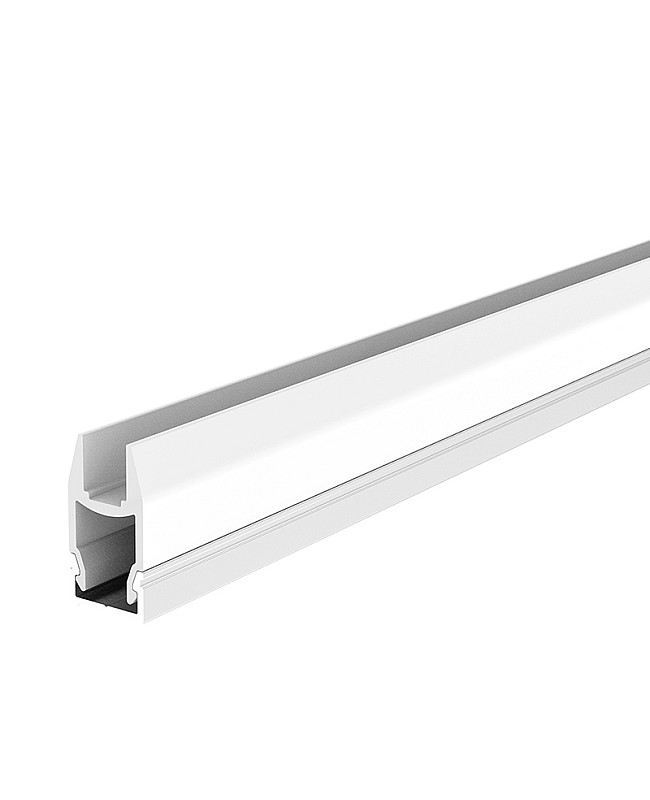

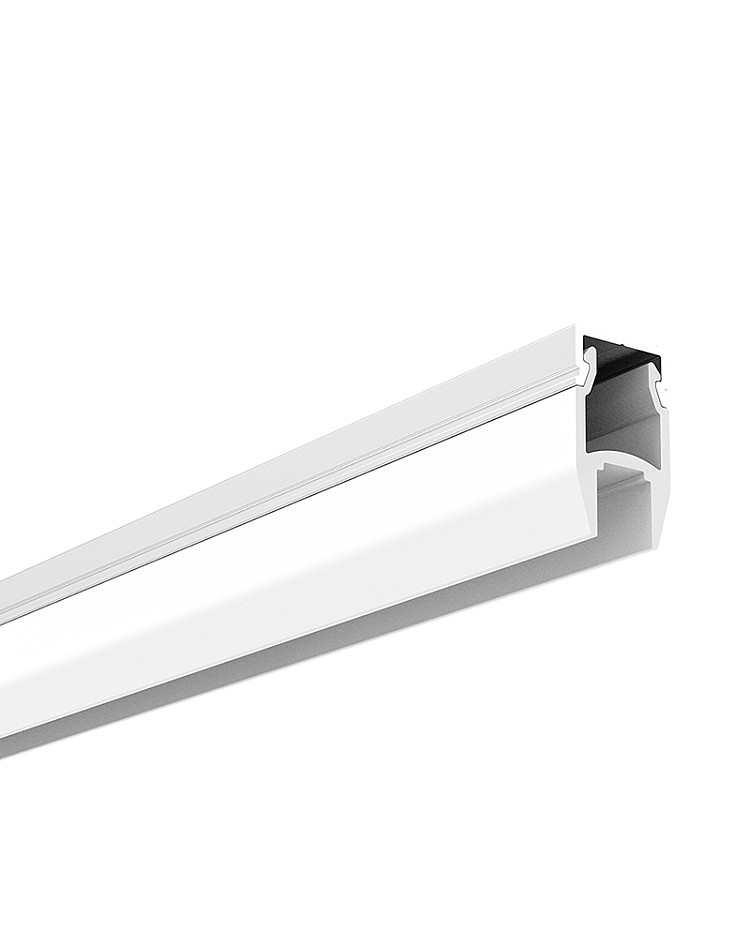

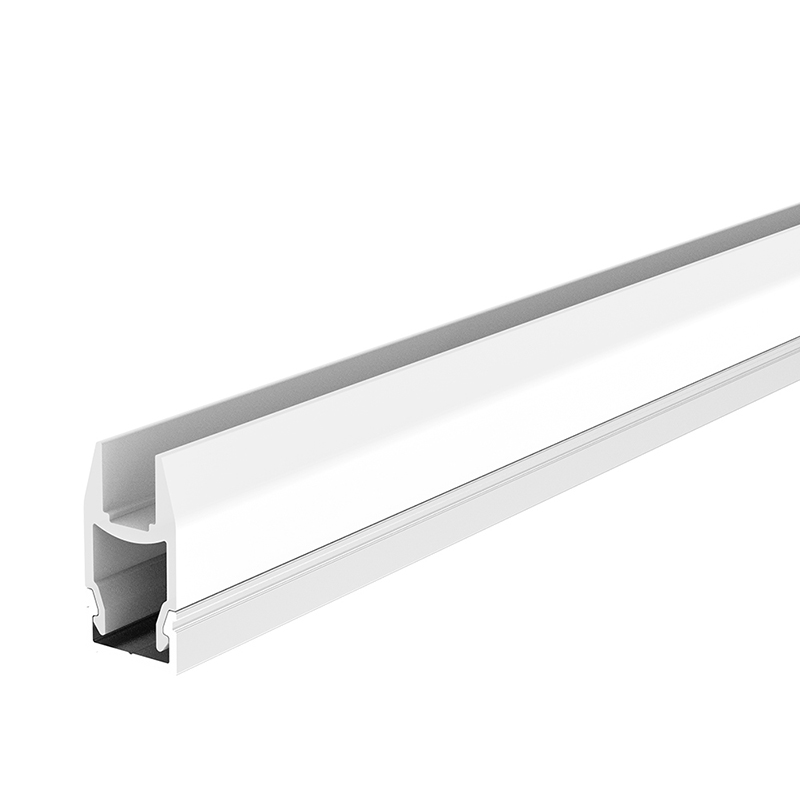

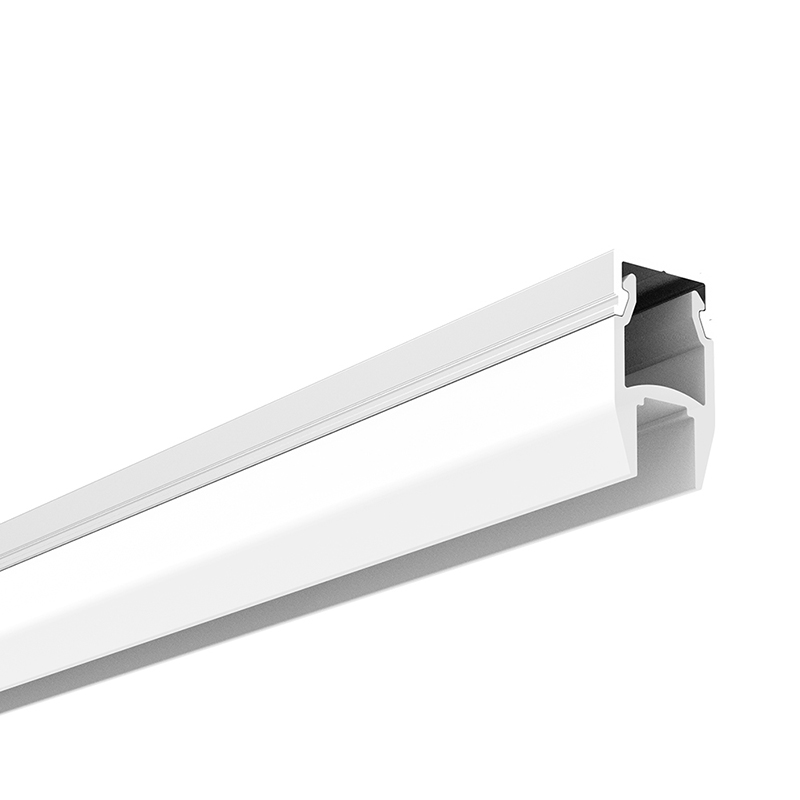

The edge-lit LED channels are designed for glass/acrylic boards; they are easy to mount onto the edge of transparent or frosted panels for a sleek, modern lighting effect. These slim LED profiles offer a clean, secure fit for glass or acrylic panels 6mm or 8mm thick, allowing light to diffuse beautifully through the panel edge and create a glowing, ambient border. Ideal for decorative glass partitions, shelving, signage, and display cases. The edge LED profiles are made of 6063-T5 aluminum alloy with anodized surfaces, providing oxidation resistance and a longer lifespan. The inner width is 11 mm, allowing a maximum width of 11 mm for the LED strips. We recommend using high-density COB tape lights as the light source to create uniform lighting, with no light spots or dark areas. The standard lengths are 1 m and 2 m, and can be cut to any size for your project. There is only one type of diffuser available: the PC diffused cover, made of a brand-stable material that helps diffuse light and protect the LED tapes from dust and dirt. End caps with and without wire holes are included.
Specifications:
- Model: ALP138
- Material: Aluminum
- Surface treatment: Anodized
- Colors: Silver

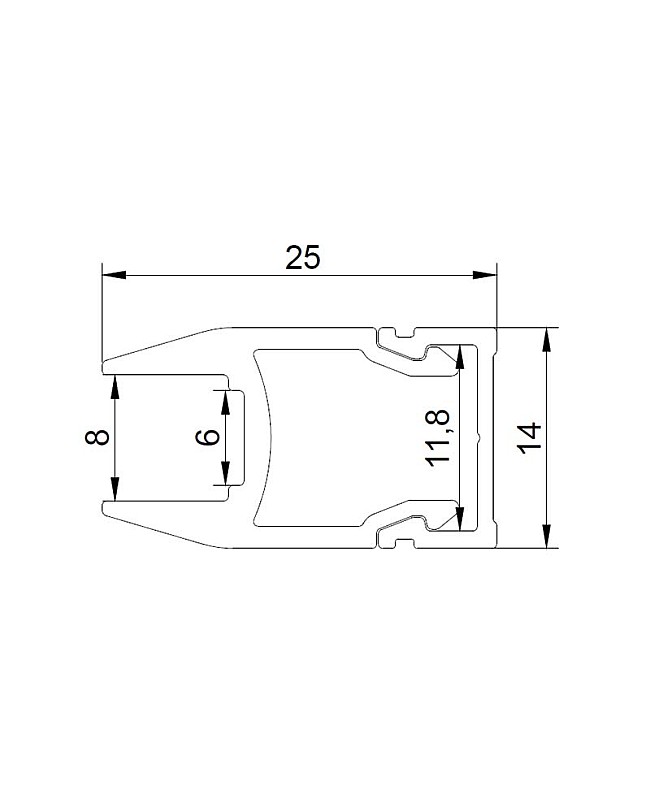

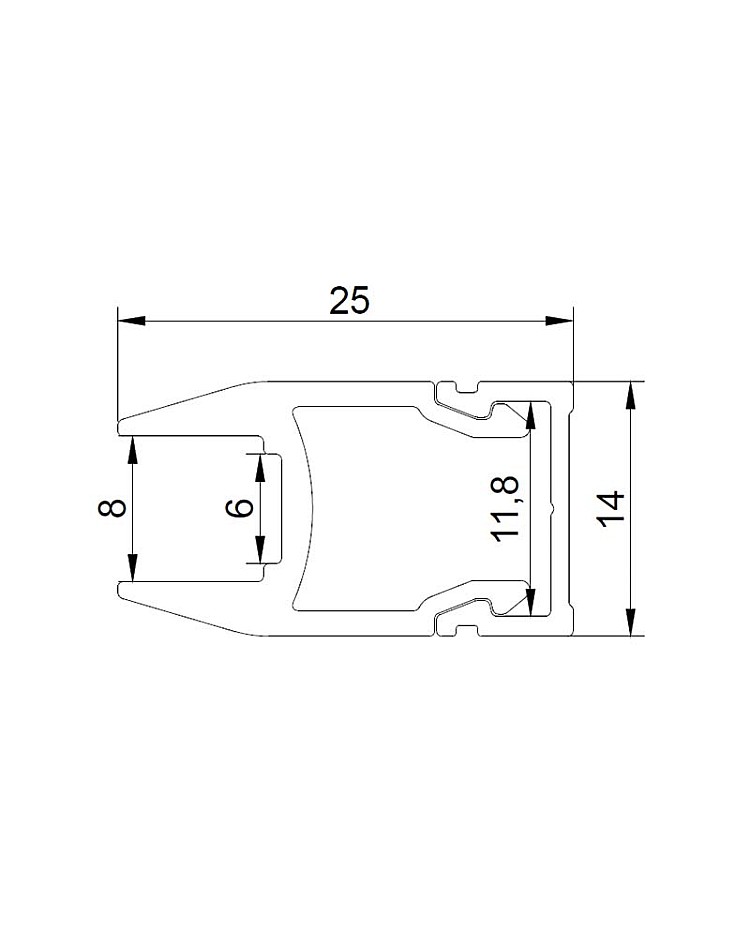

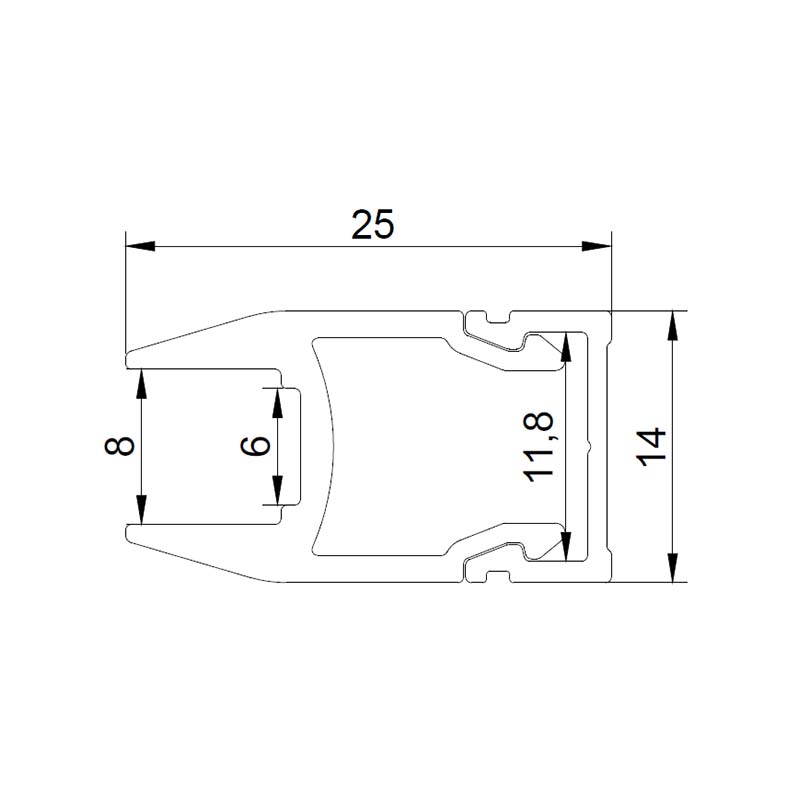

- Size ( W x H ): 25 mm x 14 mm ( 0.98" x 0.55" )
- Standard Length: 1 m ( 39" ), 2 m ( 78" )
- Custom Length Available: YES
- Inner Width: 11 mm ( 0.43" )
- Max LED Strip Width: 10 mm ( 0.39" )
- Max Power: <8W/M
- Diffusers: PC diffused cover
- Beam angle: 100°

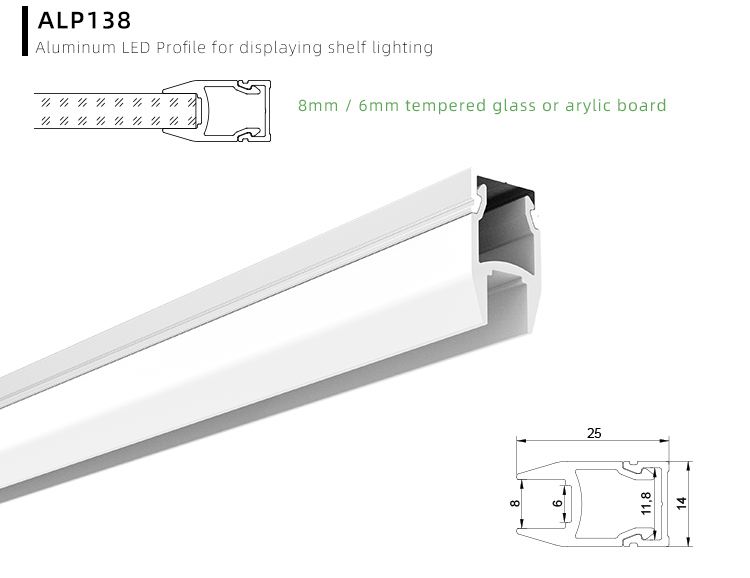

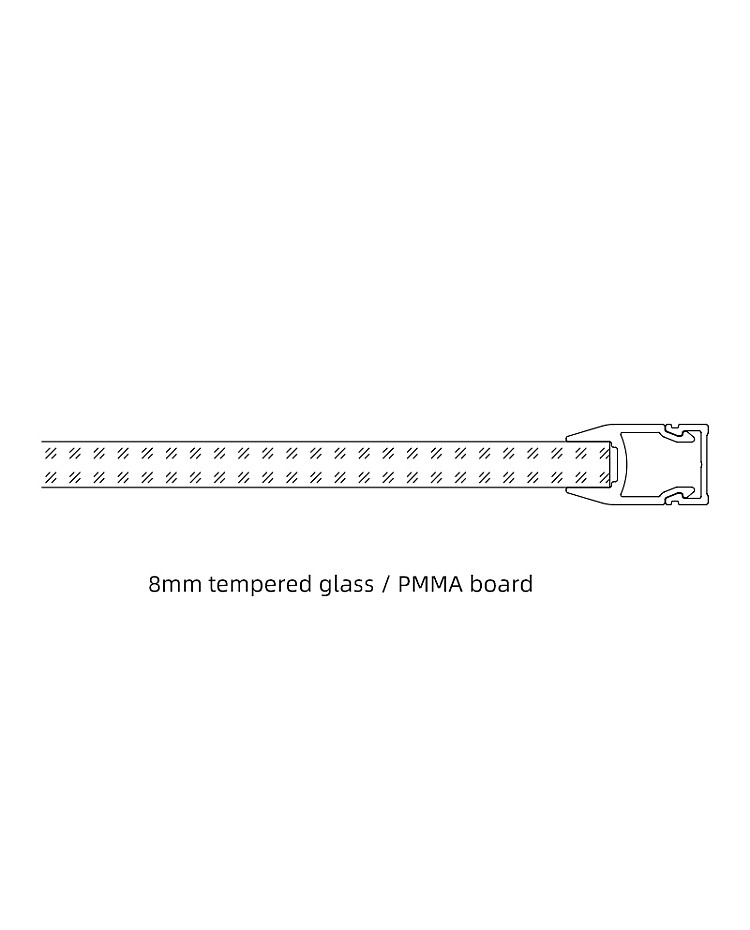

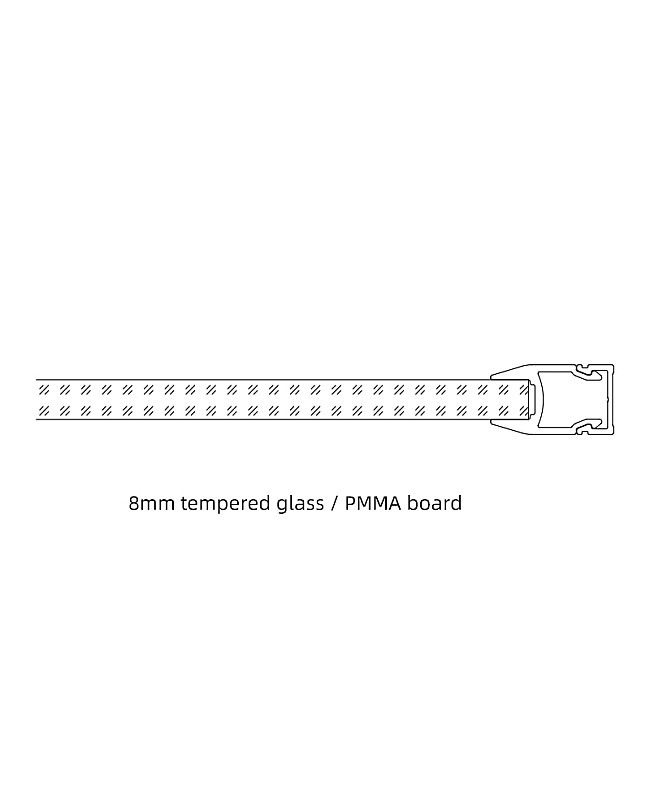

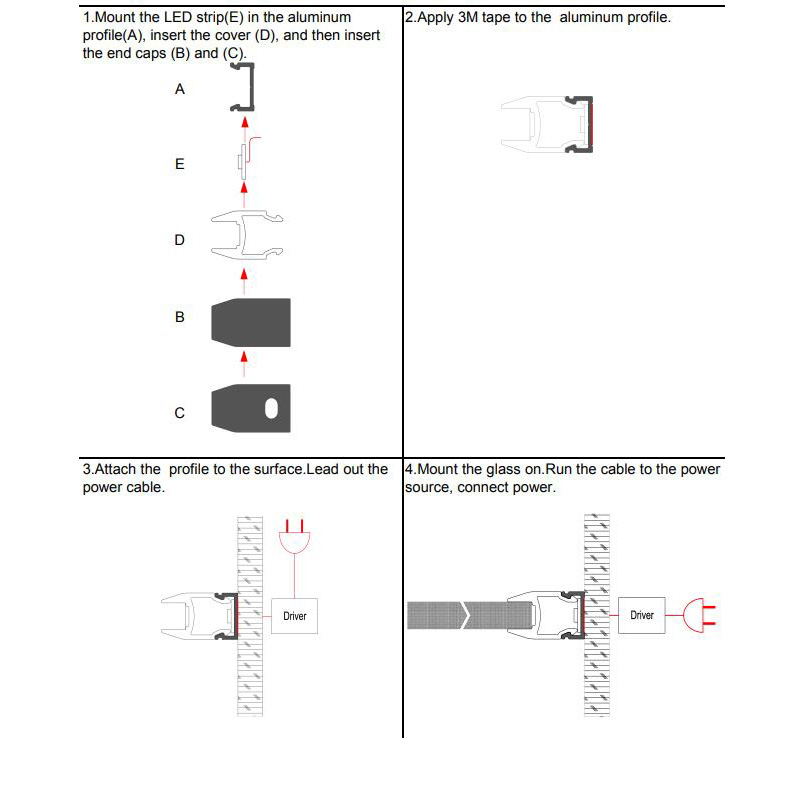

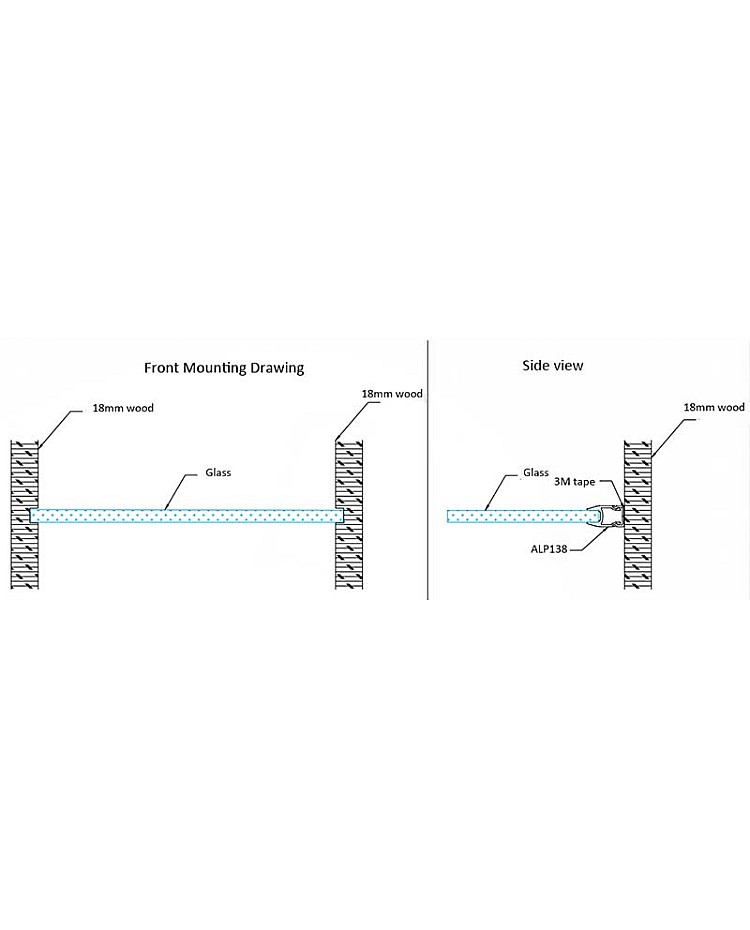

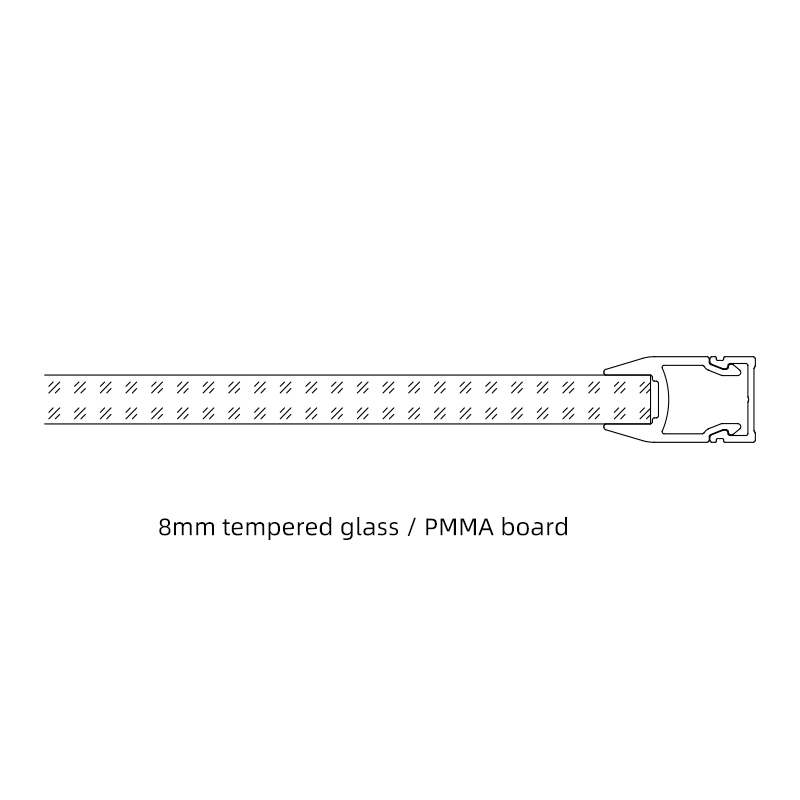

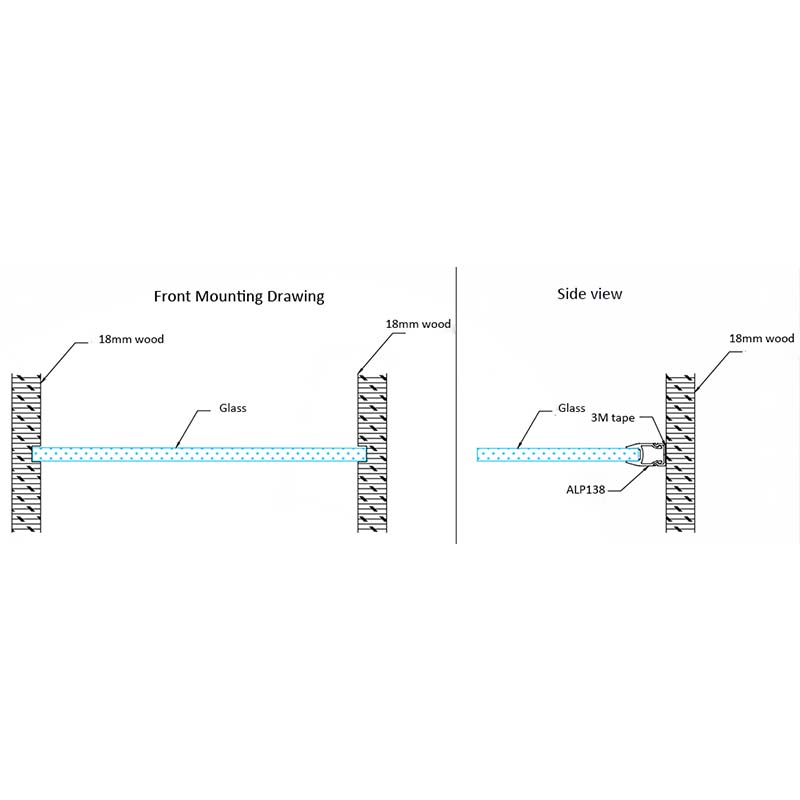

- Installation: Recess in 8mm/6mm tempered glass or acrylic board
- End caps with and without wire holes are included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Retail displays and showcases
- Framless glass shelves and cabinets
- Decorative room dividers or partitions
- Illumination signs and logos

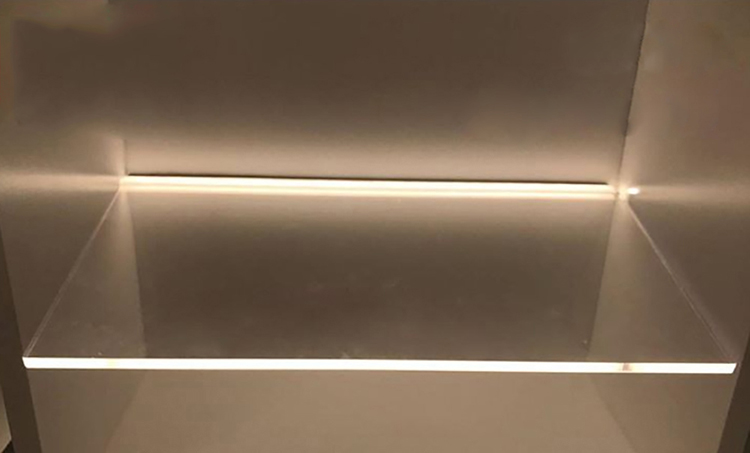

- LED glass shelf lighting

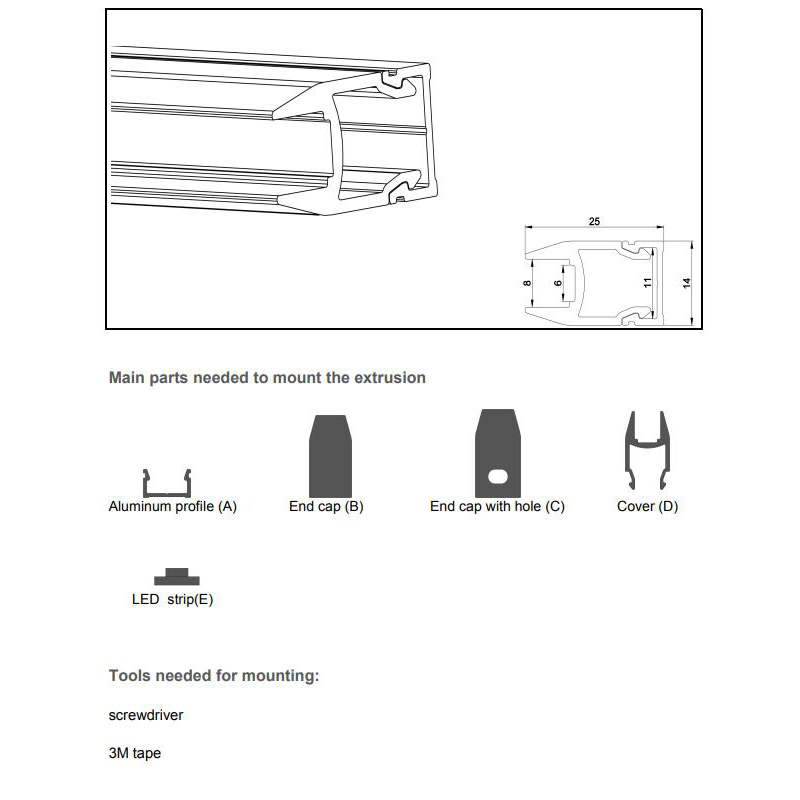

Includes:
1 * Edge lit LED channel and diffuser
End caps(with/without wire holes)
