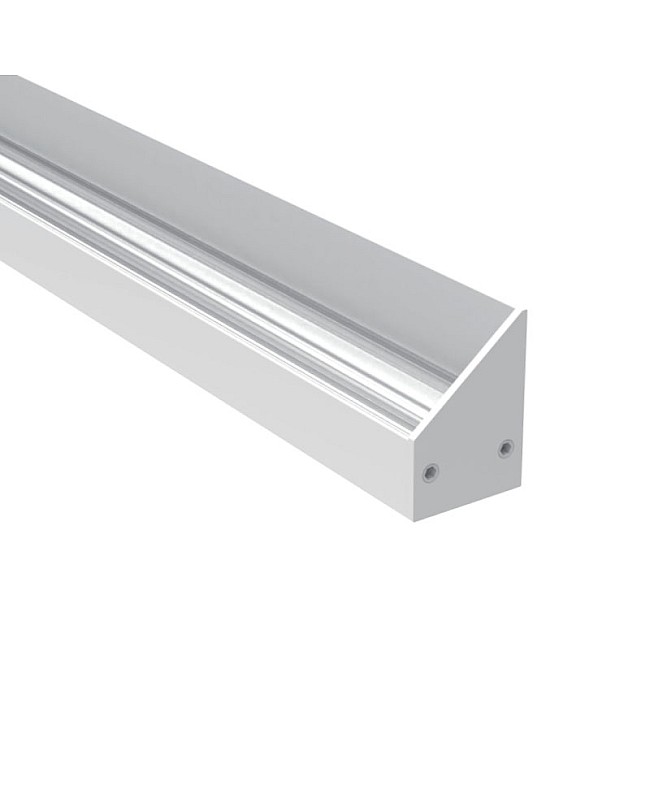

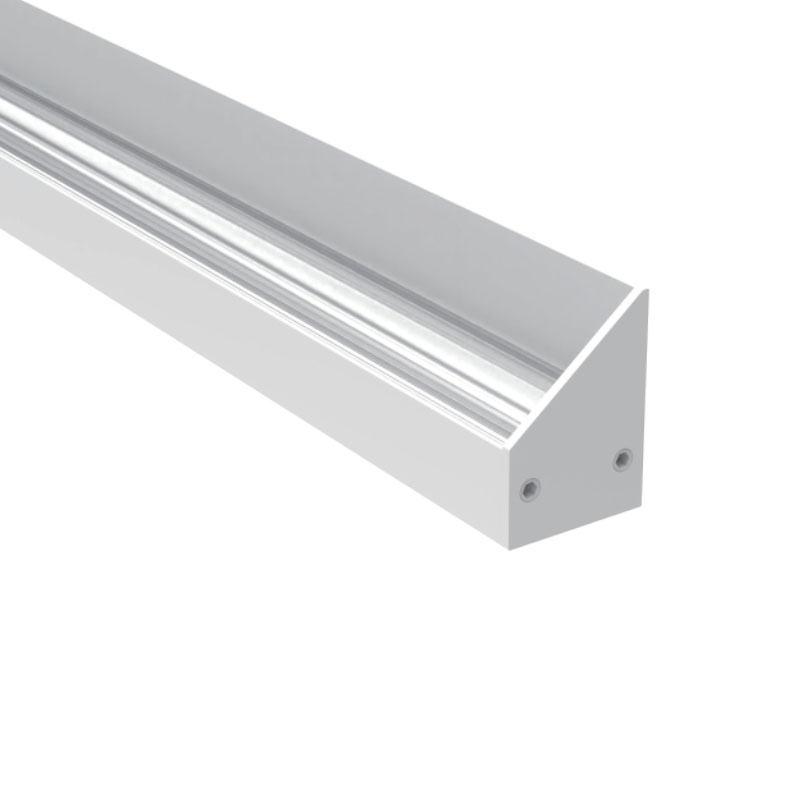

The LED wall wash channels are designed to deliver smooth, uniform illumination for walls and vertical surfaces. They feature asymmetric lenses to minimize scalloping and achieve seamless light distribution, making them ideal for museums, galleries, retail spaces, and modern interiors. The stock lengths are 2.5m, and can be cut to any length; custom lengths are also available. Wall washer channels are made of 6063-T5 extruded aluminum material and feature a white powder-coated surface treatment, providing anti-oxidation resistance and a longer lifespan. The inner width is 10.3mm, allowing the max-width of LED strips to be 10mm. We recommend adding our newest 10mm chip-on-board strip lights, which feature a design without visible dots and dark areas. The aluminum base can also serve as a heat sink, enhancing heat dissipation. There is only one type of diffuser available: asymmetric lenses, which are designed for evenly spread light with reduced hotspots, resulting in a flawless wall-washing effect. The metal mounting clips are included, allowing for easy ceiling mounting.

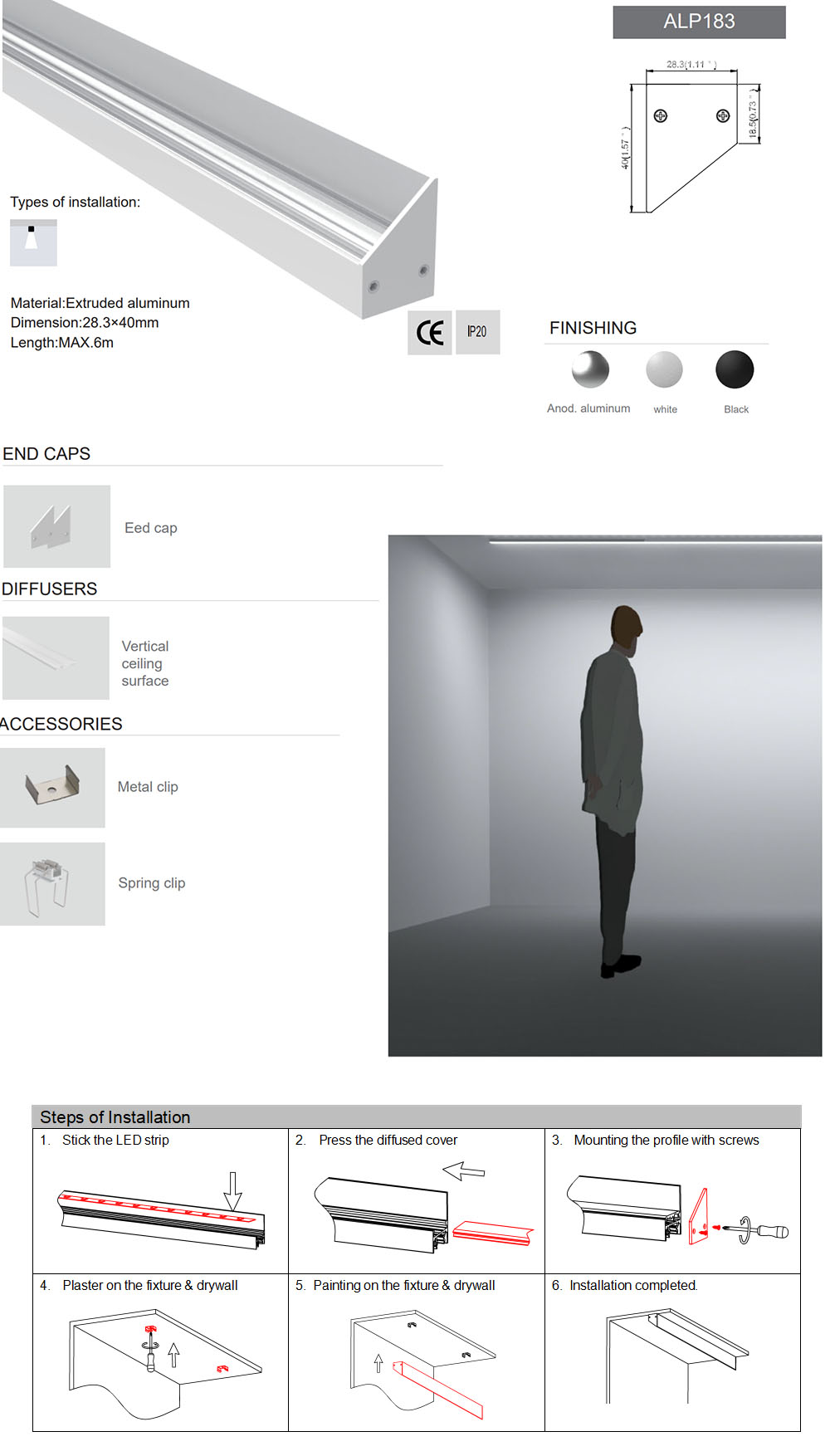

Specifications:
- Model: ALP183
- Material: 6063-T5 extruded aluminum
- Surface Treatment: Powder-coated

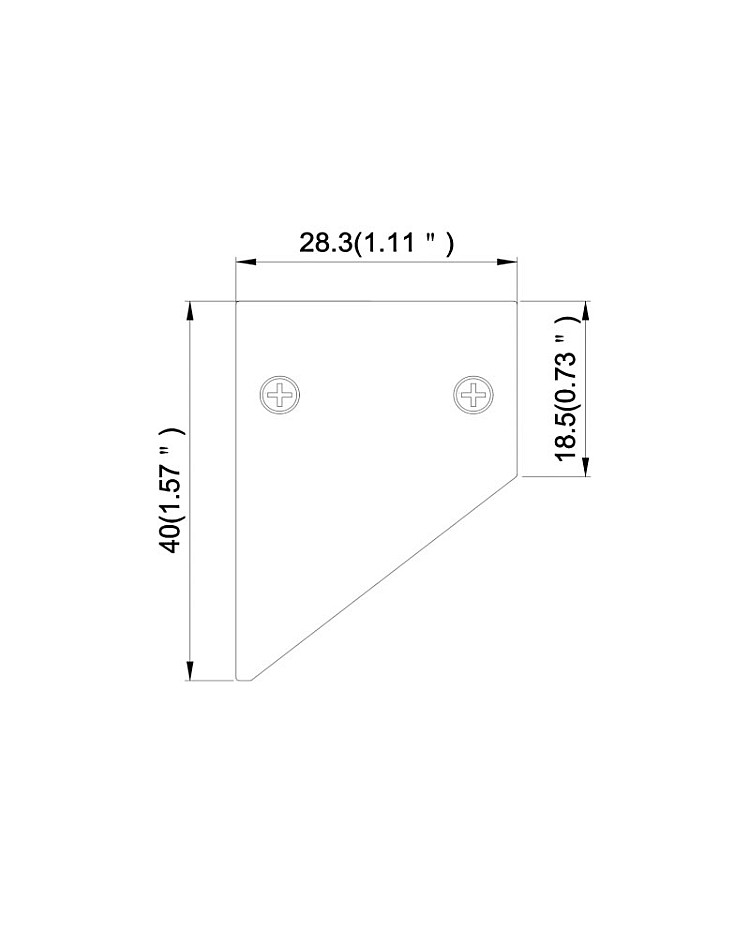

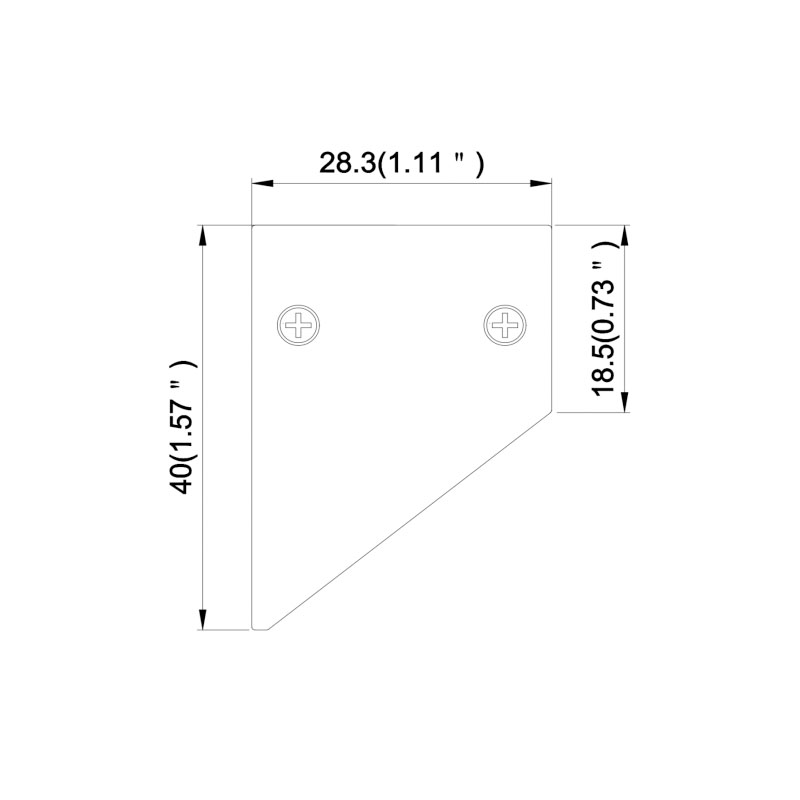

- Size(W*H): 28.3*40mm/1.11"*1.57"
- Colors: White
- Standard Length: 2.5M
- Custom Lengths Available: YES
- Inner Width: 10.3mm/0.41"
- Max Width Of LED Strips: 10mm/0.39"
- Max Power: 18W/M

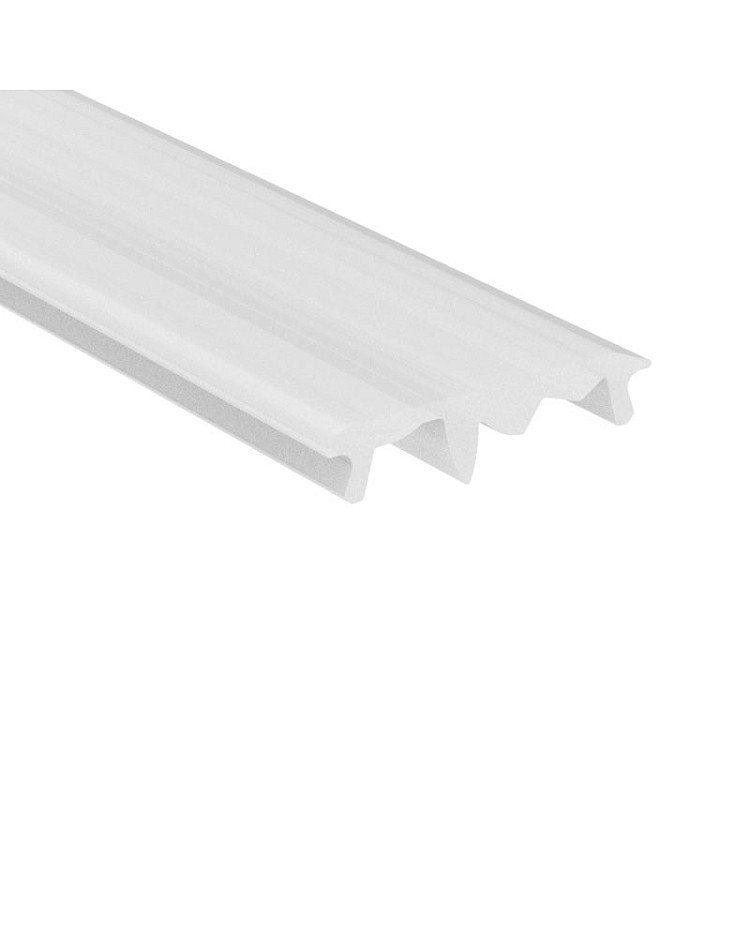

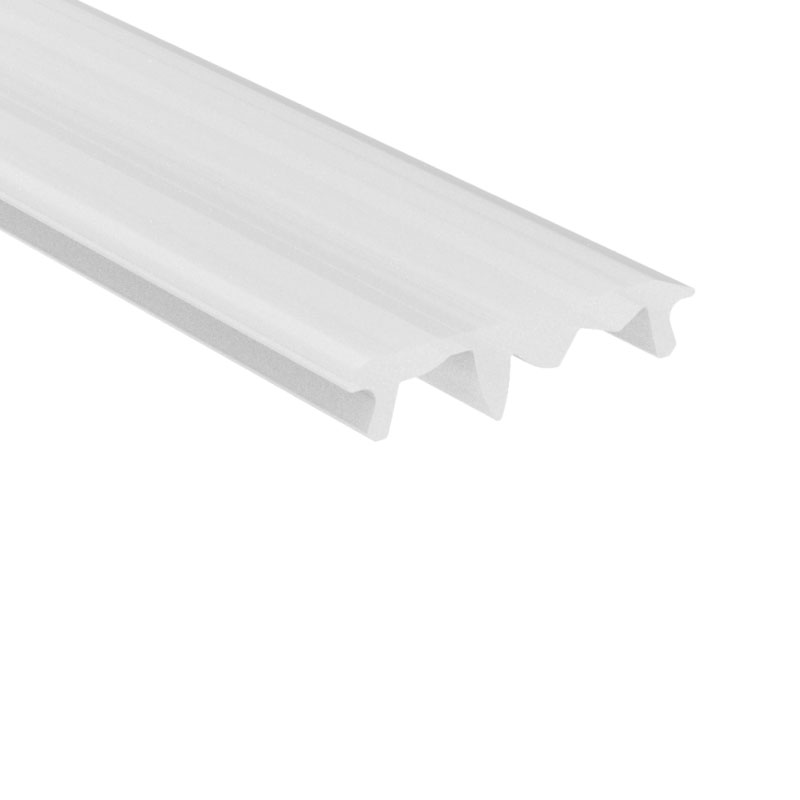

- Diffusers: Asymmetric lens(Length: 1140mm)
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rate: IP20 non-waterproof

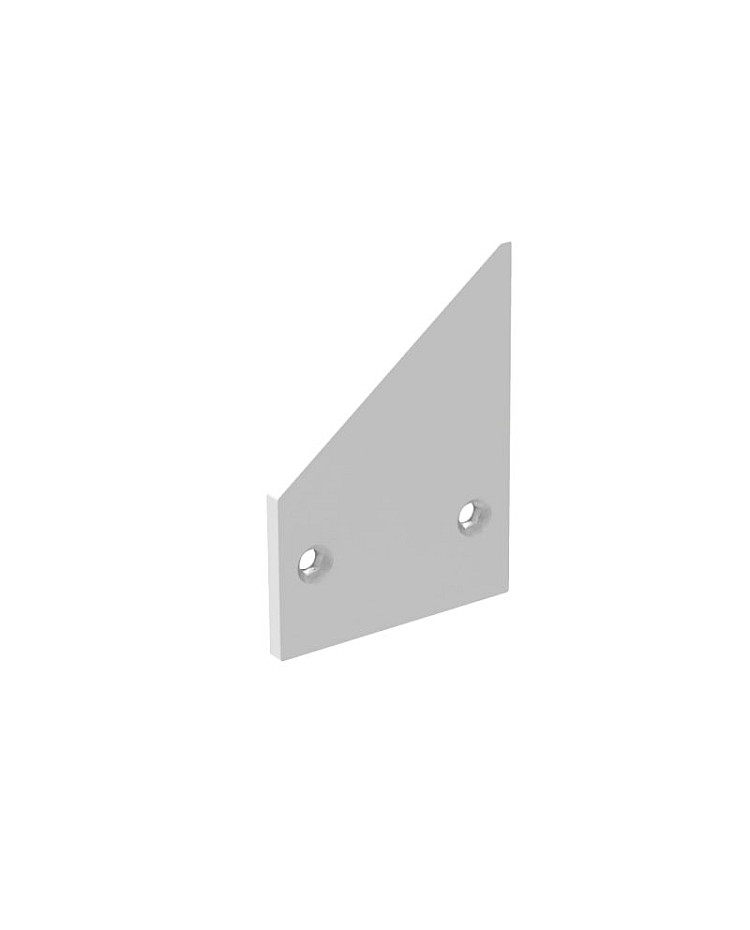

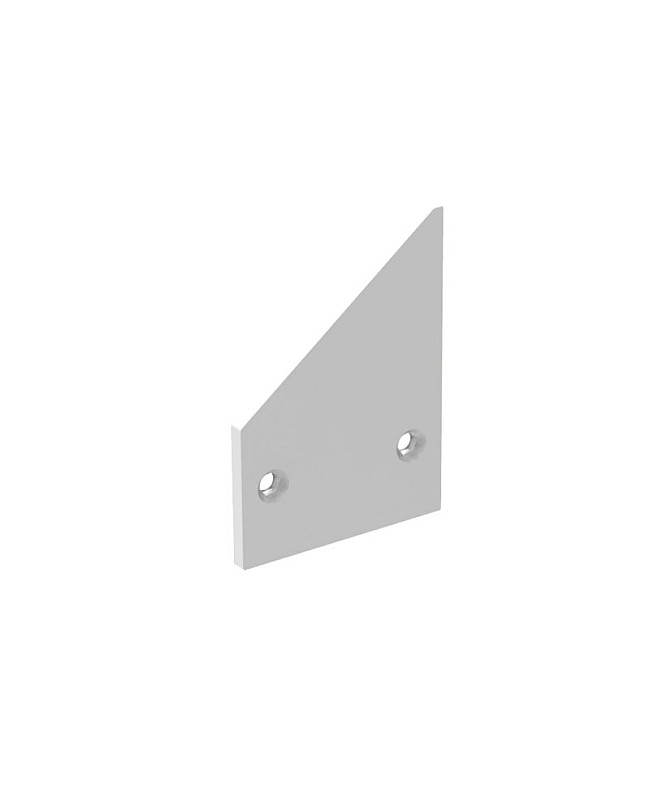

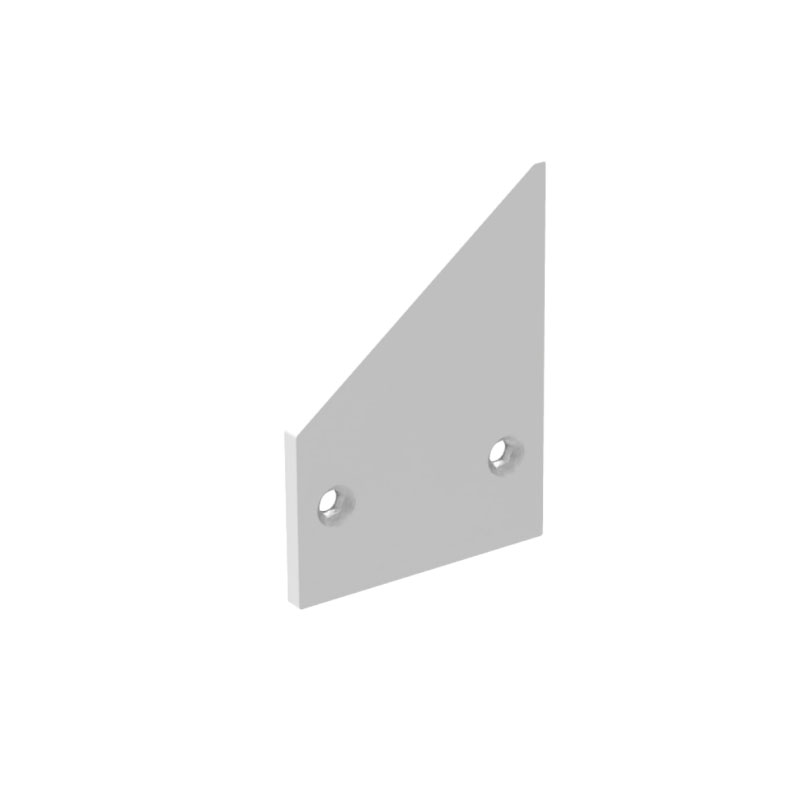

- Metal end caps included
- Spring clips sold separately
- 90° and 180° connectors sold separately
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * Wall wash LED channel with lens
End caps
Metal mounting clips
