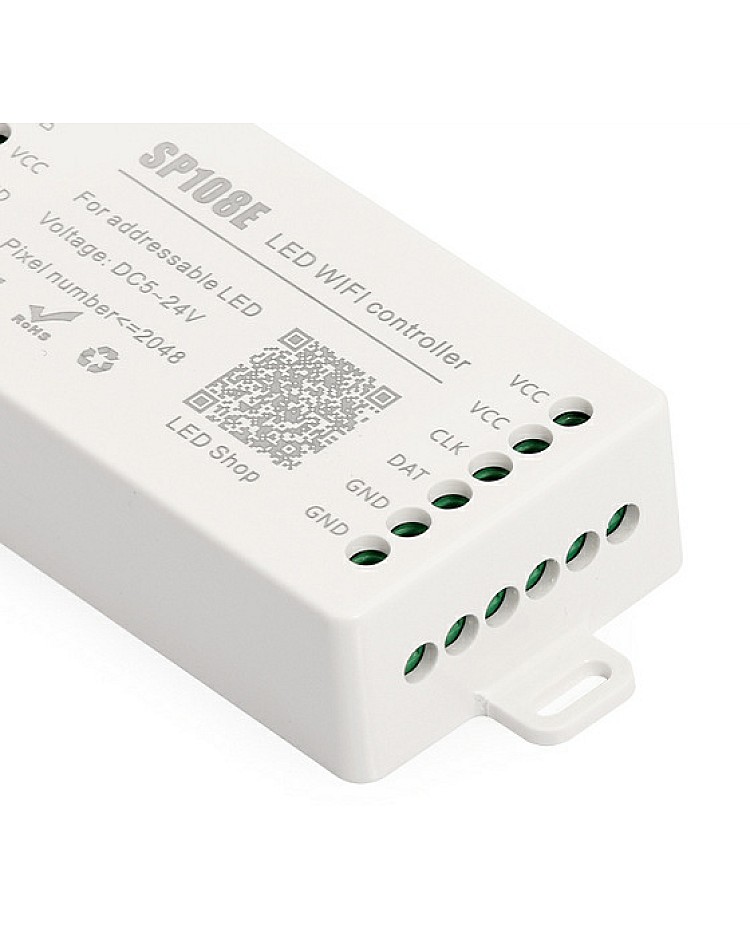

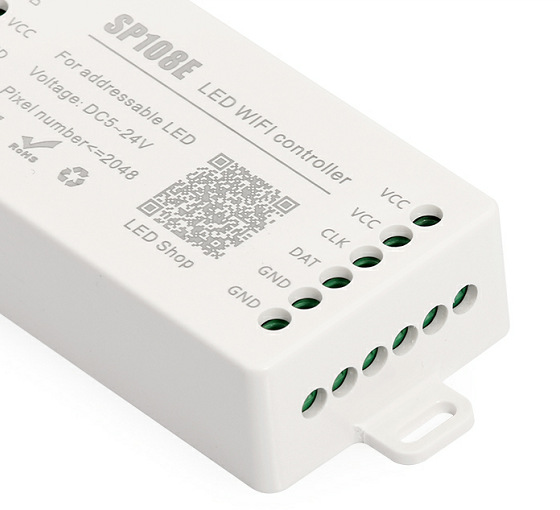

The SP108E SPI Magic WIFI LED Controller, designed for Addressable LED Strips compatible with most types of smart ICs, has a maximum loading quantity of pixels up to 2048. It works on DC5-24V, and your mobile phone can control the LED Controller by connecting through a WIFI network. There are two connected modes: AP(Access Point) Mode and STA(Station) Mode. Under the AP mode, the Phone Connects to the Magic LED Controller directly, and the Controller works as an access point; under the STA mode, the Phone and Controller are in the same WIFI network so that you can operate the Controller smoothly. Scan the QR code or search the name "LedShop" in App Stores to download the App and connect to the Controller. It supports both IOS 8.0 above and Android OS 4.4 above, and there are 180 multi-color dynamic modes adjustable, and the speed and brightness-adjustable too. You can set the fantastic lighting effect from your phone.

Quick Links:

SP108E Instructions


  • Material: Plastic
  • Size: 85*45*22mm(L*W*H)
  • Working Voltage: DC5-24V
  • Max Load Number Of Pixels: 2048
  • Working Current: 20mA-130mA

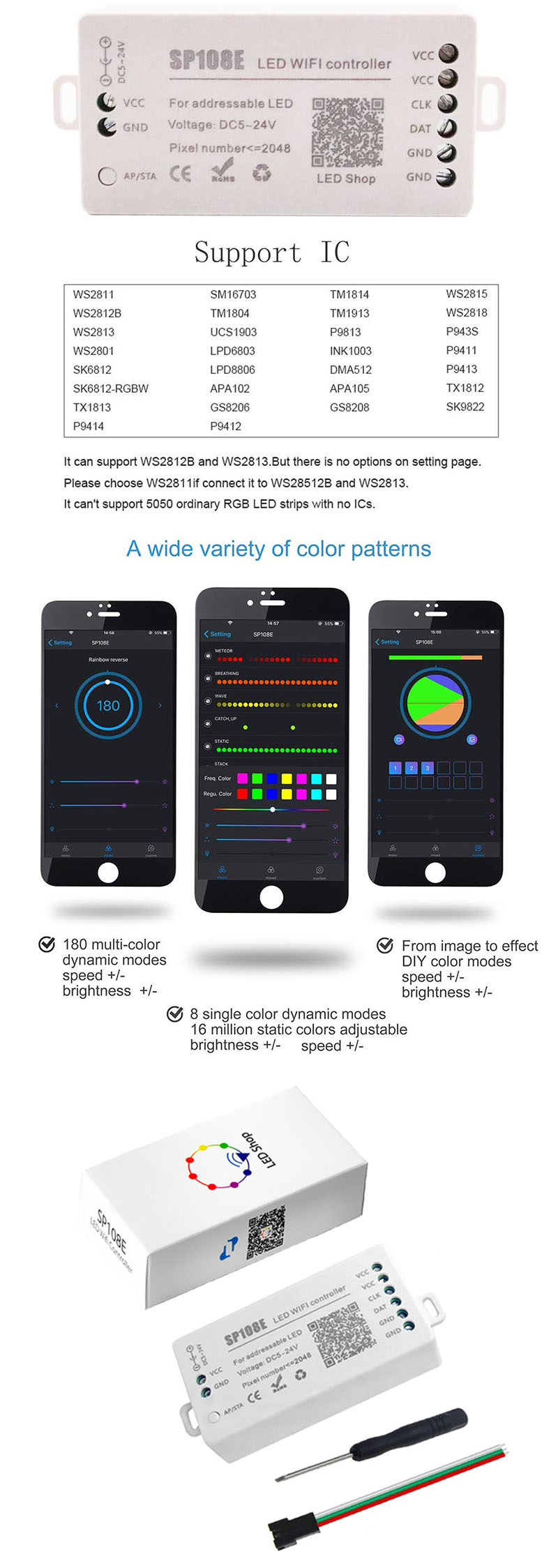

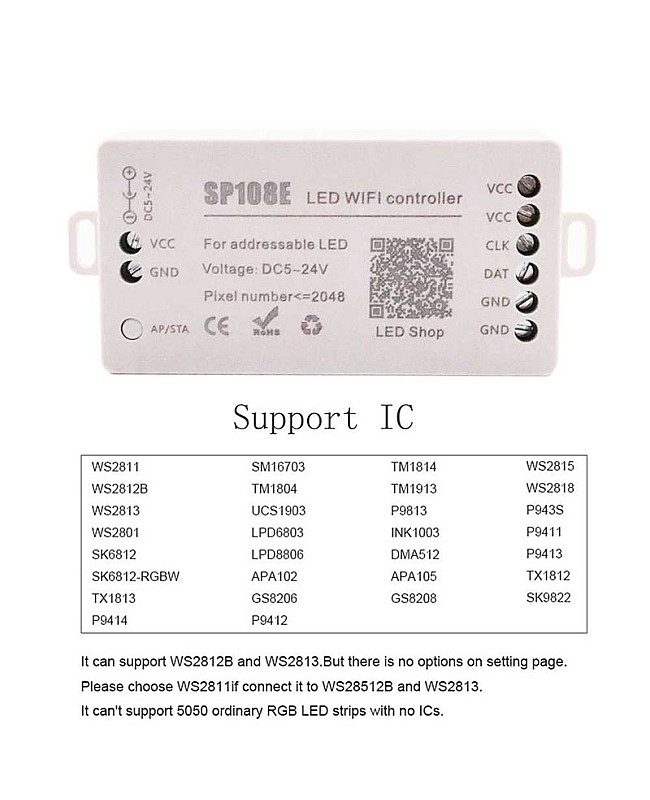

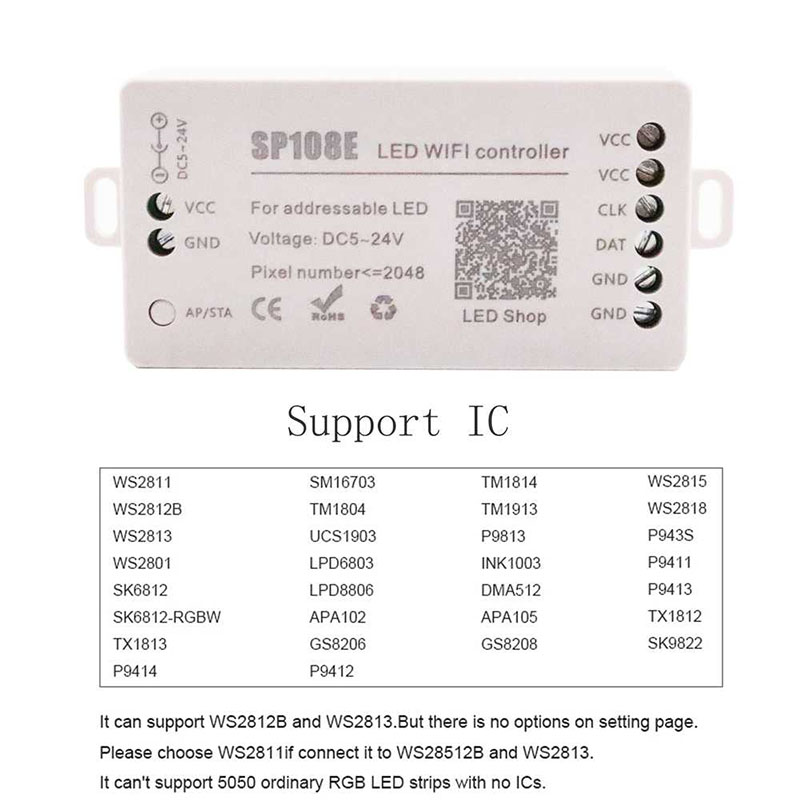

  • Supports  Most Of the Types Of ICs: WS2811, WS2812B, WS2813, WS2801, SK6812. SK6812-RGBW, TX1813, P9414, SM16703, TM1804, UCS1903, LPD6803, LPD8806, APA102, GS8206, P9412, TM1814 LED Strips, TM1913, P9813, INK1003, DMA512, APA105, GS8208, WS2815, WS2818, P943S, P9411, P9413, TX1812, SK9822
  • AP Mode Remote Distance: 45FT
  • AP(Access Point) Mode And STA(Station) Mode Switchable

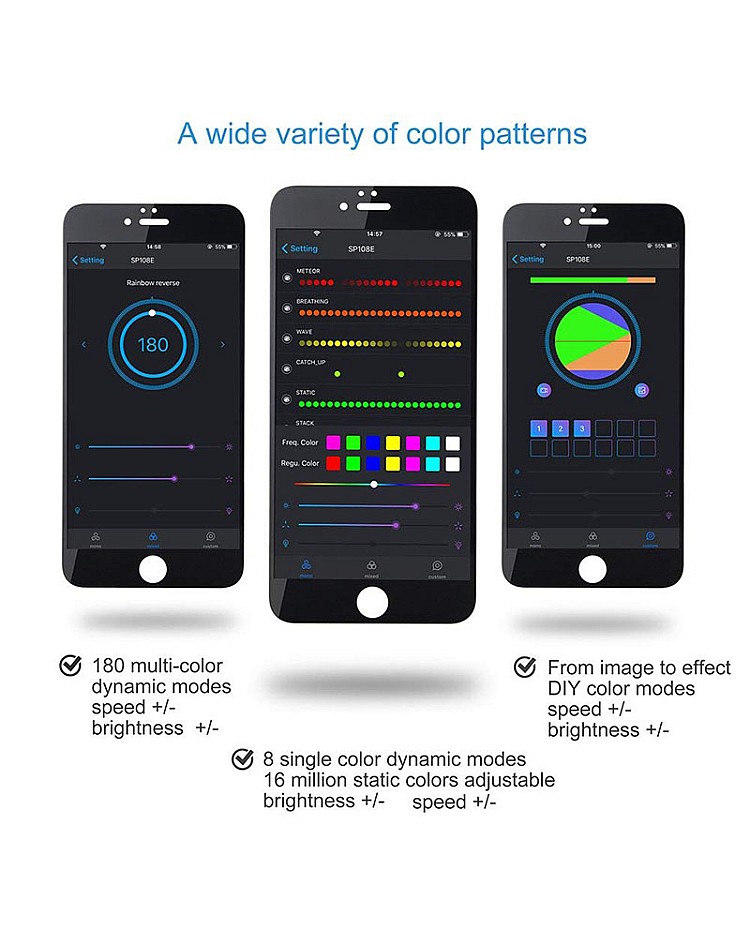

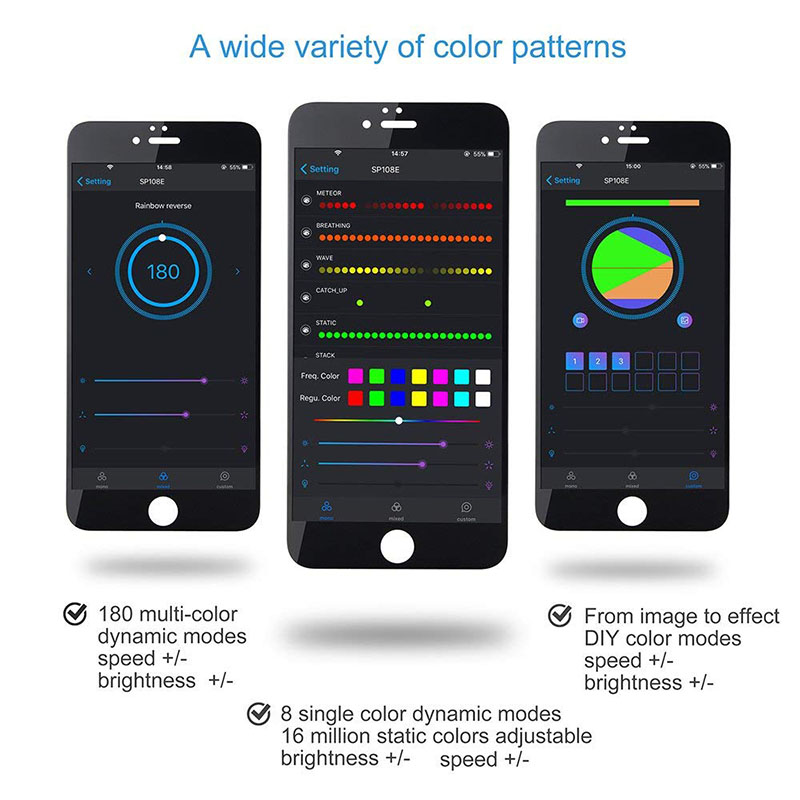

  • 8 Single Color Dynamic Modes And 16 Million Static Colors Adjustable(Speed/Brightness Adjustable)
  • 180 Multi-Color Dynamic Modes Adjustable(Speed/Brightness Adjustable)
  • Creatively Using From Image To Effect DIY Color Modes(Speed/Brightness Adjustable)
  • Supports IOS 10.0 Above And Android 4.4 Above
  • Scan The QR Code Or Search "LED Shop" In APP Stores To Download The App
  • IP Rating: IP20 Non-Waterproof
  • Working Temperature: -20℃-+60℃
  • 2 Years Warranty

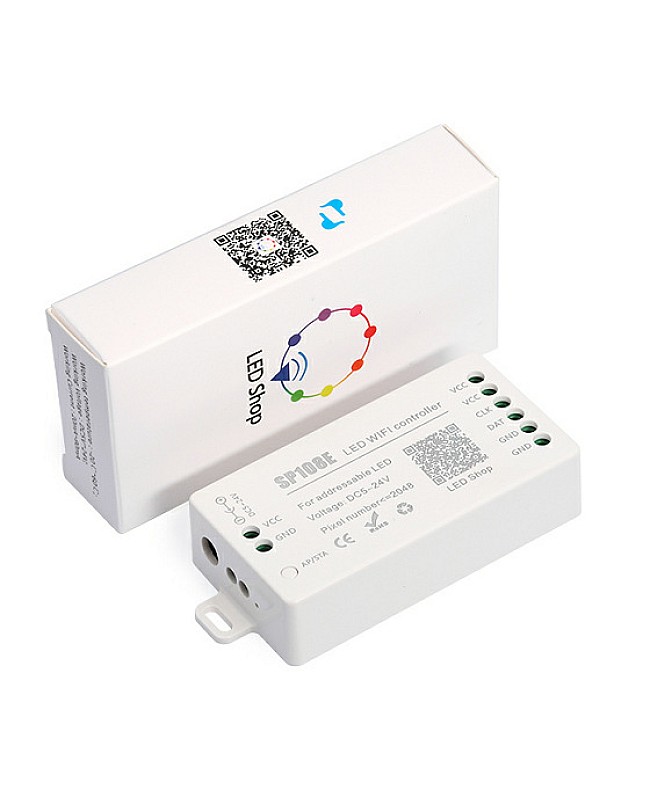

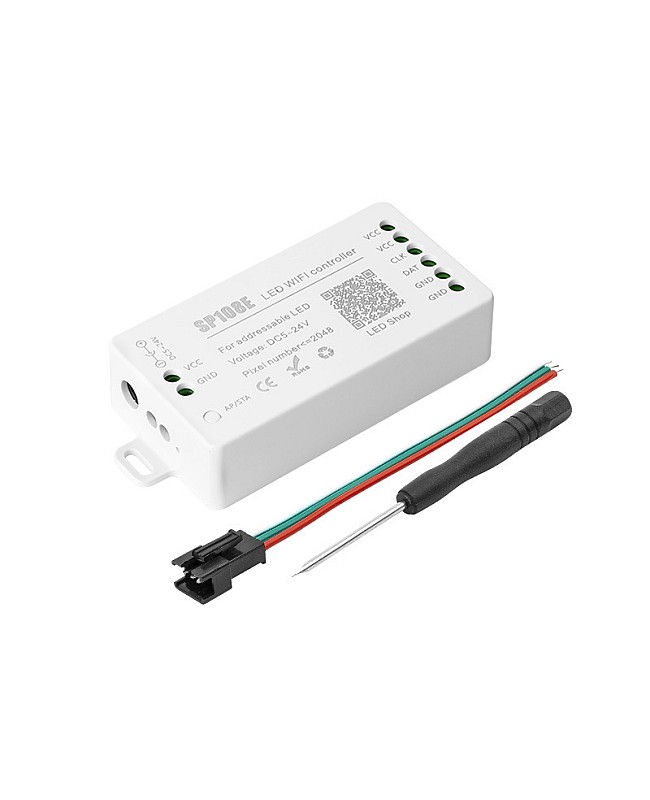

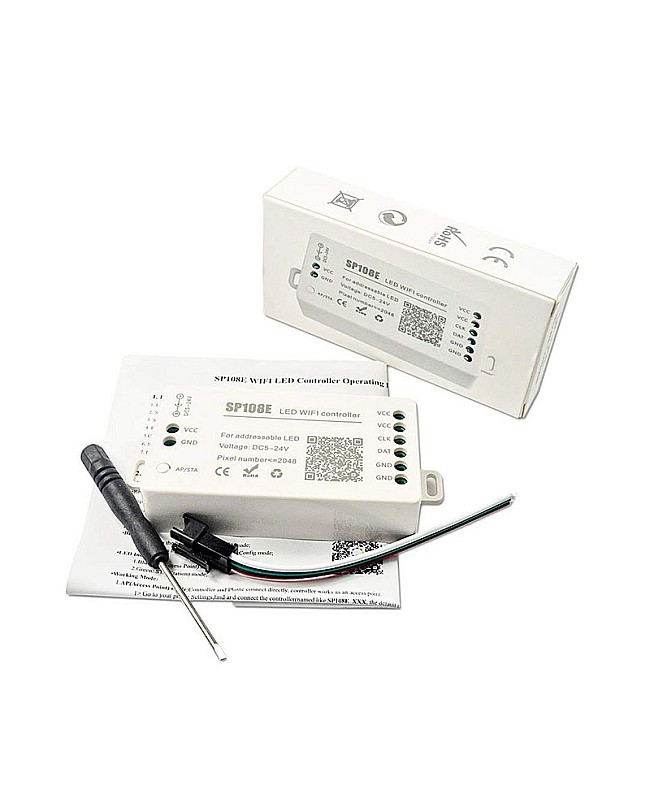

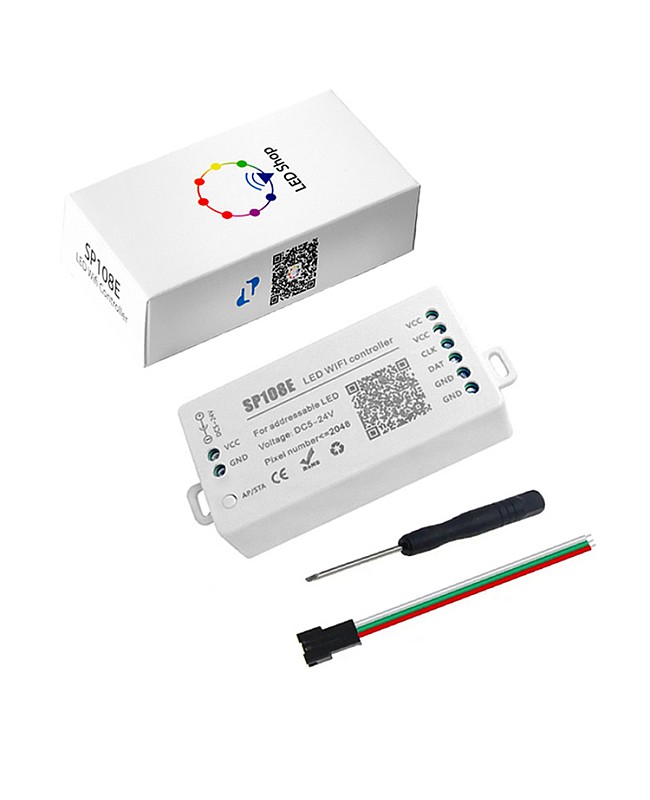

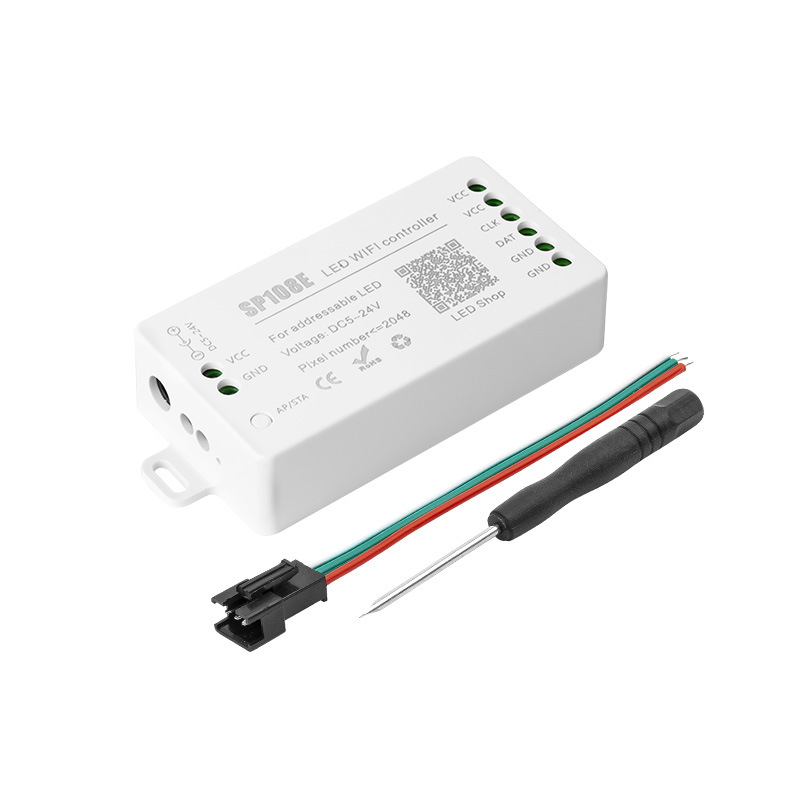

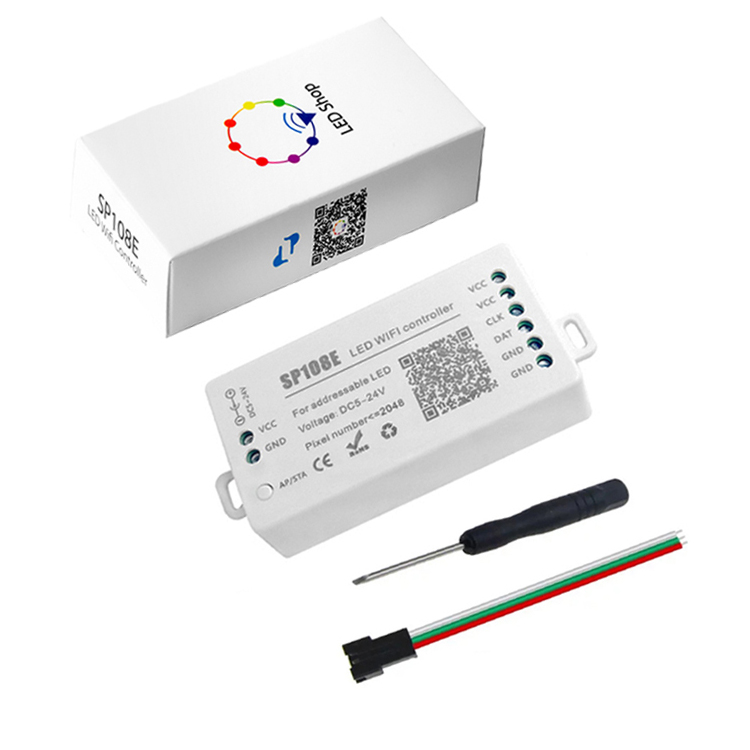

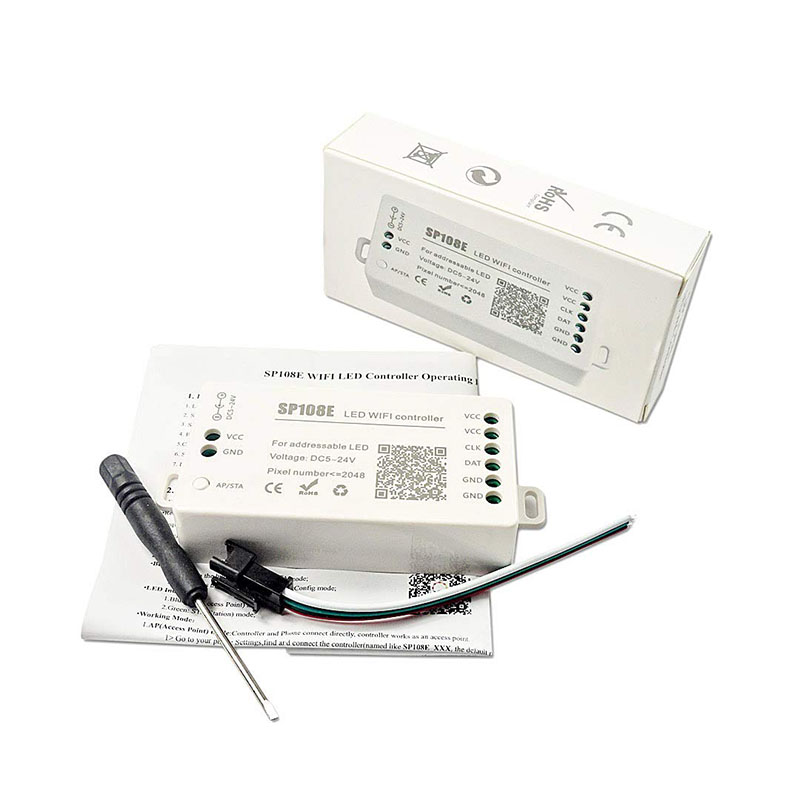

1*SP108E SPI WIFI LED Controller

1*3 Pin Female JST Connector

1*Mini Screwdriver

1*User Manual

SP108E LED Controller
