In Stock
$13.70 $6.99 Sale -49% OFF
Reward Points: 7
-
+
  • Brand: Ledbe
  • Product Code: Linear Driver

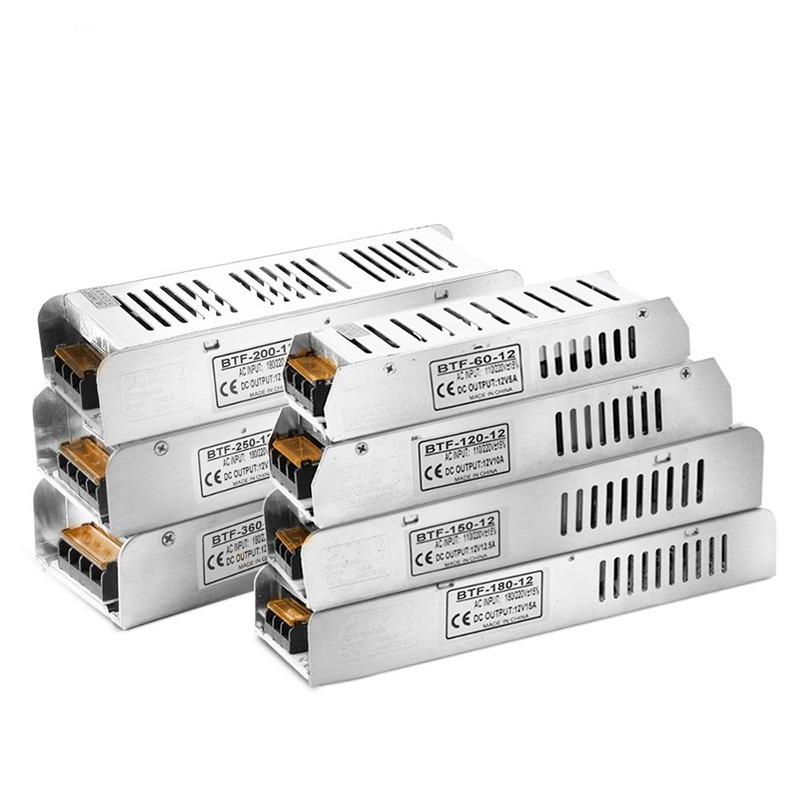

Check the DC12V Strip Light Switching LED Linear Drivers, which are made of metal and aluminum material for better heat dissipation, the input voltage range from AC110V to AC220V, can connect to the public power system directly without an extra adapter, the output voltage is DC12V, you can use them for the 12V LED Lights and Strip Lights, the LED Drivers with rectangle linear structure, you can install them in a narrow location for indoor applications, various output current products available, you can choose 5A to 30A, the Linear LED Drivers with multiple safety protection to ensure safety and reliability.


Features:

  • Material: Metal + Aluminum

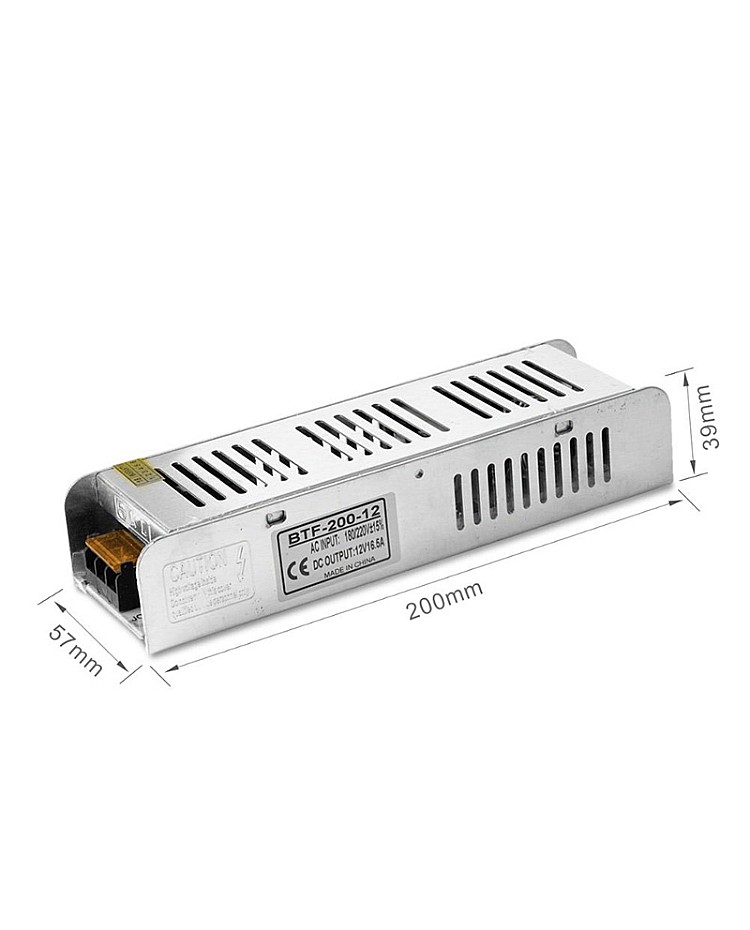

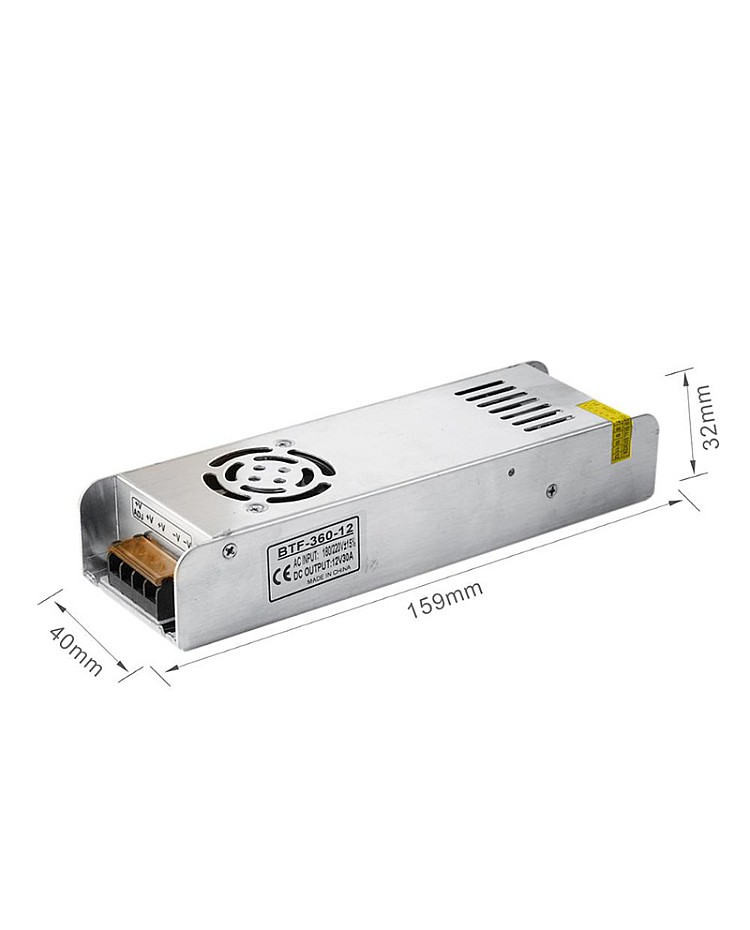

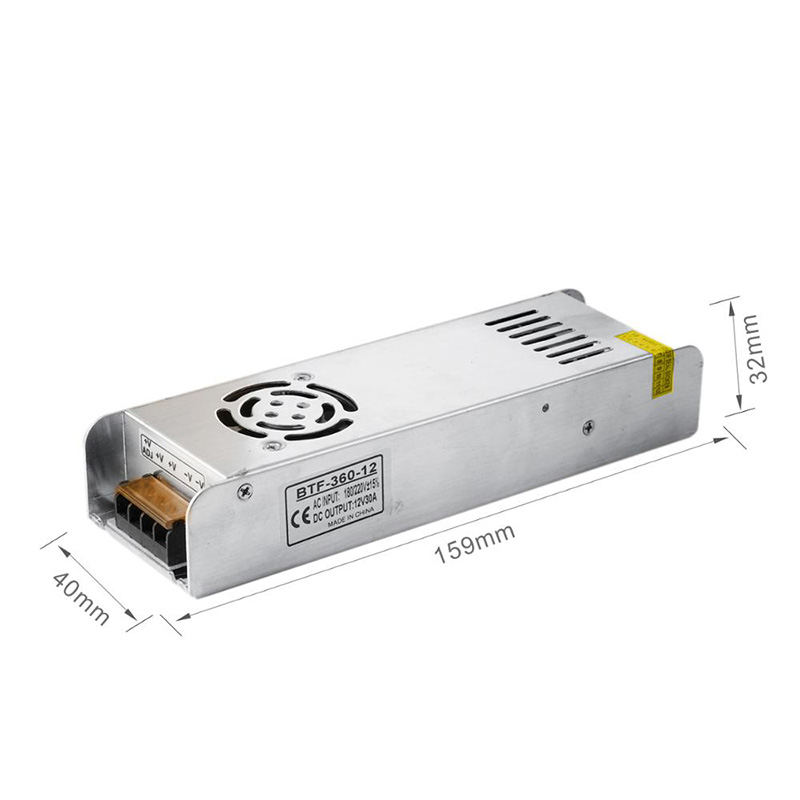

  • Size: 159*40*32mm(L*W*H)
  • Input Voltage: AC110-220V(Below 15A Can Use 110-220V AC, Above 15A Only Can Use AC220V)
  • Output Voltage: DC12V

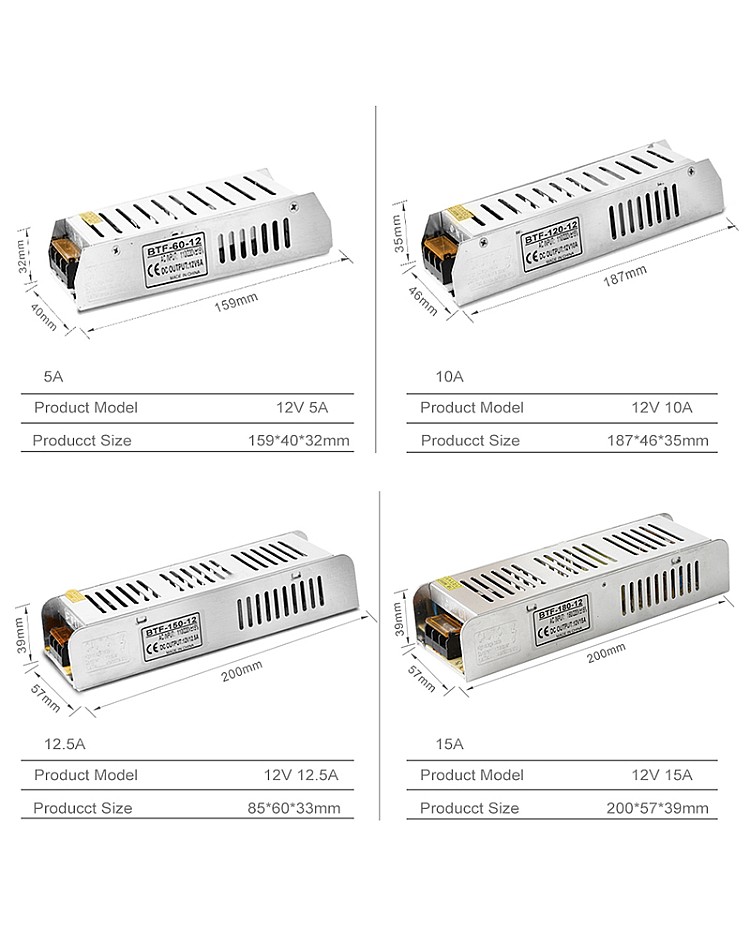

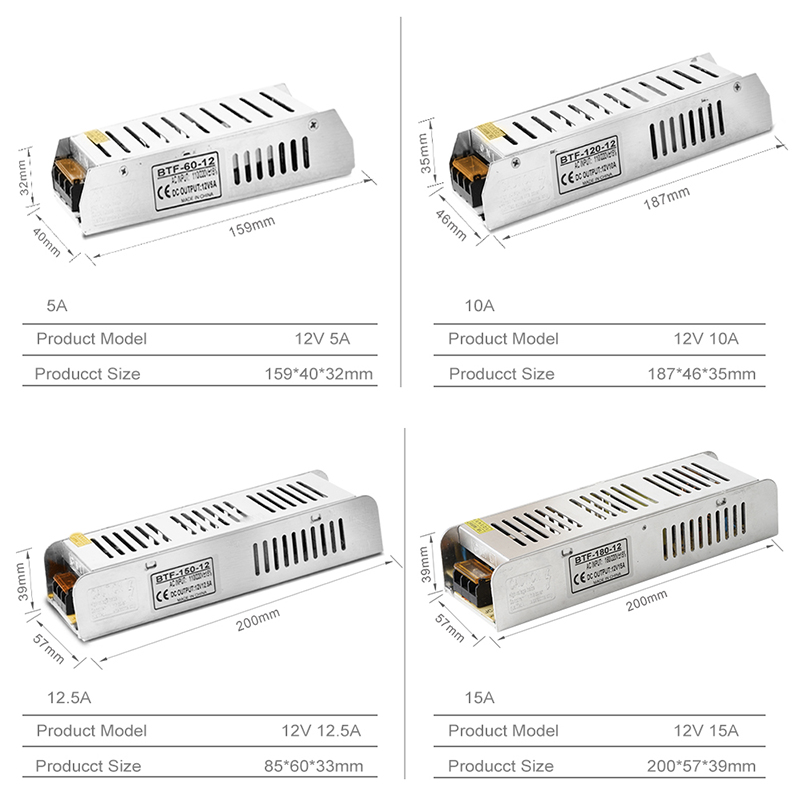

  • Output Current: 5A, 10A, 12.5A, 15A, 16.5A, 20A, 30A
  • Output Power: 60W, 120W, 150W, 180W, 198W, 240W, 360W

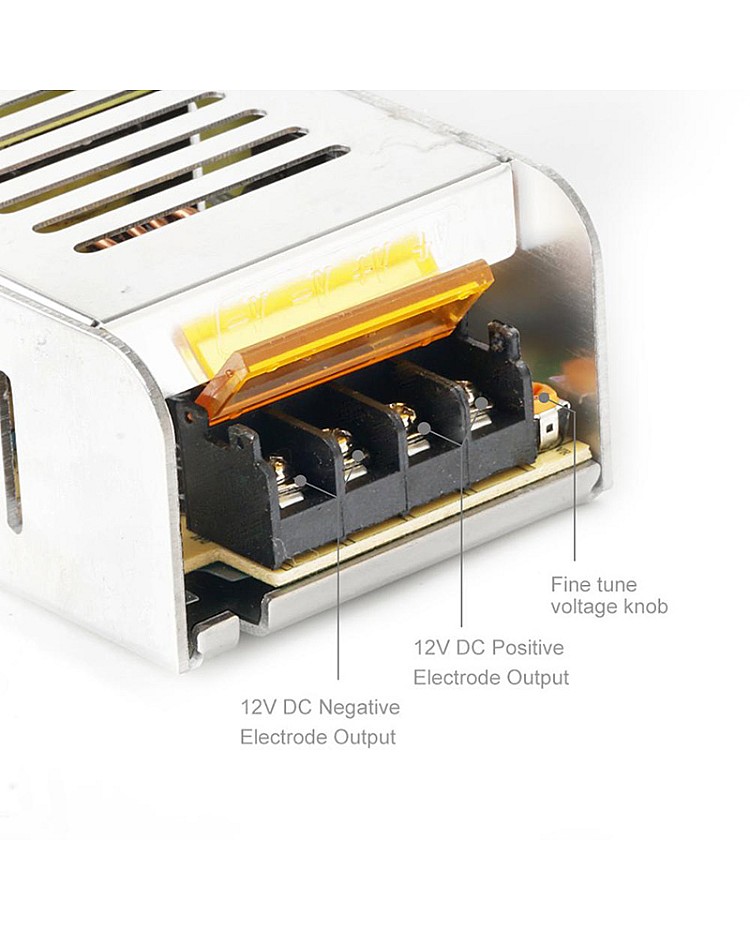

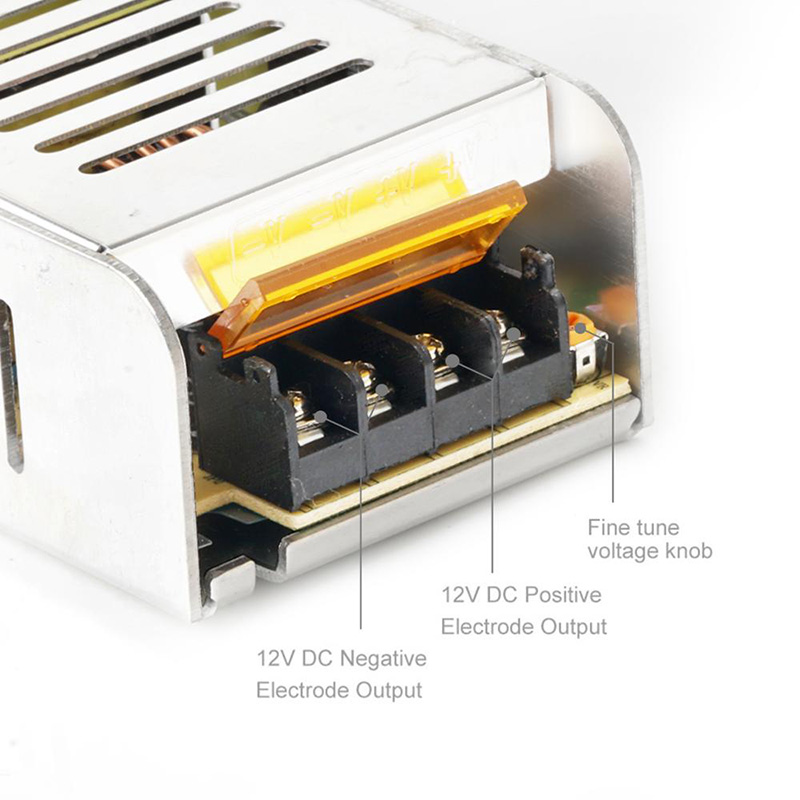

  • Connection Interface Cover Can Be Opened And CLosed

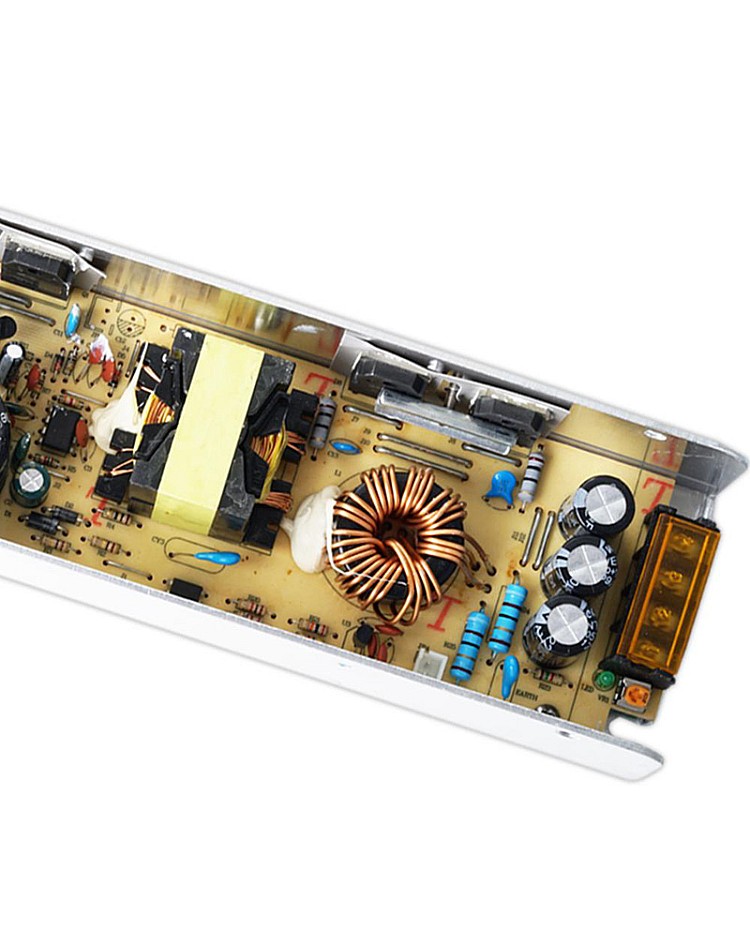

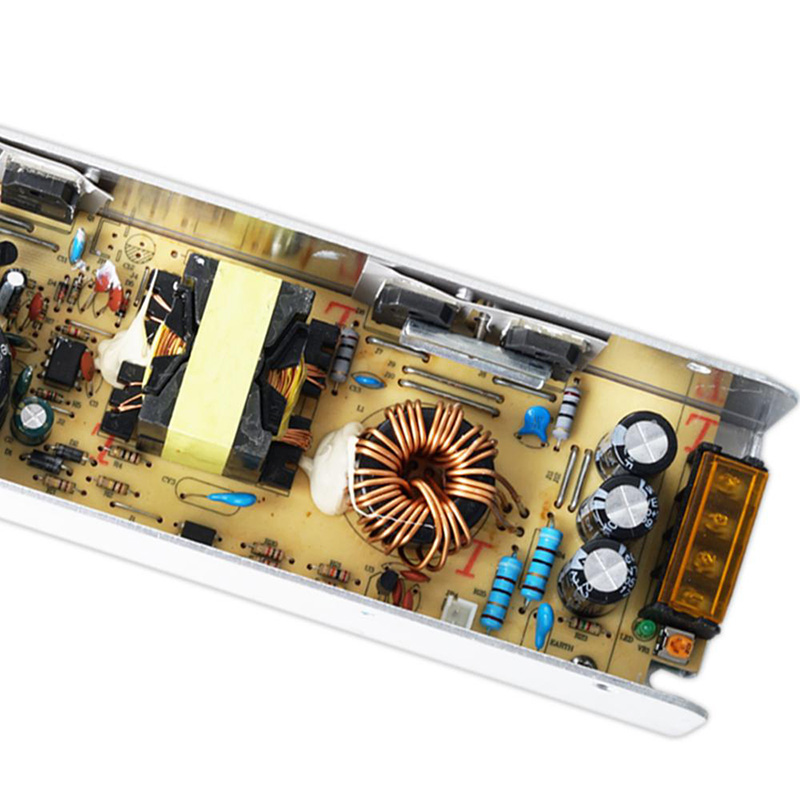

  • Aluminum Shell Cooling System
  • Working Temperature: 0℃-+40℃
  • Storage Temperature: -20℃-+60℃
  • Ambient Humidity: 0-95% Non-Condensation
  • IP Rating: IP20 Non-Waterproof
  • Short Circuit Protection
  • Over Load Protection
  • Over Voltage Protection
  • 2 Years Warranty


Includes:

1*LED Linear Driver

Linear Drivers
