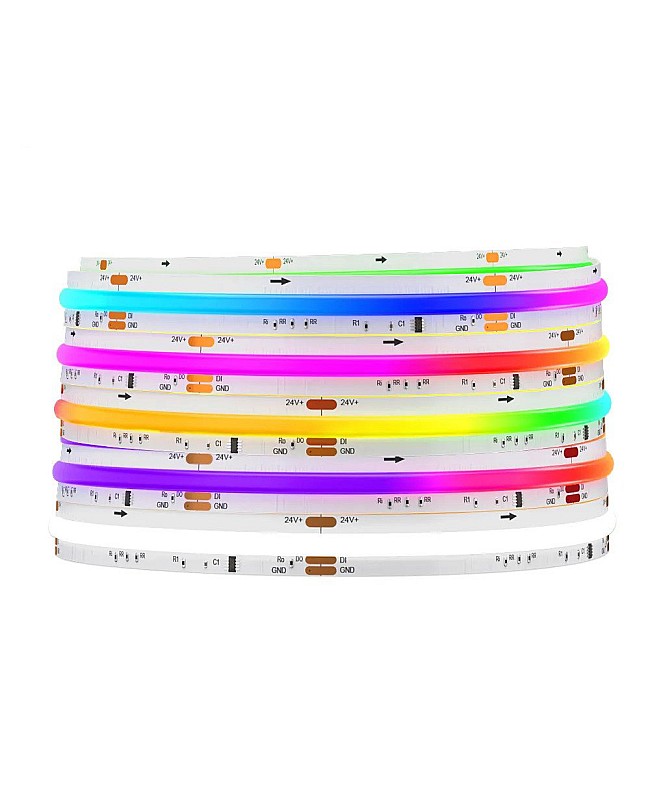

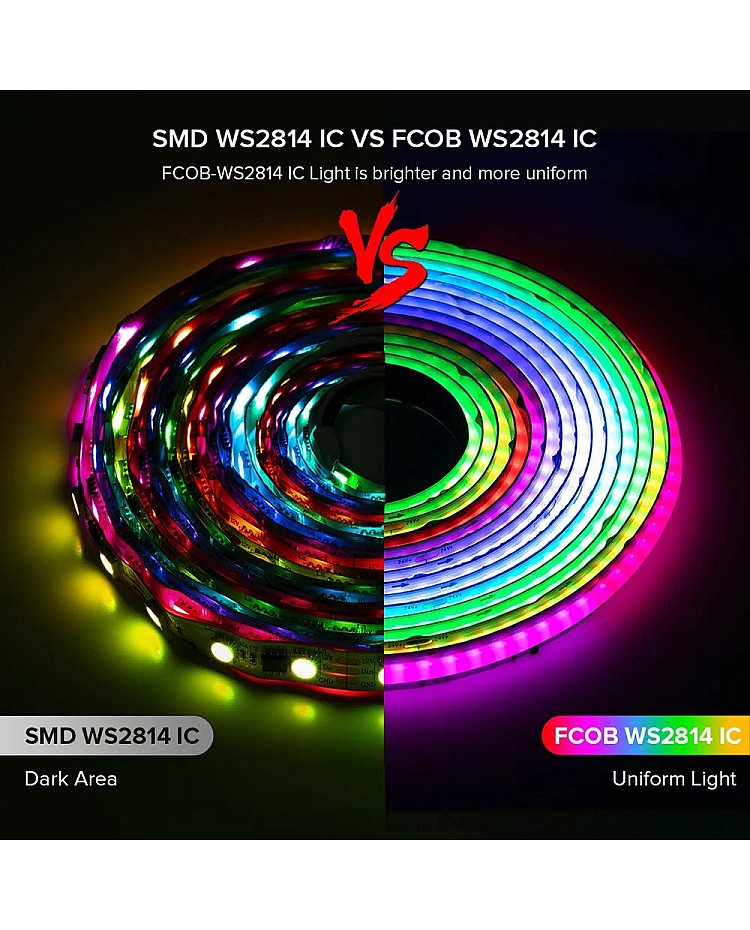

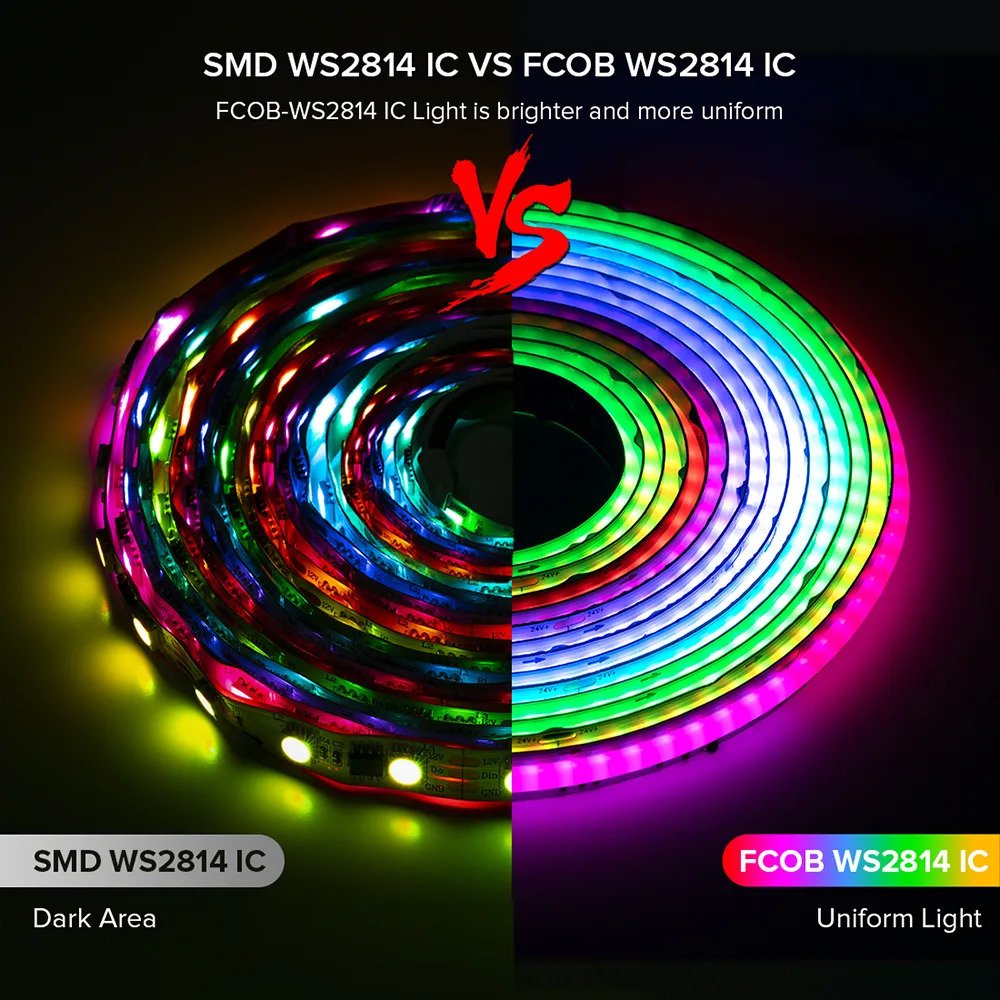

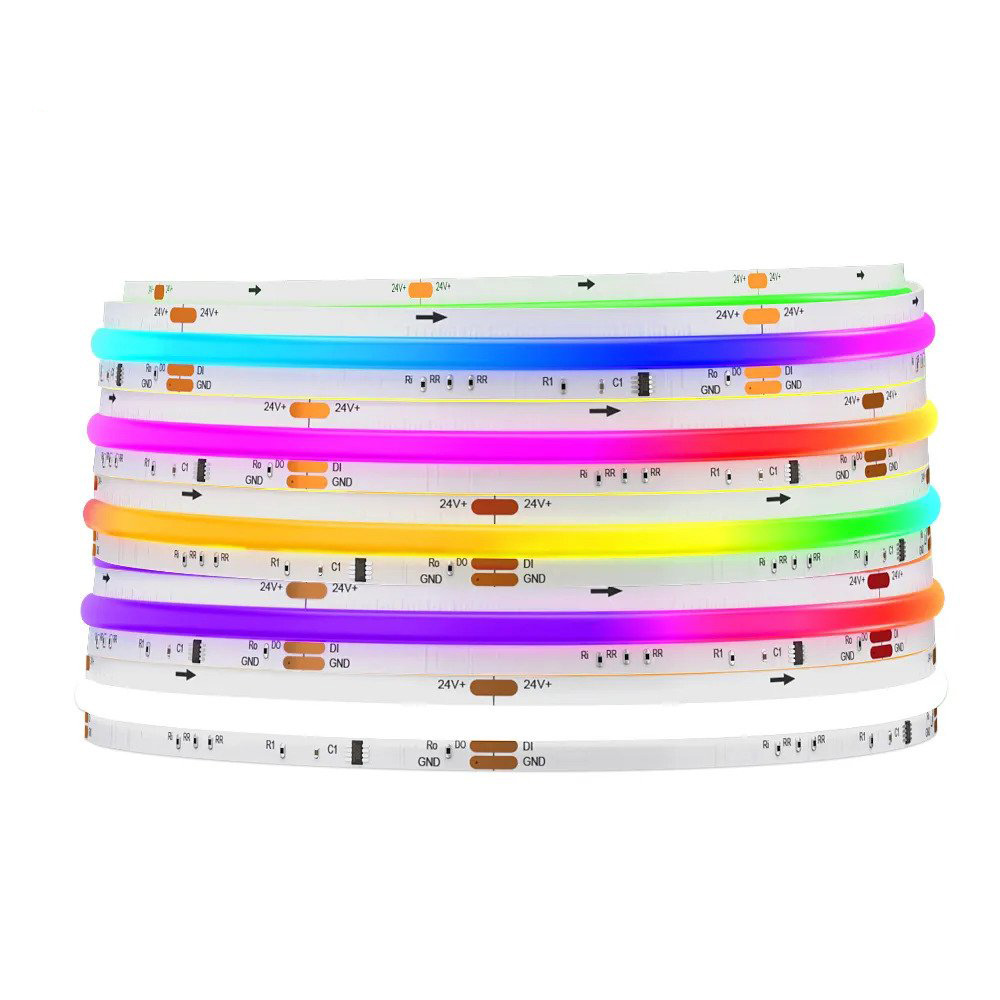

The WS2814 addressable COB RGBW LED tape lights offer incredible flexibility and vibrant colors, allowing you to create dynamic lighting patterns and effects. They can adapt to any mood or occasion, whether you want to create a soothing ambiance or a lively atmosphere. The WS2814 LED tapes utilize the latest COB (chip-on-board) technology, with 784 pieces of LED chips mounted on each meter of PCB board and controlled by 14 pieces of ICs, utilizing high-density LED chips to create a uniform lighting line with no dark areas or light spots. Can work with SP617E, SP630E, SP639E, and other pixel controllers to achieve fantastic lighting effects like curtain-up, flow water, raindrop, jump flash, and hundreds of different lighting effects. They operate at 24V DC, which is more stable than 12V, reducing voltage drop for longer runs. The pixel tape lights incorporate white LED chips, allowing you to choose from warm white, natural white, or cool white, which produce brighter and more accurate colors than RGBs. Those COB tape lights are cuttable and linkable. Both ends come with 3P connectors, male and female. Easy to connect to the controller or connect the COB LED tapes in series. The minimum cutting length is 71mm; you can cut to the desired size from the provided cutting points. The IP rating is IP30 non-waterproof. It is suitable for interior decoration in kitchens, cabinets, bedrooms, living rooms, and stairs, among other areas. And use for DIY backlight, toy lighting, etc.
Specifications:
- Model: WS2814 RGBWIC COB

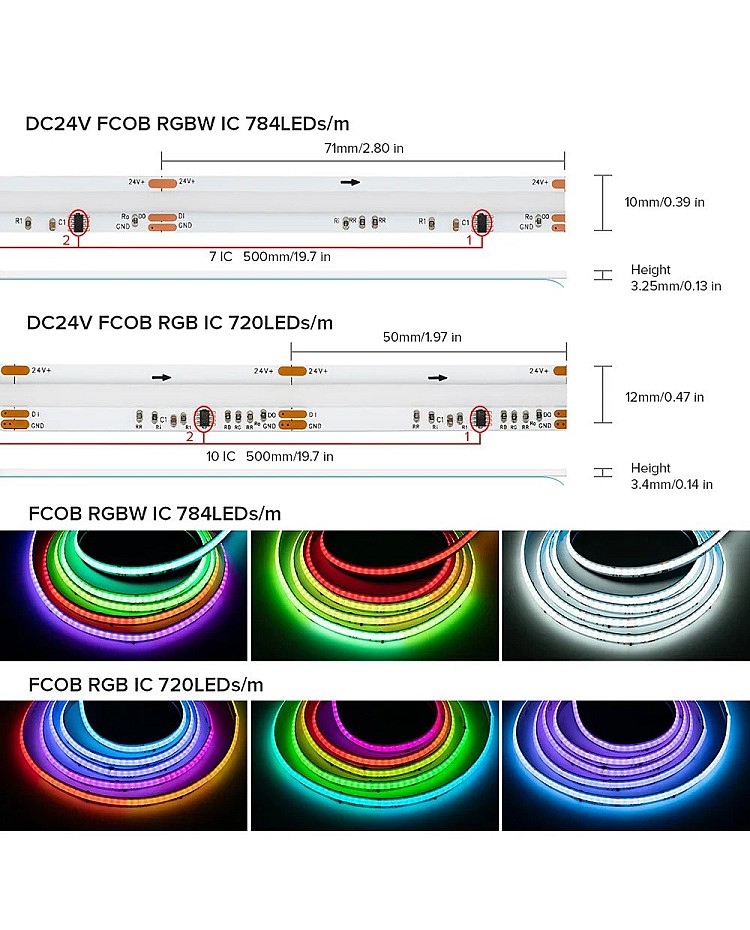

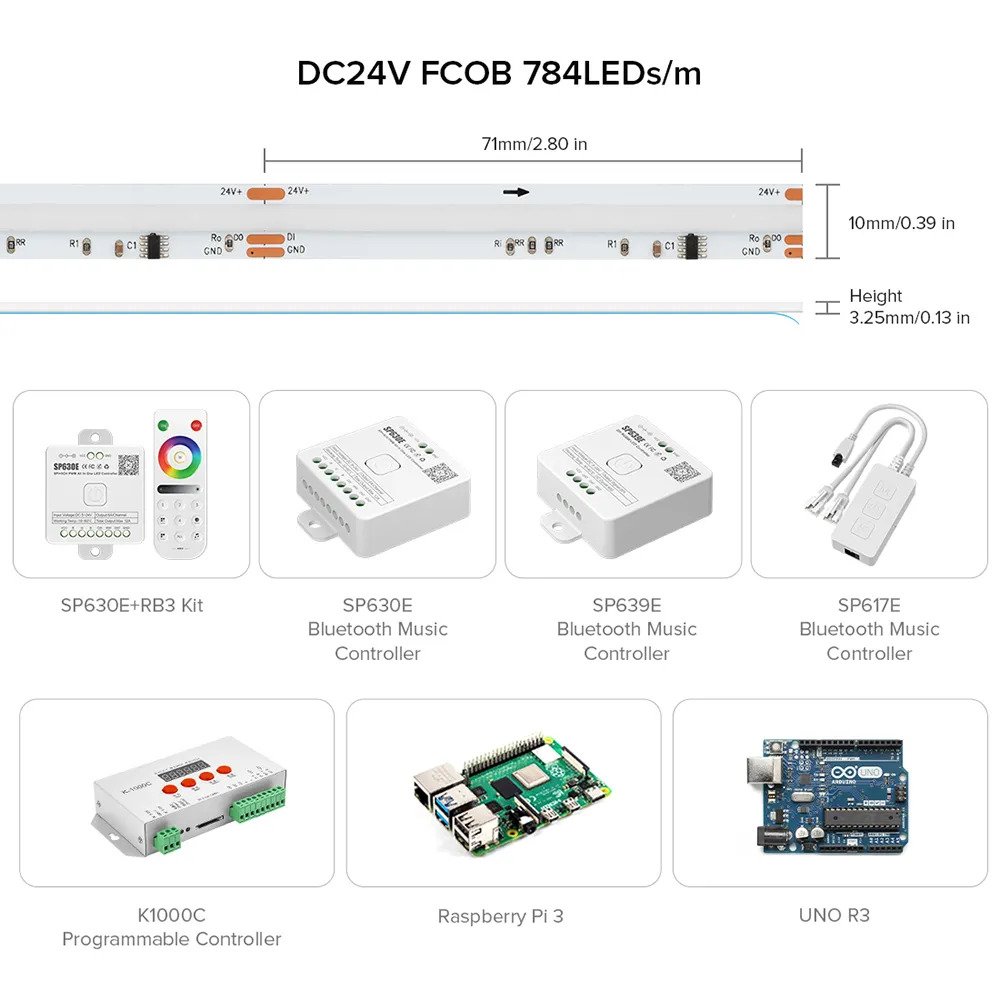

- PCB Width: 10 mm ( 0.39" )
- Height: 3.25 mm ( 0.13" )
- Lengths Available: 1 m, 2 m, 3 m, 4 m, 5 m
- Color of PCB board: White
- Working voltage: DC 24V
- IC type: WS2814
- IC quantity: 14PCS/M
- LED quantity: 784LEDs/M
- Wattage: 21W/m
- Colors: RGBIC+ warm white ( 3000K ), RGBIC+ natural white ( 4000K ), RGBIC+ cool white ( 6000K )
- Wave length(nm): red: 620 nm; green: 530 nm; blue: 460 nm

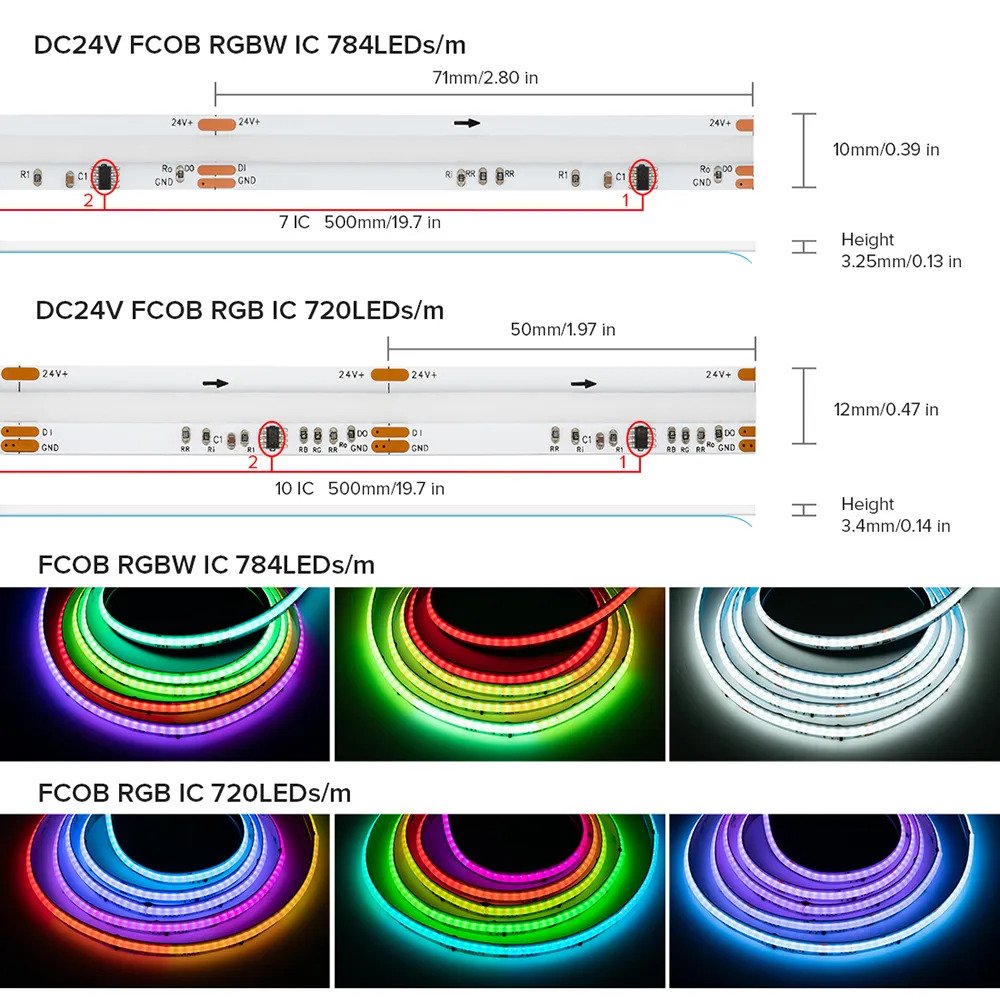

- Minimum cutting length: 71.42 mm
- Control method: SPI
- Addressable: Every 71.42mm can be uniquely controlled

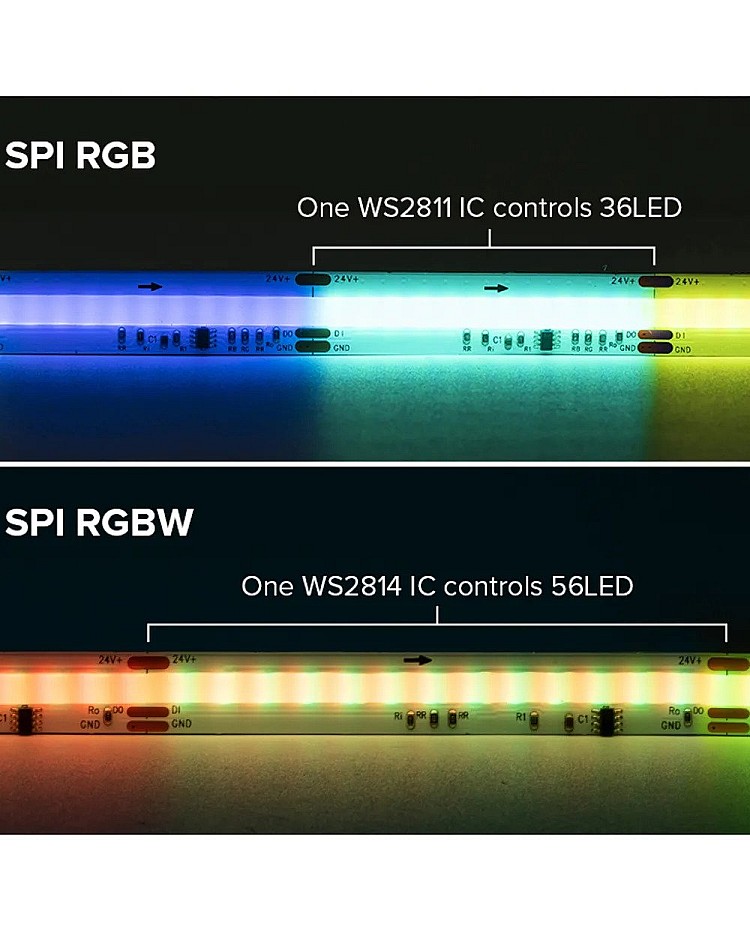

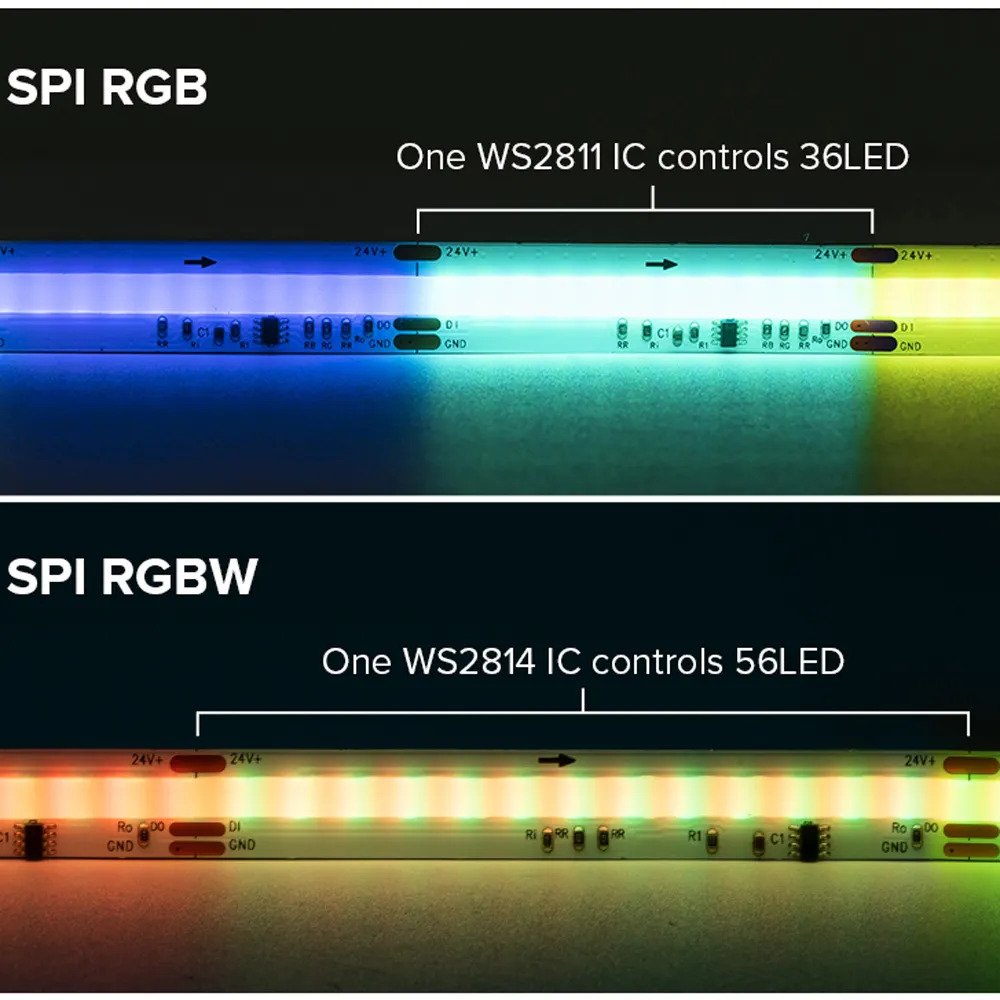

- One WS2814 IC controls 56 pieces of LED chips
- Color rendering index: Ra>90
- View angle: 180°
- Gray scale levels: 256
- Waterproof level: IP30 non-waterproof

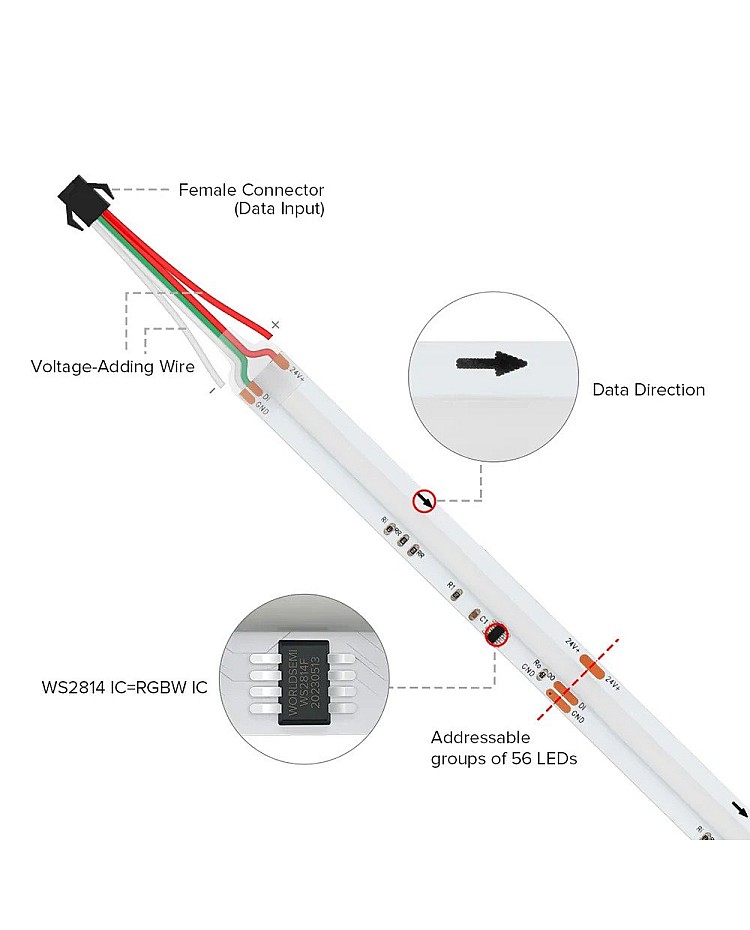

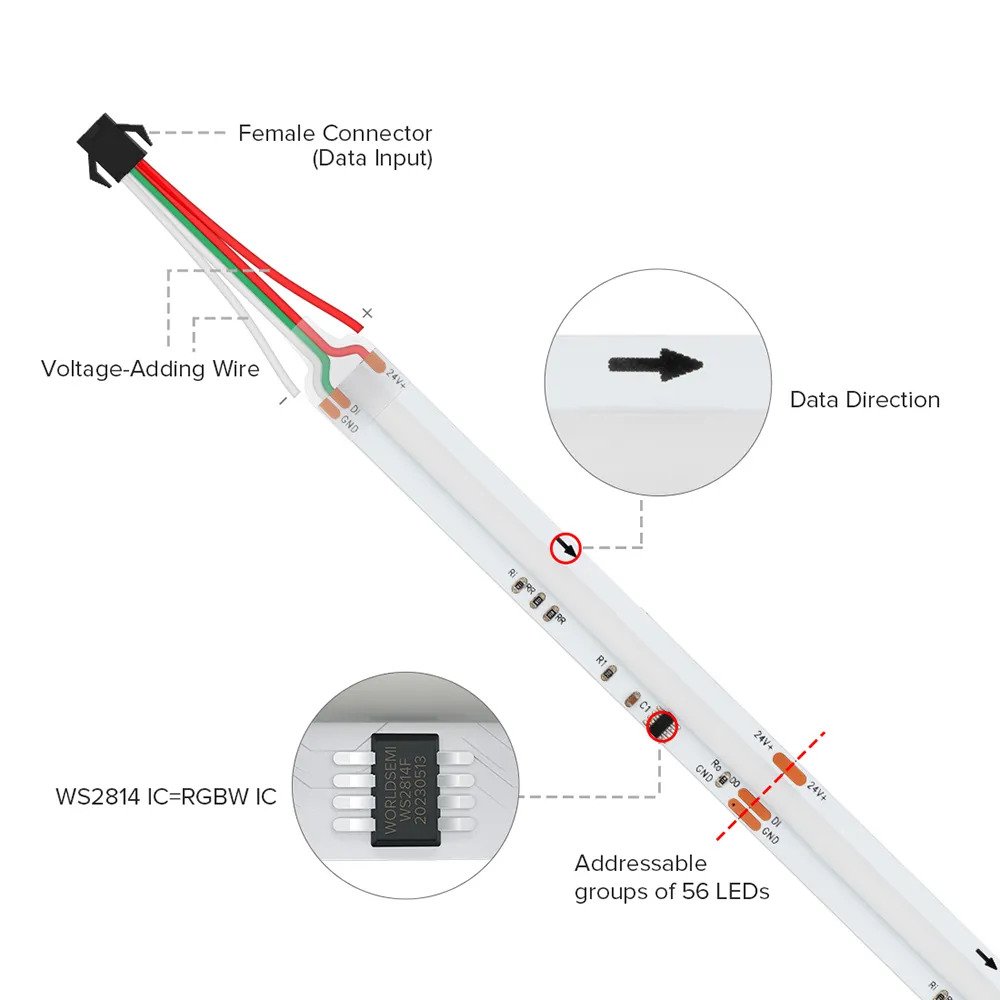

- Both ends have 15cm 3P JSM-SM connectors ( male and female )
- The back has double-sided adhesive tape

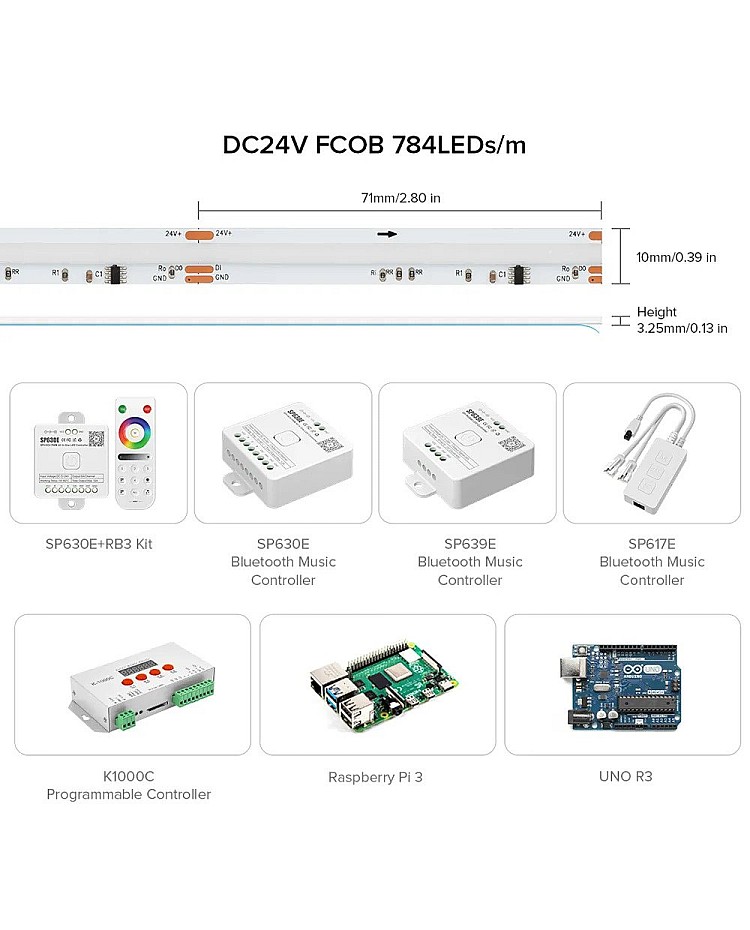

- Recommend work with SP630E, SP639E, and SP617E pixel controllers
- Working temperature: -20℃-+45℃
- Storage temperature: -20℃-+60℃
- Lifespan: 50,000 Hours
- Warranty: 3 years
Includes:
1 * WS2814 programmable LED tape
