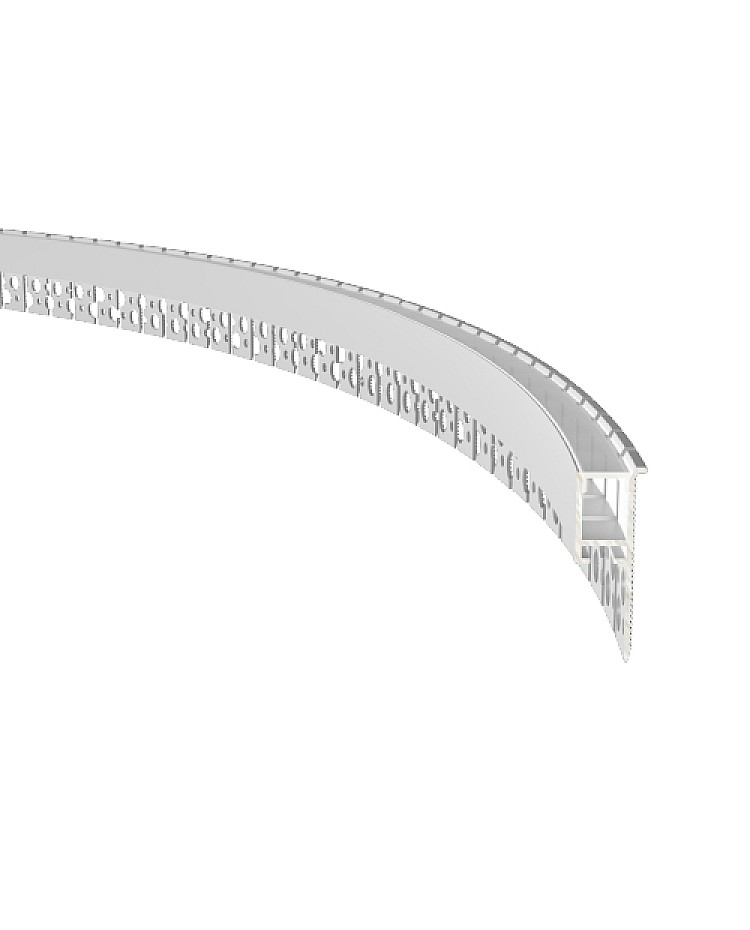

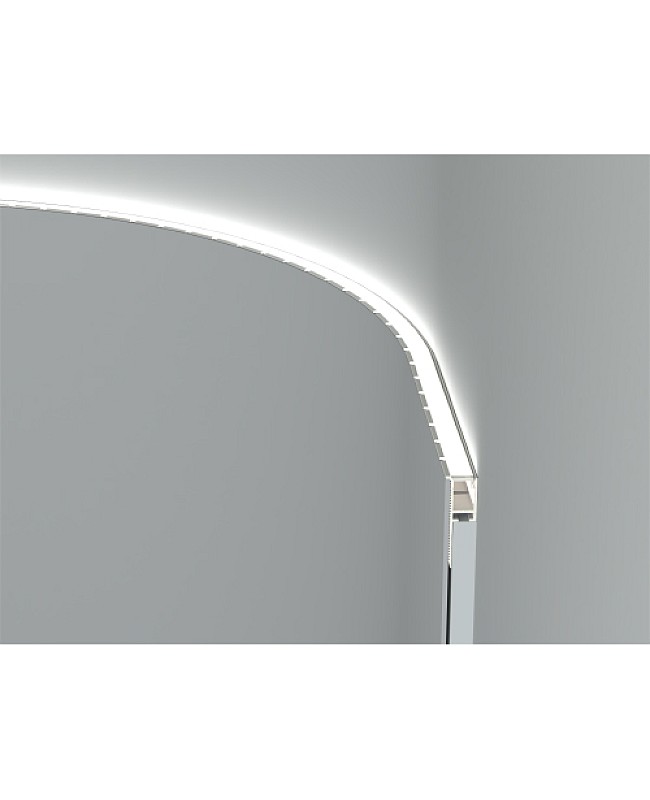

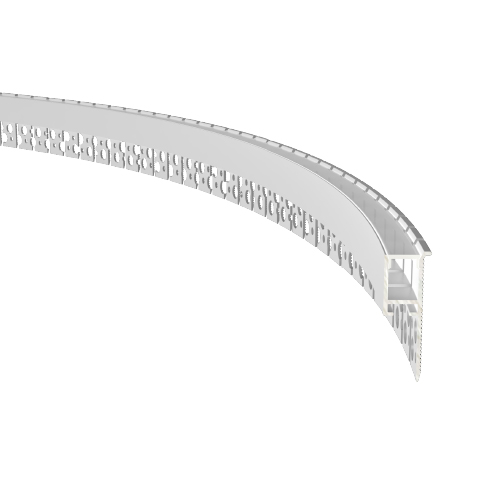

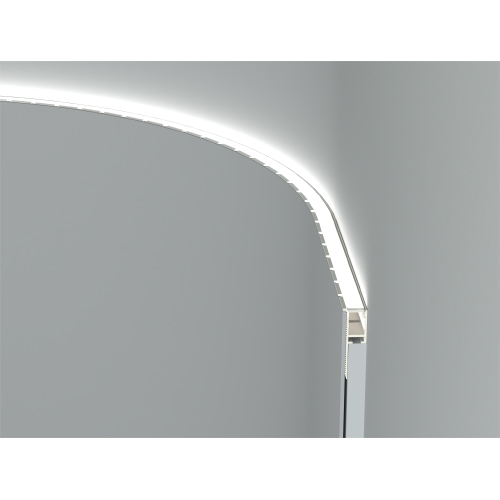

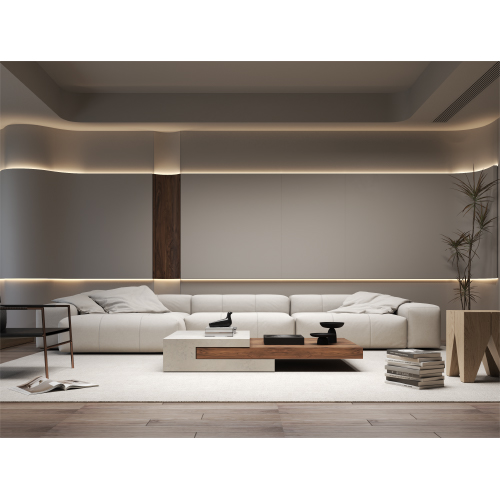

The 40mm side flexible light channels are designed to add linear lighting on the wall line, waistline, and headboard line. The side bendable design allows them to bend to the left or right, easily conforming to curved or irregular areas to create linear lighting along walls, ceilings, and architectural features, providing a seamless and elegant lighting effect. The aluminum channels are made of 6063-T5 extruded aluminum material and feature a silver anodized surface treatment for enhanced lifespan and oxidation resistance. The silicone covers are made from high-quality silicone material, available in 50-meter or 100-meter rolls, to create a soft, ambient glow that enhances visual appeal without overpowering it. The top of the waistline LED channels featuring single-side lips is designed for anti-glare. The max length in stock is 3 meters per piece; 1M and 2M lengths are available, and you can cut to any size to fulfill your needs. The inner width is 7.9 mm, allowing for a maximum width of 7 mm for strip lights. Recommend installing Zig Zag SMD LED strips as the light source.
Specifications:
- Type: Wall Line/ Waistline LED Channels
- Model: 4013
- Material: 6063-T5 Extruded Aluminum + Silicone
- Colors: Silver(Aluminum Channel) / Milky(Silicone Cover)
- Surface Treatment Of Aluminum Channel: Silver Anodized

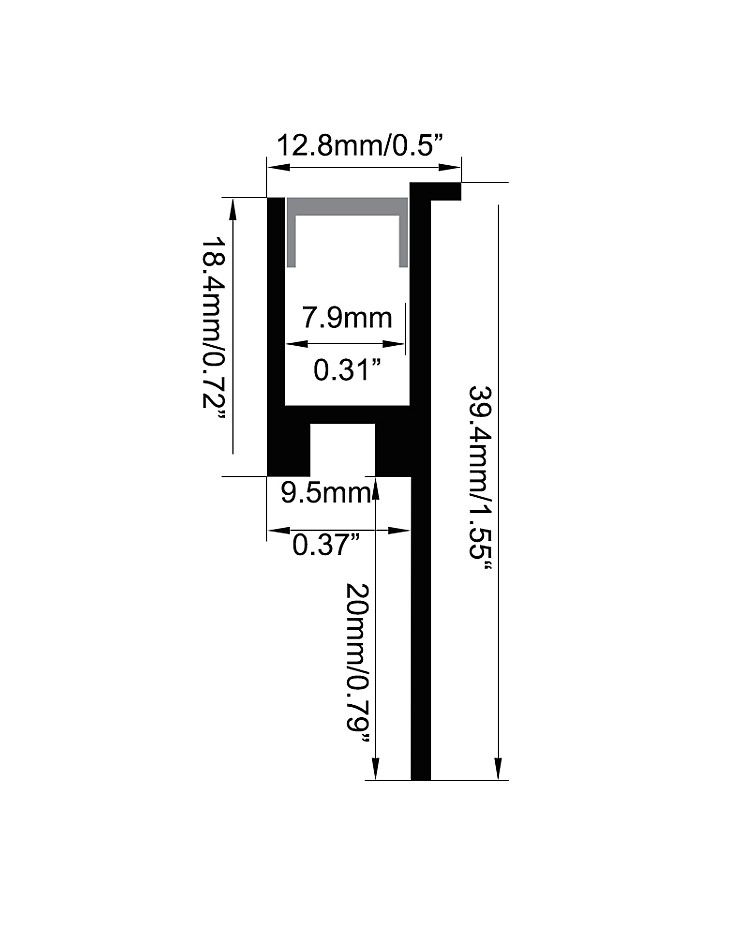

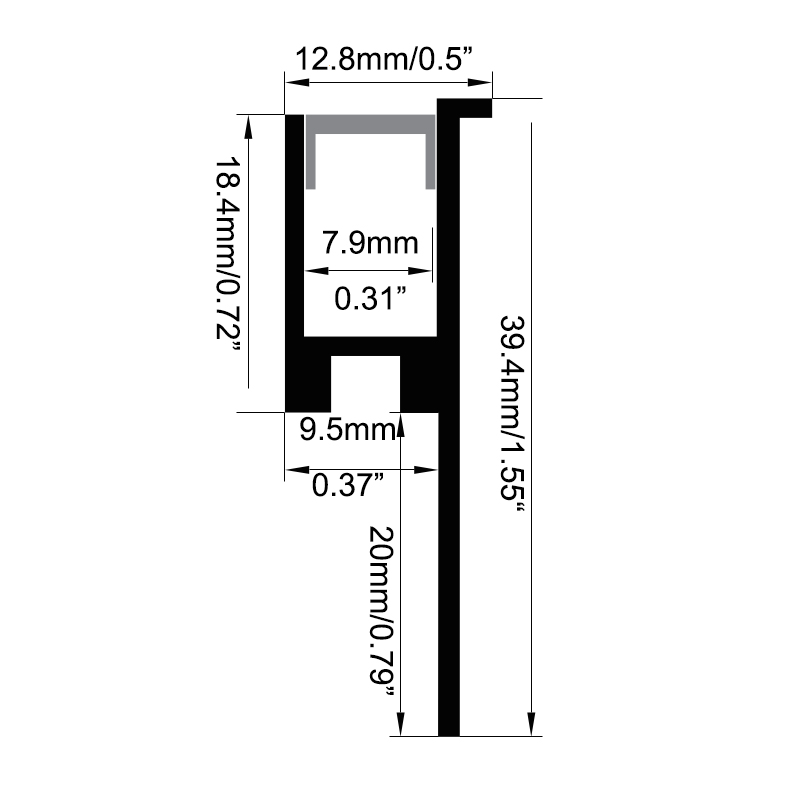

- Size: 39.4mm/1.55"*12.8mm/0.5"
- Lengths Available: 1M, 2M, 3M
- Custom Length: YES
- Inner Width: 7.9mm/0.31"
- Max Width Of Strip Lights: 7mm Zig Zag SMD LED Strips
- Type Of Silicone Cover: Semi-clear
- Max Length Of Silicone Cover: 50M/100M
- Bending Type: Side
- Mini Bending Diameter: 600mm
- IP Rating: IP20 Non-waterproof
- End Caps With/Without Wire Holes Included
- Installation: Recessed

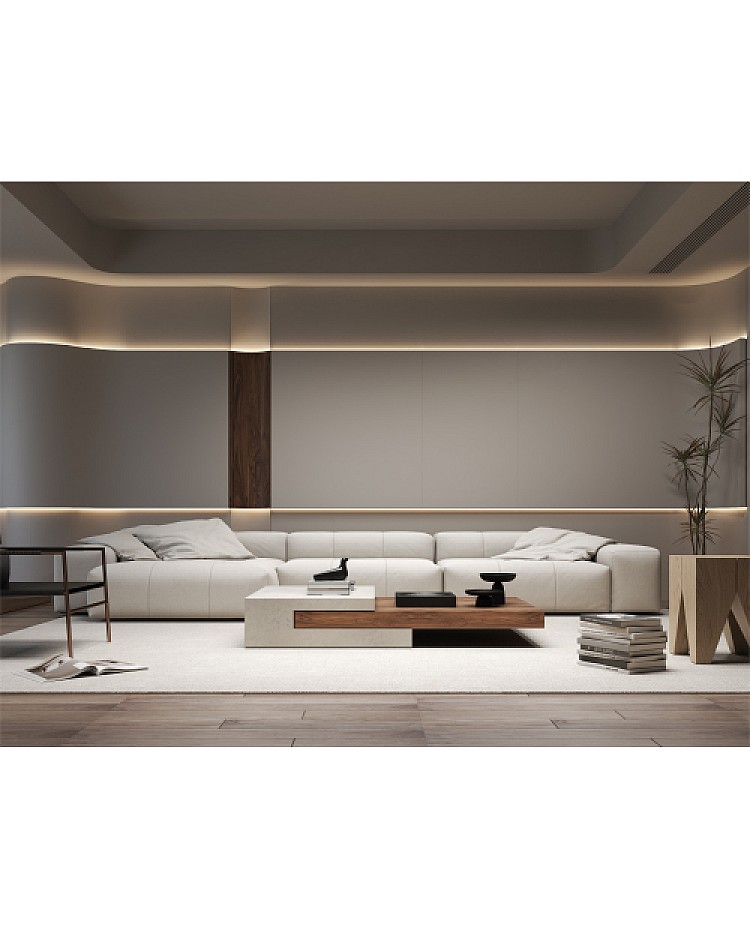

- Applications: Wall Line/Wall Waist Line/Headboard Line Lighting
- 3 Years Warranty
Includes:
1 * 40mm Side Flexible Light Channel
1 * Semi-clear Silicone Cover
1 * End Caps With/Without Wire Holes
