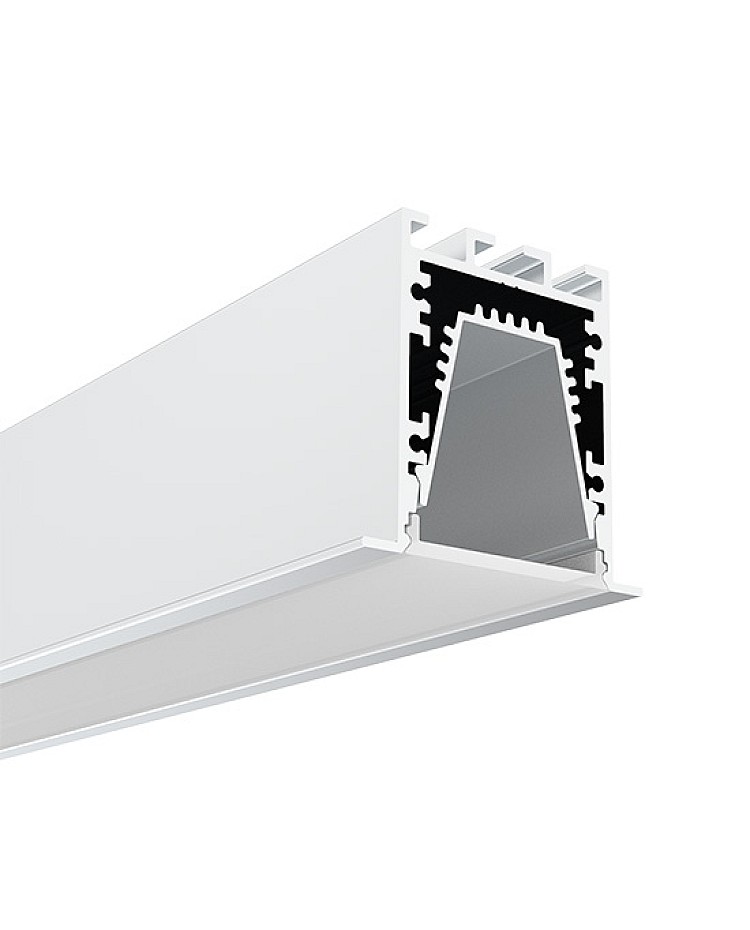

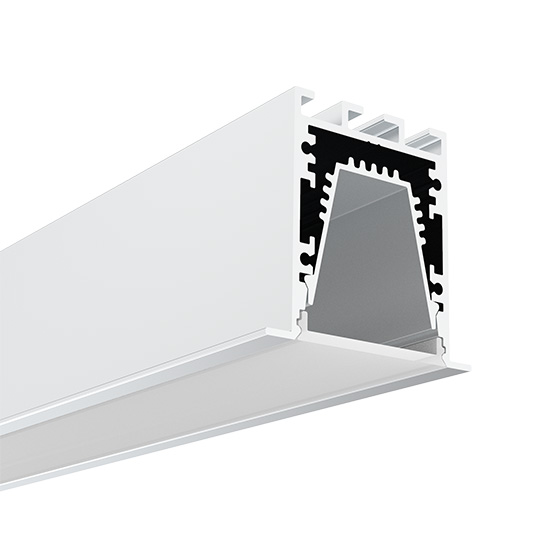

Check the Recessed Rope Light Channels, a width of 39mm, which allow being recessed into the ceiling for commercial linear lighting in offices, restaurants, hotels, shopping malls, etc. The inner width is 12.7mm and allows the max width of the PCB board to be 12mm. easy to install the SMD LED Strips or COB LED Tapes inside. An aluminum base can be used as a heat sinker for better heat dissipation. There is only one type of diffuser available: the PC diffused covers, which are made of imported material, anti-yellowing, perfect light distribution, and smooth light output. the LED Rope Light Channels are made of 6063-T5 aluminum material with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. The standard length is 1M and 2M, and custom length is available. The 90°，90° vertical, and 180° connectors are available, you can purchase them separately and use them to reconnect the LED Light Channels together for the various lighting projects. End caps and spring clips are included.
Features:

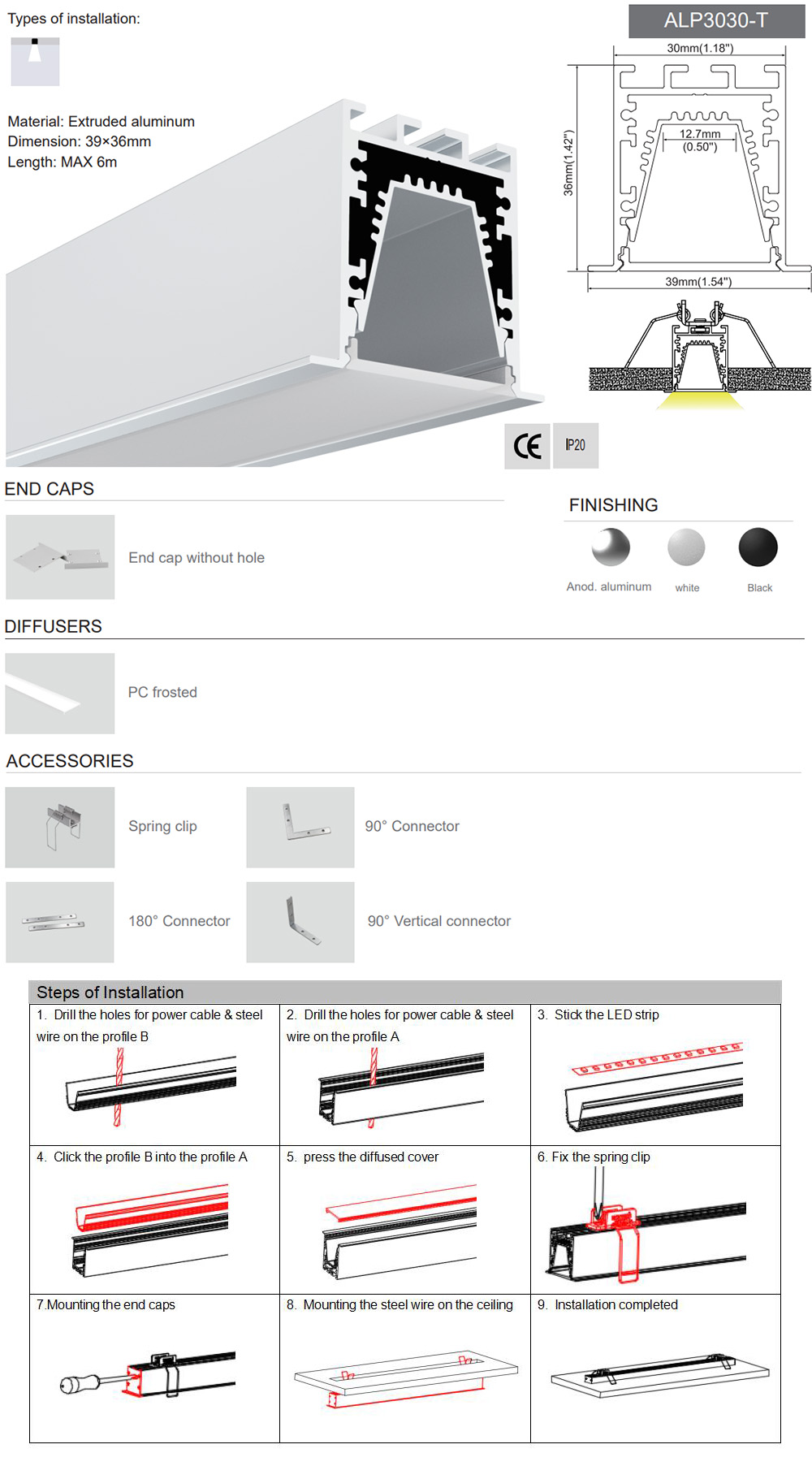

- Model: ALP3030-T
- Material: 6063-T5 Aluminum
- Surface Treatment: Anodized
- Color: Silver(Default), Black, White

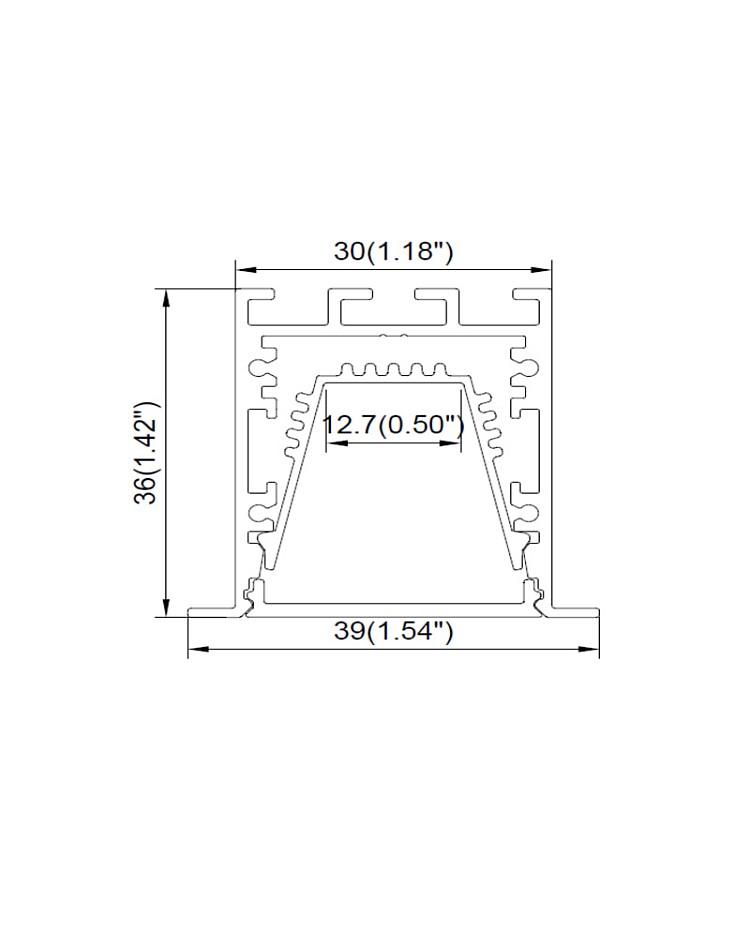

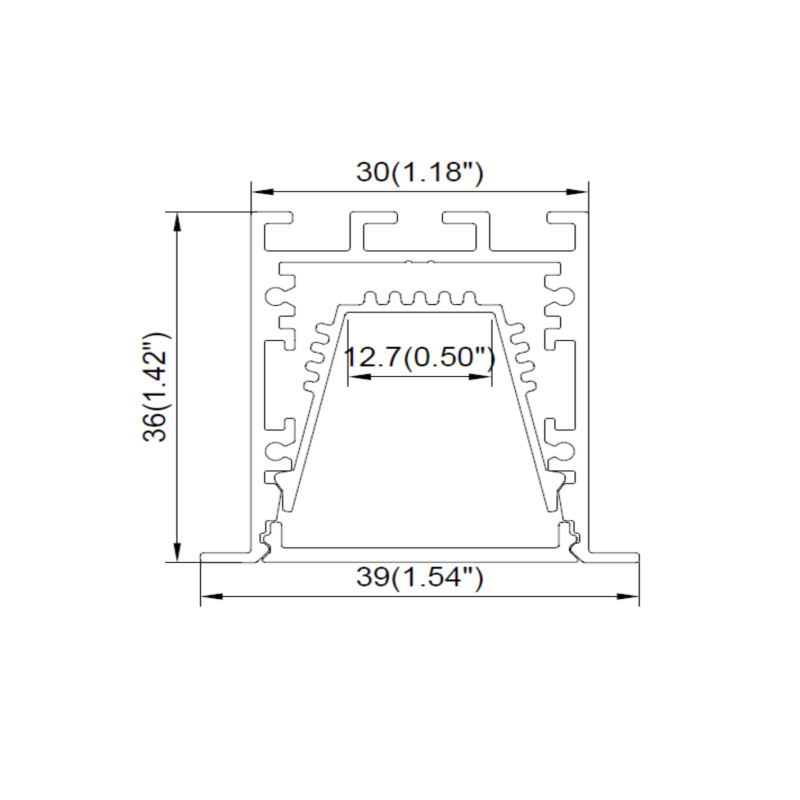

- Size: 39*36mm(W*H)
- Standard Length: 1M
- Other Lengths Available: 1.5M, 2M
- Custom Length Available: YES

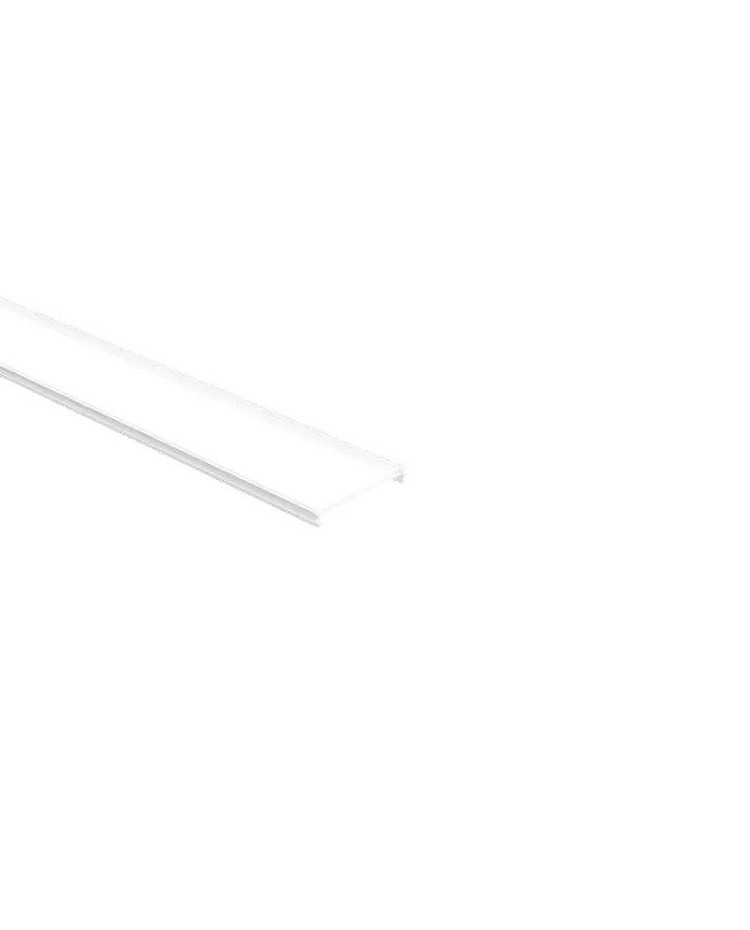

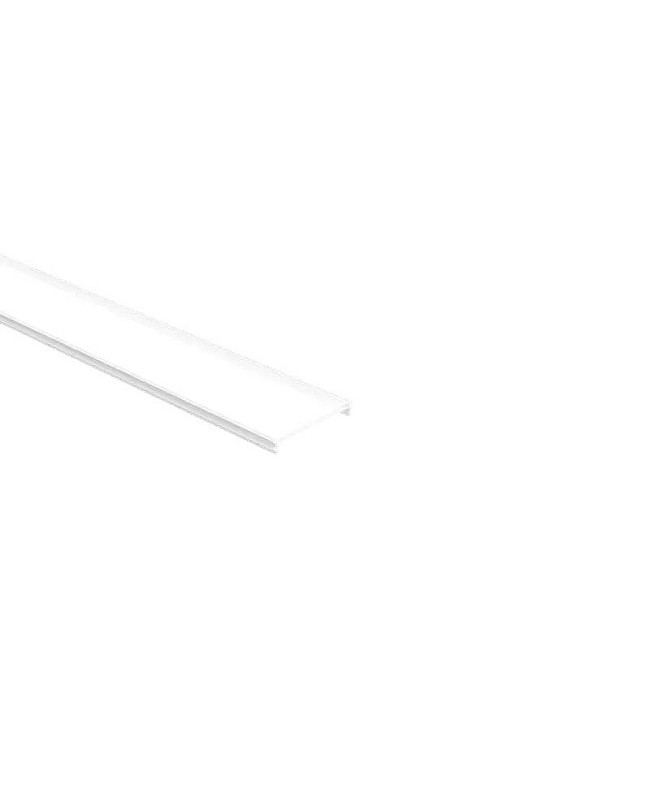

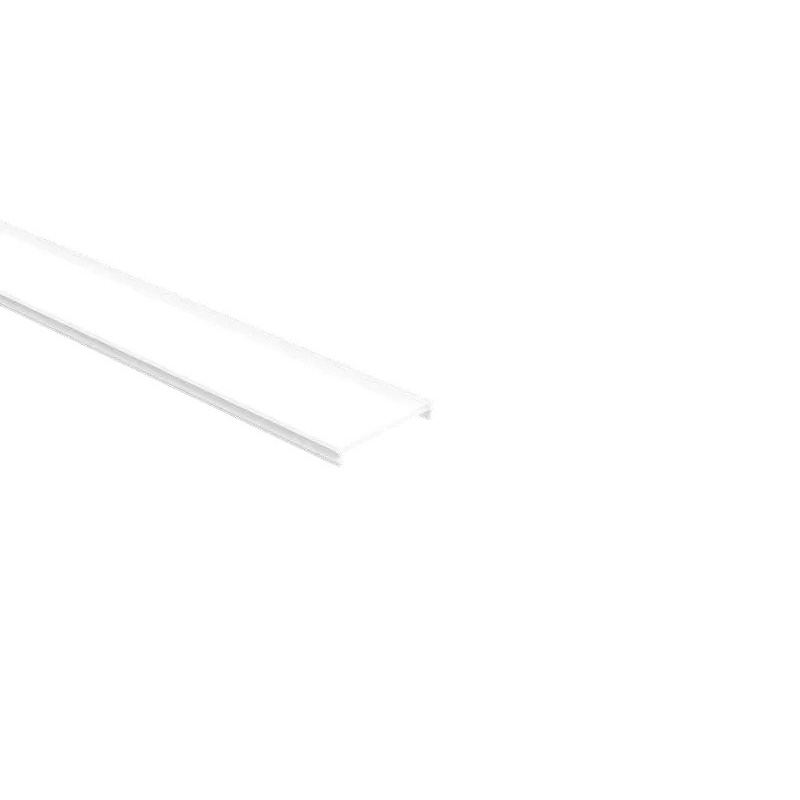

- Diffusers: PC Diffused Cover
- Inner Width: 12.7mm
- Max Width Of PCB Board: 12mm
- Fit For Max 12mm SMD LED Tapes Or COB LED Strips
- 90° Connectors, 90° Vertical Connectors and 180° Connectors Sold Separately
- Tolerance: ±1%
- IP Rate: IP20 Non-waterproof
- End Caps And Spring Clips Included
- Installation: Recessed
- 5 Years Warranty
Includes:
1*Rope Light Channel With Diffuser

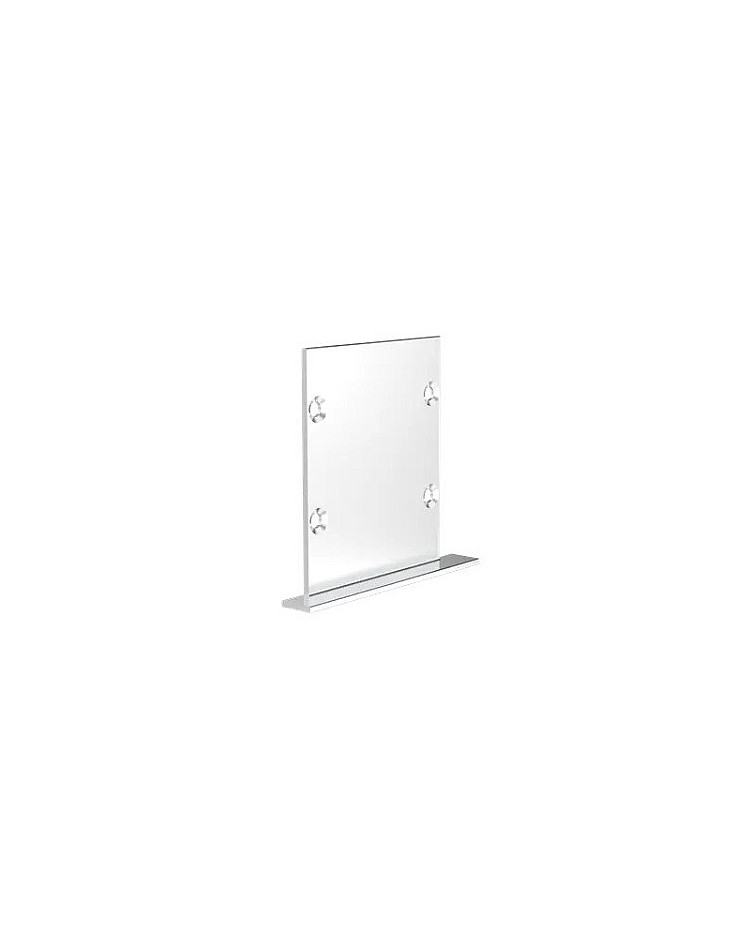

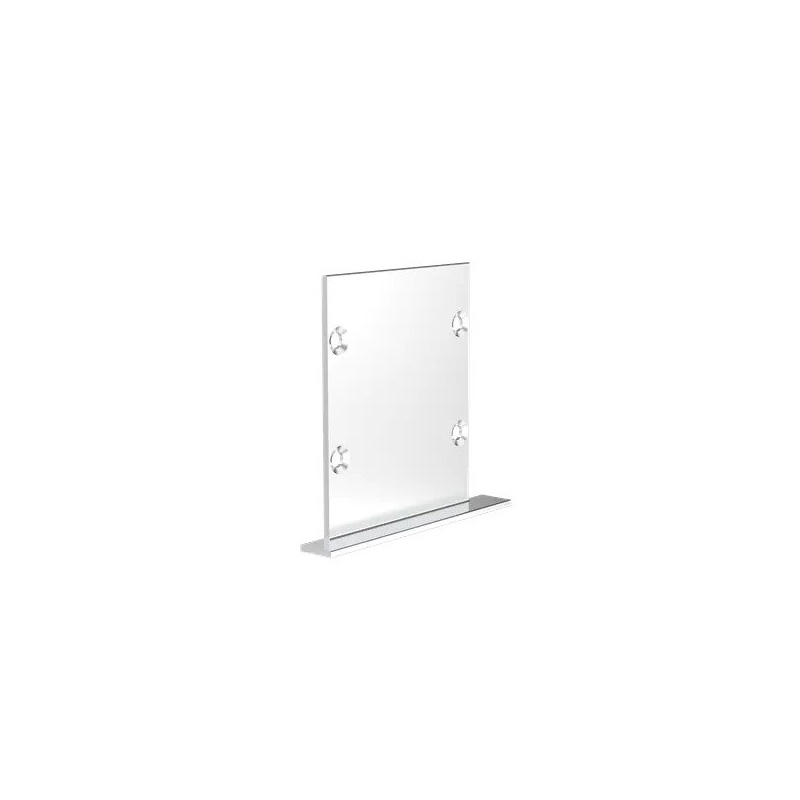

End Caps

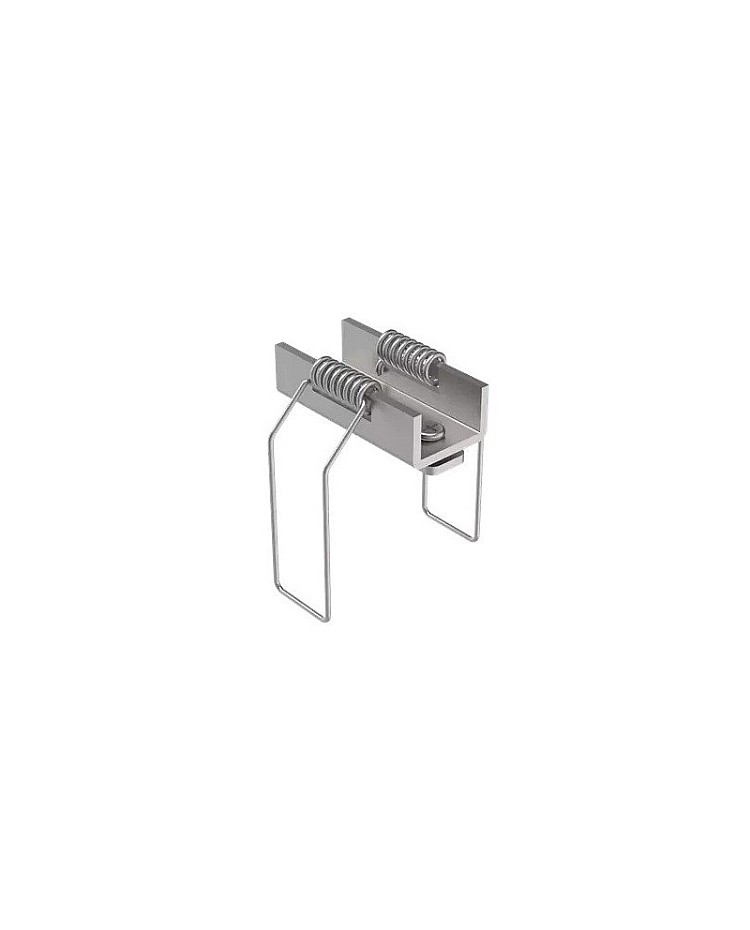

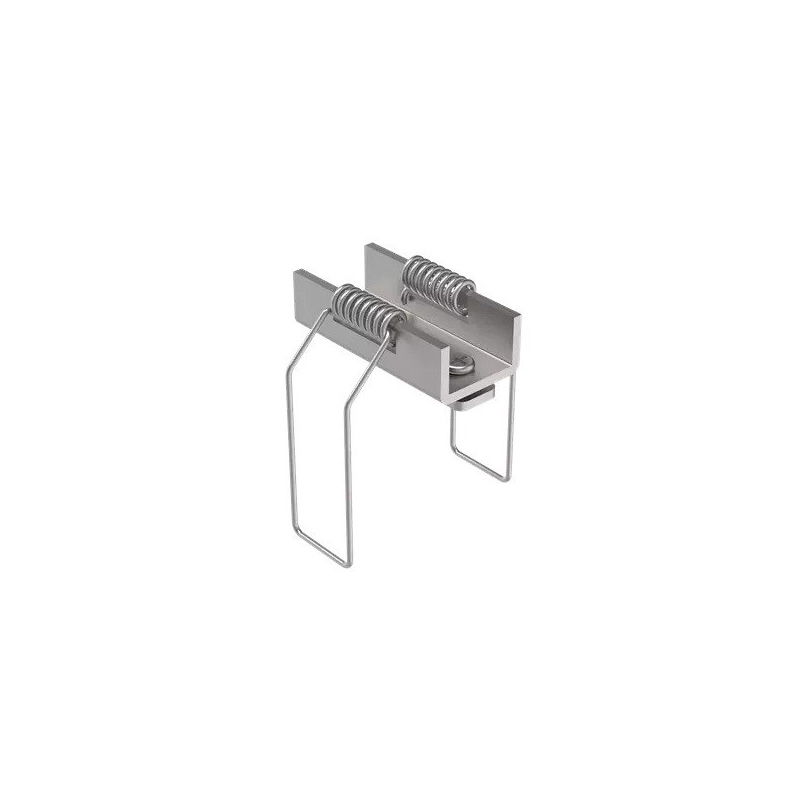

Spring Clips
