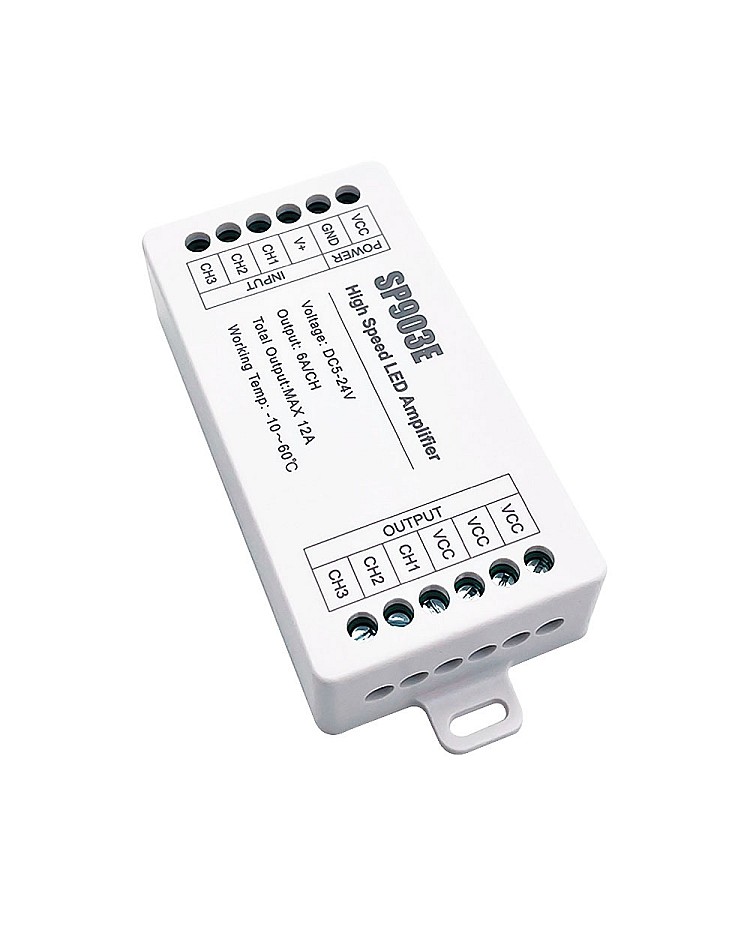

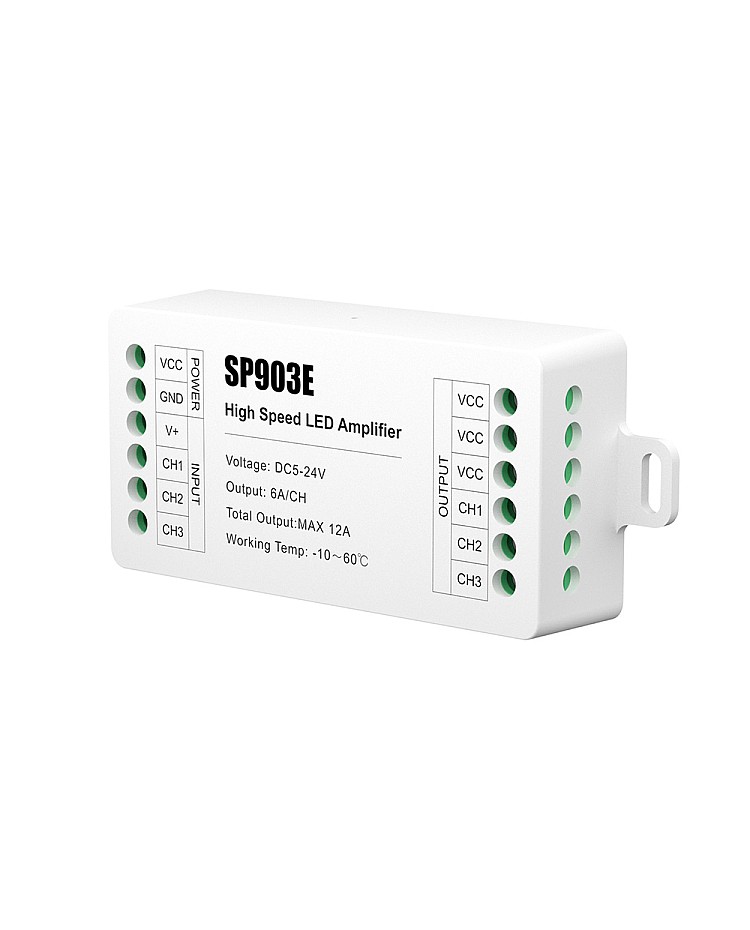

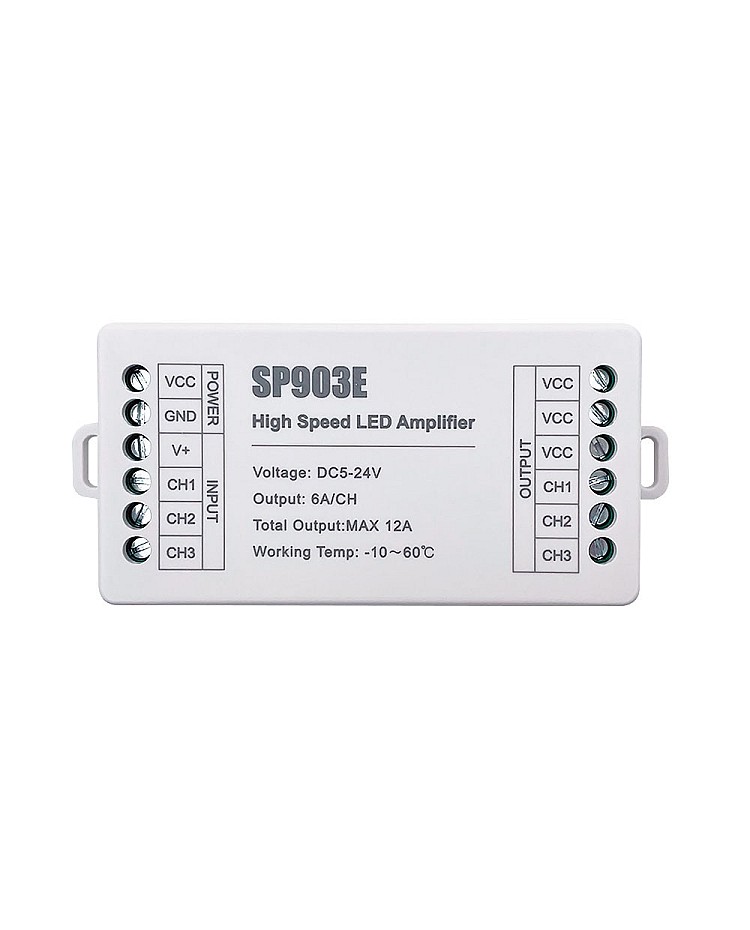

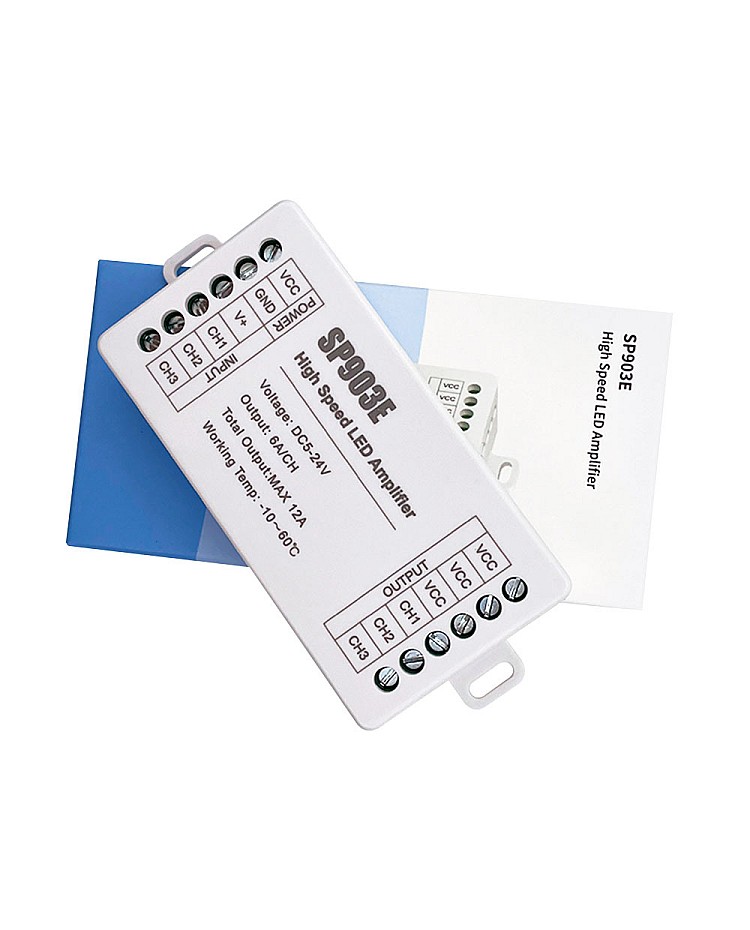

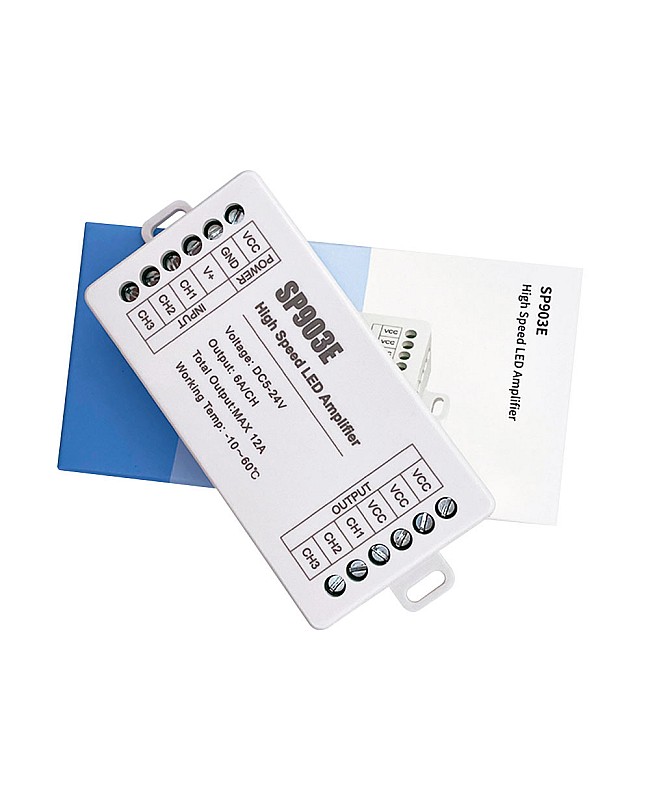

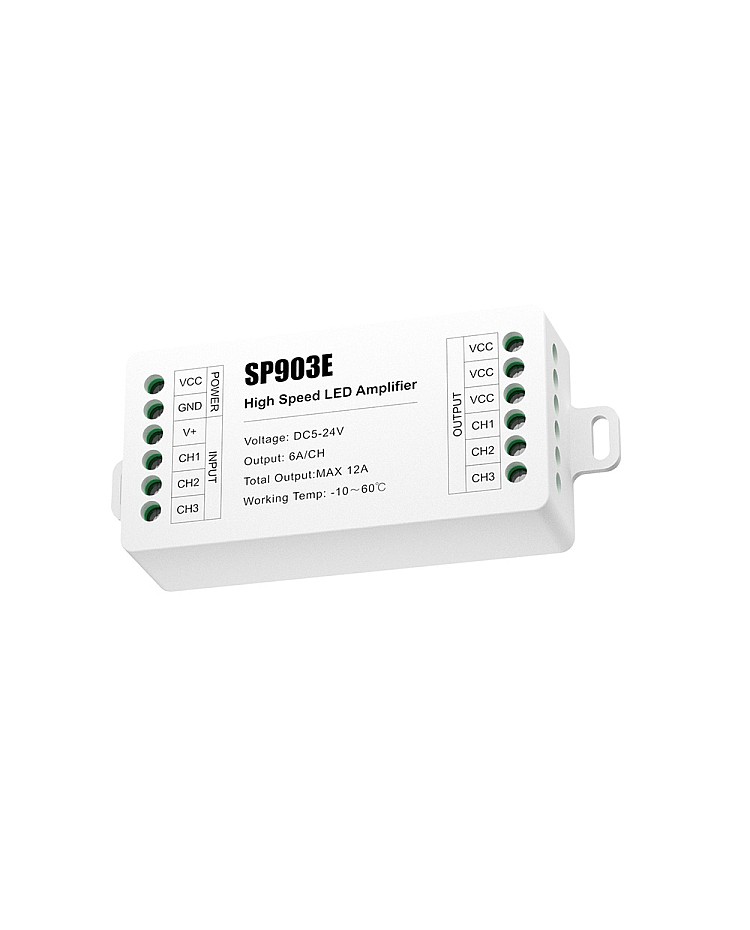

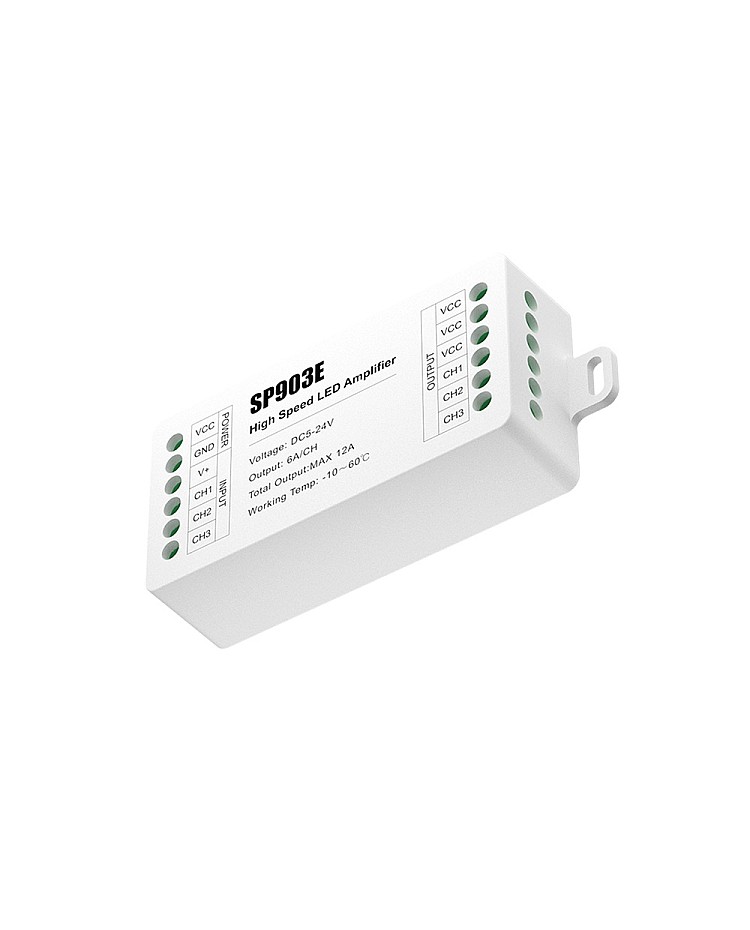

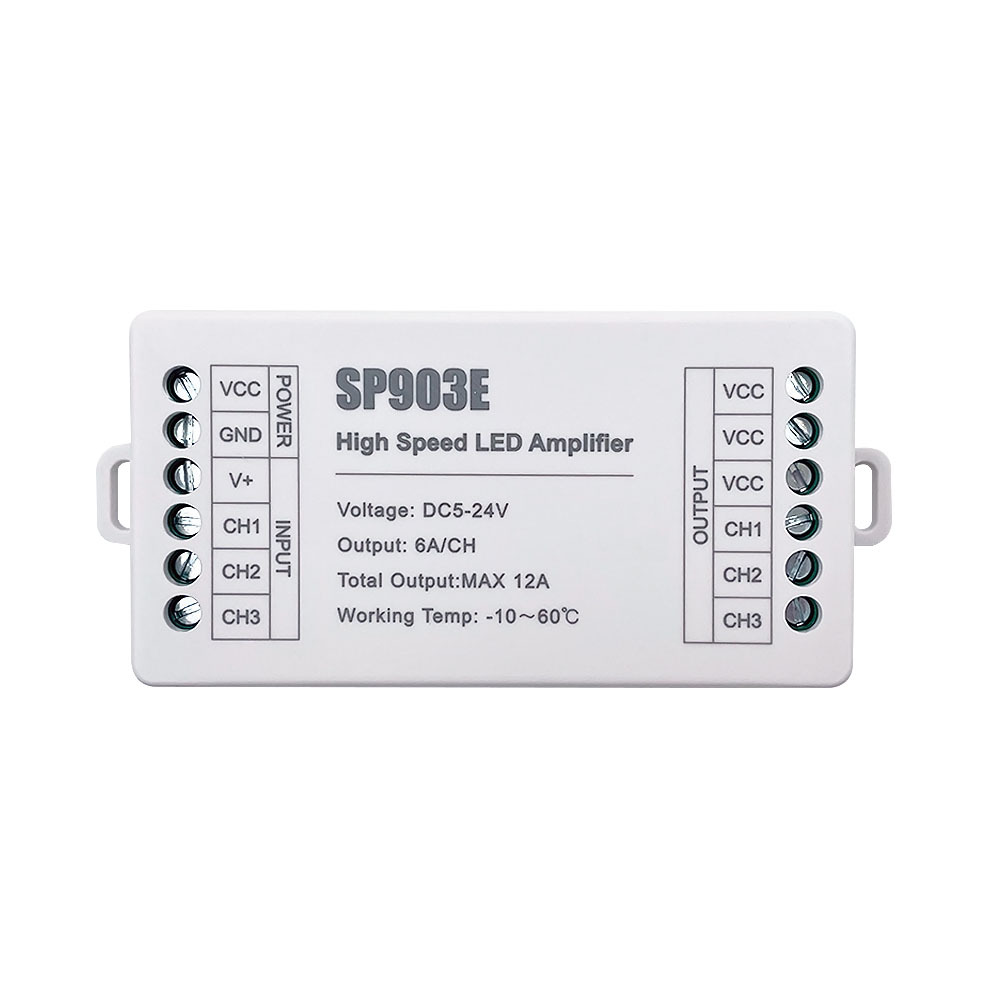

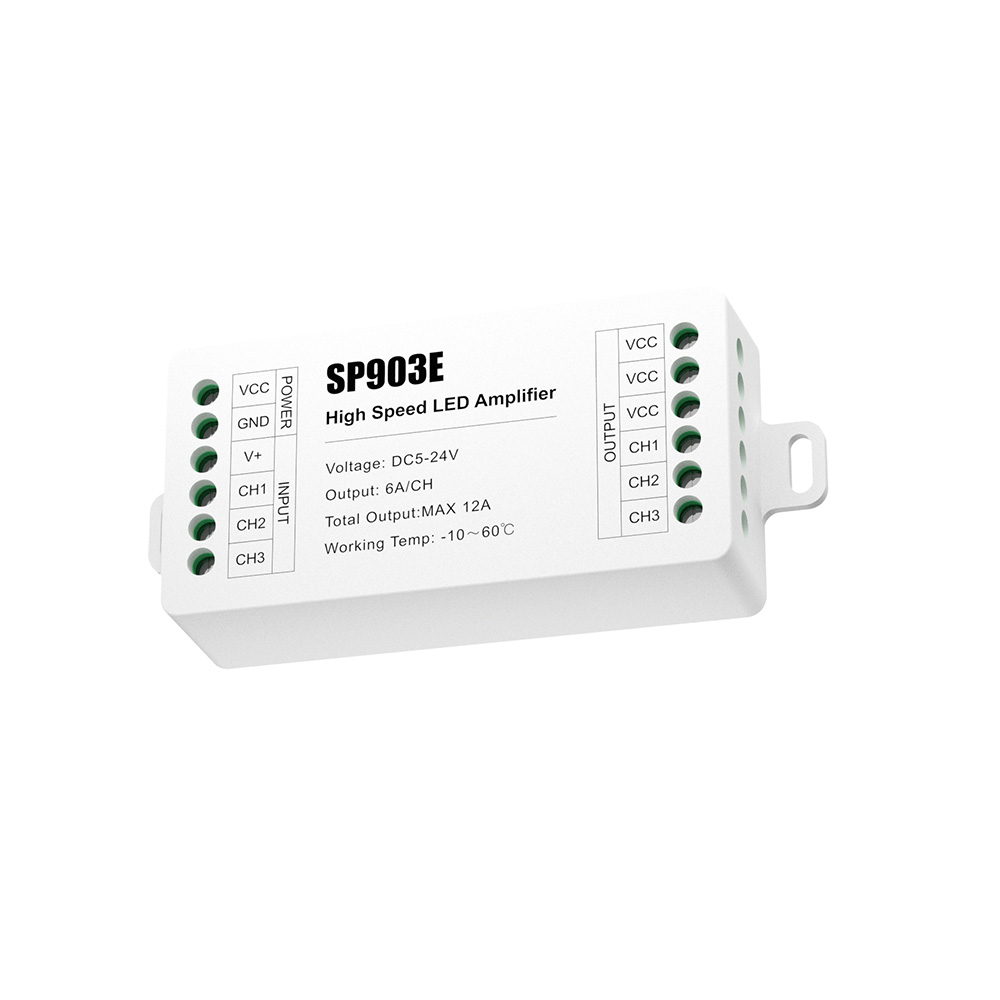

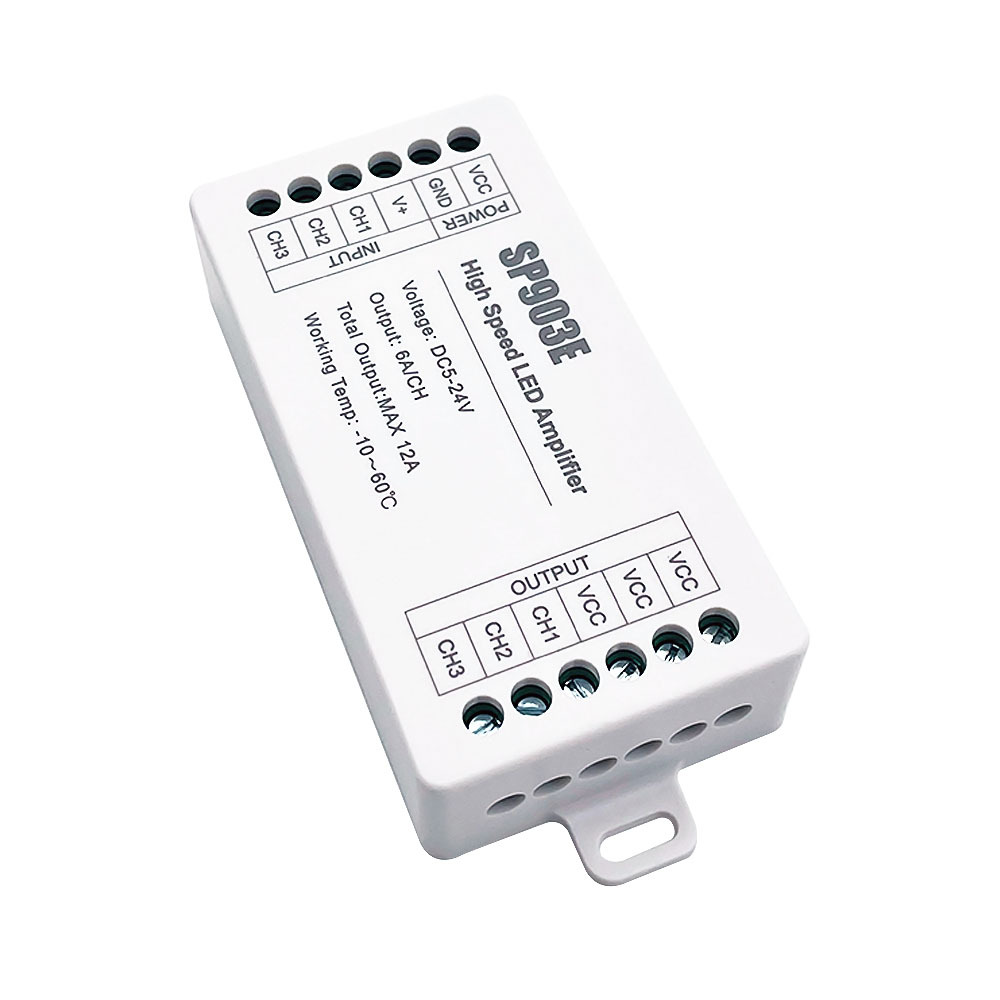

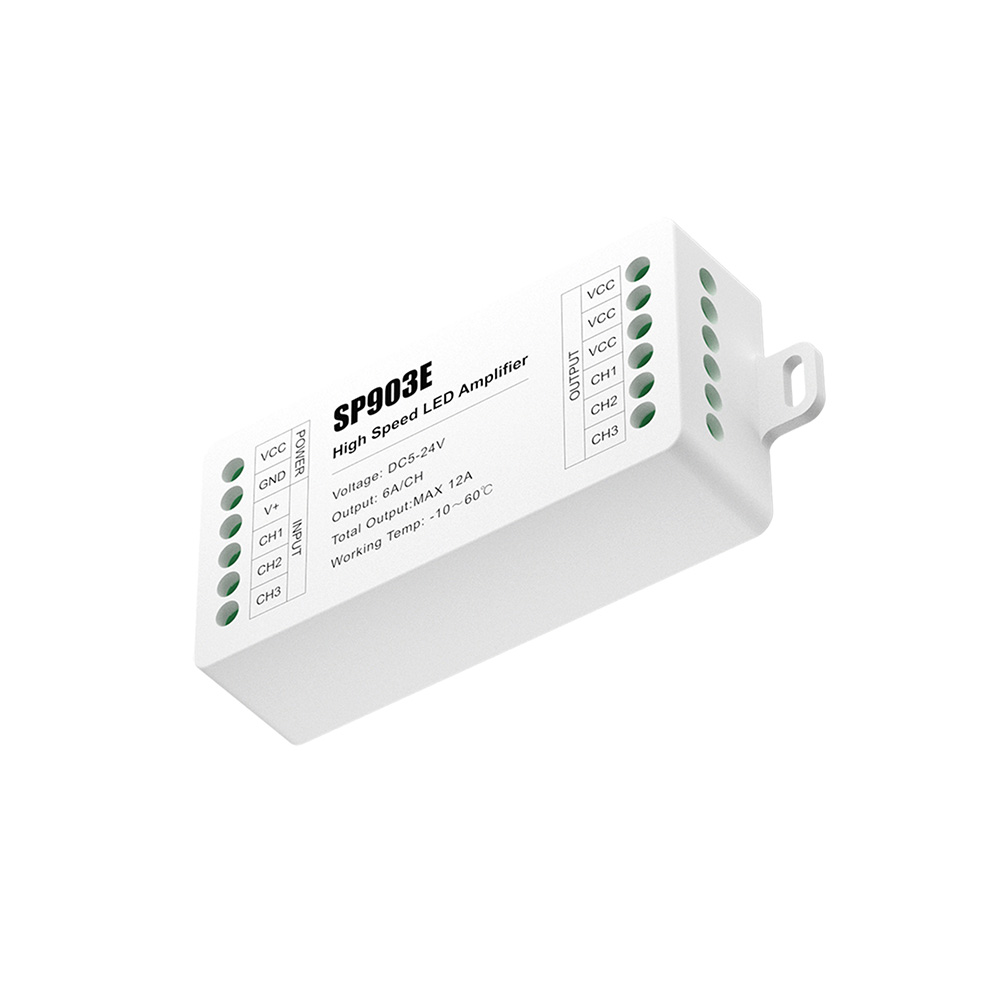

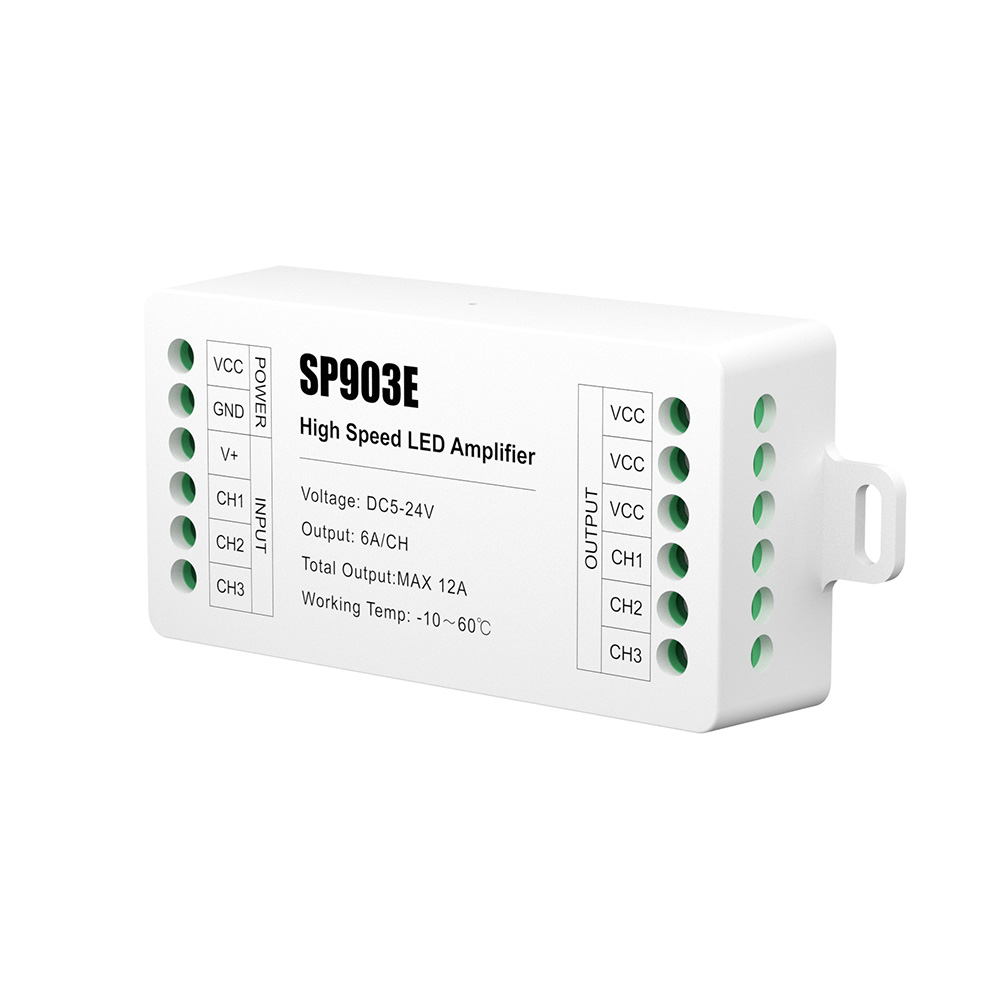

The SP903E 3-Channel RGB LED Light Amplifiers have ultra-power MOS output for high load capacity. They will receive, process and transmit a high frequency PMW signal from the RGB LED Controllers of up to 30KHz to achieve accurate light control. These Amplifiers can help create stunning visual displays in various applications by providing additional power and control to the LEDs. The input voltage ranges from DC5V to DC24V, and the input and output voltage can differ. With 3 output channels designed, each channel is independently, which can be used independently and combined. You can use them for the regular RGB Color-Changing COB and SMD LED Strip Lights.
Features:
- Type: 3 Channels LED Light Amplifier
- Model: SP903E
- Material: ABS
- Size: 98*42*20mm(L*W*H)
- Input Voltage: DC5-24V
- Working Current: 16mA-40mA
- Output: 6A Per Channel
- Total Output: 12A Max
- Working Temperature: -10-60℃
- 3 Years Warranty
Includes:

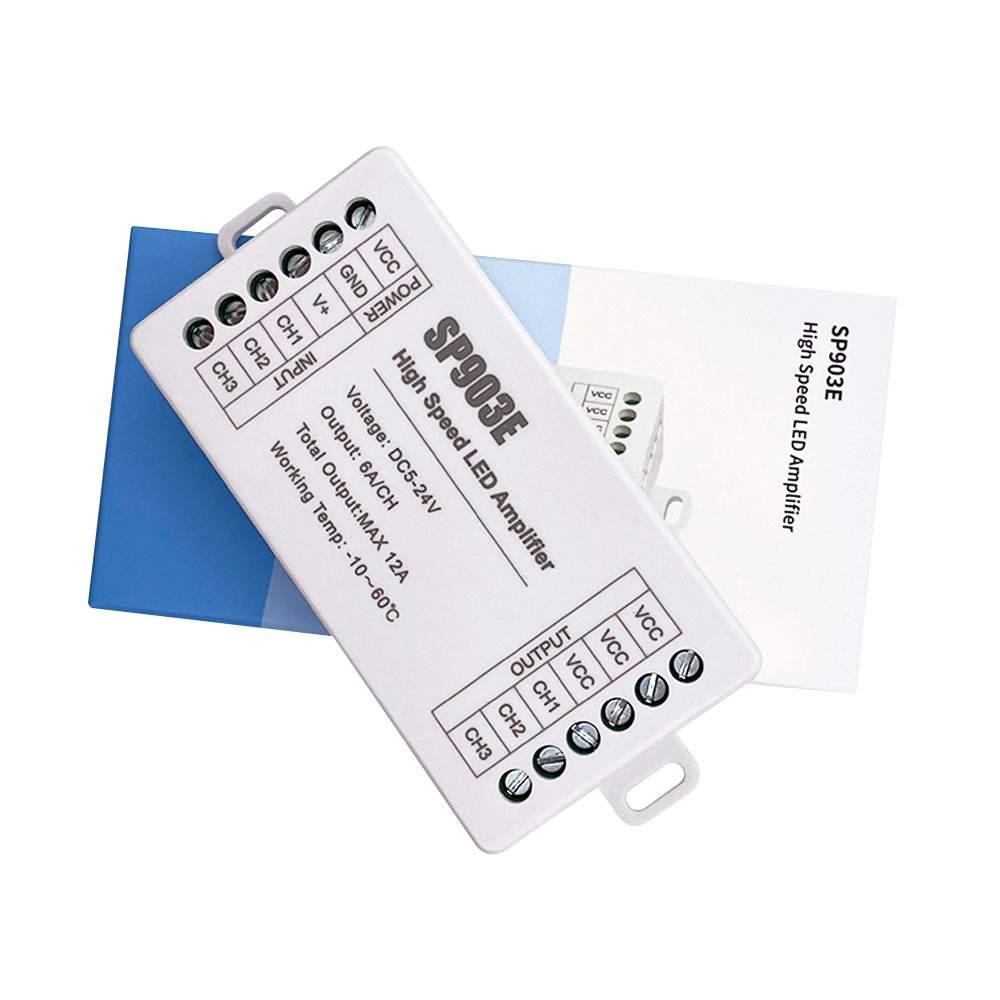

1*SP903E Amplifier
