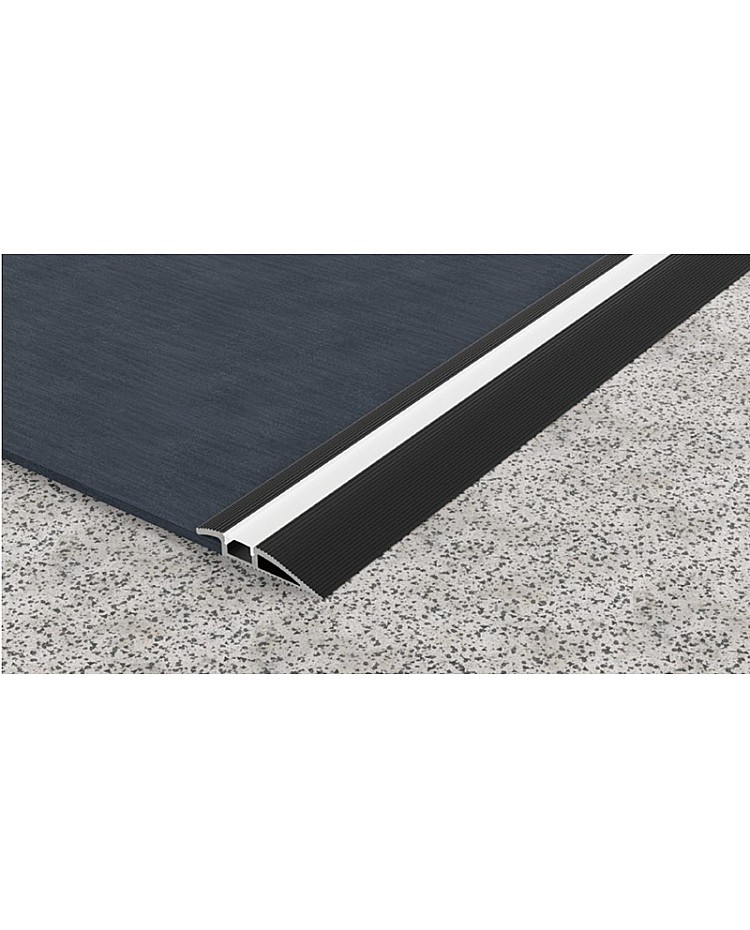

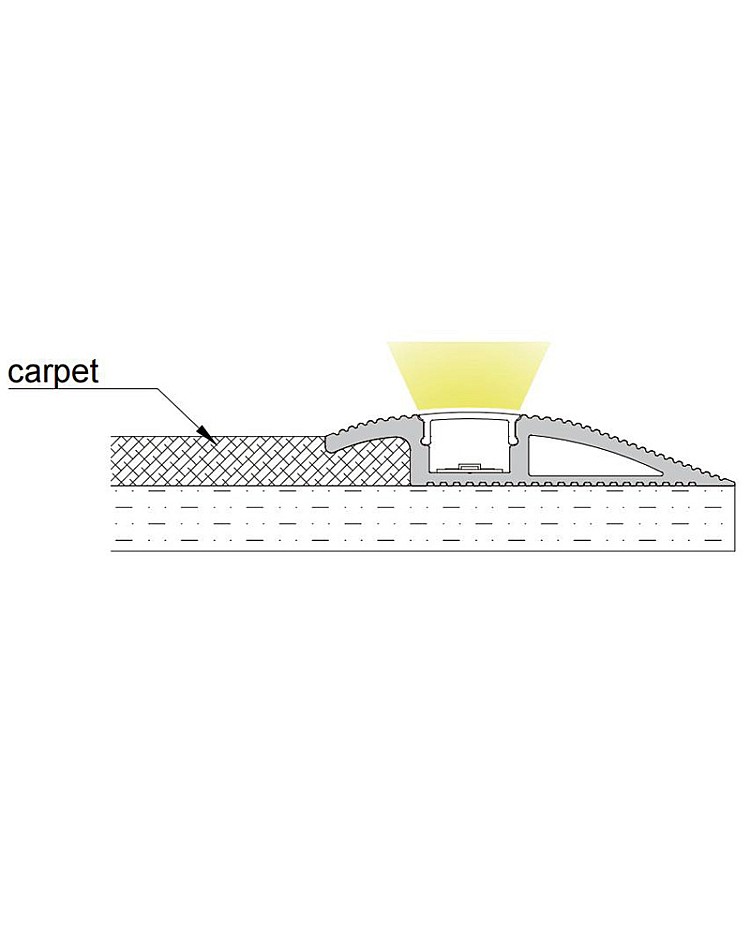

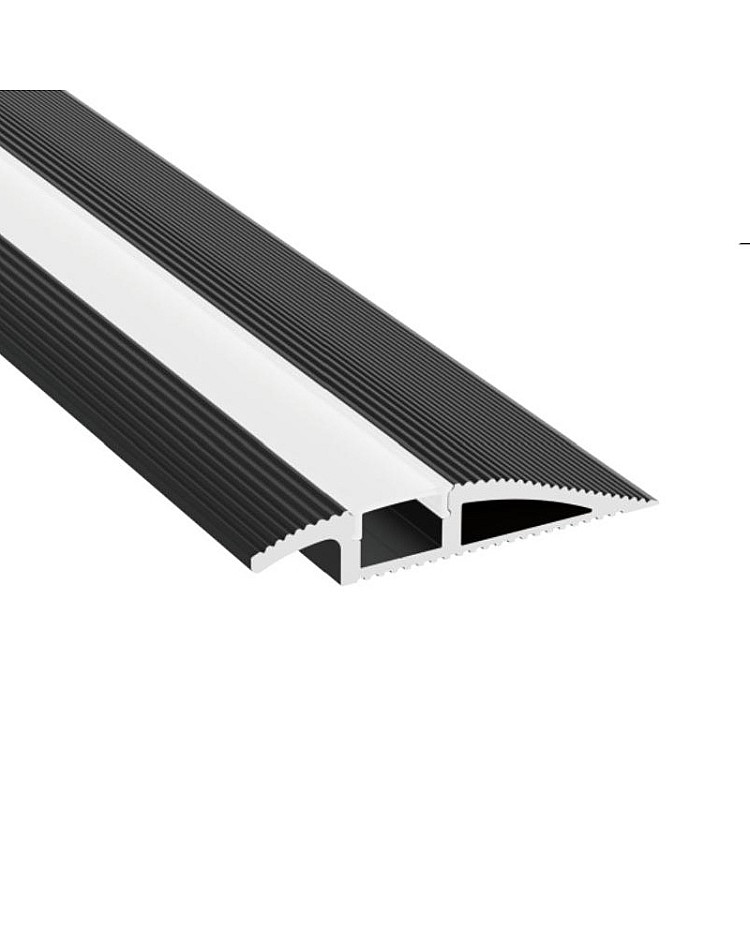

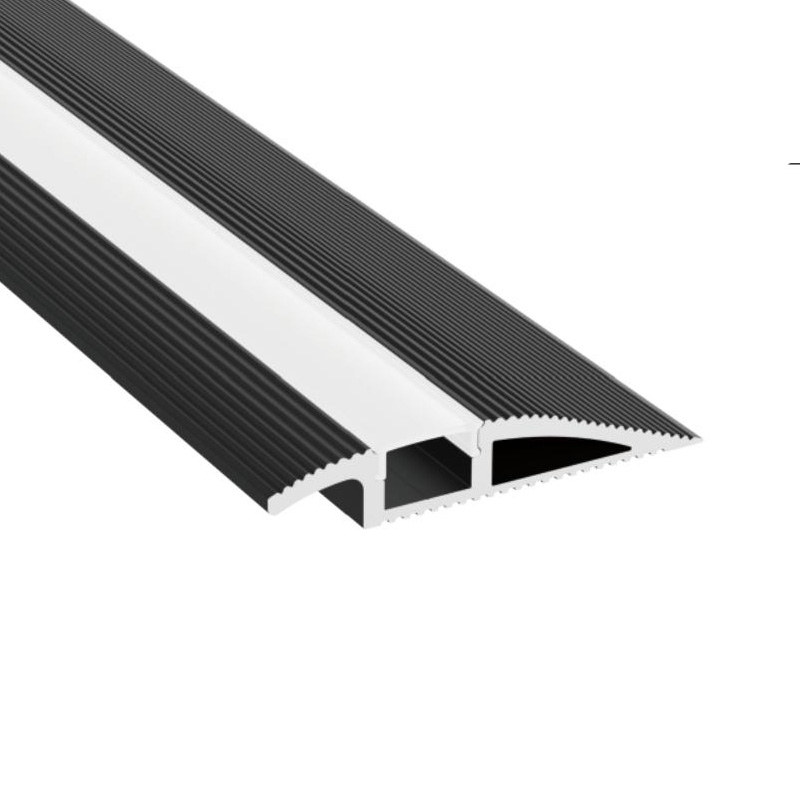

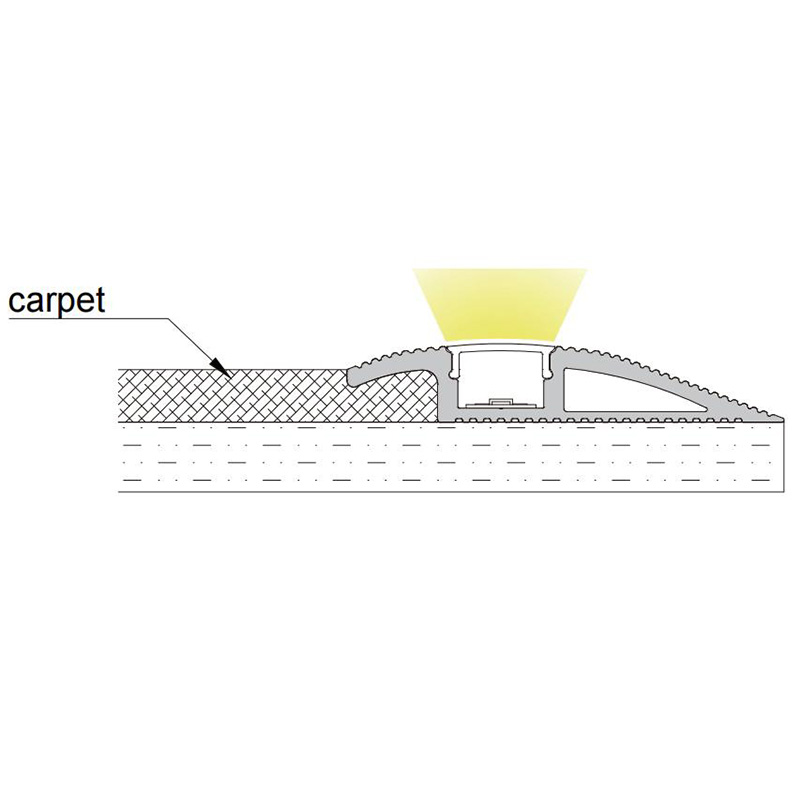

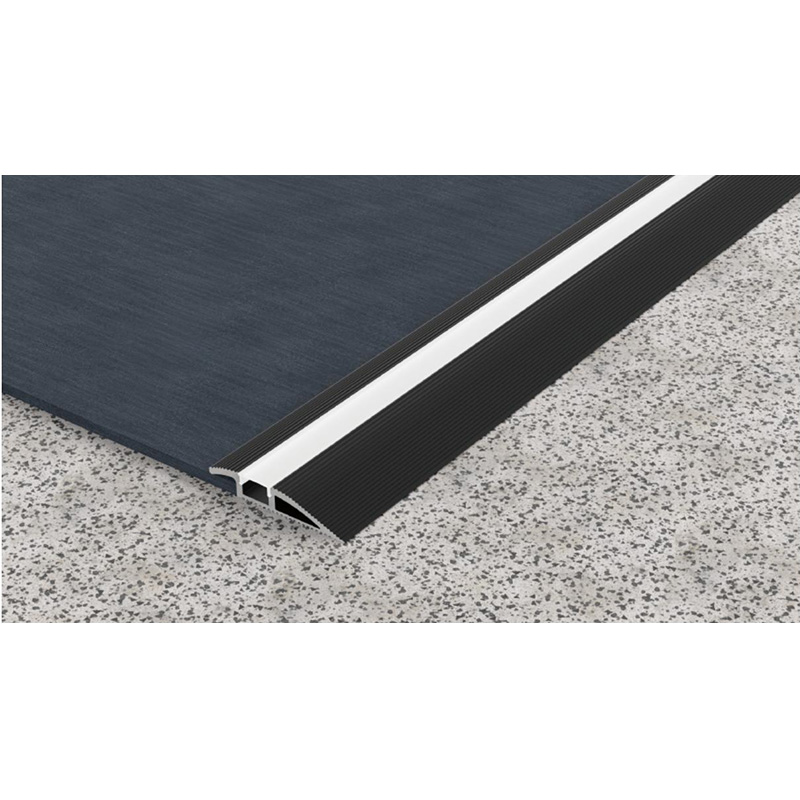

The side-mounted LED channels are designed to be mounted on the side of your carpet, allowing you to easily add a line of LED lighting along the transition between the carpet and other surfaces, engineered for both function and aesthetics. The sloped aluminum profiles feature an anti-skid function, providing a soft, uniform illumination that enhances visibility and safety. The floor LED channels are made of high-quality aluminum alloy material with a black anodized finish, anti-oxidation resistance, and a longer lifespan. The standard lengths are 1 m and 2 m, with a maximum length of 3m. You can cut to any size that fits your needs. The inner width is 12.3mm, allowing a maximum width of 12 mm for strip lights. Recommend adding high-density LED COB strips as the light source without visible light dots. Only PC diffused covers are available, made of brand-stable material, anti-yellowing, and with perfect light distribution. End caps with and without wire holes are included. These strip light channels can also be mounted on the surfaces of tiles, stone, wooden floors, and concrete, among others.

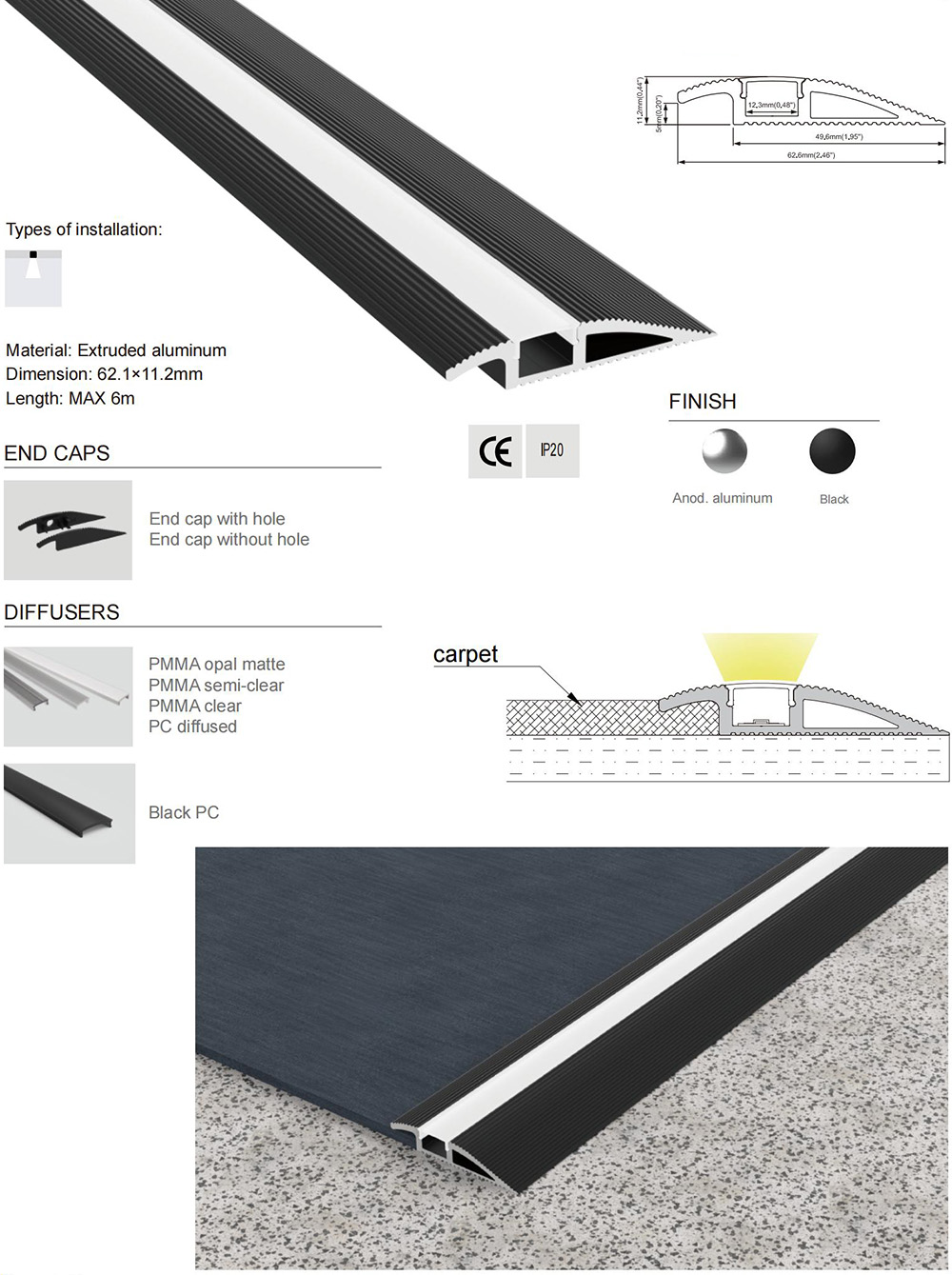

Specifications:
- Model: ALP209
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Black

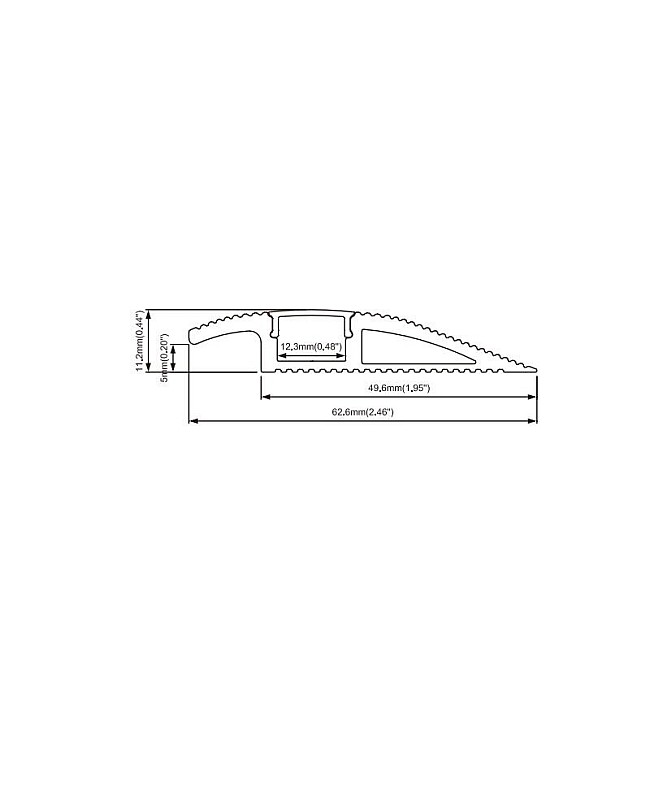

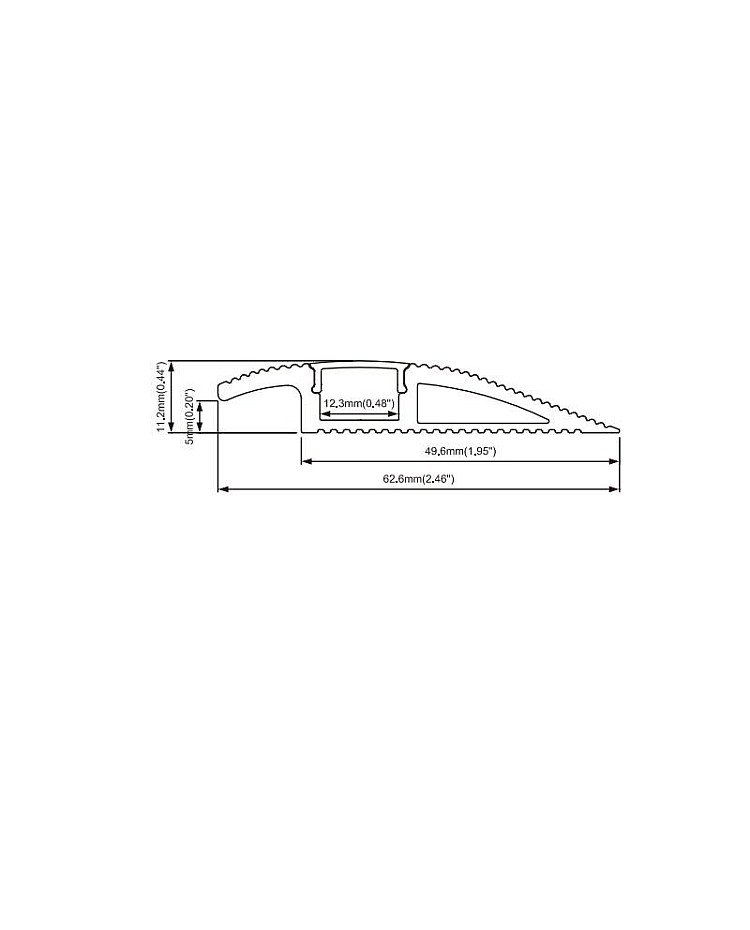

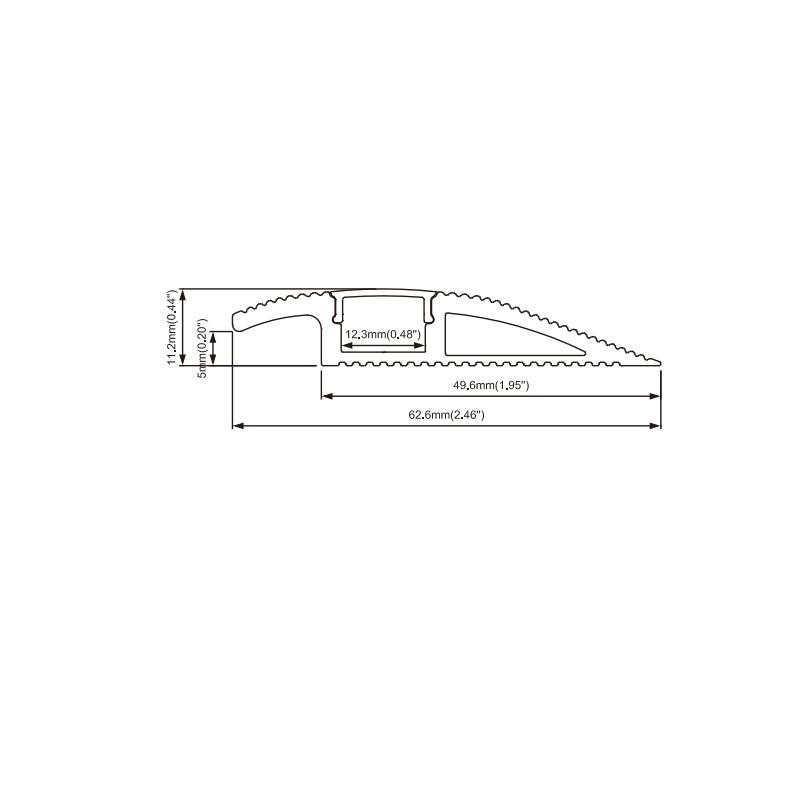

- Size ( W x H ): 62.6 mm x 11.2mm ( 2.46" x 0.44" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78“ ）
- Custom length: YES
- Diffusers: PC diffused cover
- Inner width: 12.3 mm ( 0.48" ）
- Allows the maximum width of strip lights to be 12mm ( 0.47" )
- Max power: 15W/m
- End caps with and without wire holes included
- Installation: Surface-mounted
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Guidance or decorative ambient lighting in hallways, stairways, pathways, etc
- Hospitality and hotel corridors
- Theater aisle lighting
- Commercial spaces and retail flooring transitions
Includes:
1 * Side-attached LED channel
End caps(With and without wire holes)
