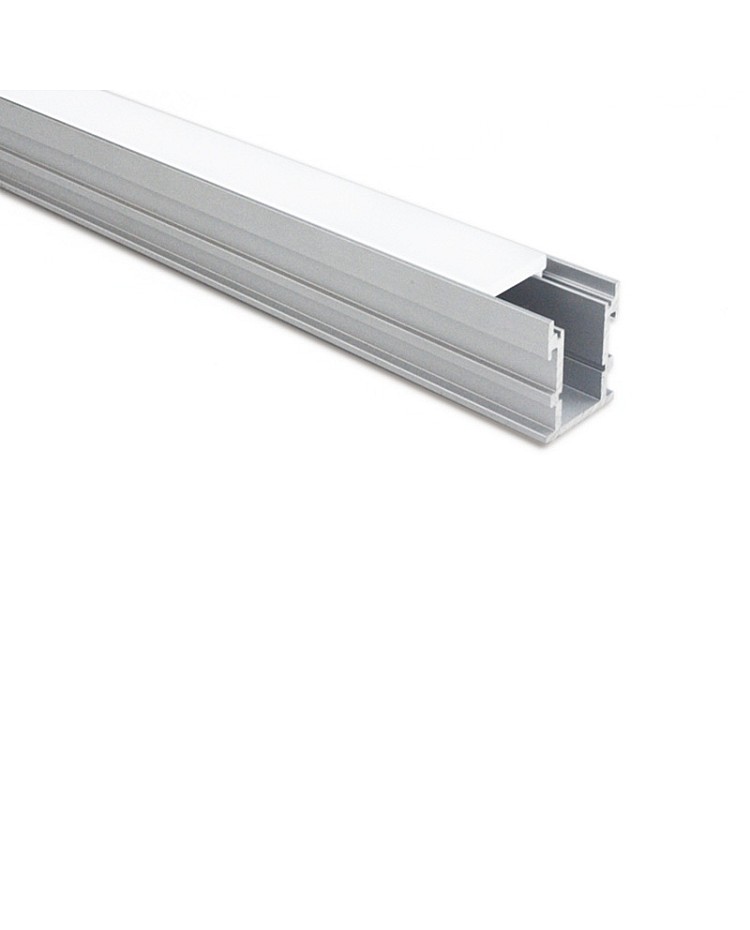

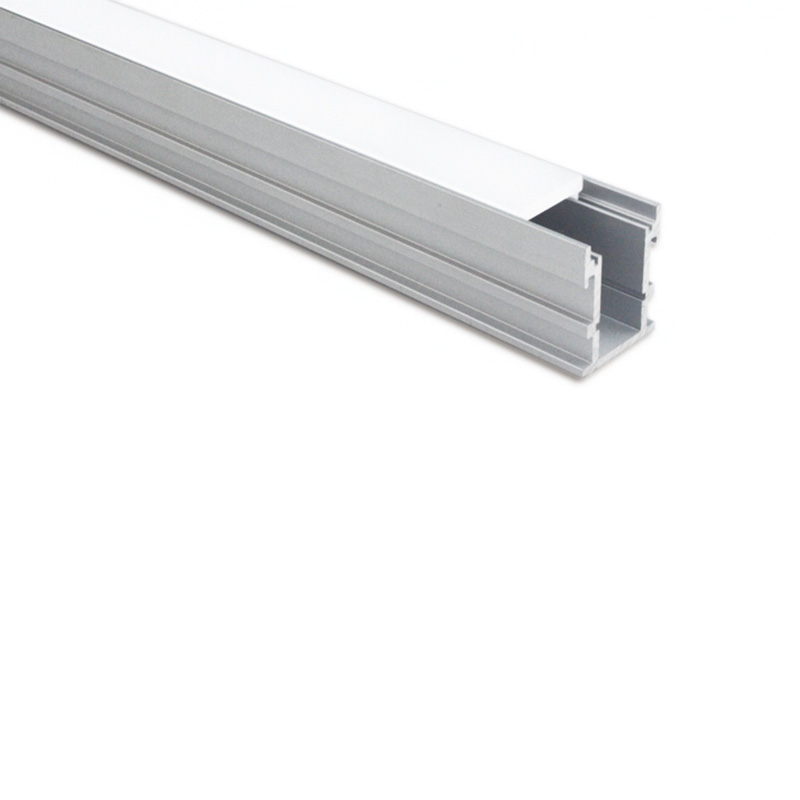

The LED extrusion channels are designed to be flush-mounted into the floor, providing a clean and minimalist finish while offering soft, uniform embedded illumination. They offer seamless integration into concrete, tile, wood, or stone floors. They come with 3 mm thick PC diffusers to provide IP65 waterproof protection, and protect the LED strips from water, dust, and step-on. Ideal for installing floor lighting in wet environments, such as outdoor floors, garden walkways, pathways, and more. These border LED channels are crafted from 6063-T5 aluminum alloy with an anodized finish, anti-oxidation resistance, durability, and long-lasting performance. The maximum length is 2 meters per piece, and it can be cut to any length that fits your needs. Only PC diffused covers are available, made of brand-stable material and 3mm thickness, enhancing structural strength while delivering smooth, glare-free illumination. The inner width is 12.2 mm, allowing for a maximum width of 12 mm for the LED strip lights. Recommend adding COB strip lights as the light source without hotspots. The aluminum channels can serve as a heat sink, enhancing heat dissipation. End caps with and without wire holes are included.
Note: For optimal waterproof performance, please seal the PC diffusers and end caps with silicone glue.

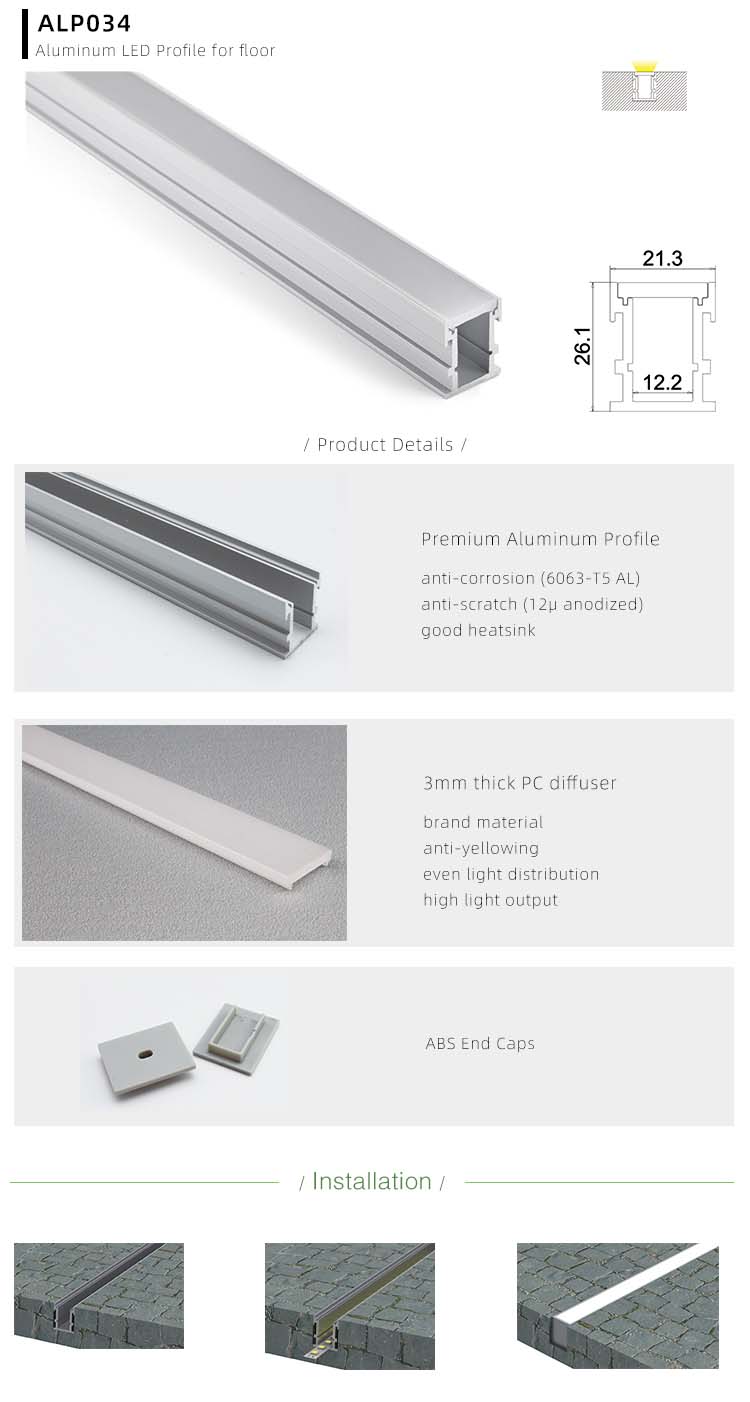

Specifications:
- Material: Aluminium alloy ( 6063-T5 )
- Model: ALP034
- Surface treatment: Anodized
- Color: Silver

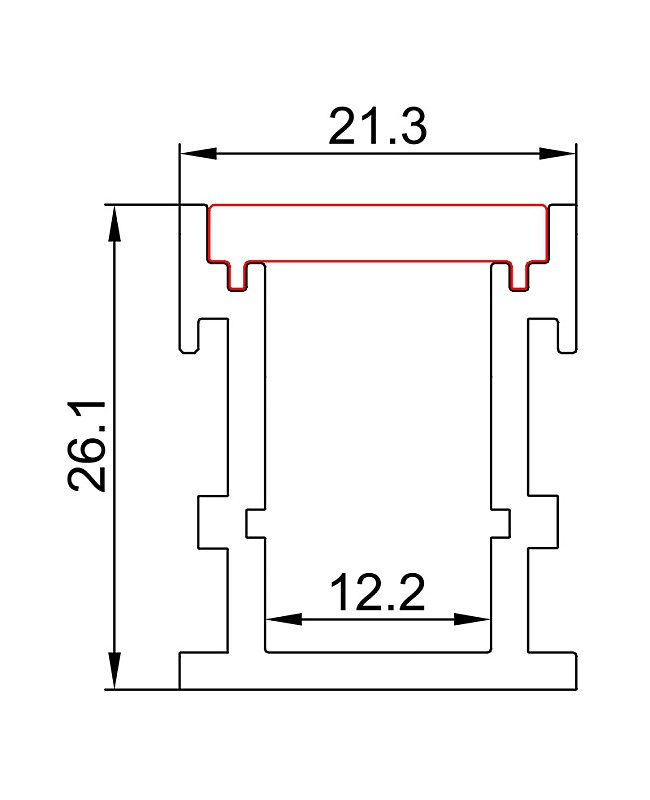

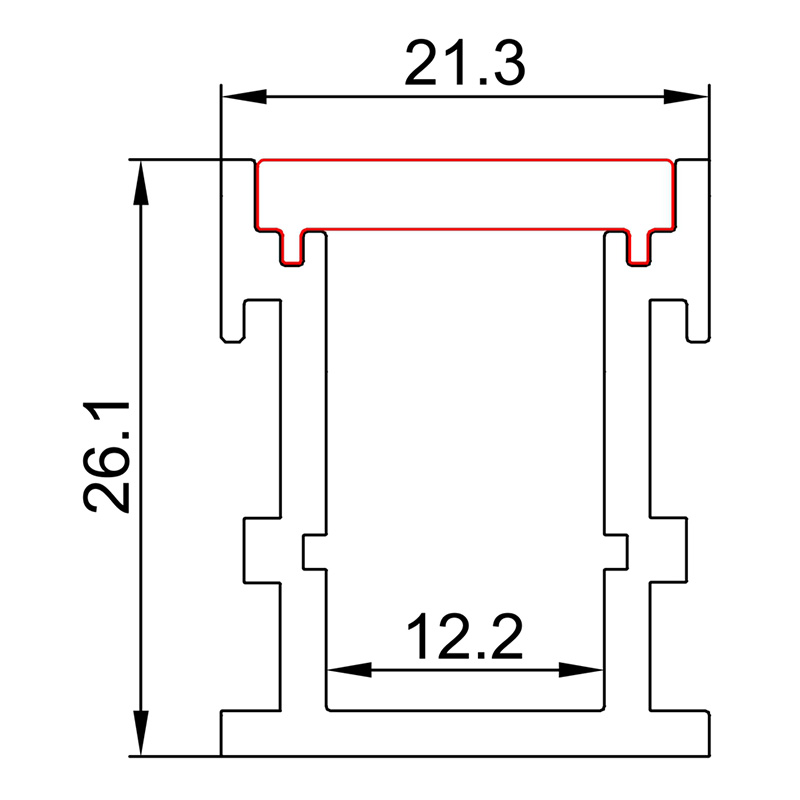

- Size ( W x H ): 21.3 mm x 26.1 mm ( 0.84" x 1.03" )
- Stand lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 12.2 mm ( 0.48" )
- Allows the maximum width of strip lights to be 12 mm ( 0.47" )
- Max power: 20W/m
- Diffusers: 3 mm thick PC diffused cover
- IP rating: IP65 waterproof

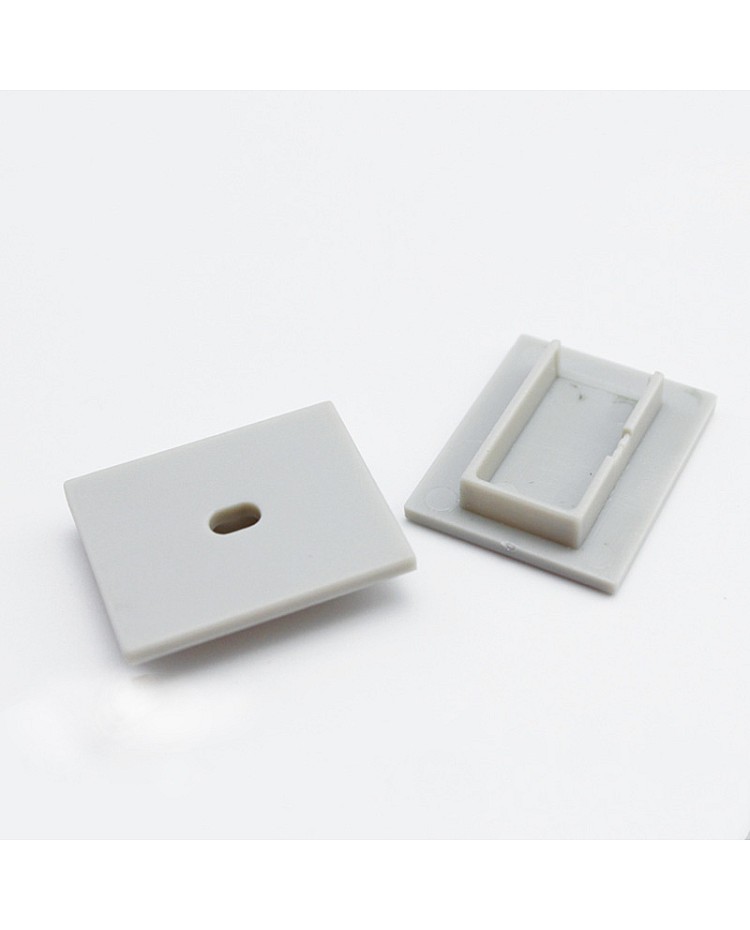

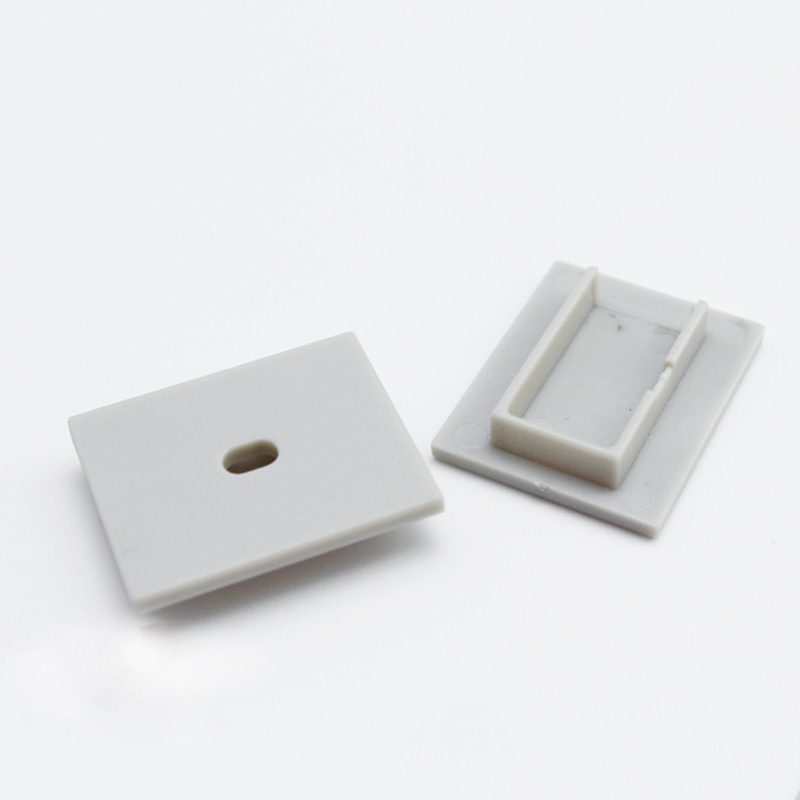

- ABS end caps with and without wire holes are included

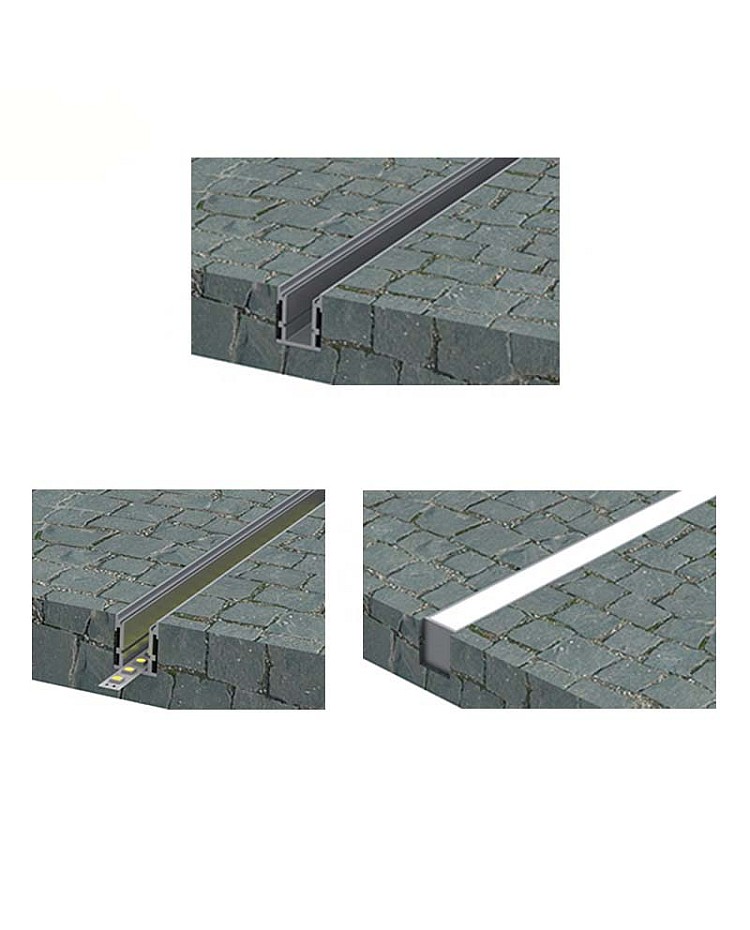

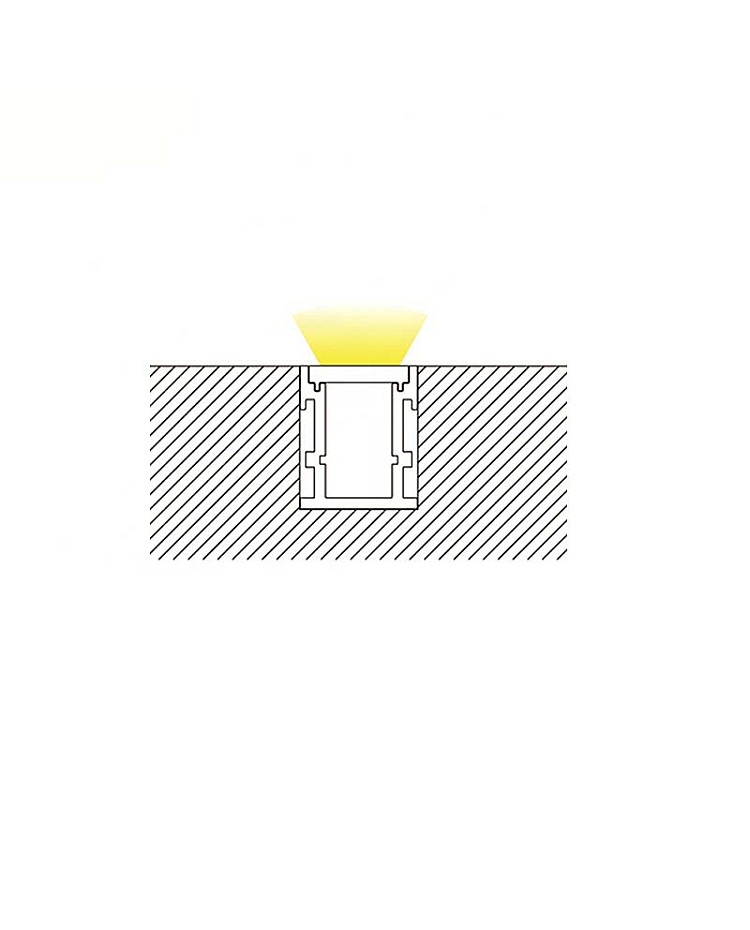

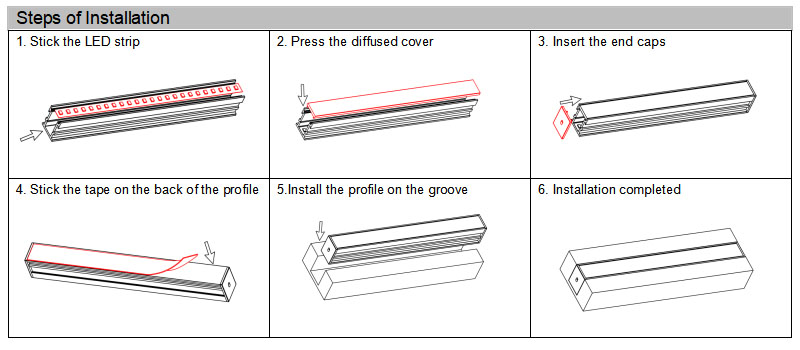

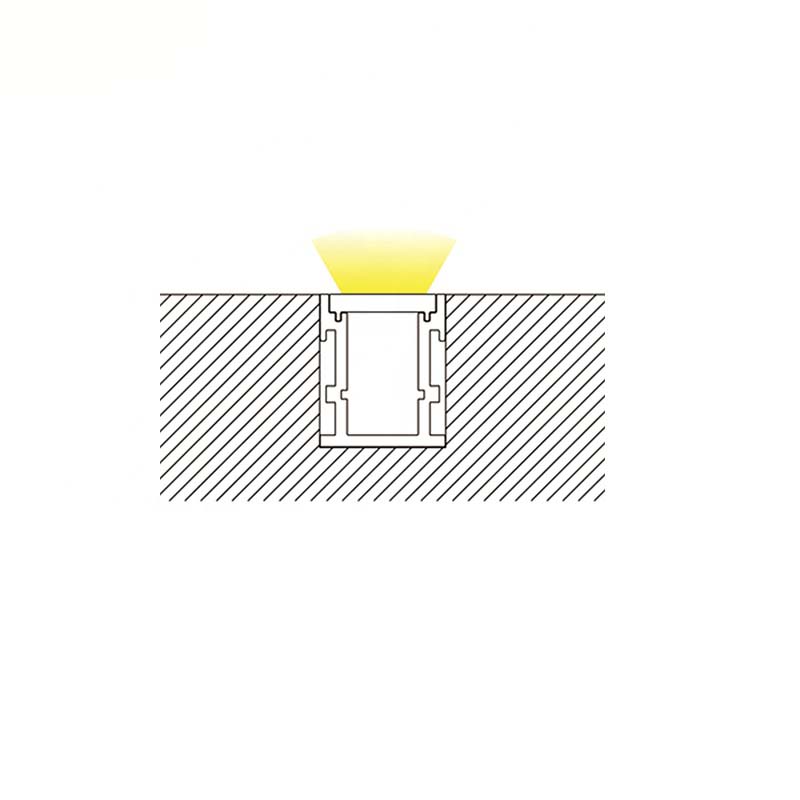

- Installation: Recessed
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

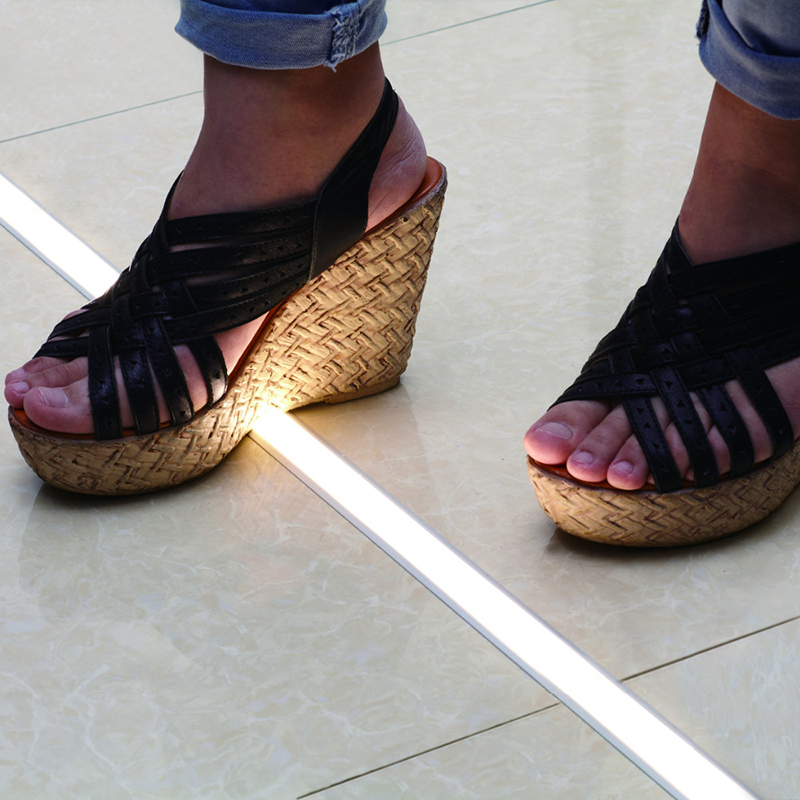

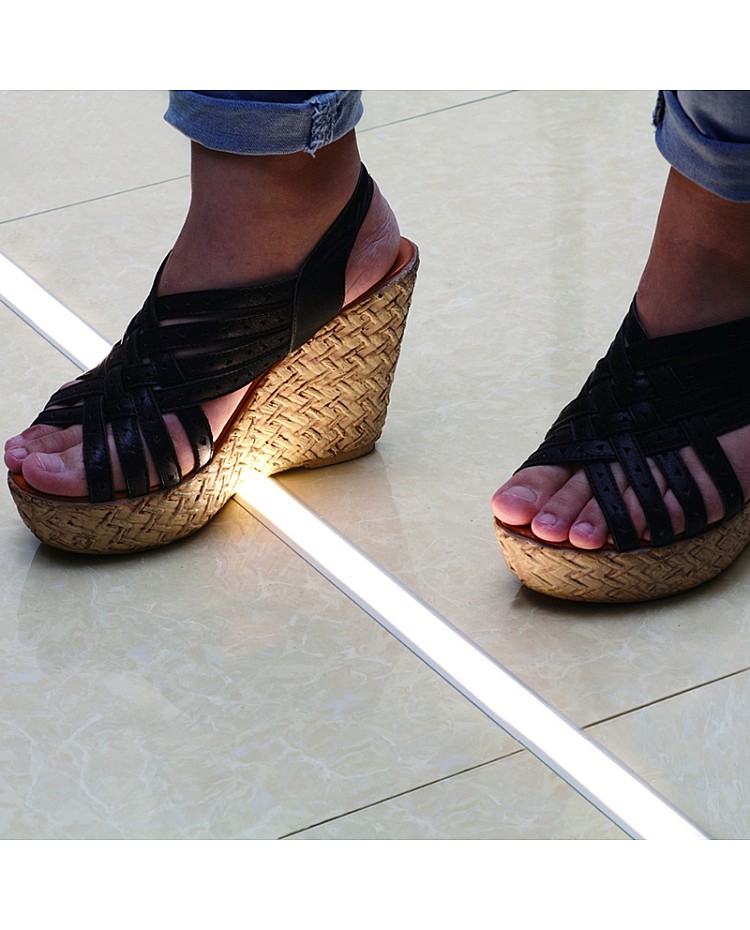

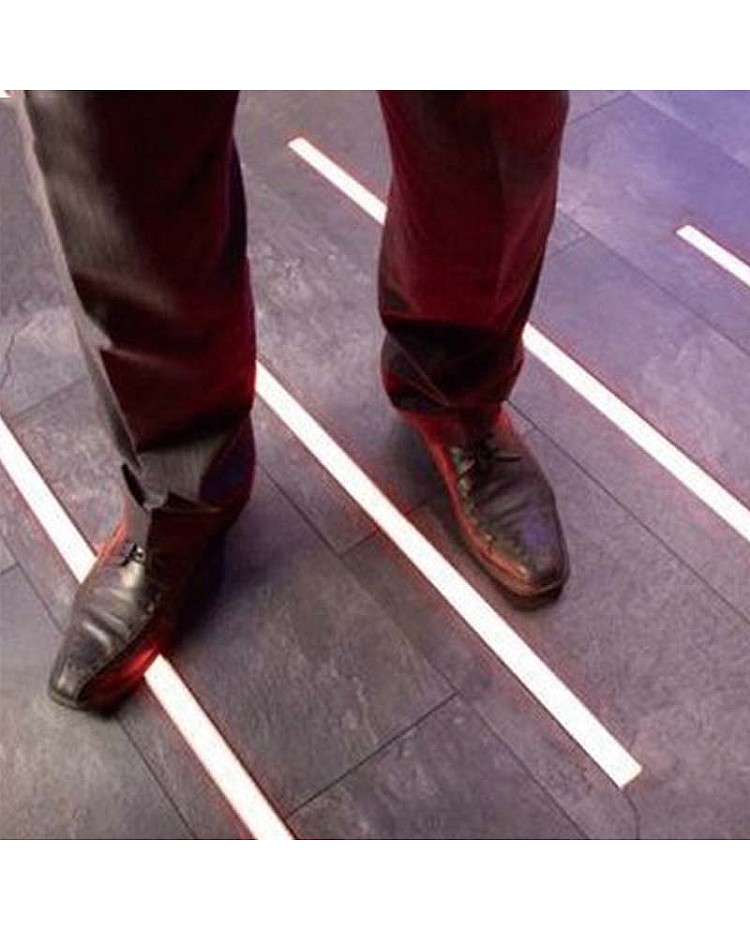

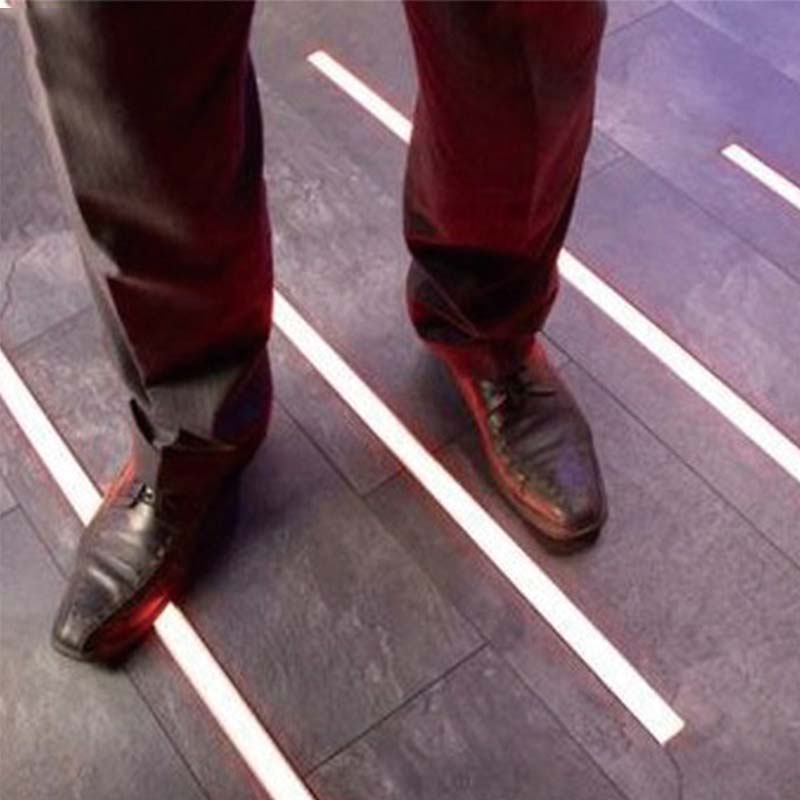

- Residential and commercial floor lighting

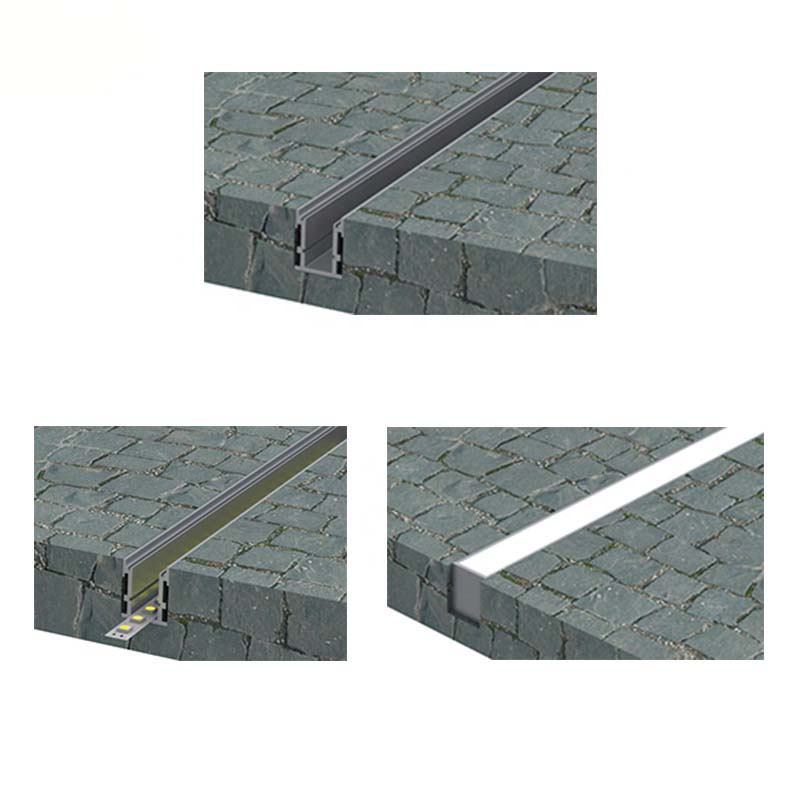

- Outdoor walkway and garden path lighting
- Recessed lighting in concrete or tiled floors
- Retail and hospitality foot traffic zones
- Architectural landscape and facade edging
Includes:
1 * Floor LED extrusion channel with diffuser
End caps(With / without wire hole)
