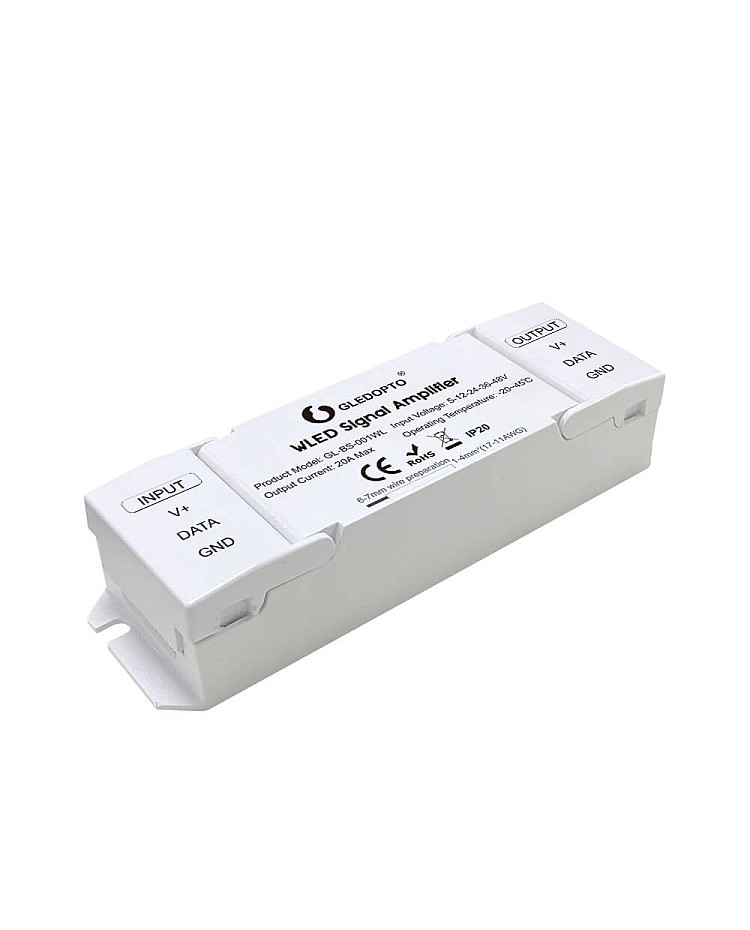

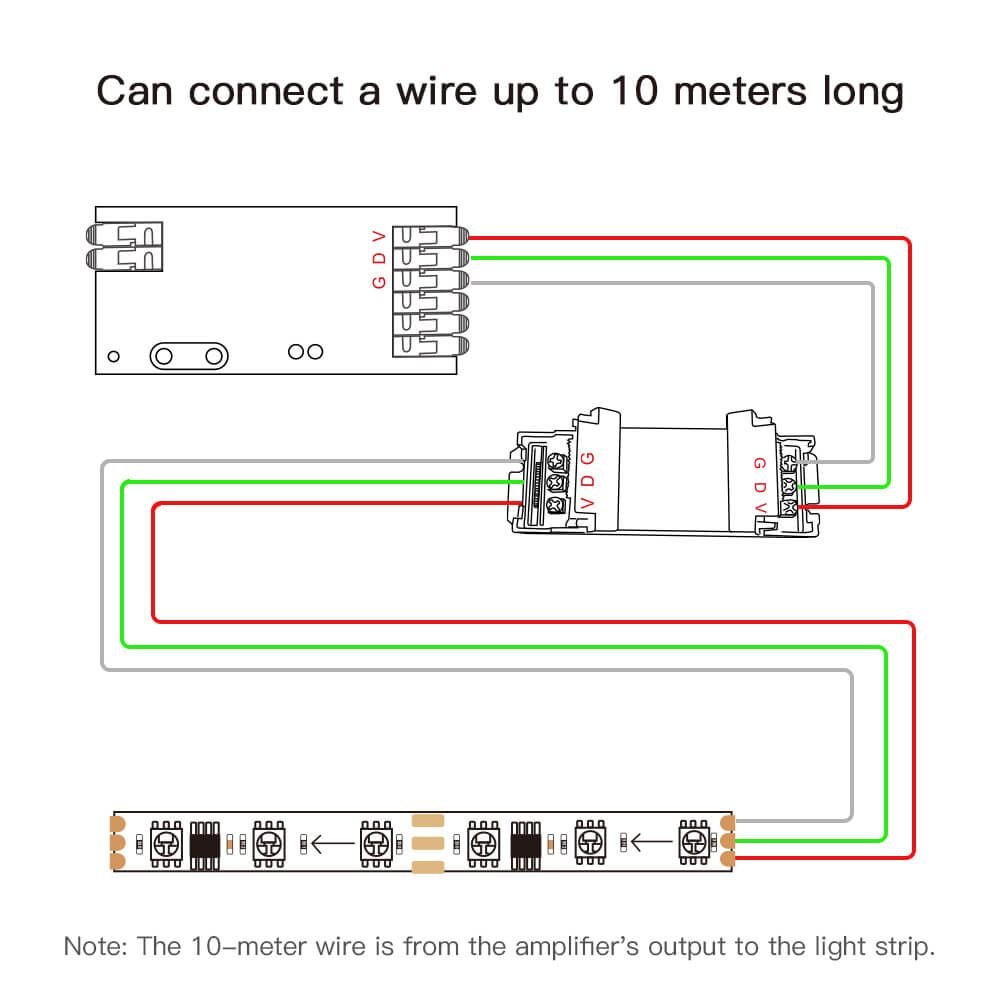

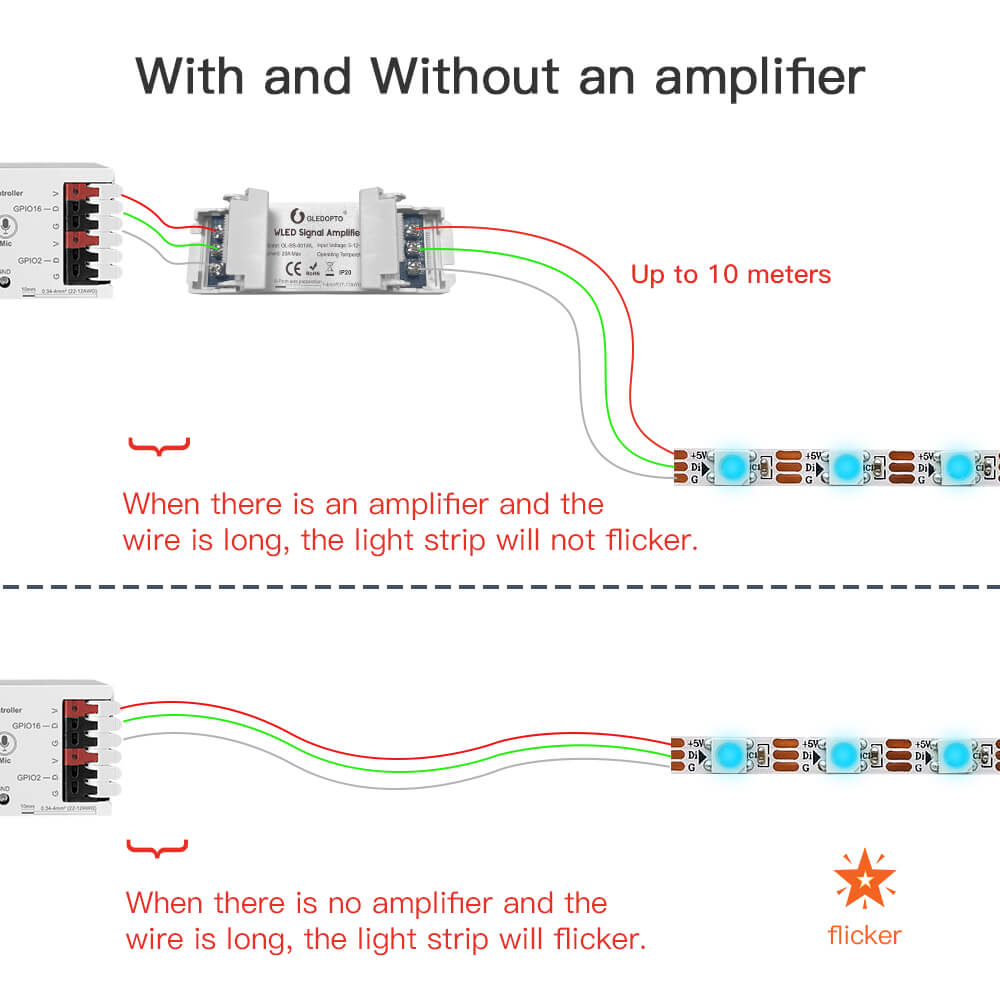

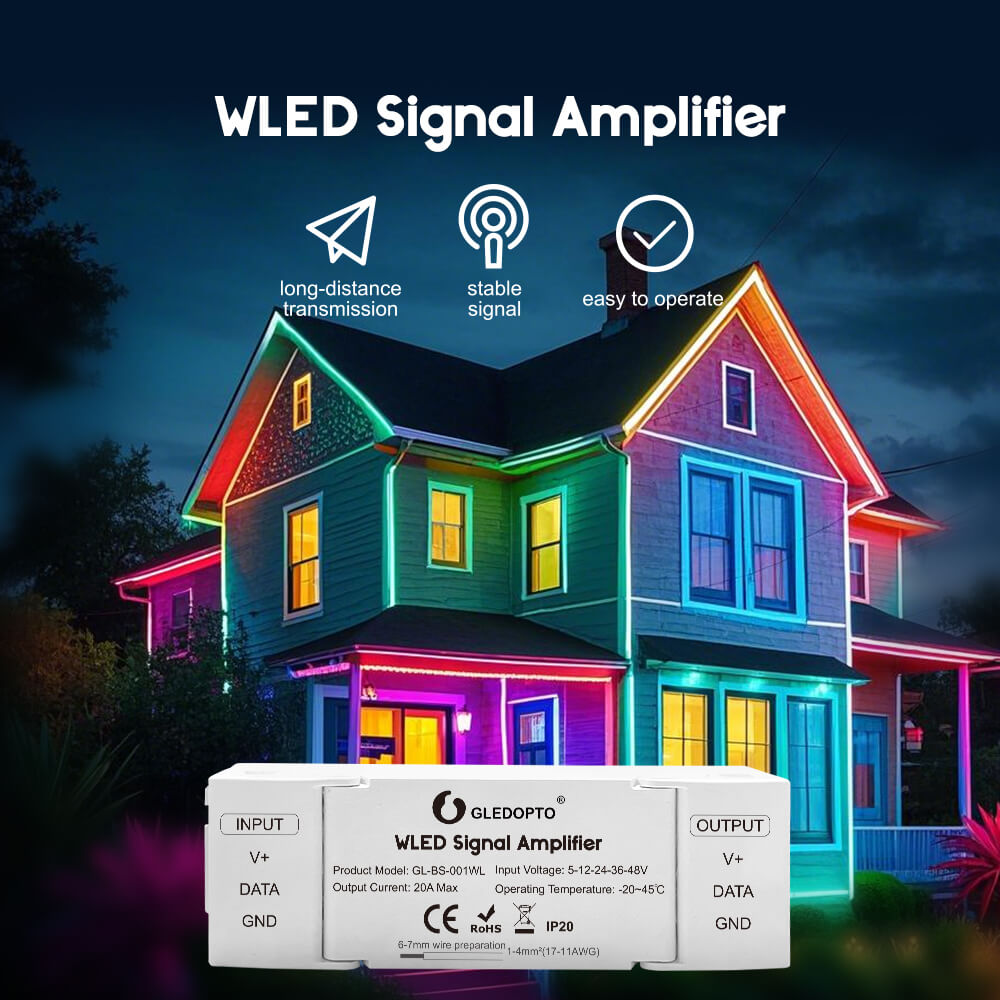

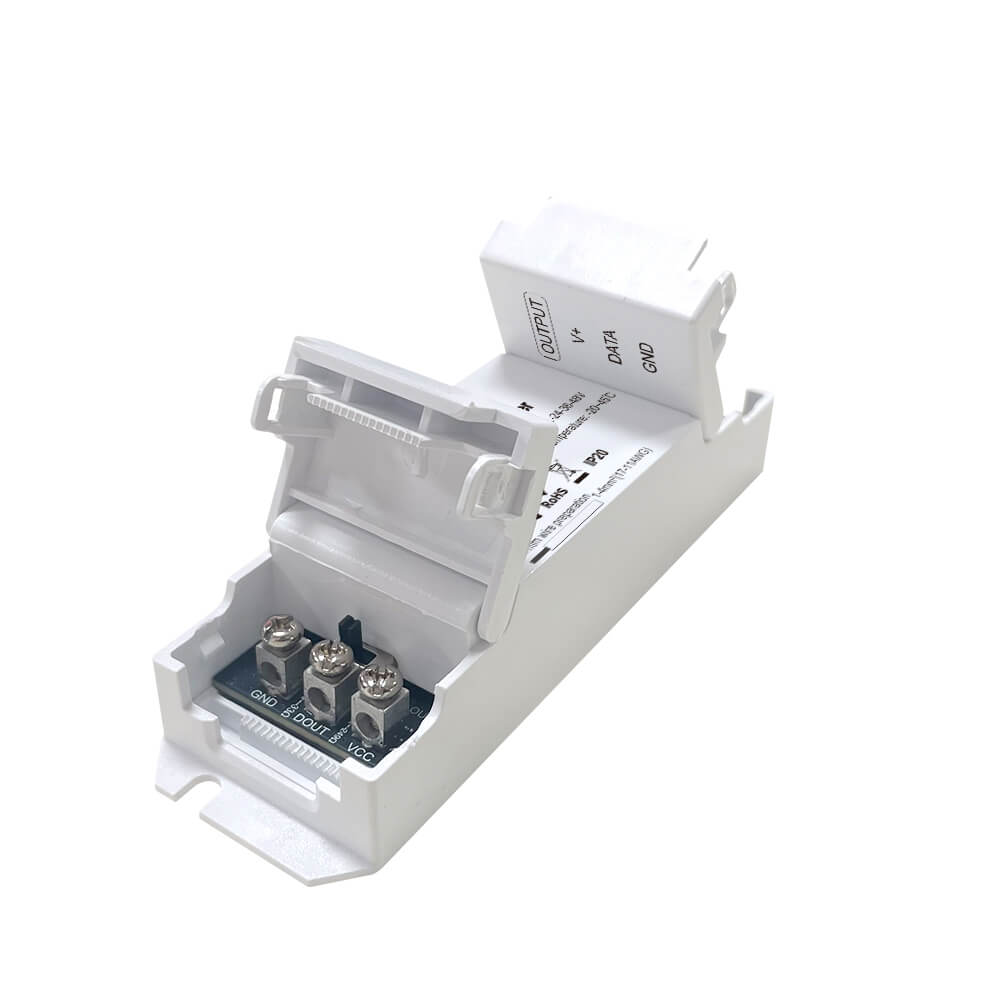

The WLED signal amplifiers are designed for Gledopto WLED controllers and fixtures. You can use them to boost the signals and extend the signal transmission distance between WLED controllers and programmable strip lights, allowing wire lengths up to 10 meters. The WLED amplifiers will correct signal issues caused by excessively long light strip wiring, such as automatic flickering and color changes. By connecting the WLED booster between the WLED controllers and addressable LED strips, these abnormal phenomena can be effectively eliminated. Its core function is to correct signal distortion caused by long-distance transmission, ensuring that the signal received by the light strips remains stable and accurate, thereby restoring typical lighting effects.

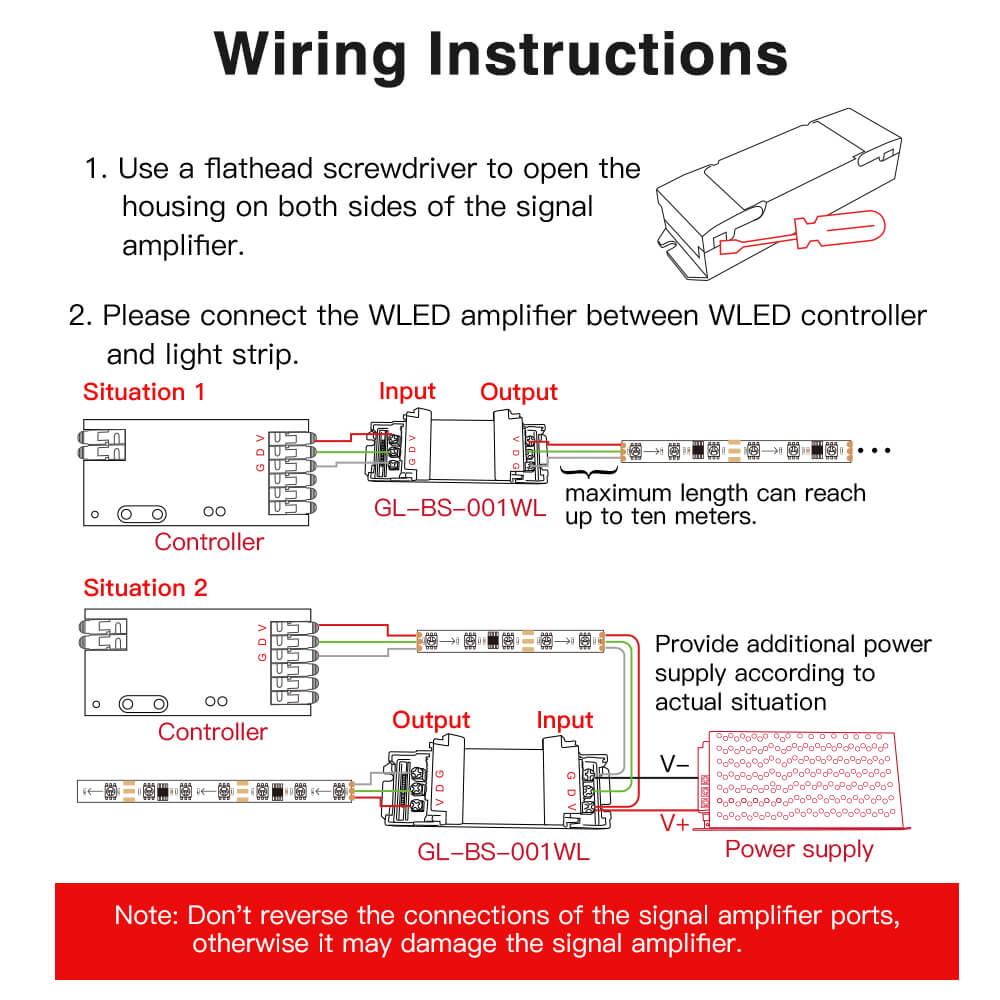

Link: WLED Signal Repeater User Instruction
Specifications:
- Material: Flame Retardant PC
- Color: White
- Size ( L x W x H): 115mm x 35mm x 24mm/4.53" x 1.38" x 0.94"
- Protocol: WLED
- Input Voltage: 5V-12V-24V-48V DC
- Maximum output current: 20A

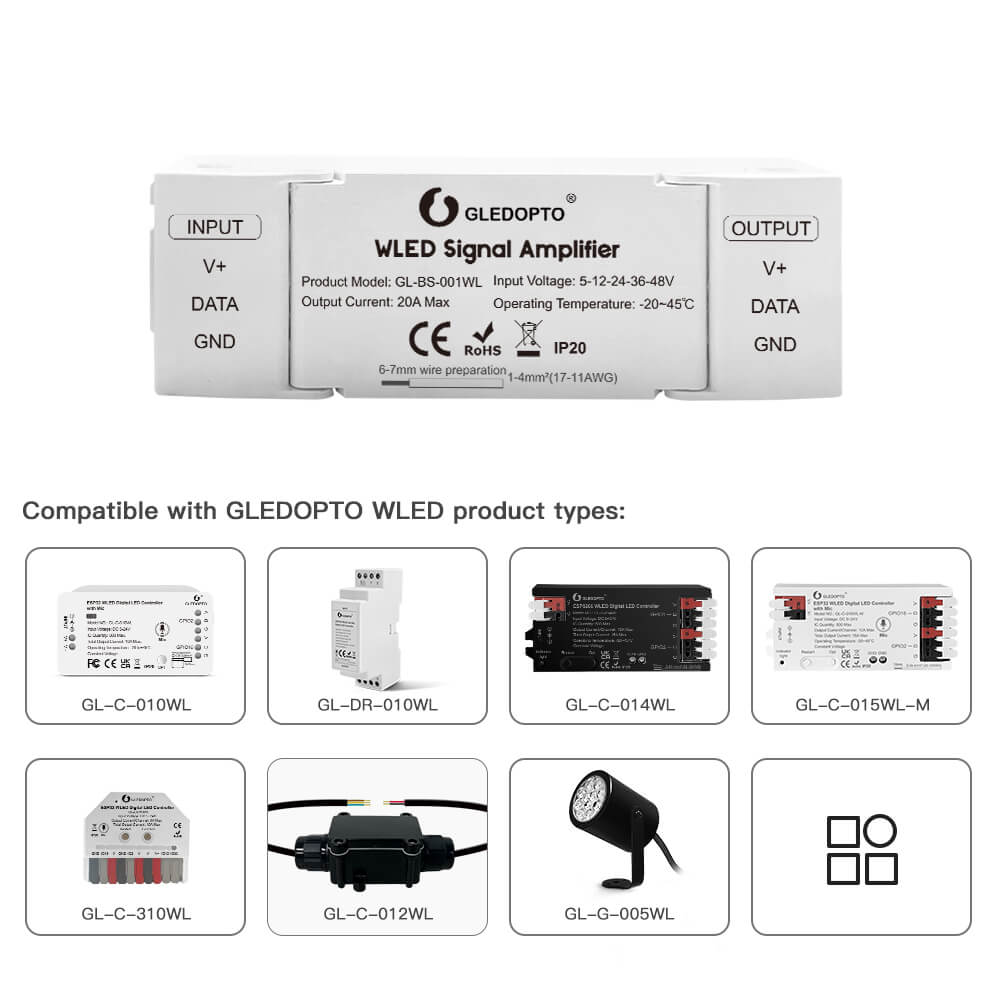

- Compatible with Gledopto WLED controllers and fixtures
- Working temperature: -20℃-+45℃
- Warranty: 2 years
Includes:
1 x WLED signal booster
