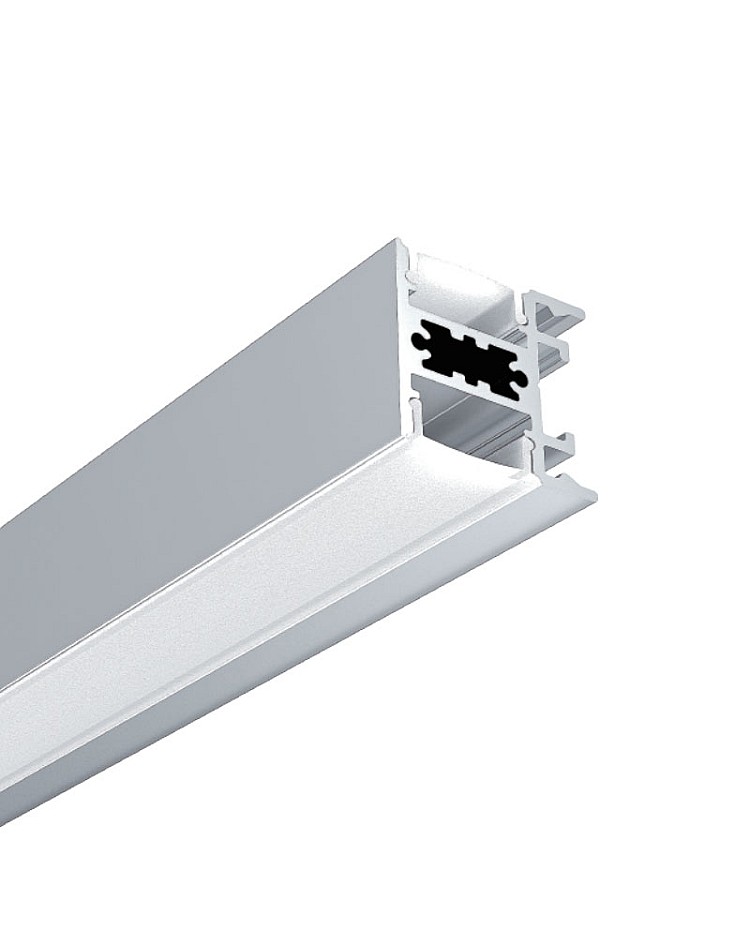

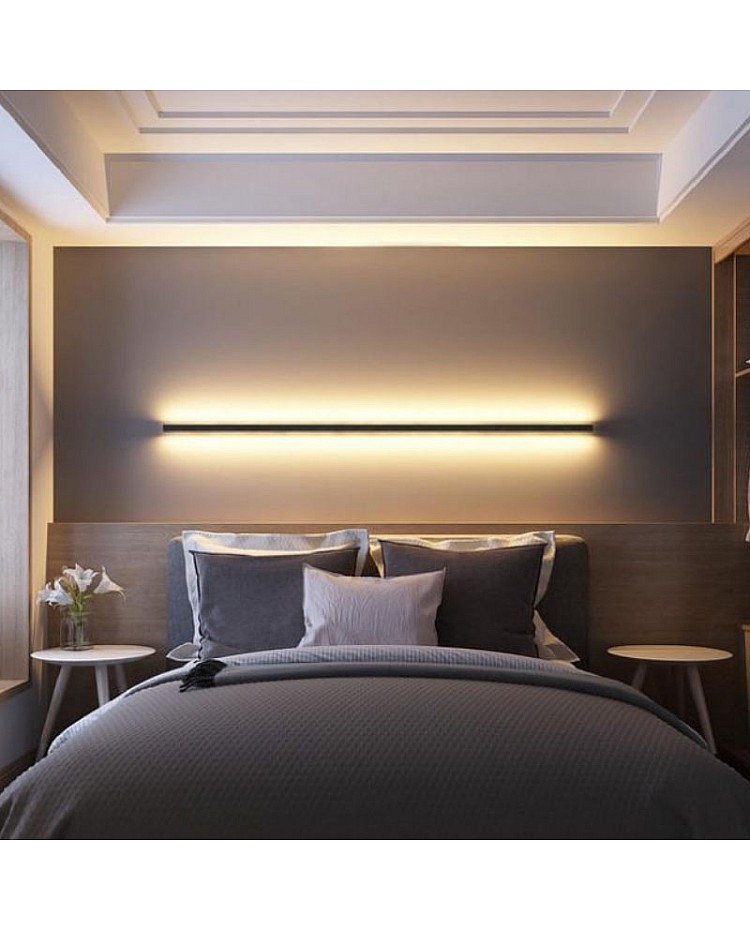

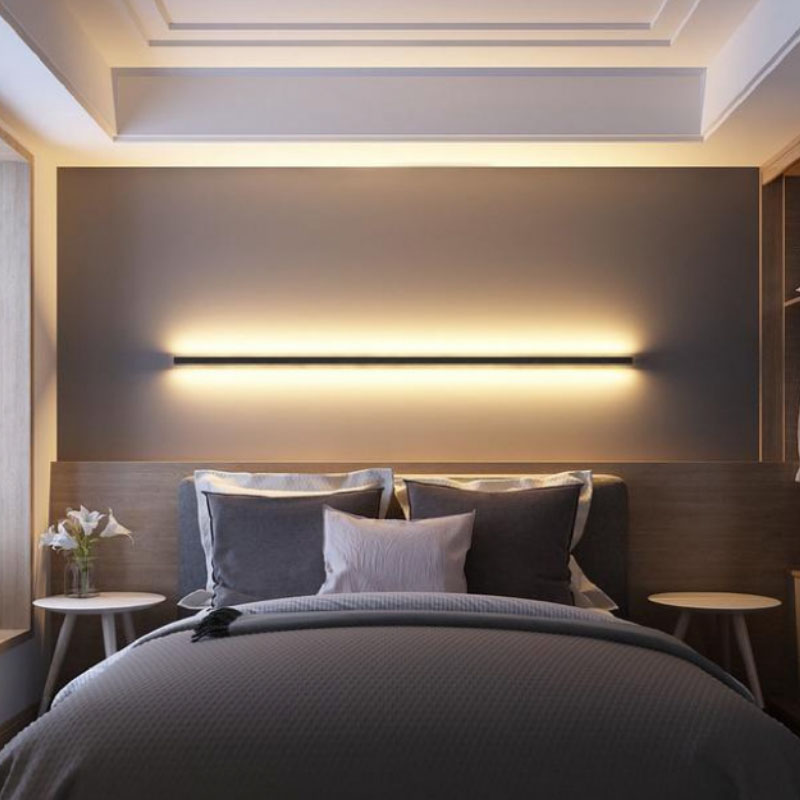

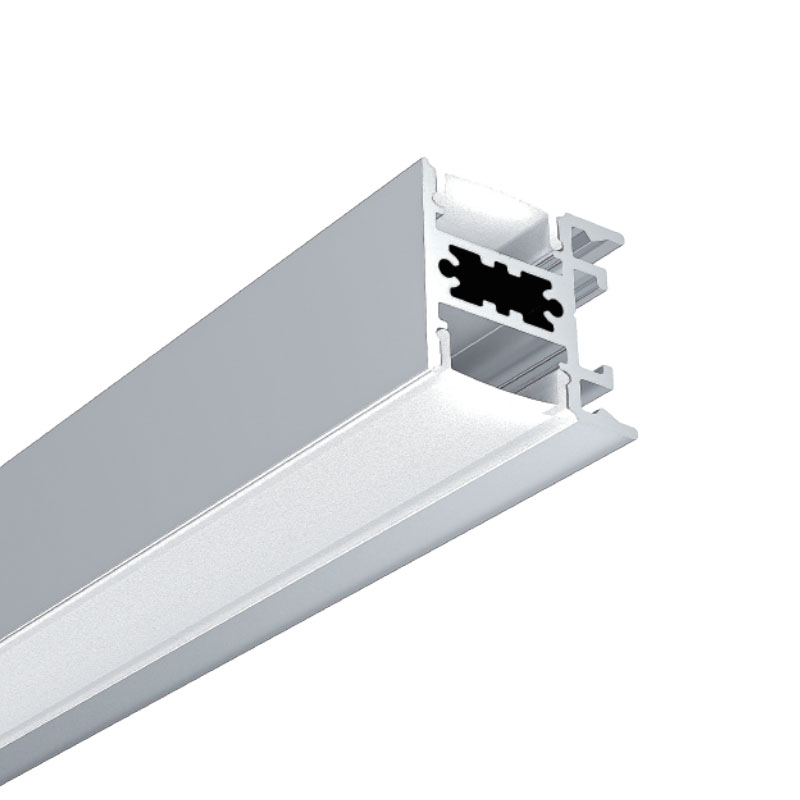

The mini LED extrusions have up-down lighting design and can be used for sconces. They can be mounted on walls easily and provide dual-sided illumination, casting soft, diffused light both upward and downward to create ambient layers and highlight architectural details. Ideal for residential and commercial projects where clean lines and premium lighting effects are essential. The LED extrusions are made of high-quality aluminum material and feature an anodized or powder-coated surface treatment for enhanced durability. There are three colors available: silver, black, and white. The stock lengths are 2 meters per piece and can be easily cut to your desired size. Two types of diffused covers are available: PC opal matte covers and semi-clear covers. They are made of high-quality material that prevents yellowing. The frosted and semi-clear covers soften light and reduce glare. The inner width is 12.3mm, allowing a maximum strip light width of 12mm. You can use our 8mm or 10mm white or CCT dotless LED strips as the light source, with no hotspots and dark areas. The aluminum extrusions can work as heat sinks for better heat dissipation. Three types of joiners are sold separately; you can use them for angled or straight connections. The end caps and metal clips are included.
Specifications:
- Model: ALP196
- Material: 6063-T5 extruded aluminum
- Surface Treatment: Anodized/power-coated
- Colors: Silver, Black, White

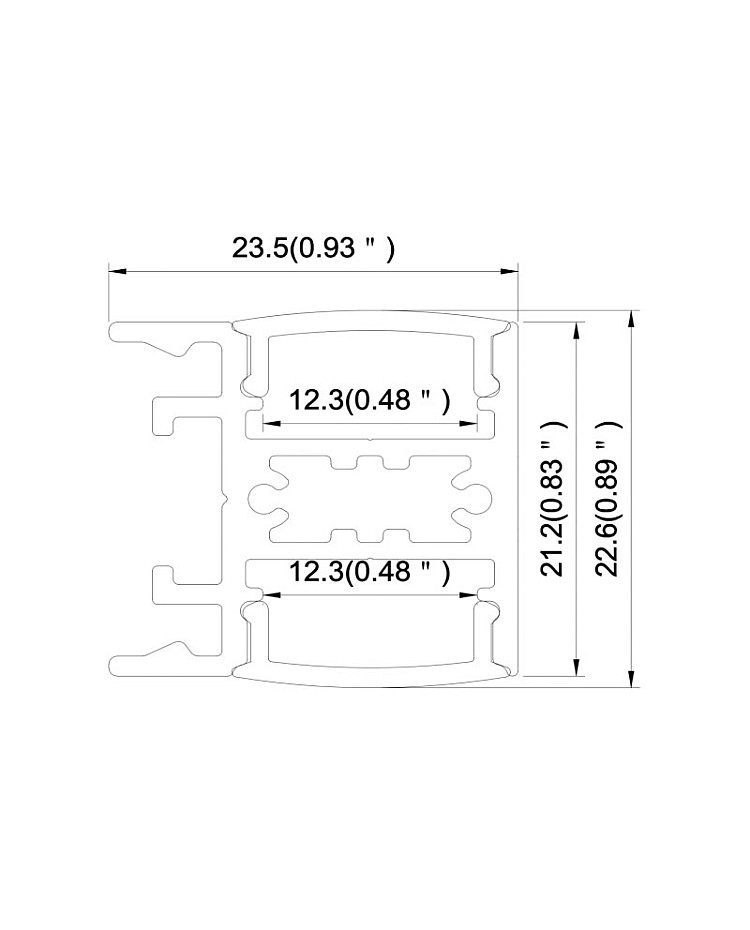

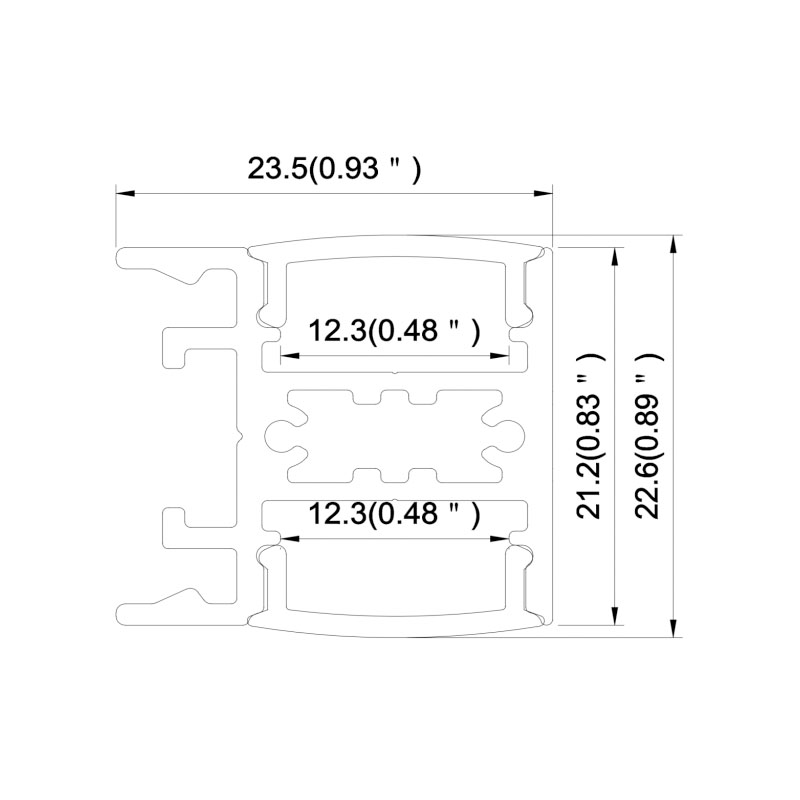

- Size(W*H): 23.5*22.6mm/0.93"*0.89"
- Standard Length: 1M(39"), 2M(78")
- Custom Length Available: YES
- Diffusers: PC diffused cover, PC semi-clear cover, PMMA semi-clear cover, PMMA opal matte cover, PMMA clear cover
- Inner Width: 12.3mm/0.48"
- Max Width Of LED Strips: 12mm/0.47"
- Max Power: 18W/M
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rate: IP20 non-waterproof
- End caps and metal clips included

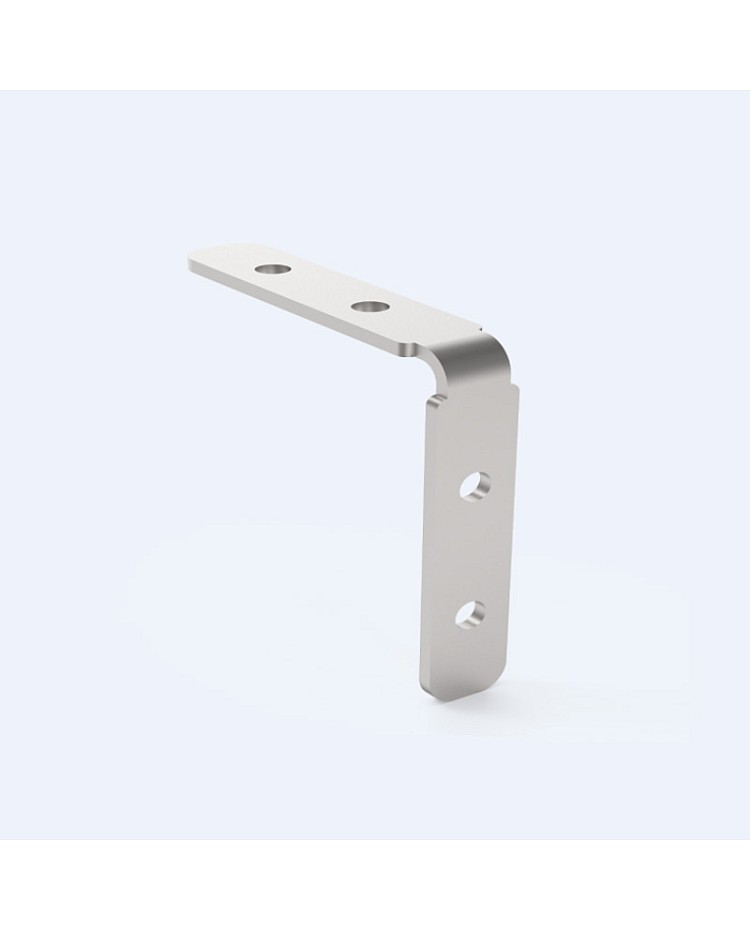

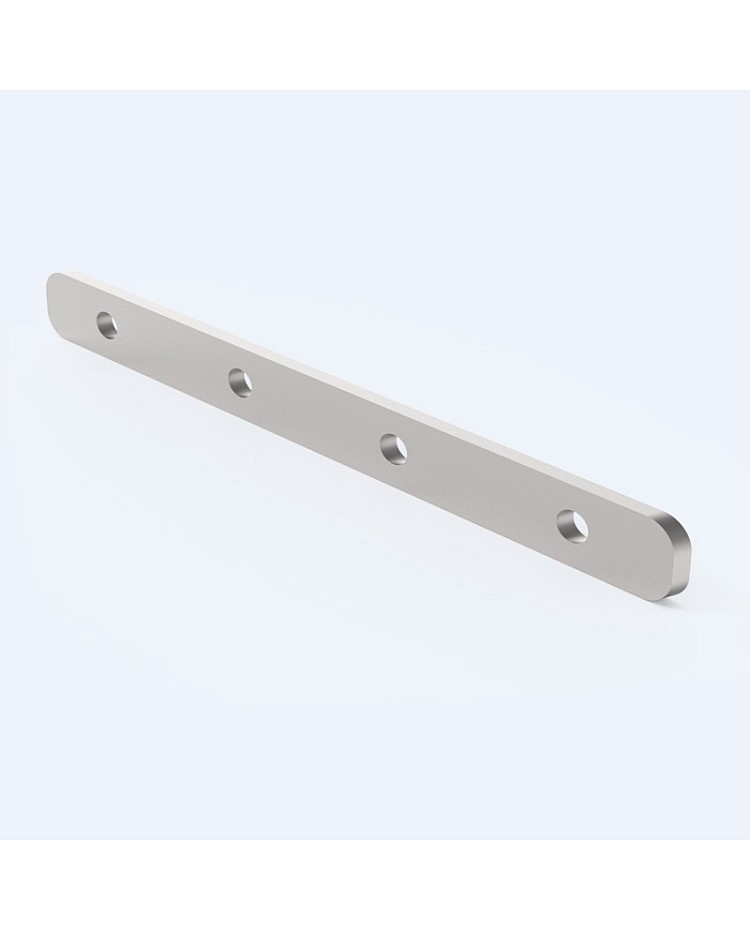

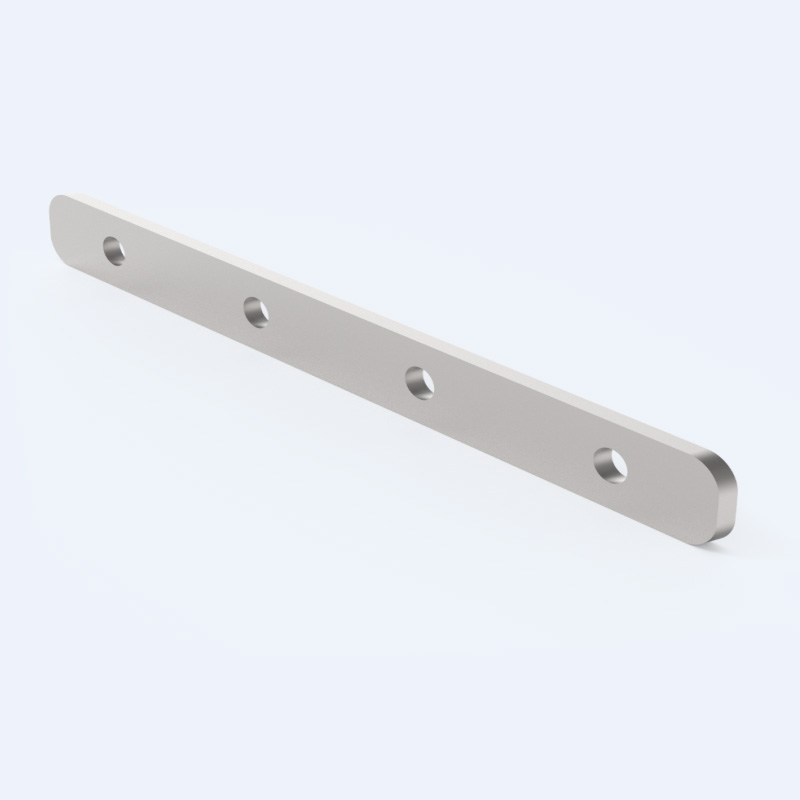

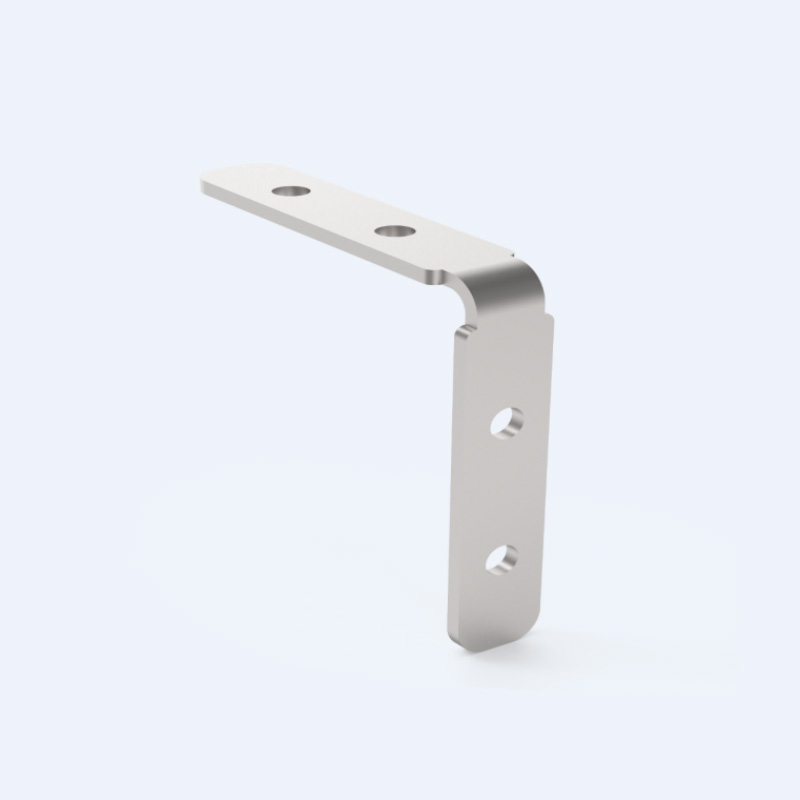

- 90°，90° vertical and 180° connectors are sold separately
- LED tape lights, dimmers, and transformers are sold separately
- Installation: Surface mounted
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * LED strip lighting fixture with diffusers

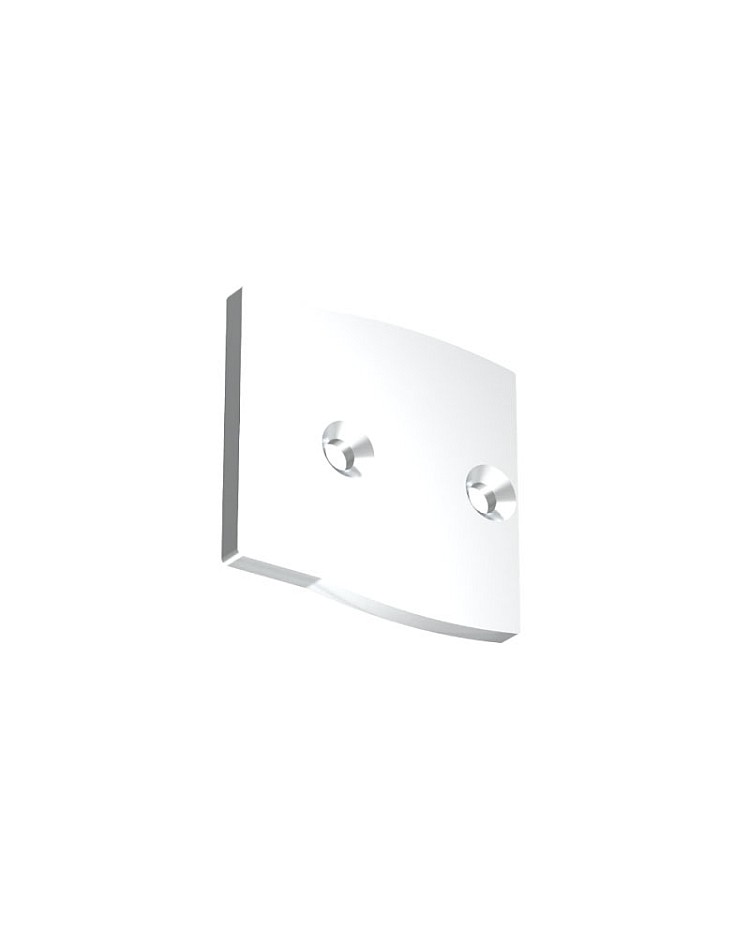

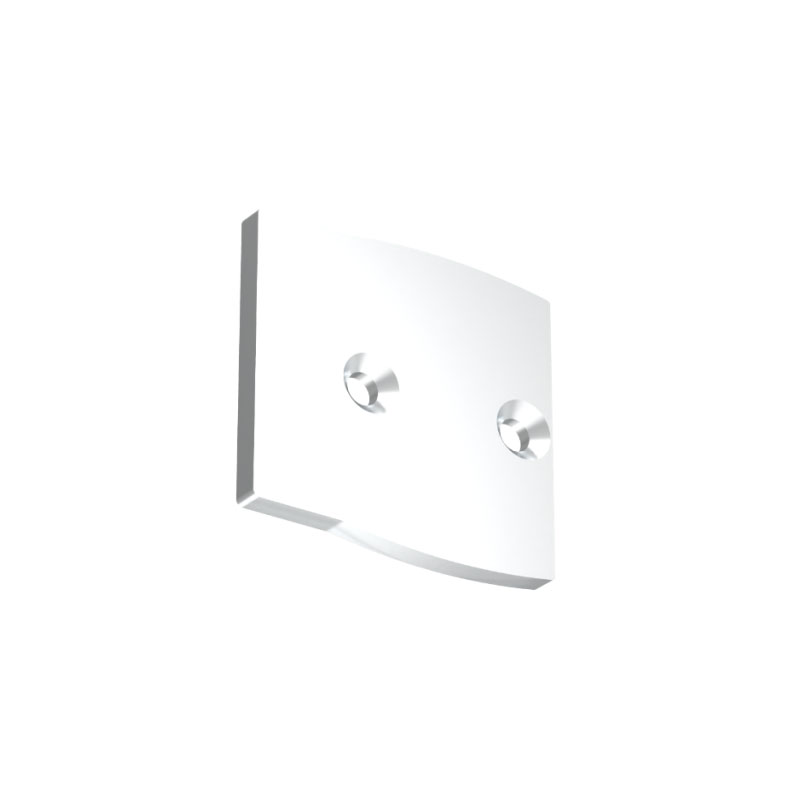

End caps

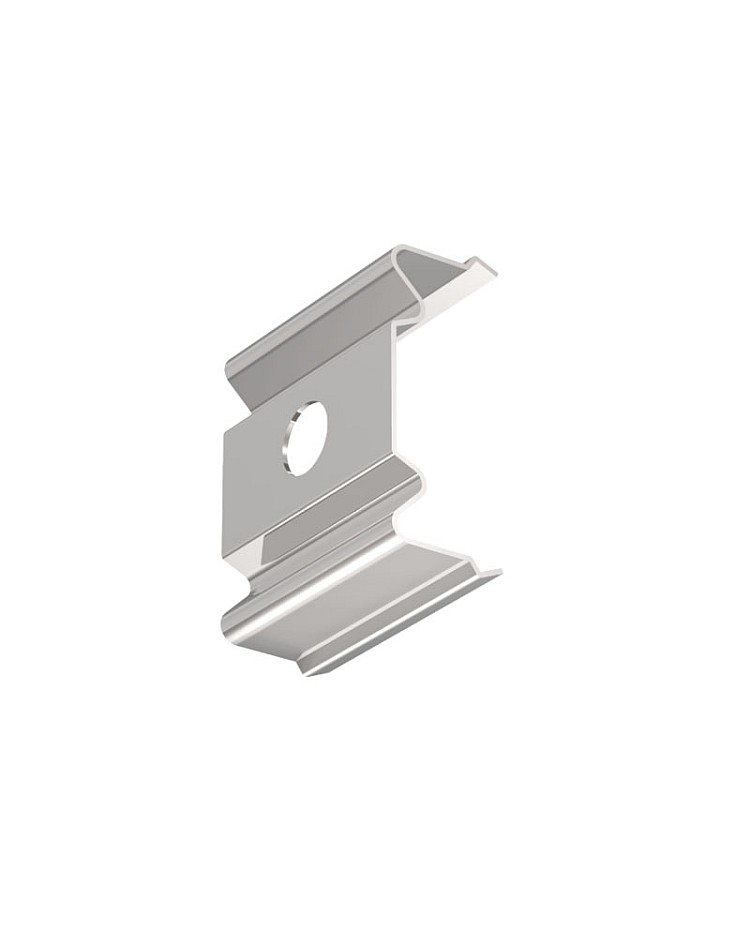

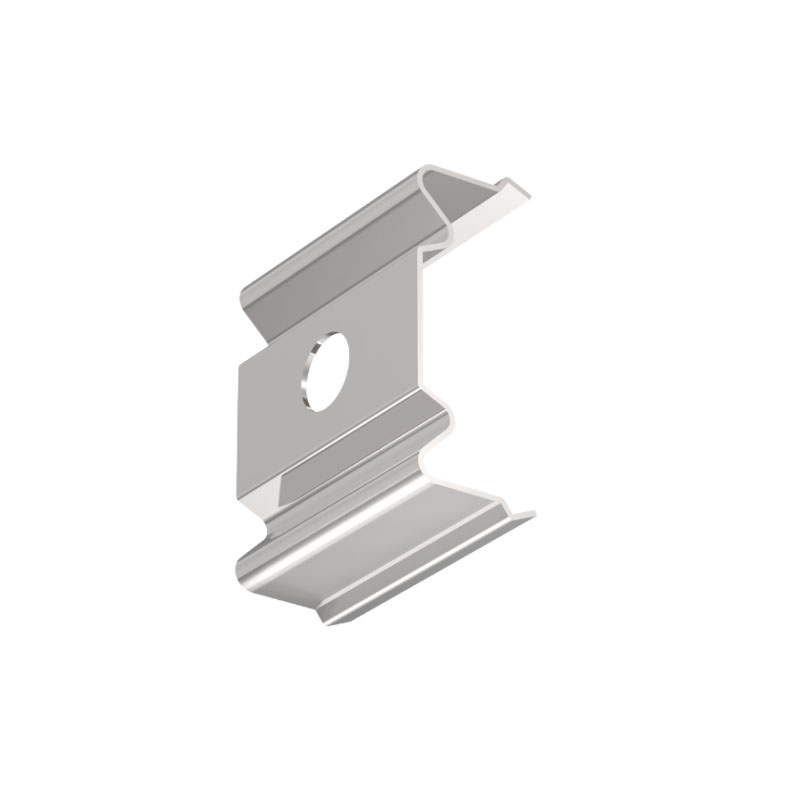

Metal clips
