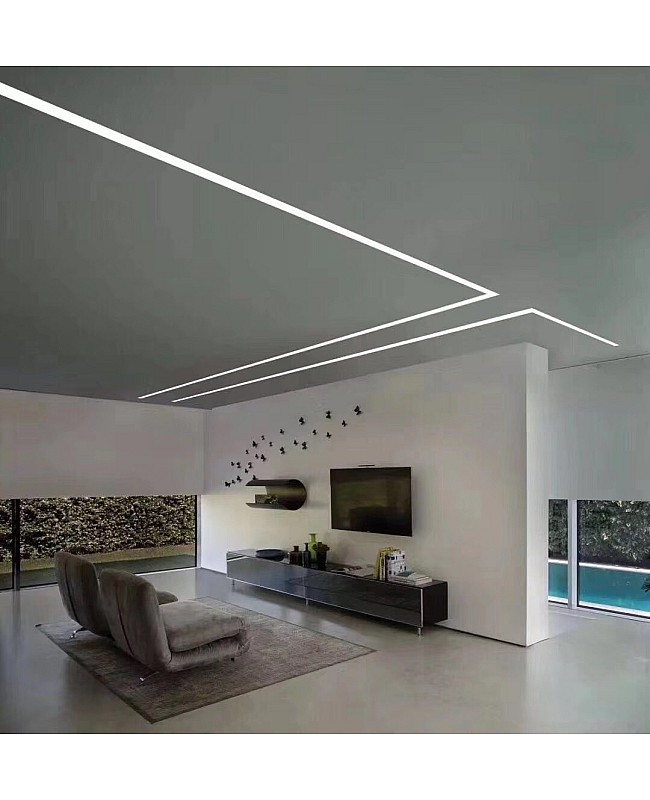

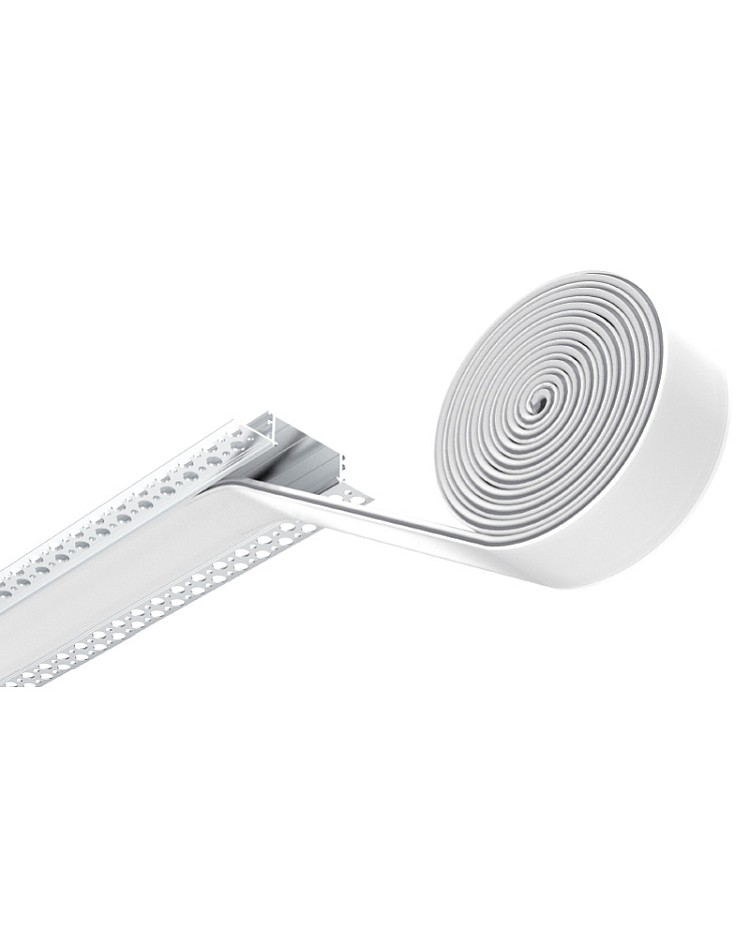

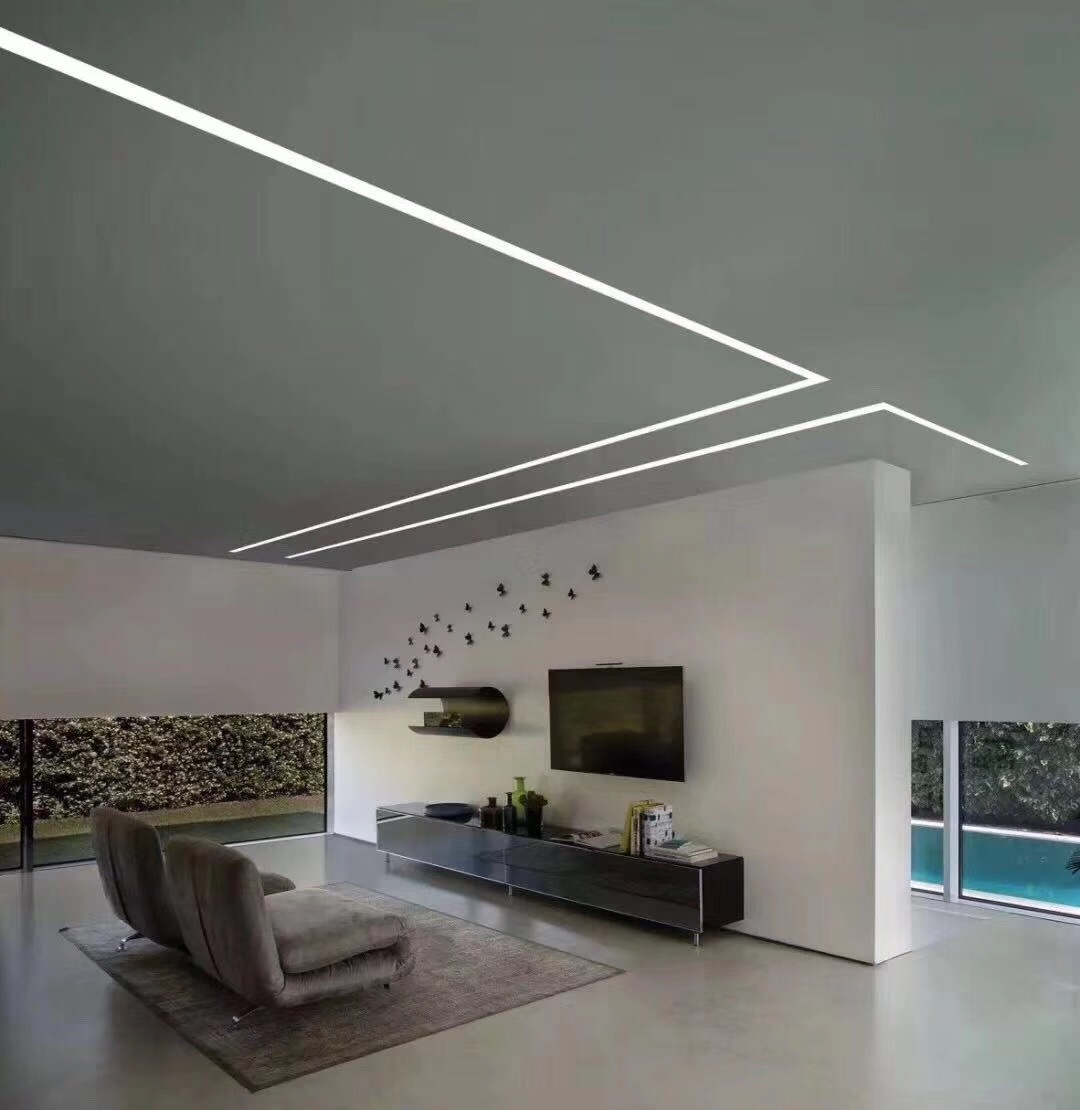

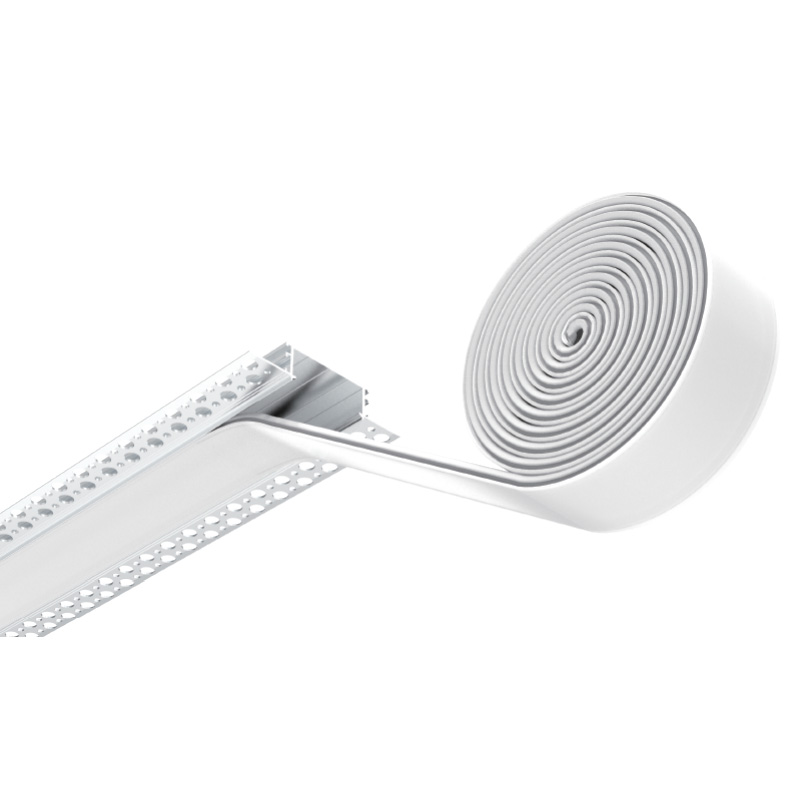

Check the Light Strip Channels with long flange, which can be installed on the drywall structure or plasterboard structure on the wall or ceiling. there are 2 types of diffusers available, PC diffused cover and black PC diffuser, both of them are 20 meters per reel and are made of brand material, anti-yellowing, perfect light distribution and smooth light output, you can cut to any length and use them for the interior linear lighting projects. the Aluminum Base is made of 6063-T5 aluminum material and with anodized surface treatment, anti-oxidation feature and has a longer lifespan than other similar products. the standard length is 1M and the max length is 6M, can be cut to any length for your need and custom length are available. the inner width is 41.4mm, which allows the max-width of the LED Light is 40mm, you can install several lines of SMD LED Strips or COB LED Ribbons in it and the max power is not over 18W per meter. the end caps with wire holes included, easy to connect to the LED Light to a power supply to light up, the Aluminum Profile can be worked as a heat sinker for better heat dissipation. there are 3 types of joiners available, 90°, 90° vertical and 180° joiners are available, you can purchase them separately and reconnect the LED Light Channels together for the lighting projects.


Features:

  • Model: ALP173
  • Material: 6063-T5 Extruded Aluminum

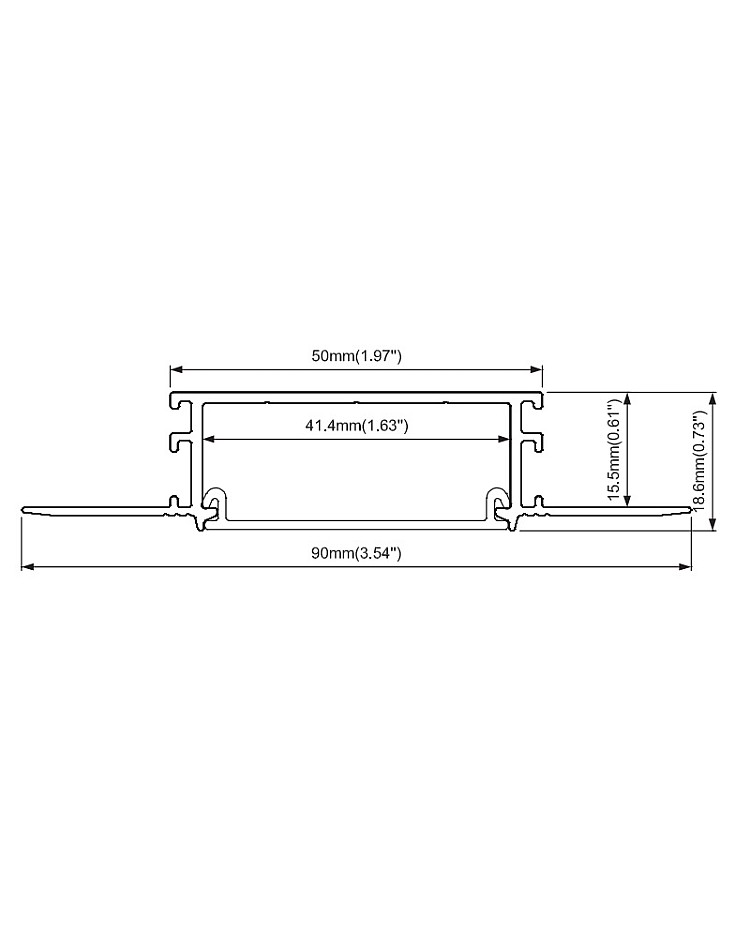

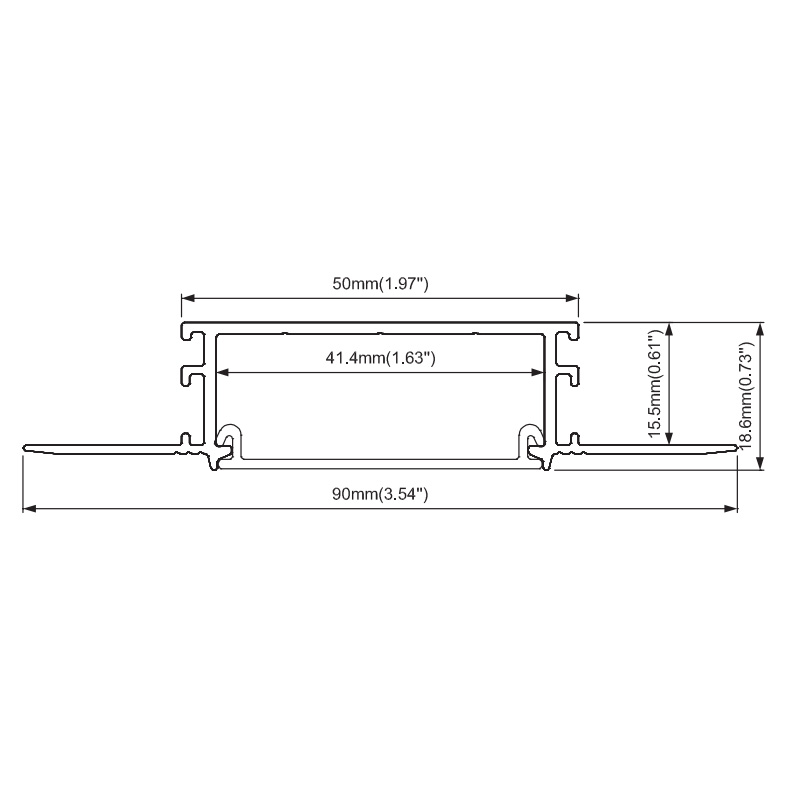

  • Size: 90*18.6mm(W*H)
  • Colors: Silver, White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES

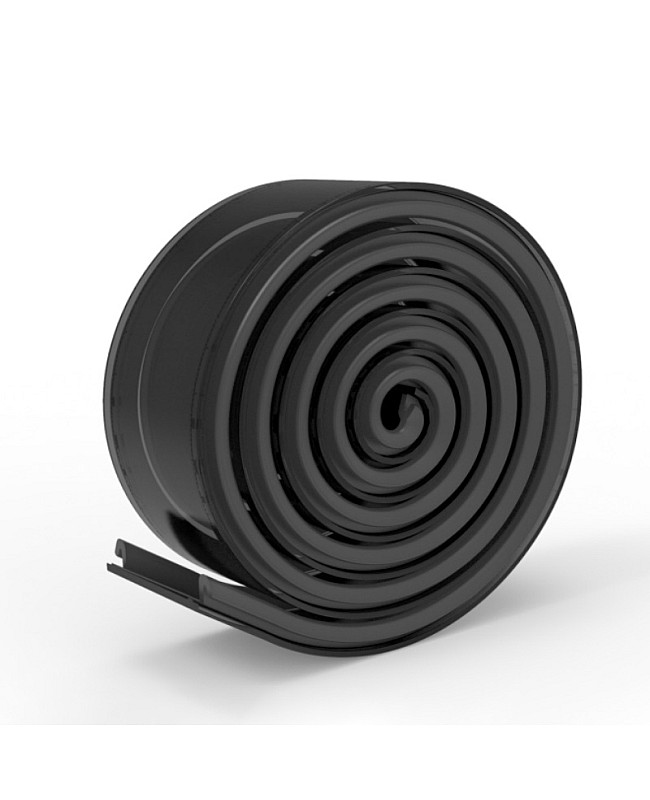

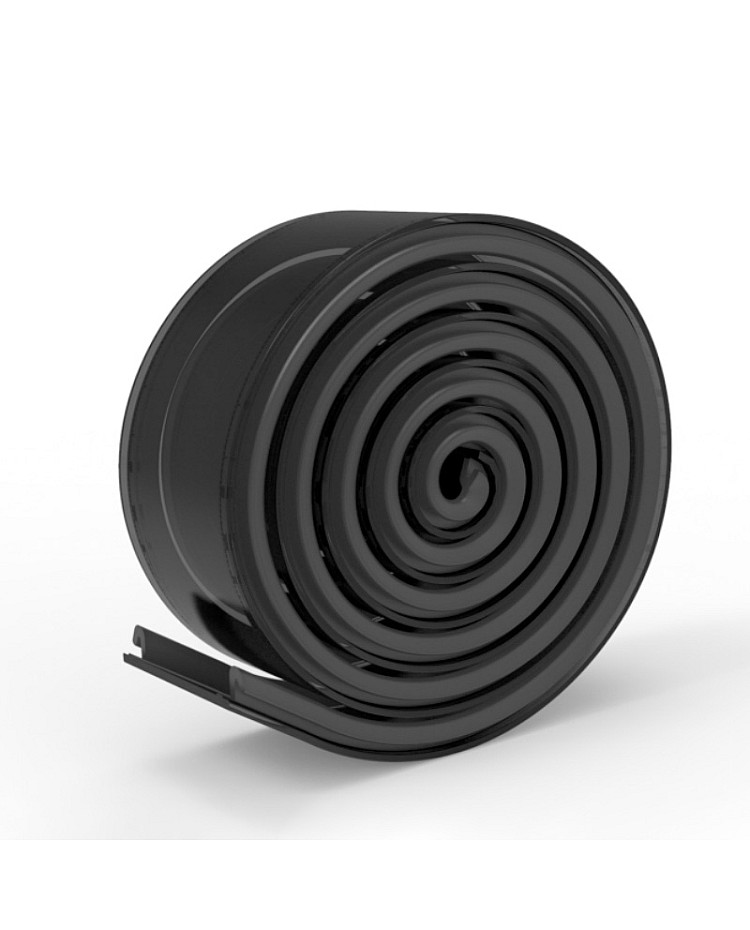

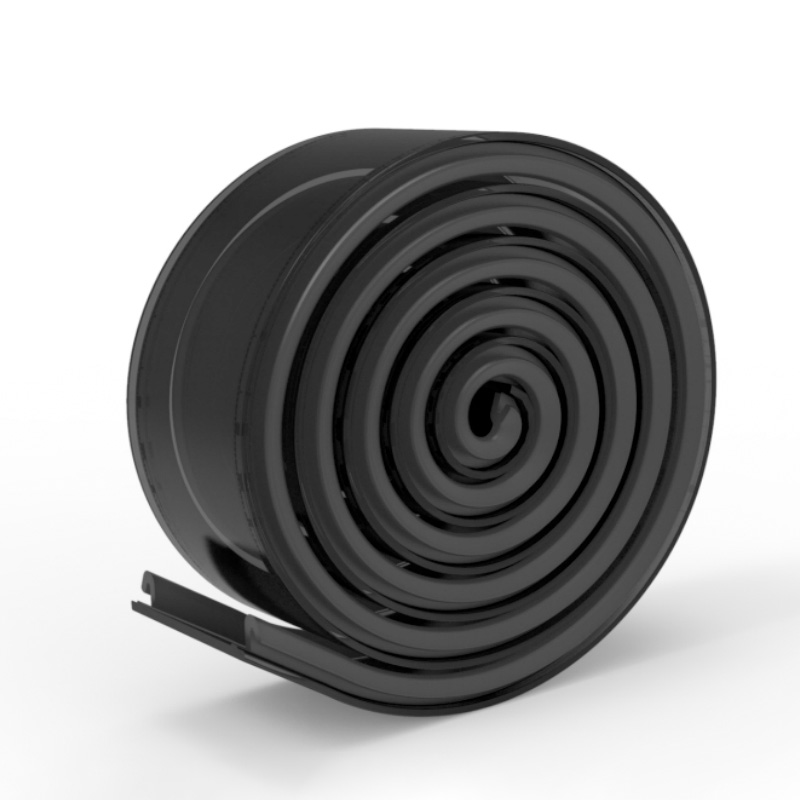

  • Diffuser: PC Diffused Cover, Black Diffused Cover
  • Inner Width: 41.4mm
  • Max Width Of LED Strips: 40mm
  • Max Power: 18W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof

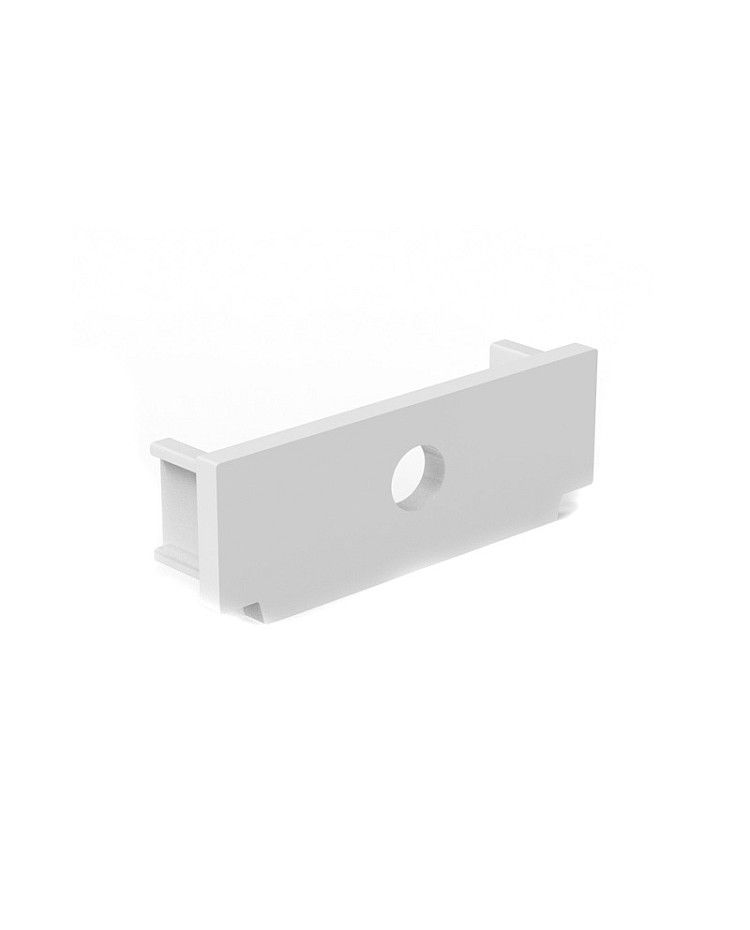

  • End Caps With Wire Holes/Without Holes Included

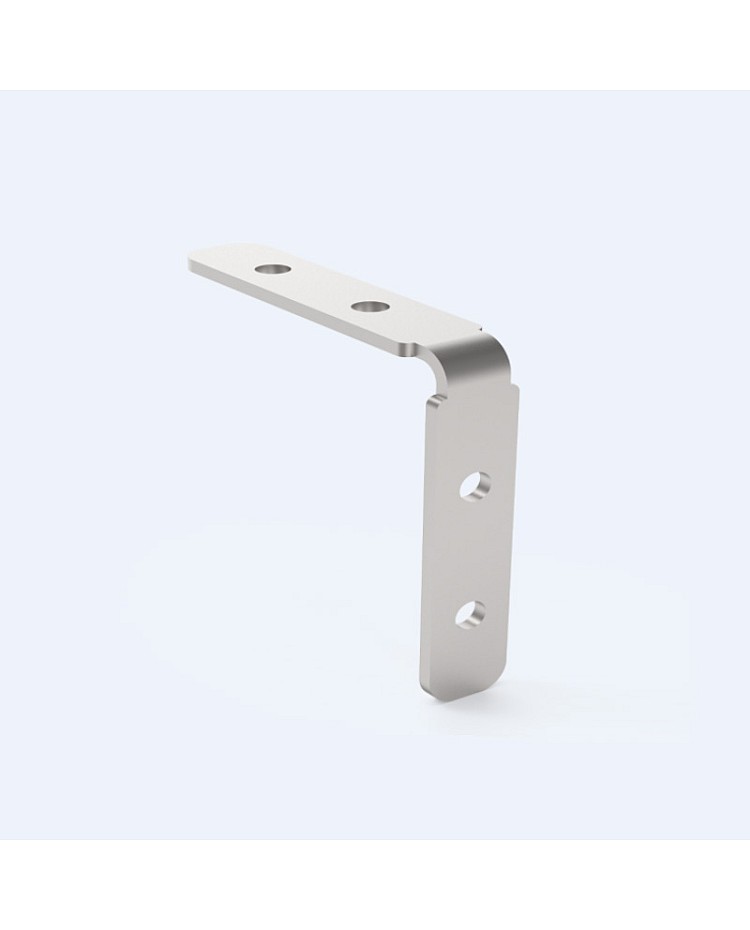

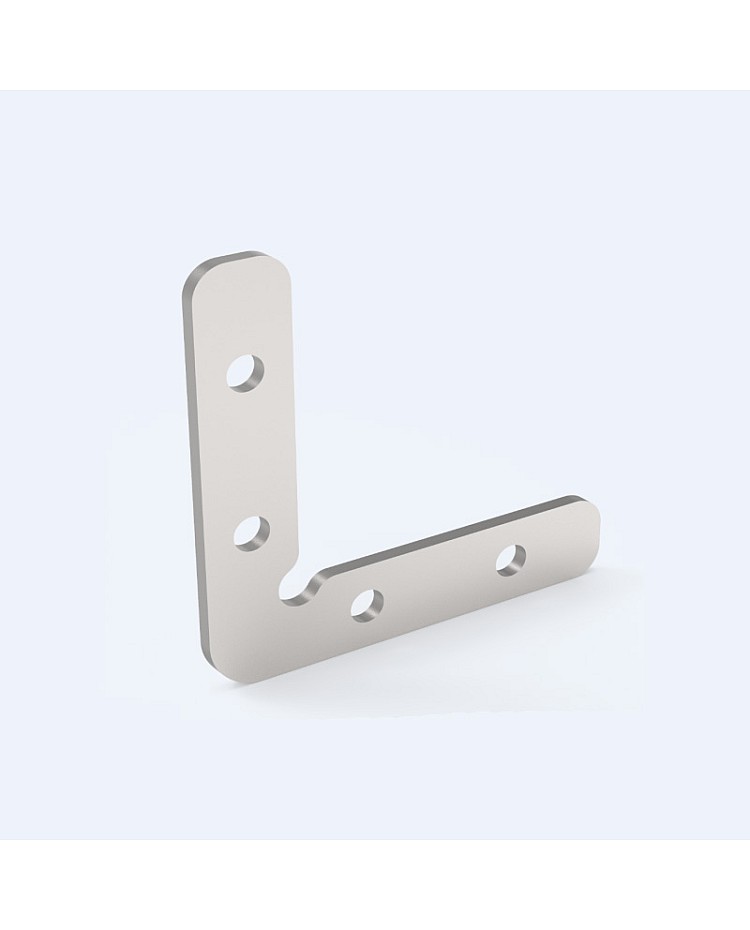

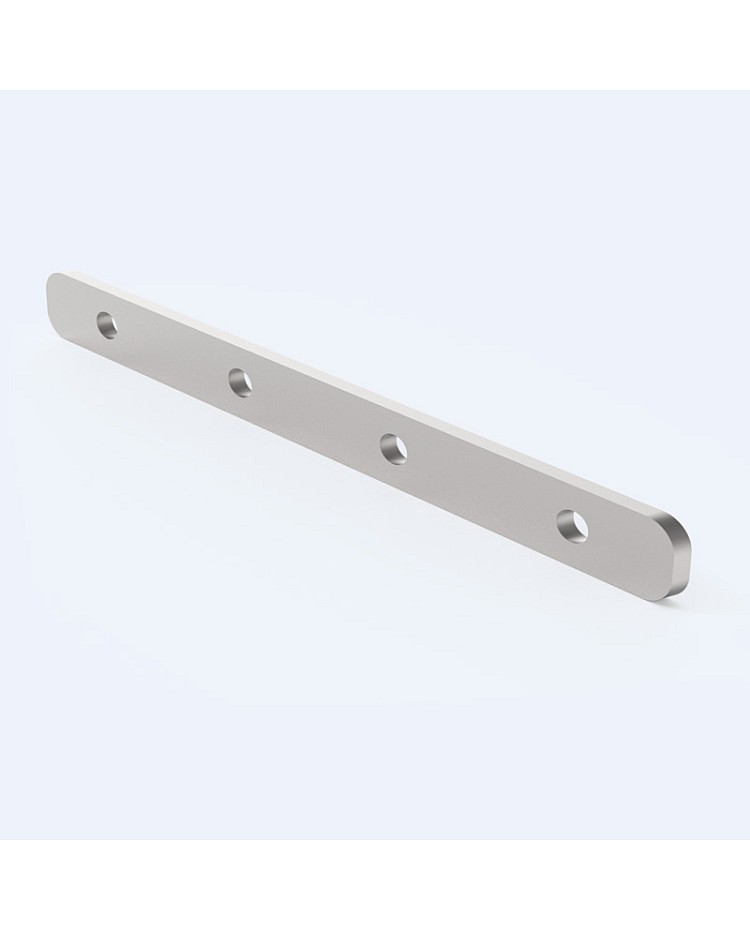

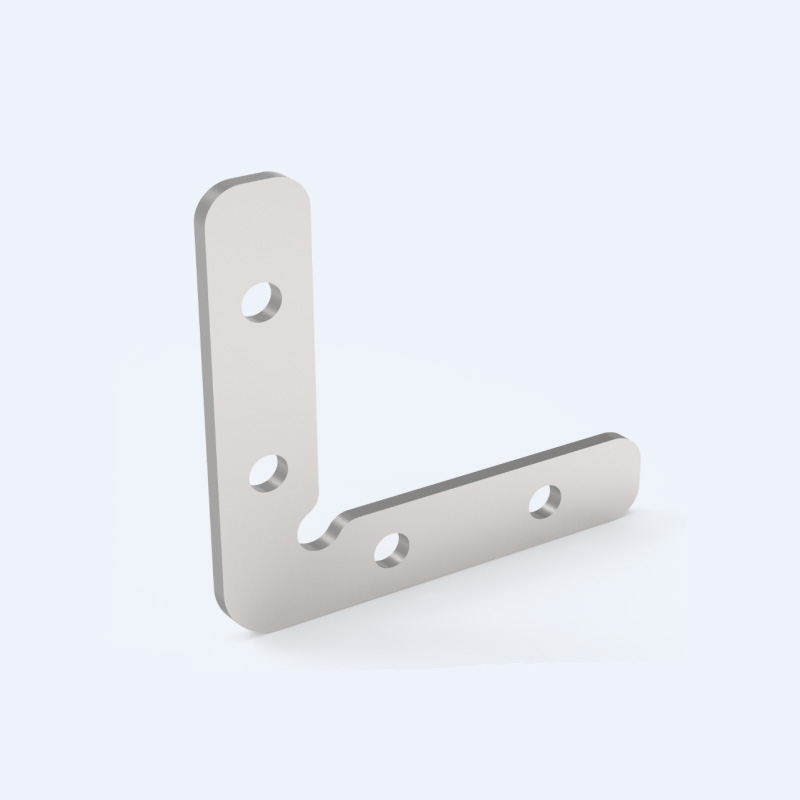

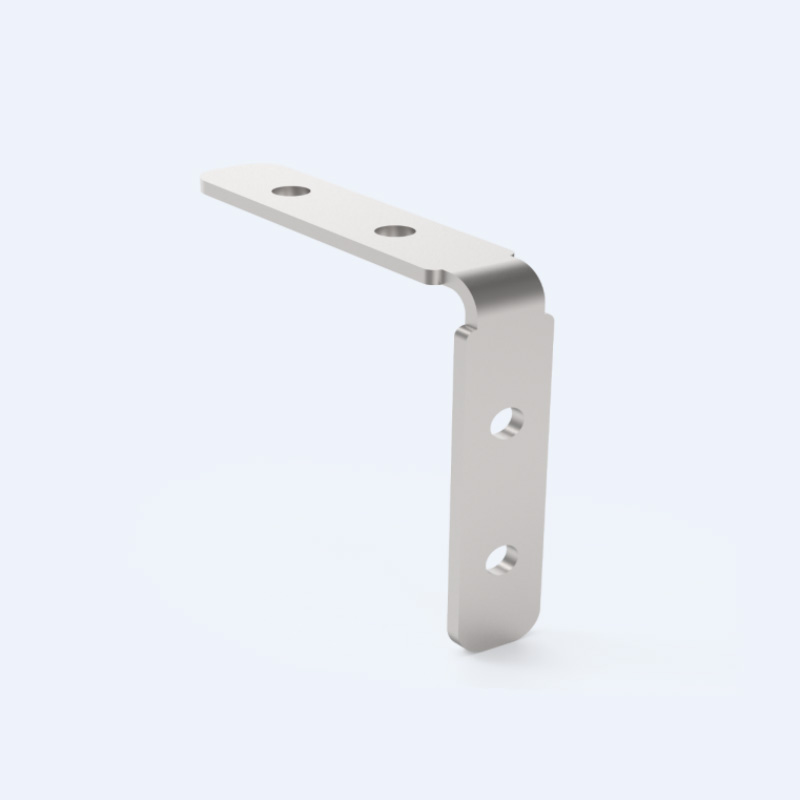

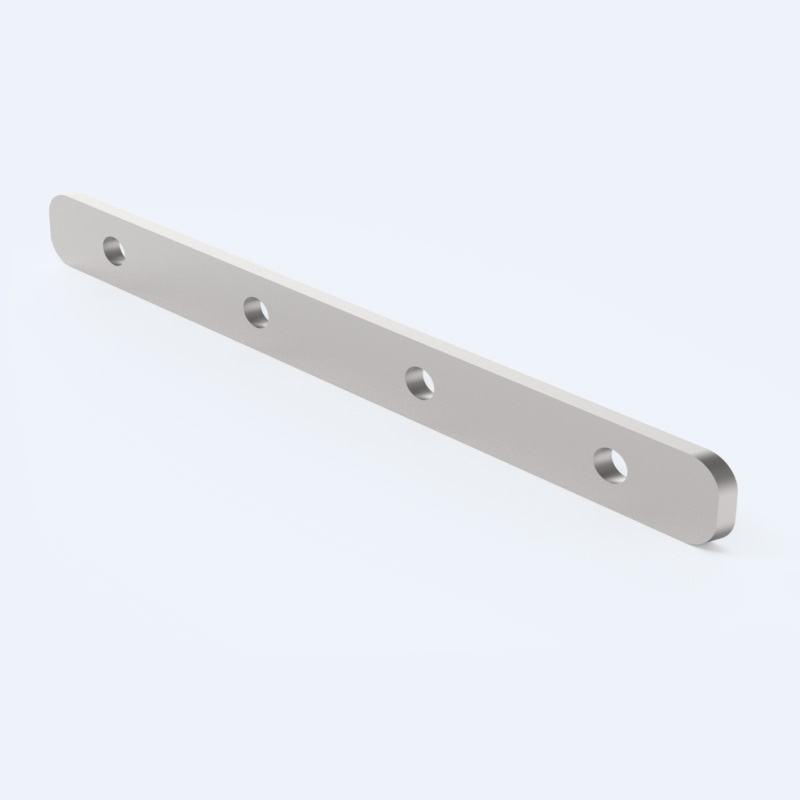

  • 90°, 90° Vertical And 180° Joiners Sold Separately
  • Installation: Recessed
  • 5 Years Warranty


Includes:

1*Light Strip Channel With Diffuser

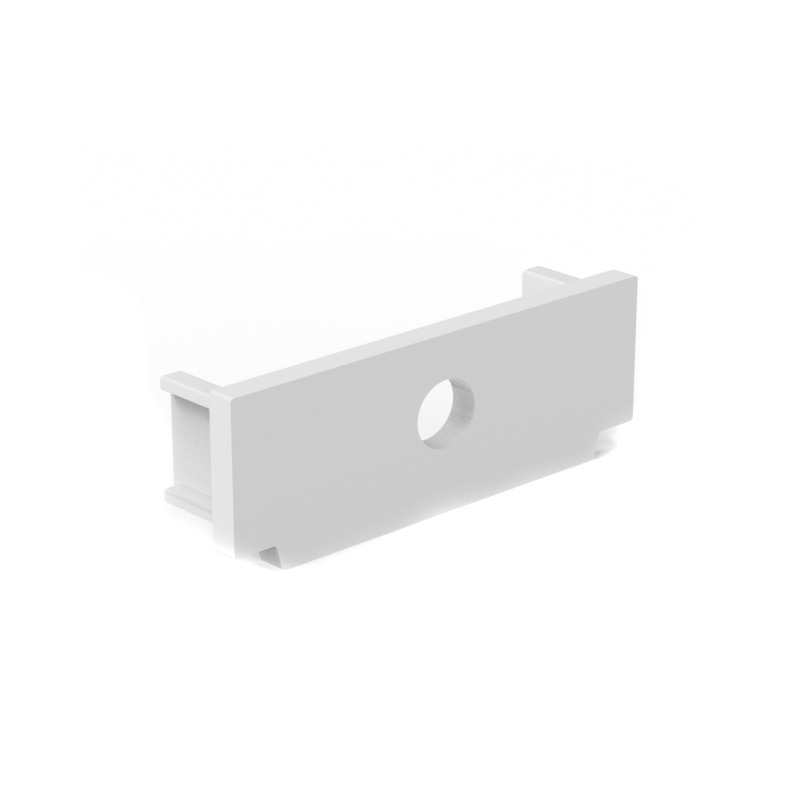

End Cap With Hole/Without Hole

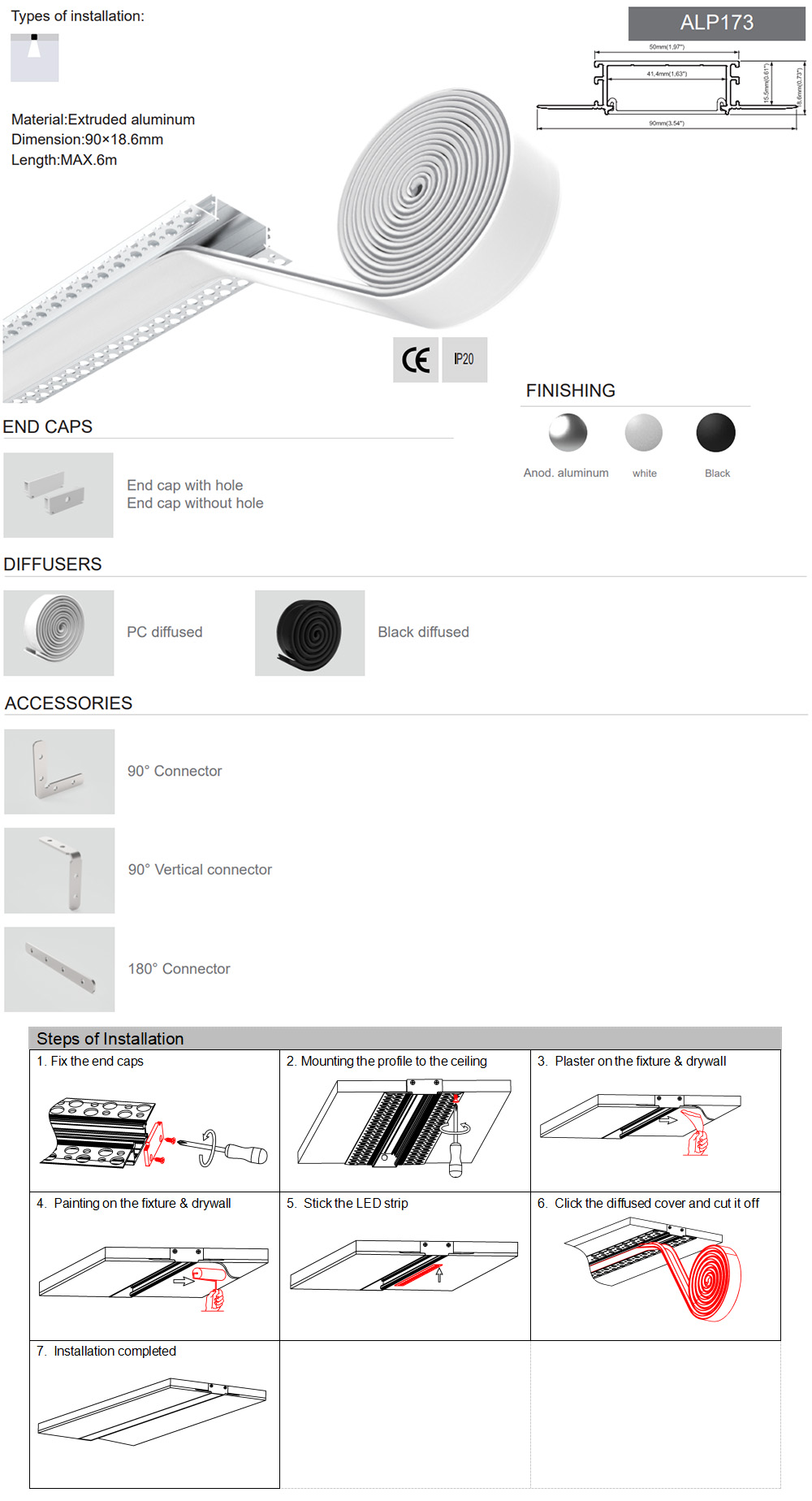

LED Strip Light Channel And Diffuser
