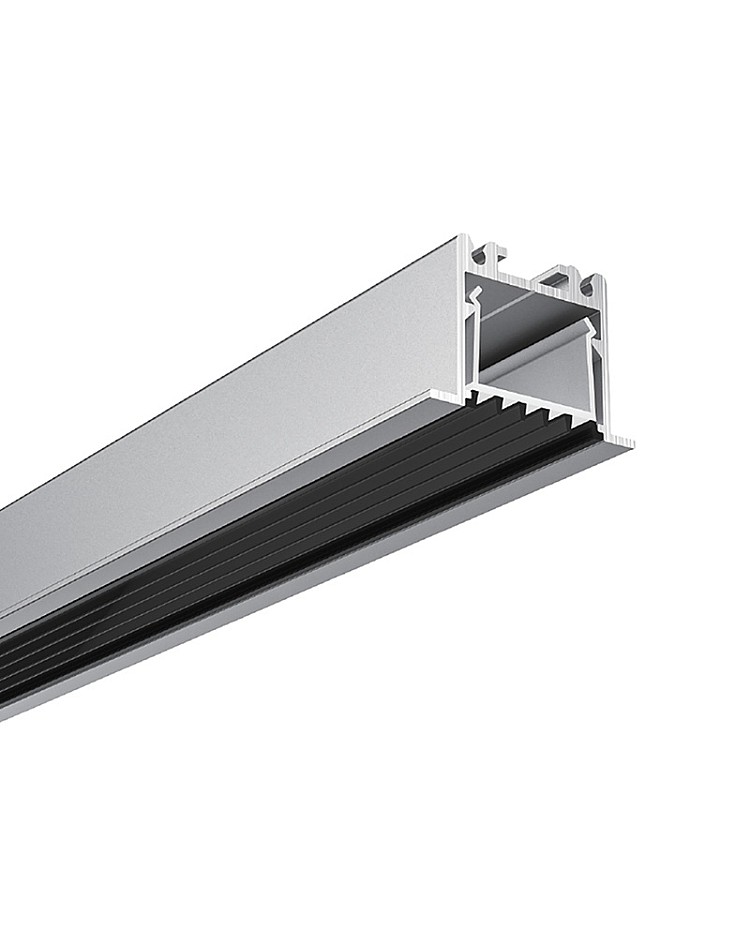

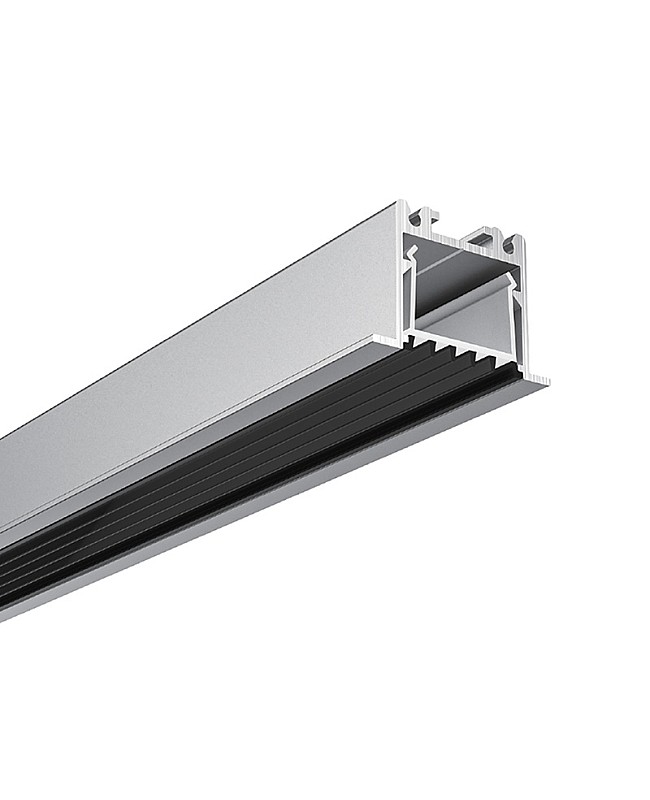

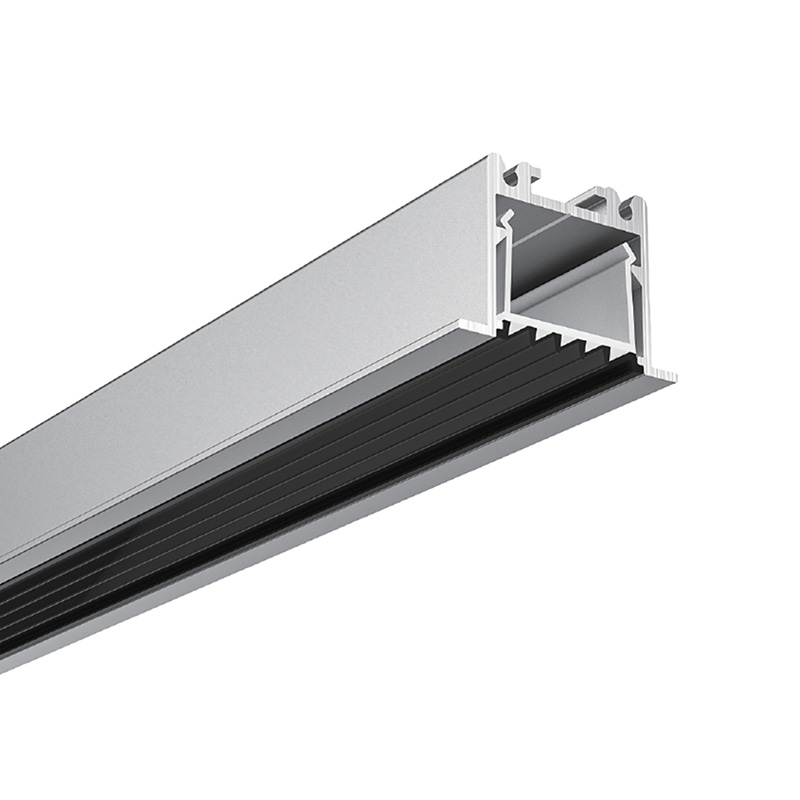

These durable aluminum channels can be seamlessly recessed into your ceiling for a clean and professional finish. Comes with anti-glare diffusers to eliminate harsh reflections and hotspots, providing soft, flicker-free illumination that is ideal for both residential and commercial spaces. They are made of 6063-T5 extruded aluminum alloy and feature a silver anodized finish, providing anti-oxidation resistance and long-lasting durability. The standard length is 2 meters per piece and can be cut to any size for your needs. The inner width is 27mm, allowing a maximum width of 26mm for strip lights. Recommend installing single or multiple lines of 5M COB LED strips as the light source to create consistent, uniform emission lighting without hot spots and dark areas. The recessed aluminum LED channels can serve as heat sinks, facilitating better heat dissipation and extending the lifespan of the LED lights. Four types of diffused covers are available: white and black anti-glare covers, prismatic covers, and PC frosted covers. They are made of high-quality material, are anti-yellowing, and have perfect light distribution. You can choose the diffusers to fulfill your various lighting needs. The spring clips and end caps are included.

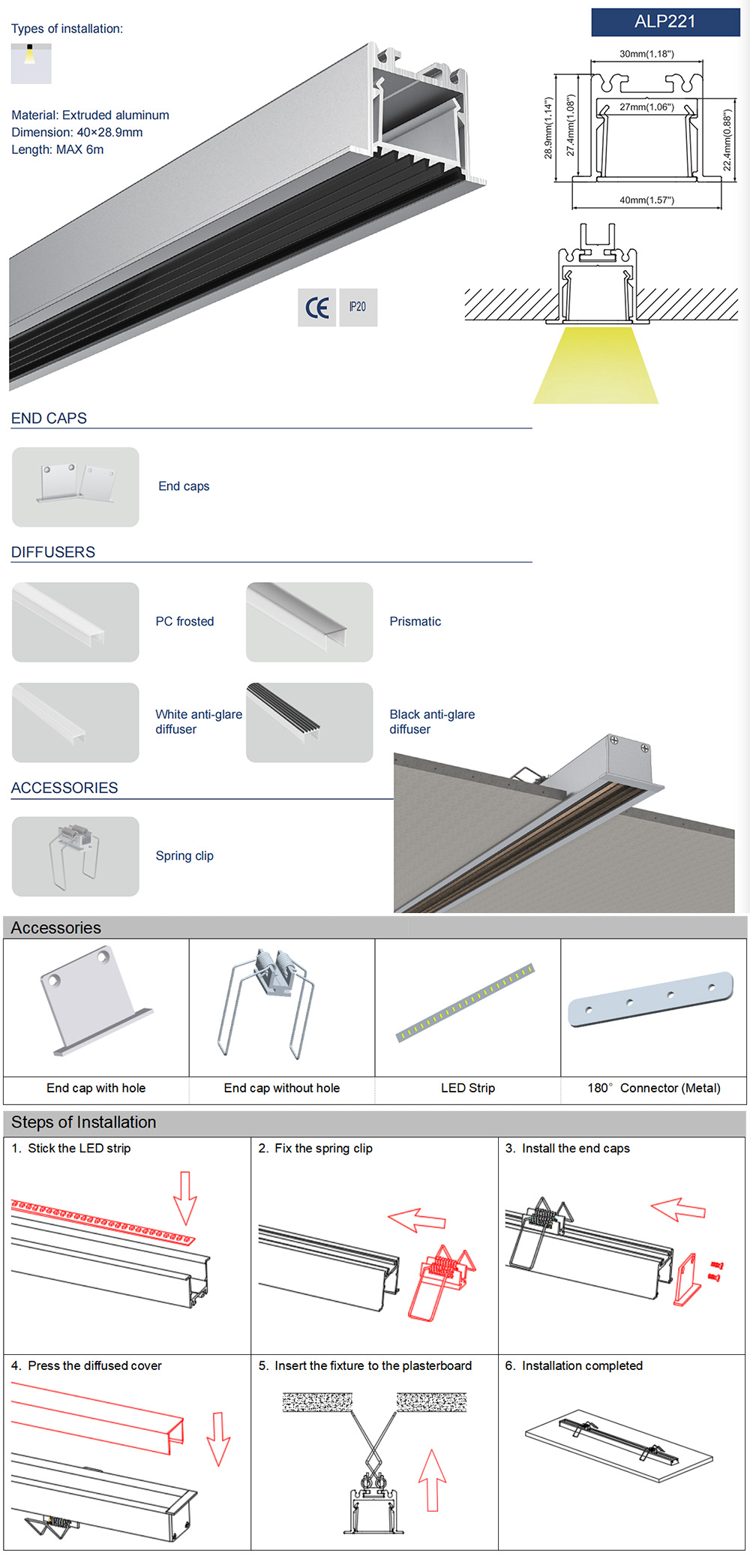

Specifications:
- Model: ALP221
- Material: 6063-T5 extruded aluminum alloy
- Surface Treatment: Anodized
- Colors: Silver

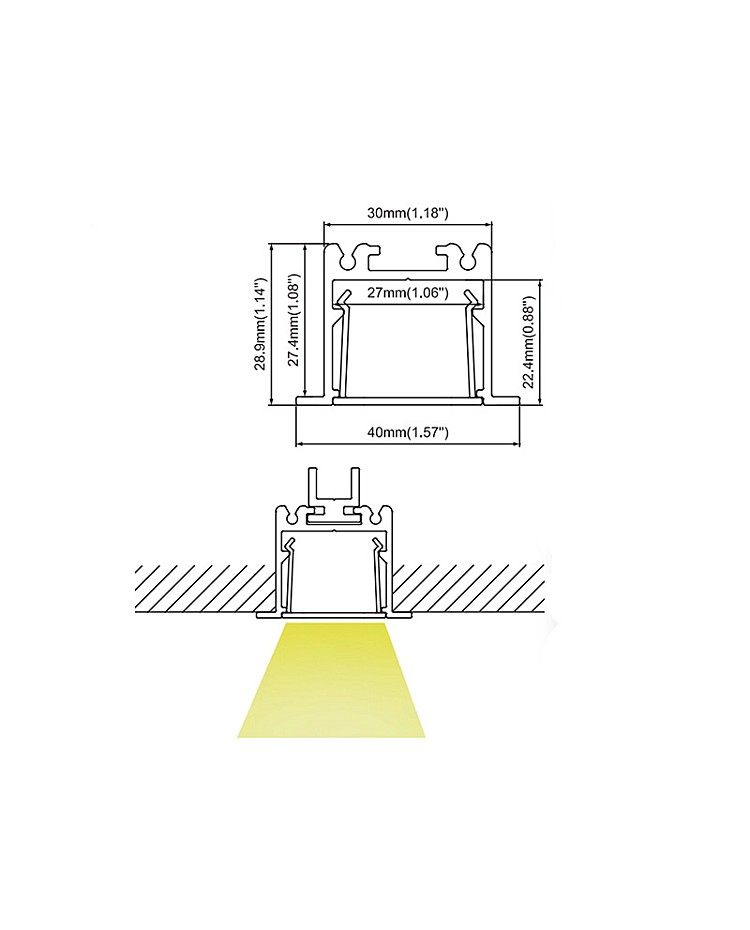

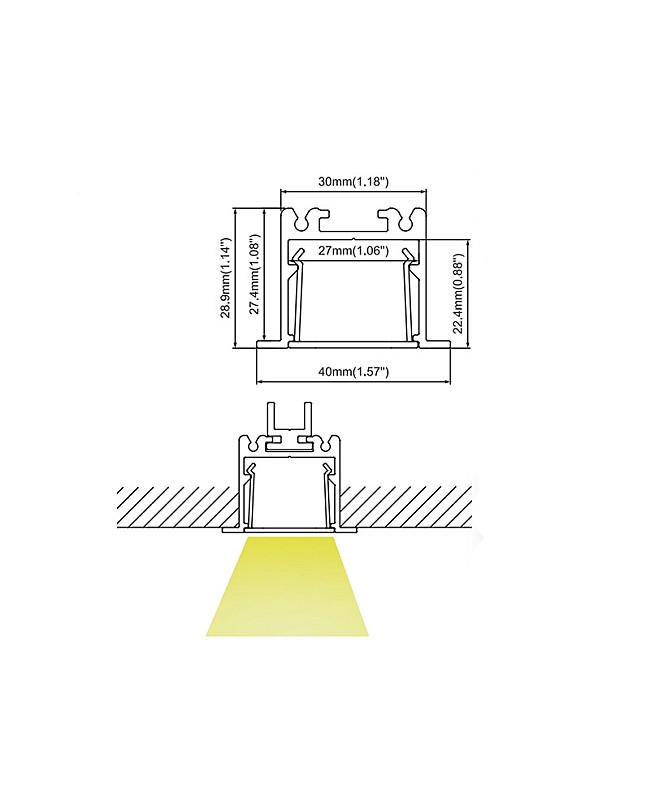

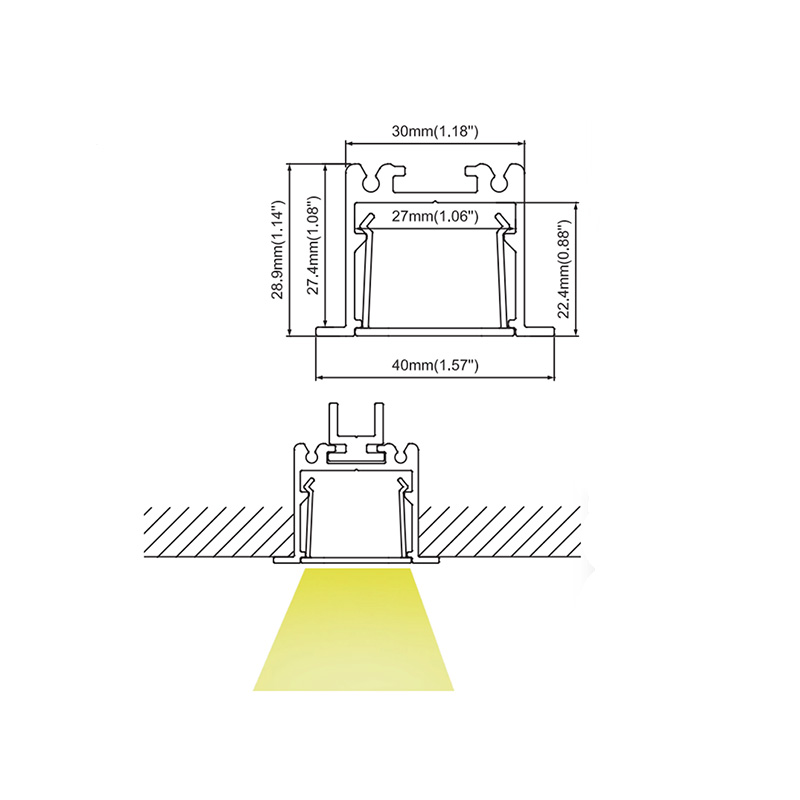

- Size(W*H): 40*28.9mm/1.57"*1.14"
- Lengths Available: 1M(39") / 2M(78")
- Custom Length: YES
- Inner Width: 27mm/1.06"
- Max LED Strips Width: 26mm/1.02"
- Max Power: 20W/M

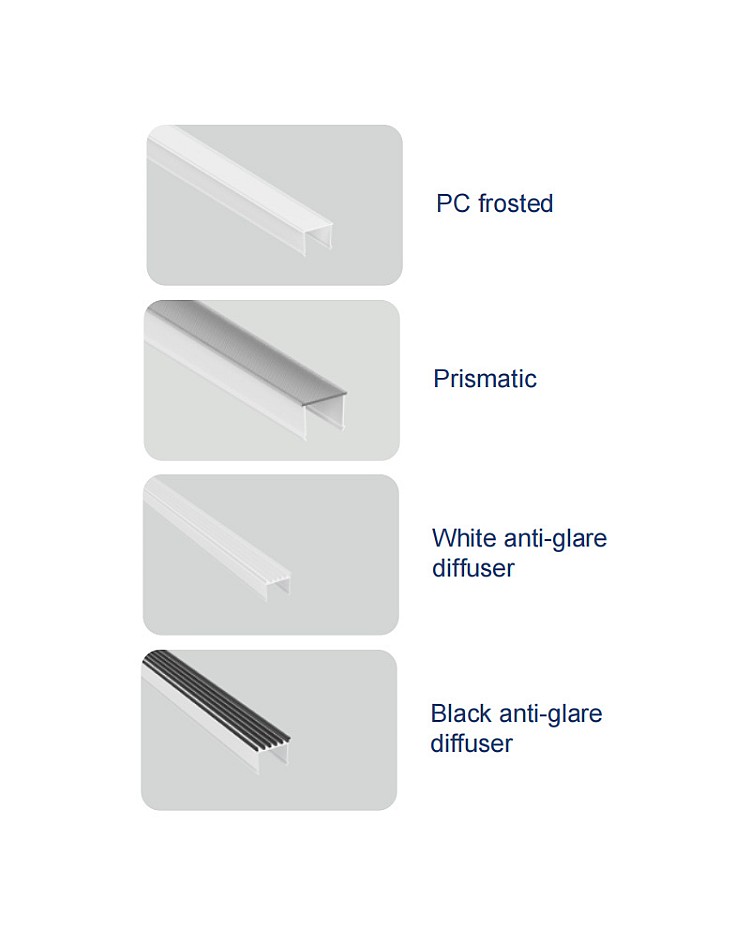

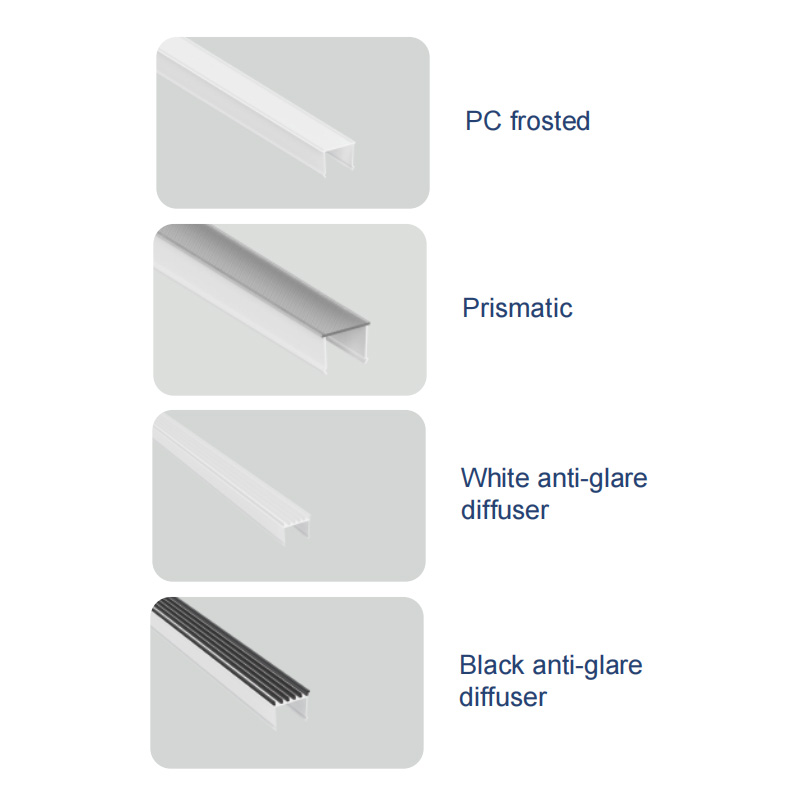

- Diffusers Available: PC frosted covers, prismatic lens, white anti-glare covers(ribs), black anti-glare covers(ribs)
- Tolerance: ±1%
- IP Rate: IP20

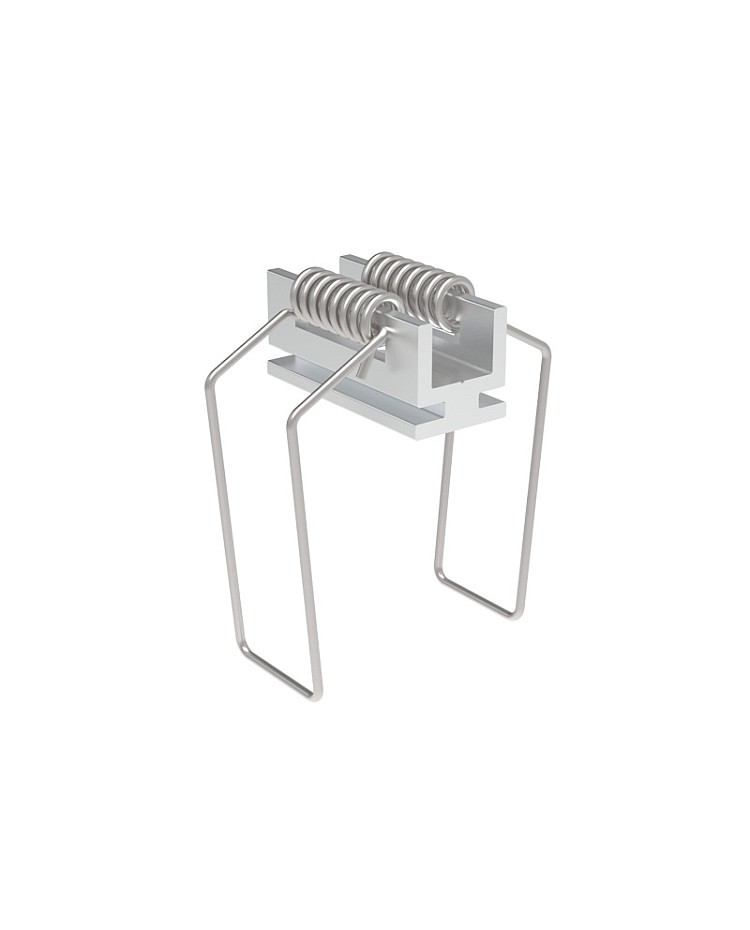

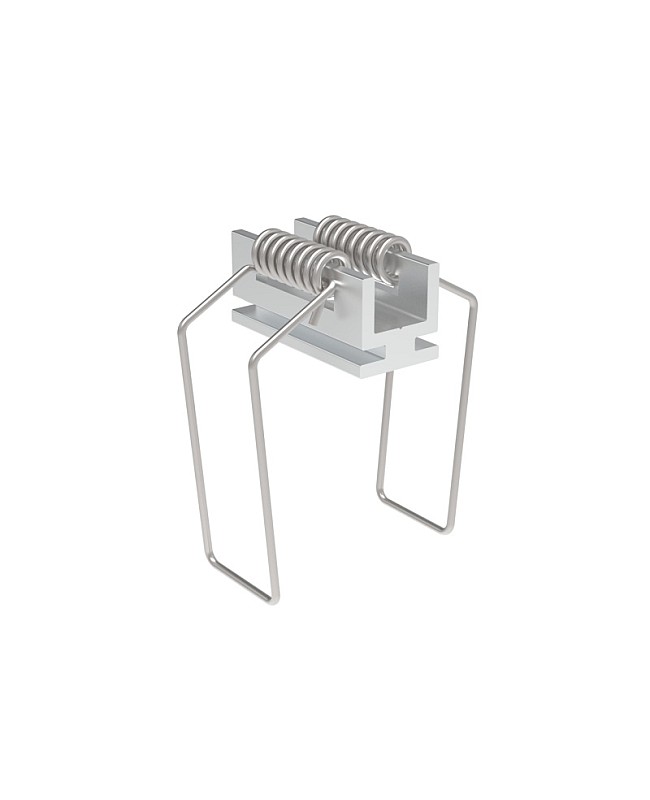

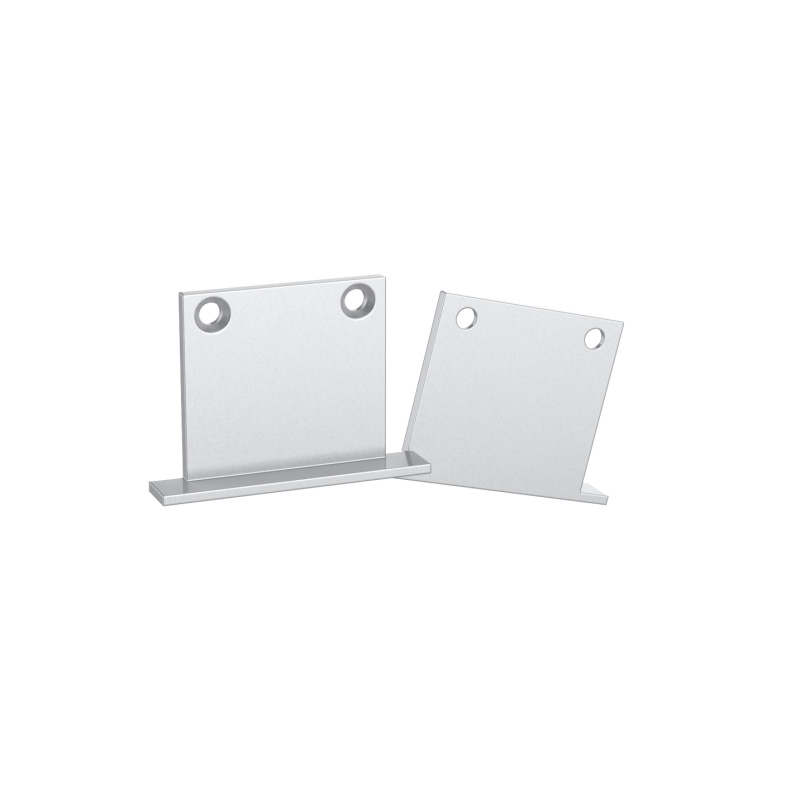

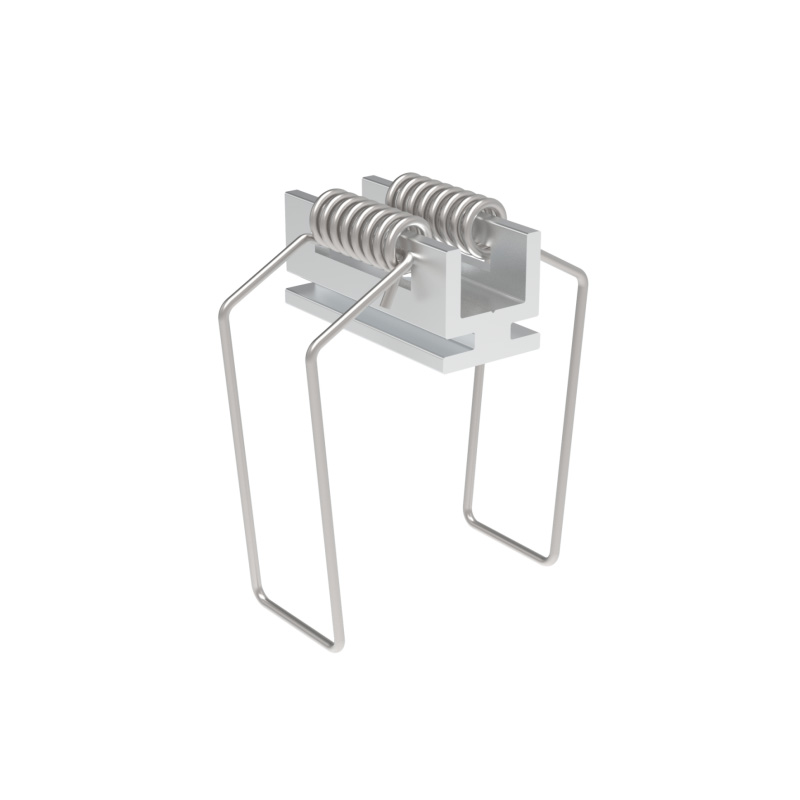

- End caps and spring clips are included

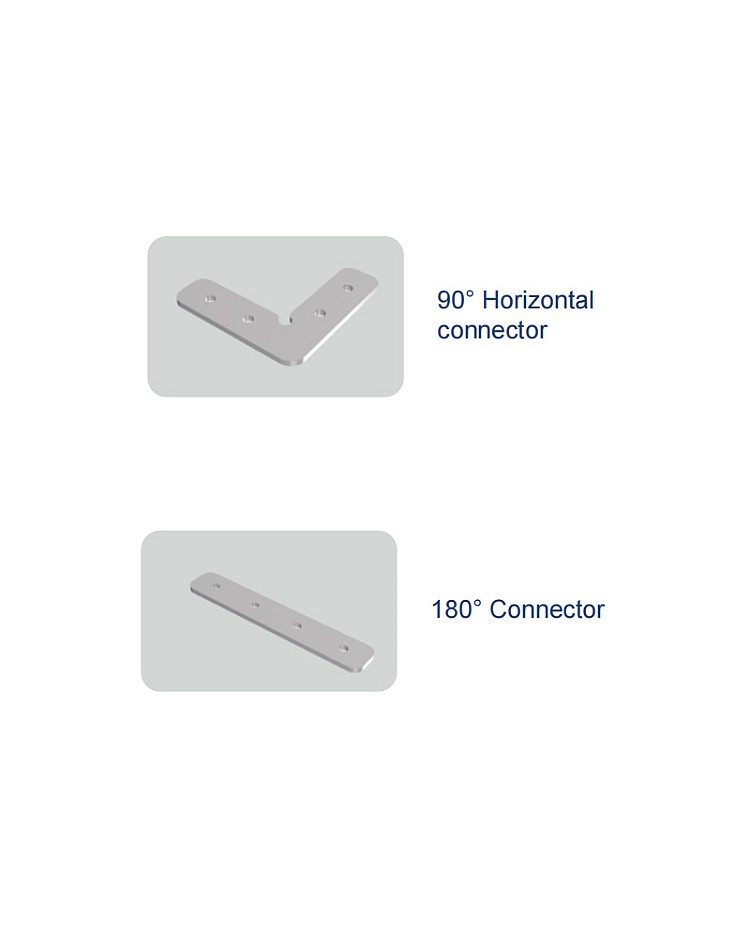

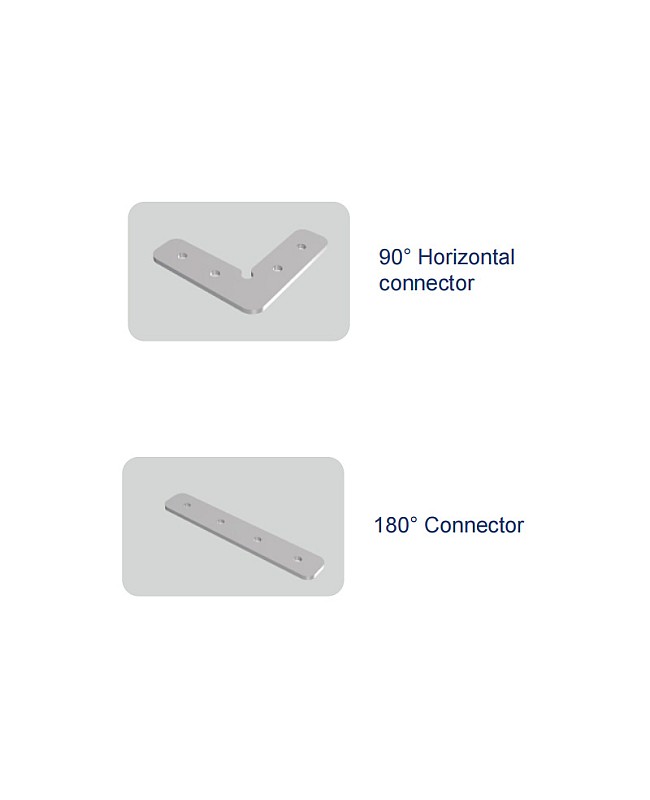

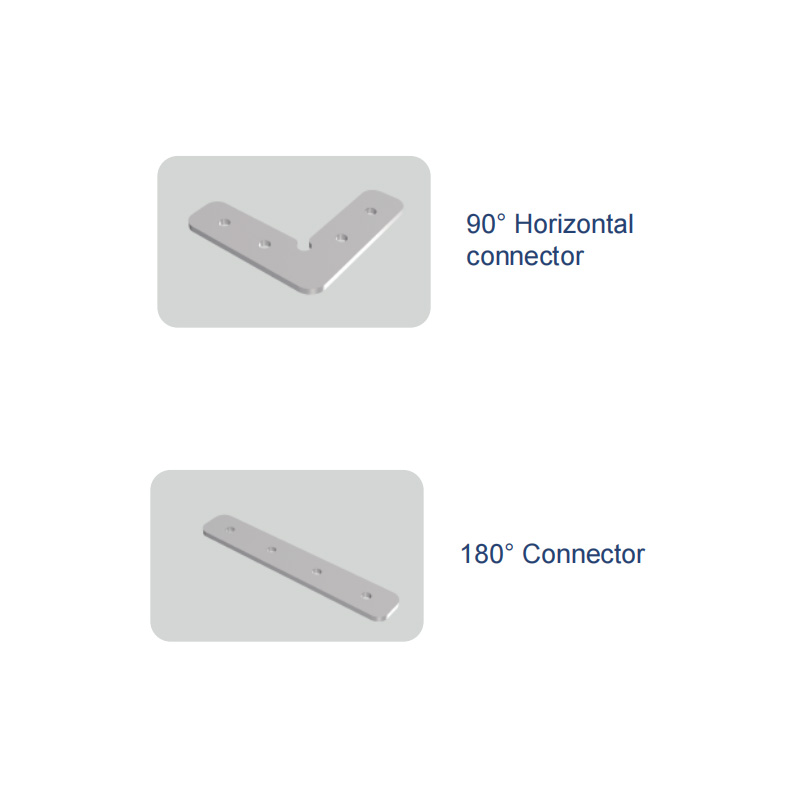

- 180° couplers sold separately

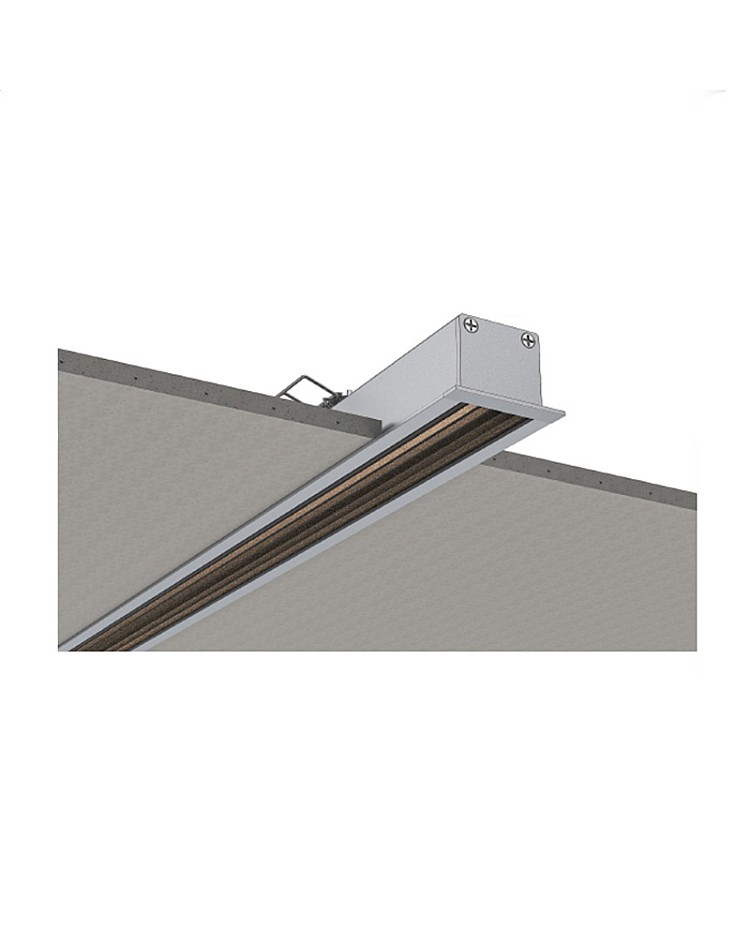

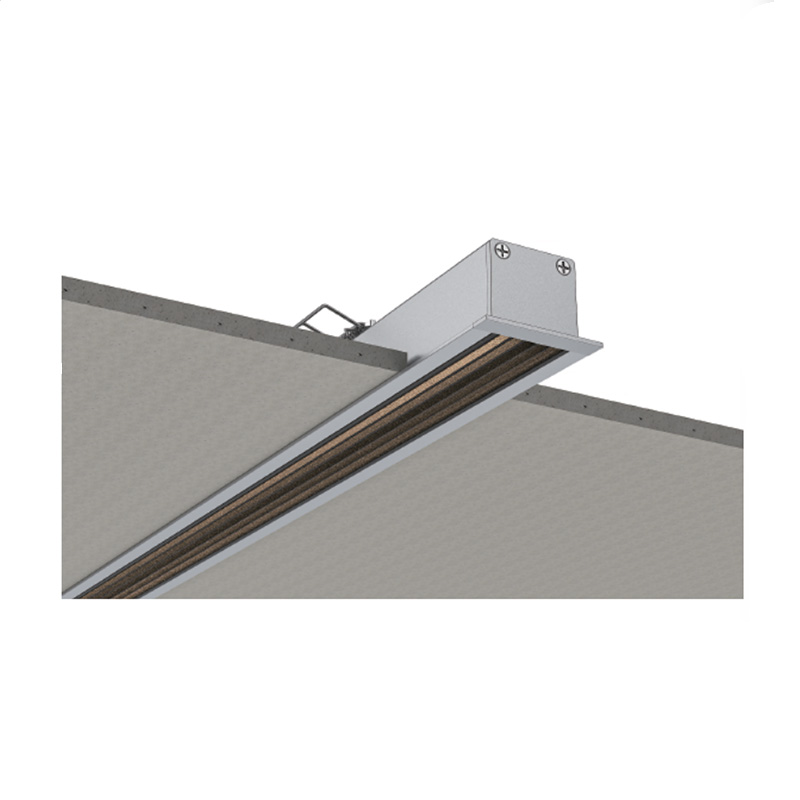

- Installation: Recessed
- Applications: Recessed lights
- 5-year warranty
Applications:
- Recessed ceiling & wall lighting
- Kitchen under-cabinet & pantry lighting
- Retail display & museum accent lighting
- Office & hospitality ambient lighting
Includes:
1 * Recessed aluminum LED channel with diffuser

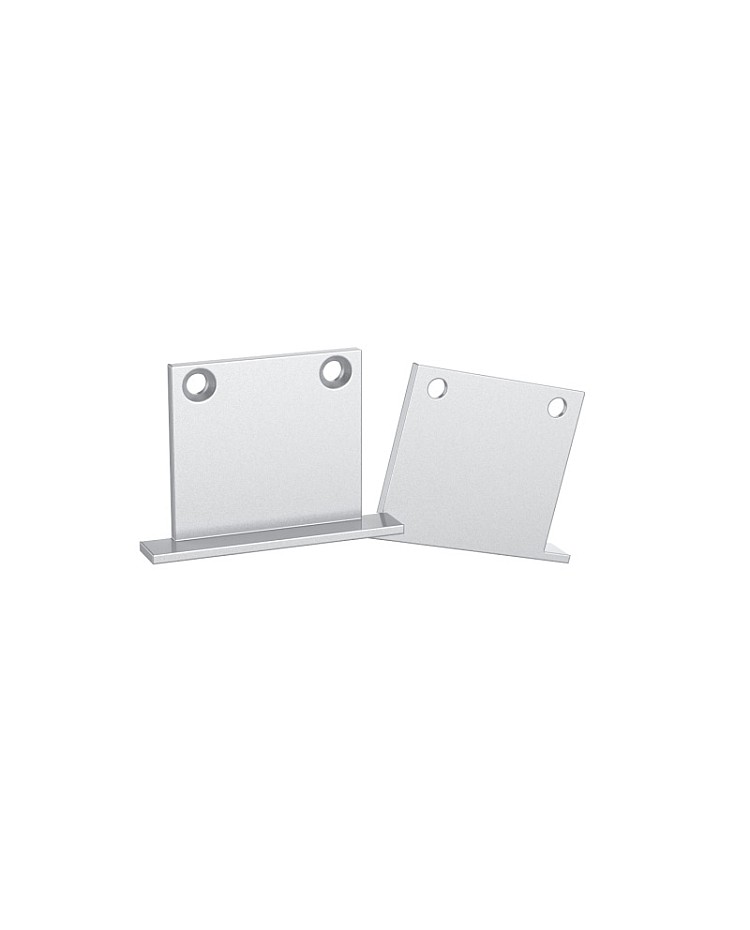

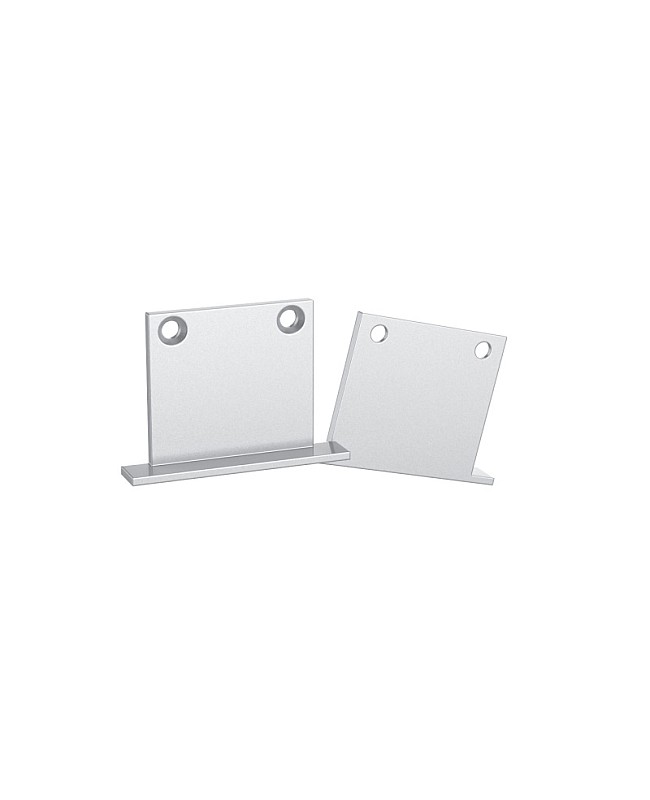

End caps
Spring clips
