  • Brand: Ledbe
  • Product Code: ALP154

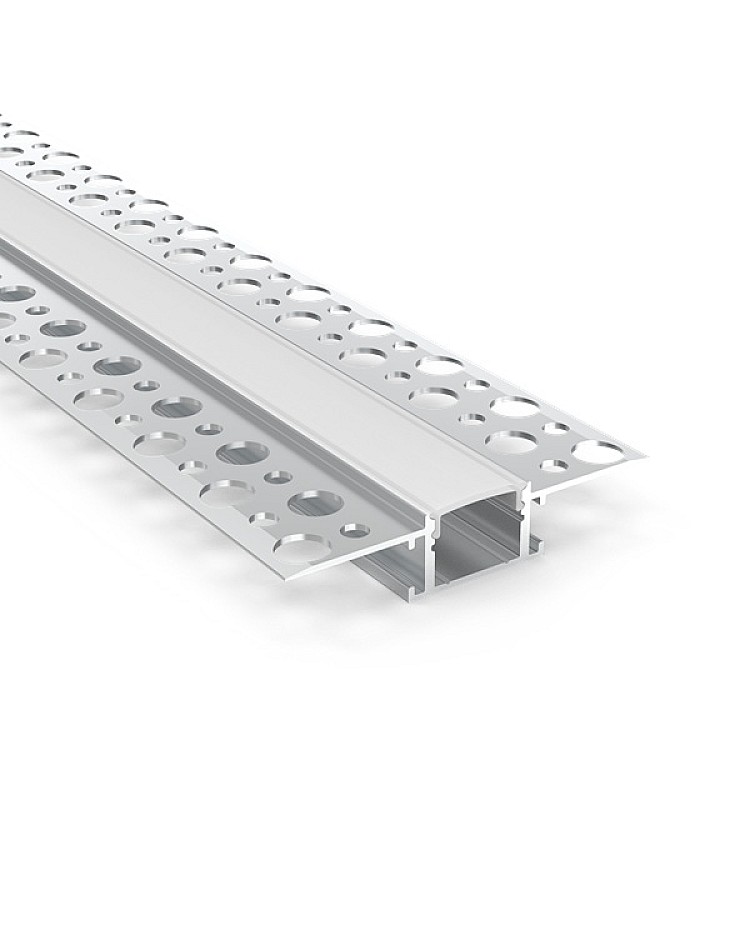

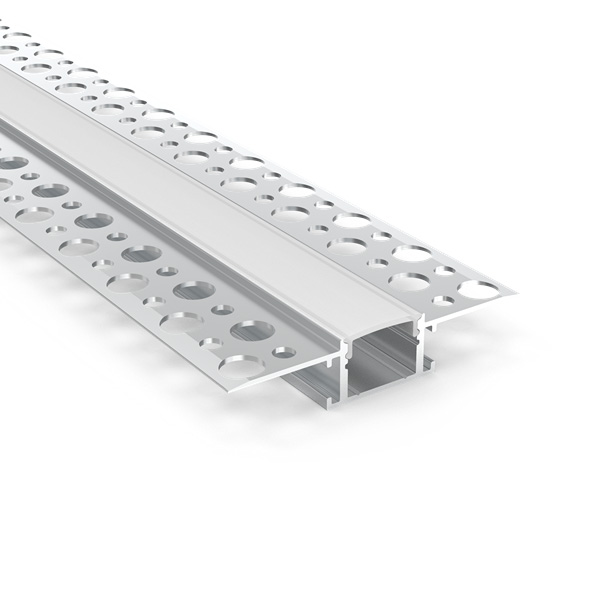

Check the Aluminum Strip Light Channels with long flanges, which can be recessed into the ceiling or drywall for interior linear lighting. The inner width is 15.2mm and can work with SMD LED Strips or COB LED Tapes, the mad width of the PCB board can not be over 15mm. LED Strip Channels are made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. There are three colors available: silver, white or black. The standard length is 1M and the max length is 6M, cuttable and custom lengths are available. There are two types of diffusers available: PC diffused cover and black PC cover available, both of them are made of imported brand material, anti-yellowing, and perfect lighting distribution. End caps with wire holes and without holes included, easy to connect the LED Strips to a Power Supply to light up or a LED Dimmer to adjust the brightness. 90° and 180° connectors are sold separately, you can purchase them and use them to design the Lighting Project.


  • Model: ALP154
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

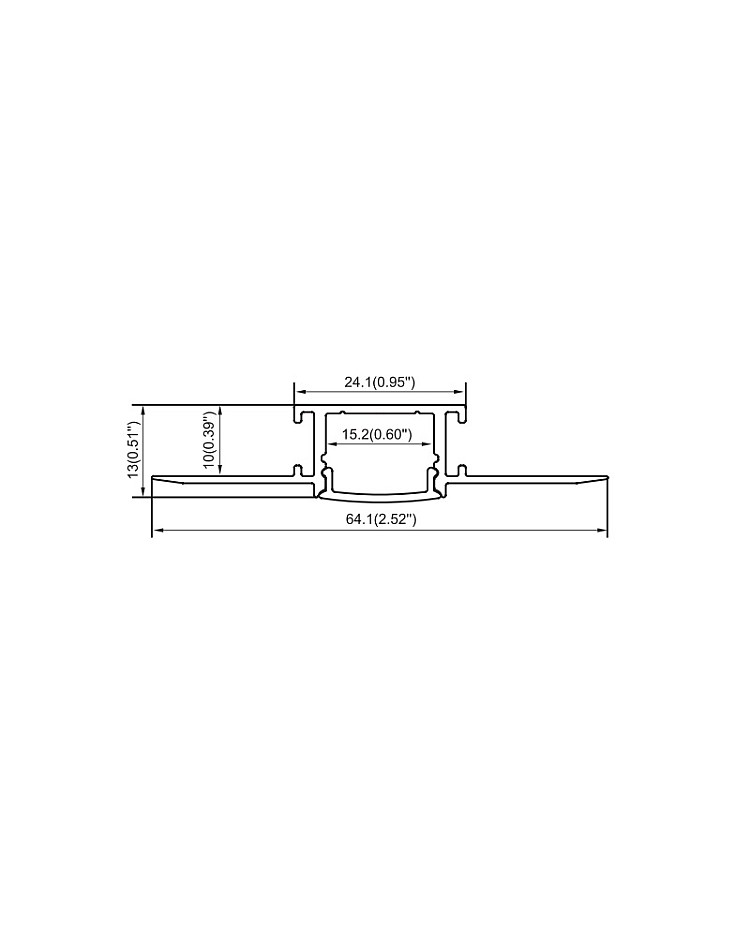

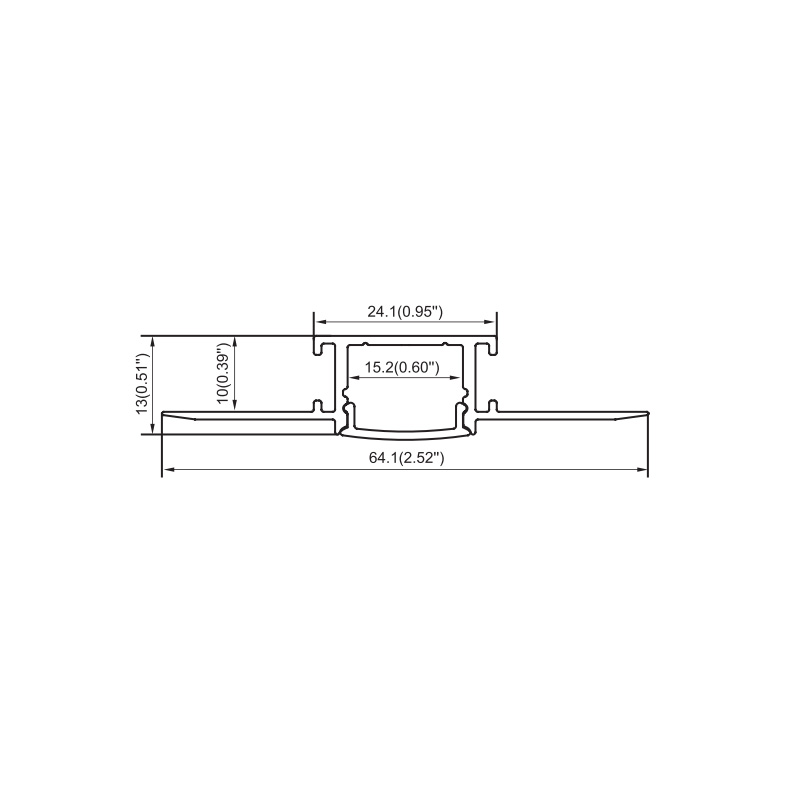

  • Size: 64.1*13mm(W*H)
  • Colors: Silver(Default), White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M
  • Custom Length Available: YES

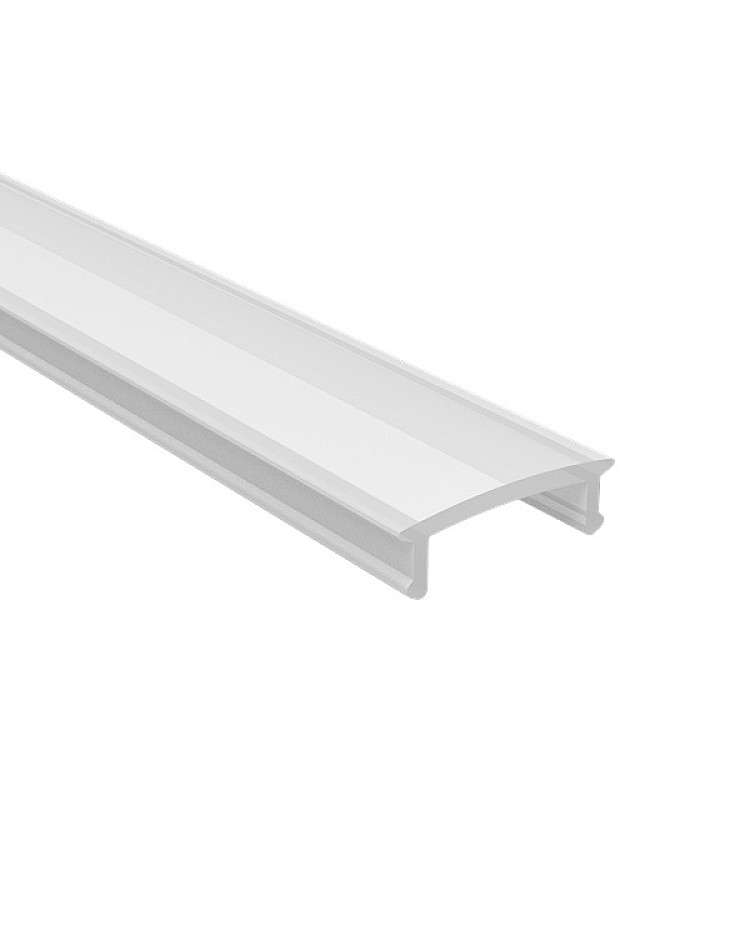

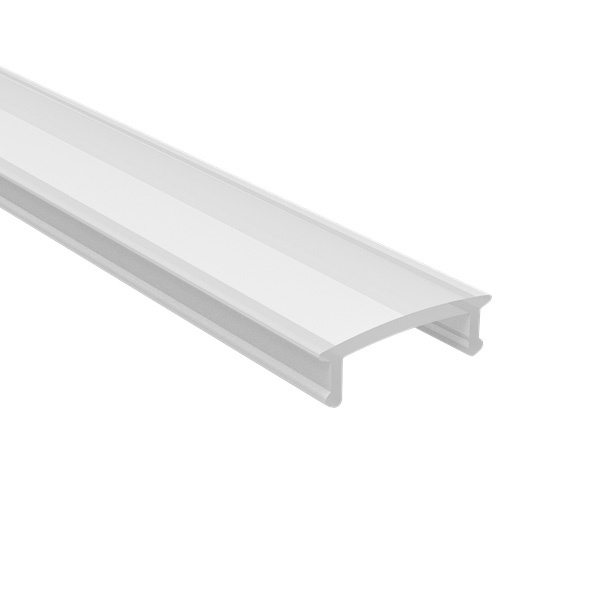

  • Diffusers: PC Diffused Cover, Black PC Cover
  • Inner Width: 15.2mm
  • Can Work With SMD LED Strips Or COB LED Tapes
  • Max Width Of PCB Board Not Over 15mm
  • Max Power: 15W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof
  • End Caps With Holes/Without Holes Included
  • 90°,90° Vertical Connectors and 180° Connectors Sold Separately

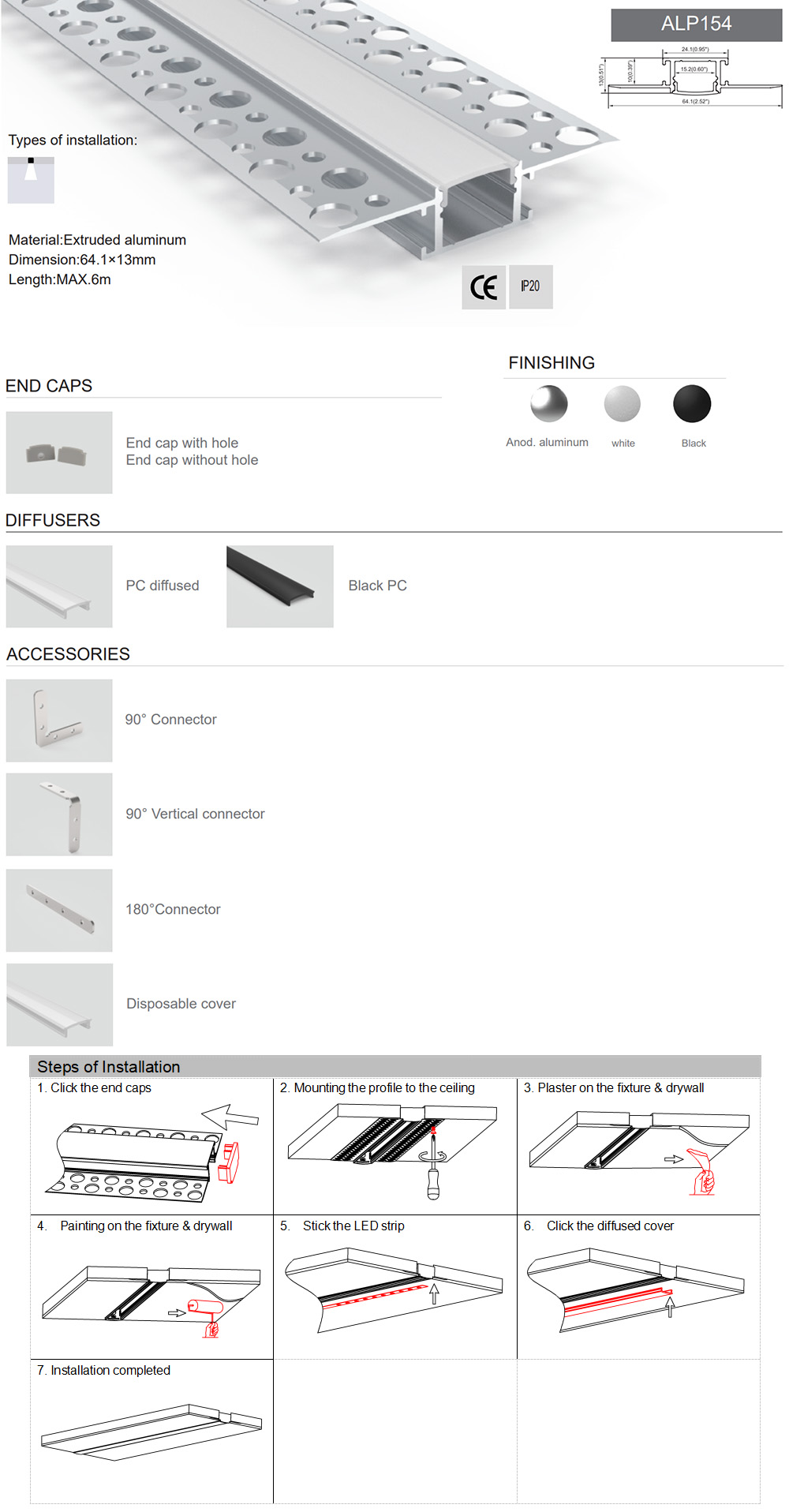

  • Installation: Recessed
  • Applications: For Ceiling Or Drywall
  • 5 Years Warranty


1*Aluminum Strip Light Channel

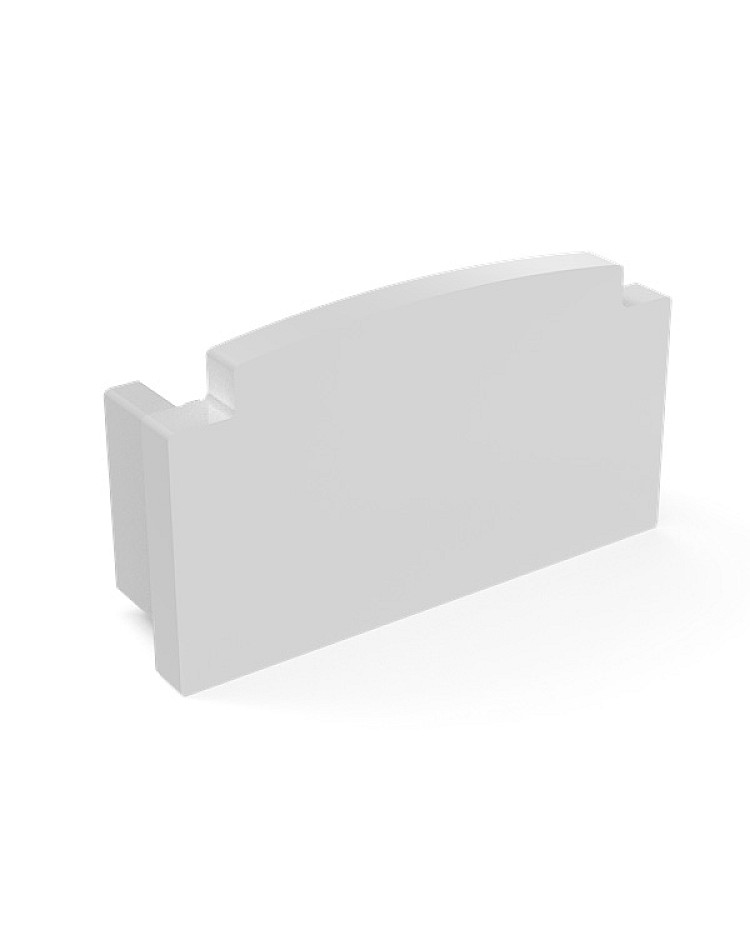

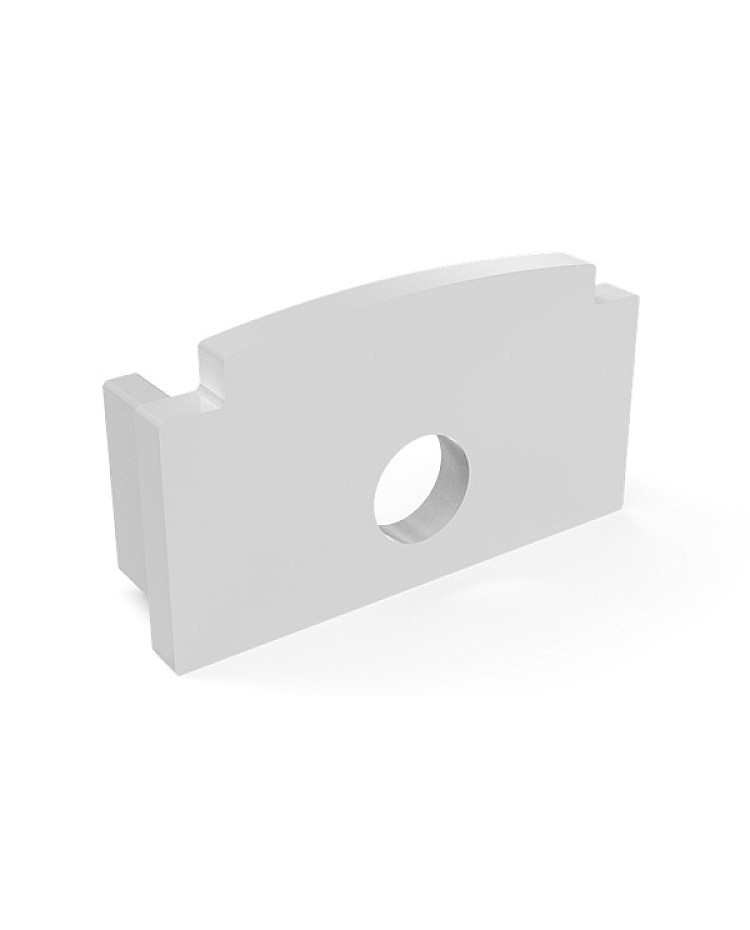

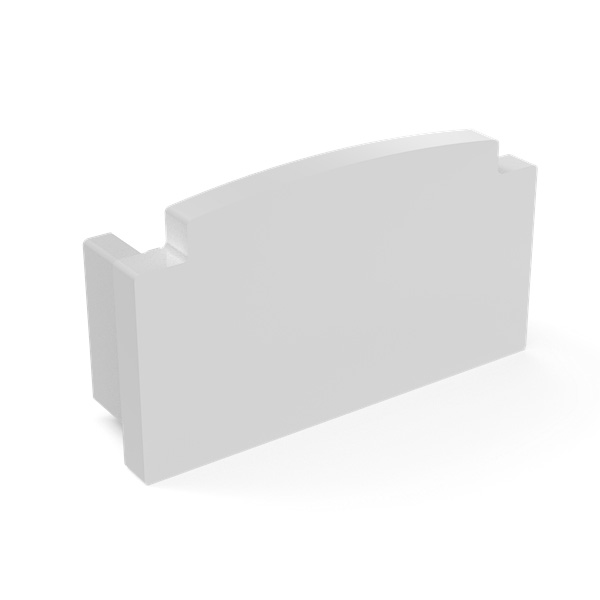

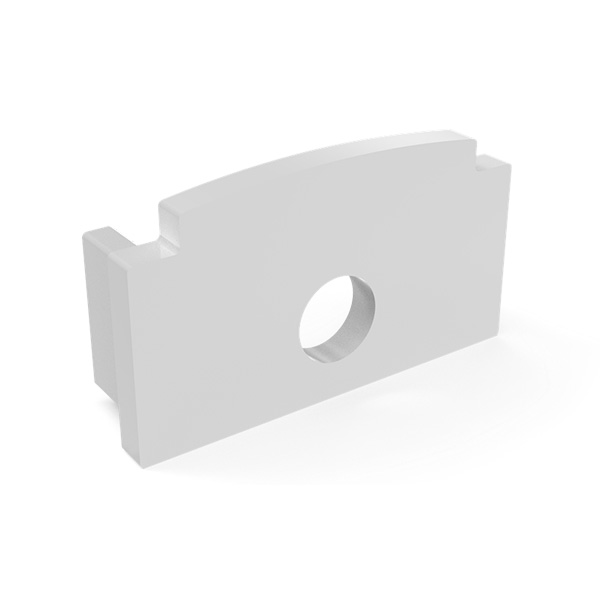

End Cap With Hole/Without Hole

Aluminum Strip Light Profile
