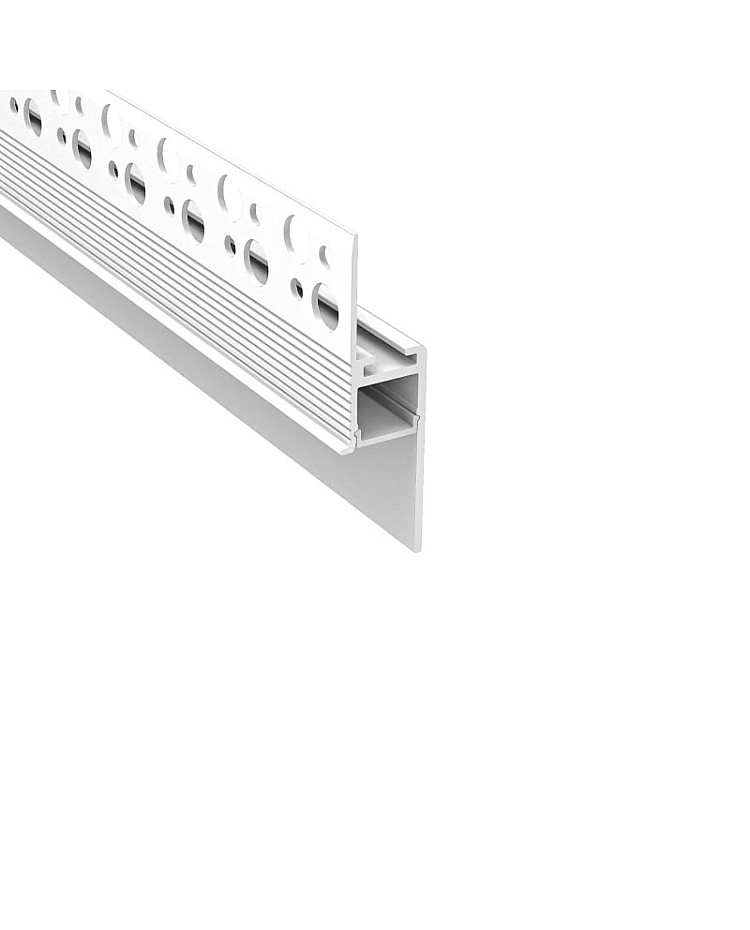

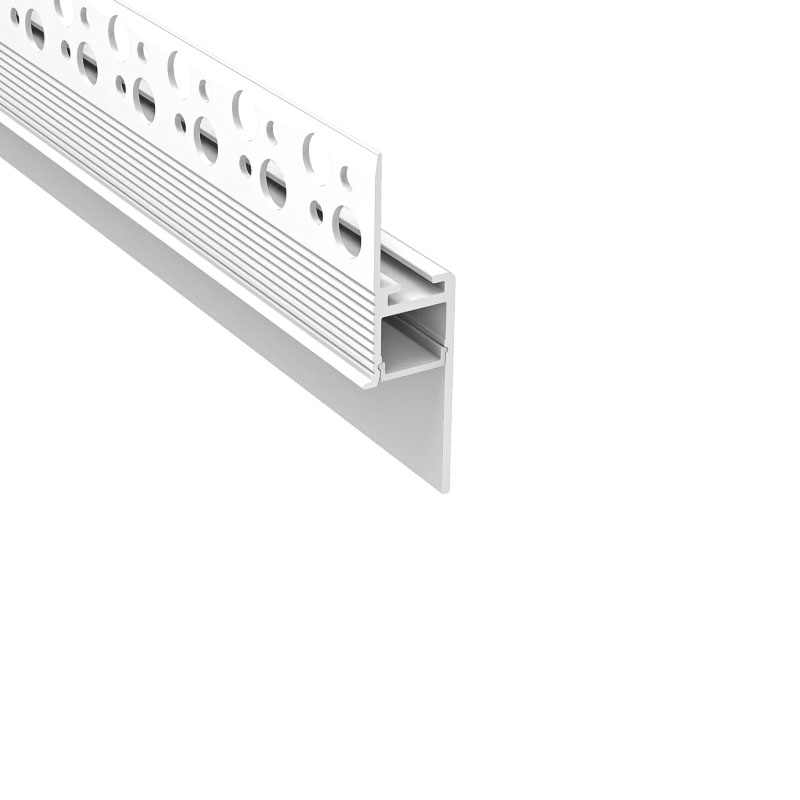

The LED skirting boards are in a small size and designed to be seamlessly plastered into 1/2" (12.5mm) drywall for a clean and modern finish. They feature an indirect lighting design and include PC diffusers to diffuse the strip lighting, delivering a smooth, continuous glow. Not only do they brighten dark areas, but they also enhance aesthetics in your spaces. Ideal for baseboards, coves, perimeters, and walls.
They are made of 6063-T5 extruded aluminum material with a powder-surface finish for enhanced anti-oxidation resistance and a longer lifespan. The standard lengths are 1m and 2m, and are easy to cut to your desired lengths. Only one type of diffuser is available: the PC diffused cover, made of brand-imported, anti-yellowing material, ensuring perfect light distribution and smooth light output.
The inner width is 10.3 mm, which accommodates LED strip lights up to 10 mm wide. Recommend installing our high-density COB LED strip lights as the light source without visible light dots and dark areas. For wet environments, please choose our 8mm IP67 waterproof single-color or tunable-white LED strips, which have a backing adhesive for easy installation. The baseboard LED channel can serve as a heat sink to improve heat dissipation and extend the lifespan of LED lights. Three types of connectors are available: 90°, 90° vertical, and 180° LED channel couplers. You can use these connectors for straight or angled connections.
Specifications:
- Material: 6063-T5 extruded aluminum
- Surface treatment: Powder-coated
- Colors: White

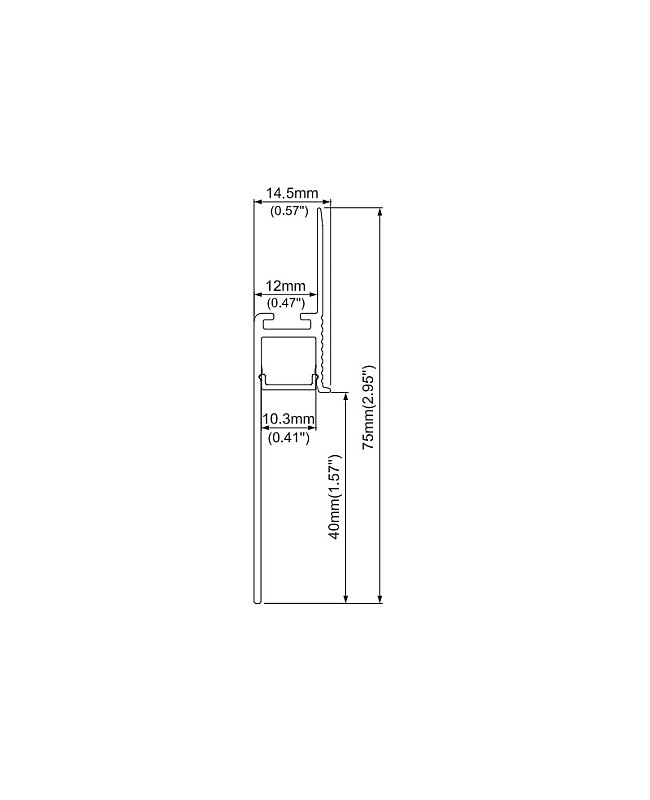

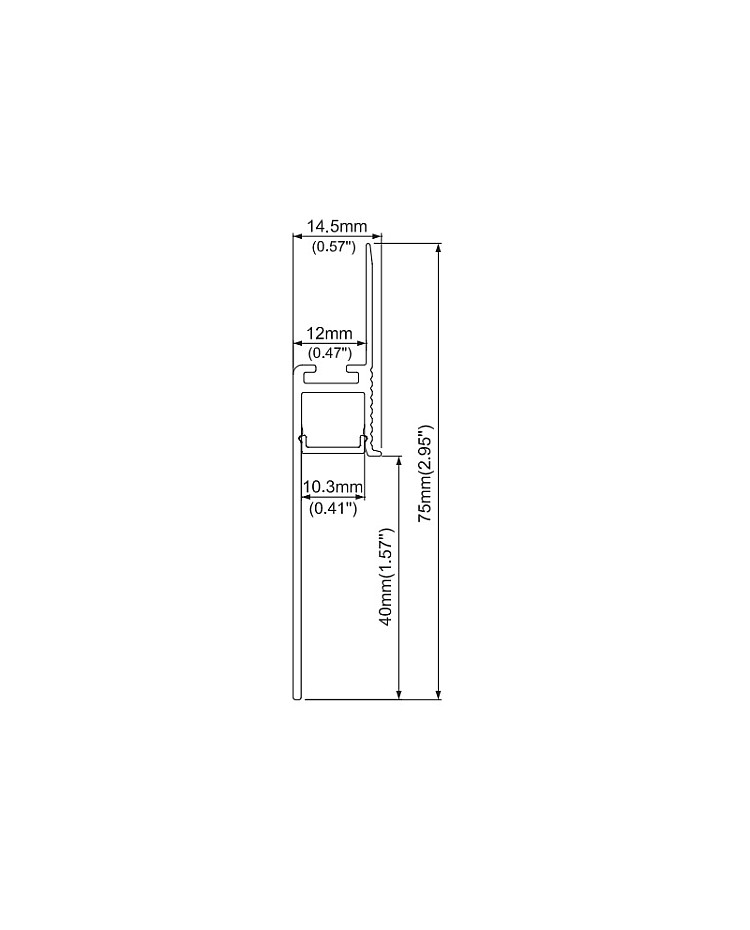

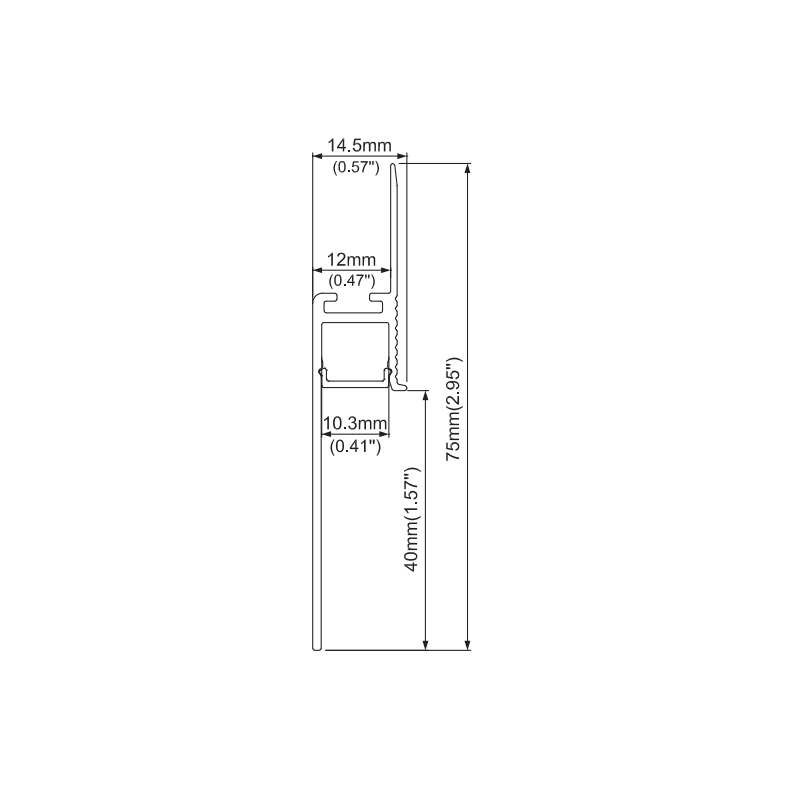

- Size( H x W ): 75 mm x 14.5 mm ( 2.95" x 0.57" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom lengths available: YES
- Diffusers: PC diffused cover
- Inner width: 10.3 mm ( 0.41" )
- Max width of COB LED strips: 10 mm ( 0.39" )
- Max power: 15W/m
- Beam angle: 100°
- Tolerance: ±1%
- IP rate: IP20 non-waterproof

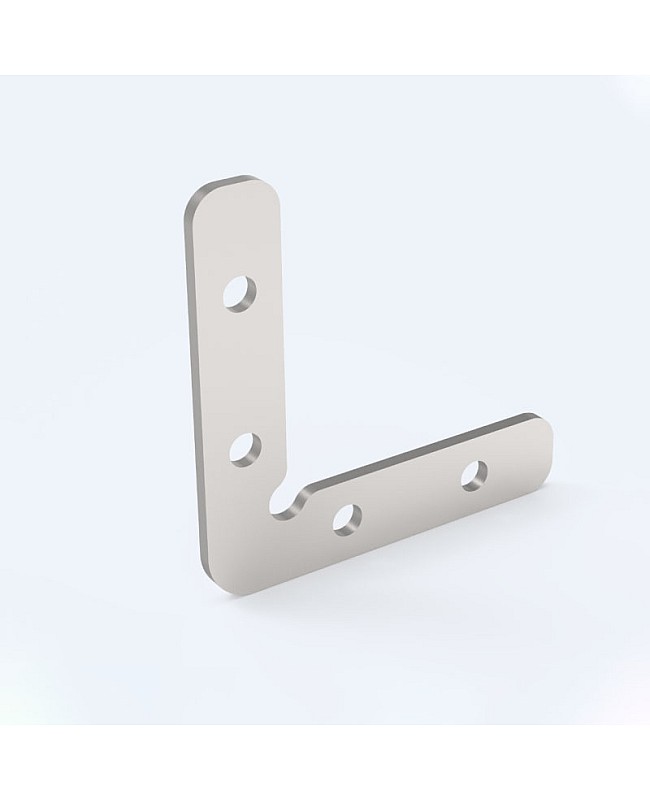

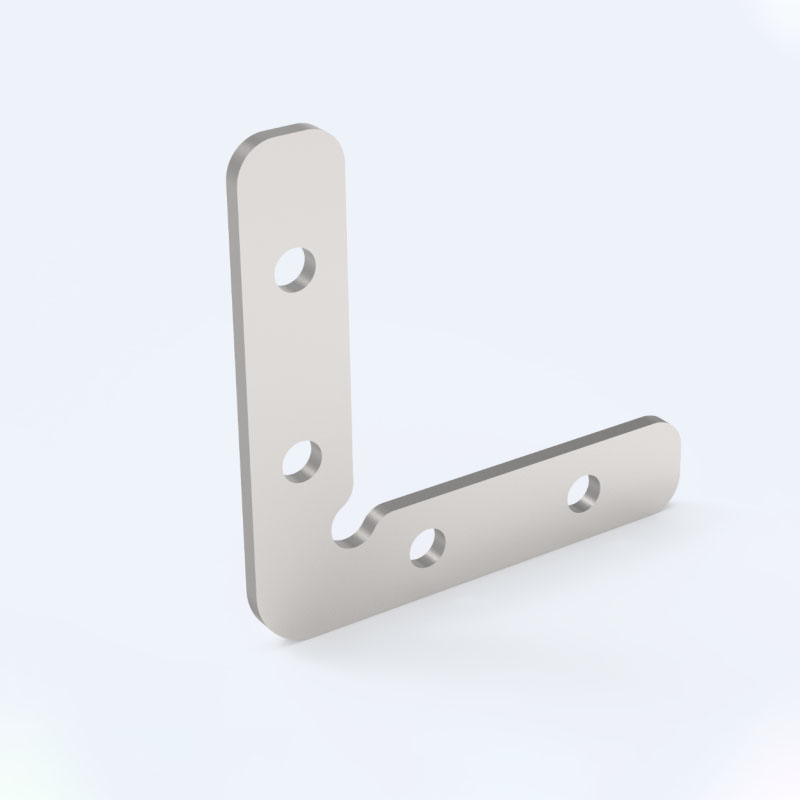

- 90°，90° vertical and 180° connectors sold separately

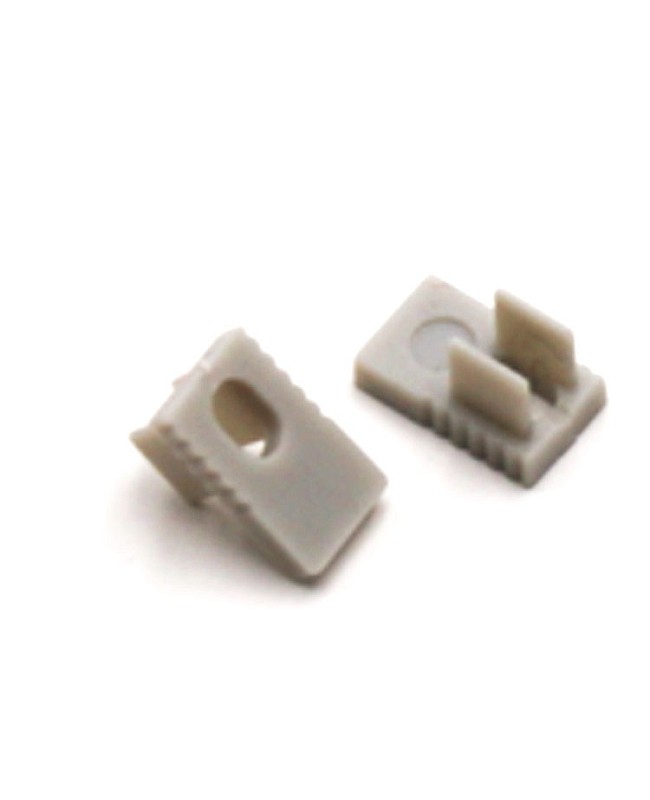

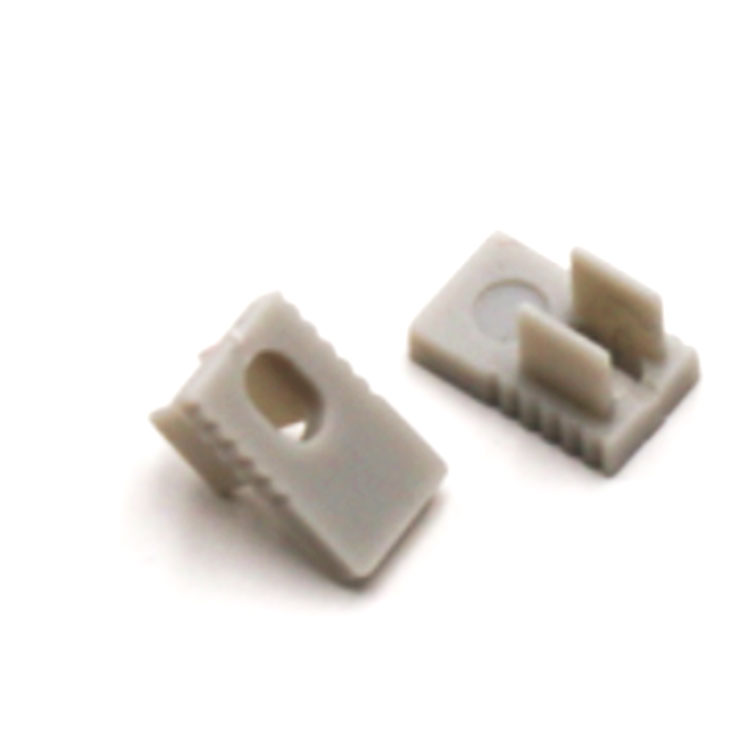

- End caps with/without holes are included

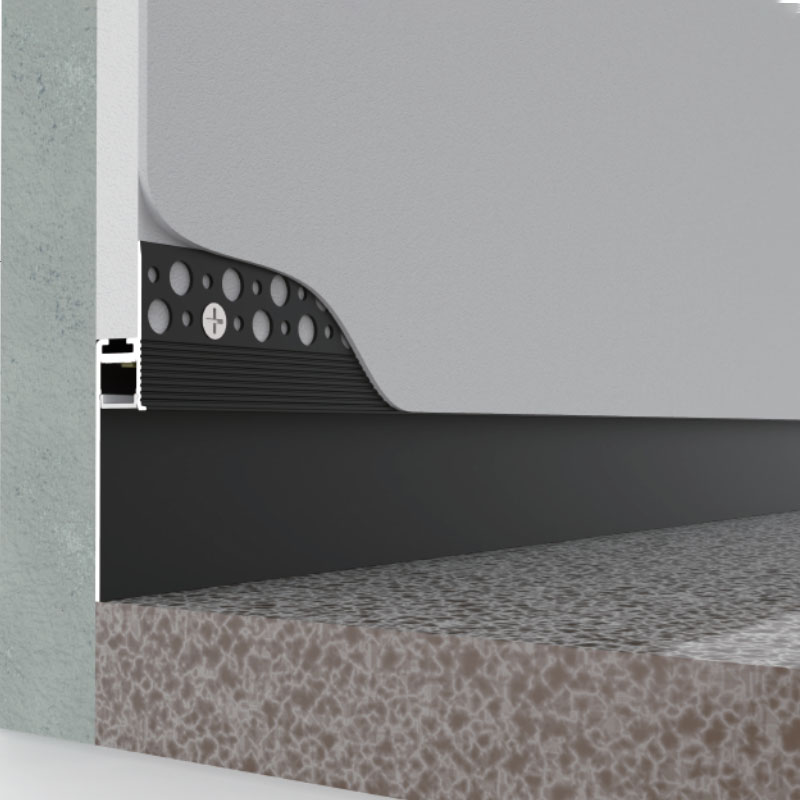

- Installation: Plaster-in 1/2" drywall
- Certification: CE, ROHS
- Warranty: 5 years
Includes:
1 * LED skirting baseboard channel with diffuser
End caps(with / without wire hole)

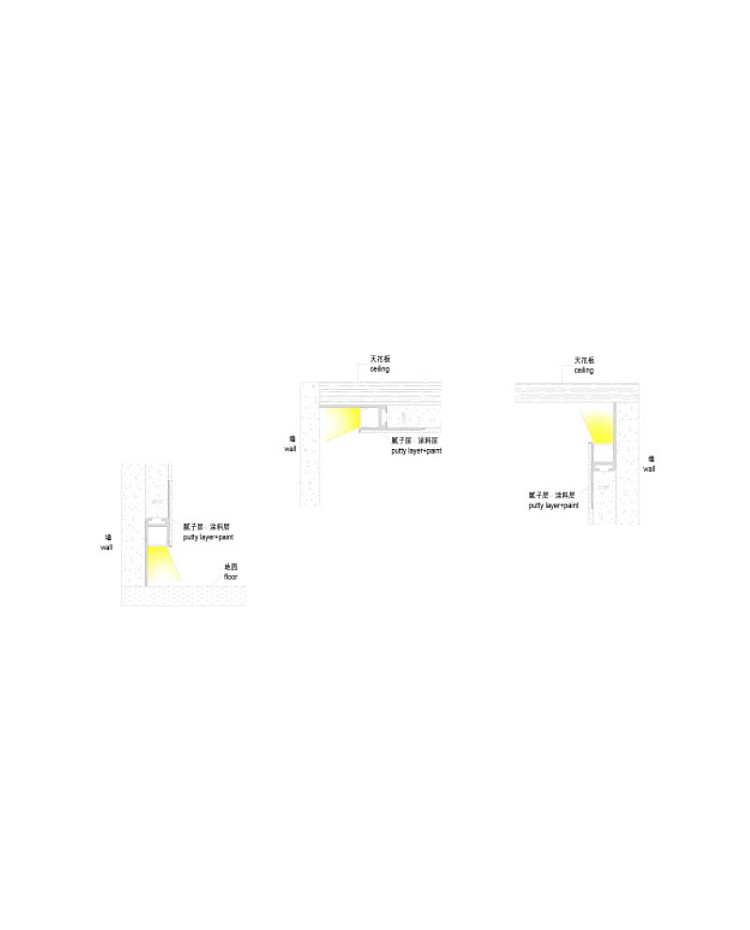

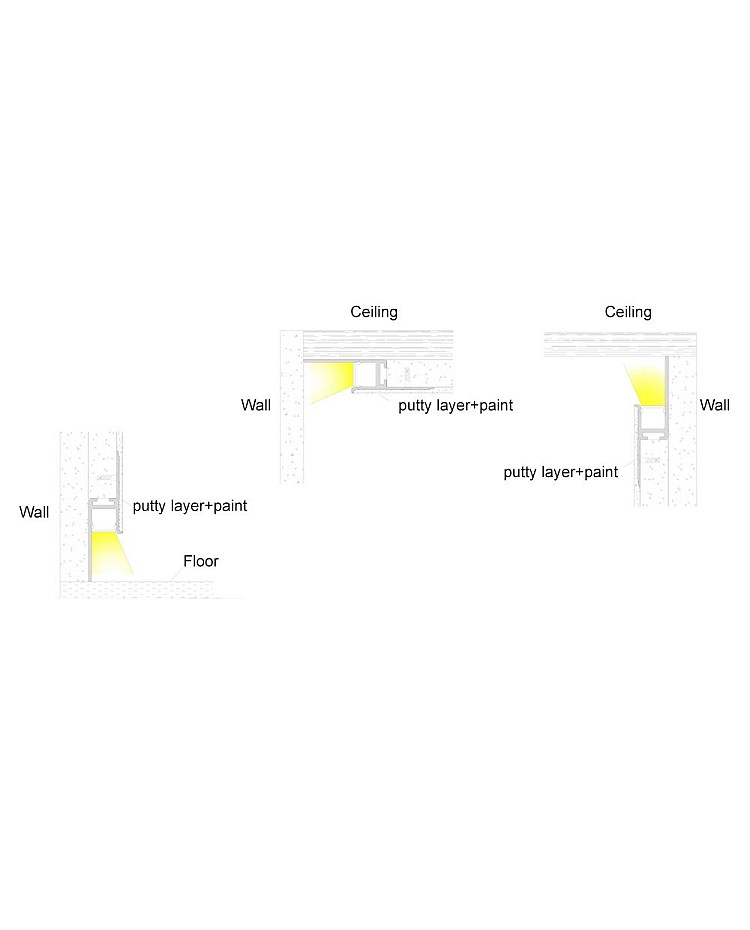

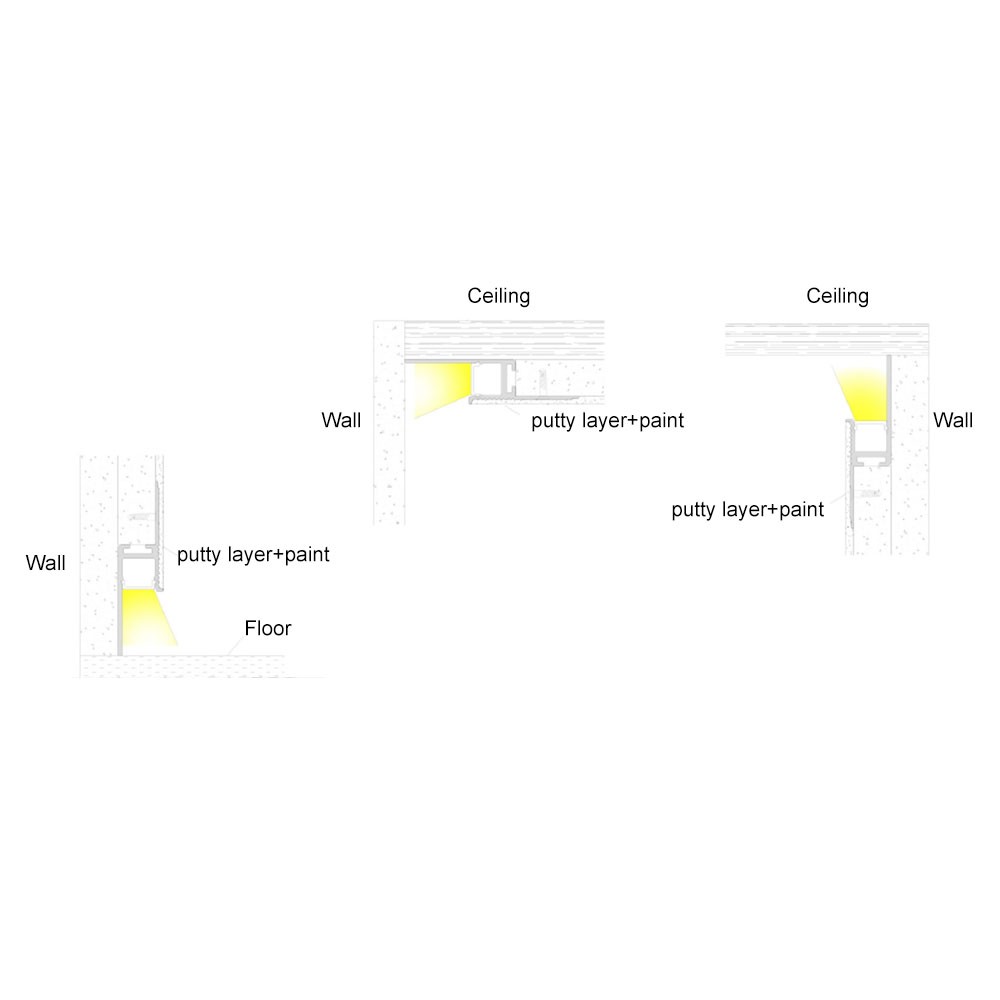

Applications:

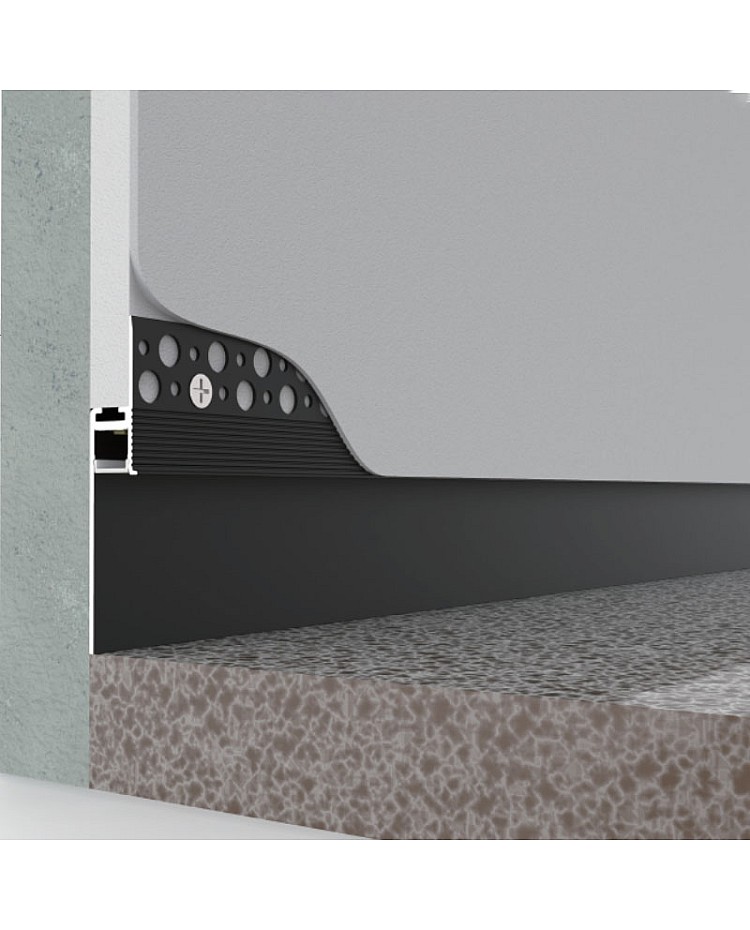

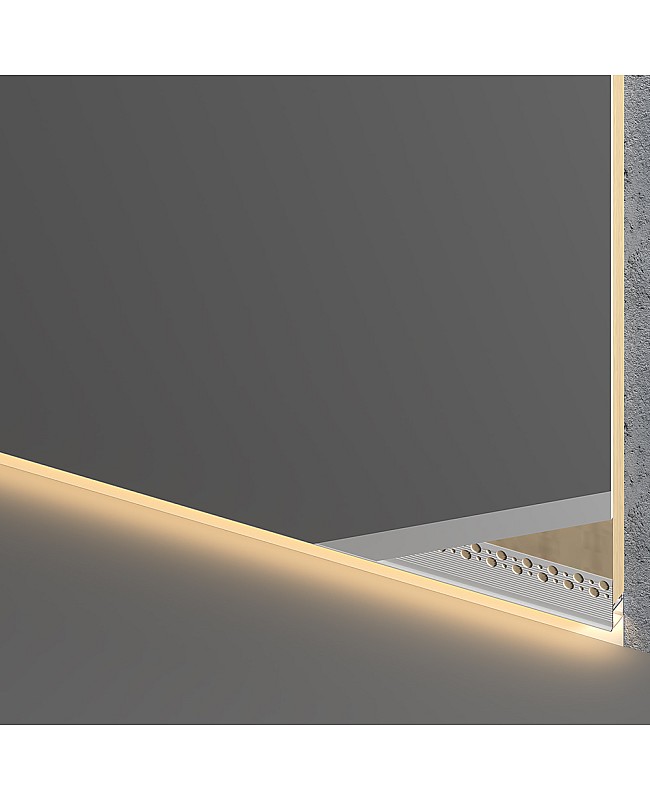

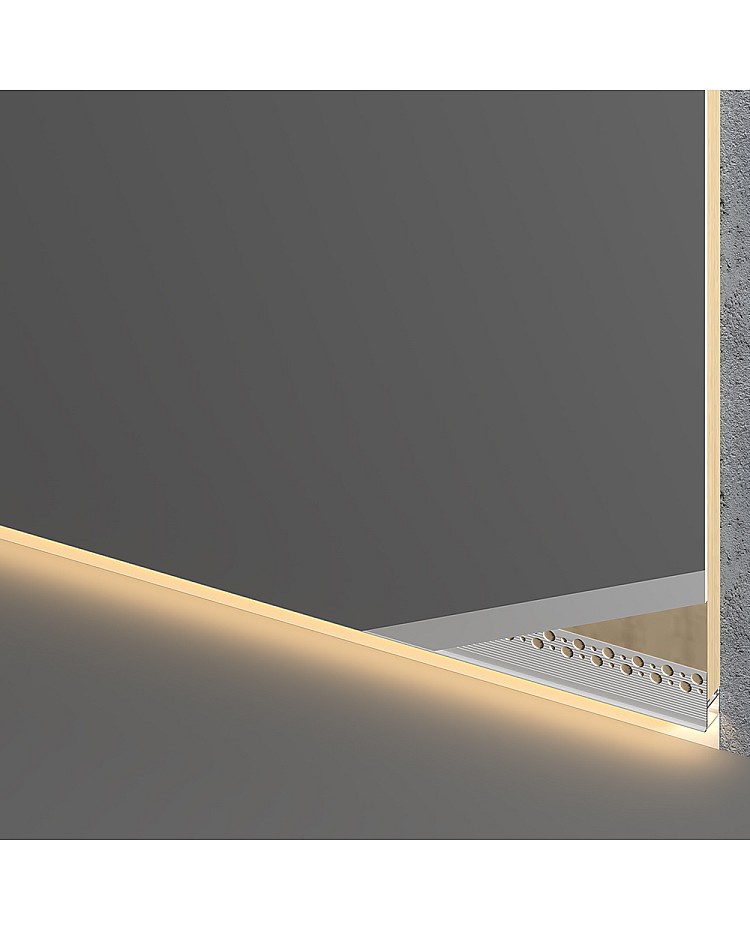

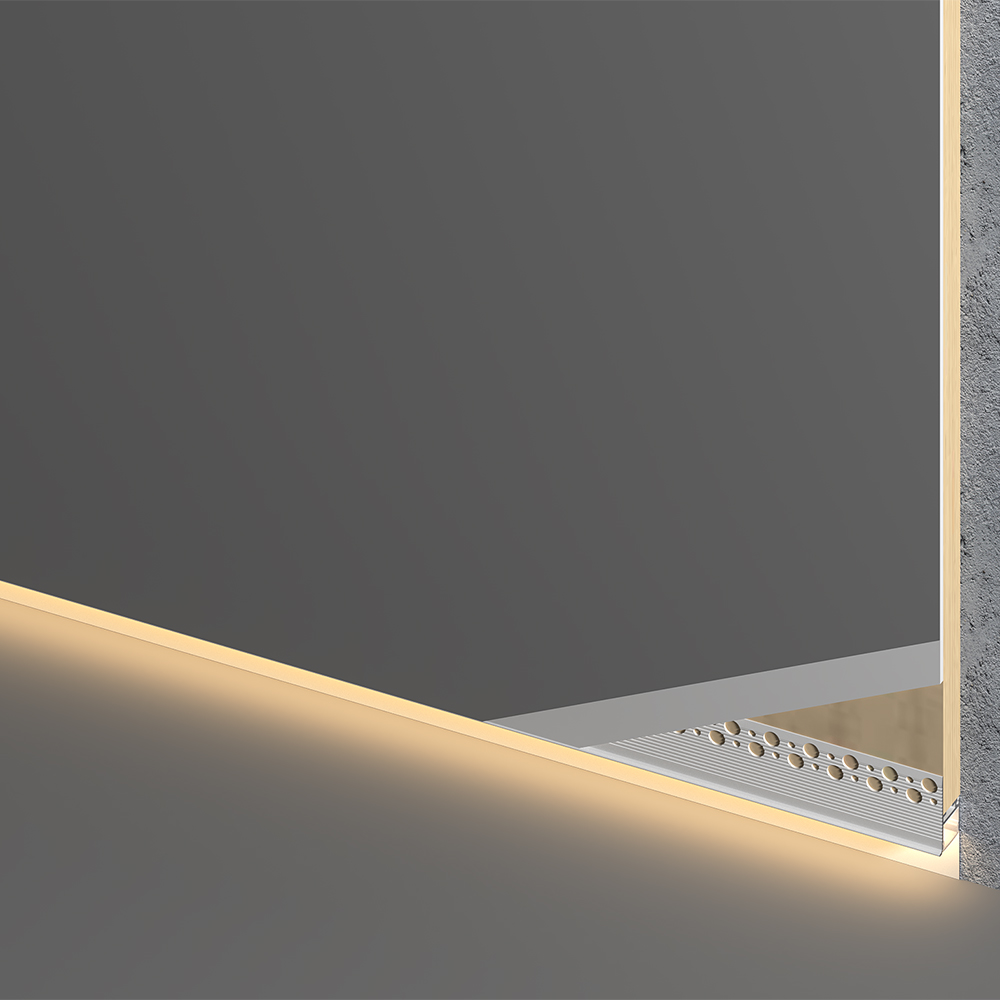

1. Wall-to-floor(Skirting Board Lighting): Install at the base of the wall, flush with the floor:
Purpose:
- Low-level ambient lighting
- Pathway or night lighting
- Aesthetic floor-wash effect in hallways, bedrooms, or hotel corridors.
2. Wall-to-ceiling (cove lighting): Recessed at the top edge of the wall where it meets the ceiling.
Purpose:
- Indirect ceiling wall lighting
- Enhances vertical space visually
- Creates a floating ceiling effect in living rooms, lobbies, or galleries
3. Ceiling-to-Wall(Indirect lighting from ceiling edge): Recessed in the ceiling along the edge of the wall.
Purpose:
- Creates soft indirect light down the wall
- Adds elegance and depth to interior walls
- Ideal for modern residential, retail, and hotel interiors
