Out Of Stock
$68.30
Reward Points: 57
-
+

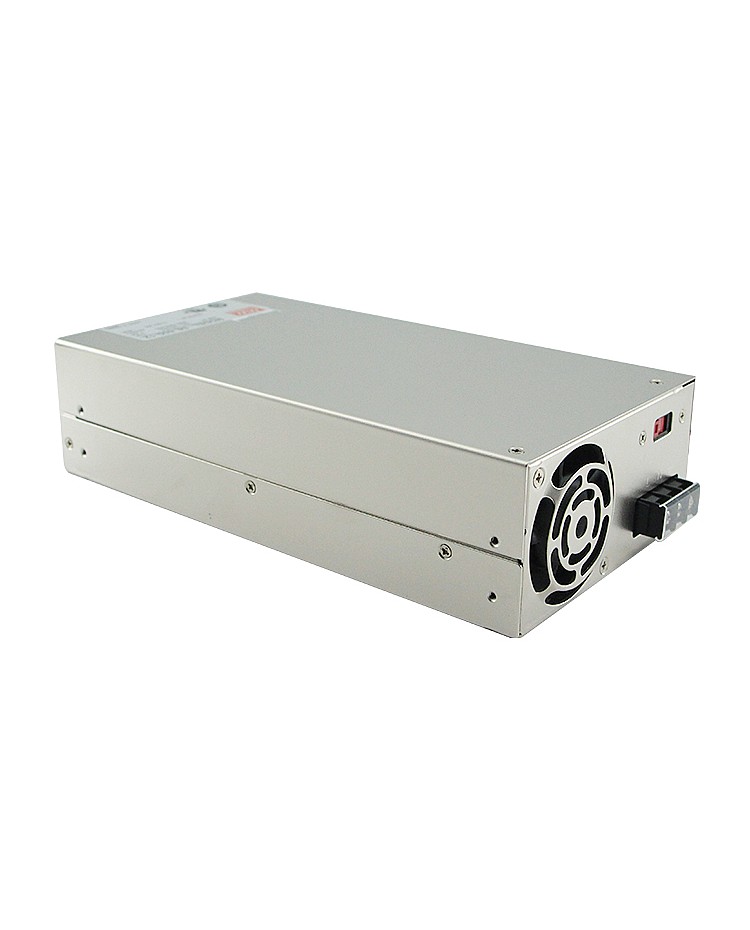

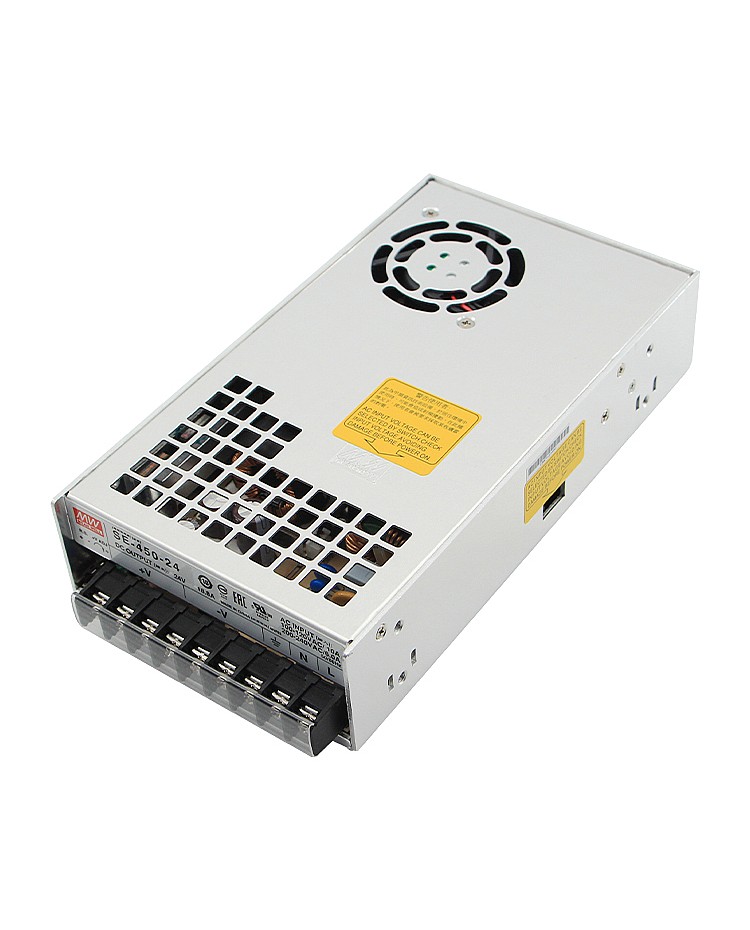

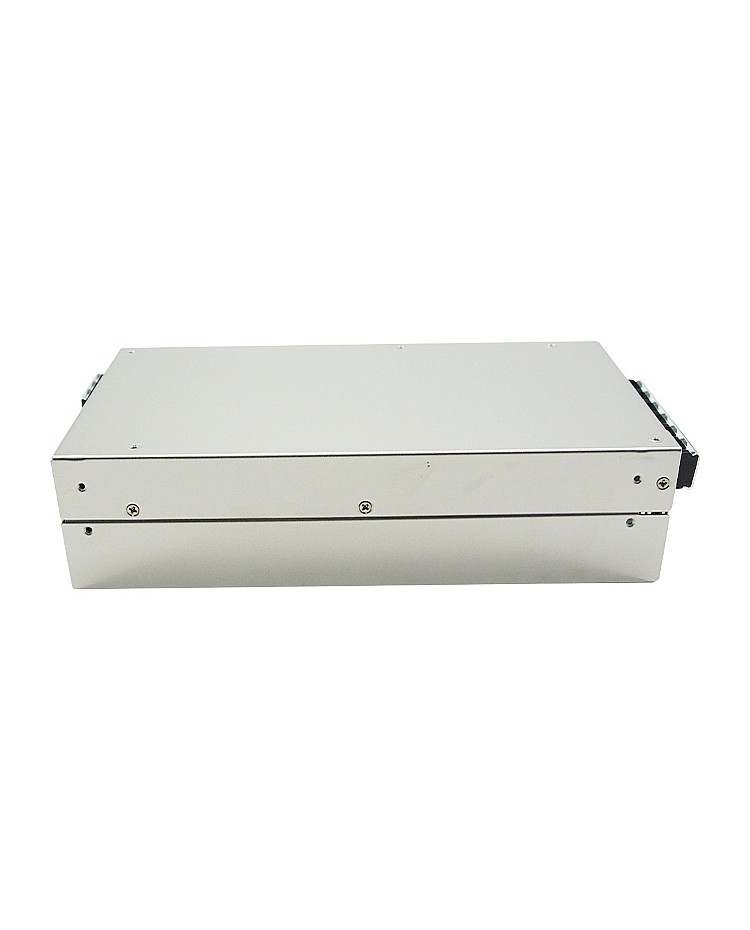

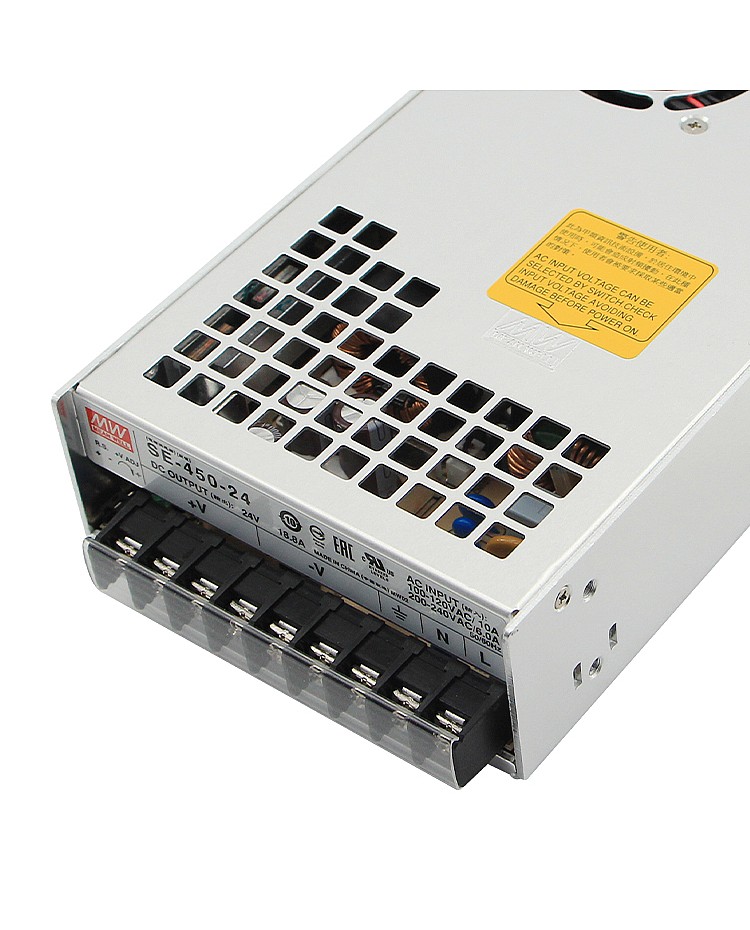

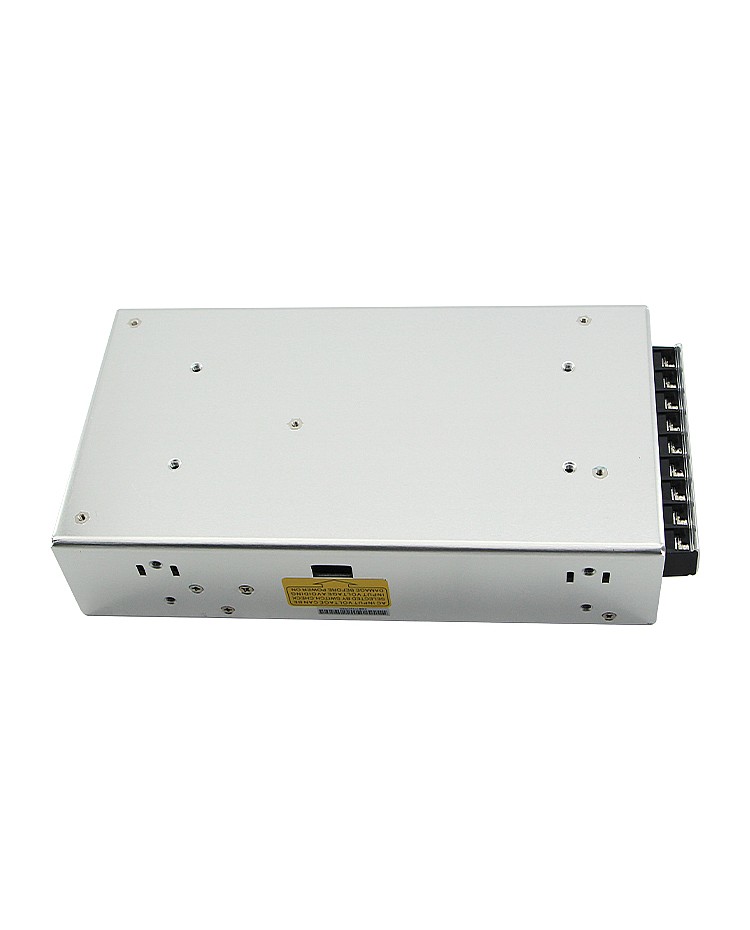

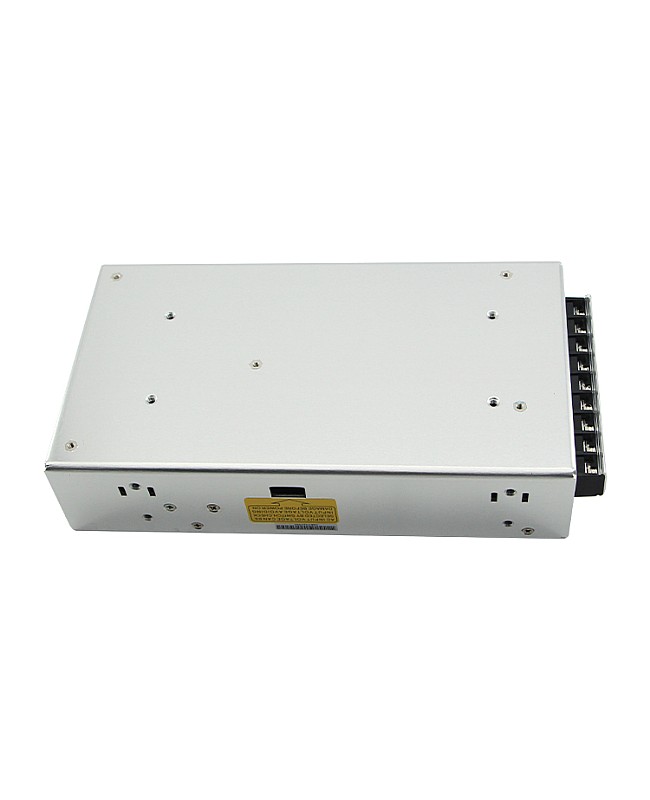

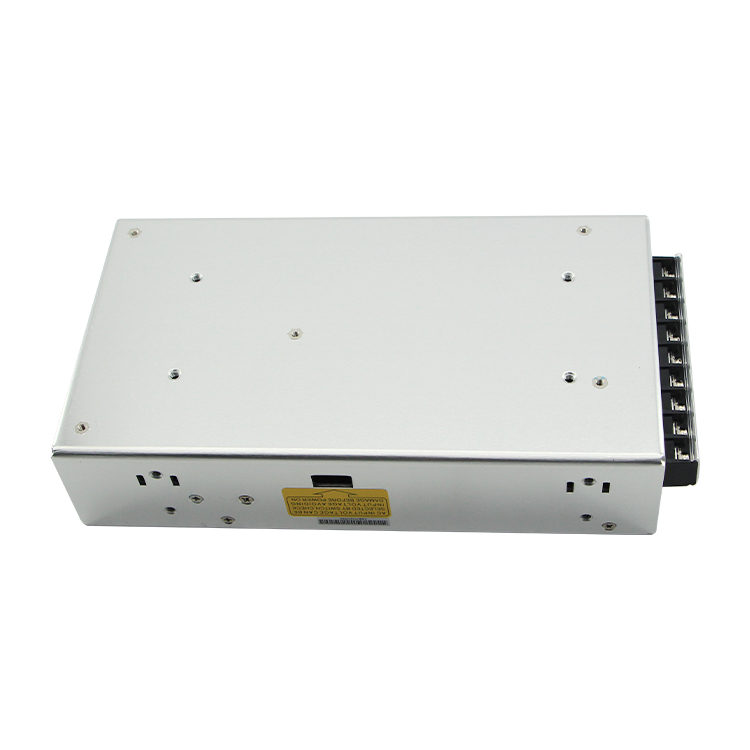

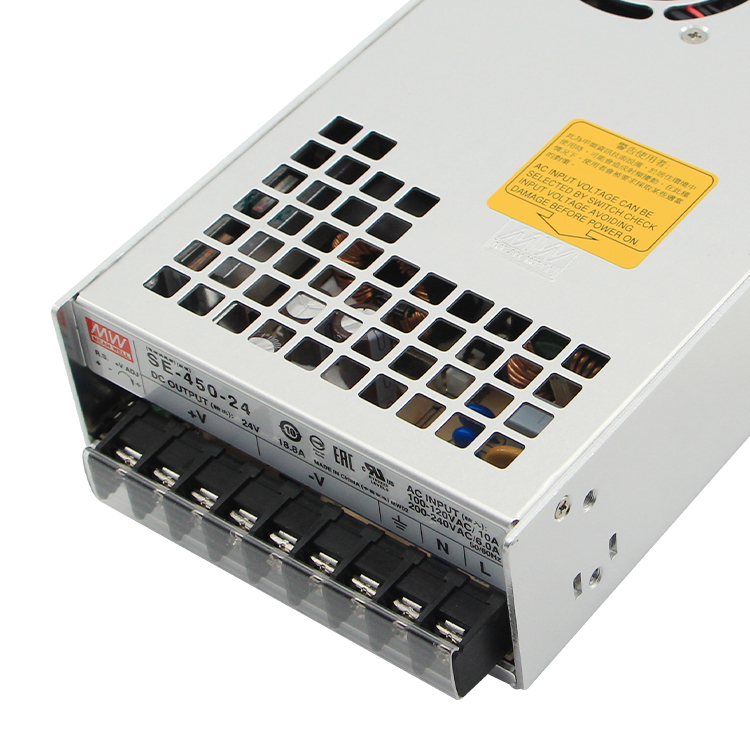

The Mean Well SE-450 series power supply has various DC voltage products available from DC3.3V, 5VDC, DC12V, DC15V, DC24V, DC36V, and DC48V. The single output constant voltage LED power supply with a wide input range from AC90V to AC264V, selected by a switch, can connect to the public power system without an adapter, with a high-efficiency rate of up to 88%, and with a built-in DC ball bearing fan for forced air cooling for heat dissipation. It has multiple functions to ensure working safety and reliability, is UL approved, and has a 2-year warranty.

  • AC Input Active Surge Current Limiting
  • AC Input Range Selected By Switch
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature

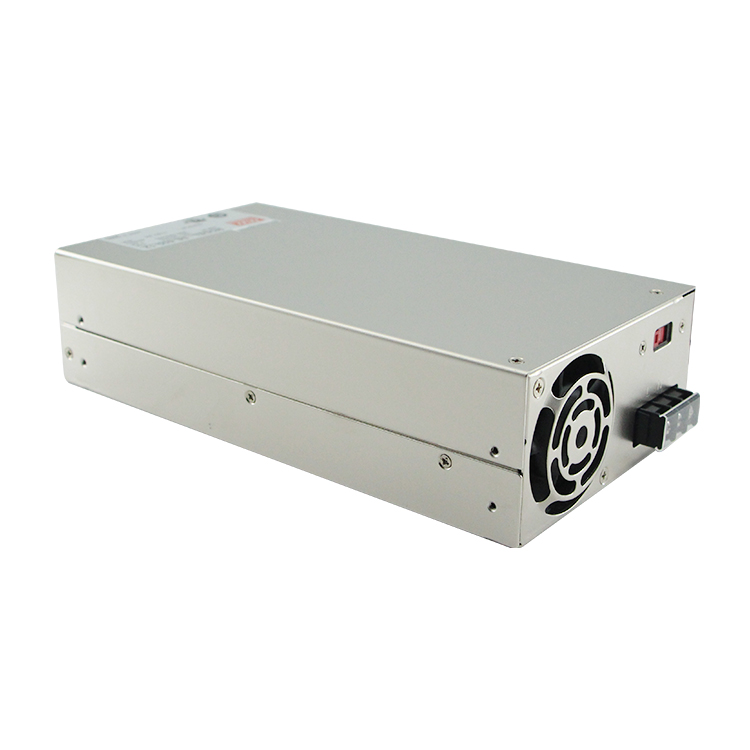

  • Forced Air Cooling By Built-in DC Ball Bearing Fan
  • Built-in Remote Sense Function
  • Intuitive LED Indicator Light For Power On
  • UL Approved
  • 2 Years Warranty

Quick Links:

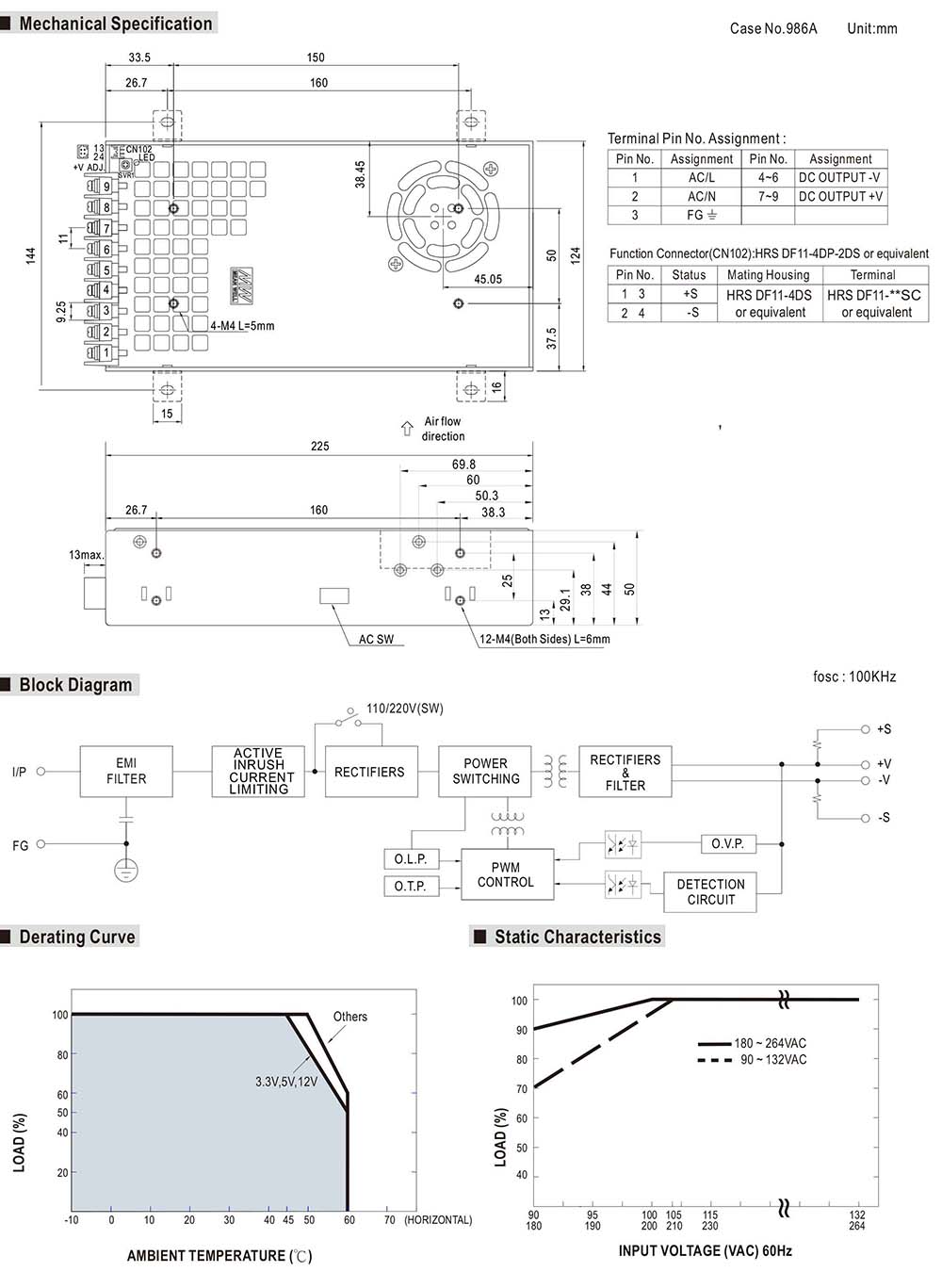

Mean Well SE-450 Series Specification Document


Specifications:

  • Model: SE-450

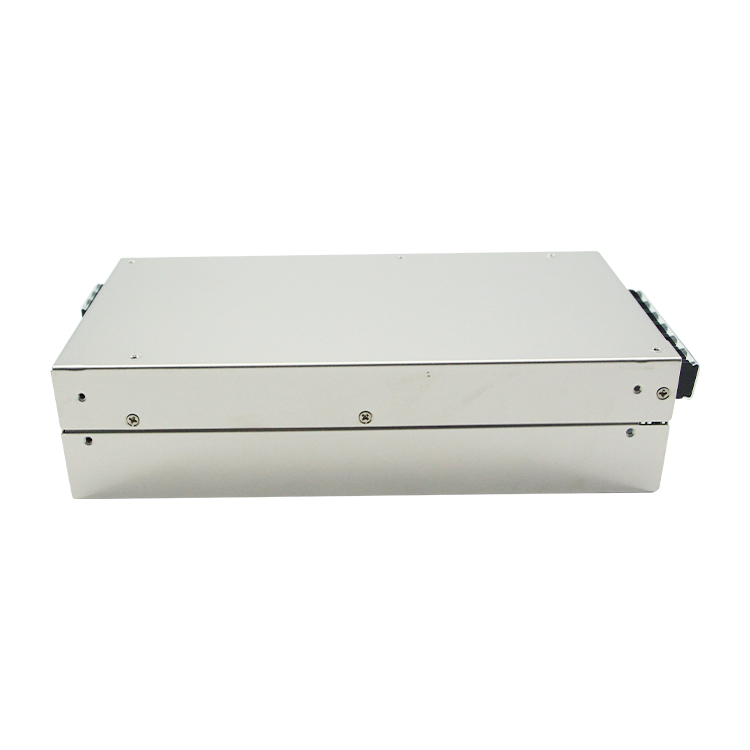

  • Size: 225*124*50mm(L*W*H)
  • Input Voltage Range: 90-132VAC/180-264VAC Selected By SW
  • Frequency Range: 47- 63Hz
  • Efficiency: 74%(DC3.3V), 78%(DC5V), 83%(DC12V), 84%(DC15V), 86%(DC24V), 86%(DC36V), 88%(DC48V)
  • AC Current: 10A/115VAC, 6A/230VAC
  • Output Voltage: DC3.3V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
  • Rated Current: 75A(DC3.3V), 75A(DC5V), 37.5A(DC12V), 30A(DC15V), 18.8A(DC24V), 12.5A(DC36V), 9.4A(DC48V)
  • Rated Power: 247.5W(DC3.3V), 375W(DC5V), 450W(DC12V), 450W(DC15V), 451.2W(DC24V), 450W(DC36V), 451.2W(DC48V)
  • Working Temperature: -10℃-60℃
  • Vibration: 10-500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
  • Safety Standards: UL 62368-1, EAC TP TC 004, BSMI CNS 14336-1 Approved
  • Overload Protection
  • Over-Voltage Protection
  • Over Temperature Protection


Includes:

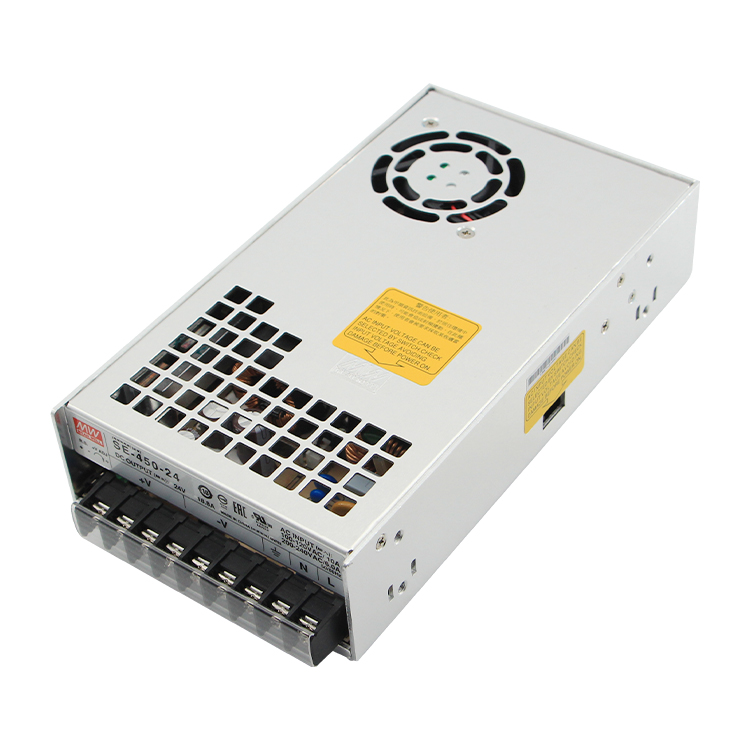

1 * MW SE-450 Power Supply 5VDC

Mean Well SE-450-15
