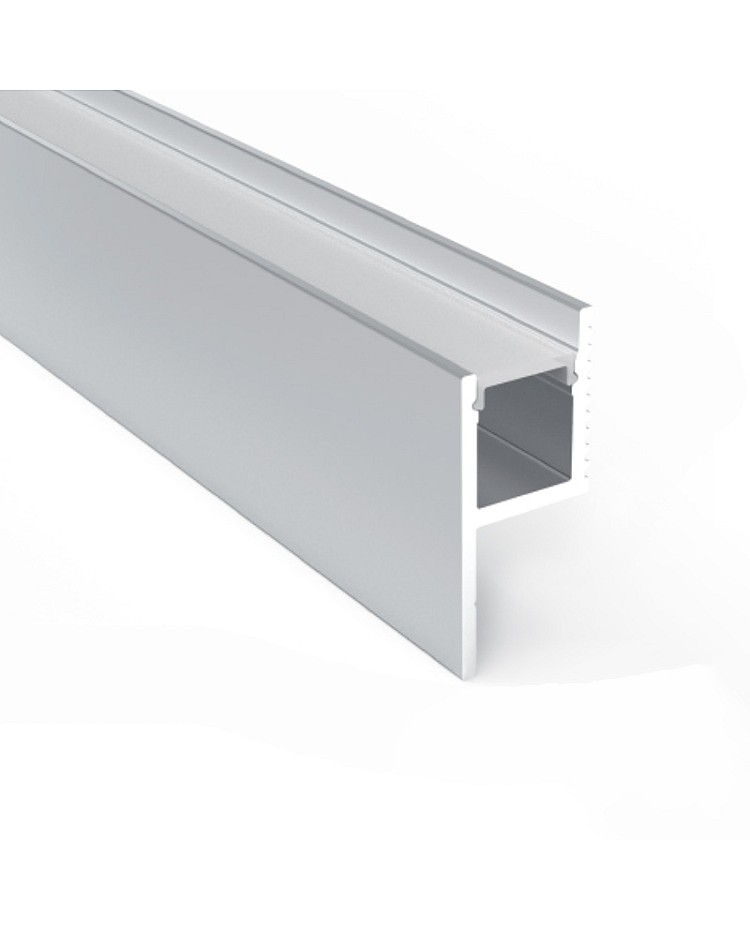

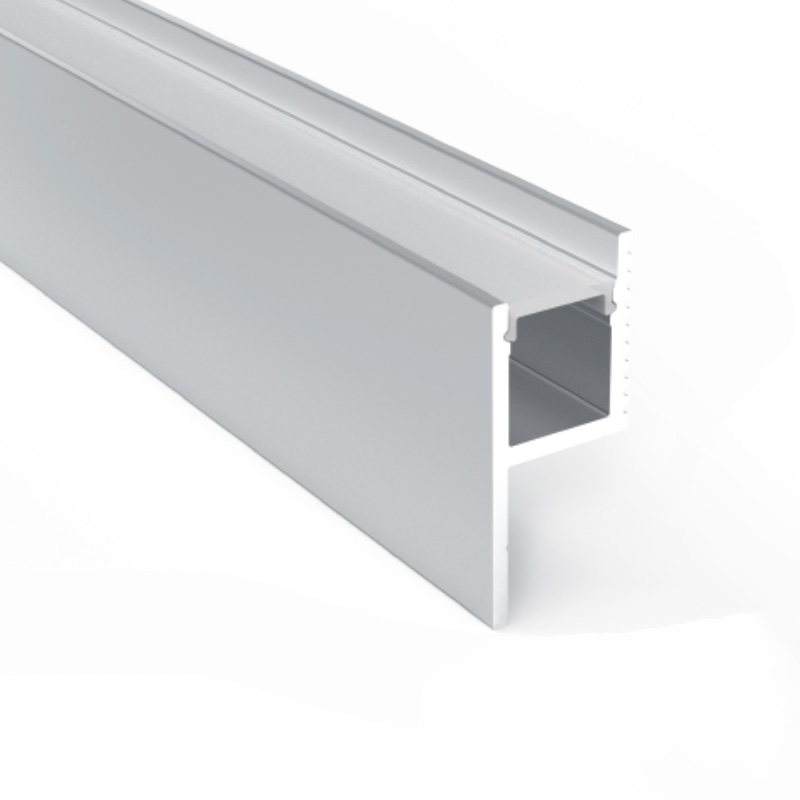

The ALP116 LED lighting fixtures are a cheap and versatile lighting solution for recessed into 12.5mm drywall. They are designed for seamless integration into 1/2" drywall ceilings and walls, and provide uniform, glare-free light output. With its minimalist appearance and clean lines, it offers an elegant solution for architectural lighting. The plasterboard LED profiles feature an anti-glare design, and the diffuser sits back a little from the edge to prevent harshness. Ideal for modern residential, commercial, and interior design applications. The stock length is 2 meters per piece, and custom lengths are supported. The inner width is 10.3 mm, allowing the maximum width of LED strips to be 10 mm. We recommend using our high-density COB strip lights as the light source for uniform lighting without visible light dots. The aluminum channels can be used as heat sinks for better heat dissipation to extend the lifespan of LED lights. The drywall light fixtures are made of extruded aluminum material with anodized surface treatment for anti-oxidation resistance and a longer lifespan. Only one type of diffuser is available: the PC diffused cover, which is made of brand material, is anti-yellowing, and has perfect lighting distribution. End caps with and without wire holes are included.
Specifications:
- Model: ALP166
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

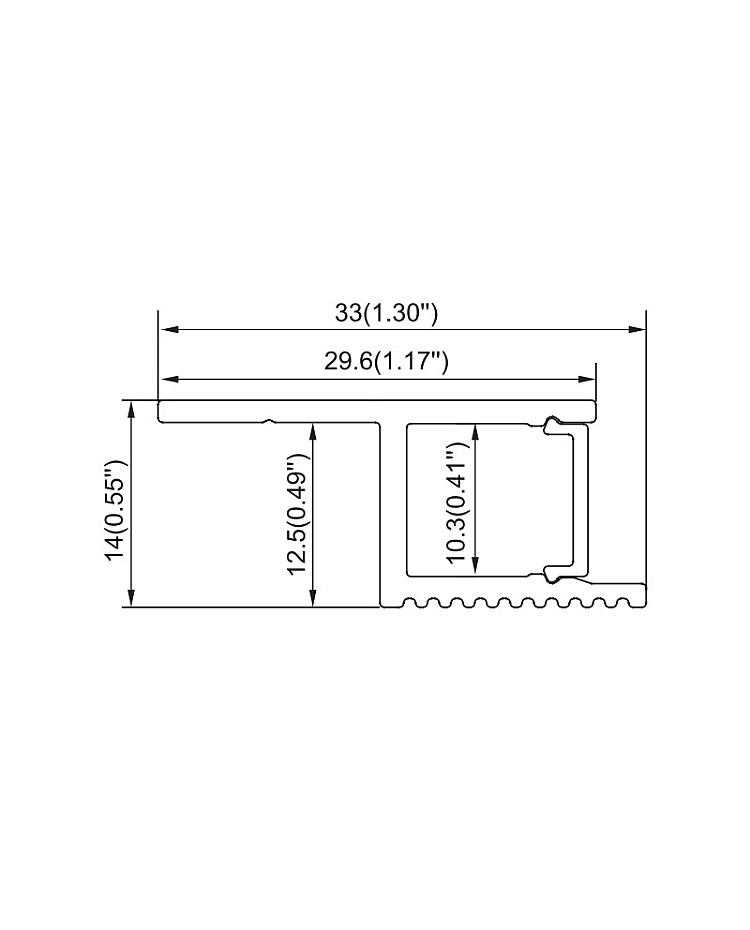

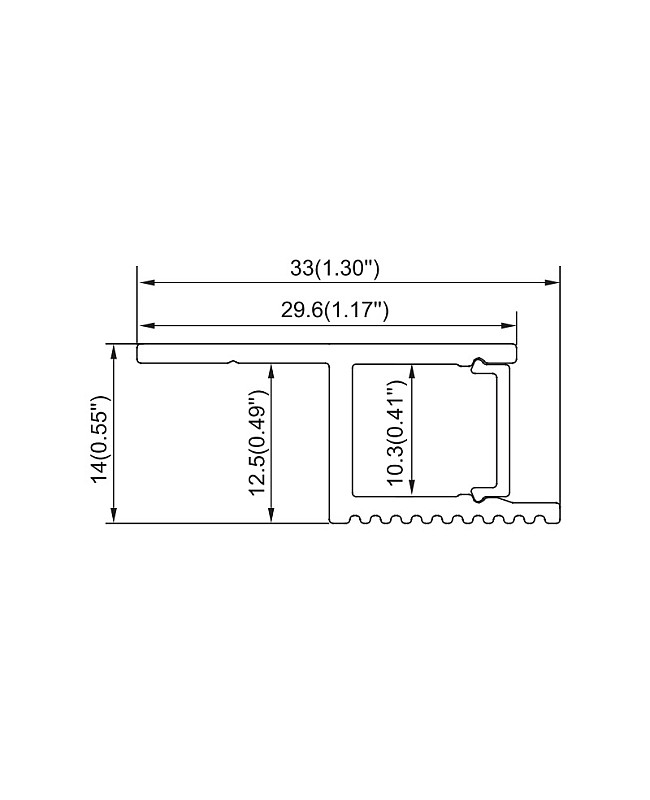

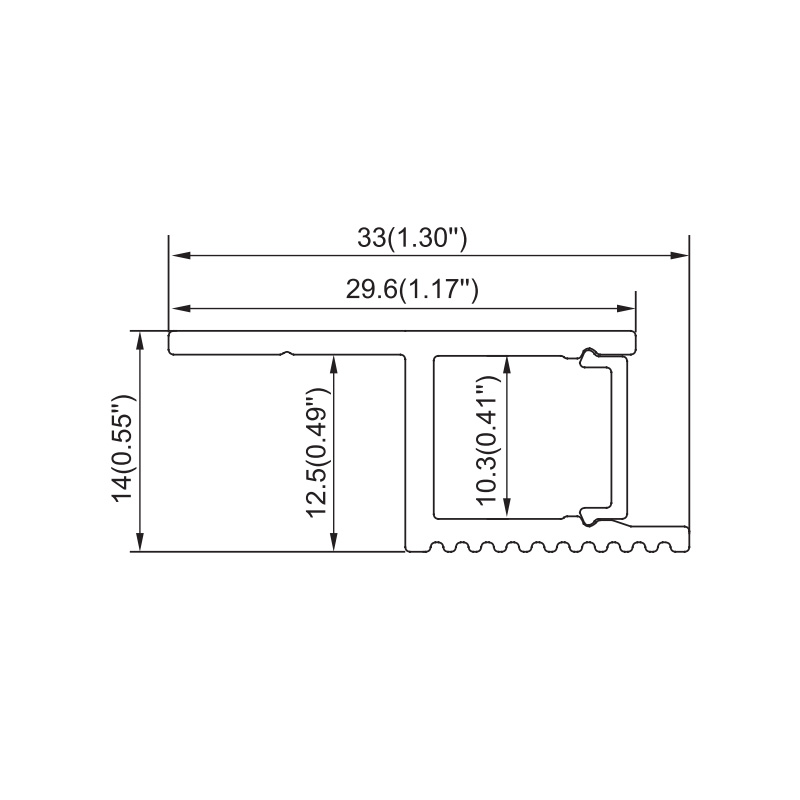

- Size (W x H): 33 mm x 14 mm ( 1.3" x 0.55" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10.3 mm ( 0.41" )
- Max LED strip width: 10 mm ( 0.39" )
- Max power: 15W/m
- Diffuser: PC diffused cover
- Beam angle: 100°
- IP rating: IP20 non-waterproof
- Tolerance: ±1%

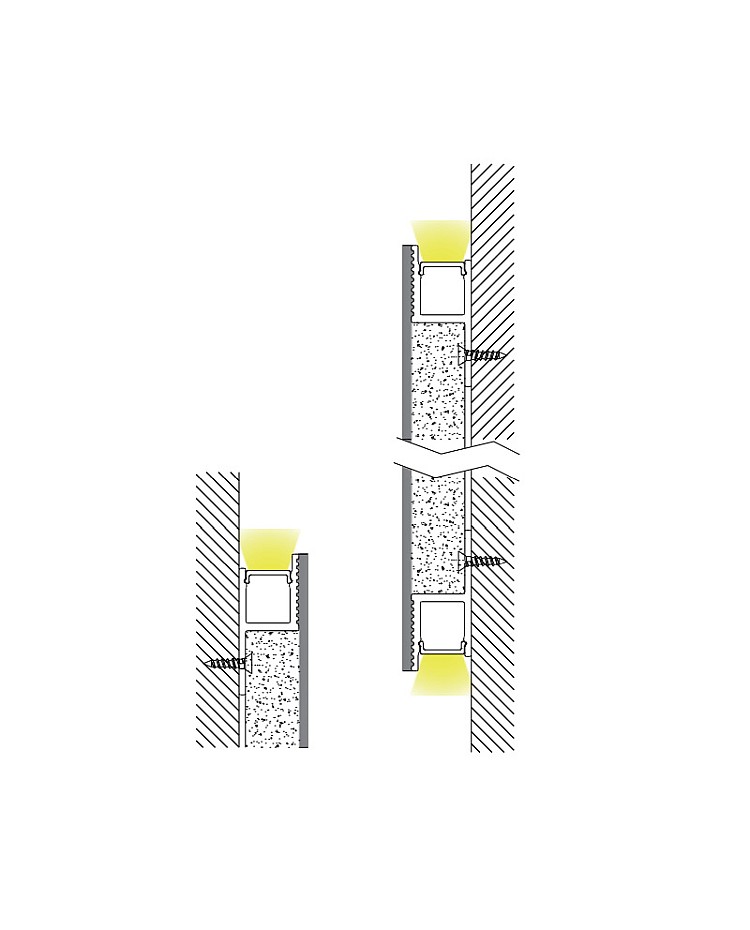

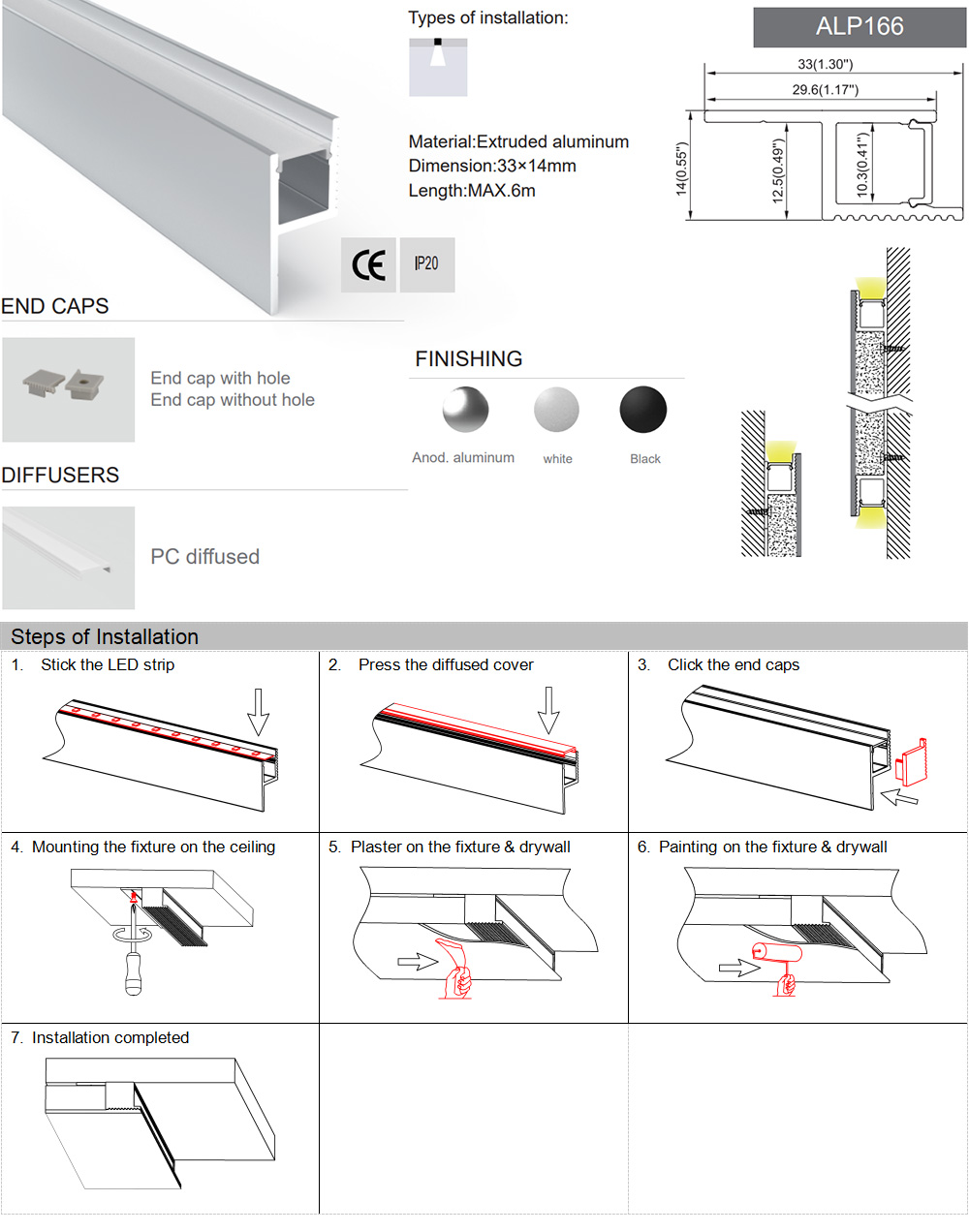

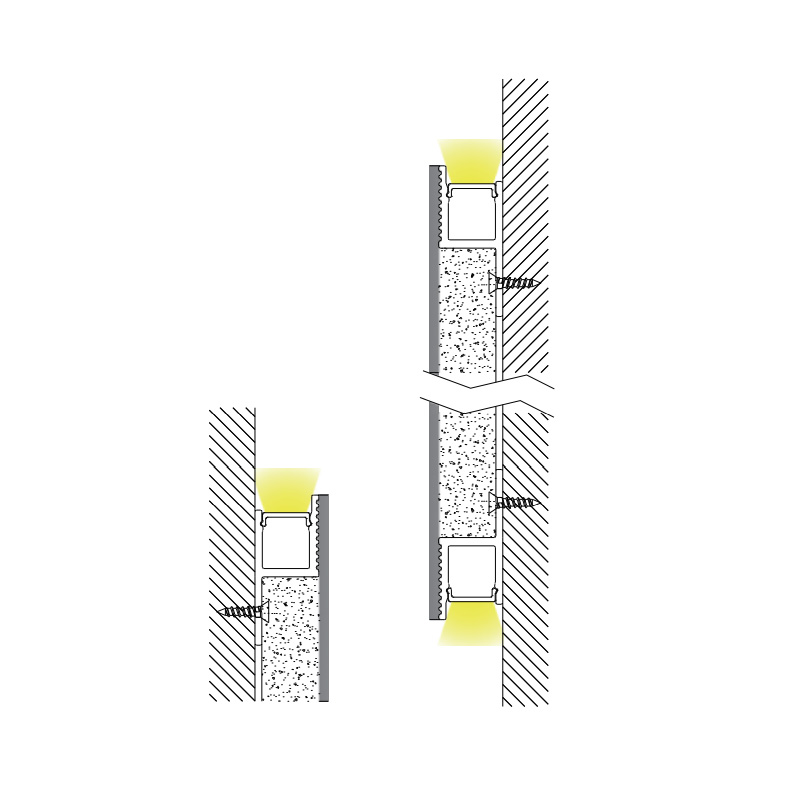

- Installation: Recessed 1/2 drywall

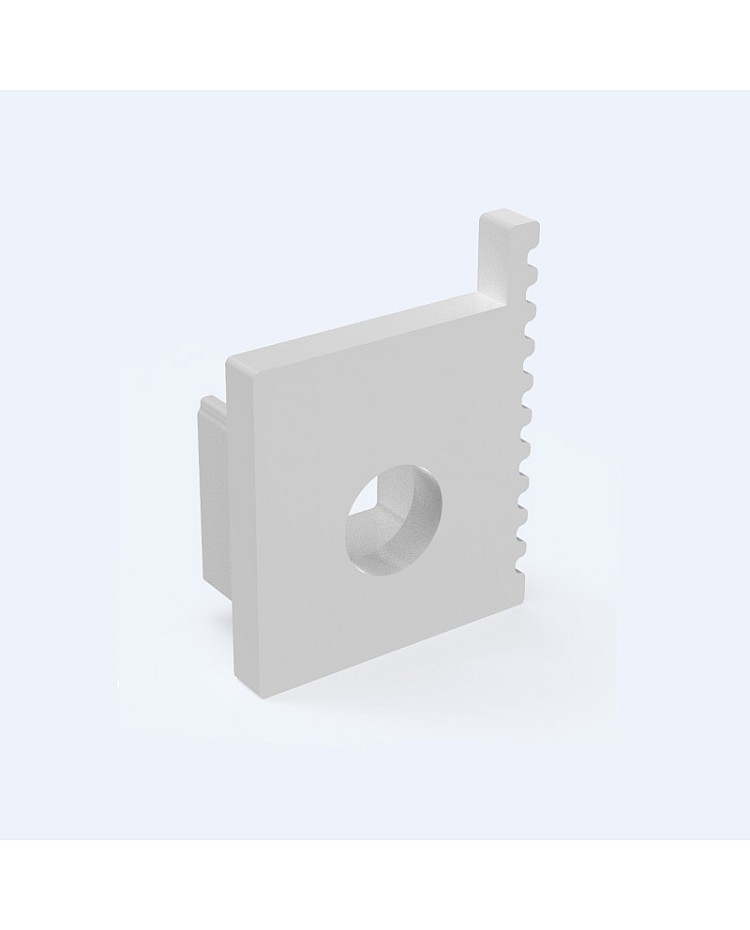

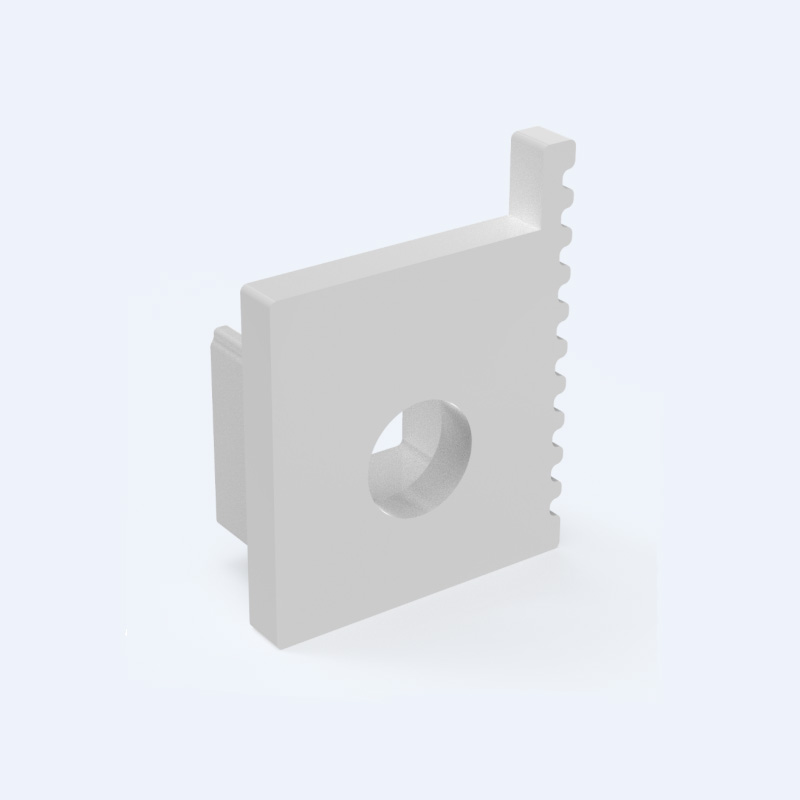

- End caps with and without wire holes are included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Living room & bedrooms: for ambient or cove lighting

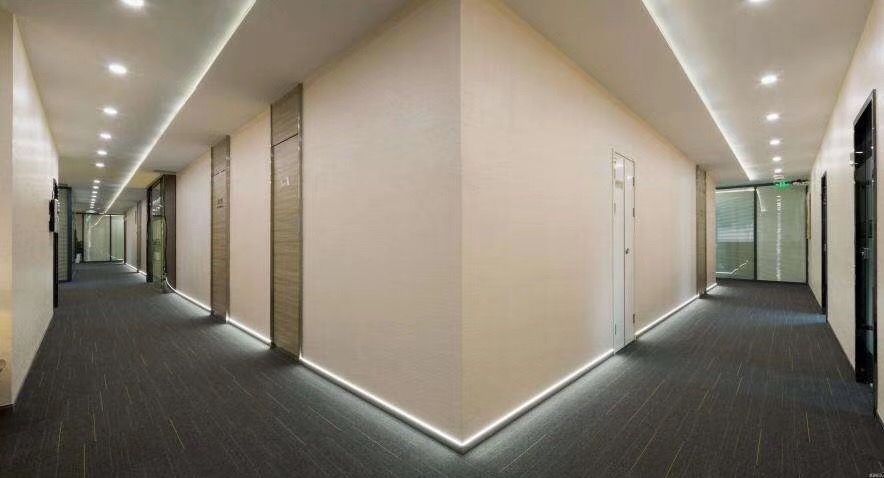

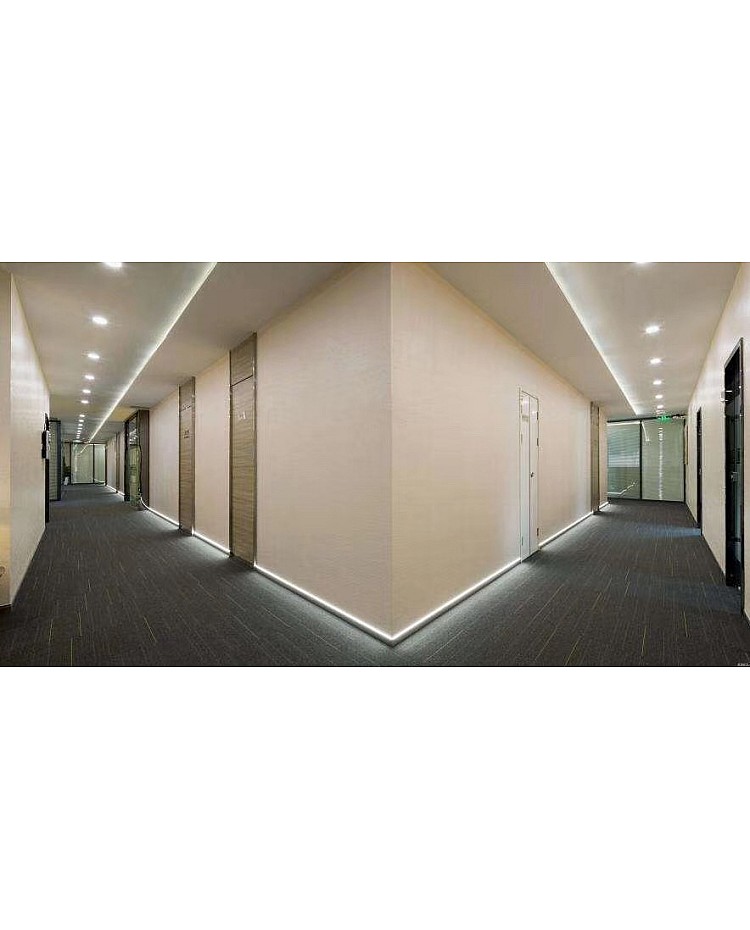

- Hallways & staircases: sleek linear lighting that blends into the ceiling or wall
- Kitchens: integrated lighting under cabinets, above counters, or in ceiling niches
Includes:
1 * LED lighting fixture with diffuser
End cap (With/without wire hole)
