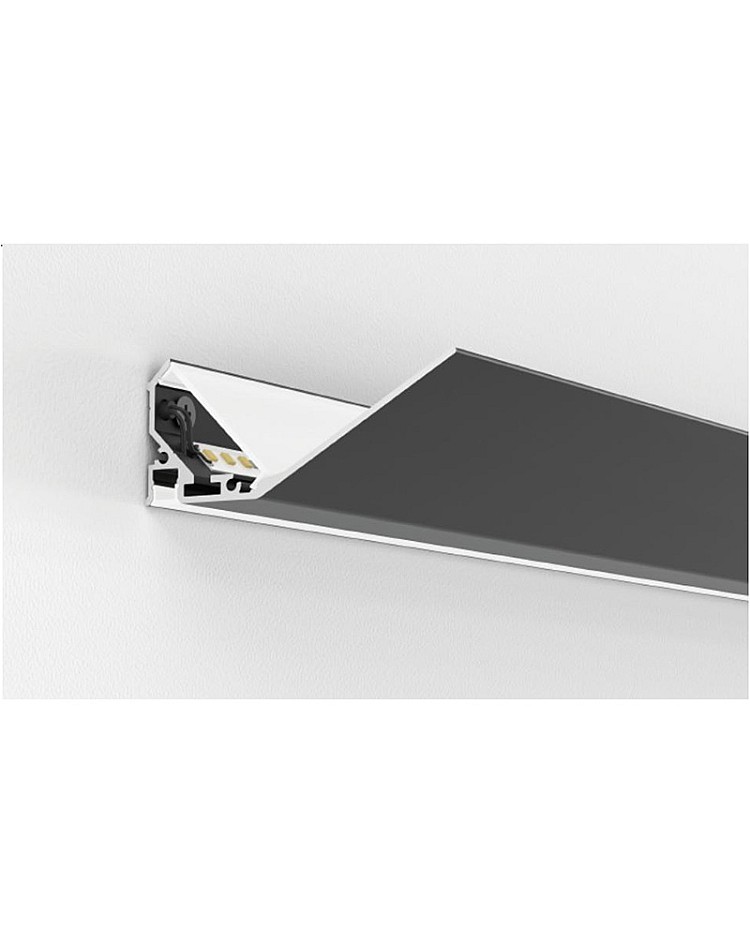

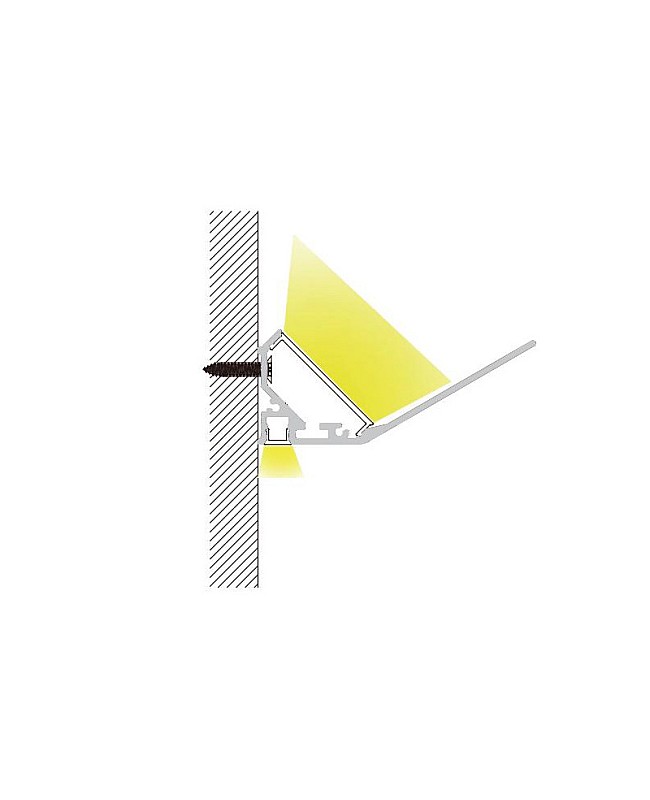

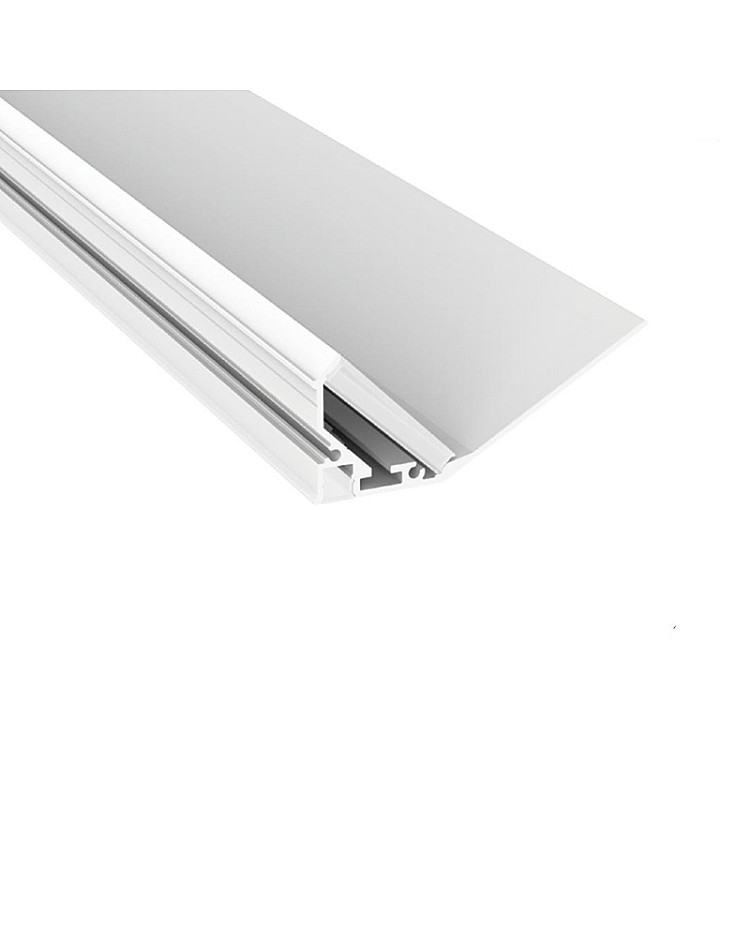

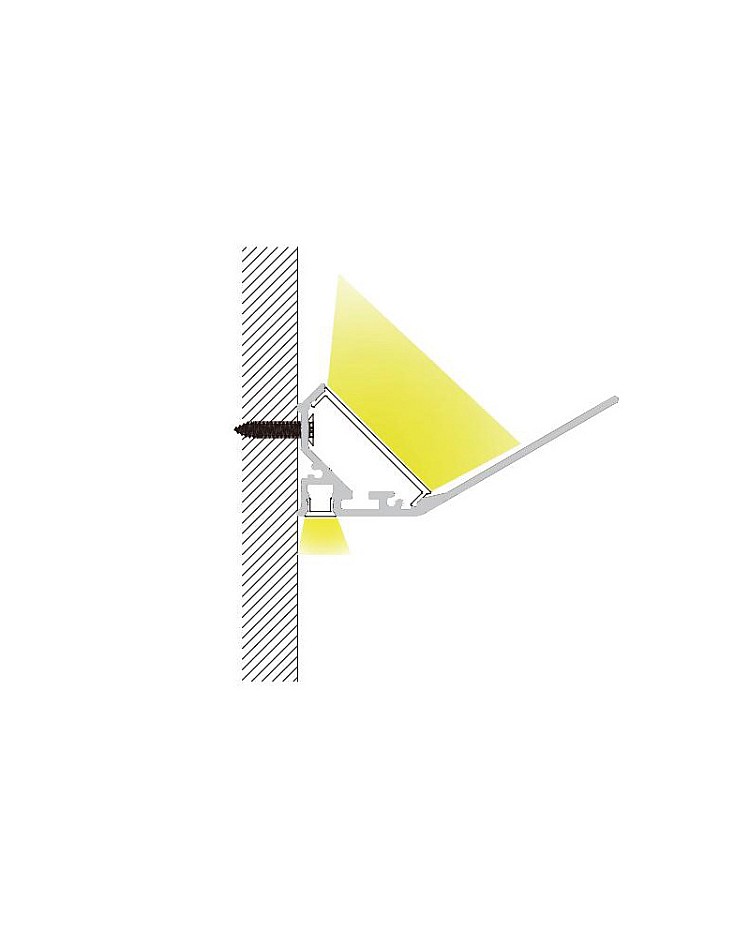

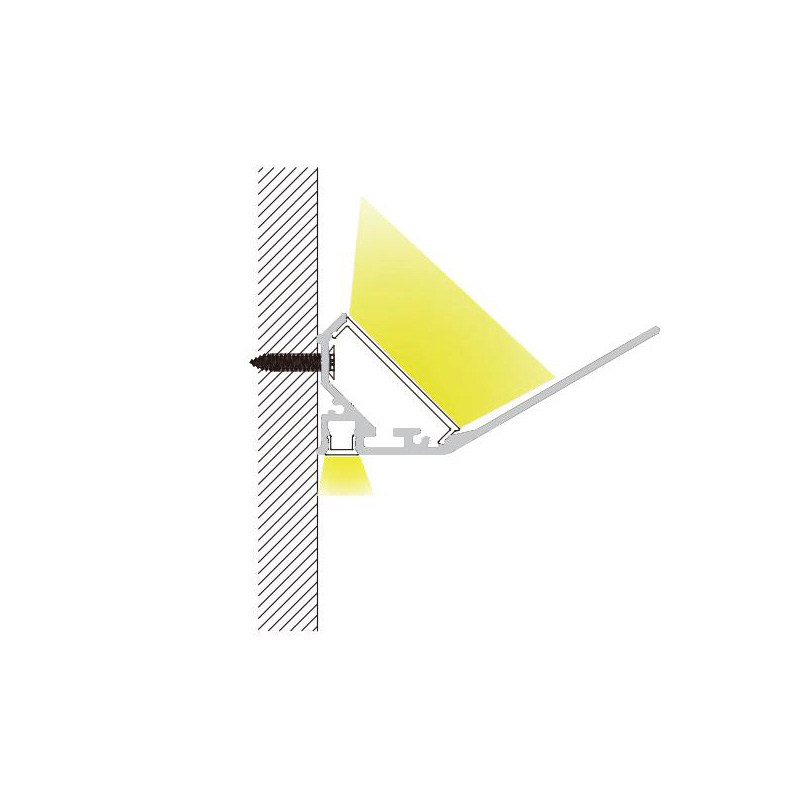

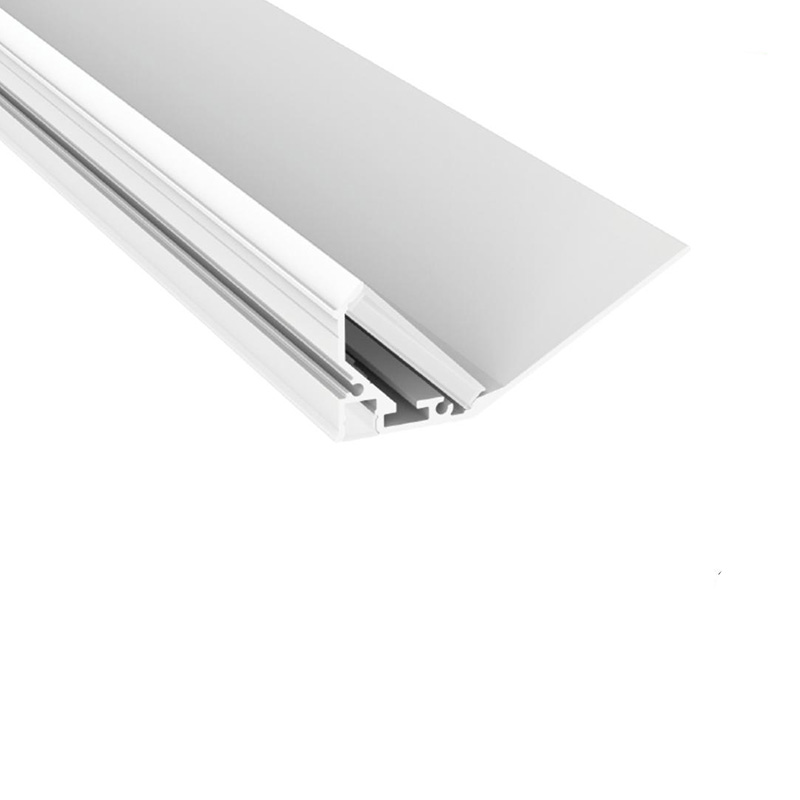

The molding LED channels are designed for soft indirect ceiling light. It features an up-and-down lighting for indirect illumination on the ceiling and direct illumination on the wall. There is a reflective board that directs the LED lights at a wide angle towards the ceiling. The lower slot allows for the addition of narrow LED strips as accent lighting. This is a perfect solution for ceiling cove lights, typically used to install LED strips in cove lighting applications. These mold channels are made of extruded aluminum material with a powder-coated surface treatment, providing anti-oxidation resistance and a longer lifespan. The cove light channels come in various sizes, with lengths of 1M and 2M available, allowing them to be cut to any size to meet your needs. The inner width of the upward is 15.4mm, allowing for a maximum width of strip lights of 15mm. The inner width of the downward is 7mm, allowing for a maximum width of Tape Lights of 7mm. Recommend using high-density COB tape lights as the light source, which produce uniform light without visible dots or dark areas. The cove lighting channels hold the LED strips securely in place while allowing for easy installation and maintenance. Two types of diffusers are available: PC diffused covers and PC semi-clear covers, which are made of brand-stable material, are anti-yellowing, and have perfect light distribution. There are 90° horizontal, 90° vertical, and 180° connectors available, which can be used for both angled and straight connections.

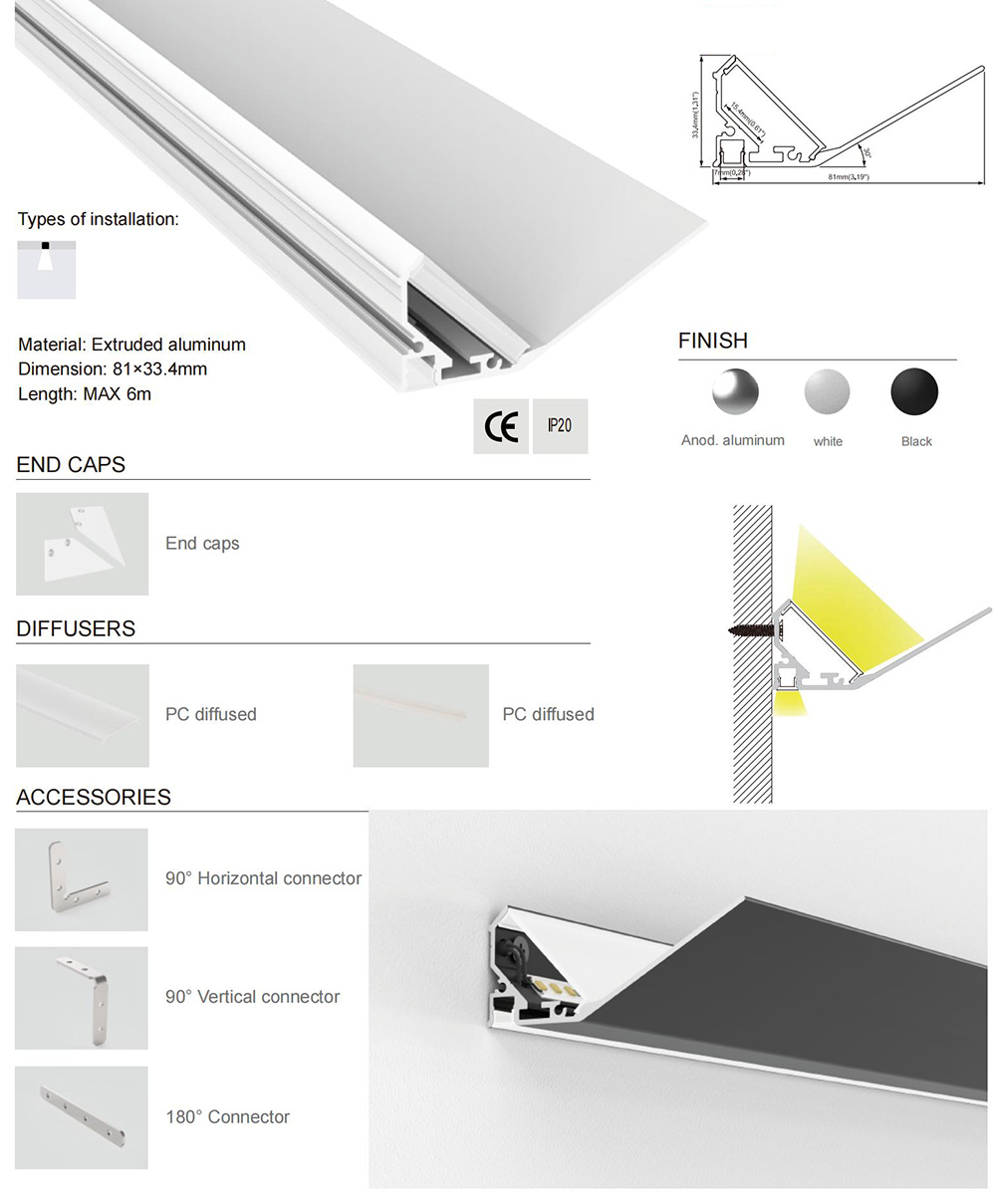

Specifications:
- Model: ALP201
- Material: Extruded aluminum
- Surface Treatment: Anodized
- Color: White

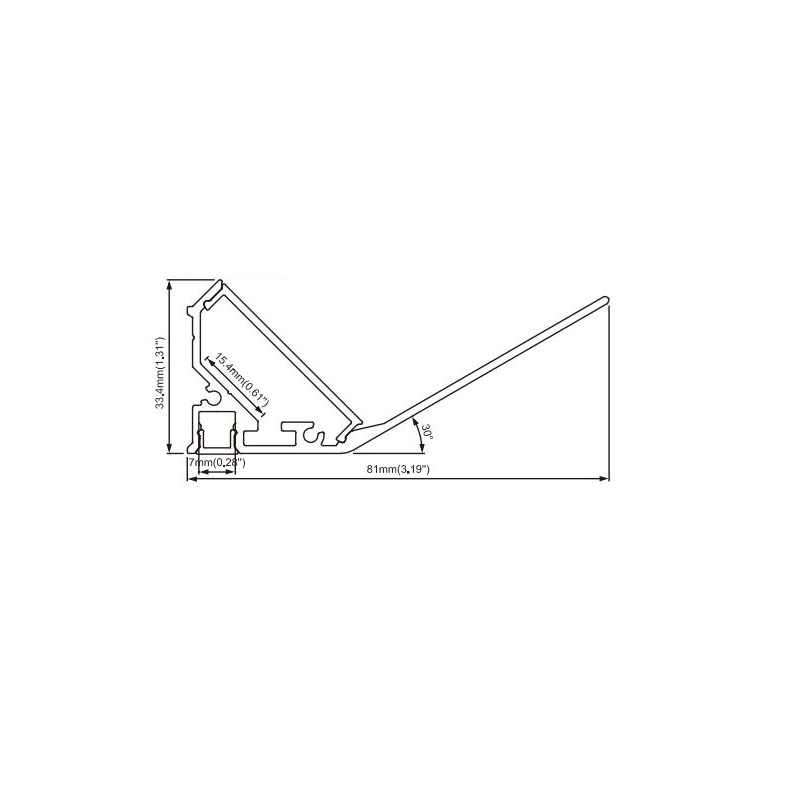

- Size(W*H): 81*33.4mm / 3.19" * 1.31"
- Length: 1 m(39") / 2 m(78")
- Custom Length: YES
- Diffusers: PC diffused / PC semi-clear covers

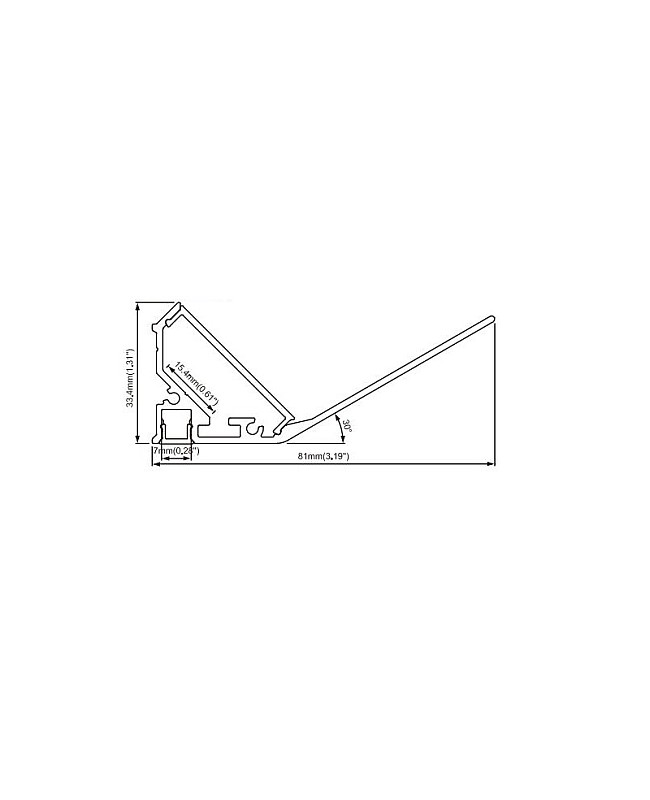

- Inner Width: 15.4mm / 0.61" (upward) / 7mm / 0.28" (downward)
- Power: 20W/M
- Allows the maximum width of strip lights to be 15mm (upward) / 7mm (downward)
- Tolerance: ±1%
- Waterproof Level: IP20 non-waterproof
- 90° horizontal connectors, 90° vertical connectors, and 180° connectors sold separately
- Installation: Surface mounted
- Application: Cove lighting
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * Cove light ceiling channel
1 * Diffused cover
End caps
