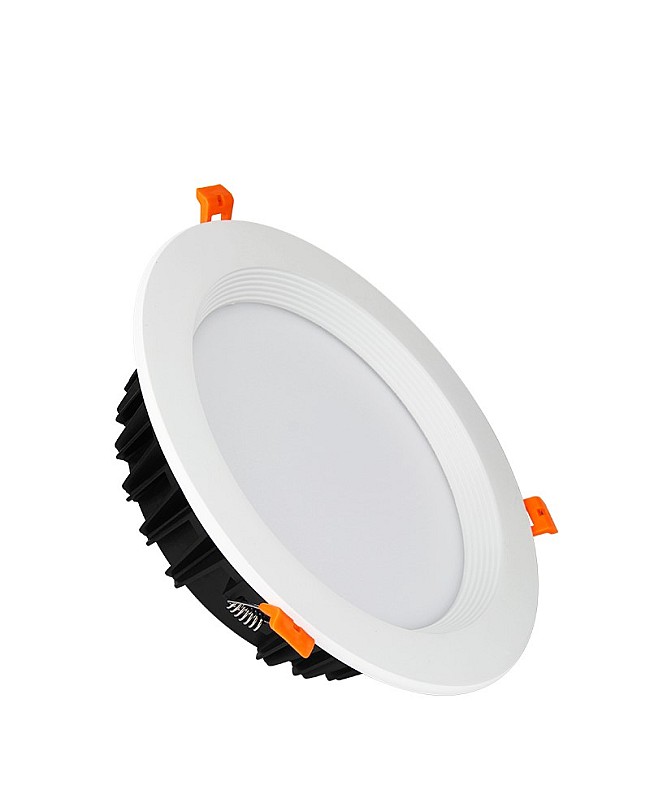

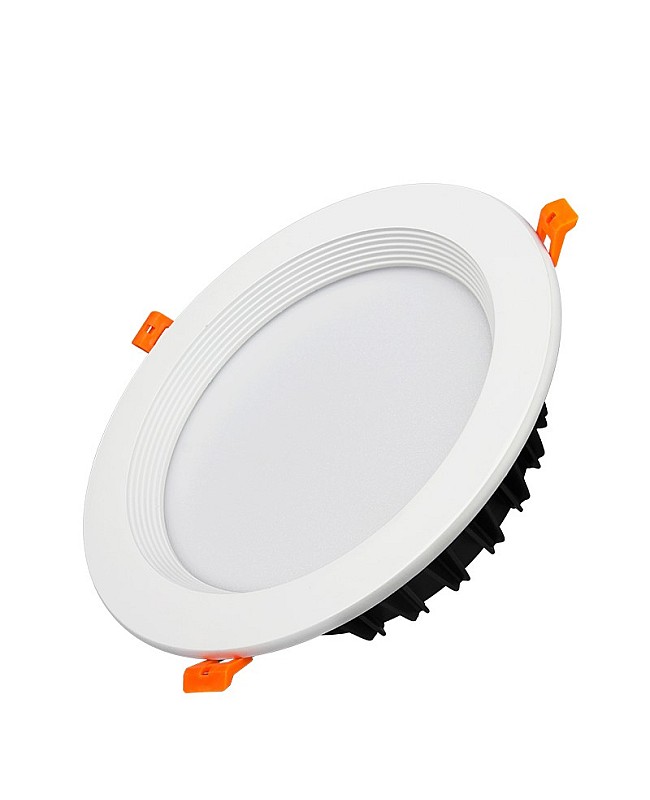

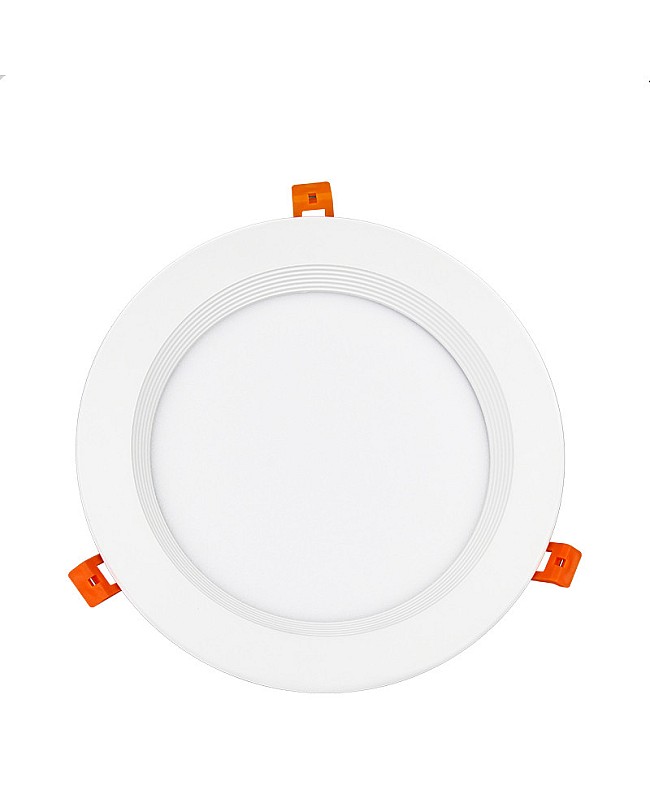

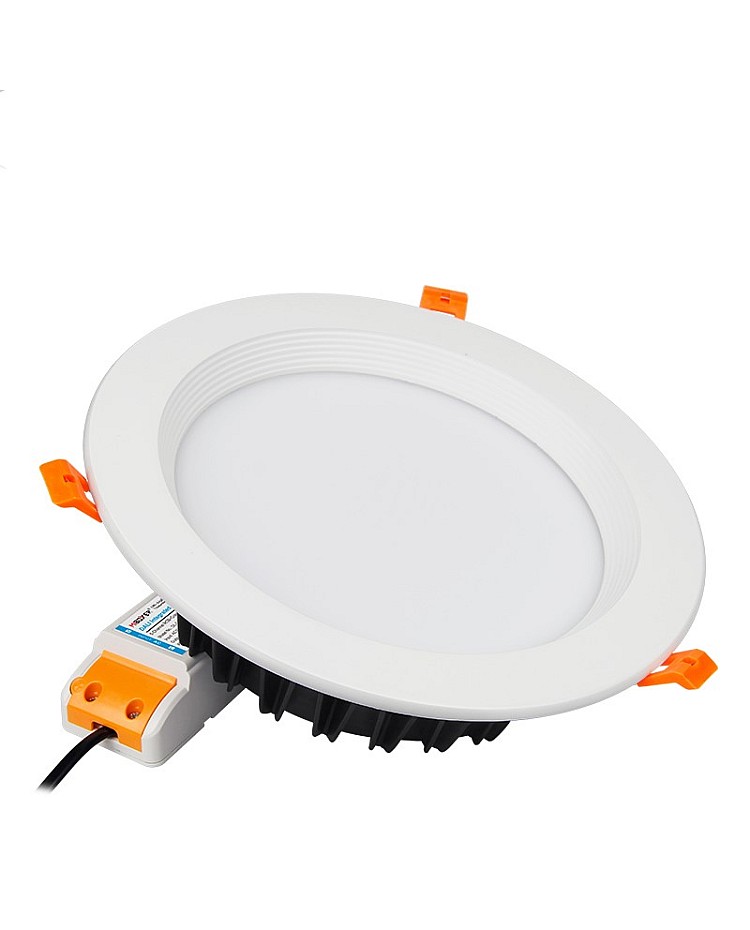

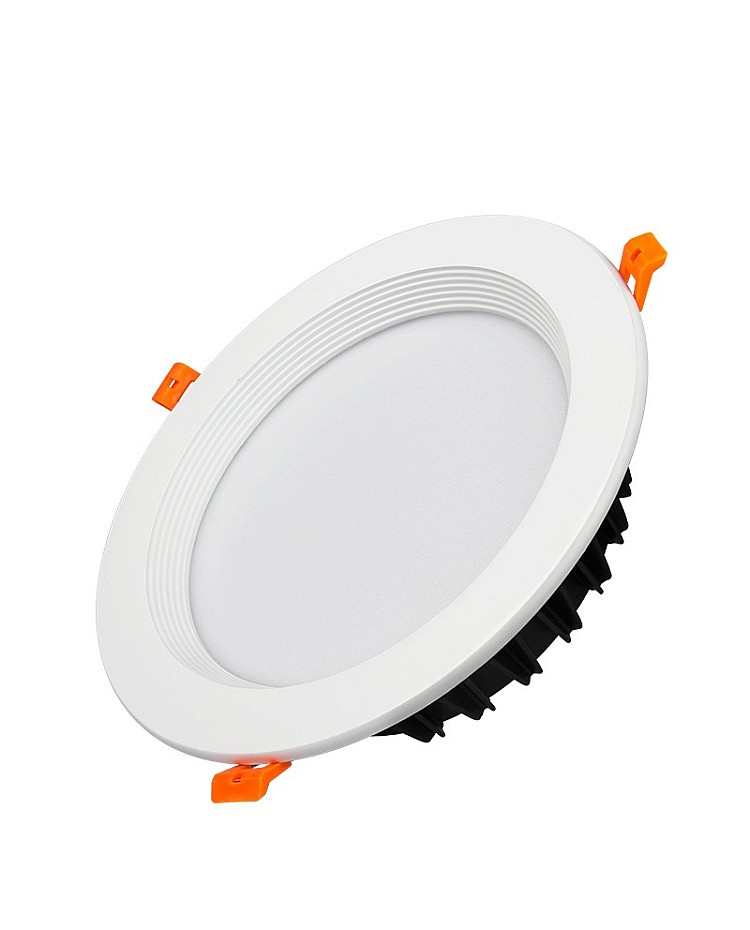

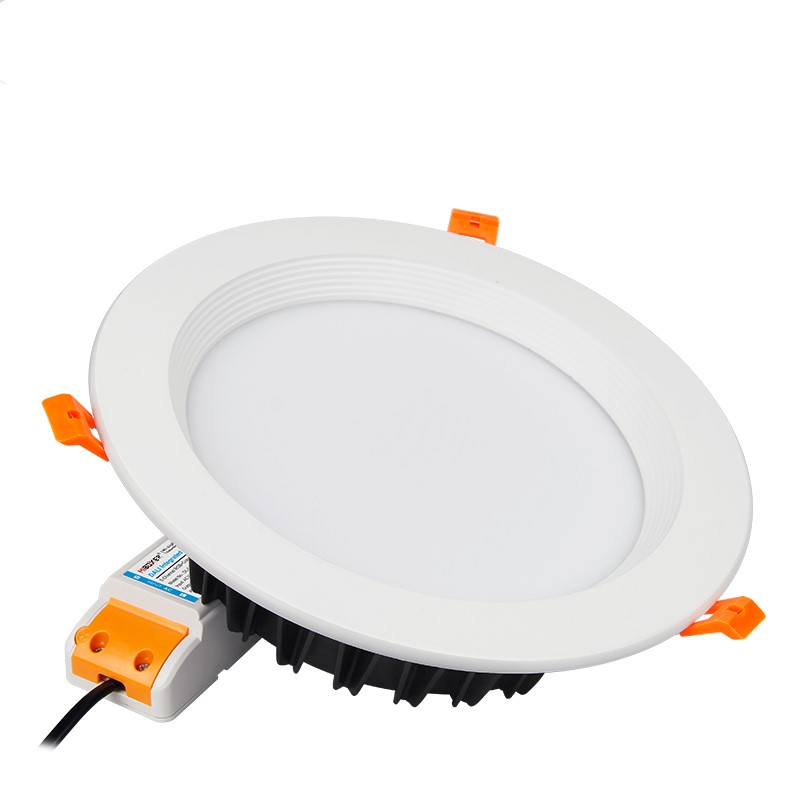

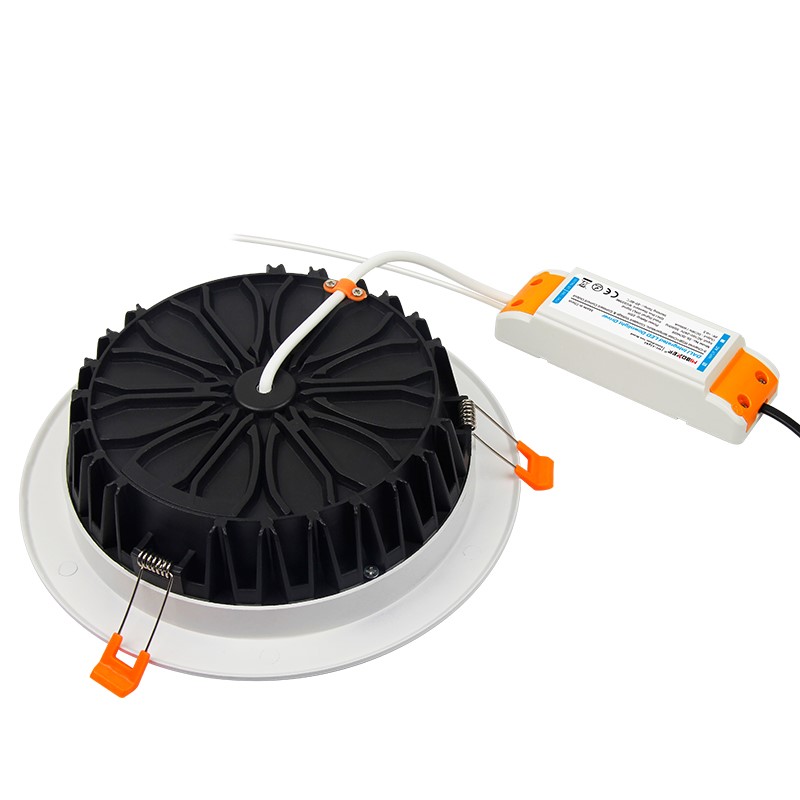

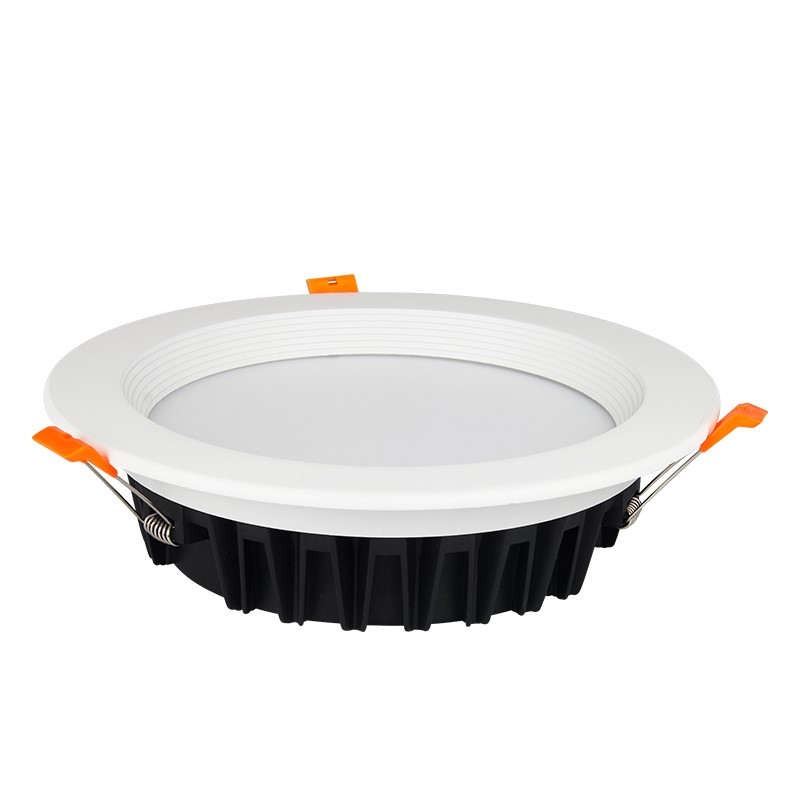

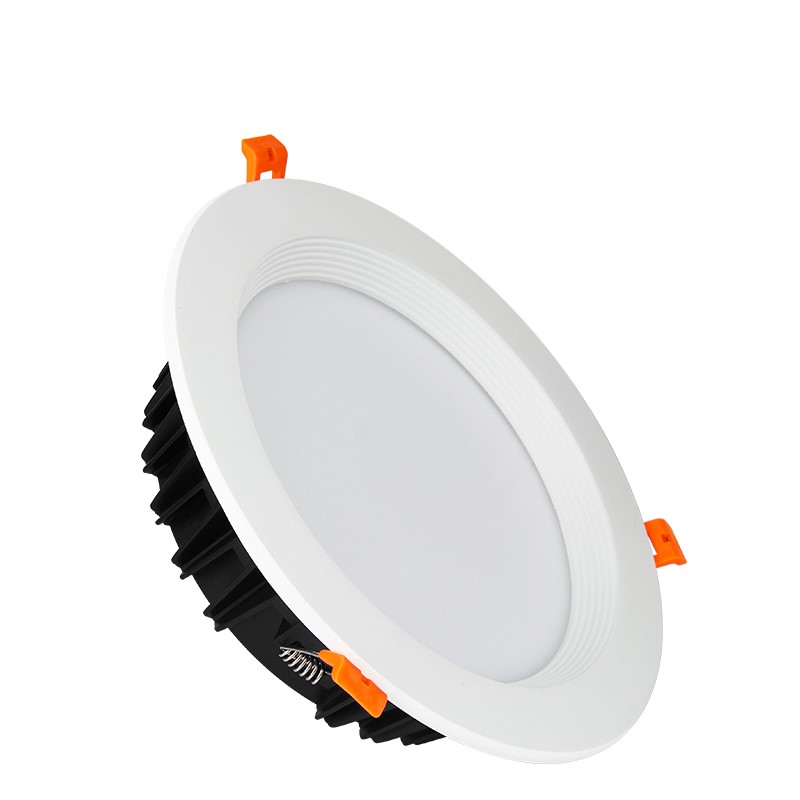

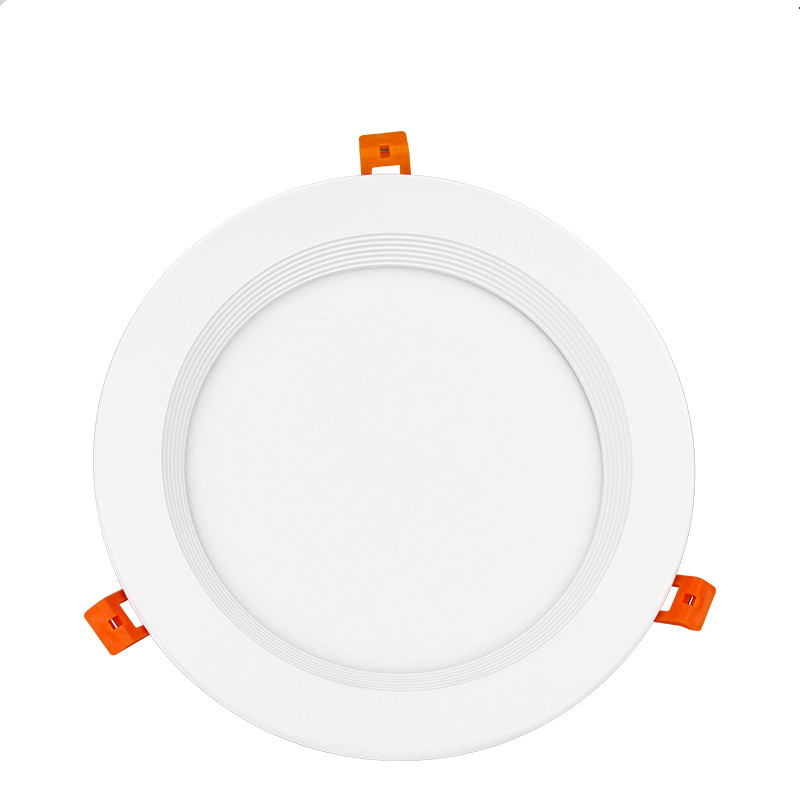

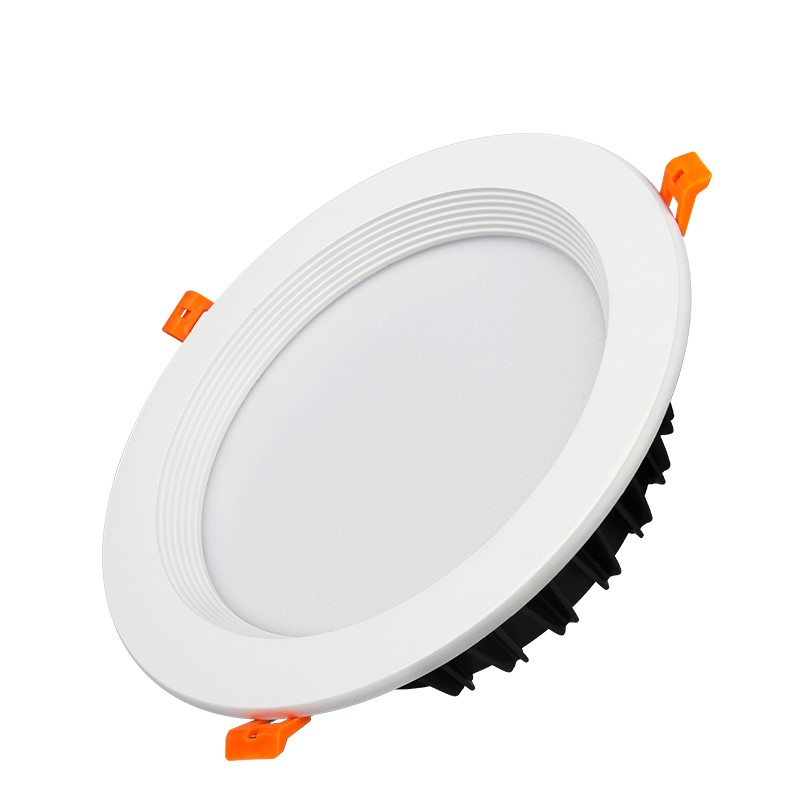

The MiBoxer DL-DOW25 RGBWW Smart LED Downlights, which are compliant with DALI standard protocol IEC62386 and will occupy 5 DALI single address or group addresses to control the red, green, blue, warm white, and cool white. You can purchase the MiBoxer DALI Dimming Panel separately to easily control the brightness, saturation, and color temperature for various scenes. The Smart Downlight with whole die-casting aluminum housing with better heat deduction and anti-corrosion. The surface with high-quality cover for a high light-transmitting rate, more bright and soft light. Both sides with stainless steel spring clips, which are easy to install and use. The constant current and voltage LED Driver is included for the stable output voltage and current to improve the lifespan of the MiBoxer Downlights. There are 16 million colors available, and the saturation, brightness, and color temperature from 2700K to 6500K are adjustable. You can use them in apartments, villas, hotels, restaurants, etc.

Quick Links:

MiBoxer DL-DOW25 User Manual


Features:

  • Model: DL-DOW25
  • Material: Aluminum
  • Size: Φ230*60mm
  • Hole Size: Φ200-210mm
  • Input Signal: DALI
  • DALI Bus Standard: IEC62386
  • Working Voltage: AC100-240V, 50/60Hz
  • Power: 25W
  • Color: RGBWW
  • Color Temperature Adjustable: 2700K-6500K
  • 16 Million Colors Available
  • Saturation, Brightness And Color Temperature Adjustable
  • Compatible With DP3S 3-In-1 RGBWW Dimming Panel
  • Luminous Flux: 2000LM
  • Light Efficiency: 80LM/W
  • CRI: >80Ra
  • PF: >0.5
  • Dimming Range: 0-100%
  • Beam Angle: 120°

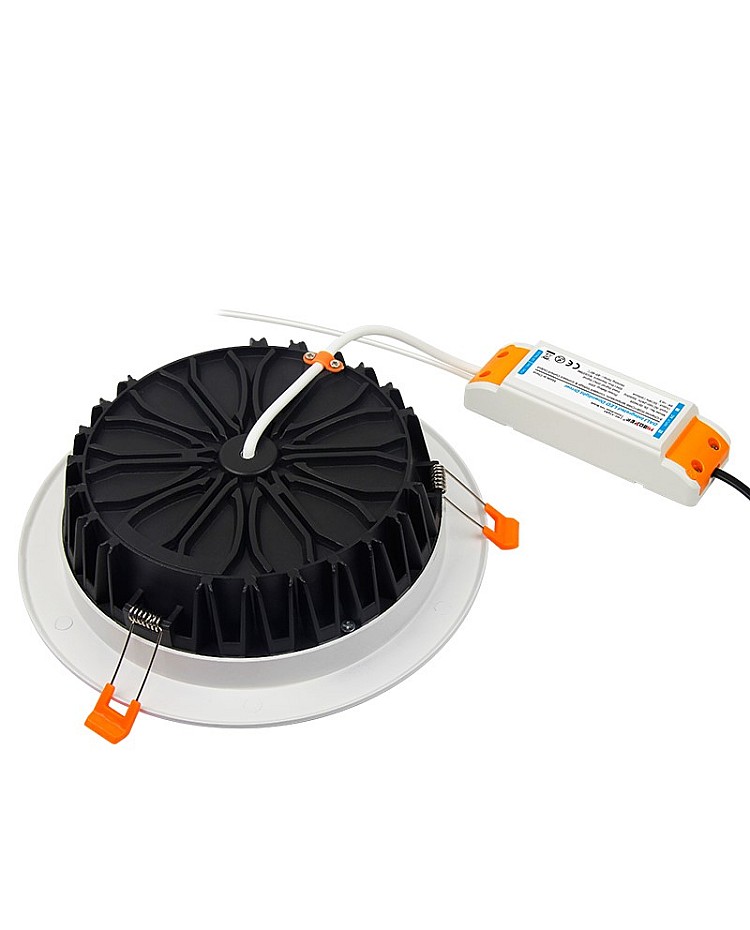

  • Constant Current & Voltage LED Driver Included
  • High Light Transmitting Cover

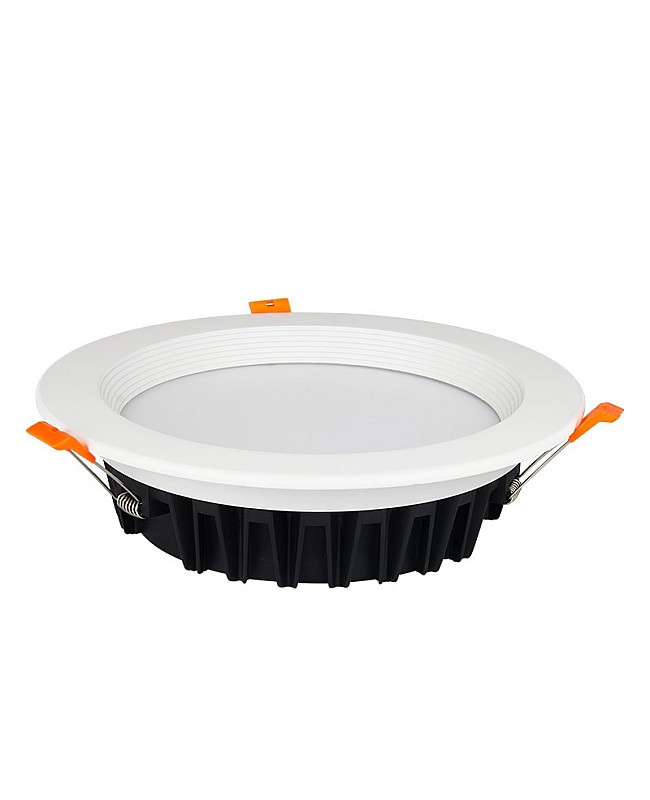

  • Stainless Steel Spring Clips Included
  • Whole Die-Casting Aluminum Housing
  • Working Temperature: -20℃-+60℃
  • Lifespan: 50,000 Hours
  • 3 Years Warranty



Includes:

1*25W RGB CCT DALI Smart LED Downlight

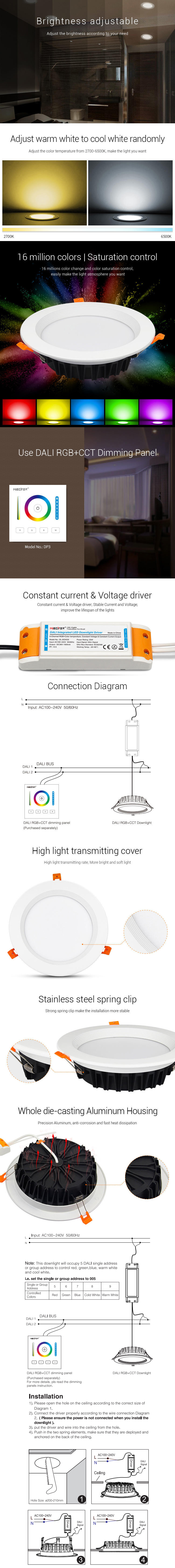

MiBoxer DL-DOW25 DALI LED Downlight
