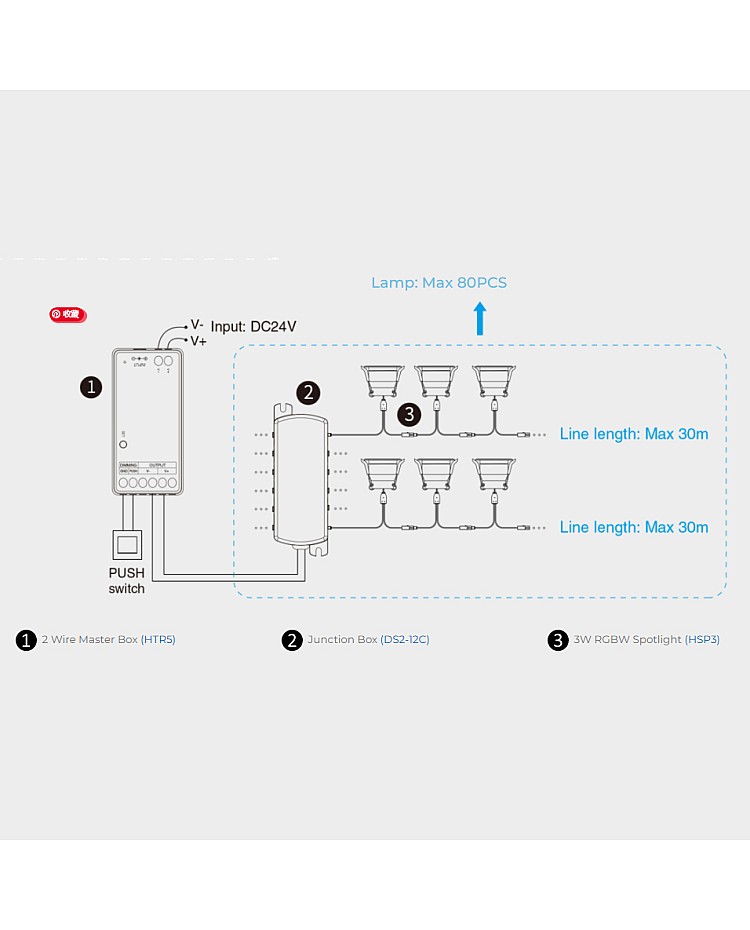

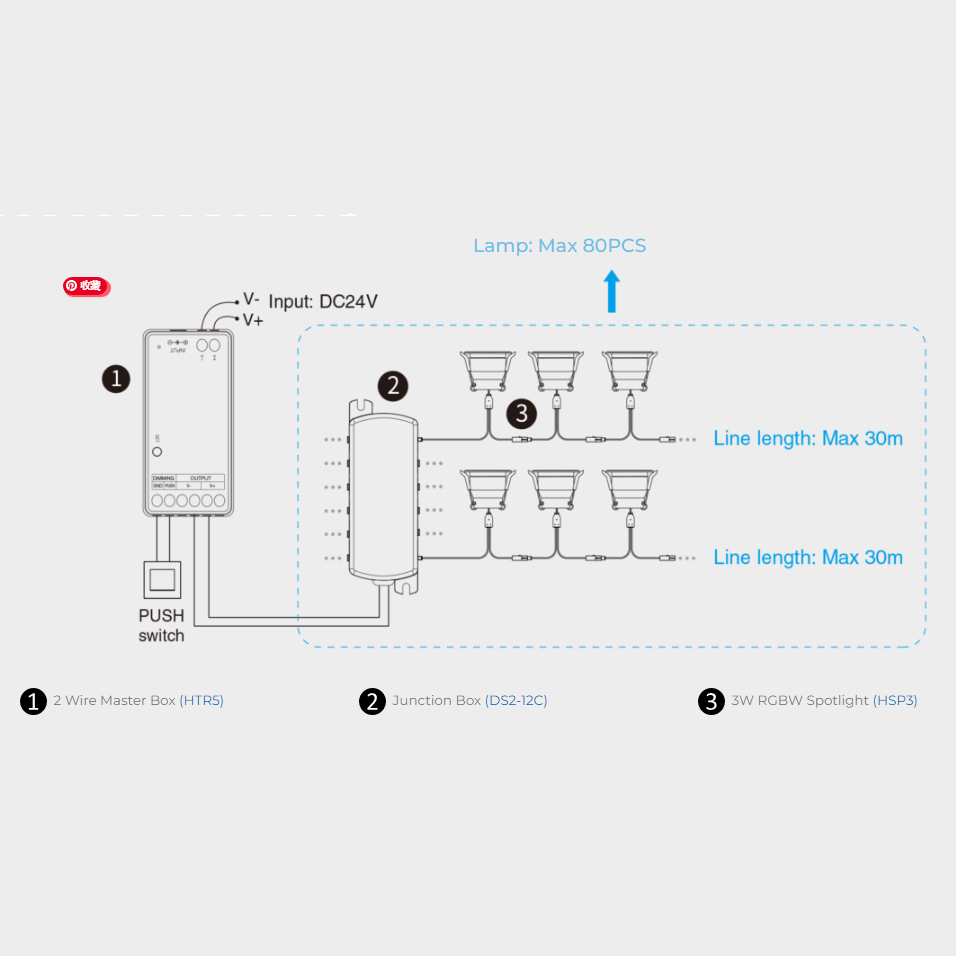

The MiBoxer HTR5 2 Wire Master Box Controllers have a two-wire design to reduce cables, reduce costs, and connect quickly. The 2 Wire Controllers adopt the widely used 2.4GHz wireless technology that can be controlled by MiBoxer Remote Controls to set the color and adjust the brightness for various senses. One Remote Control can control many HTR5s at the same time. After pairing with a 2.4G Gateway, the 2 wire Controllers can be controlled by smartphone APP and voice commands.

Note: Must be used with MiBoxer HSP3 Two Wire Control Series Subordinate Lamps


  • Type: 2 Wire Maxter Box Controller(2.4G)
  • Model: HTR5

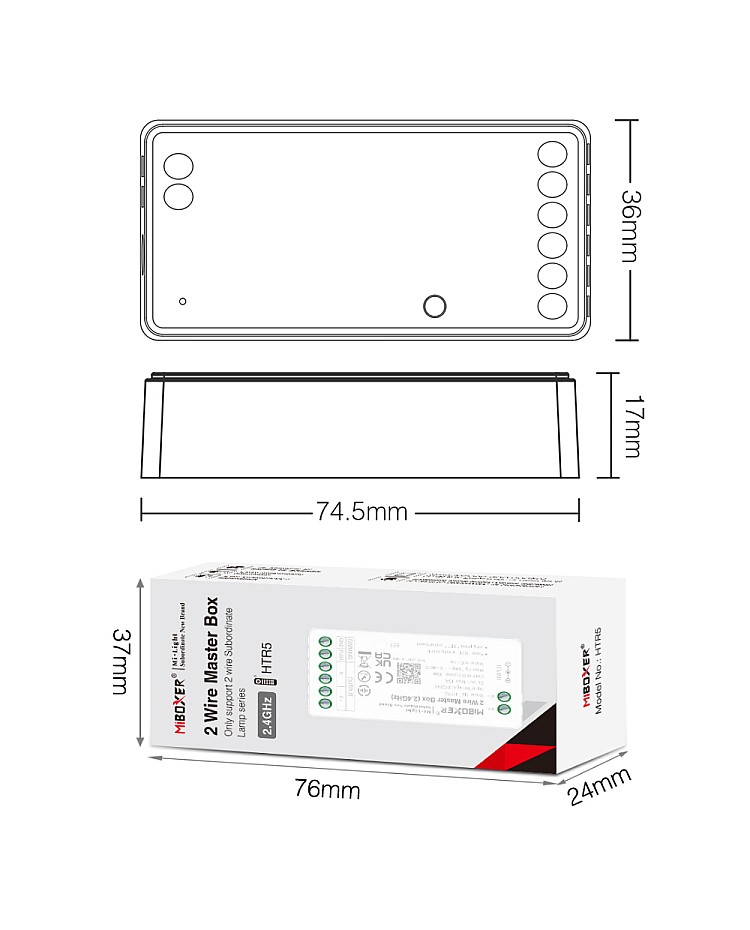

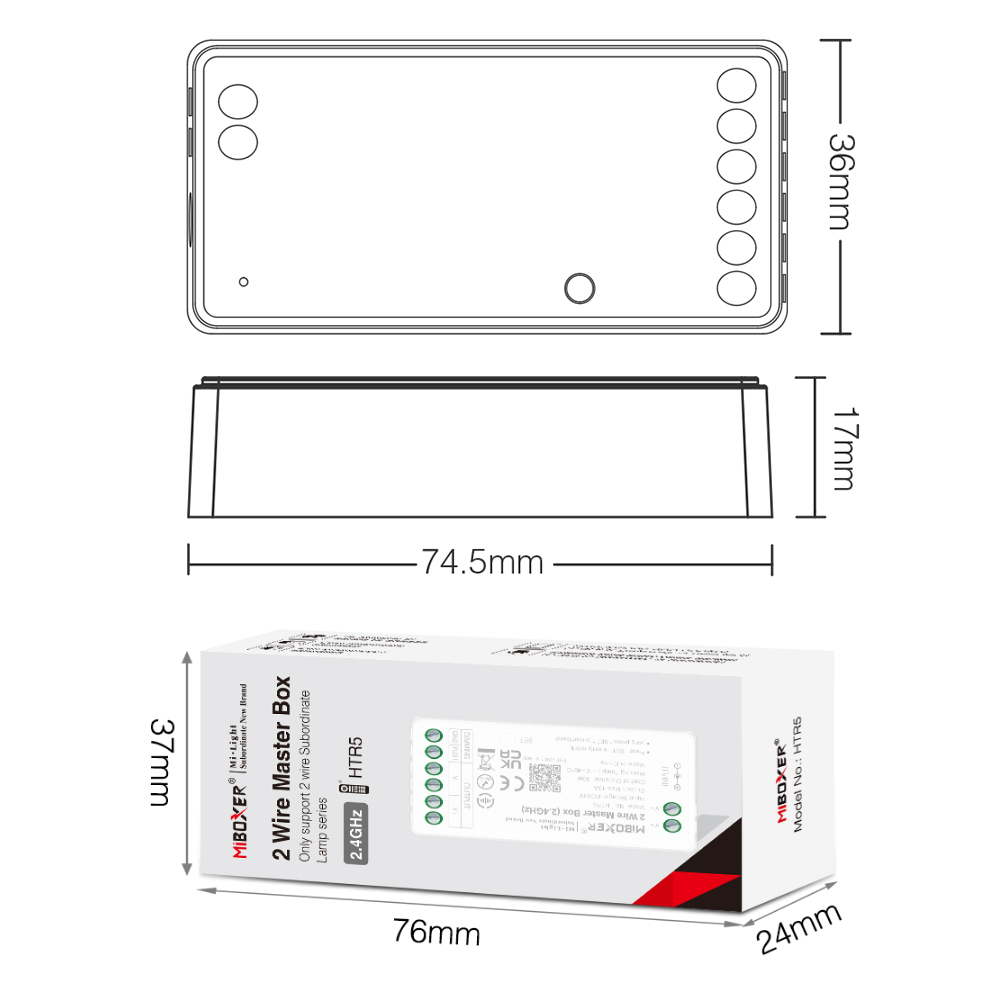

  • Size: 74.5*36*17mm(L*W*H)
  • Input Voltage: DC24V
  • Output Current: 10A Max
  • Output Power: 240W
  • Output Type: Constant Voltage
  • 2.4G RF Control Distance: 2.4GHz RF
  • Control Distance: ≤30M
  • Compatible With 2.4G RF Remote Controls: B3, B4, B0, B8, FUT100, FUT089S, FUT089, FUT092, FUT088, FUT096, FUT095, S2W+
  • Support Tuya Smart APP Control(2.4GHz Gateway Needed)
  • Support Third-party Voice Control: Amazon Alexa, Google Assistant(2.4GHz Gateway Needed)
  • Dimming Grayscale: 4096 Levels
  • Dimming Range: 0-100%
  • Dimming Curve: Logarithmic
  • EMC Standard(EMC): ETSI EN 301 489-1 V2.2.3 / ETSI EN 301 489-3 V2.1.1
  • Safety Standard(LVD): EN 61347-1: 2015+A1:2021 / EN 61347-2-11: 2001+A1:2019
  • Radio Equipment(RED): ETSI EN 300 440 V2.2.1
  • IP Rate: IP20 Non-waterproof
  • Certification: CE, EMC, RED
  • Working Temperature: -10-40℃
  • 5 Years Warranty

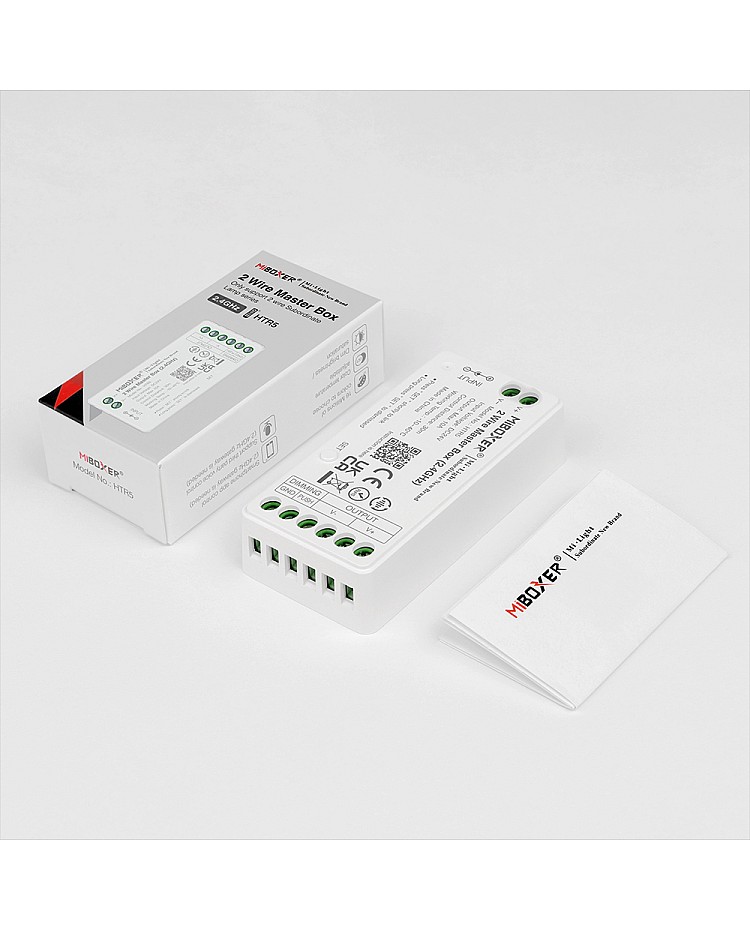

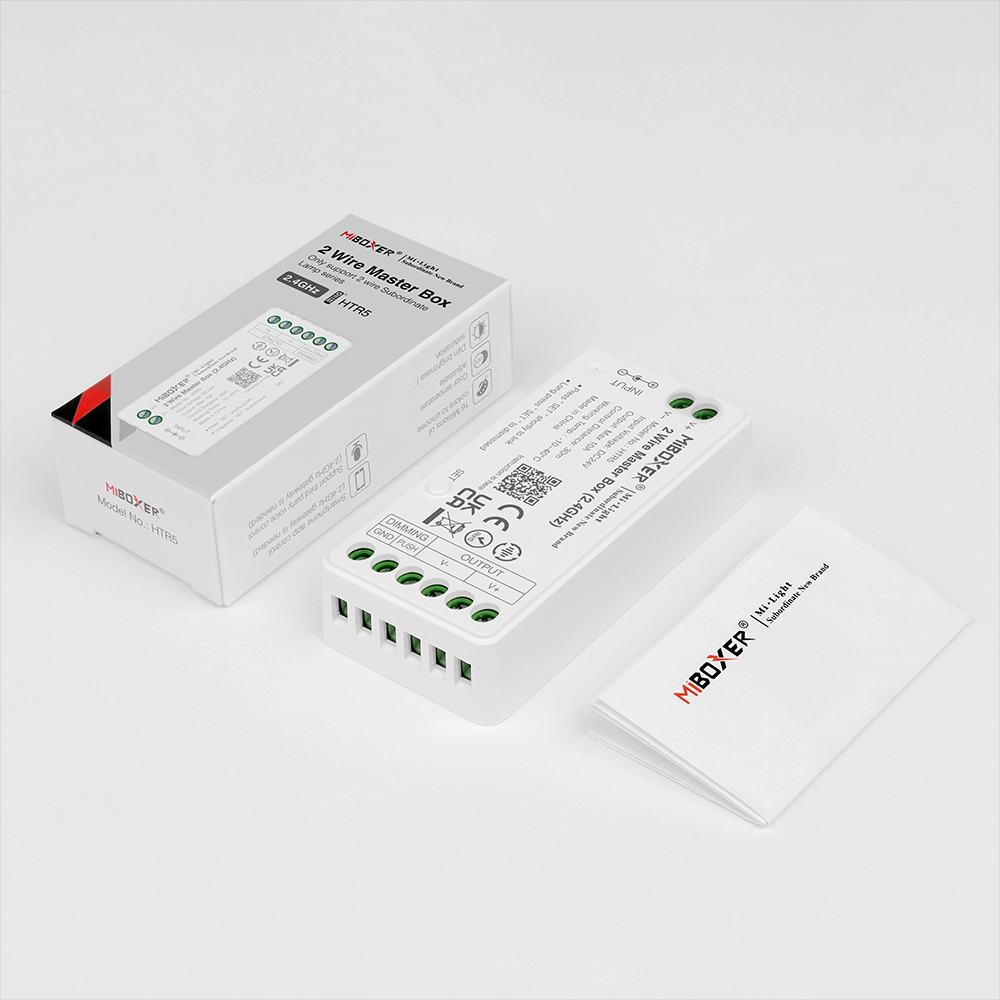

1*HTR5 2 Wire Controller
