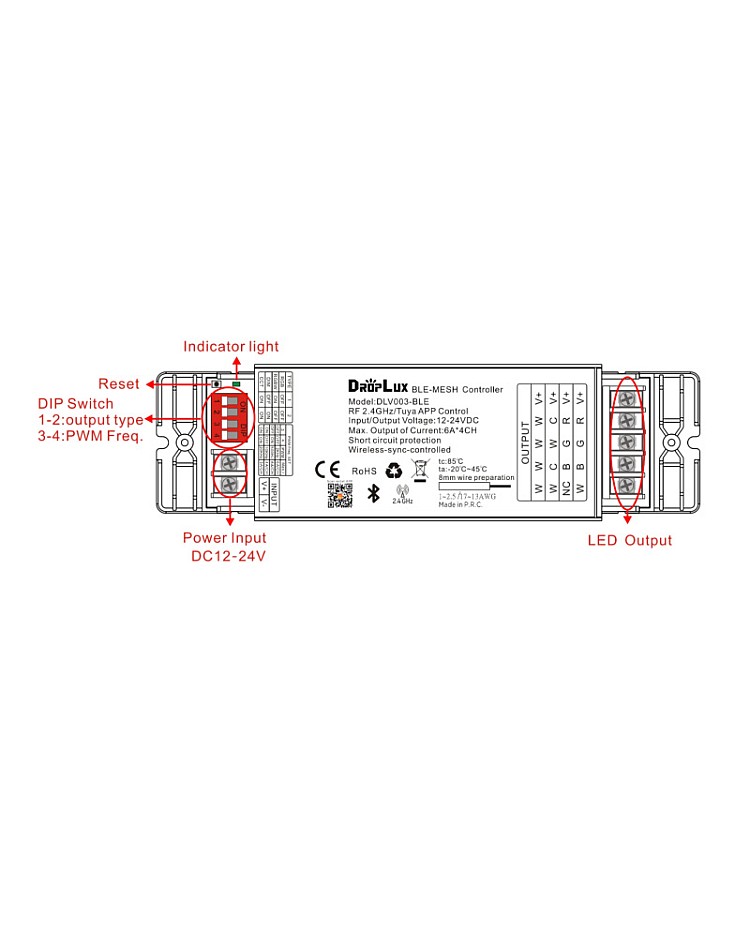

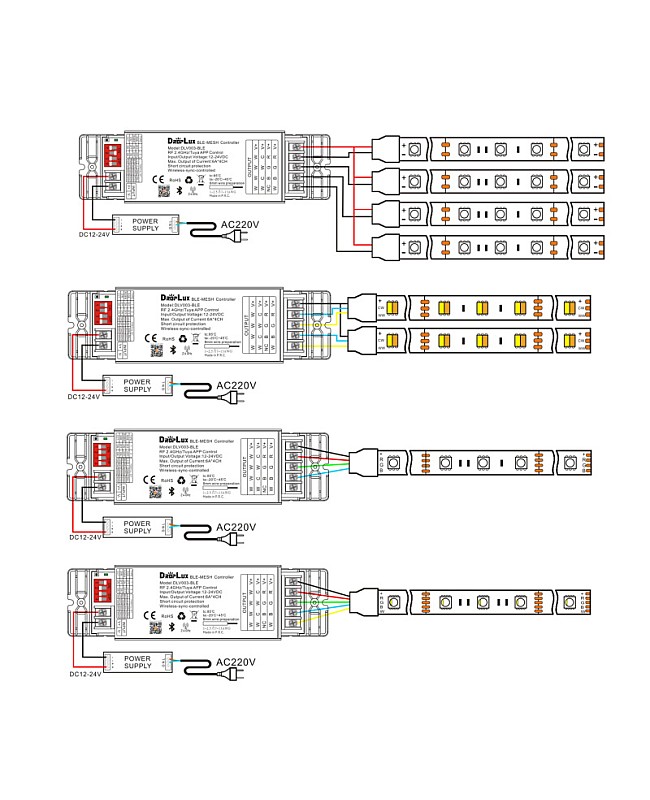

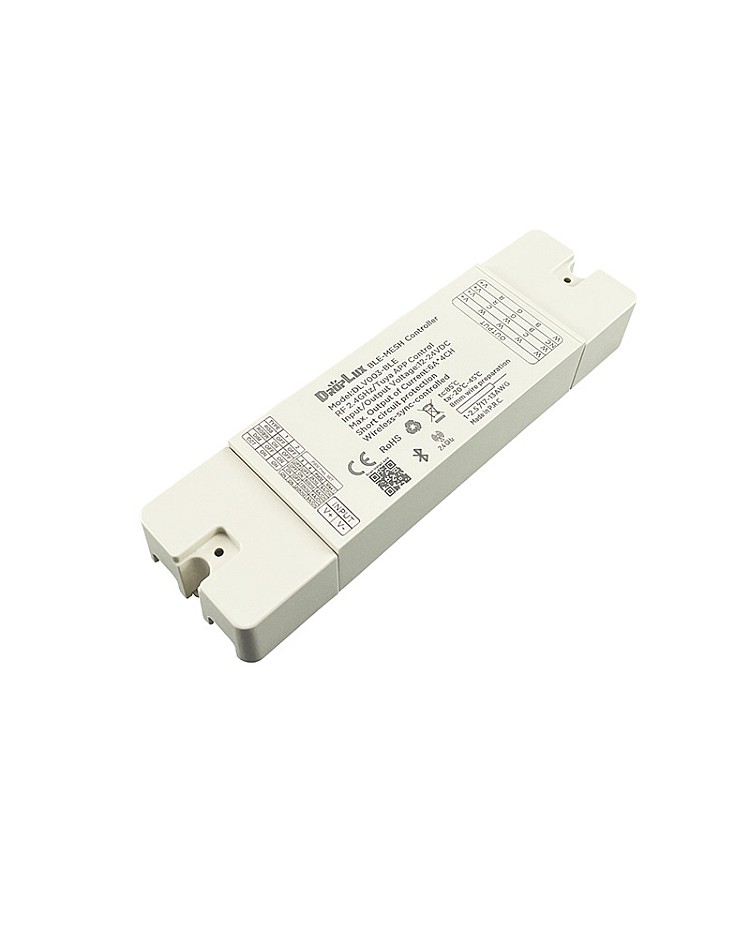

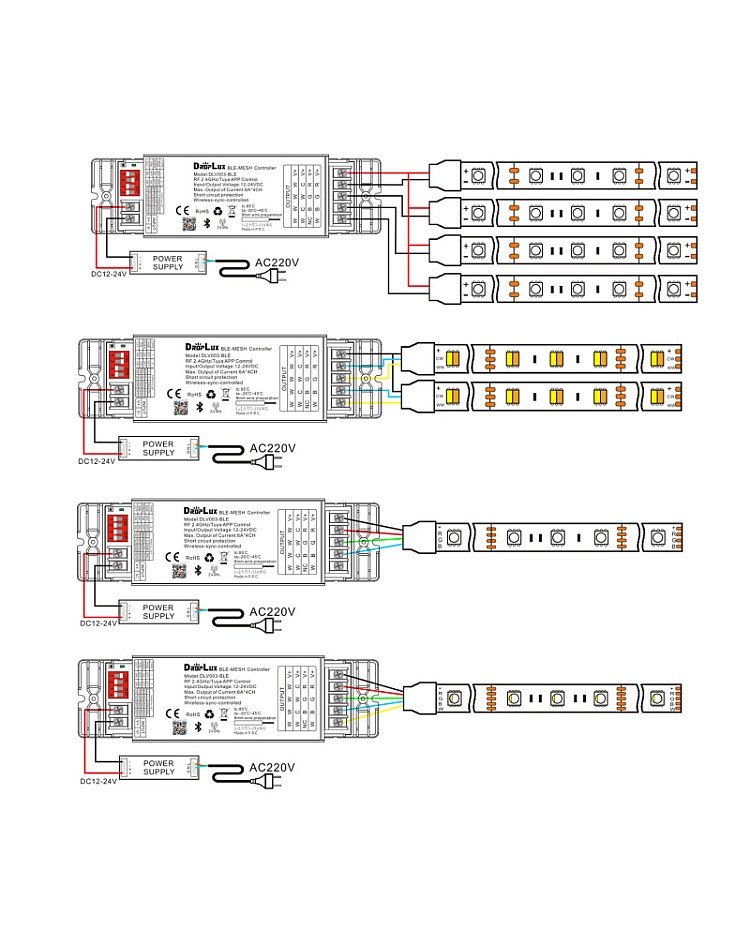

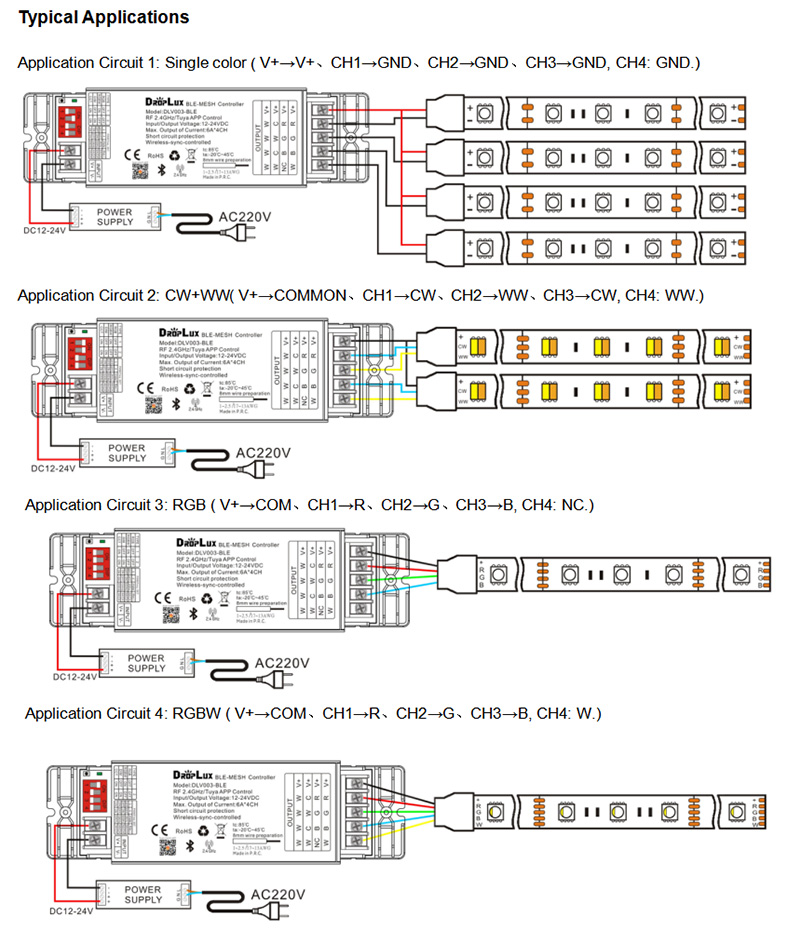

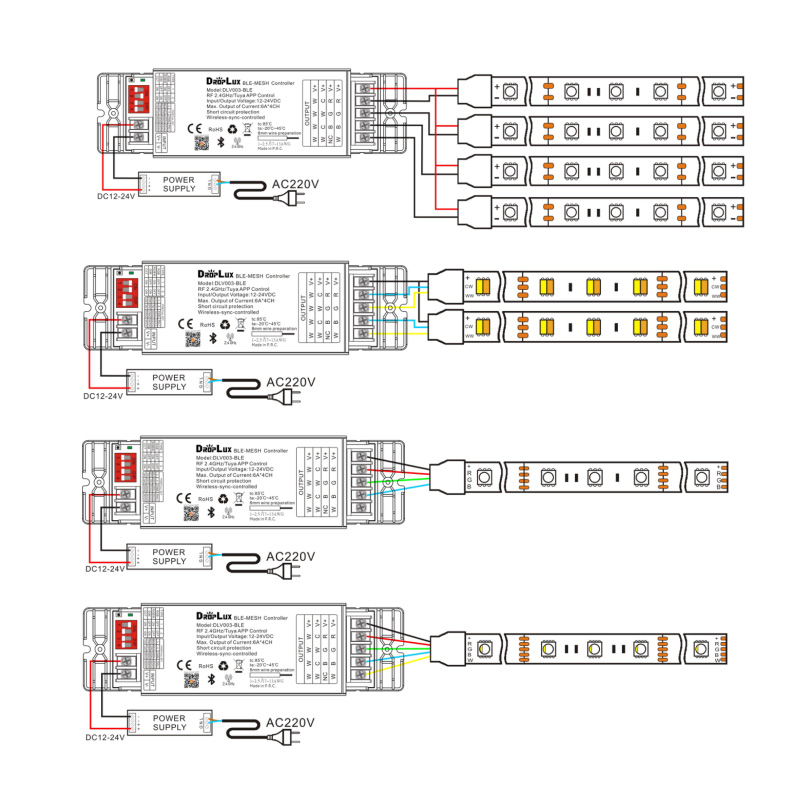

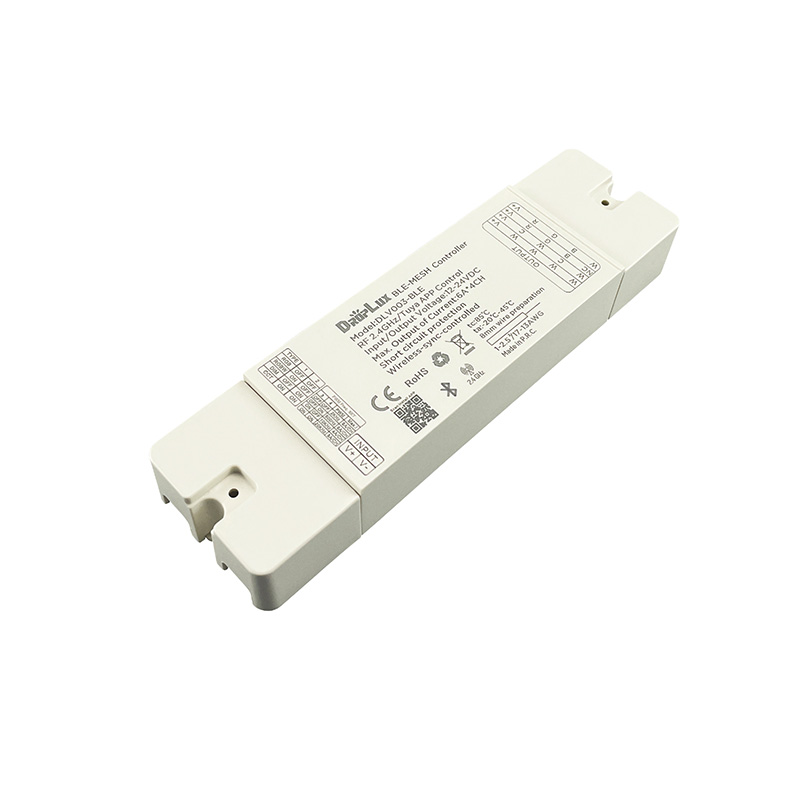

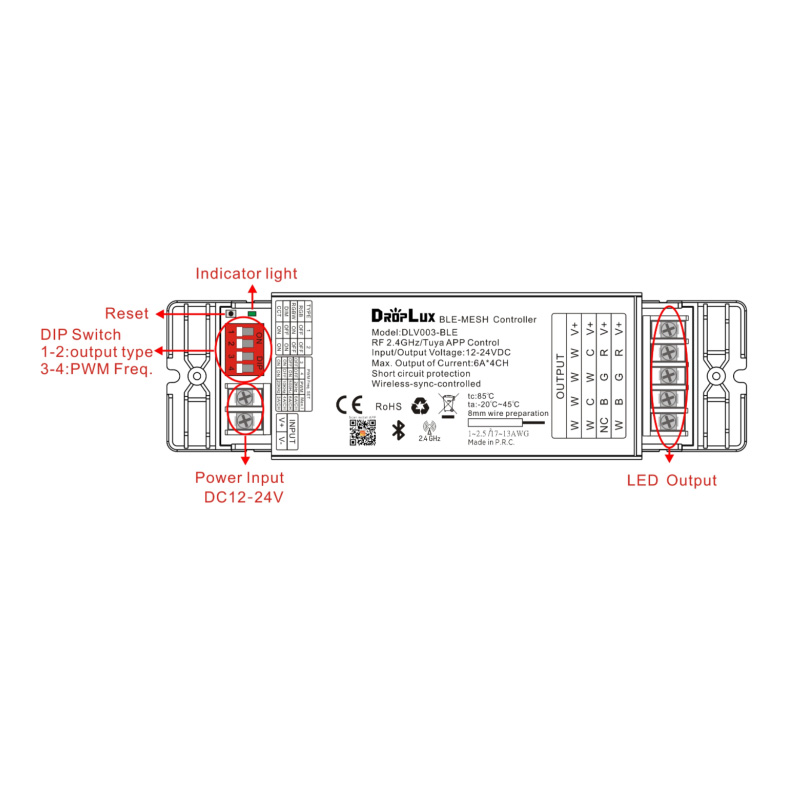

The Hoion DLV003-BLE Bluetooth 2.4G Wireless RF LED Controller, which with 4 in 1 design and with most advanced PWM digital control technology, can be used for controlling constant voltage LED Lamps, Point Source Light, LED Strips, Lighting Modules, String Lights, etc. with low-voltage DC power input and output with five interfaces, including V+ is extremely common interfaces, the other four for 4 channels output control interface, you can adjust the brightness, static color choices and various dynamic changes in lighting effects through Remote Control, it's integrated 4 optional programs for different color type of LEDs, you can use for single color, dual white, RGB and RGBW. the brightness of static color is adjustable, 1024 levels in total, the speed of dynamic change is adjustable, 100 levels in total. there is a DIP switch on the Controller and you can dial it to choose the output mode. the working PWM frequency is adjustable from 2KHz to 20KHz. the Hoion Controller can be controlled by Tuya APP to achieve smart control like group control, scene control, timer control, etc. the DLV003 BLE will transmit the signals from the Remote Control and self-inspection the work status for each other, multiple Controllers in the same zone will wireless-sync-work completely. not only static mode but also dynamic mode.
Features:
- Model: DLV3-BLE

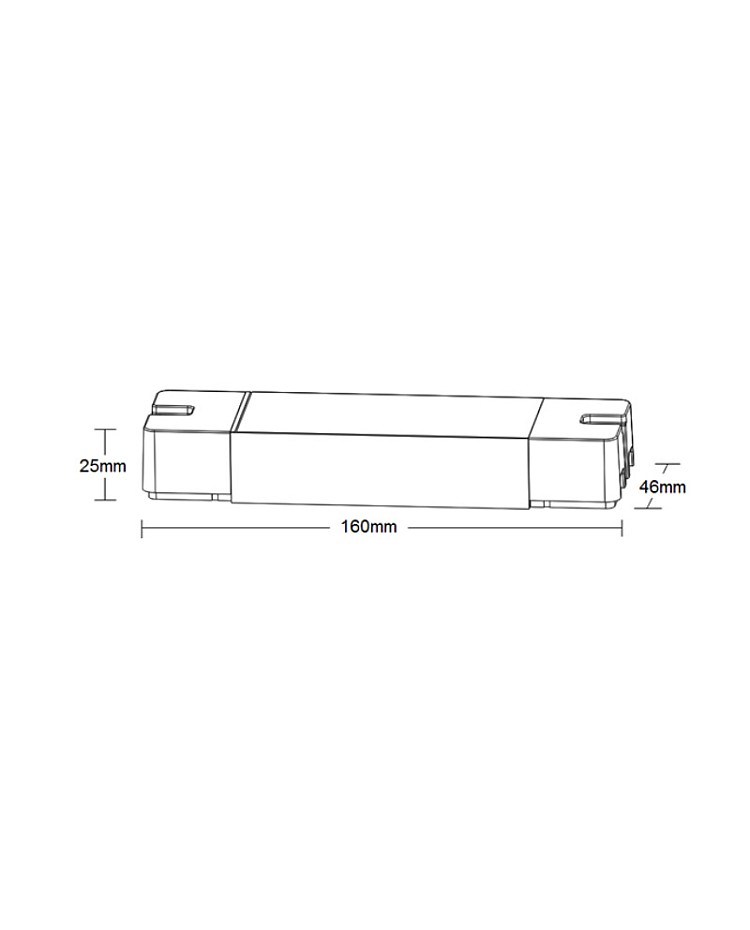

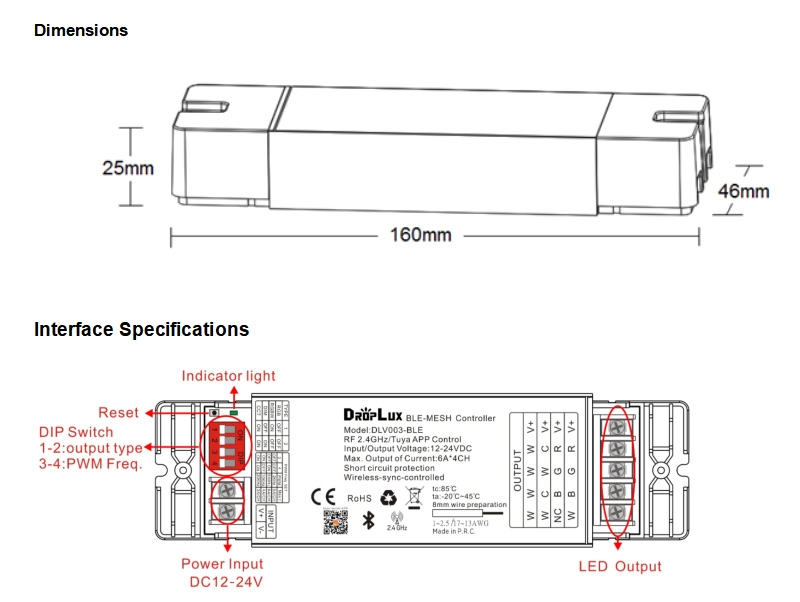

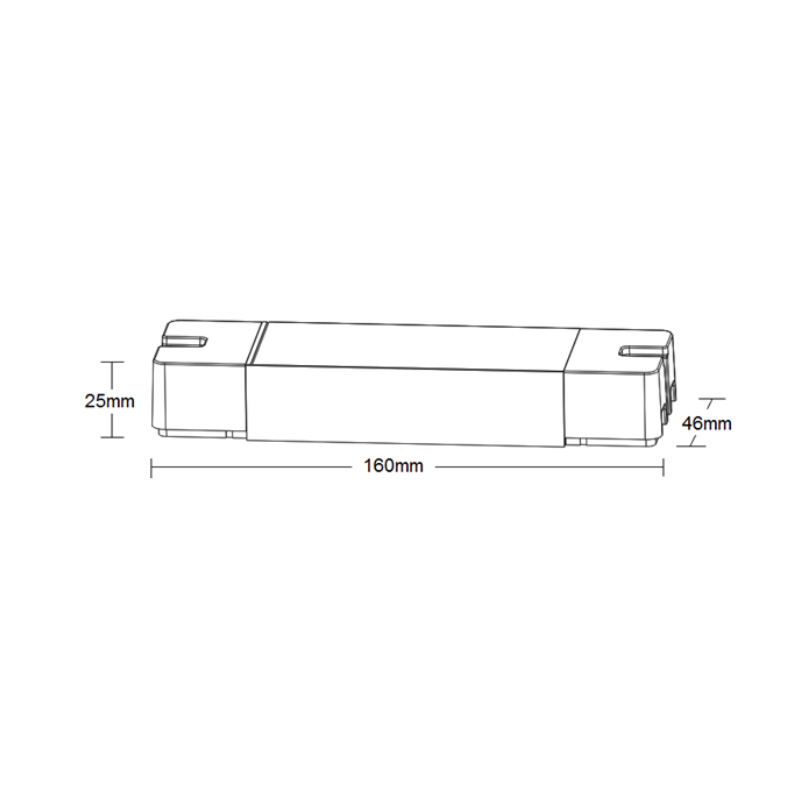

- Size: 170*50*29mm(L*W*H)
- Working Voltage: DC12-24V
- Connecting Mode: Common Anode
- Output: 4 Channels
- Output Current: PWM≤2KHz:4CH*6A; PWM≤10KHz: 4CH*4A; PWM=20KHz: 4CH*3A
- Max Output Power: PWM≤2KHz: 288W/12V, 576W/24V; PWM≤10KHz: 192W/12V, 384W/24V; PWM=20KHz:144W/12V, 288W/24V
- Static Power Consumption: ＜1W

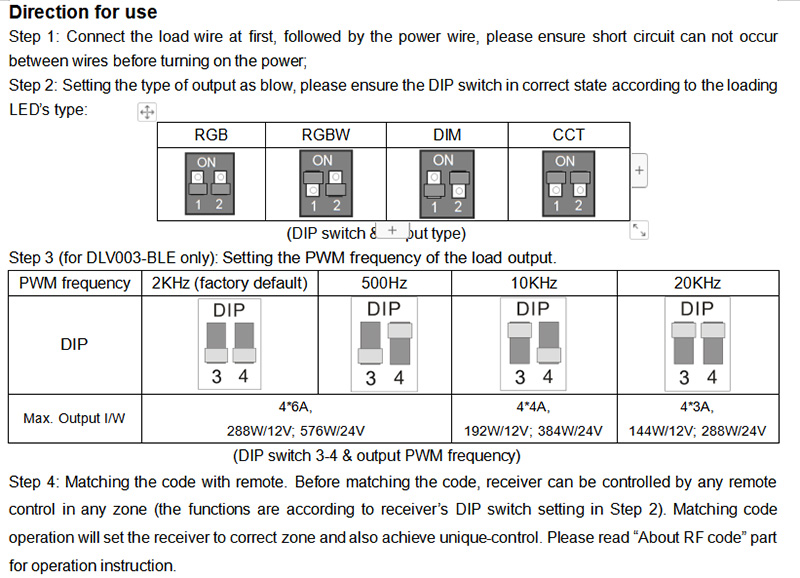

- PWM Frequency: 2KHz(Default), 500Hz, 10KHz, 20KHz
- Grayscale: 1024 Levels
- Speed Stage: 100 Grade
- RF Frequency: 2.4GHz
- RF Distance: ≤20m

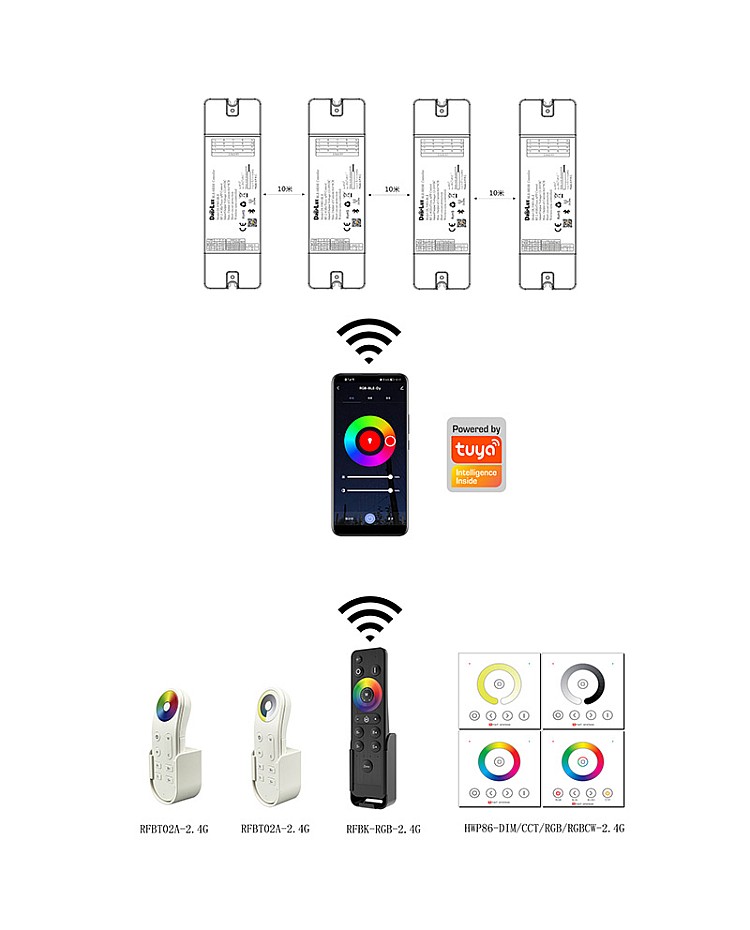

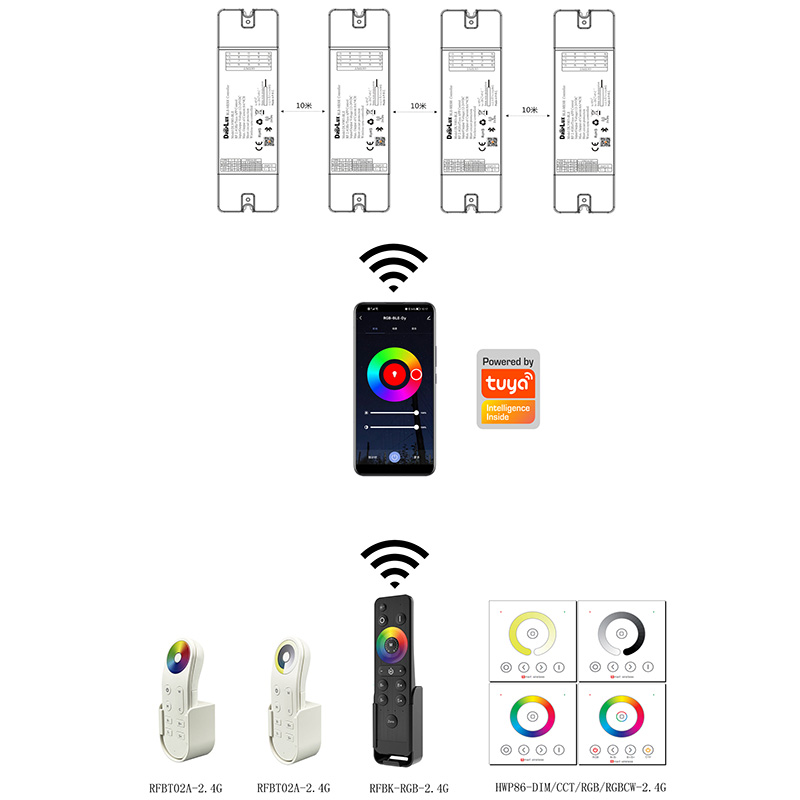

- Control Method: RF Remote Control, Tuya APP
- Short Circuit Protection
- Memory Function: YES
- Working Temperature: -20-60℃
- 3 Years Warranty
Includes:
1*Hoion 2.4G Wireless SYNC RF Controller
