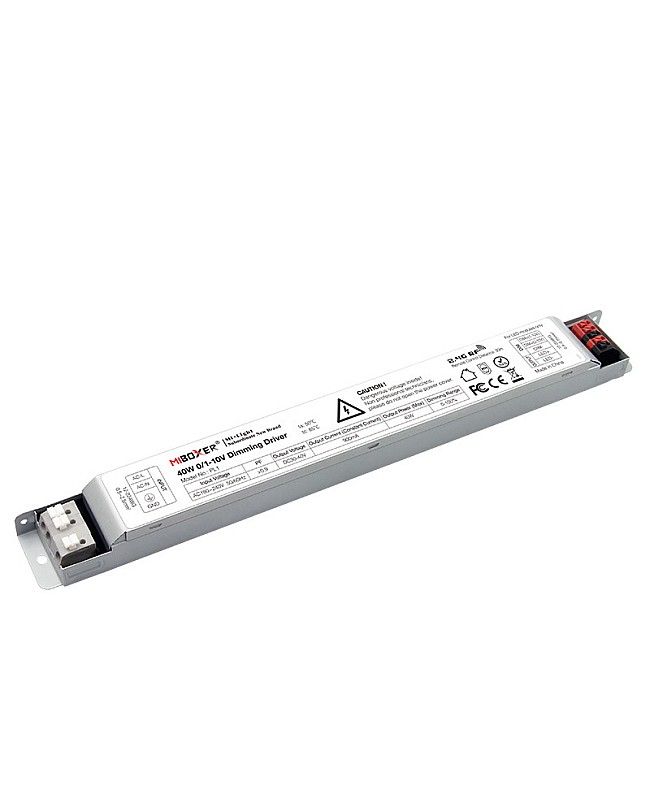

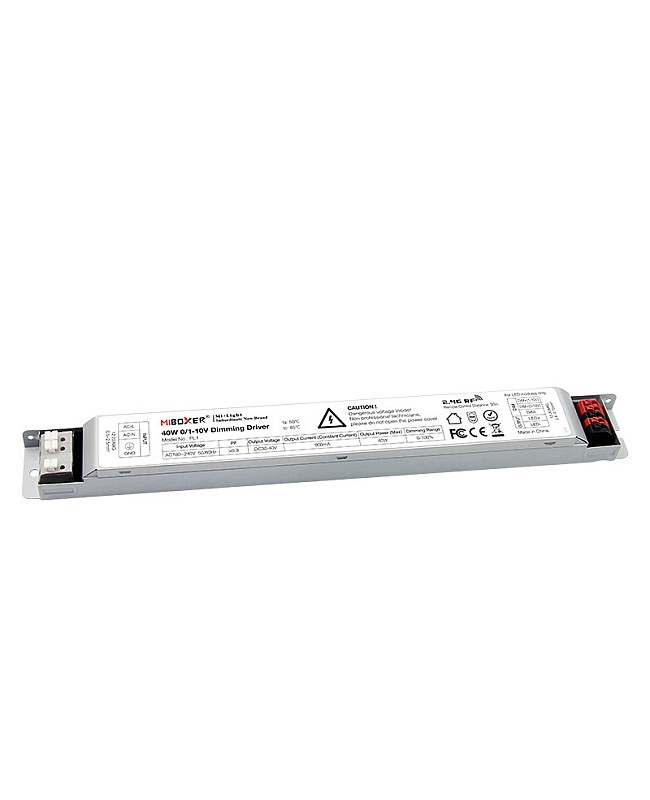

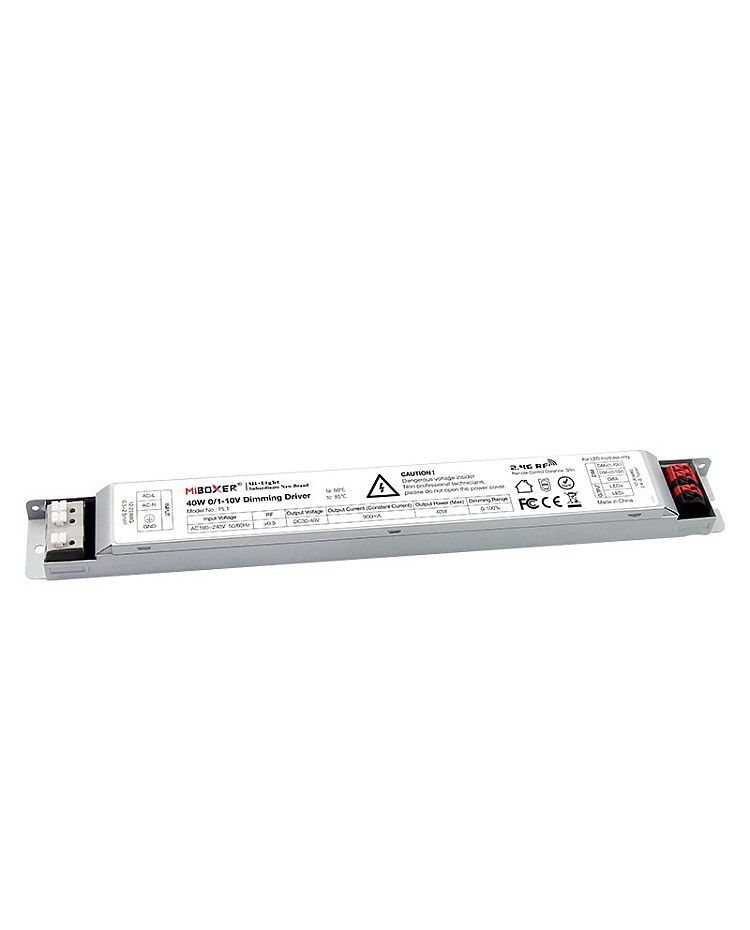

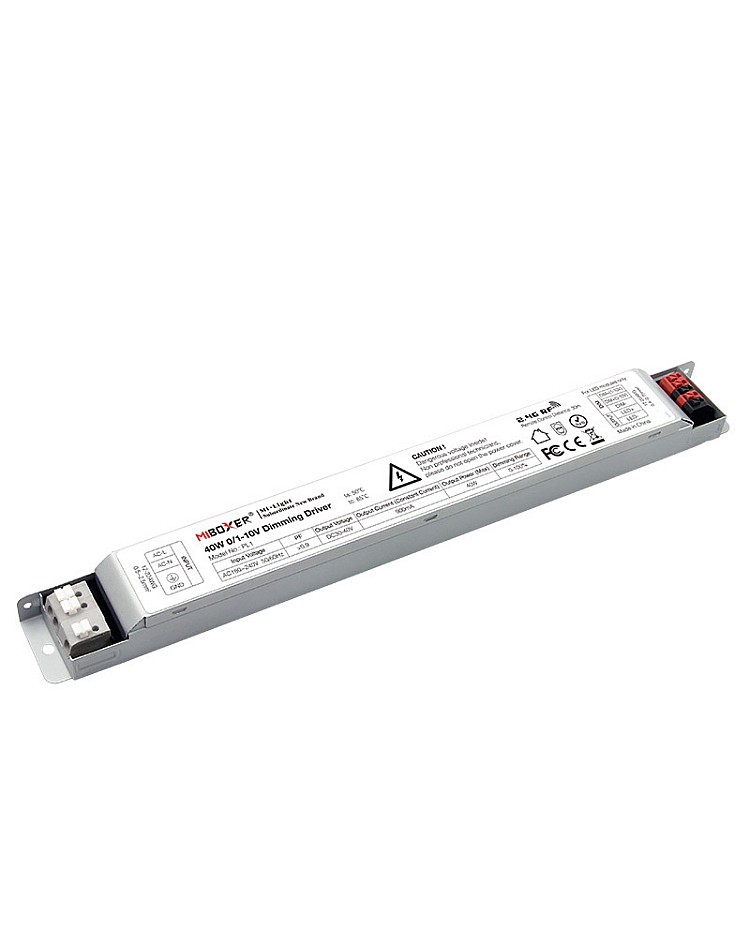

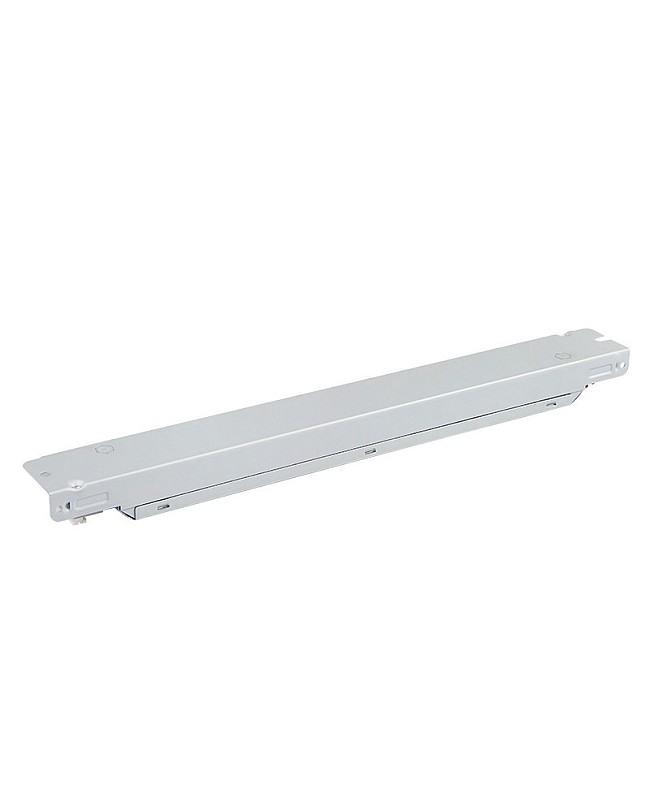

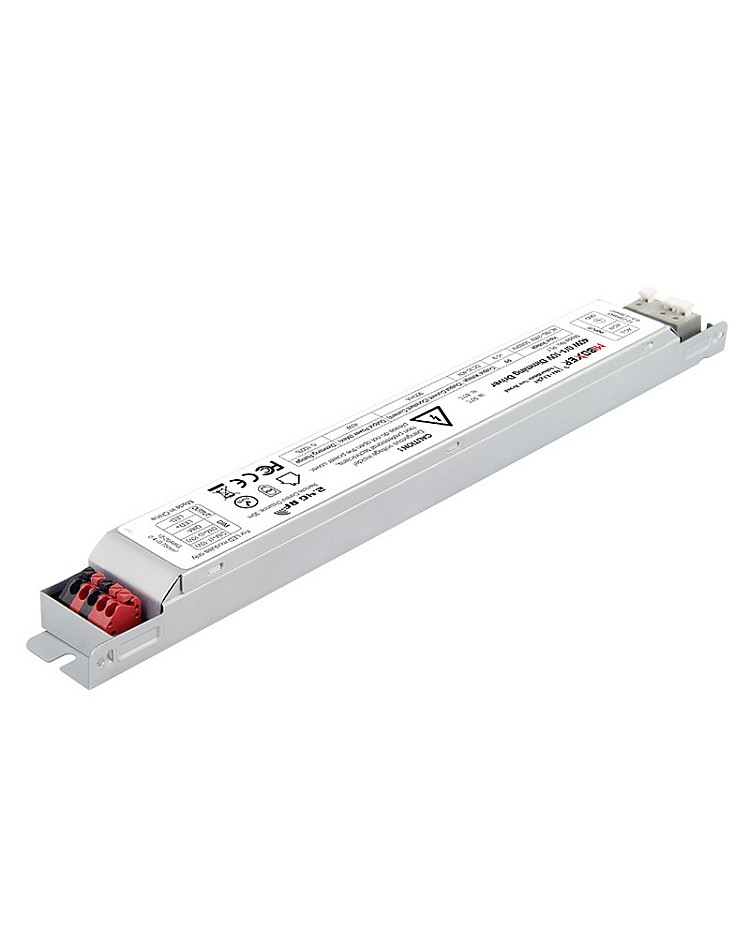

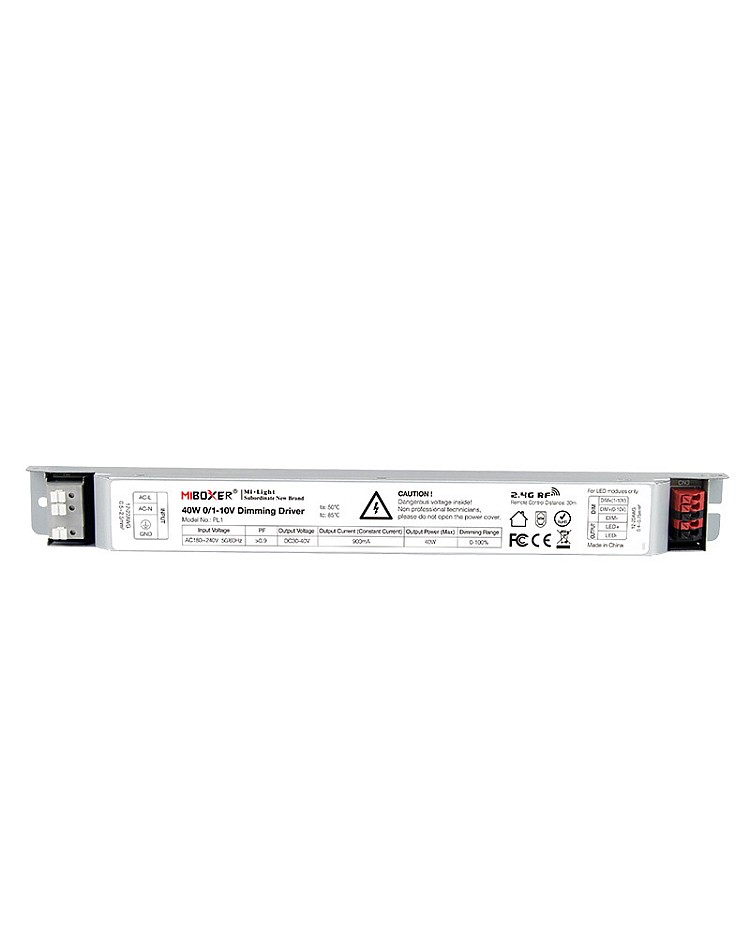

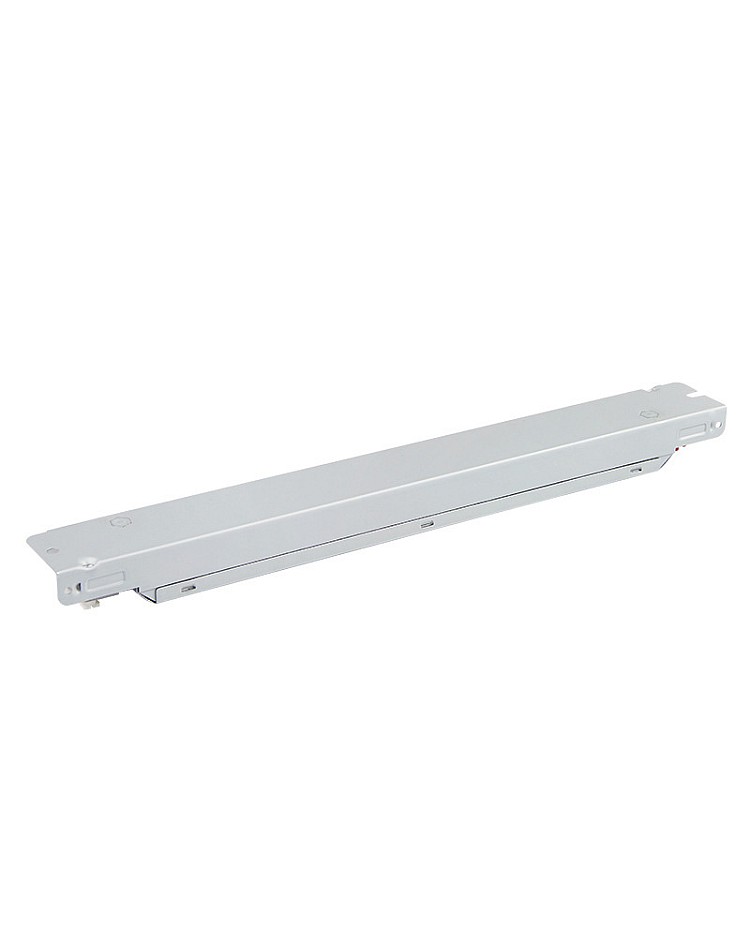

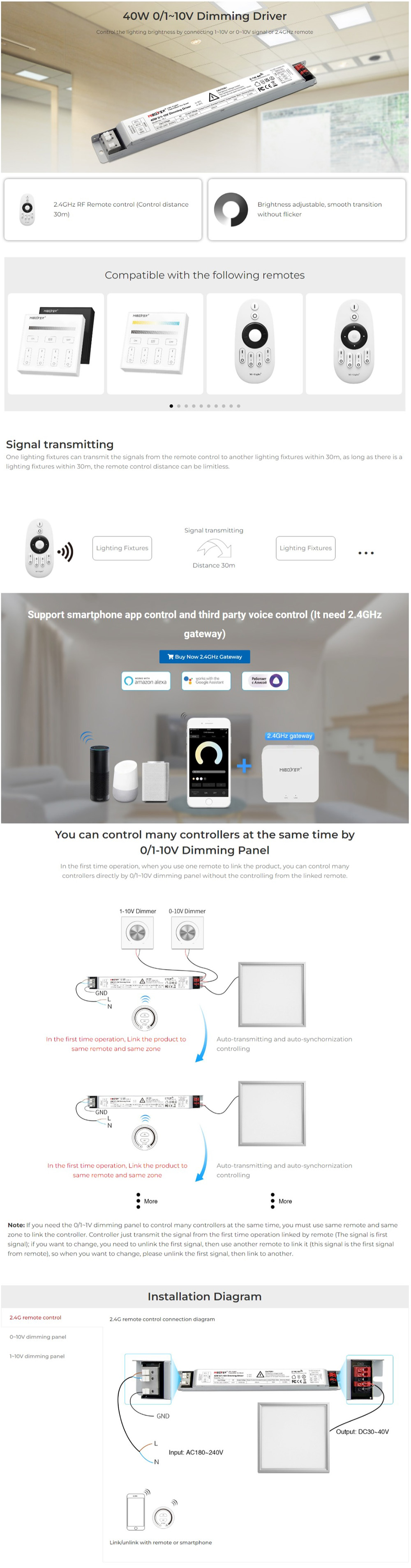

Check the MiBoxer PL1 40W Constant Current Dimmable LED Driver, which with linear size and slim structure, you can adjust the brightness of Single Color LED Strips by connecting 1-10V or 0-10V Remote Controls or smartphone APP. the MiBoxer LED Driver with constant current output design, the output current is 900mA and max output power is 40W, can dimming the brightness from 1-100%, compatible with MiBoxer 2.4G Dimming Remote Controls, after adding the WiFi iBox, can be controlled by smartphone APP. the Dimming LED Driver will receive the signals from the Remote Control and transmit to other same Drivers within 30 meters, you will can control many Drivers at the same time by one Remote Control.


Features:

  • Size: 279*30*21mm(L*W*H)
  • Input Voltage: AC180-240V, 50/60Hz
  • Output Voltage: DC30-40V
  • Output Current: 900mA Constant Current
  •  Output Power: Max 40W
  • PF: >0.9
  • Dimming Range: 1-100% By Connecting 0/1-10V Dimming Panel
  • Compatible With 2.4G Remote Controls: MiBoxer FUT087
  • Smartphone APP Control(WiFi iBox Needed)
  • Auto Transmitting Function And Auto-Synchronization Controlling
  • Remote Control Distance: ≤30m
  • Ta: 50℃
  • Tc: 85℃
  • 2 Years Warranty


Includes:

1*MiBoxer PL1 Dimmable LED Driver

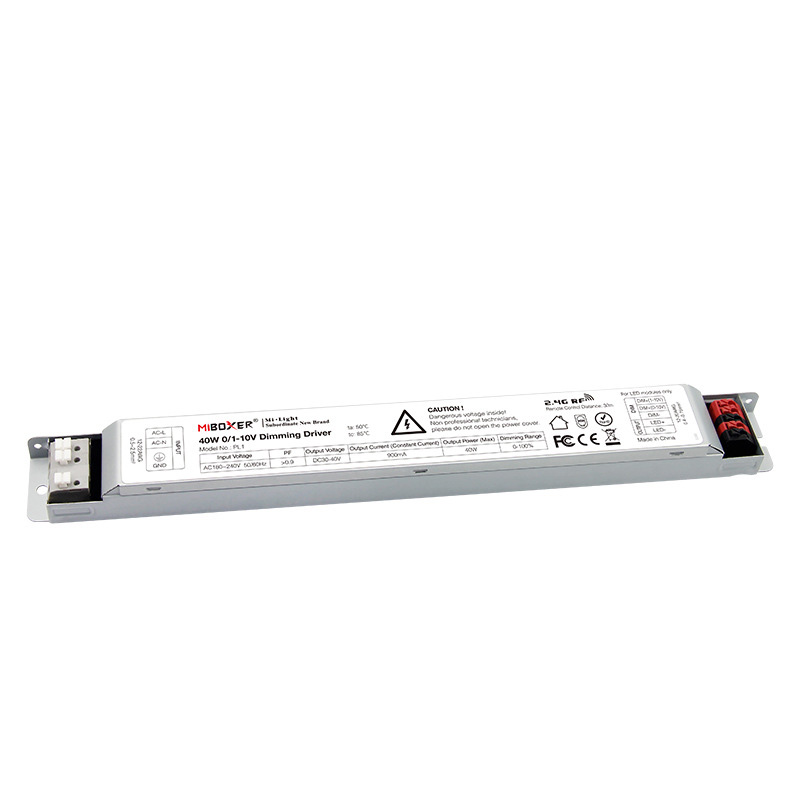

MiBoxer PL1 Constant Current LED Driver Dimmer
