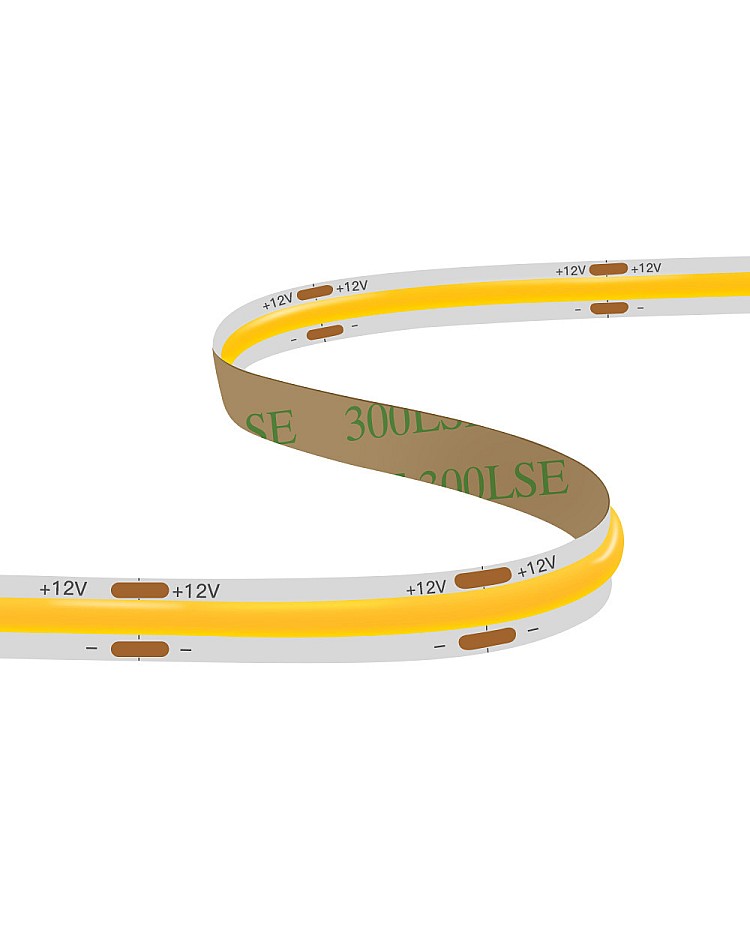

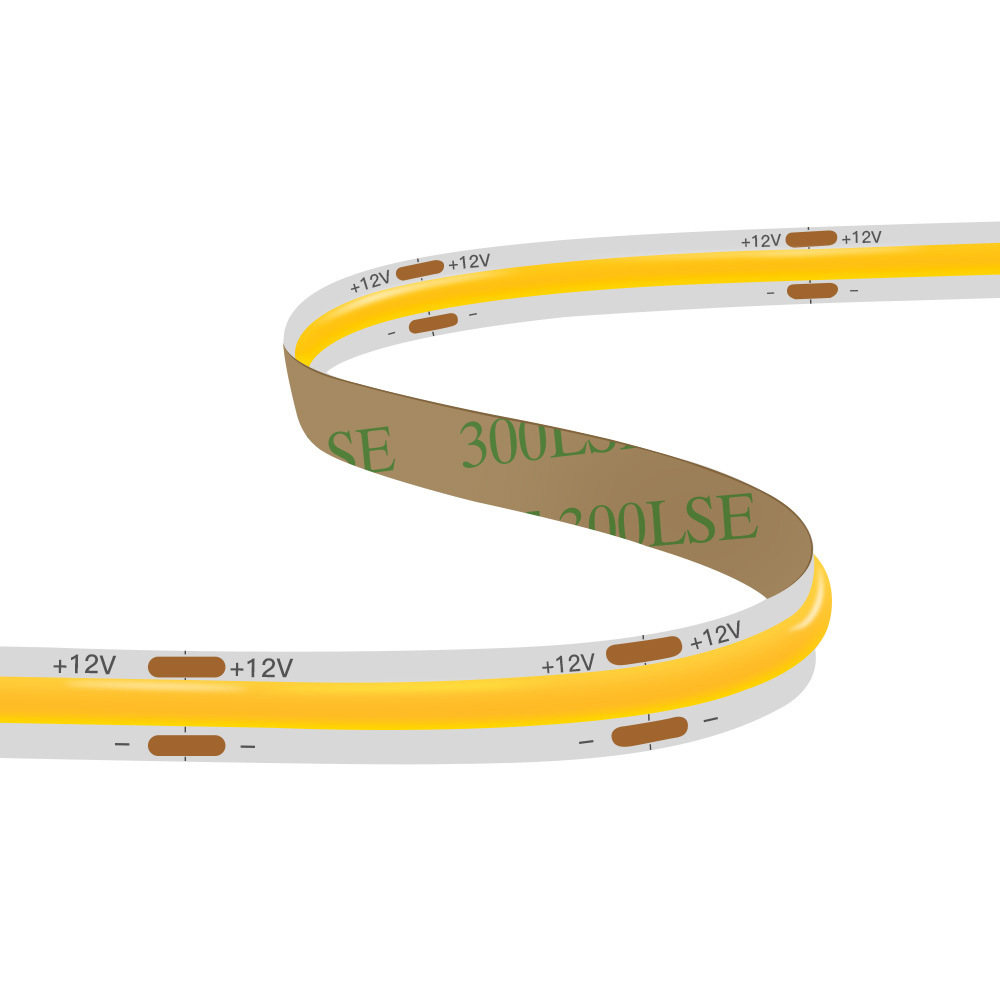

The DC12V COB LED strip light uses the new COB technology to produce seamless linear lighting. With the high-density LED array design for the high CRI, brighter, with no hot spots, and with uniform light emission for high-end lighting projects. The Light Strips use 9*22 mil size LED chips that can increase the brightness of the light strip and improve heat dissipation. There are 12VDC and 24VDC products available, the 24V version without any voltage drop even at lengths longer than 5 meters on the whole white light. There are two models available, 480PCS LEDs per meter and 528 LEDs per meter, and you can choose the various lengths for your project. The 12V LED Strips are cuttable and can be cut to any length. The back has double-sided adhesive tape; removing the protector from the tape and sticking it to where you want to install it is easy. You can connect the dotless LED strips to an LED dimmer to adjust the brightness from 0% to 100%. Various emitting color products are available, and you can choose warm white, natural white, or cool white for different scenes. The Seamless Strip Lights are non-waterproof and only recommended for indoor applications.
Specifications:
- Working Voltage: DC12V/DC24V
- LED Chip Brand: San An
- LED Type: 2110
- LED Size: 9*22 mil
- Power: 10W/M(8mm), 15W/M(10mm)
- Width: 8mm(480LEDs/M), 10mm(528LEDs/M)
- LED QTY: 480LEDs/M, 528 LEDs/M
- Luminous Flux: 950-1250LM/M(480LEDs/M), 1330-1750LM/M(528LEDs/M)
- Luminous Efficiency: 90-120LM/W(480LEDs/M), 85-95LM/W(528LEDs/M)
- Lengths Available: 0.5M, 1M, 2M, 3M, 4M, 5M
- Colors: Warm White(3000K), Natural White(4000K), Cool White(6000K)
- View Angle: 180°
- Dimmable: YES
- IP Rating: IP20 Non-Waterproof
- Cuttable Length: For 480LEDs/M: 25mm(DC12V)/50mm(DC24V); For 528LEDs/M: 22.5mm(DC12V), 45.5mm(DC24V)
- CRI: >90Ra
- Flexible And Bendable
- No Hot Spots And Visible Light Dots
- Uniform Light Emission
- Lifespan: 50,000 Hours
- 2 Years Warranty
Includes:
1 * Dotless COB LED Strip Light
