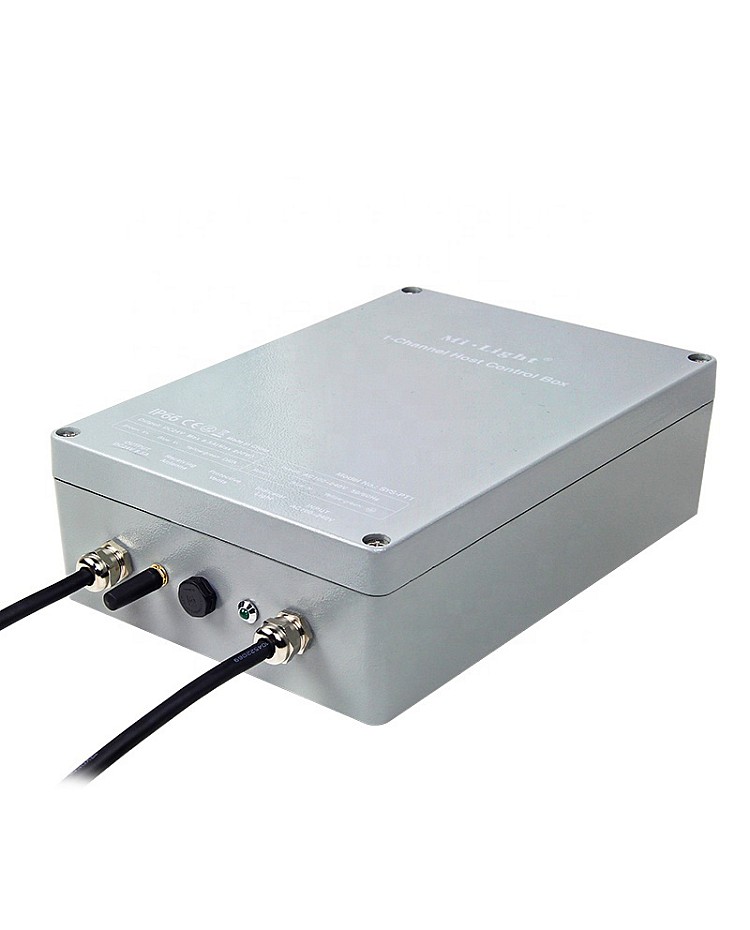

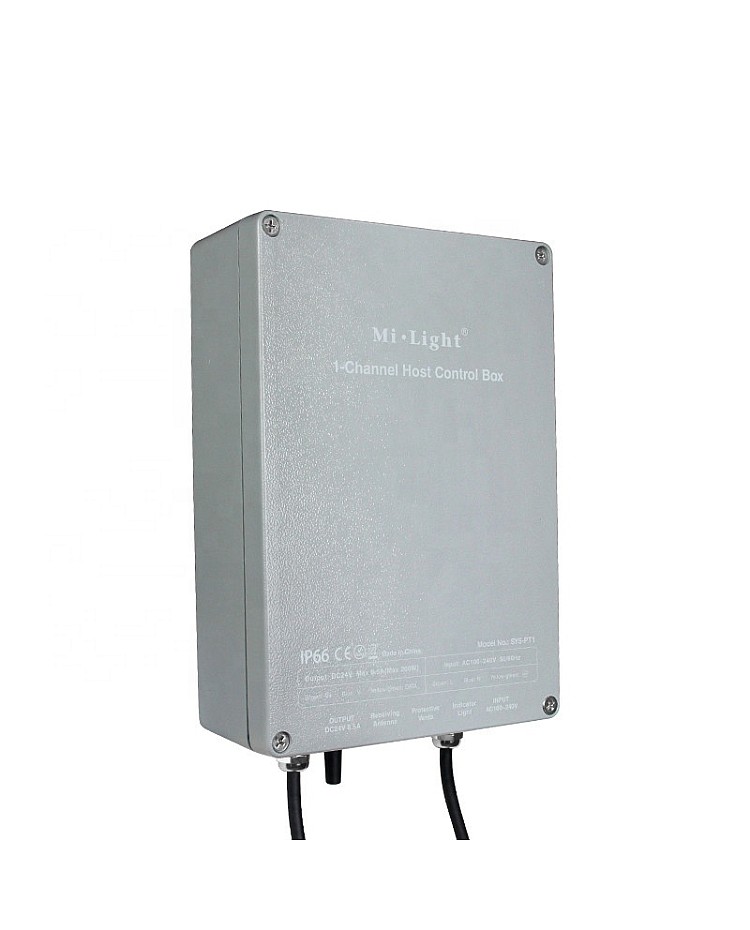

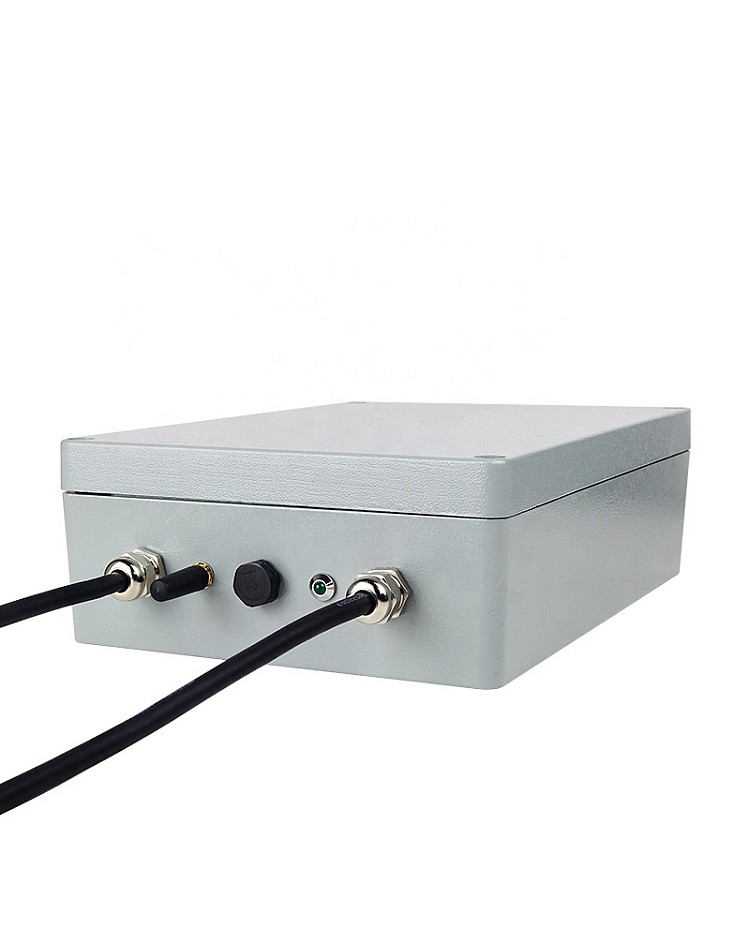

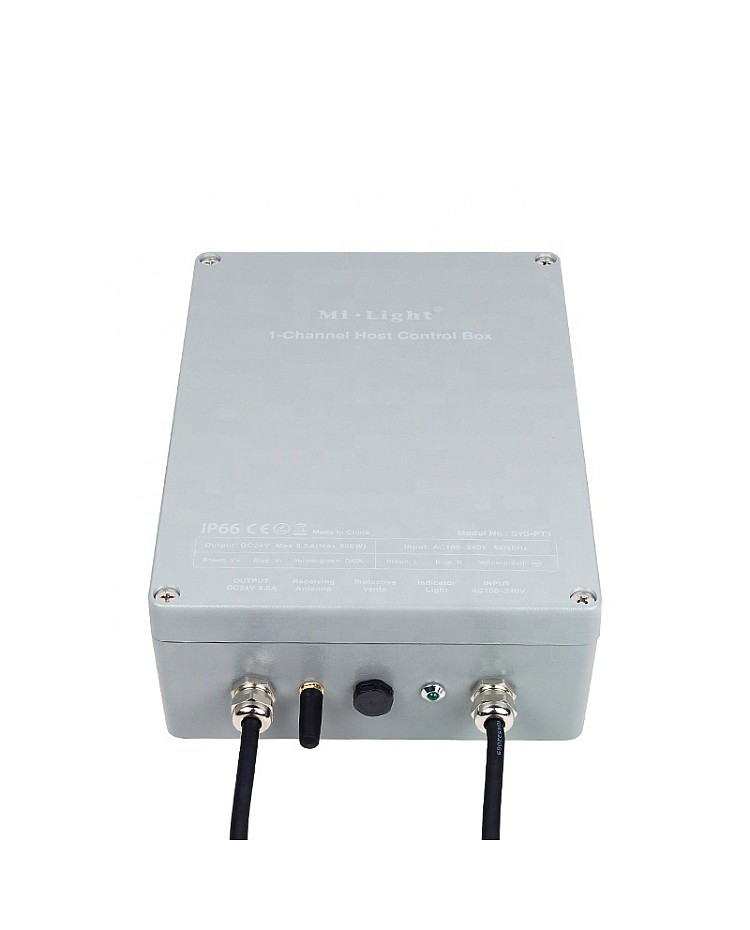

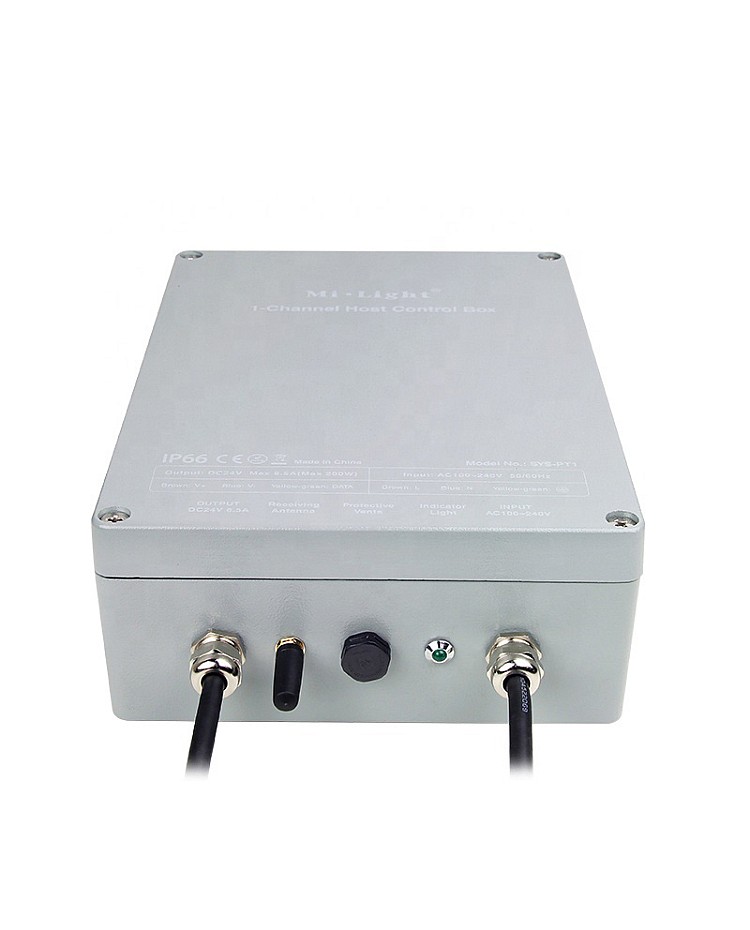

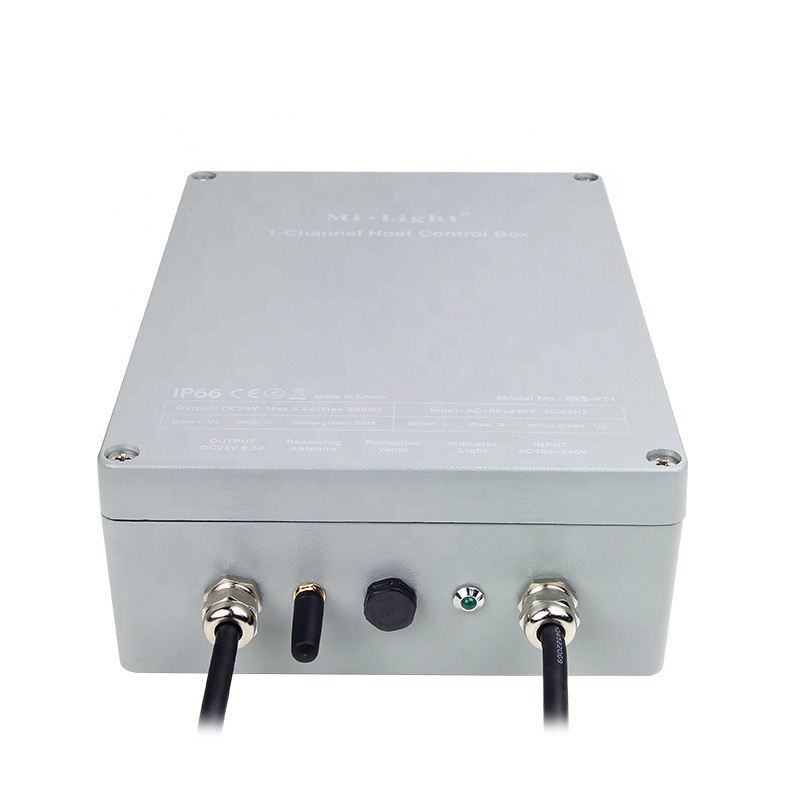

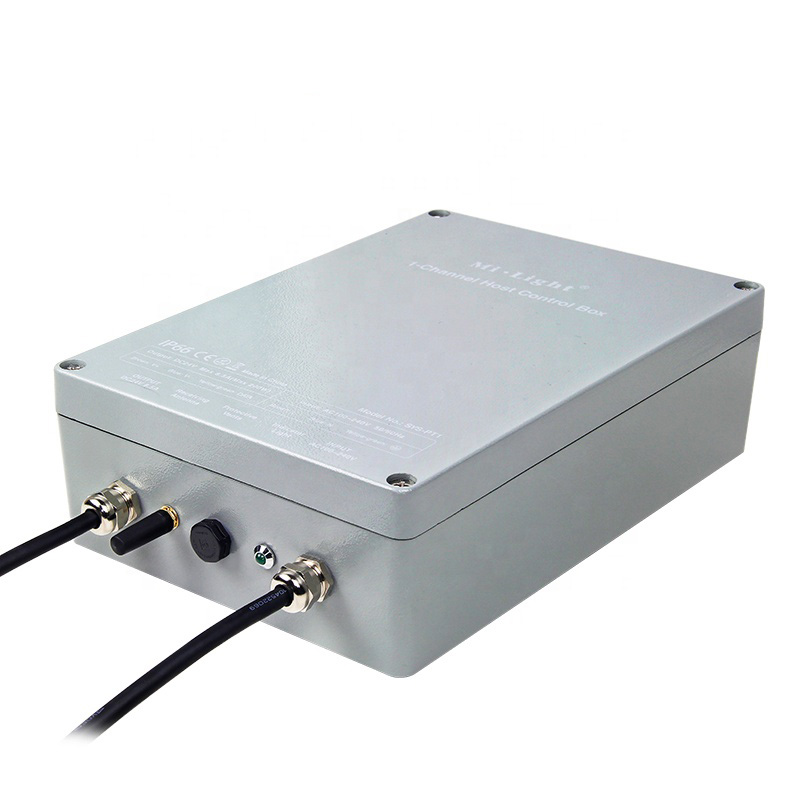

The MiBoxer SYS-PT1 1 Channel Control Box, which is compatible with MiBoxer SYS series products, works in AC100V to AC240V, easy to install and use. The MiBoxer Control Box is waterproof, and the waterproof level is IP66. It will normally work outdoors on rainy days. The SYS-PT1 can be controlled by 2.4G RF Remote Controls, after adding WiFi iBox OR WiFi Remote, which can be controlled by smartphone APP and third-party voice commands. You can set the static color and adjust the LED lights' saturation, brightness, and color temperature. There are 16 million colors available. one Control Box will receive the signals from the Remote and transmit them to other same Control Boxes within 30 meters; all of them will work synchronously. If you want to add more LED Lights to your project, purchase the SYS-PT2 Amplifier Box separately.


  • Mode: SYS-PT1
  • Size: 263*184*81mm(L*W*H)
  • High-Quality Stainless Steel Shell
  • Input Voltage: AC100-240V, 50/60Hz
  • Output Voltage: DC24V
  • Output Current: Max 8.5A
  • Output Power: Max 200W
  • Control Distance: <30m
  • IP Rate: IP66
  • 2.4G Remote Control: FUT089, FUT088, FUT092, B8, B4, T4, B0
  • Smartphone APP Control(WiFi iBox Needed)
  • DMX512 Control(DMX512 Transmitter Needed)
  • Amazon Alexa Voice Control(WiFi Remote Needed)
  • Auto Synchronization And Auto Transmitting
  • Compatible With MiBoxer SYS Series Products
  • Sun Protection
  • Corrosion Resistance
  • Wind And Rain Protection
  • Fast Heat Dissipation
  • 3 Years Warranty

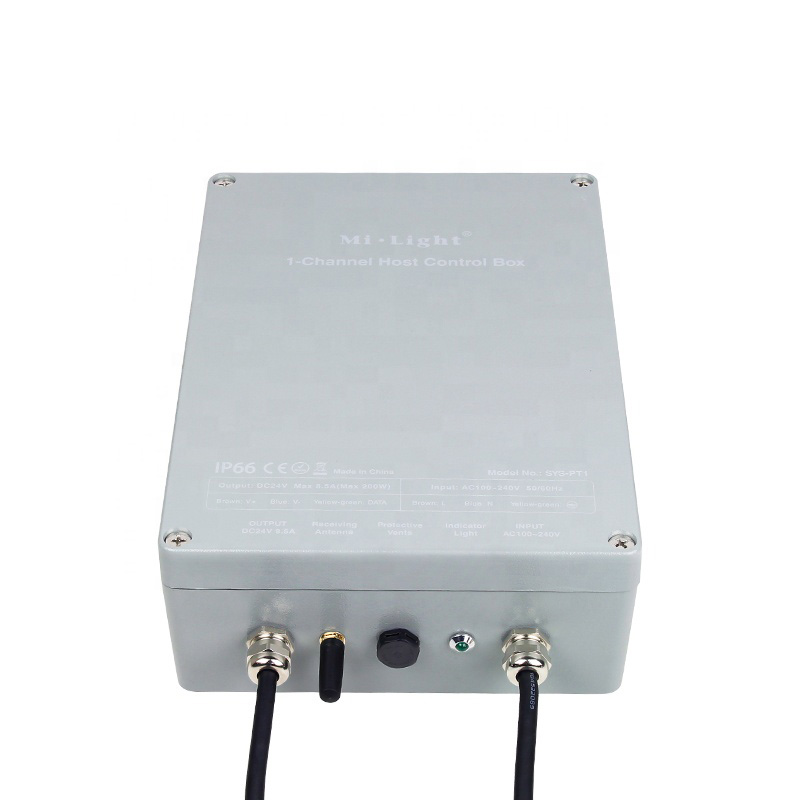

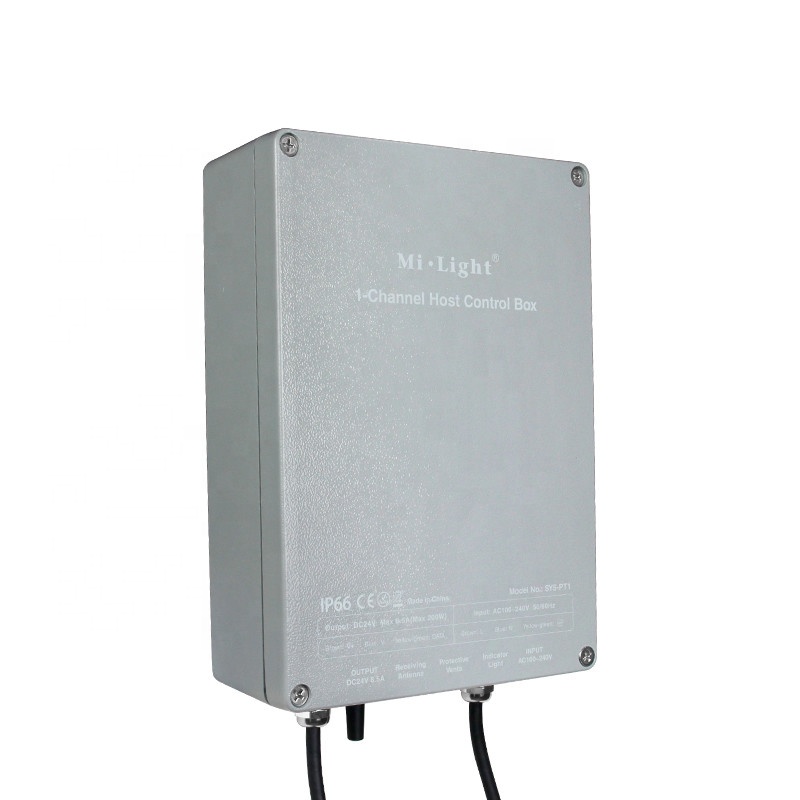

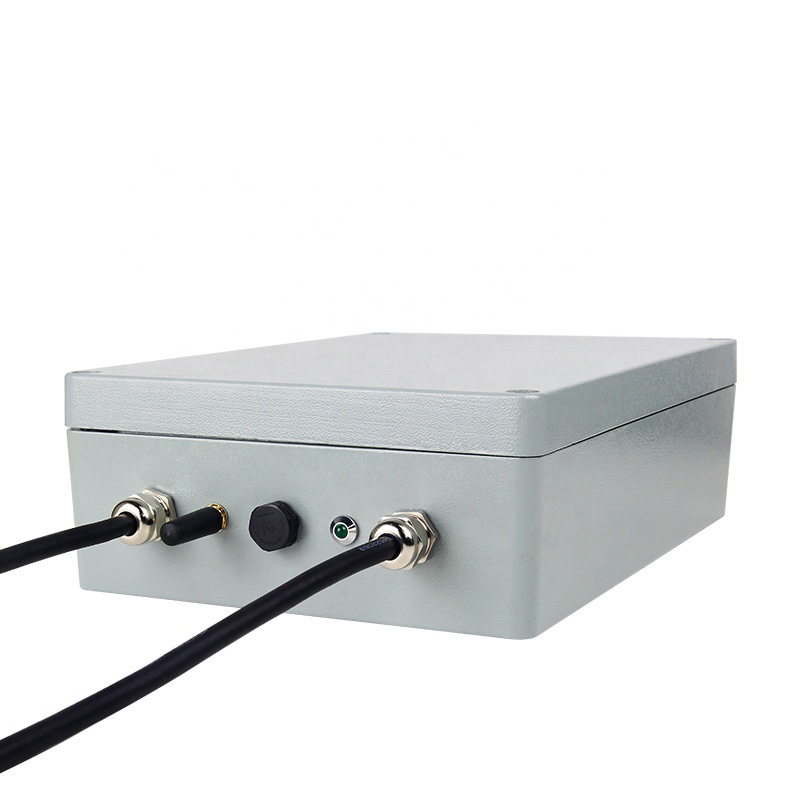

1*MiBoxer 1 Channel Host Control Box

MiBoxer Host Control Box Voice Control
