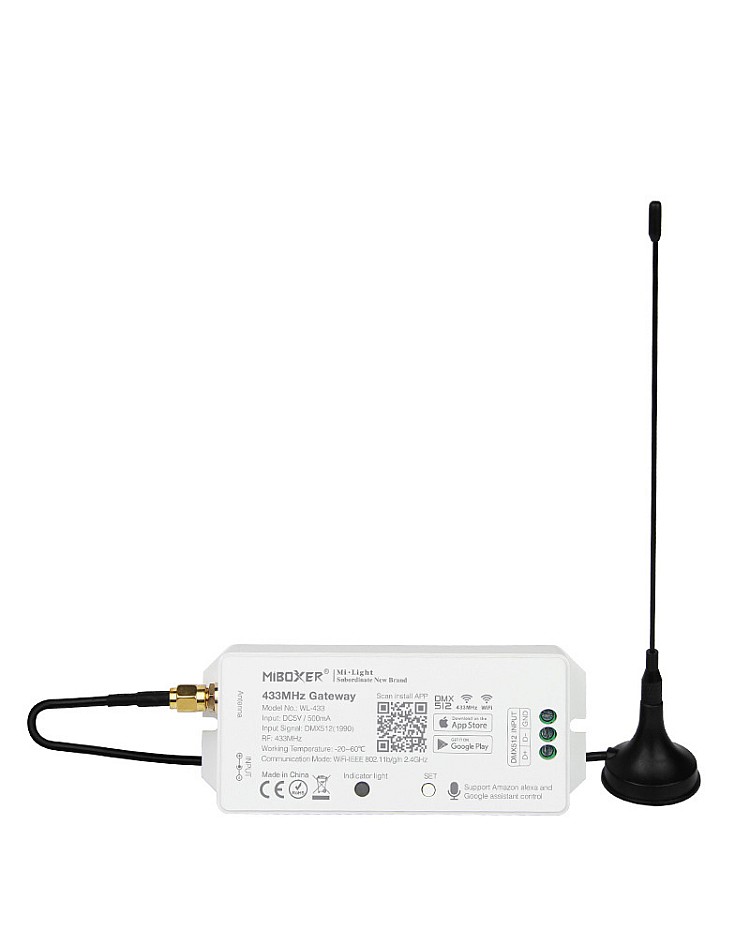

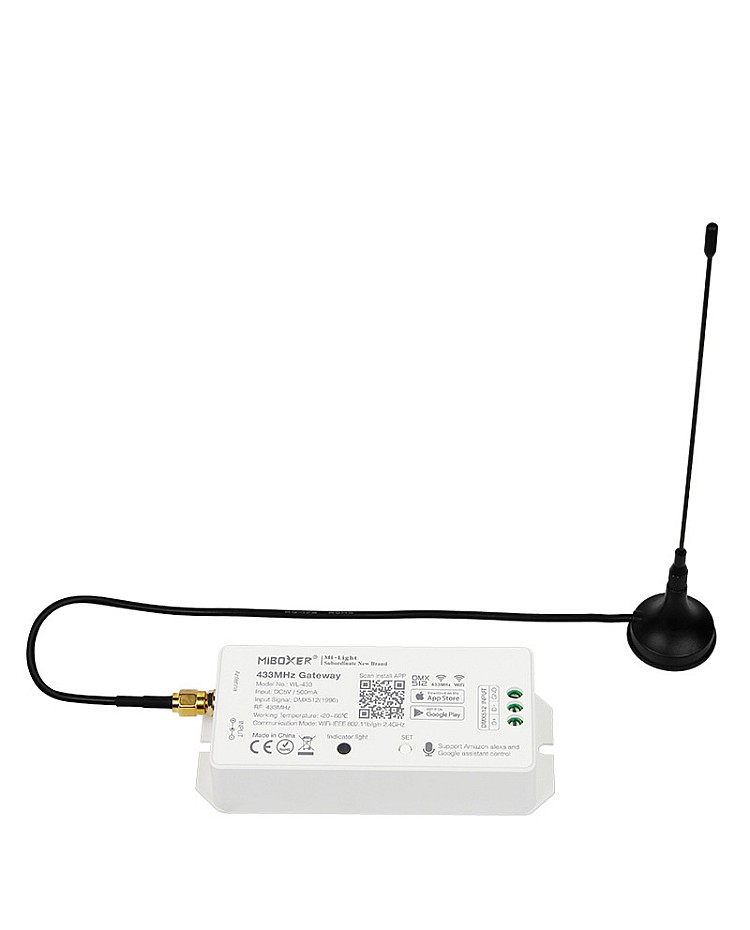

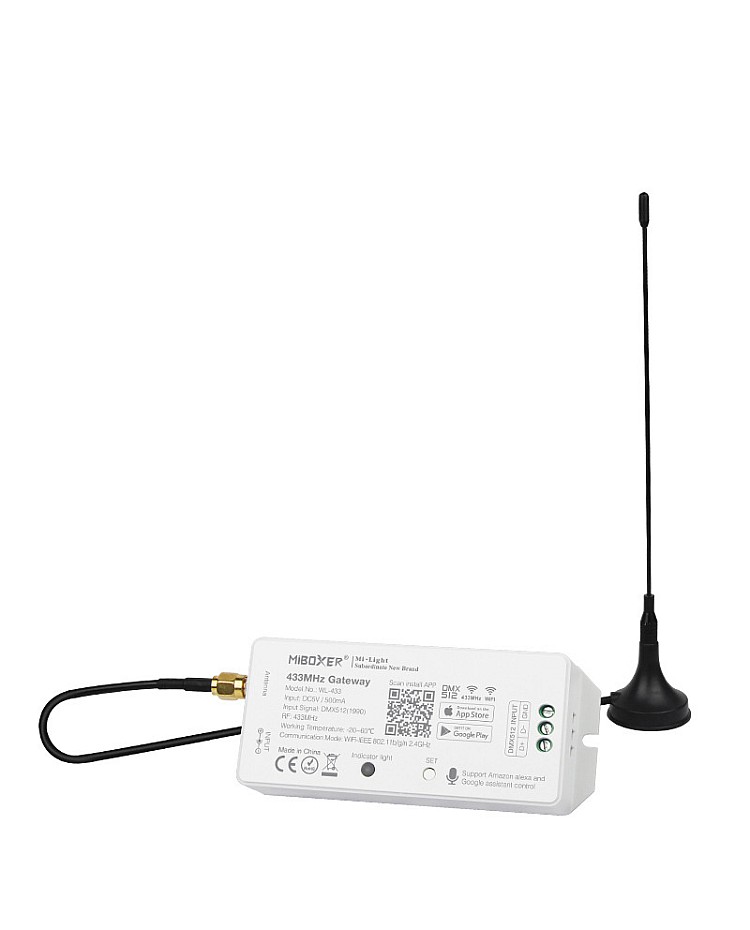

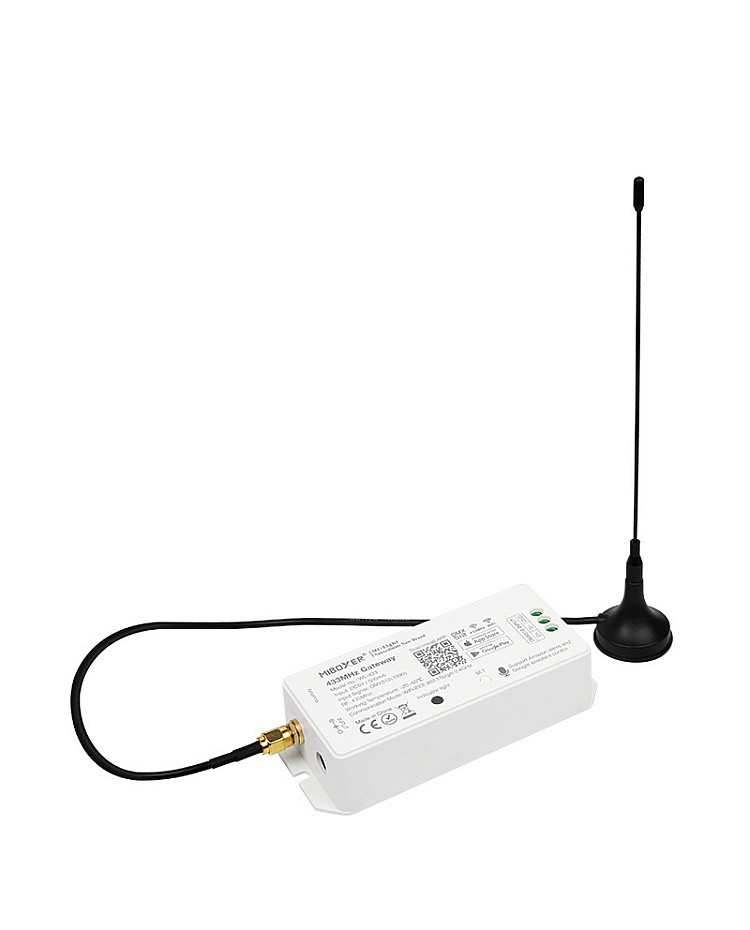

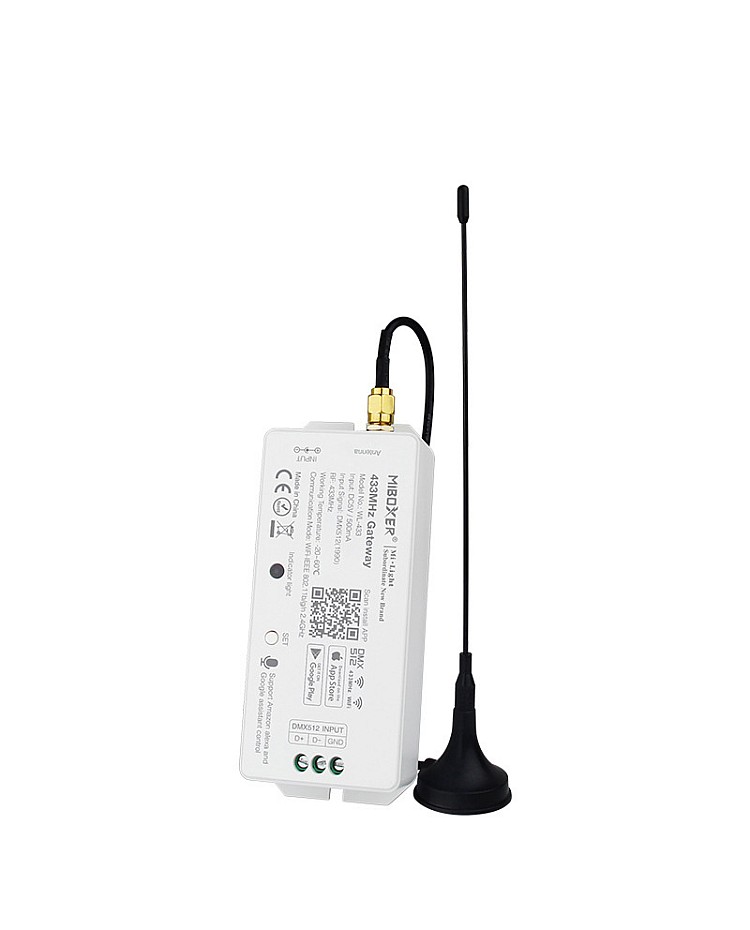

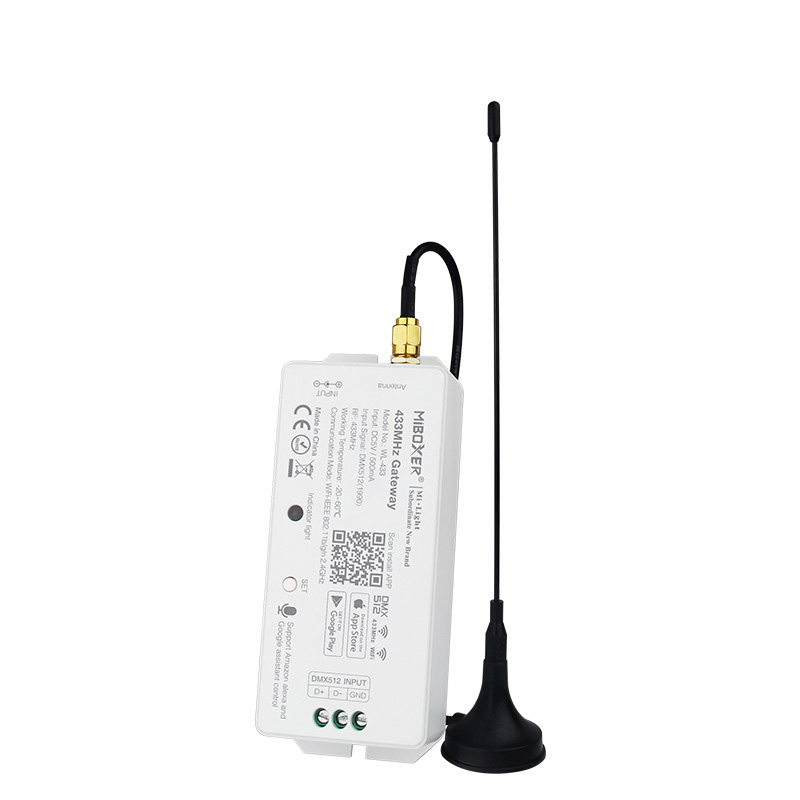

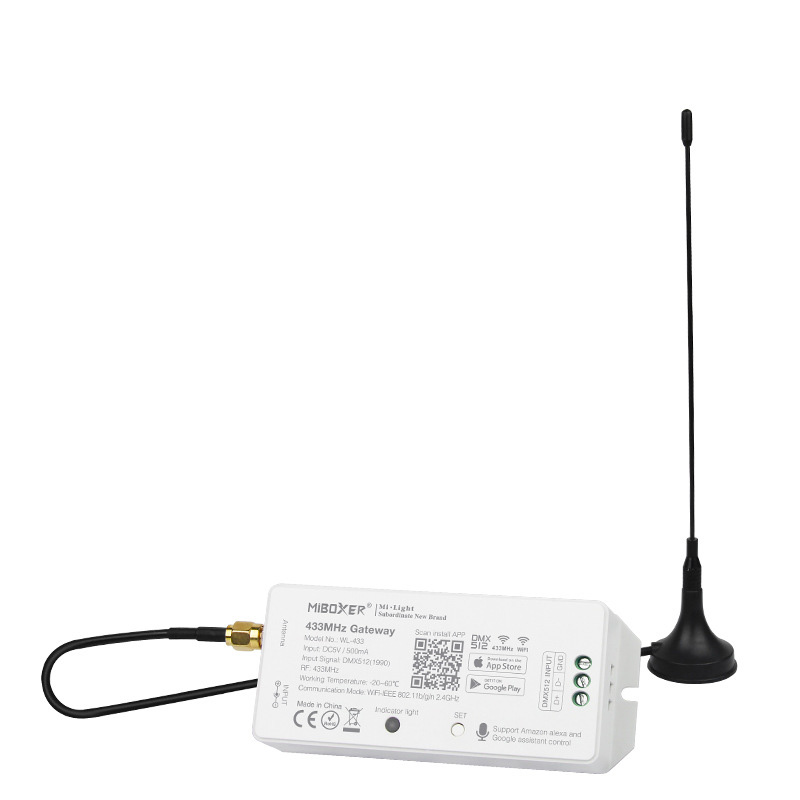

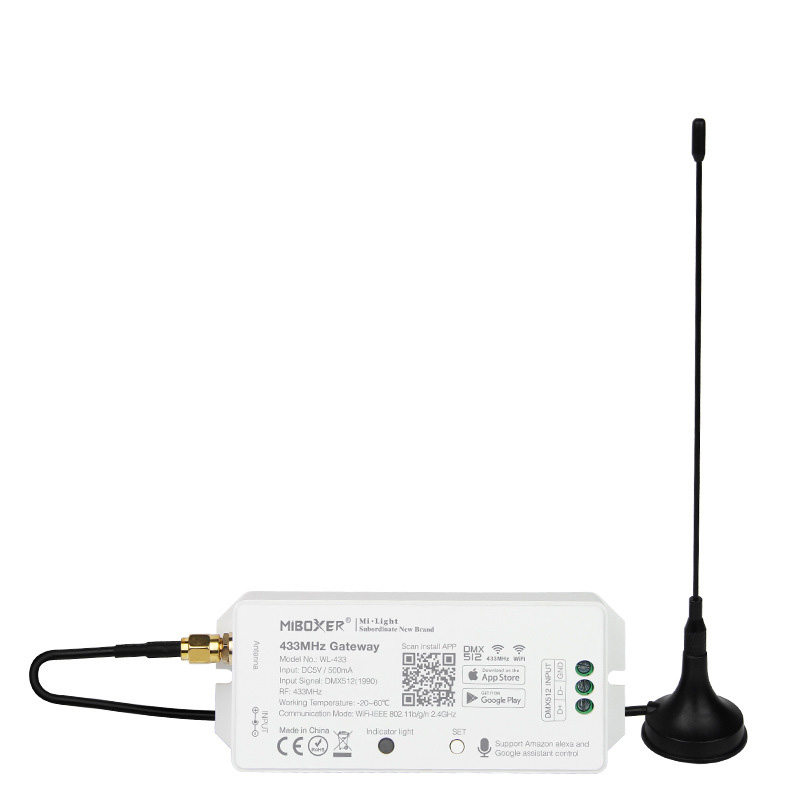

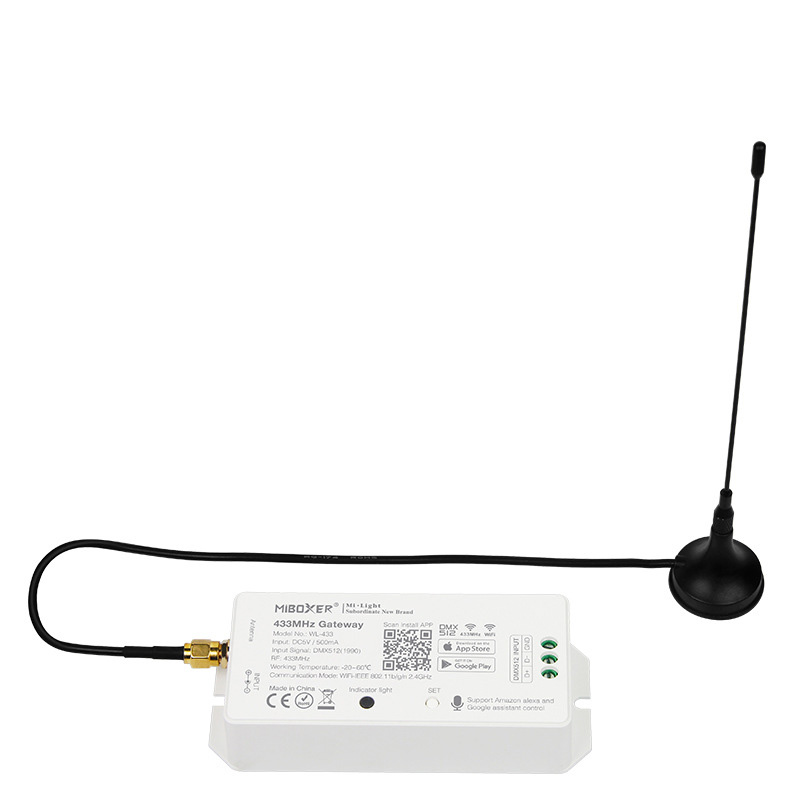

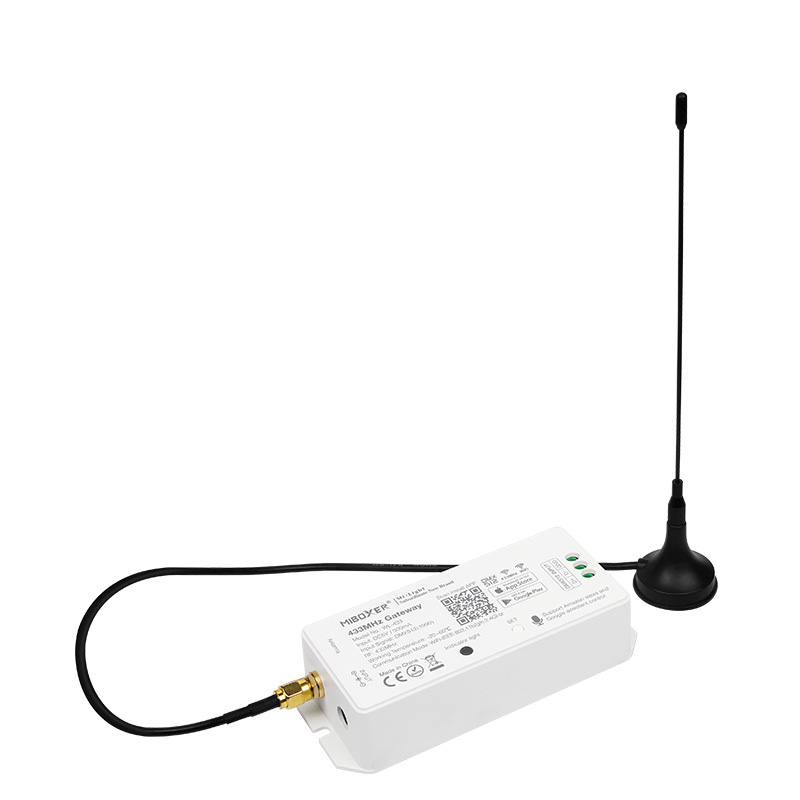

The MiBoxer WL433 433MHz Gateway, compatible with MiBoxer 433MHz series products, supports third-party voice control and smartphone APP control. You can adjust ON/OFF, brightness, and temperature and change light colors through voice commands. You also can control the Gateway by smartphone through the 3G/4G network at any time and place. The MiBoxer Gateway supports DMX512(1990) control and sets the DMX512 address for the gateway on the Popup window via the smartphone APP. The Gateway will copy the remote control ID to fulfill the gateway, and after linking with the remote, the gateway can control the lamps directly without linking again. The 433MHz Gateway with a timer function, you can set the ON and OFF times easily.

Quick Links:

MiBoxer WL 433MHz Gateway User Manual


  • Size: 118*48*27mm(L*W*H)
  • Input Voltage: DC5V/500mA
  • Working Temperature: -20℃-+60℃
  • Communication Mode: WiFi-IEEE 802.11 b/g/n 2.4GHz
  • Input Signal: DMX512(1990)
  • RF: 433MHz(Transmitting Power: 15dBm)
  • Modulation Method: LoRa Spread Spectrum
  • Control Distance: ≤50m(Lamps Into 0.5m Under Freshwater)
  • Control Distance: ≤1000m(Lamps On The Open Area)
  • Compatible With MiBoxer 433MHz Series Products
  • Support Third-Party Voice Control(Amazon Alexa And Google Assistant)
  • Smartphone APP Control(3G/4G Controllable)
  • Support DMX512(1990) Control
  • Timer Function
  • IP Rating: IP20 Non-Waterproof
  • 2 Years Warranty


1*MiBoxer WL433 Gateway

433MHz Bridge
