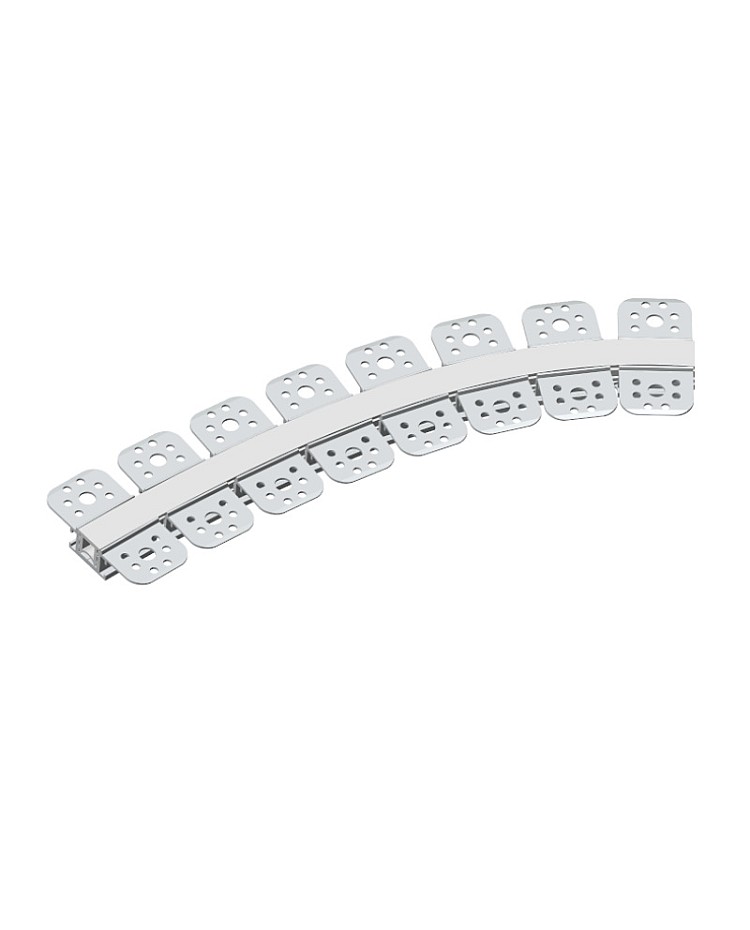

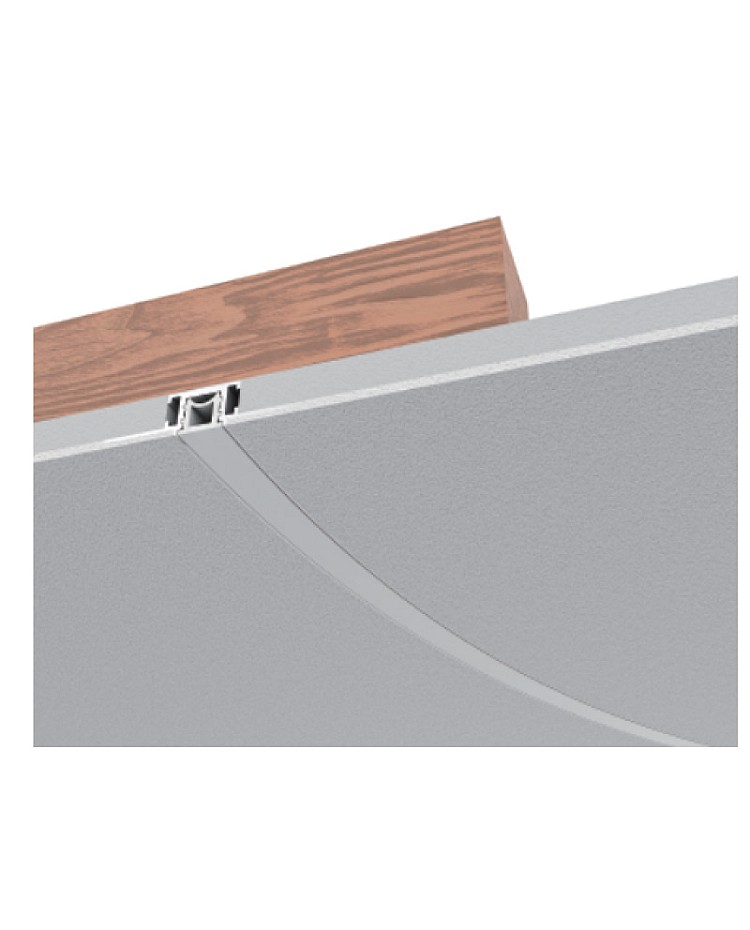

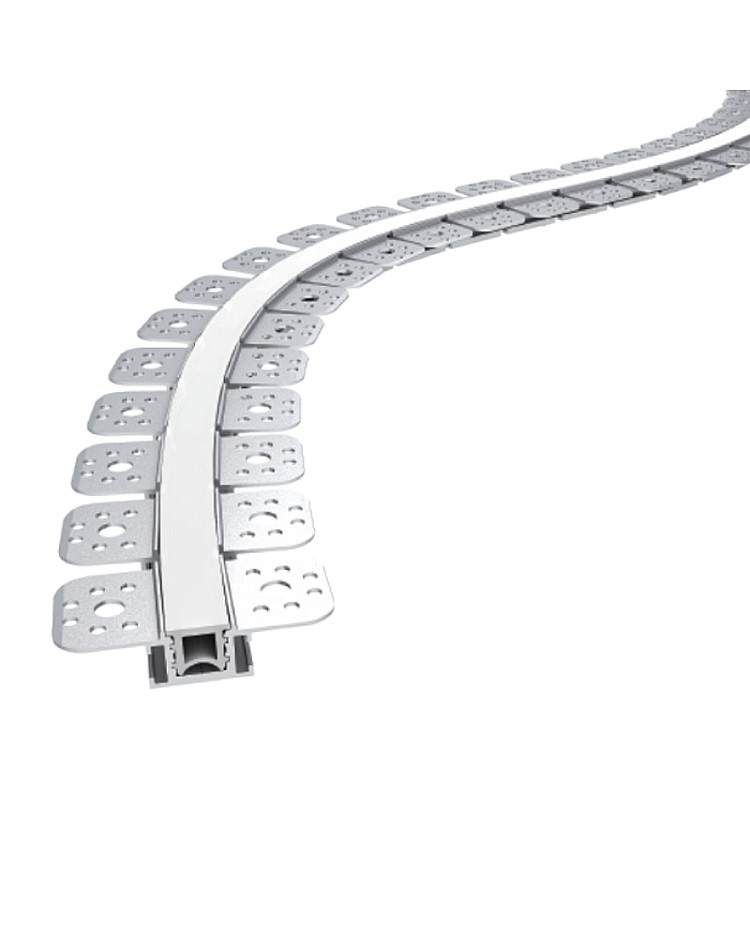

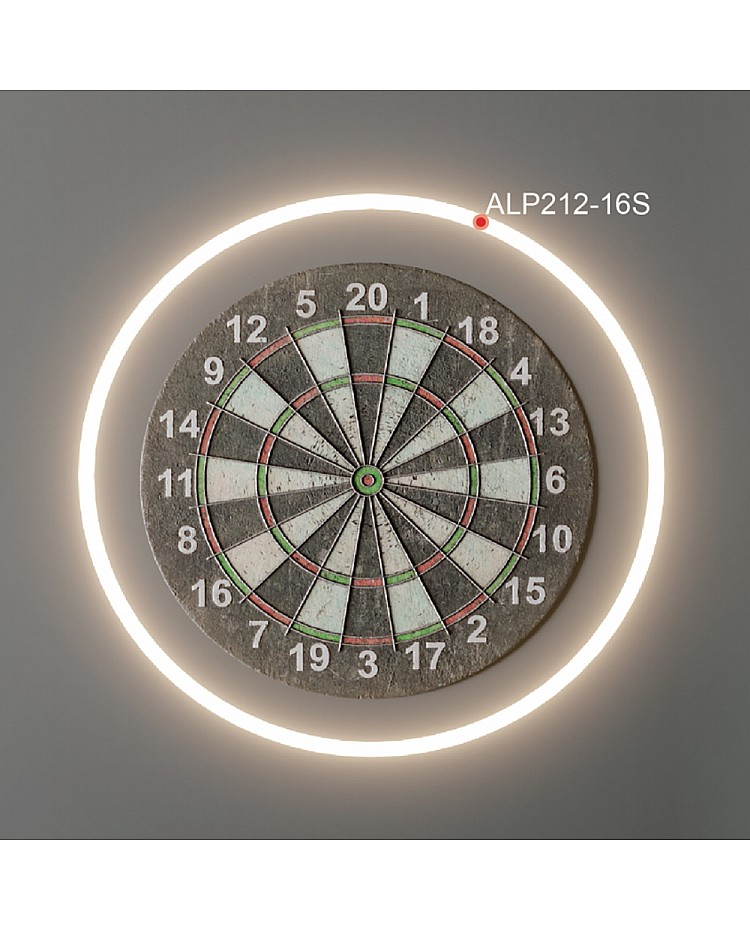

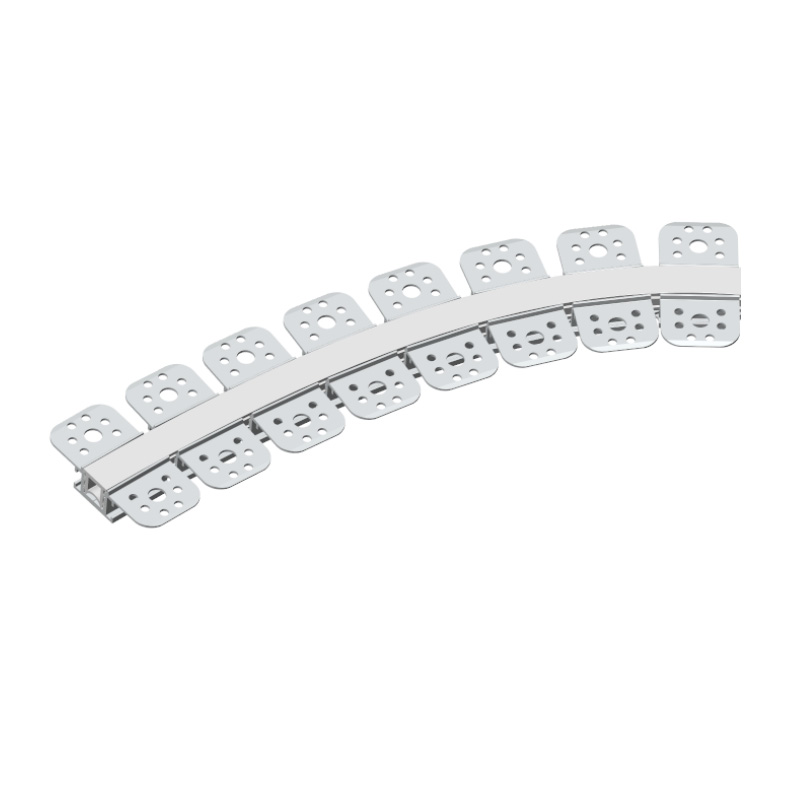

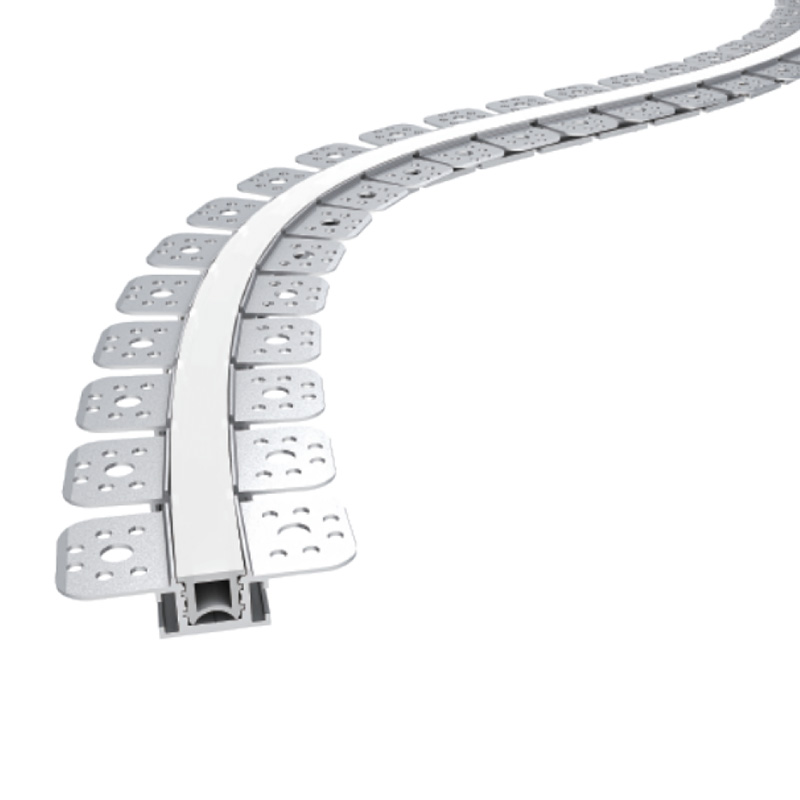

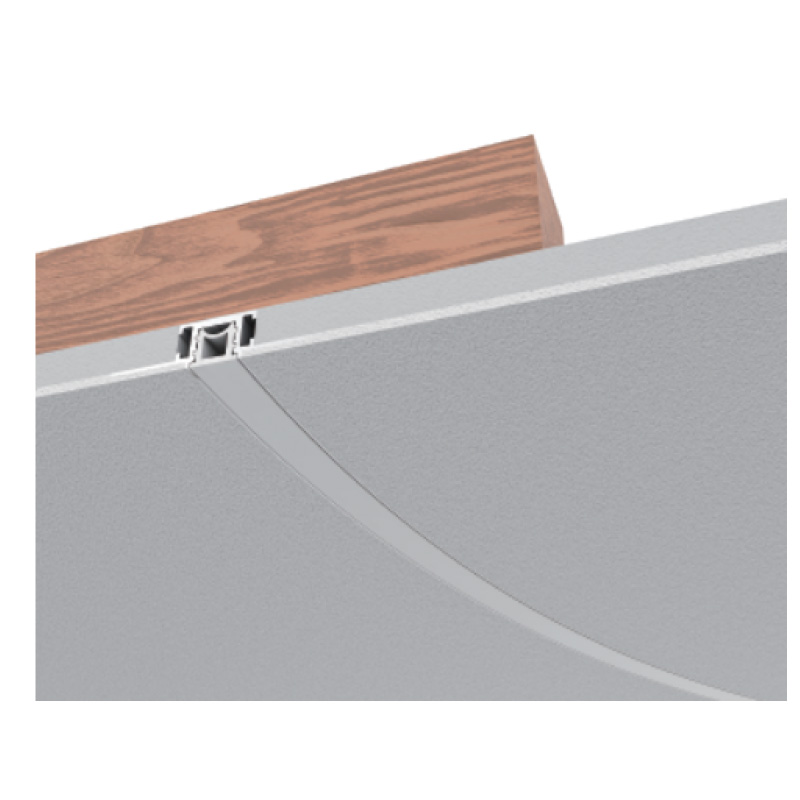

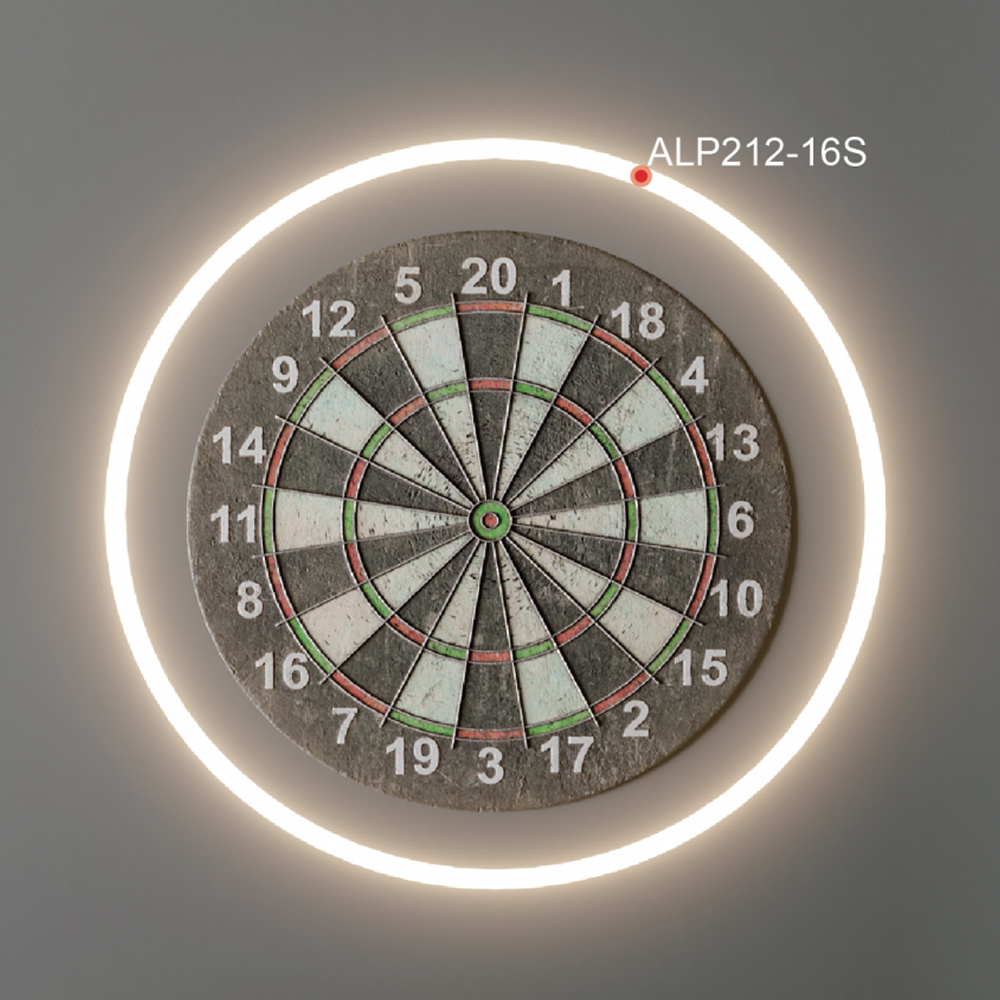

The flexible LED profiles, featuring a side-bendable design, offer flexibility in bending along their sides, providing a versatile solution for modern lighting design. You can shape them into a round, S, or other shapes for various lighting design needs. The standard length is 1 meter per piece and can be cut to any size for your needs. They are made of 6063-T5 extruded aluminum alloy, have a silver anodized finish, anti-oxidation resistance, and are long-lasting. The inner width is 14mm, allowing a maximum width of 10mm for strip lights. Recommend adding high-density, single-color, or CCT dimmable COB LED strips as the light source, featuring uniform light emission with no dark areas or hot spots. The silicone diffusers are included, made of high-quality material that is anti-yellowing and creates consistent linear lighting. The End caps with or without wire holes are included and can be used to seal the bendable LED channels. They are also easy to connect to the RGB light controller. The flanges with round honeycomb holes can be easily plastered in and mud-in the drywall.

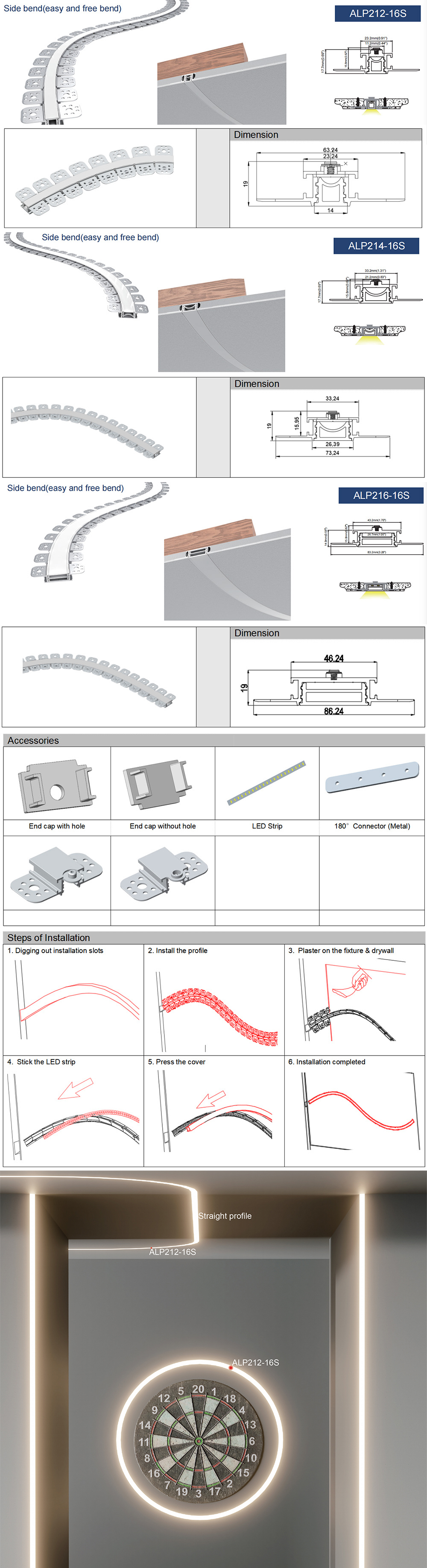

Specifications:
- Type: Side Bendable LED Profiles
- Model: ALP212-16S / ALP214-16S

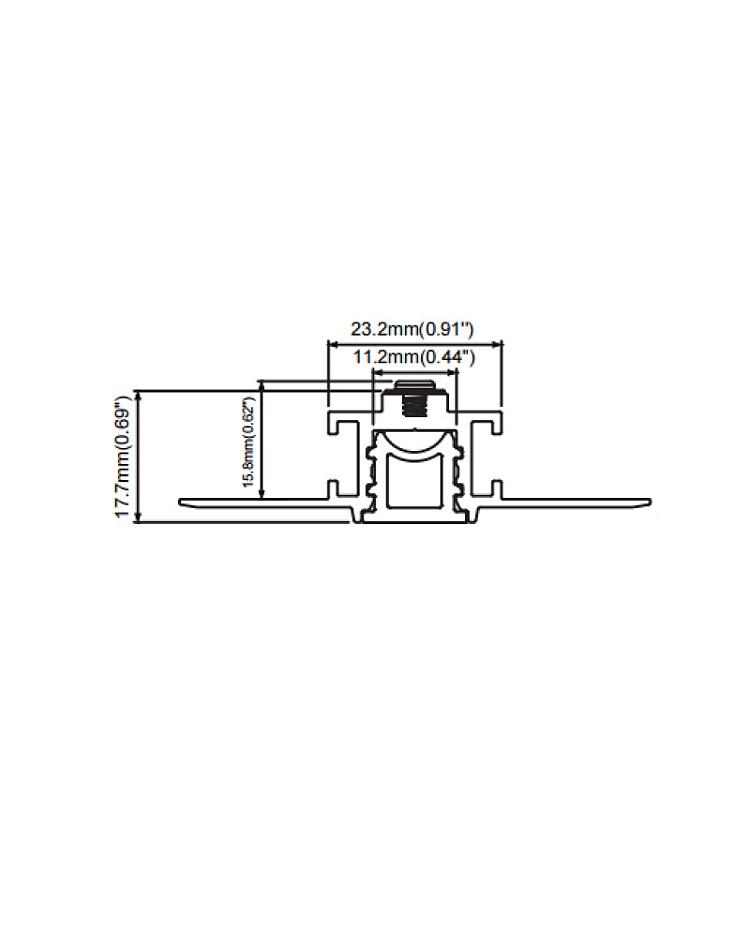

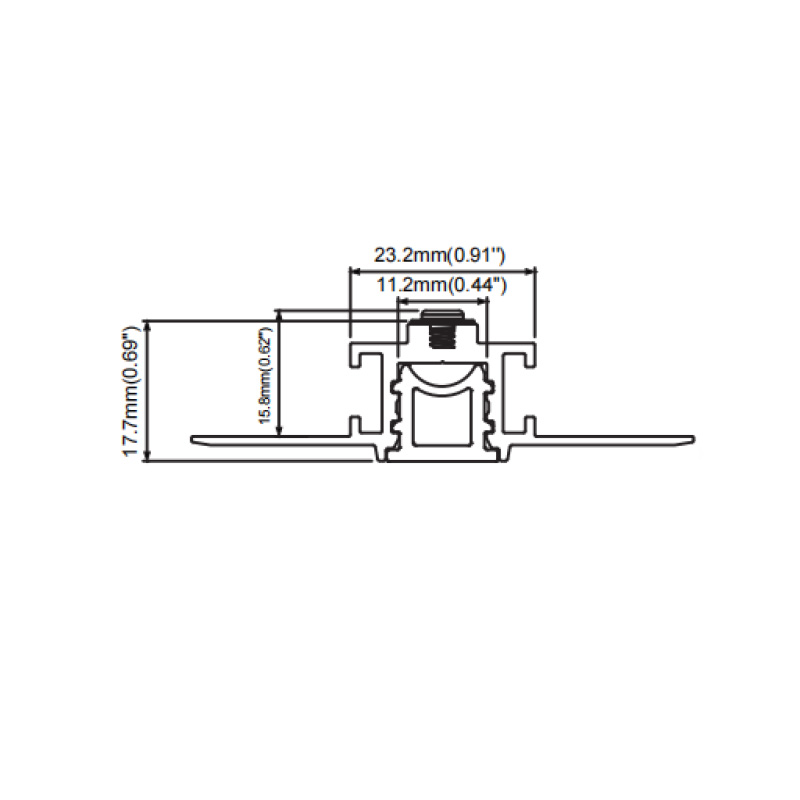

- Size: 63.24*19mm(W*H)(ALP212-16S) / 73.24*19mm(W*H)(ALP214-16S) / 86.24*19mm(ALP216-16S)
- Material: 6063-T5 Extruede Aluminum Alloy + Silicone
- Colors: Silver(LED Profiles) / White(Silicone Diffuser)
- Length: 1M
- Custom Length: YES
- Inner Width: 14mm(ALP212-16S) / 21.2mm(ALP214-16S) / 26.7mm(ALP216-16S)
- Max LED Strip Width: 10mm(ALP212-16S) / 12mm(ALP214-16S) / 30mm(ALP216-16S)
- Max Power: 15W/M(ALP212-16S) / 18W/M(ALP214-16S) / 30W/M(ALP216-16S)
- Diffuser: Silicone Cover
- Tolerance: ±1%
- IP Rating: IP20 Non-waterproof

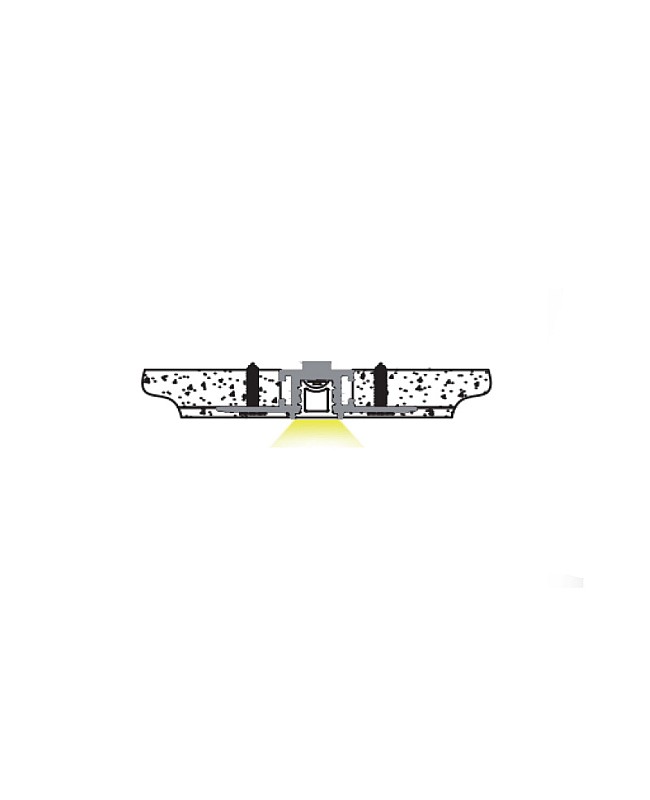

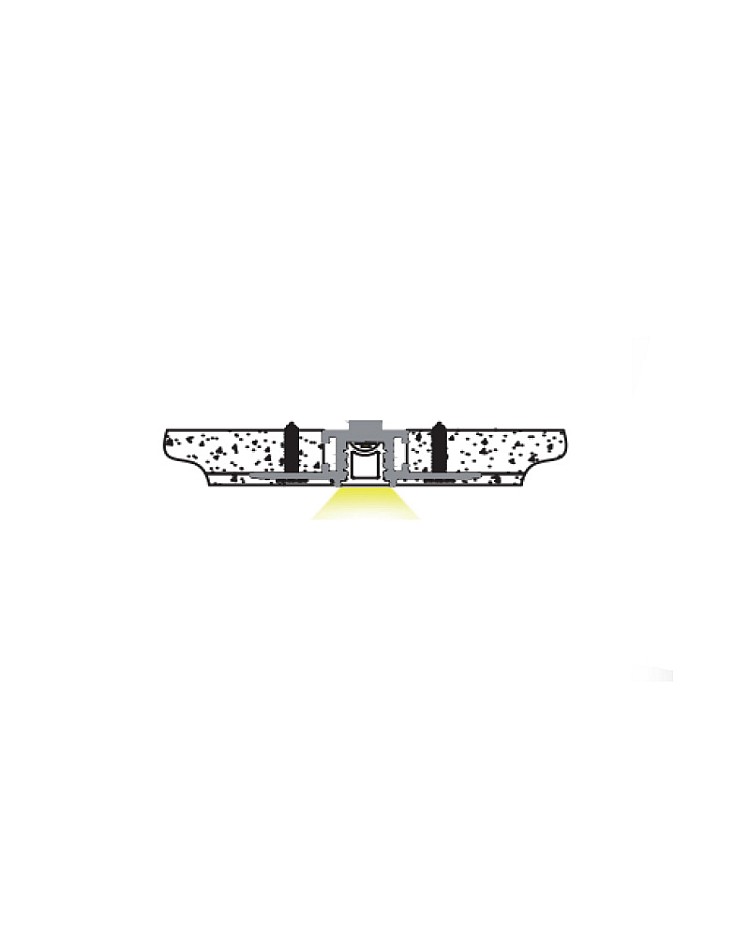

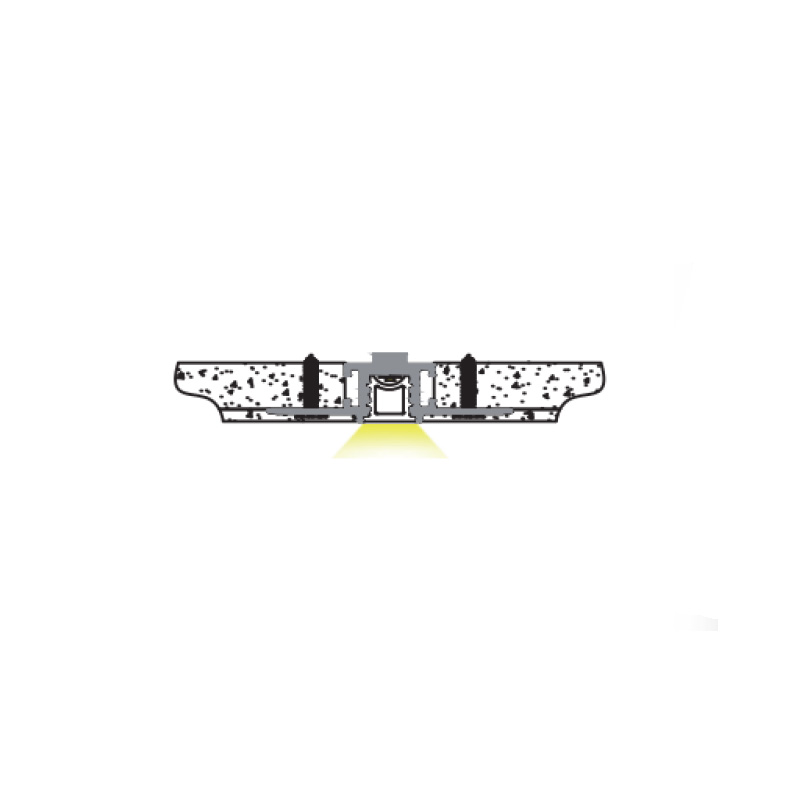

- Installation: Recessed
- Applications: Indoor Modern Lighting Design
- 5 Years Warranty
Includes:
1 * Flexible LED Profiles
Silicone Diffuser
End Caps
