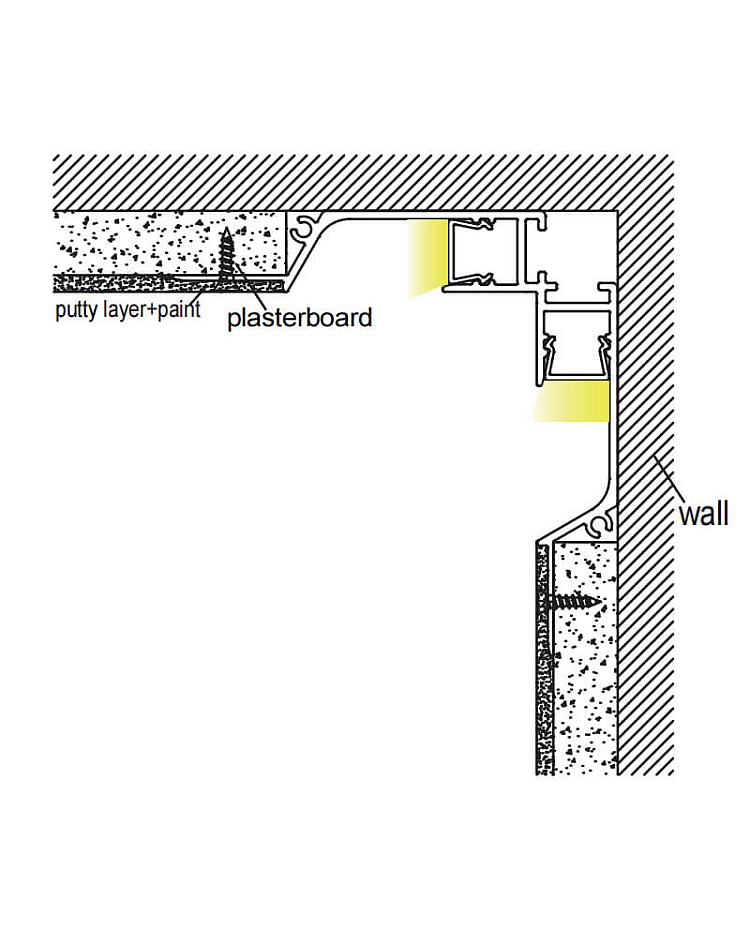

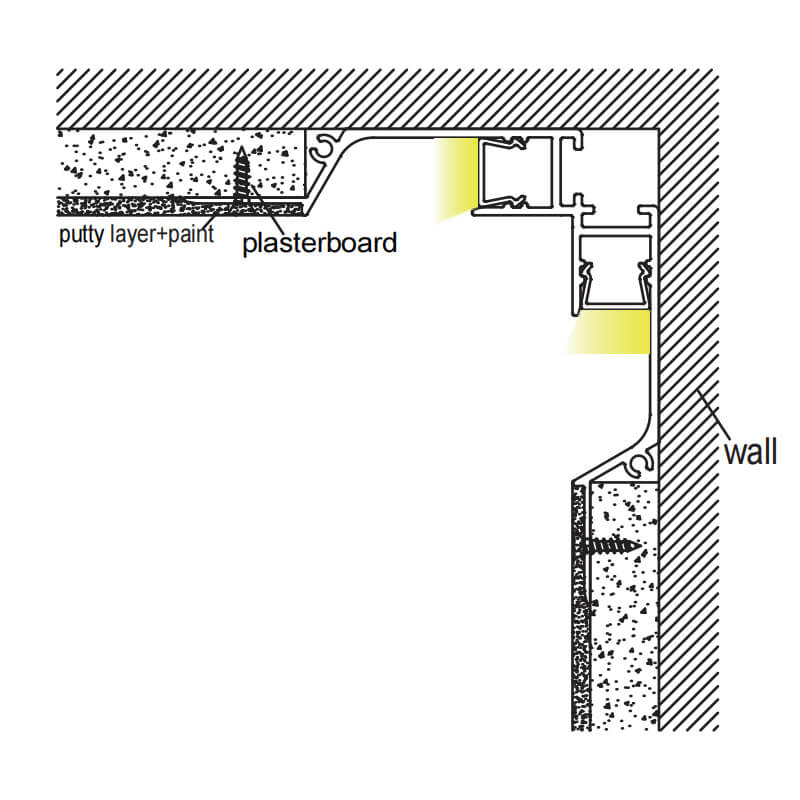

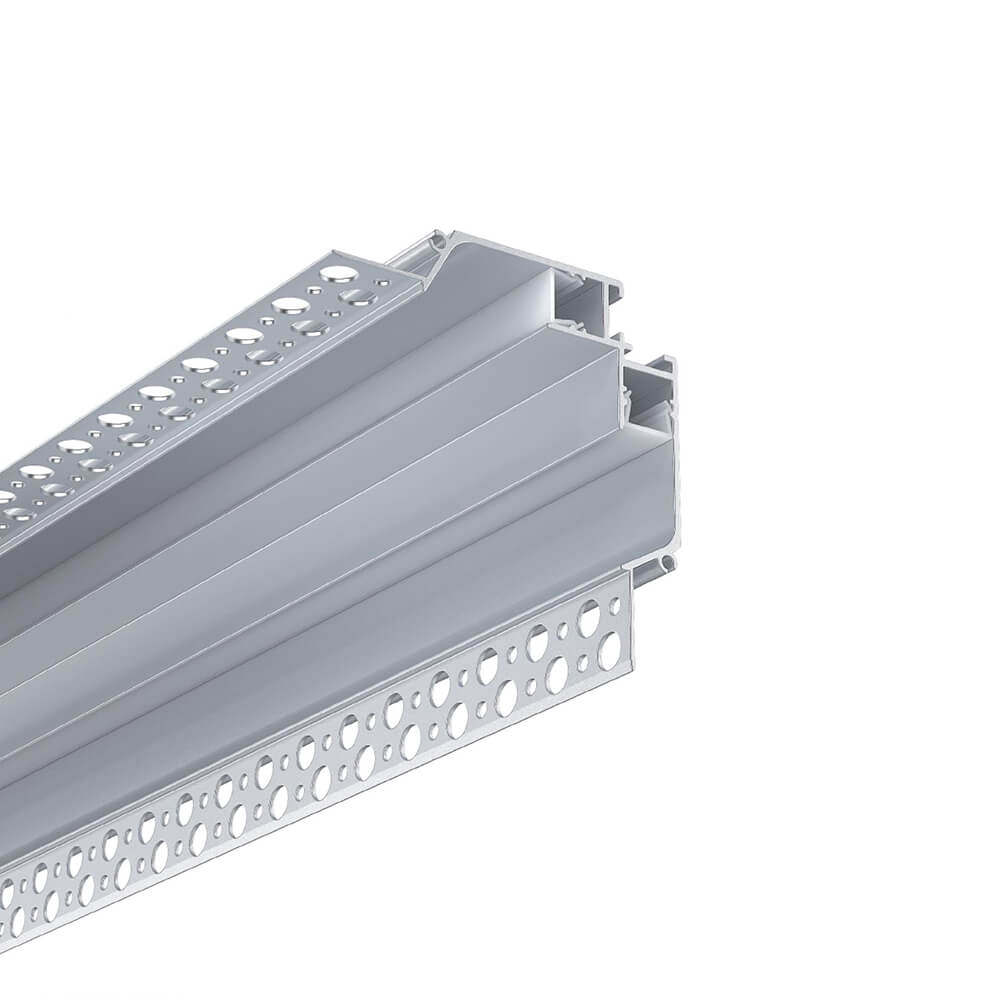

LB245 cornice light LED channel is designed for high-end plaster-in LED strip installations in luxury homes, hotels, restaurants, and commercial areas. Can be installed flush with 12.5mm plasterboards at the 90-degree junction where the wall meets the ceiling to create a beautifully subtle invisible light effect.

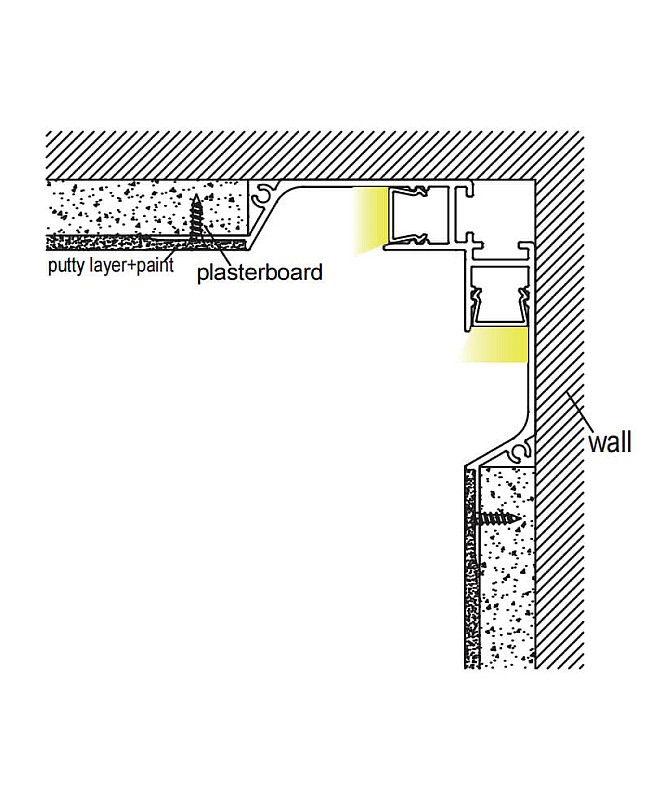

The cornice LED profile features a dual-directional lighting design. It casts a soft, even glow both upward onto the ceiling and downward along the wall, eliminating harsh corners and dark shadows while delivering a balanced, glare-free ambient light that enhances the entire room.

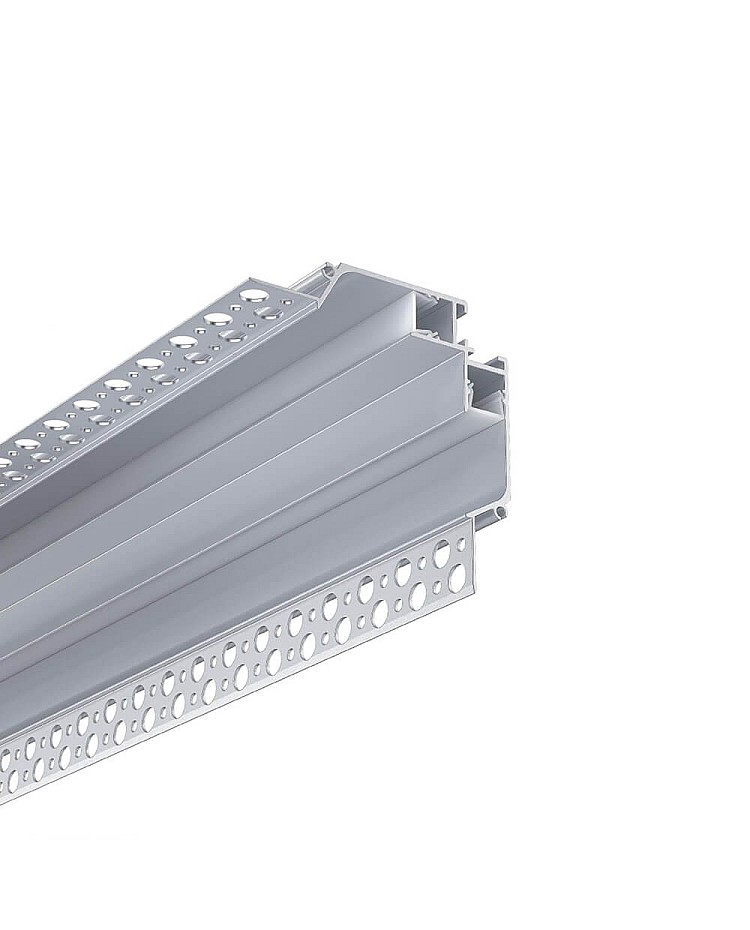

Crafted from high-grade extruded aluminum alloy and with a powder-coated white finish for a longer lifespan. Can act as heat sinks for excellent heat dissipation to extend the lifespan of LED strips, and protect from dust, moisture, and physical damage. The standard lengths are 1m and 2m; custom lengths are supported.
The inner width is 11.9mm, allowing the maximum strip light width to be 11mm. Recommend adding 10mm high-density single-color or changing-color COB or SMD LED strips as the light source to create dotless lighting. The PC-diffused covers will spread the light evenly for uniform illumination without dark areas or hotspots.
There are three types of LED channel connectors available: 90°, 90° vertical, and 180°. You can use them to spice the LED channels for corner or straight installation.

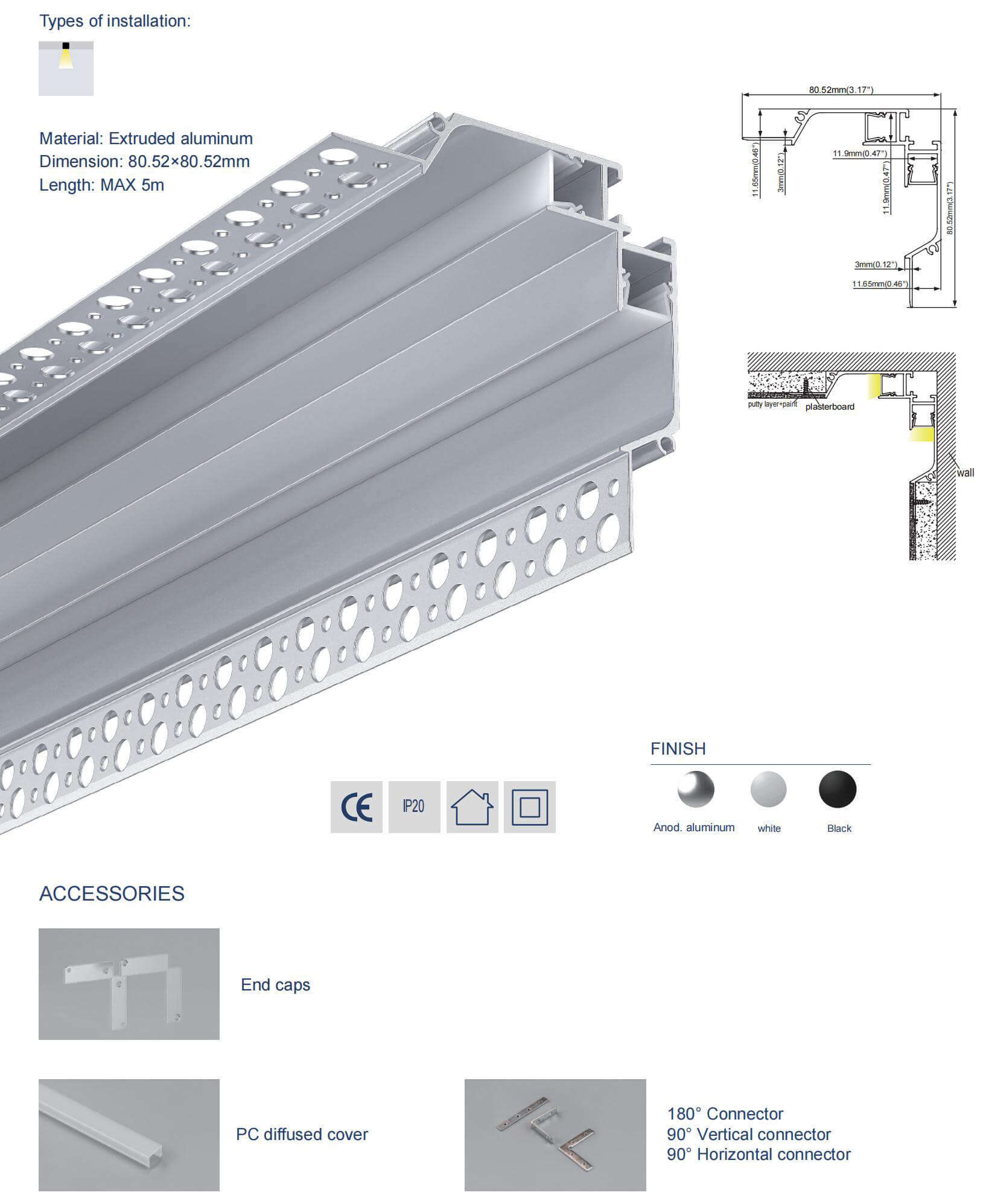

Specifications:
- Model: LB245
- Material: Extruded aluminum
- Surface treatment: Powder-coated
- Color: White

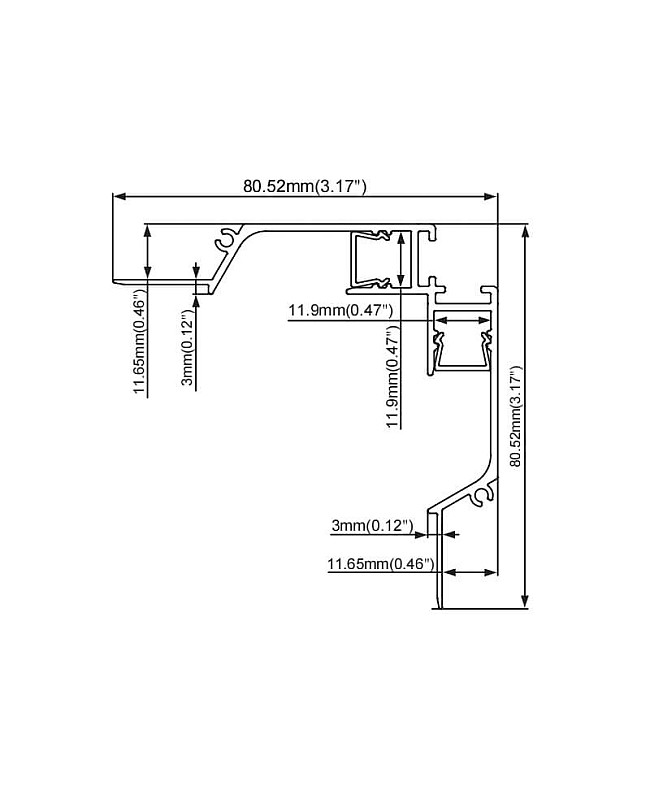

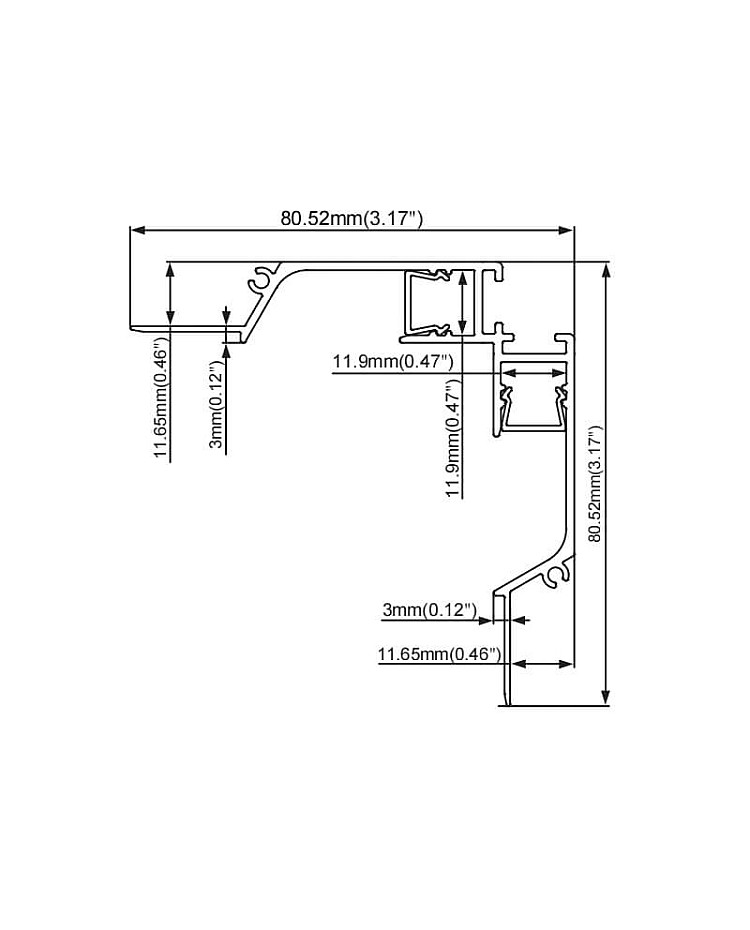

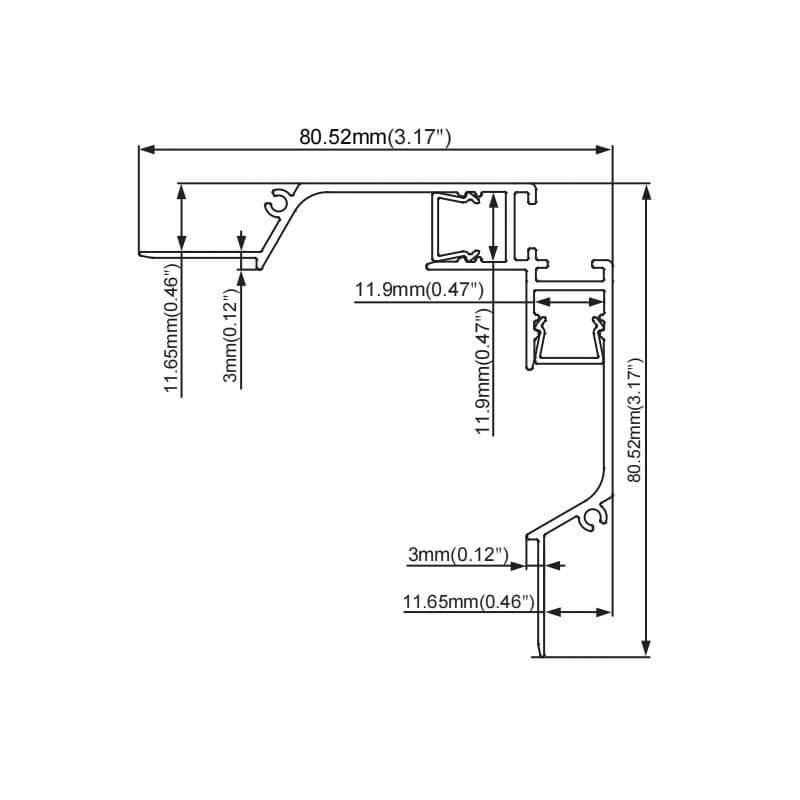

- Size: 80.52mm x 80.52mm/3.17" x 3.17"
- Lengths available: 1m ( 39.37" ), 2m ( 78.74")
- Custom length: Supported
- Inner width: 11.9mm/0.47"
- Max power: 30W/m

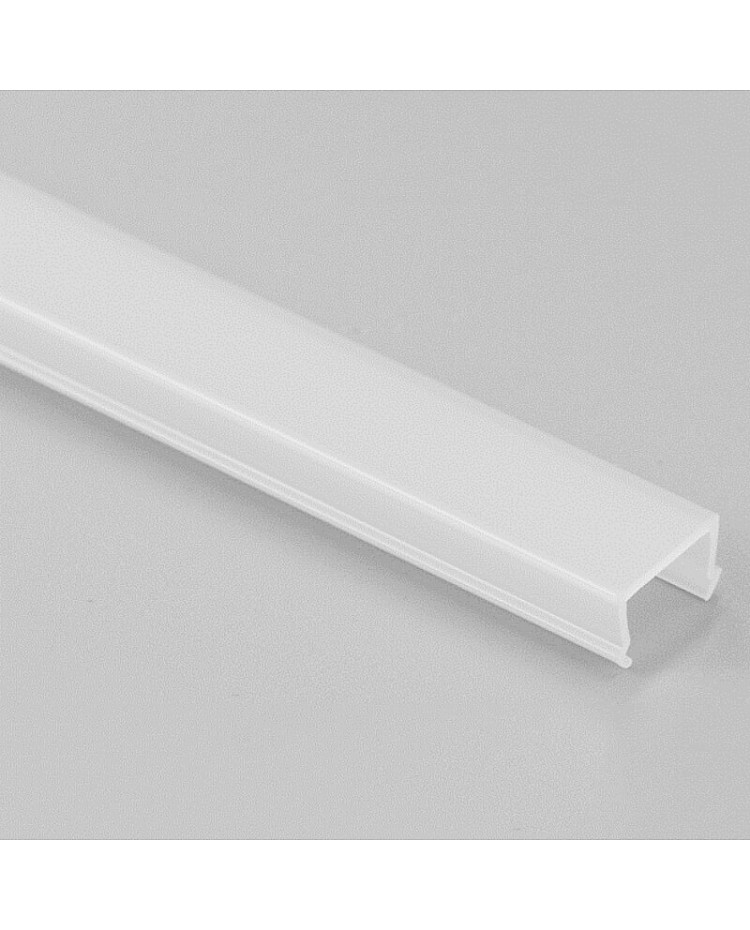

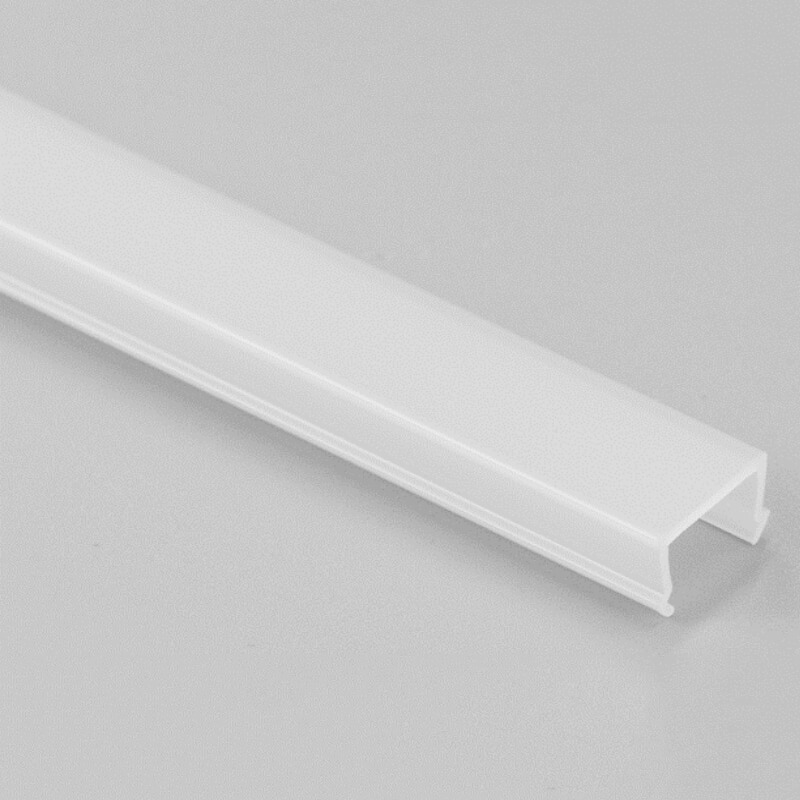

- Diffusers: PC diffused cover

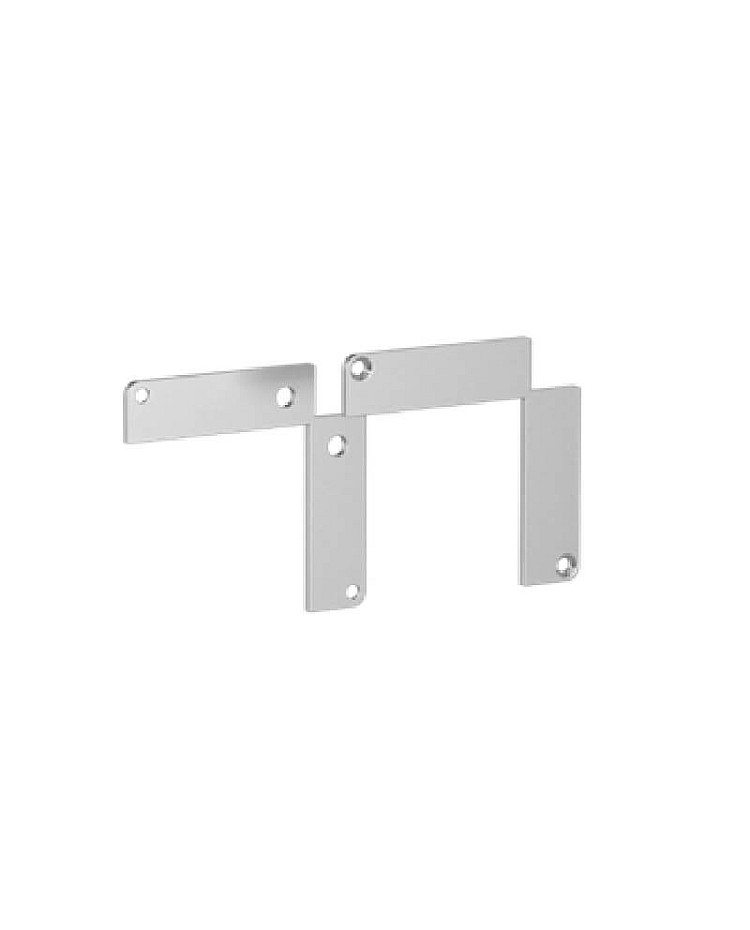

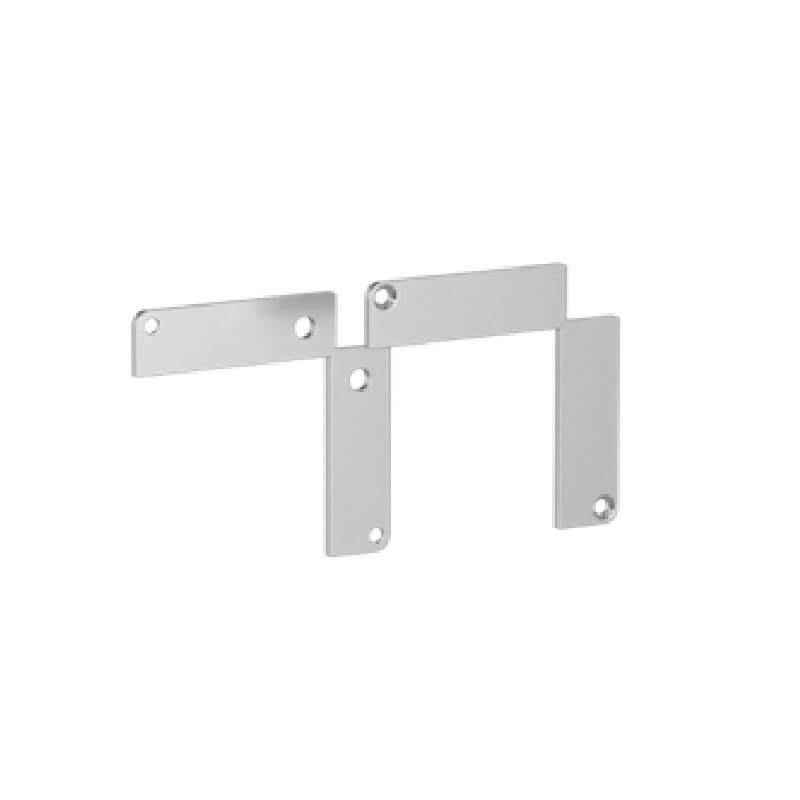

- End caps included
- 90°, 90° vertical, and 180° channel connectors sold separately
- Installation: Plaster-in 12.5mm plasterboards
- 5 years warranty
Includes:
1 x Cornice light LED channel
1 x PC diffuser
1 x End caps
