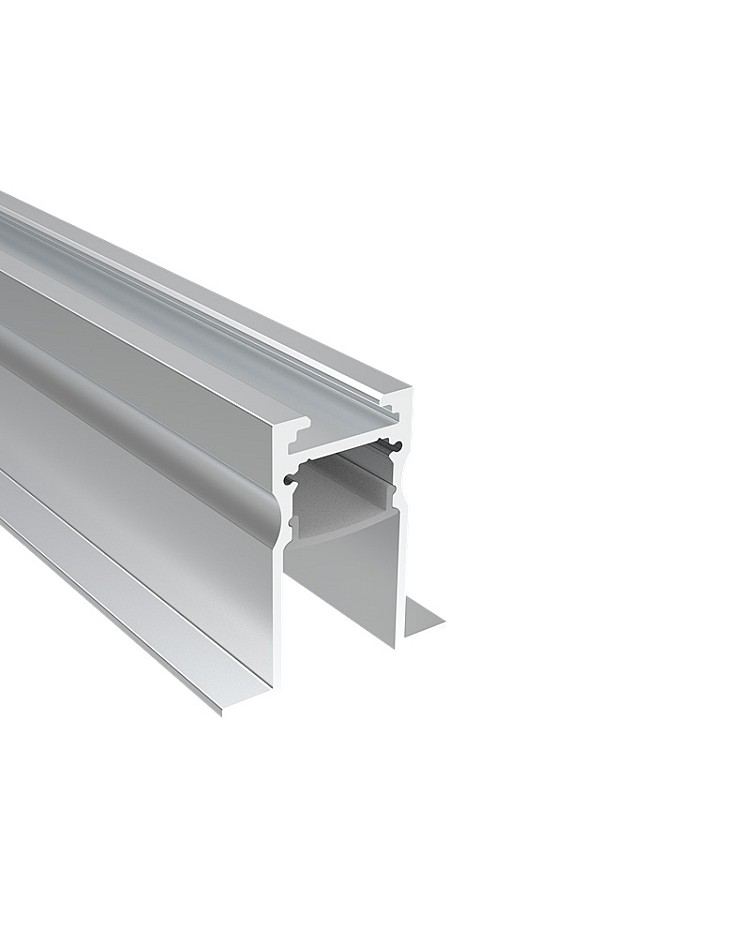

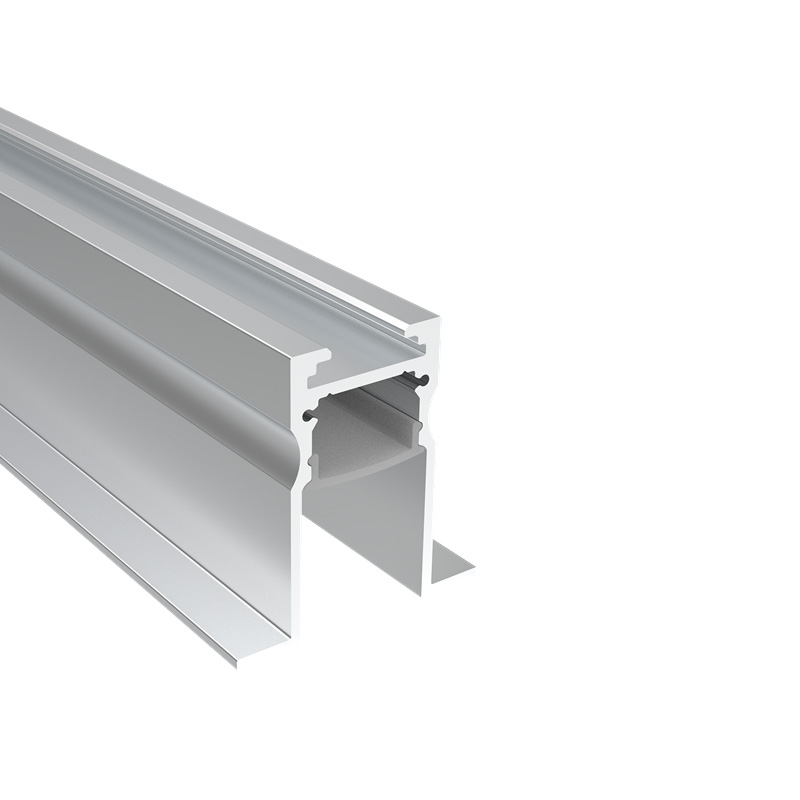

The recessed LED strip profiles with regressed cover design are designed for ultra-smooth, diffused lighting that eliminates harsh reflections and hotspots. They are perfect for modern homes, offices, and commercial spaces, providing a clean, recessed installation that enhances light quality for a comfortable, visually appealing glow. The strip profiles are designed to function as a heat sink, helping to manage heat dissipation for the light source. They are made from extruded aluminum material with a silver anodized surface treatment, which offers anti-oxidation resistance and a longer lifespan compared to similar products. The standard lengths are 1 m and 2 m, and custom lengths are also available. The inner width is 13.5 mm, allowing a maximum PCB board width of 13 mm. Two types of diffusers are available: PC diffused cover and prismatic cover. Both are made of imported brand material, are anti-yellowing, and have perfect lighting distribution. End caps with and without holes are included. The 90° and 180° connectors are sold separately for angle or straight connections.
Specifications:
- Model: ALP160
- Material: Extruded aluminum
- Surface Treatment: Anodized

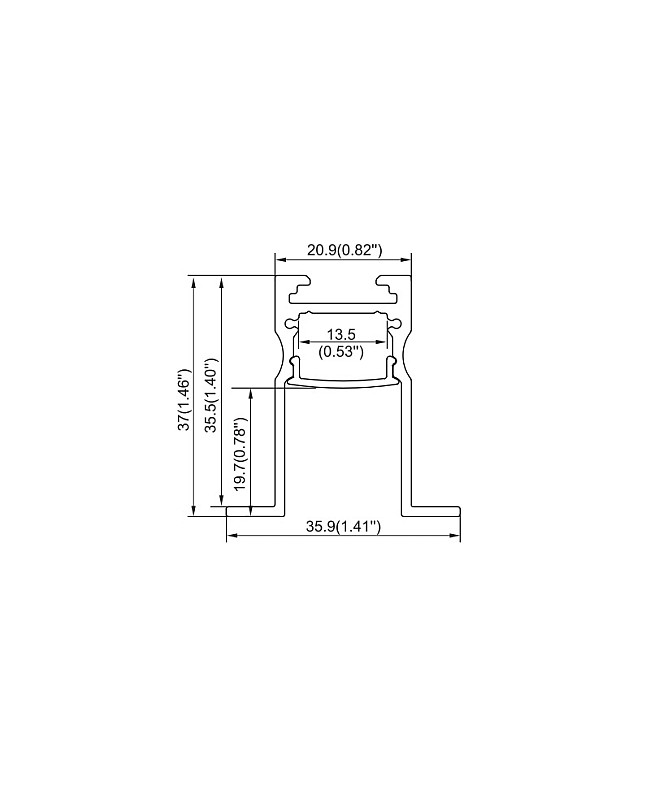

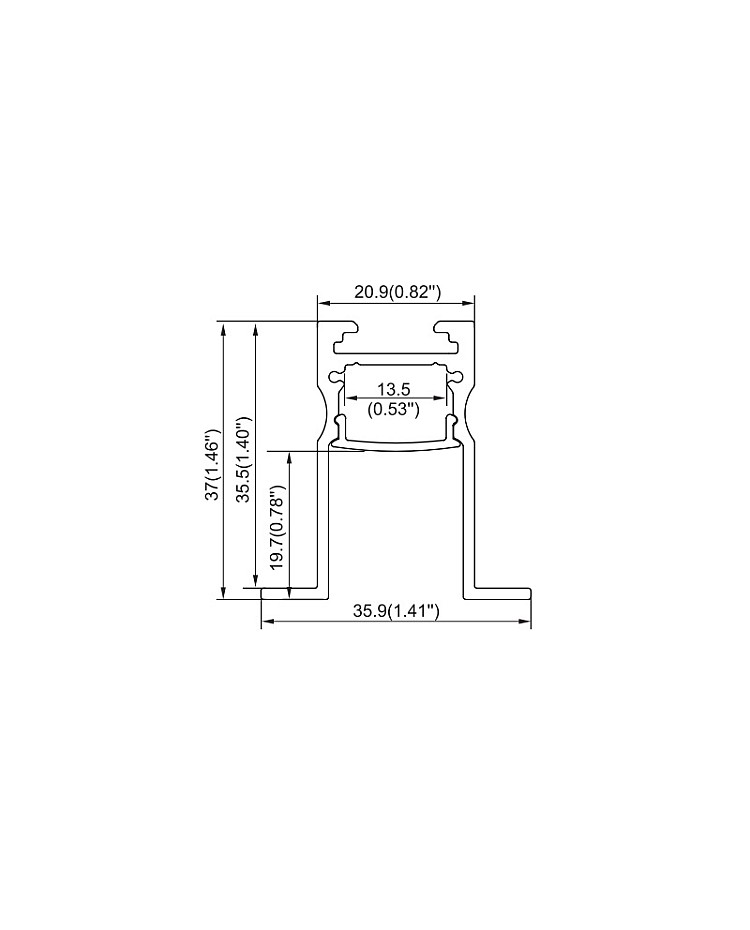

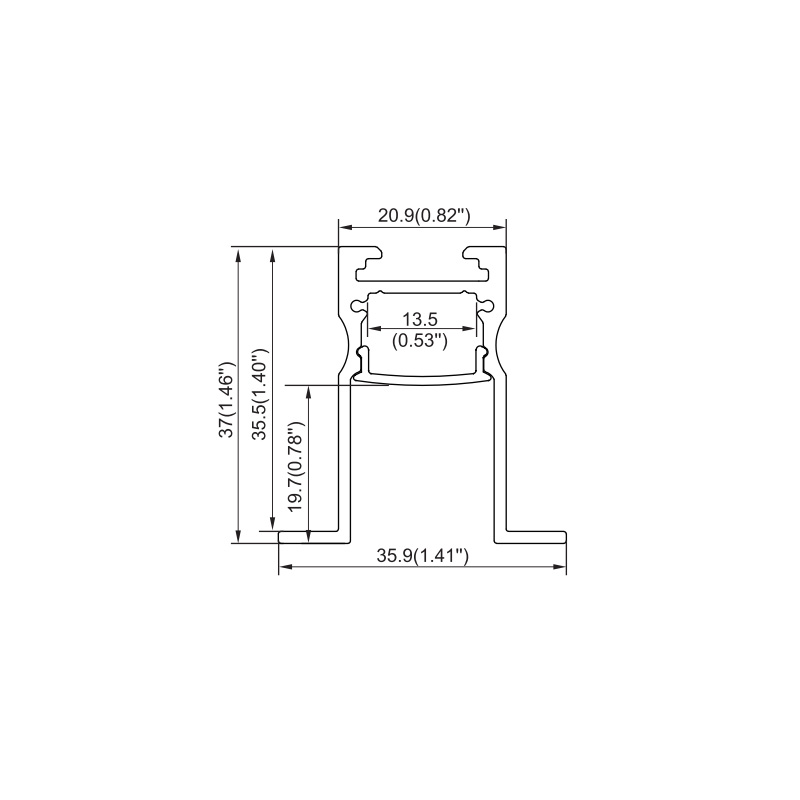

- Size(W*H): 35.9*37mm
- Colors: Silver

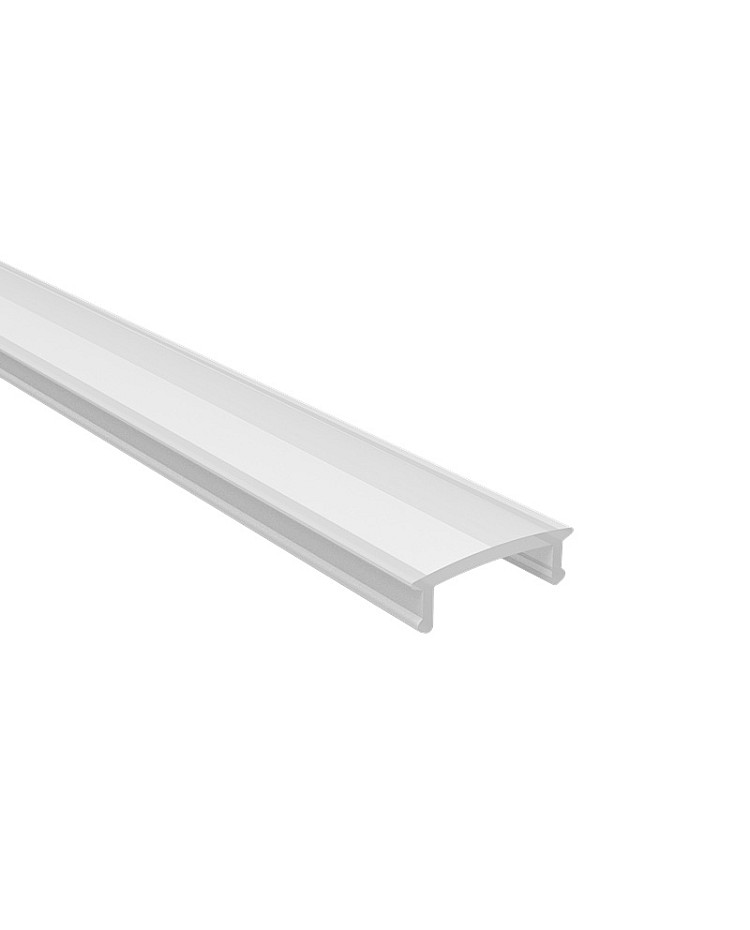

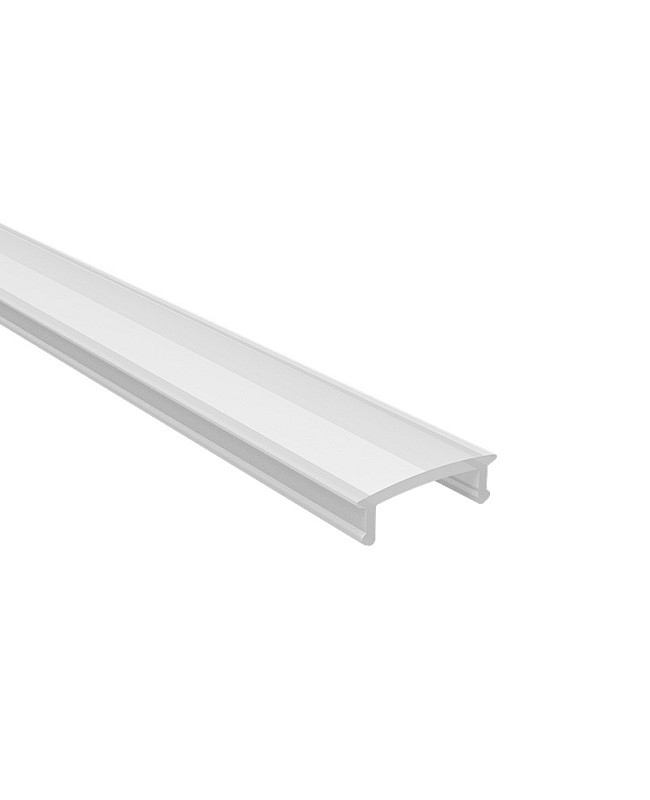

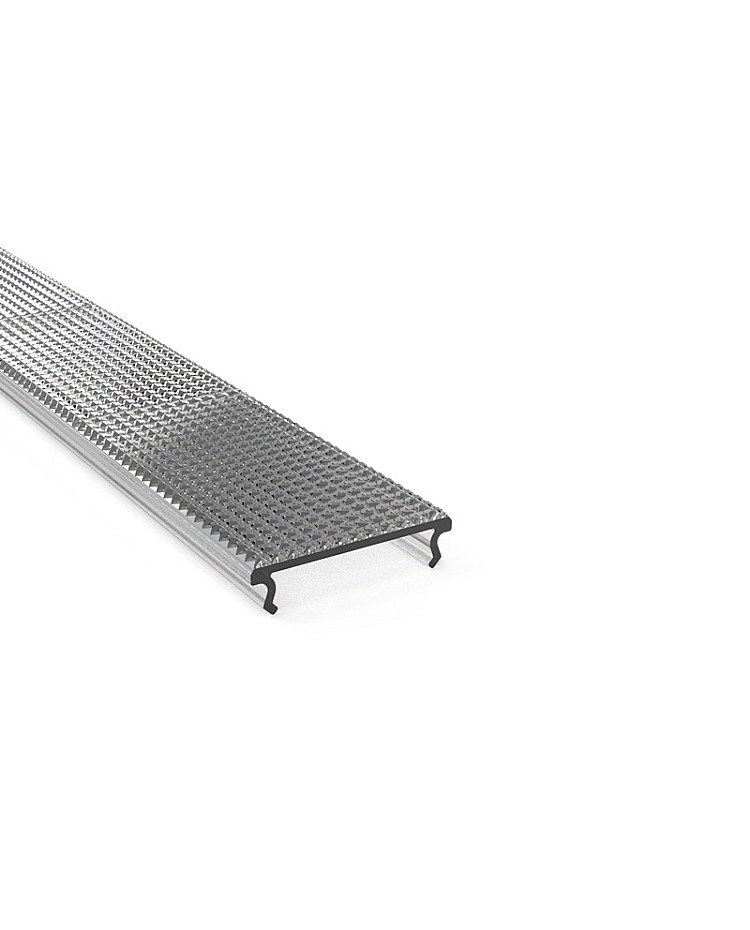

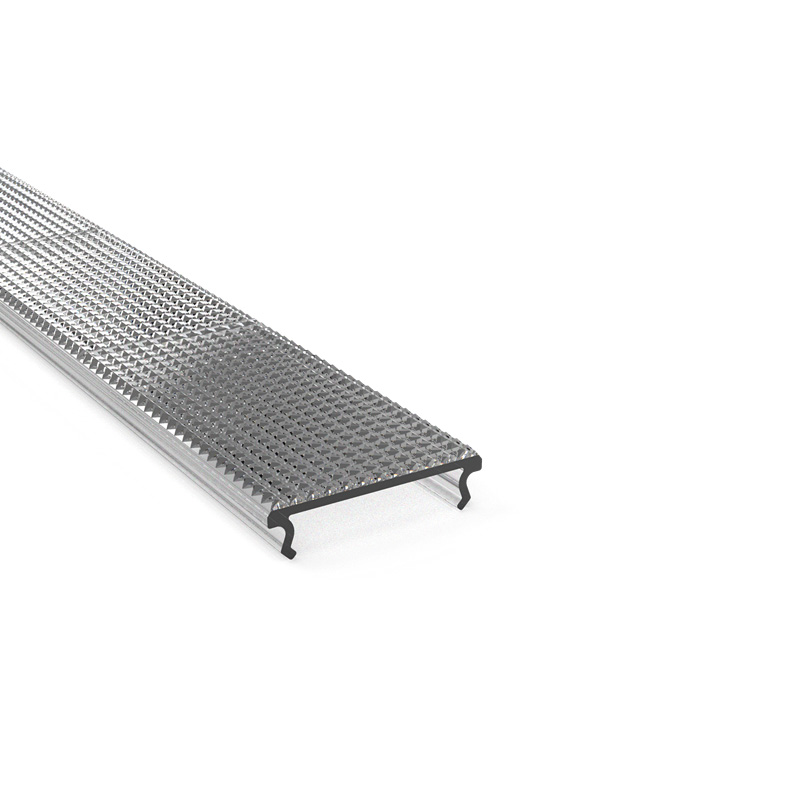

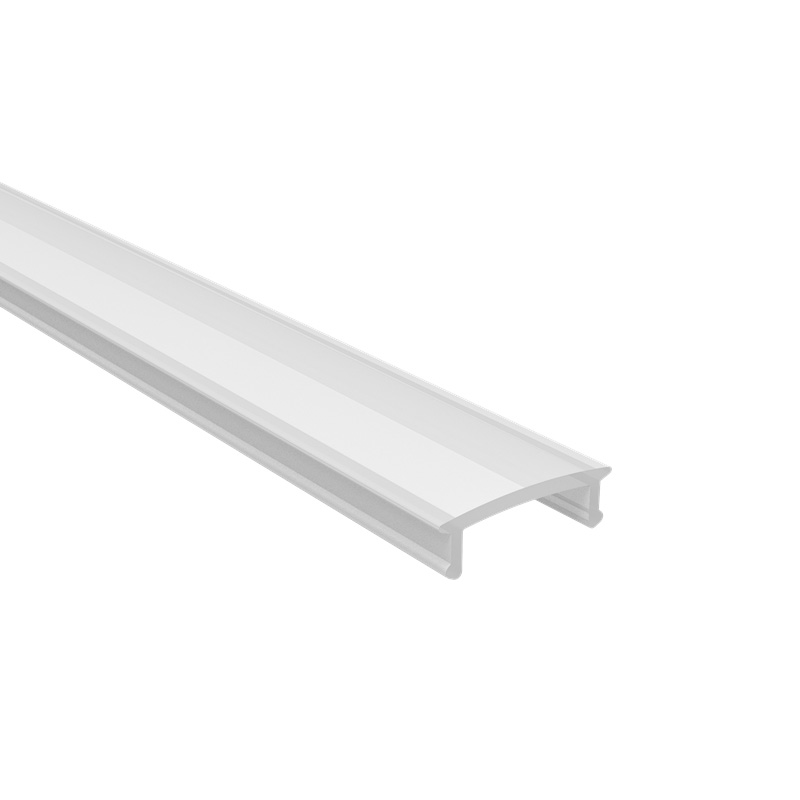

- Diffusers: Prismatic cover, PC diffused cover
- Standard Length: 1M(39"), 2M(78")
- Custom Length Available: YES
- Inner Width: 13.5mm/0.53"
- Can work with COB LED strips and high-density SMD LED strips
- Tolerance: ±1%
- IP Rating: IP20 non-waterproof
- 90°，180° and 90° vertical connectors sold separately

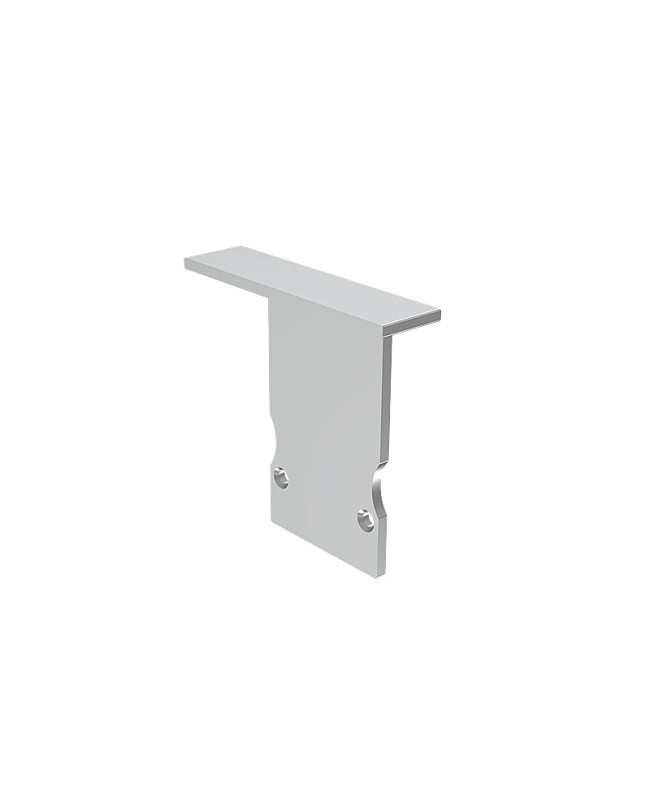

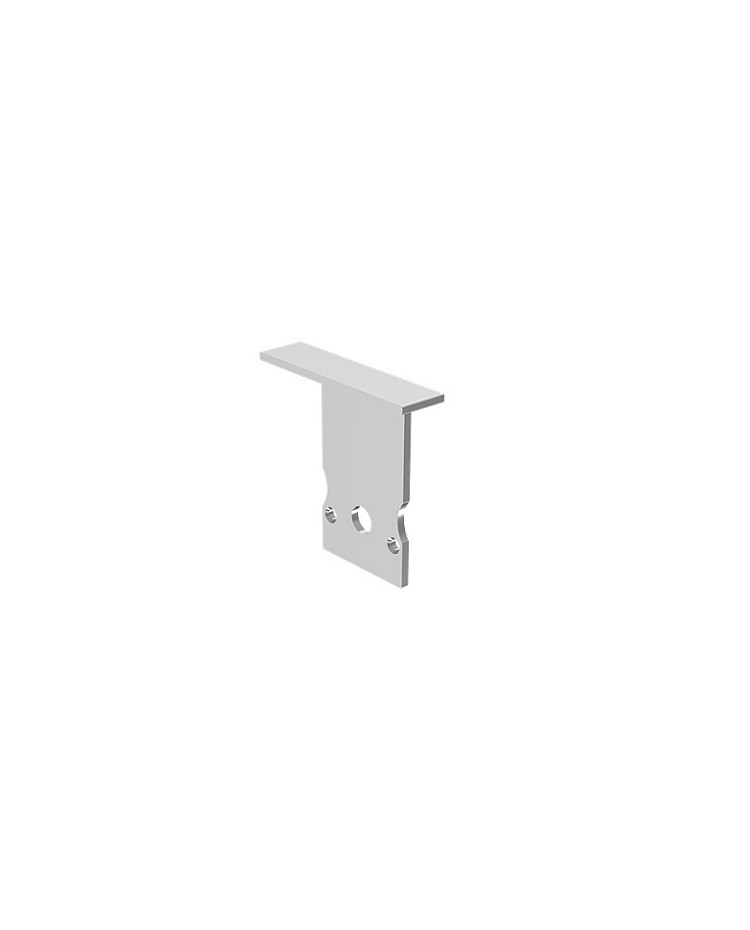

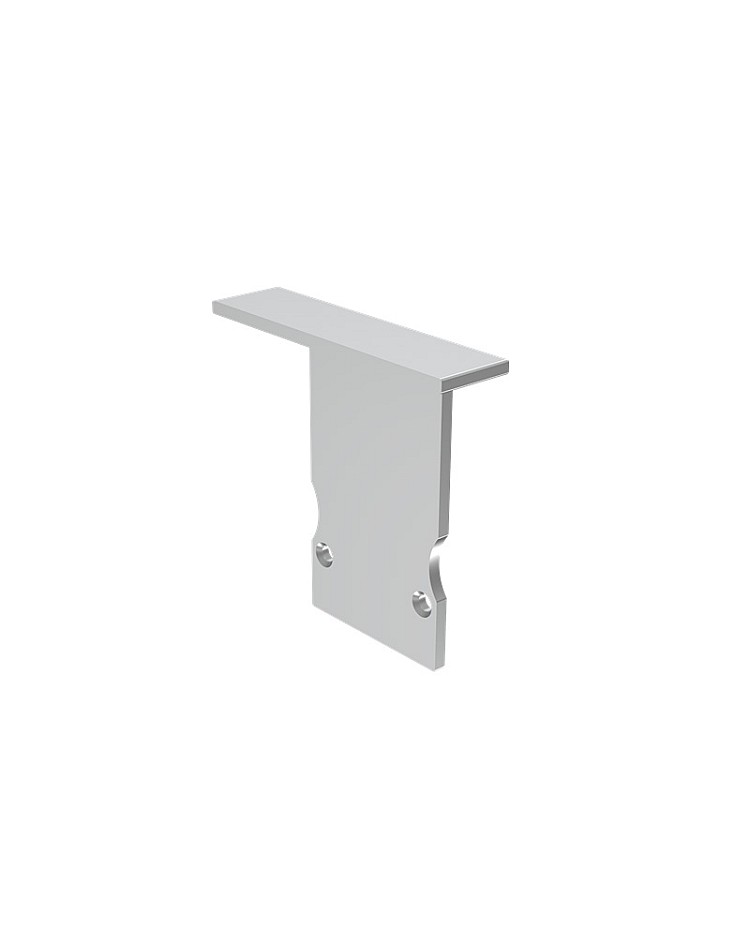

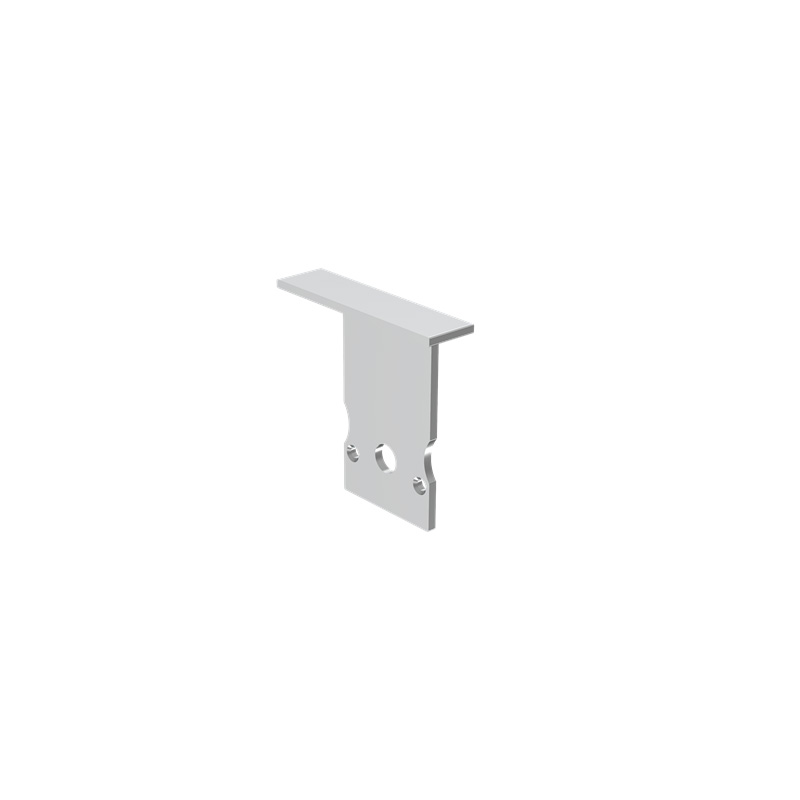

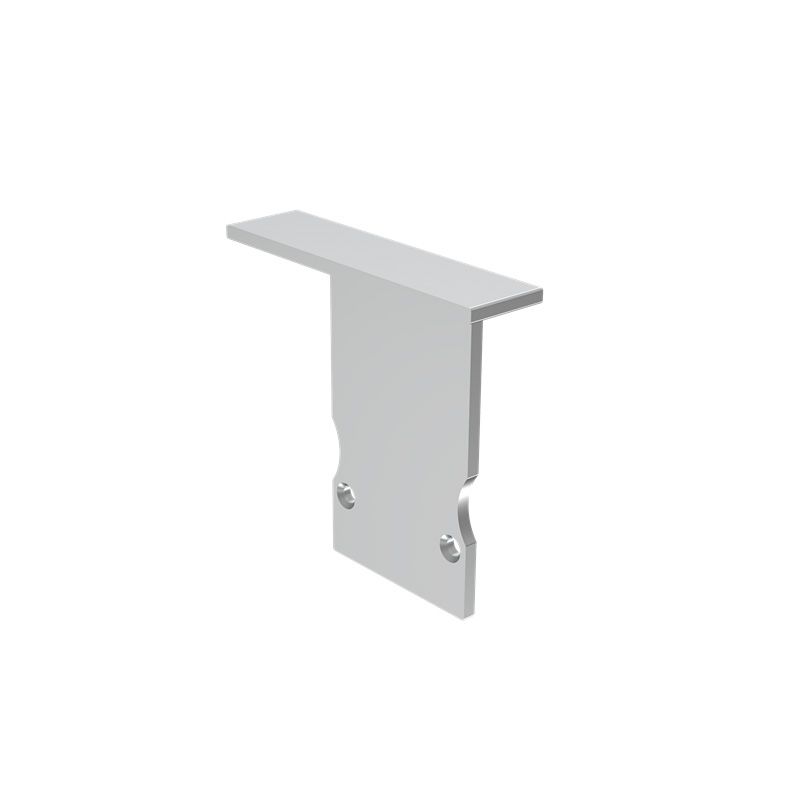

- End caps with and without holes are included
- Spring clips included
- Installation: Recessed mounting
- Application: Architectural lighting
- 5-year warranty
Includes:
1* Recessed LED stripprofiles with diffusers
1* End caps (with/without wire hole)
Spring clips
