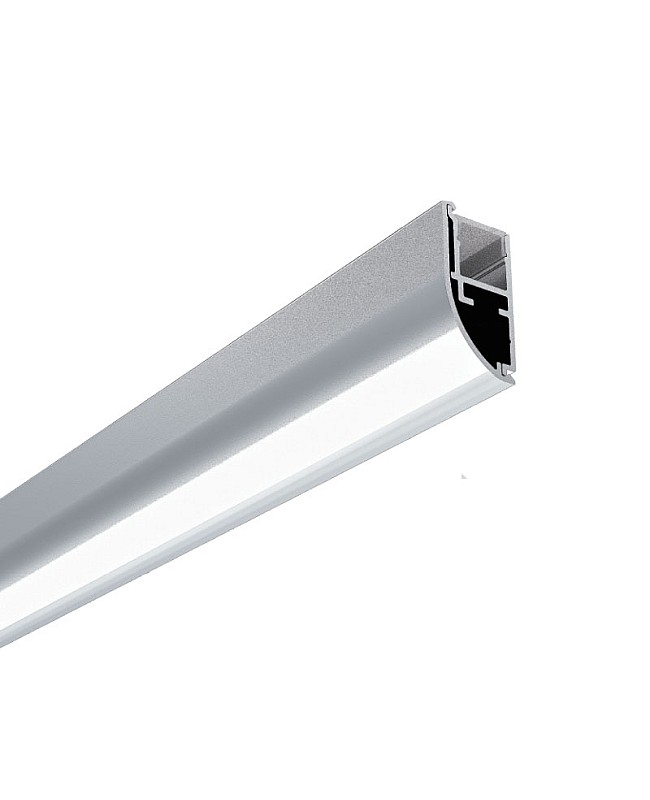

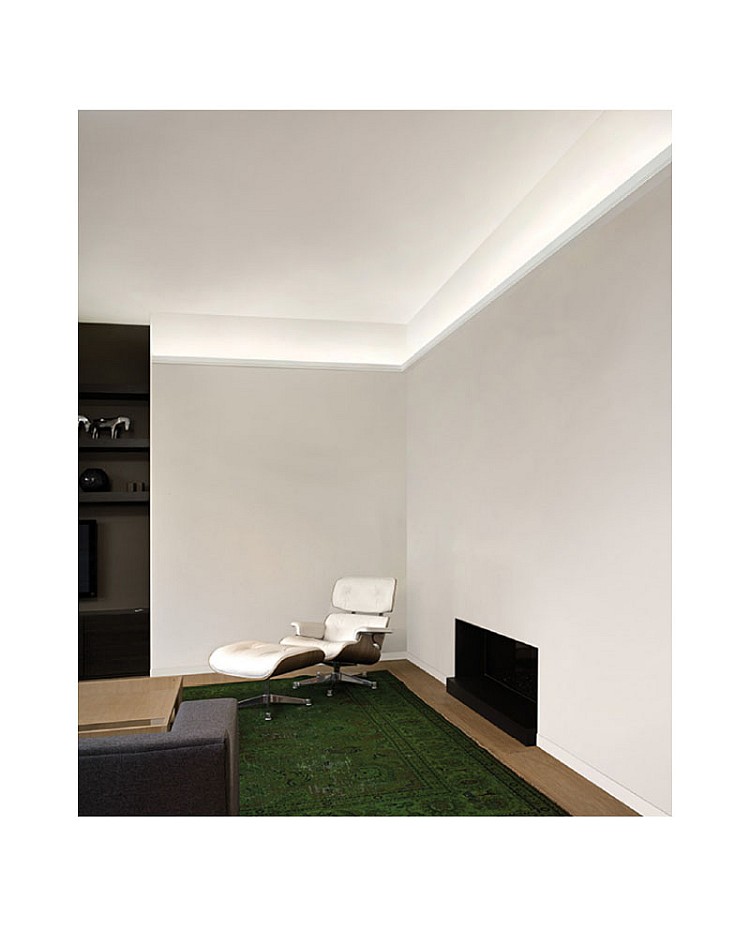

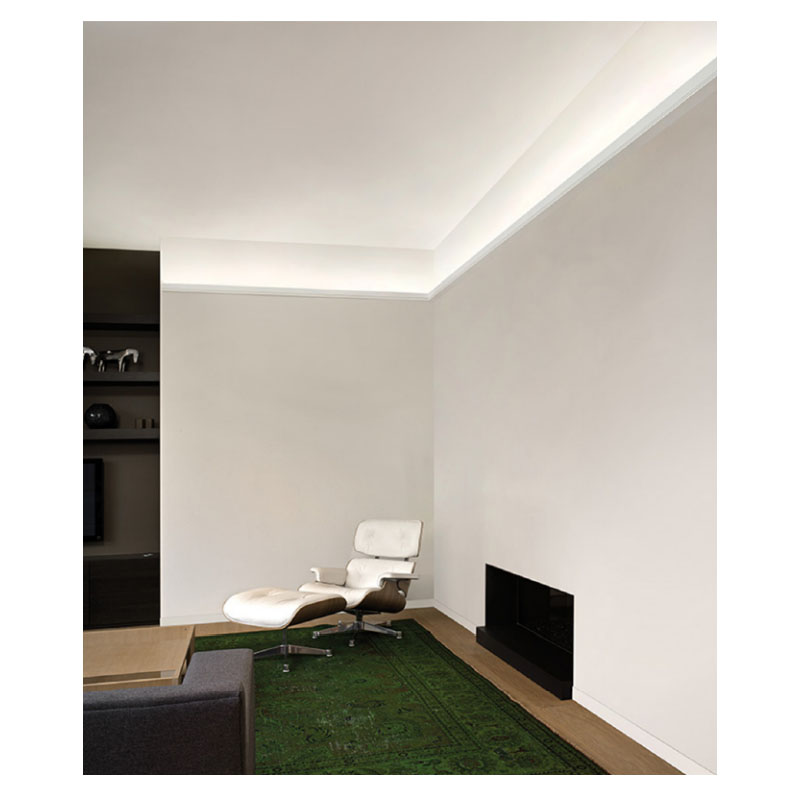

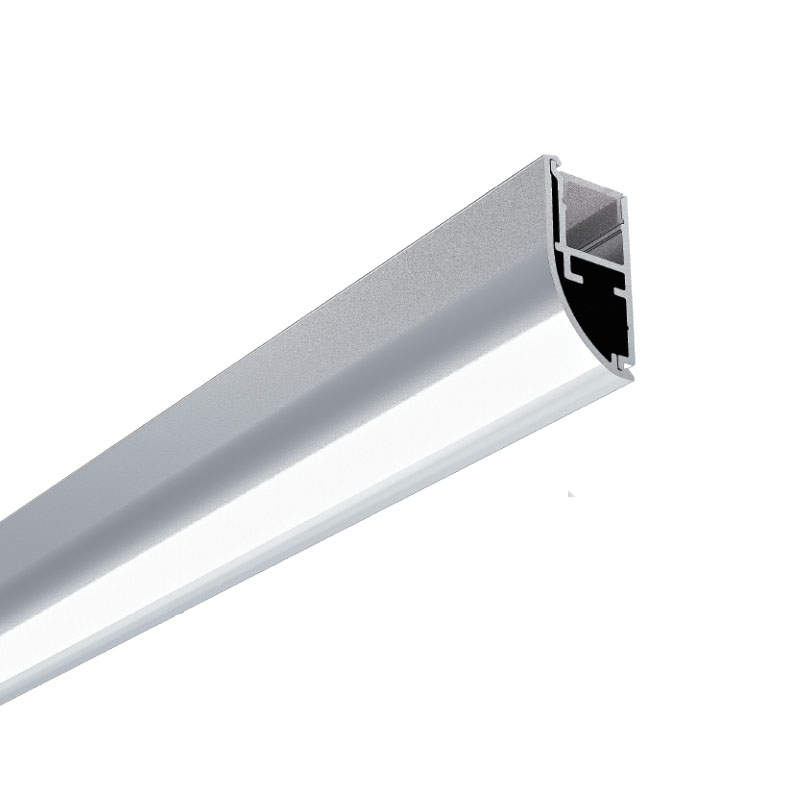

The mini LED aluminum profiles with diffusers for wall lights are easy to mount on the wall. They have a regressed cover design that allows the cover to sit slightly back from the edge of the wall light channels to provide smooth, glare-free illumination. It will enable the lighting direction to be upwards for cornice lighting or downwards for skirting lighting. The aluminum channel will house the strip lights and provide extra space to conceal the wires. The standard lengths are 1 m and 2 m, and can be cut to any length; custom lengths are also available. LED light profiles are made of 6063-T5 extruded aluminum material with anodized or powder-coated surface treatment, offering anti-oxidation resistance and a longer lifespan. Three types of colors are available: silver, white, and black. The inner width is 10.5mm, allowing for a maximum width of 10 mm for the LED strips. You can install COB LED tapes as the light source, and the aluminum base can serve as a heat sink for improved heat dissipation. Only one type of diffuser is available: the PC diffused cover, made of imported brand material and featuring anti-yellowing properties. It helps to distribute the light evenly and provides a soft, even lighting effect. The diffusers also help to protect the LED strips from dust, moisture, and other elements. Three types of connectors are available: 90°，90° vertical, and 180°. These are sold separately and can be used for both angled and straight connections.
Specifications:
- Model: ALP195
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized, powder-coated
- Colors: Silver, white, black

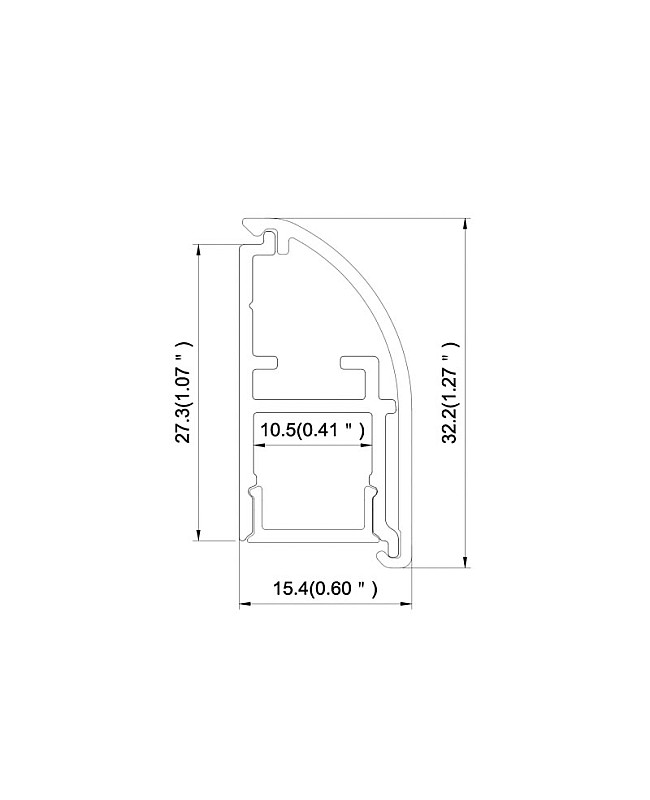

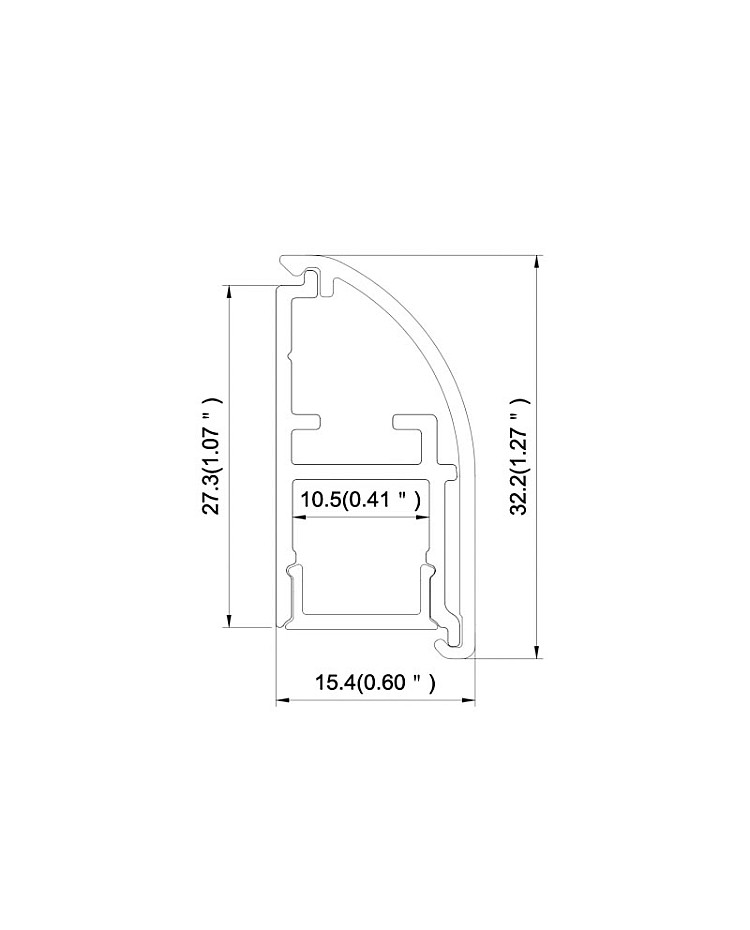

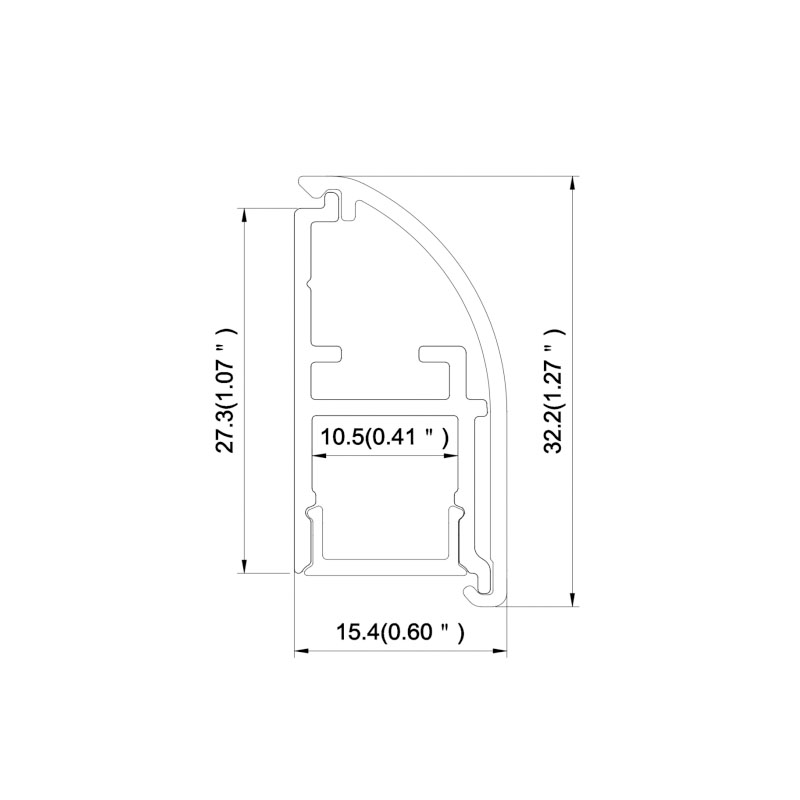

- Size ( W x H ): 15.4 mm x 32.2 mm ( 0.6" x 1.27" )
- Standard lengths: 1 m ( 39“ ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10.5 mm ( 0.41" )
- Max width of LED strips: 10 mm ( 0.39" )
- Max power: 12W/m
- Diffusers: PC diffused cover
- Beam angle: 100°
- IP rate: IP20 non-waterproof
- Tolerance: ±1%

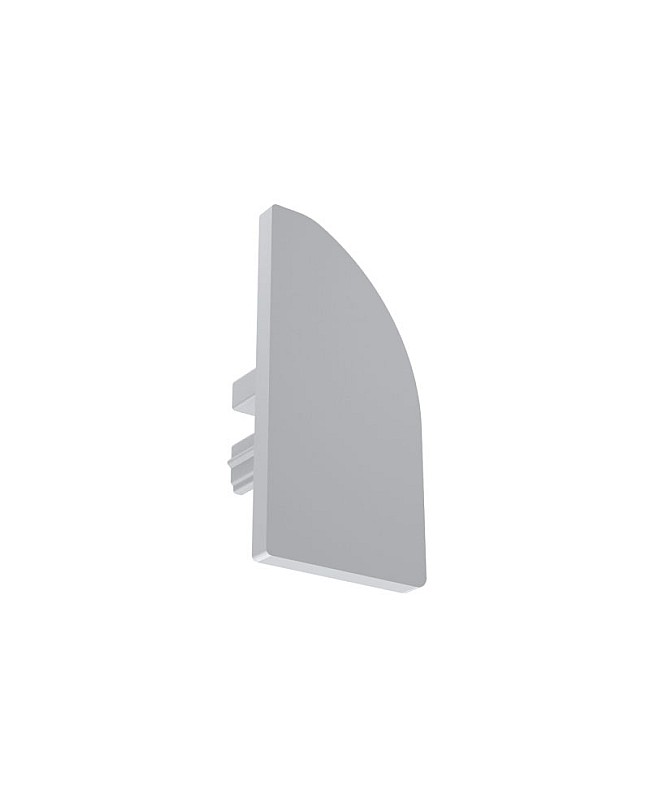

- End caps included
- 90°, 90° vertical and 180° connectors sold separately
- LED strips, controllers, and light drivers are sold separately

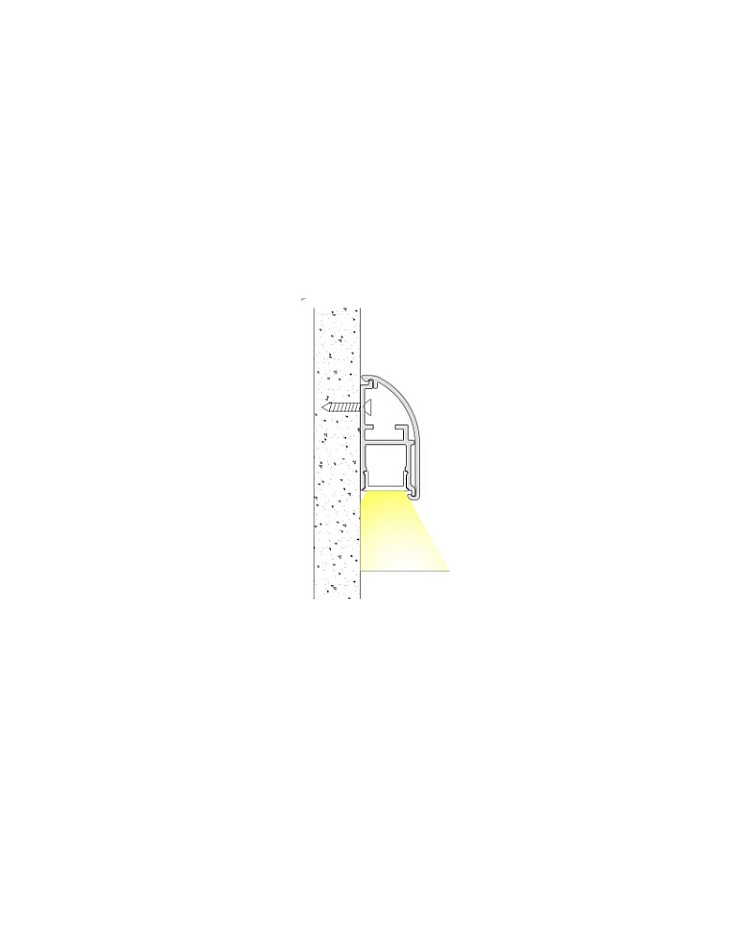

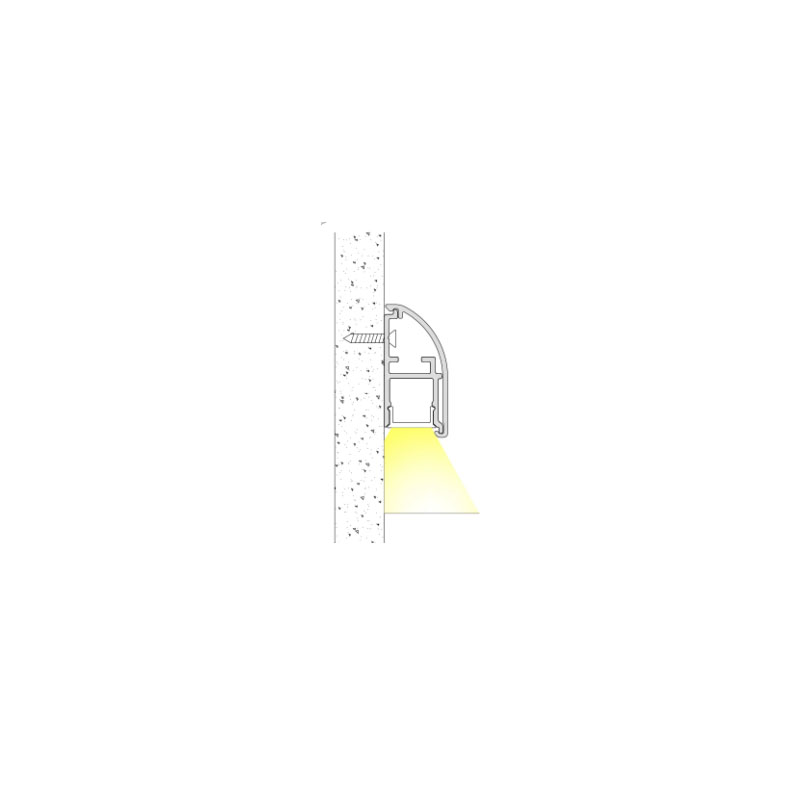

- Installation: surface mounting
- Warranty: 5 years
Includes:
1 * LED aluminum profile with diffuser

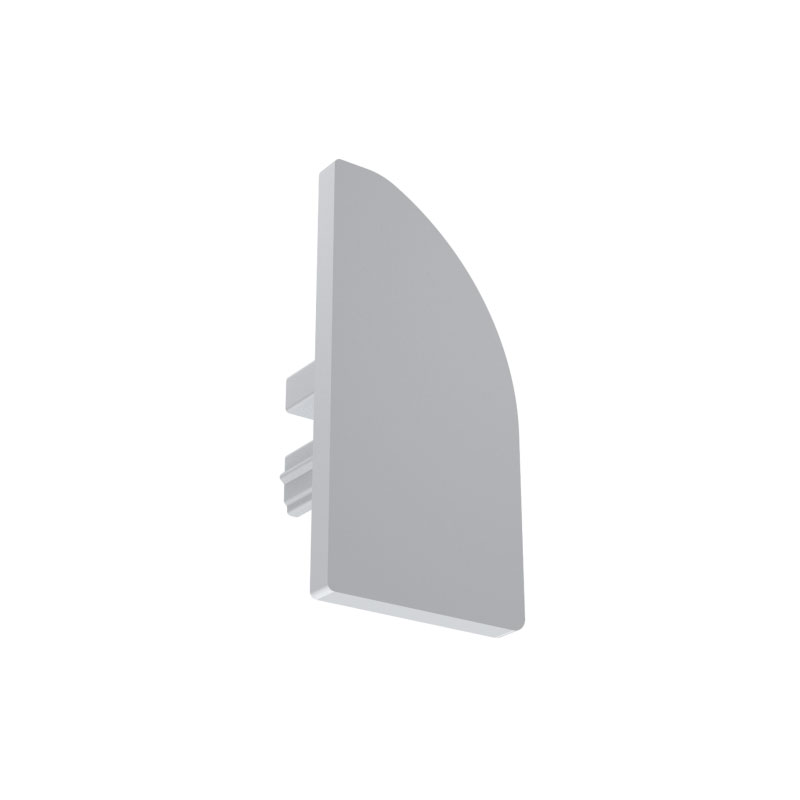

ABS end caps
