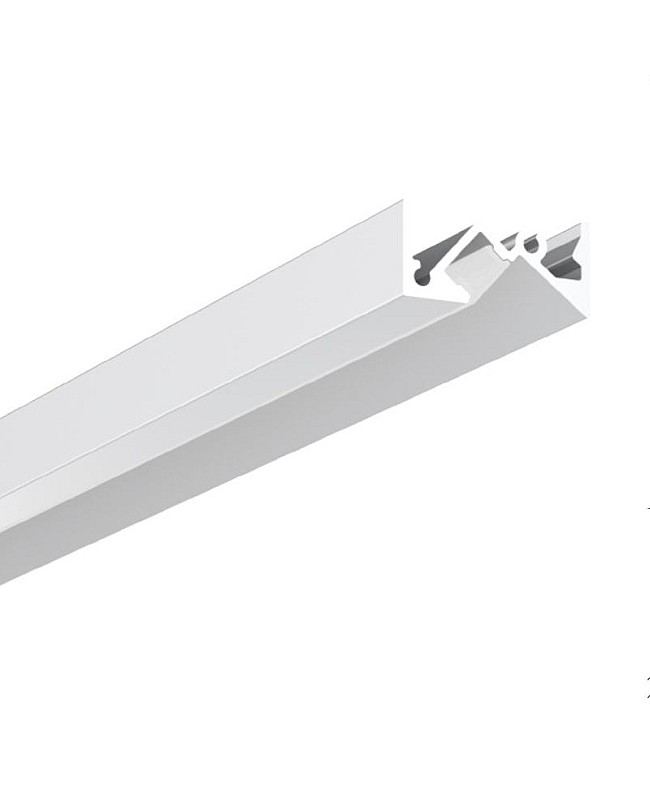

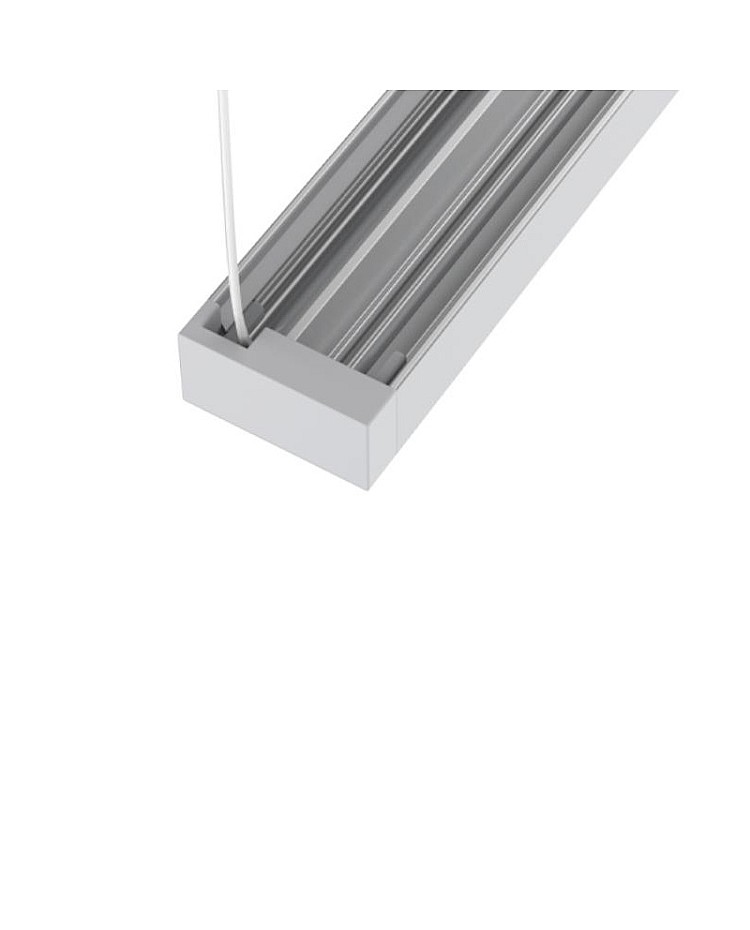

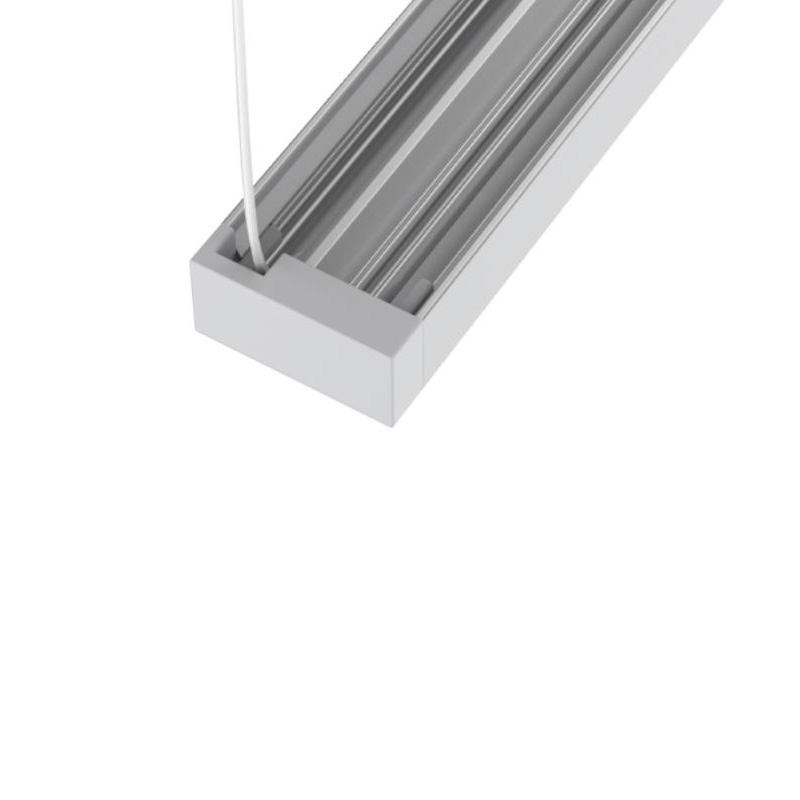

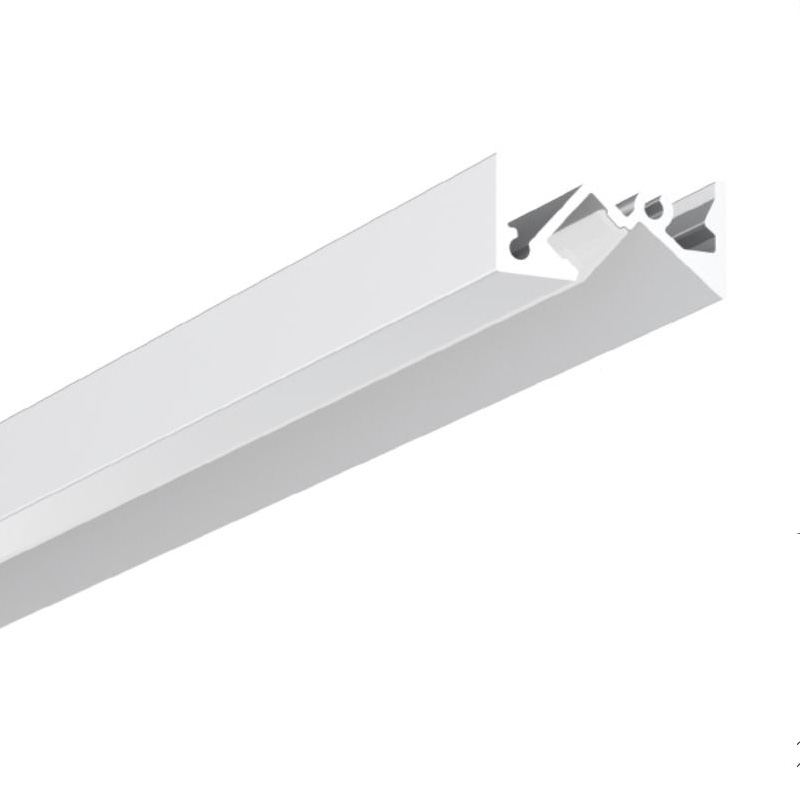

The recessed under-shelf lighting aluminum channels with an inclined light design are a great way to add a modern and stylish touch to any kitchen, shelves, or under-cabinets. These aluminum extrusions are designed to provide a uniform light output over a wide range of angles, creating an efficient and attractive lighting effect. They are available in various lengths; the standard lengths are 1 m and 2 m, and can be cut to any length to meet your needs. The shelf LED channels are made of 6063-T5 aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan. Only one type of diffuser is available: PC diffused covers made of brand-stable material, anti-yellowing, and perfect light distribution. The inner width is 6.2 mm, allowing for a maximum strip light width of 6 mm. We recommend using high-density SMD or COB LED strips as the light source, which eliminates visible light dots and dark areas. You can use the mini-size aluminum channels to add lighting to closets, bookshelves, under-cabinets, furniture, and more. The under-cabinet lighting channels also feature a recessed design, which allows for a more natural light distribution.
Specifications:
- Model: ALP202

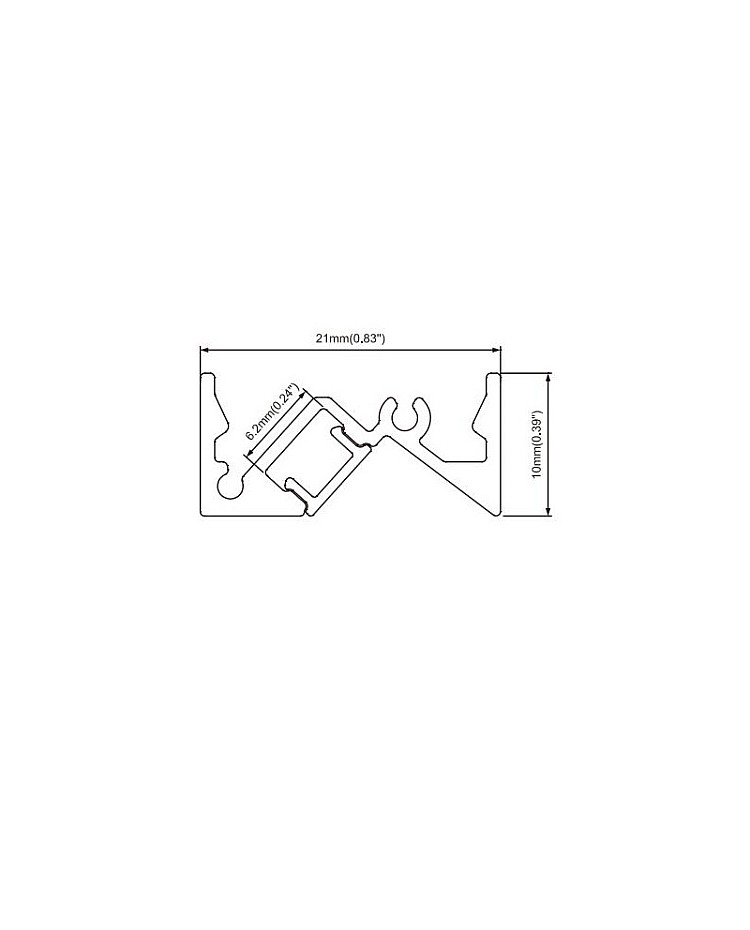

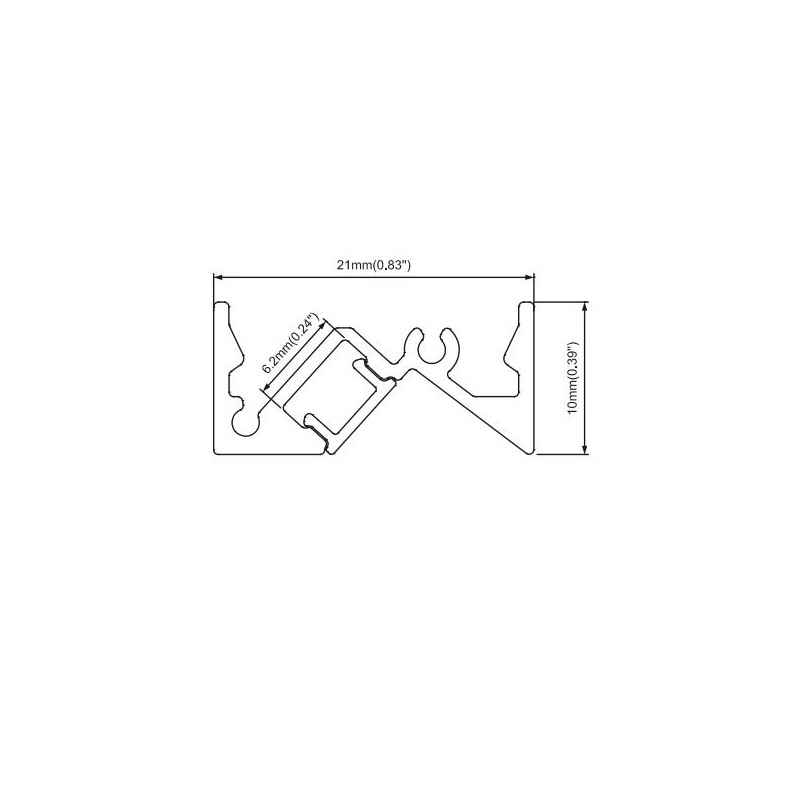

- Size( W x H ): 21 mm x 10 mm ( 0.83" x 0.39" )
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver
- Length: 1 m ( 39" ) / 2 m ( 78" )
- Custom length: YES
- Diffusers: PC diffused cover
- Inner width: 6.2 mm ( 0.24" )
- Allows the maximum width of strip lights to be 6 mm ( 0.24" )

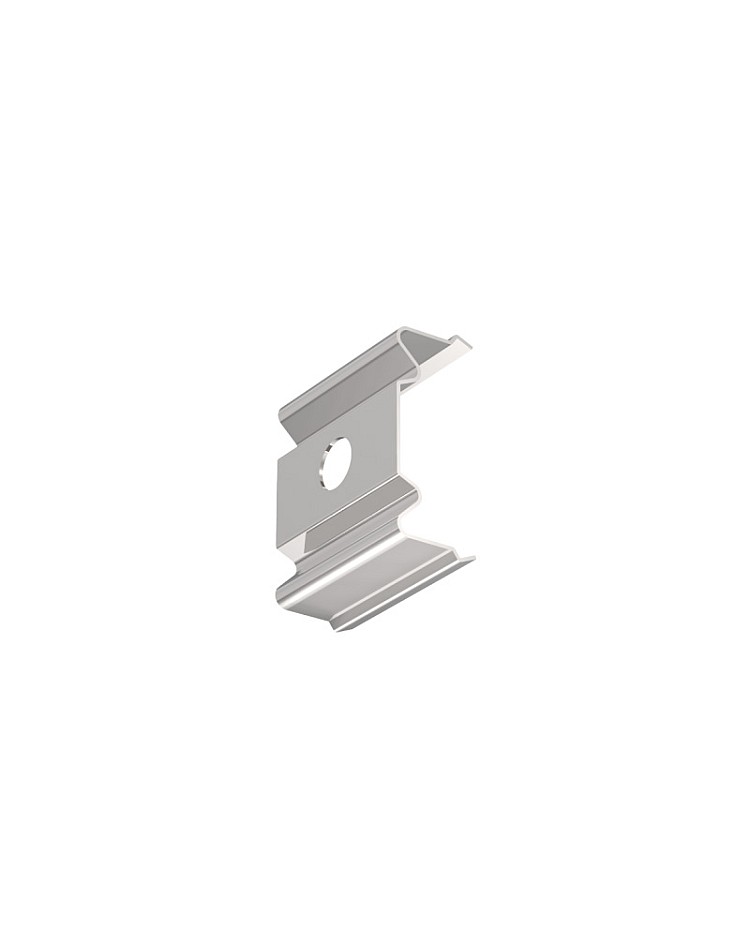

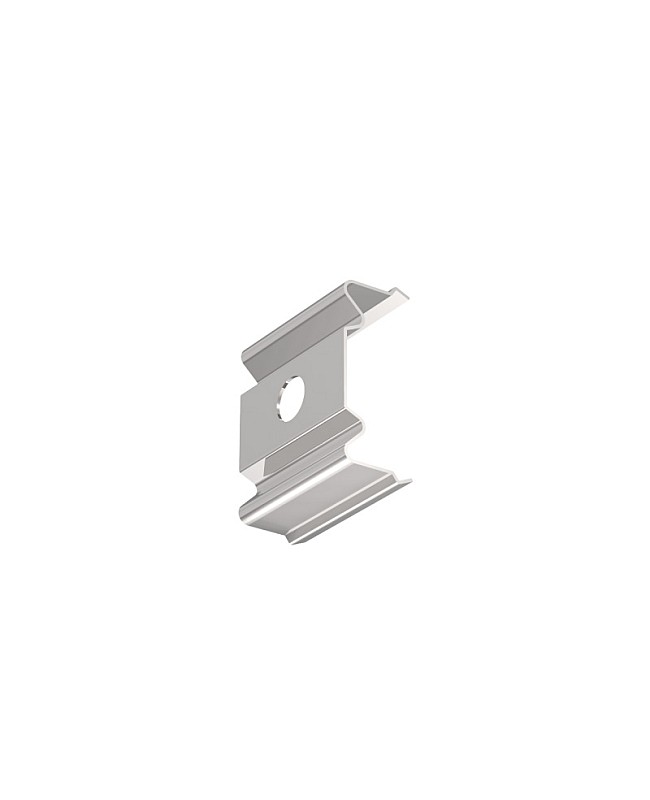

- End caps and metal clips are included

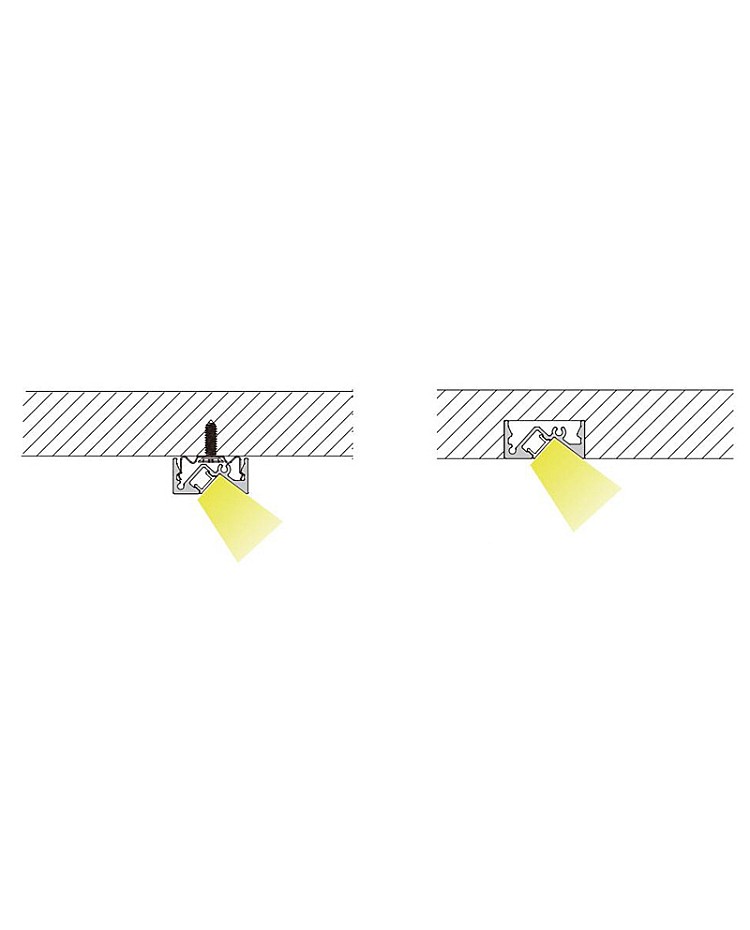

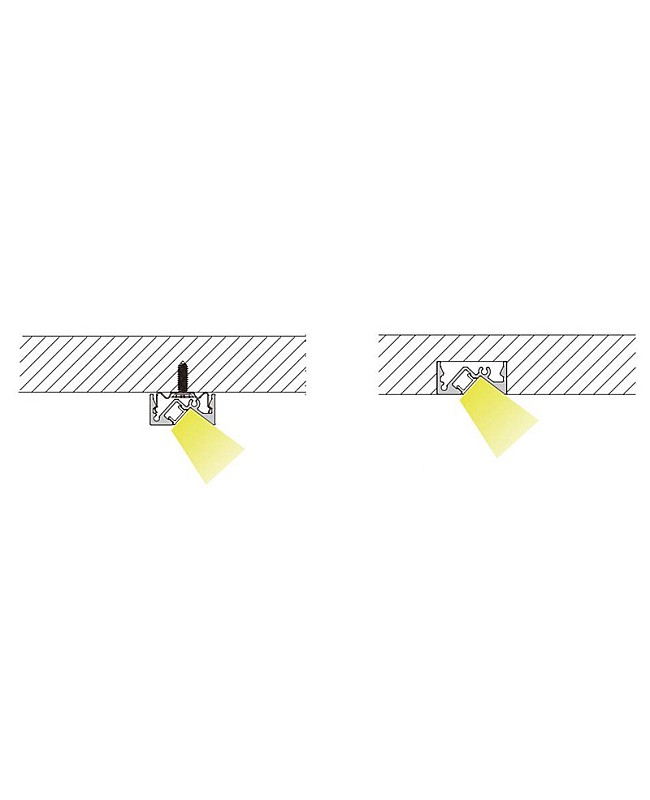

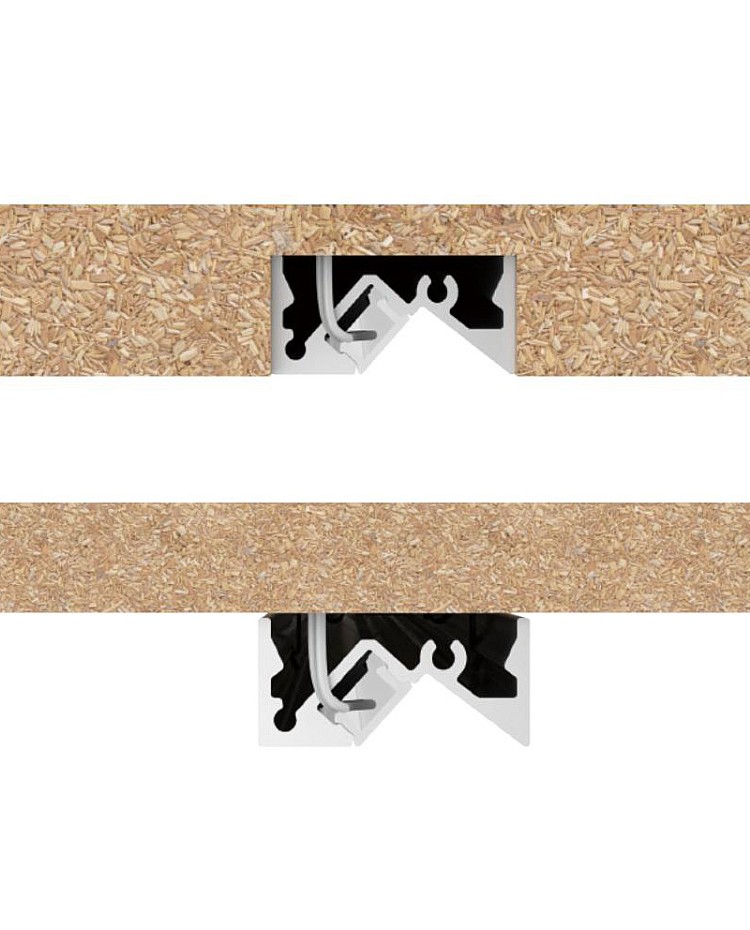

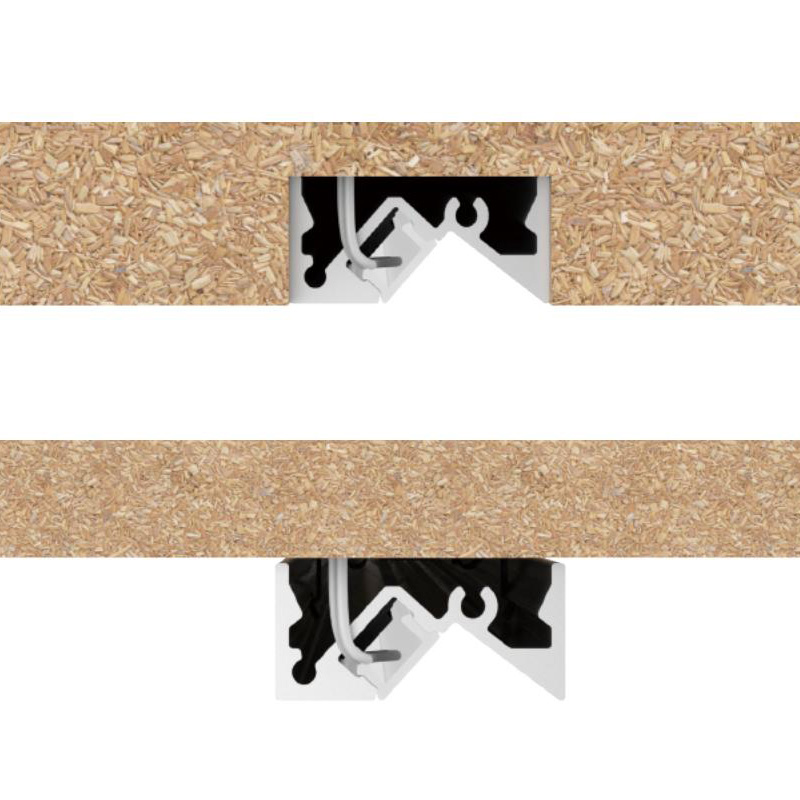

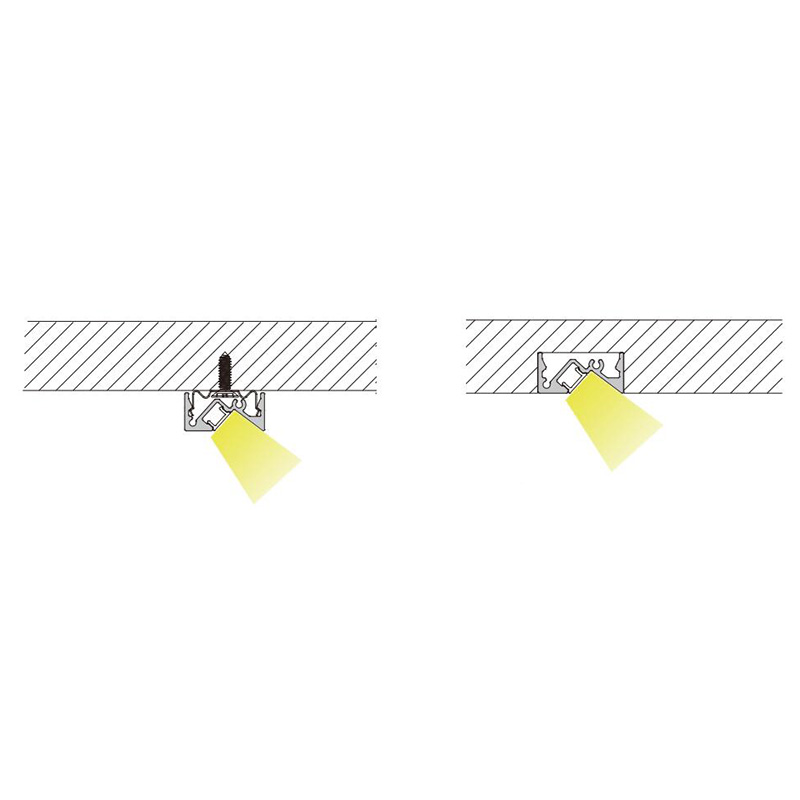

- Installation: Surface mounted/recessed
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Kitchen under-cabinet lighting
- Bookshelves, display cases, and wardrobes
- Retail shelving and product displays
- Museum and gallery showcase lighting
- Workbenches or desk task lighting
Includes:
1 * Under shelf light channels

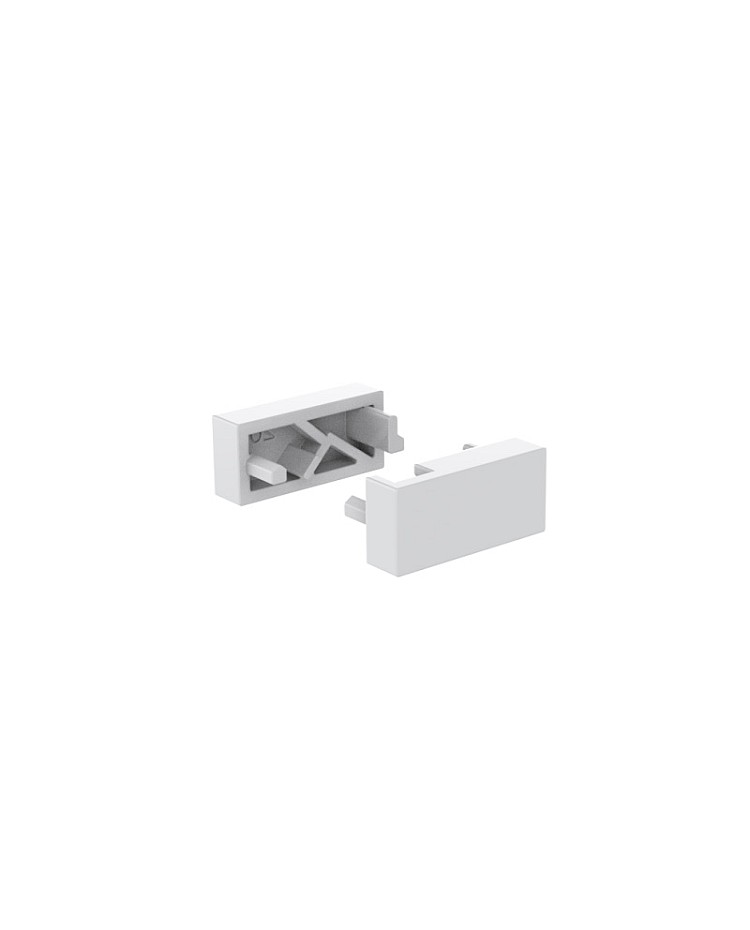

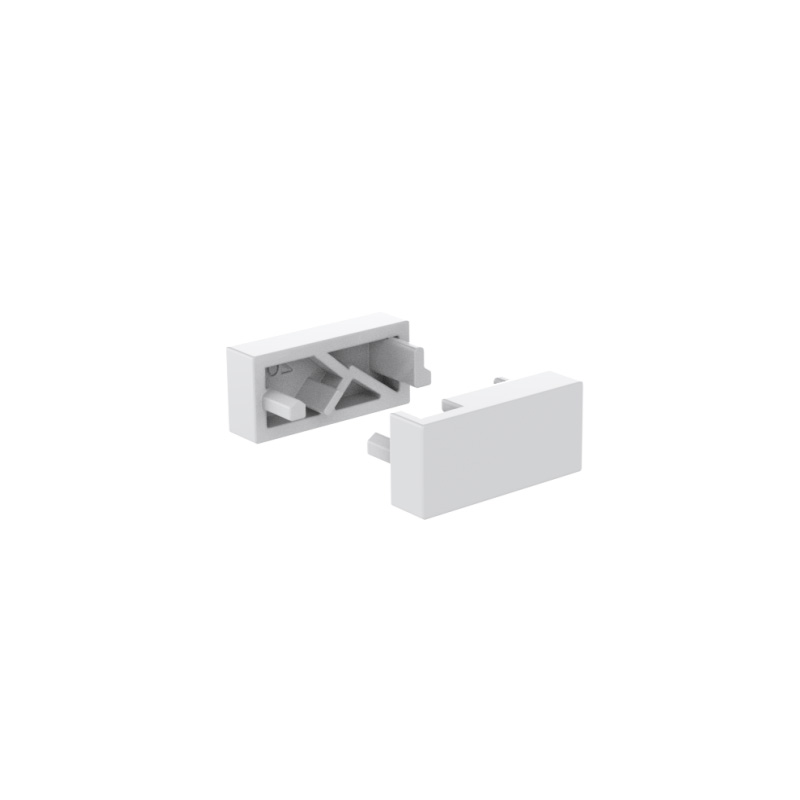

End caps

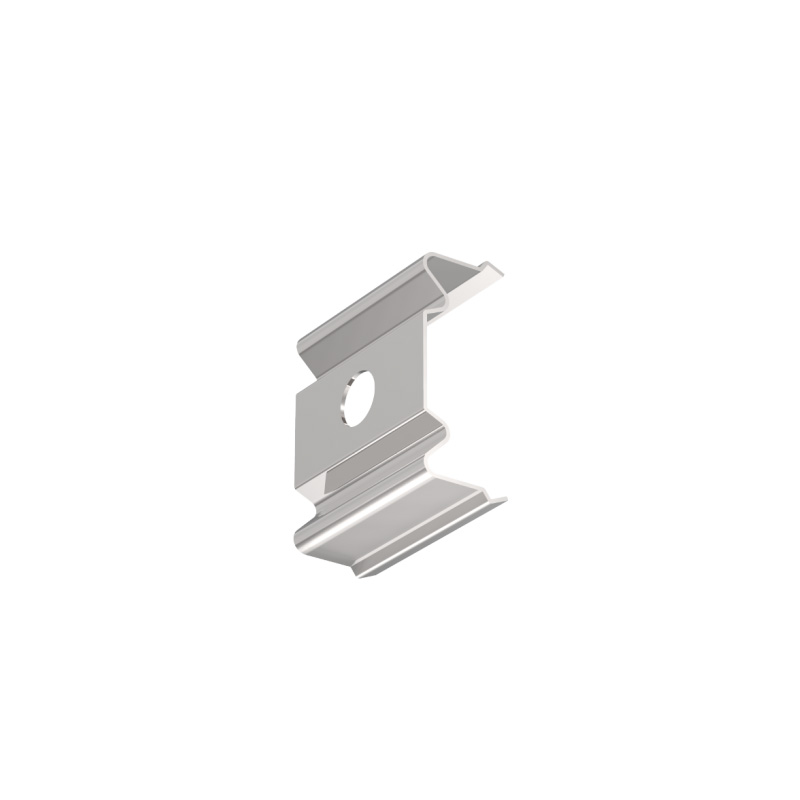

Metal clips
