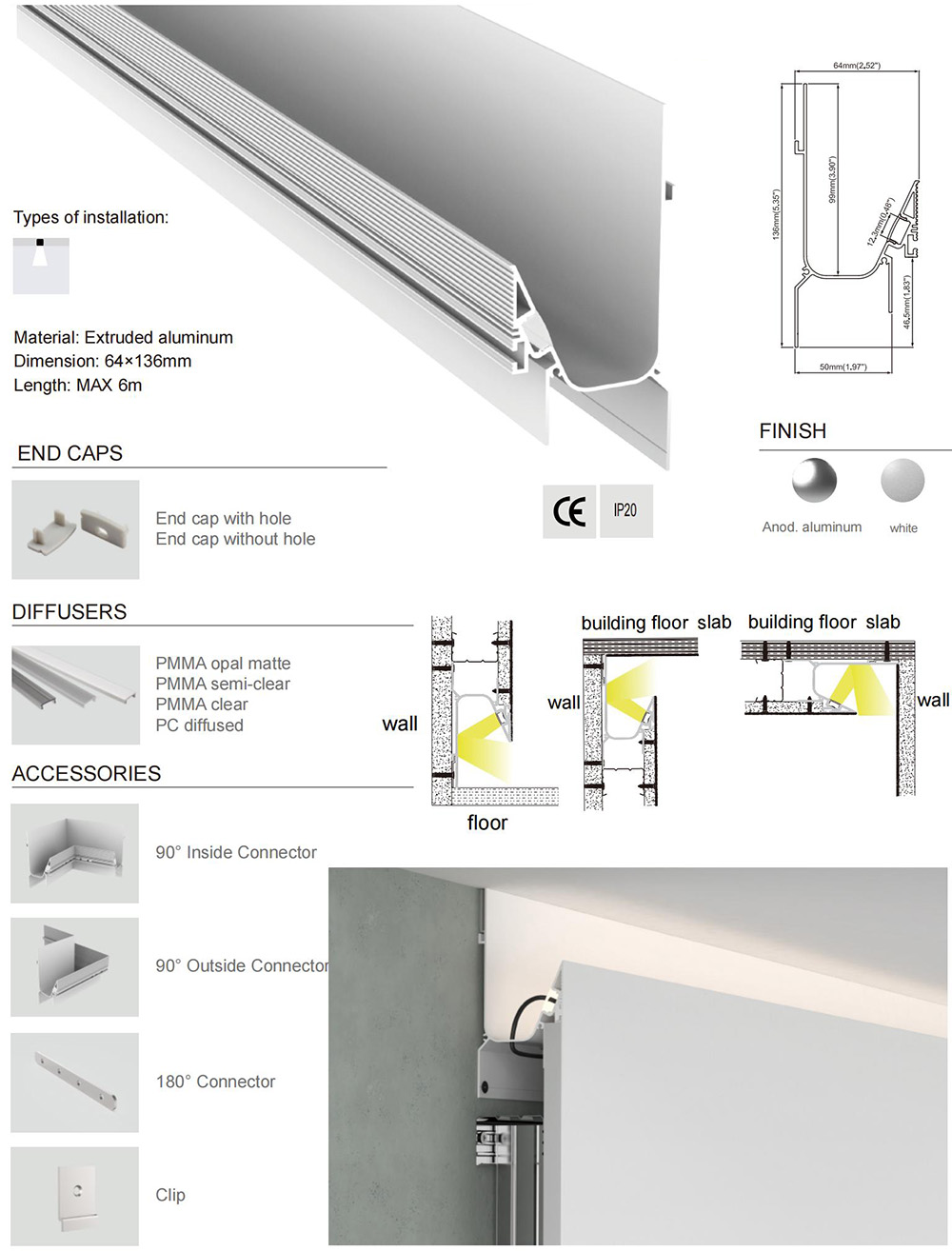

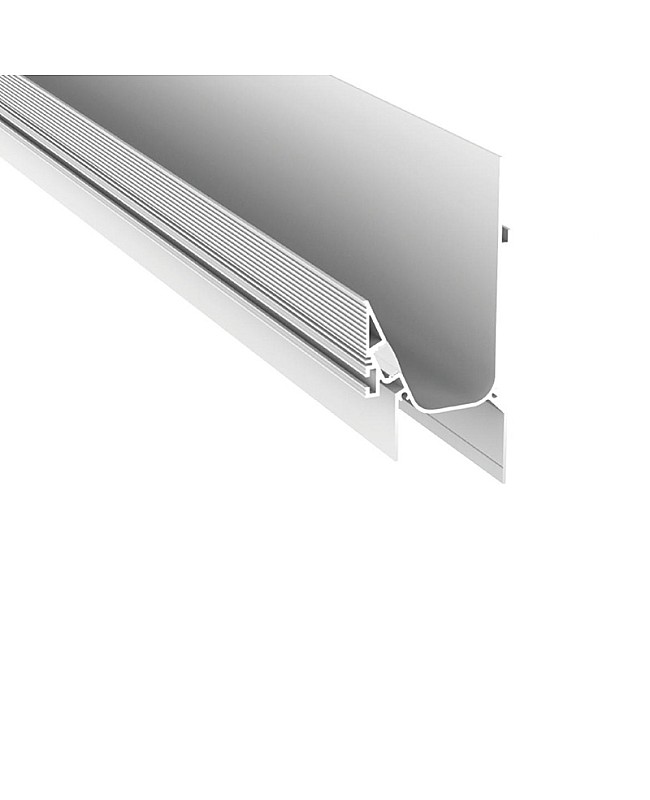

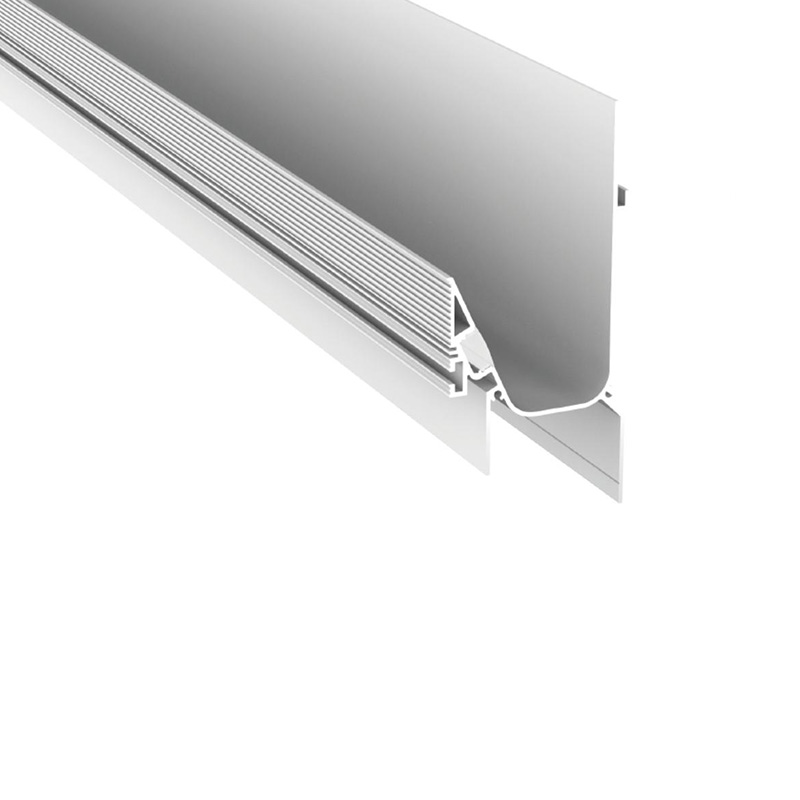

The Sheetrock aluminum profiles are designed for indirect architectural lighting and seamless integration into gypsum or drywall constructions. Ideal for residential, commercial, hospitality, and retail spaces to create elegant ambient lighting without visible fixtures, enhancing the architectural character of the space. The standard lengths are 1 m and 2 m, and they can be cut to any size that fits your needs. The plasterboard light channels are made of high-quality aluminum alloy with a powder-coated finish, anti-oxidation resistance, durability, and long-lasting performance. There are six types of diffusers available, and you can choose the PC series or the PMMA series. They are made of brand-stable, anti-yellowing material and have perfect light distribution. The inner width is 12.3 mm, allowing for a maximum strip light width of 12 mm. We recommend using high-density DC24V COB strip lights as the light source to create uniform lighting without visible dots and dark areas. There are 180° joiners available, which you can use for making straight connections.
Specifications:
- Material: 6063-T5 aluminum alloy
- Surface Treatment: Powder-coated
- Colors: White

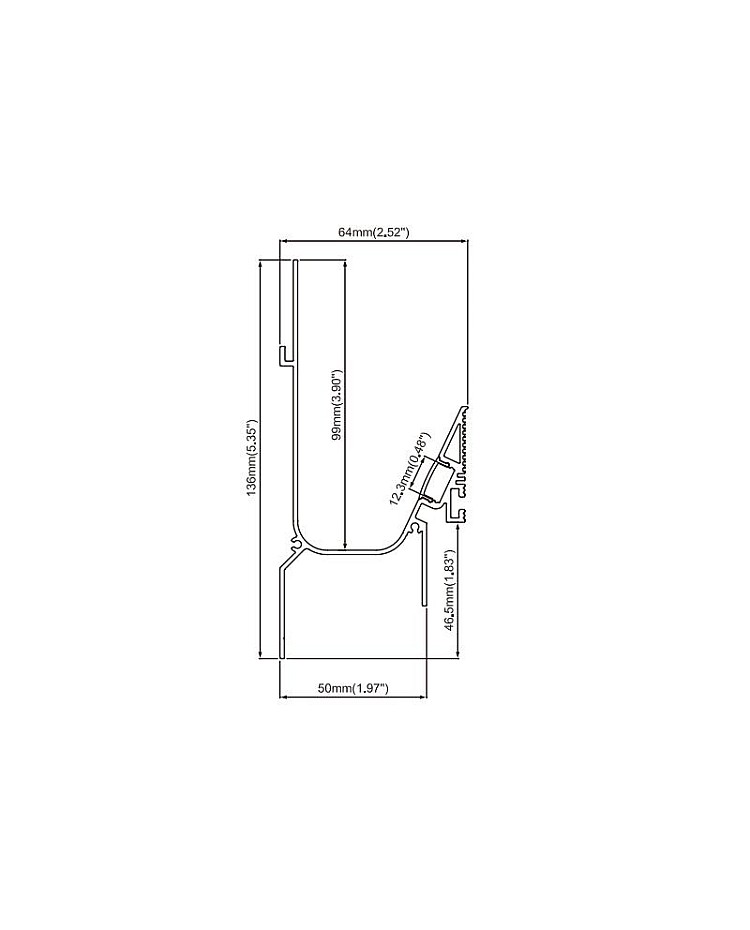

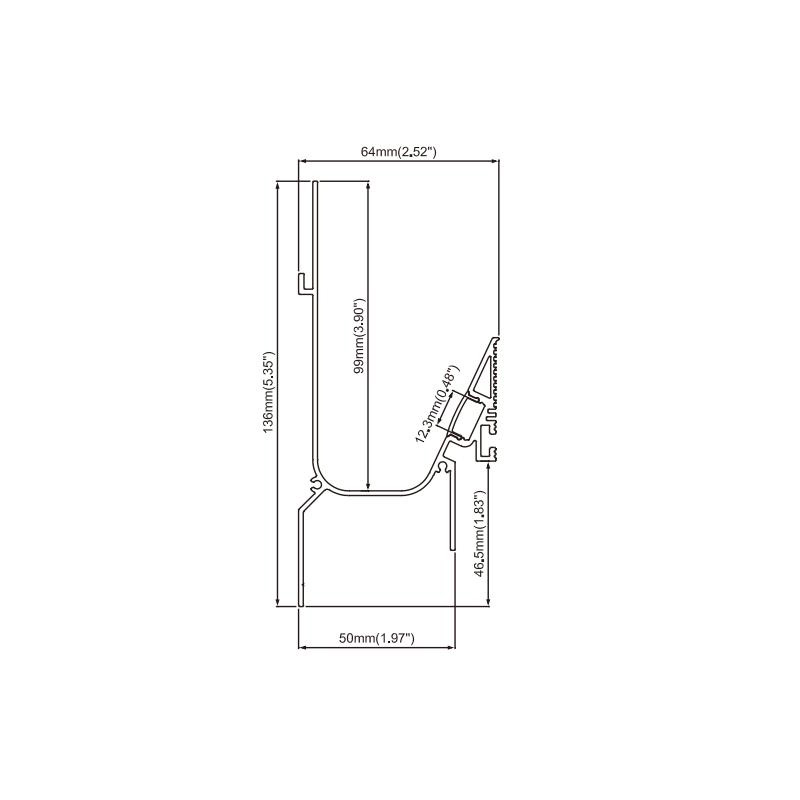

- Size(W*H): 64*136mm/2.52"*5.35"
- Standard Length: 1M(39") / 2M(78")
- Custom Length: YES
- Diffusers: PC diffused cover / PC semi-clear cover / PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover
- Inner Width: 12.3mm/0.48"
- Allows the max width of strip lights to be 12mm/0.47"
- End caps with/without wire holes included

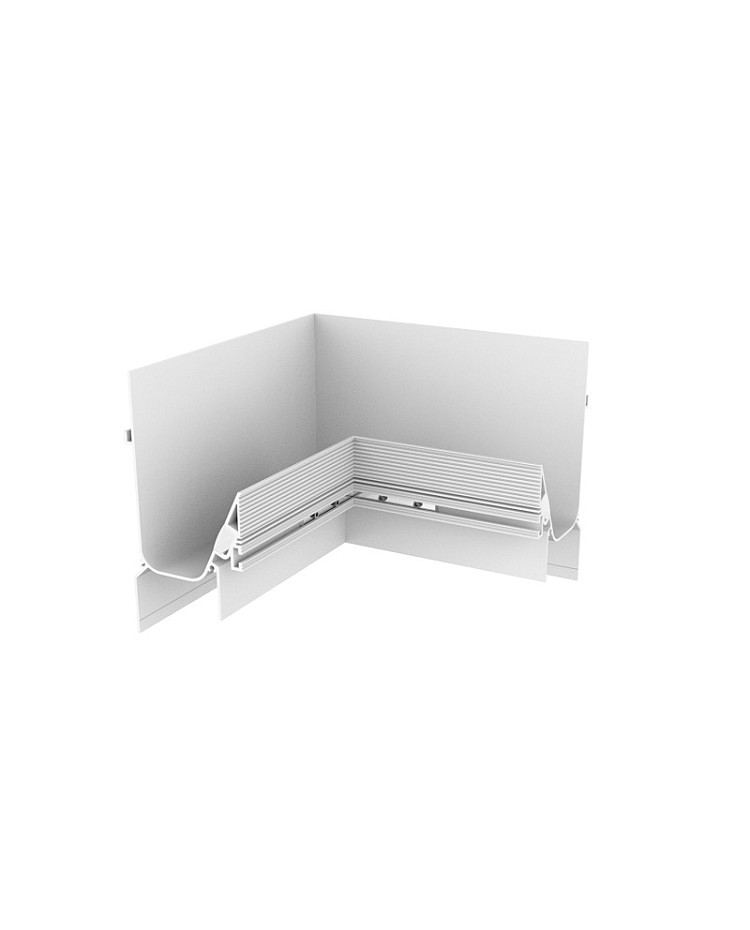

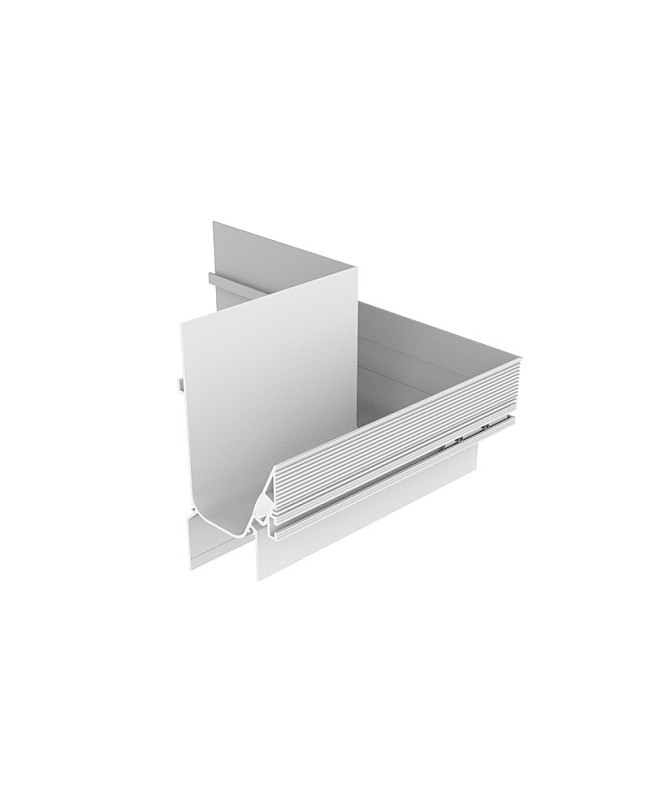

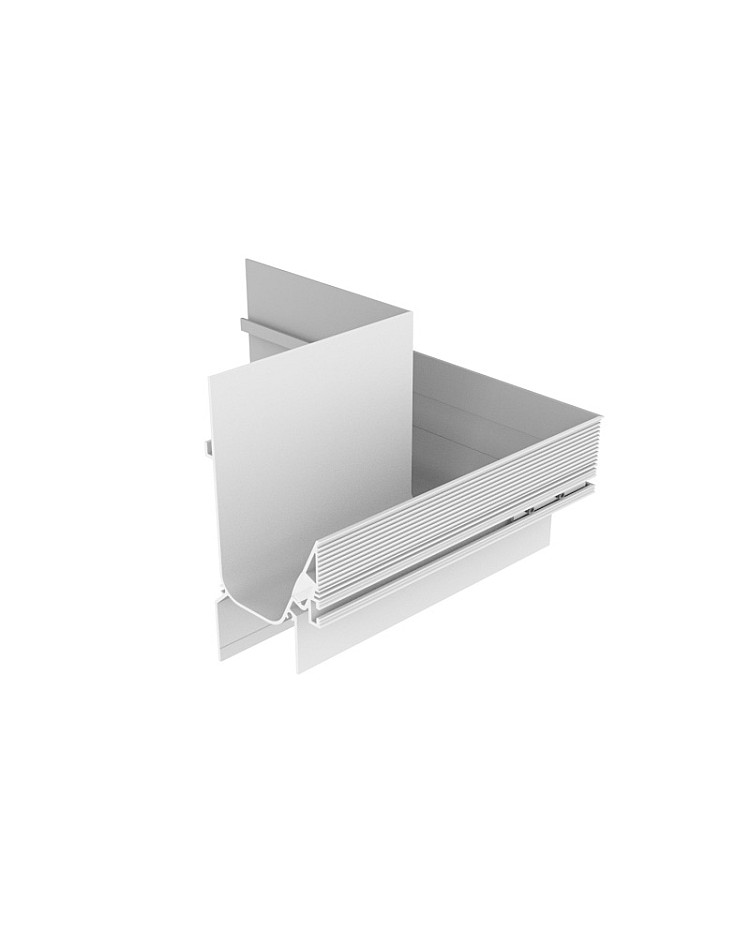

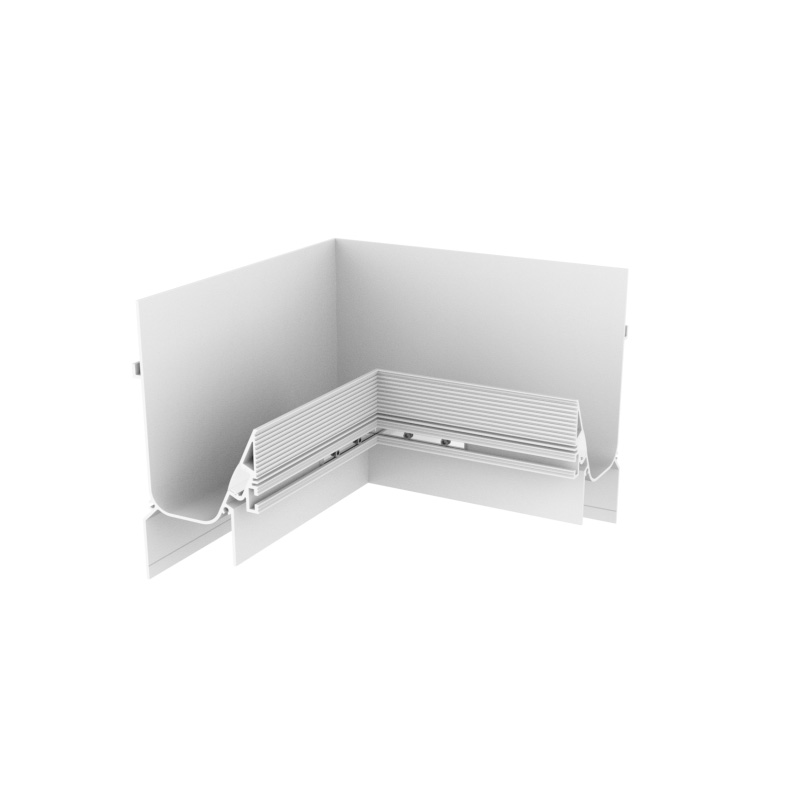

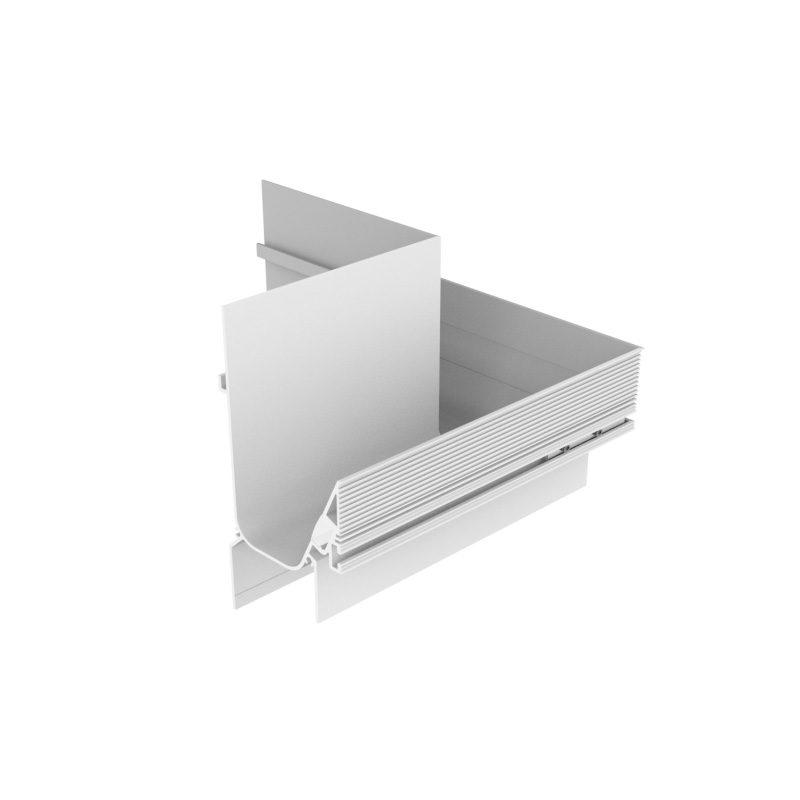

- 90° inside connectors, 90° outside connectors and 180° couplers sold separately

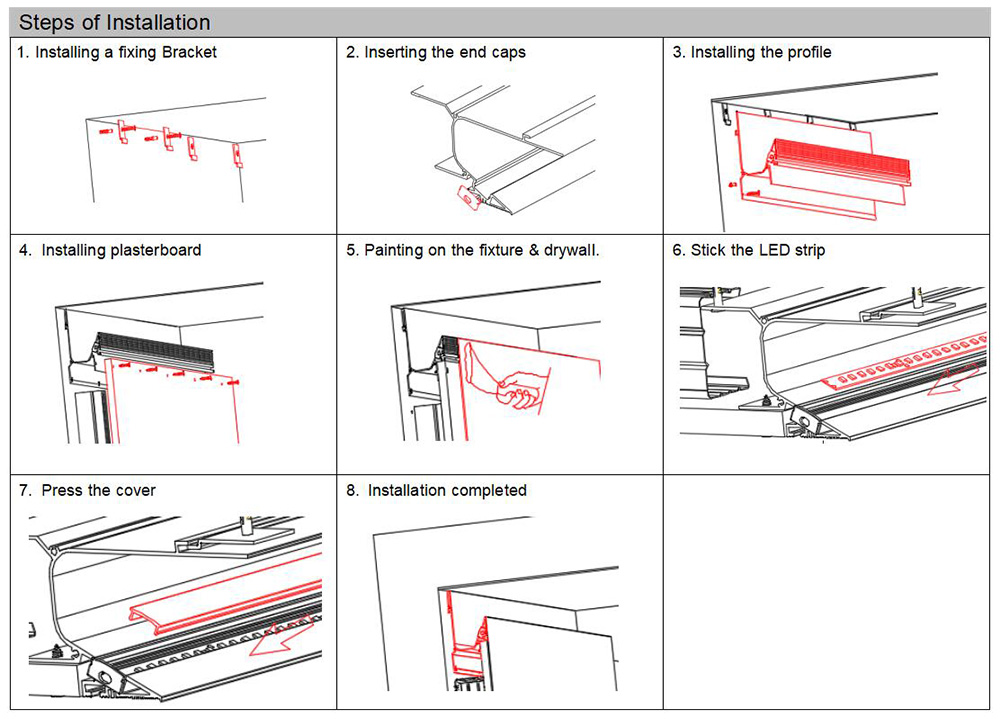

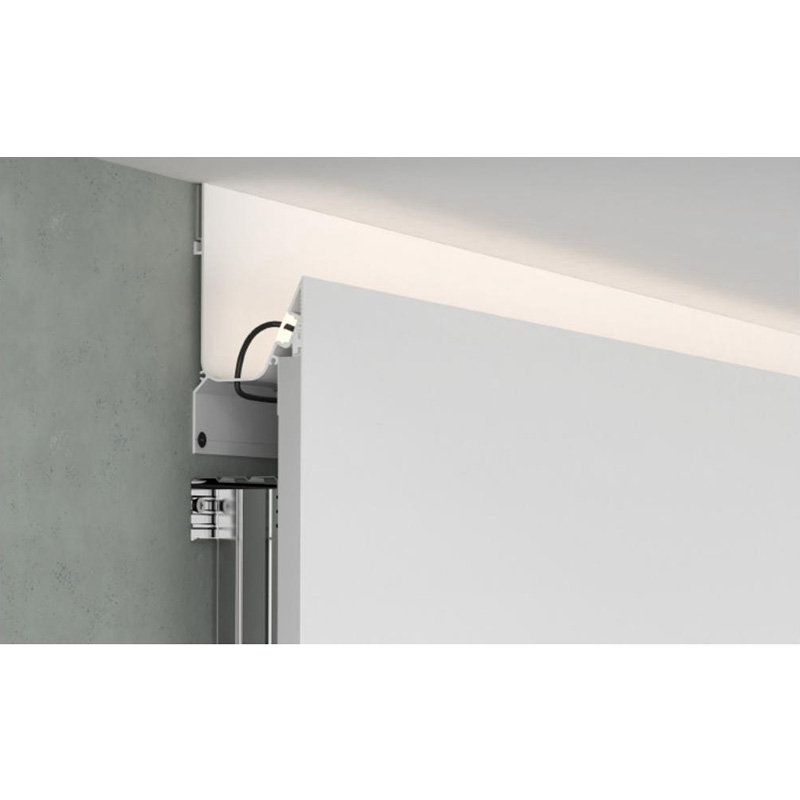

- Installation: Recessed mounted

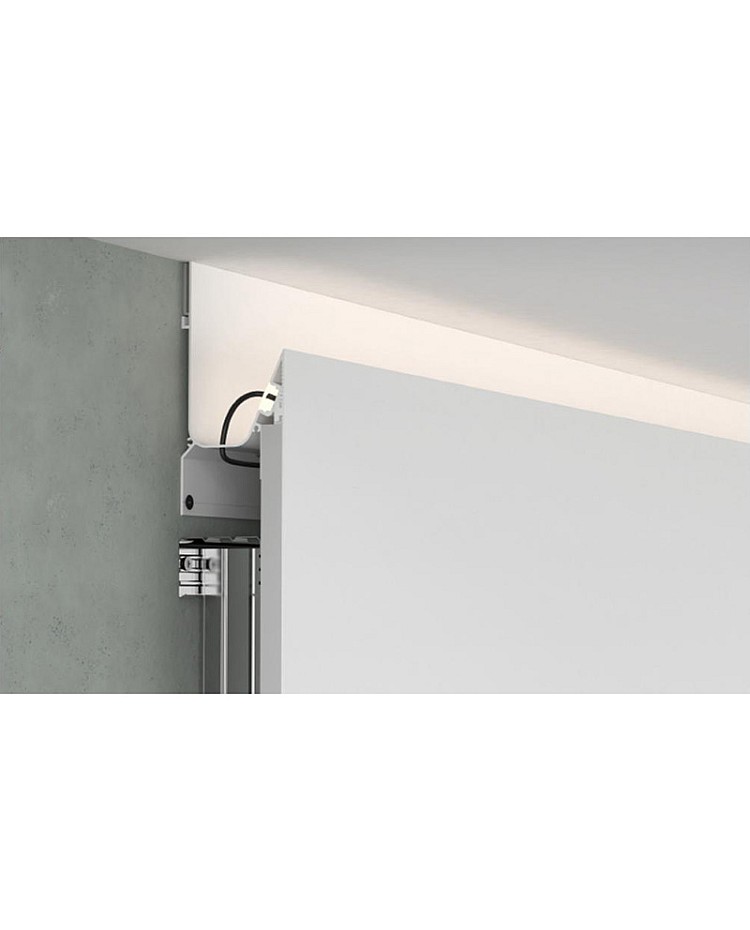

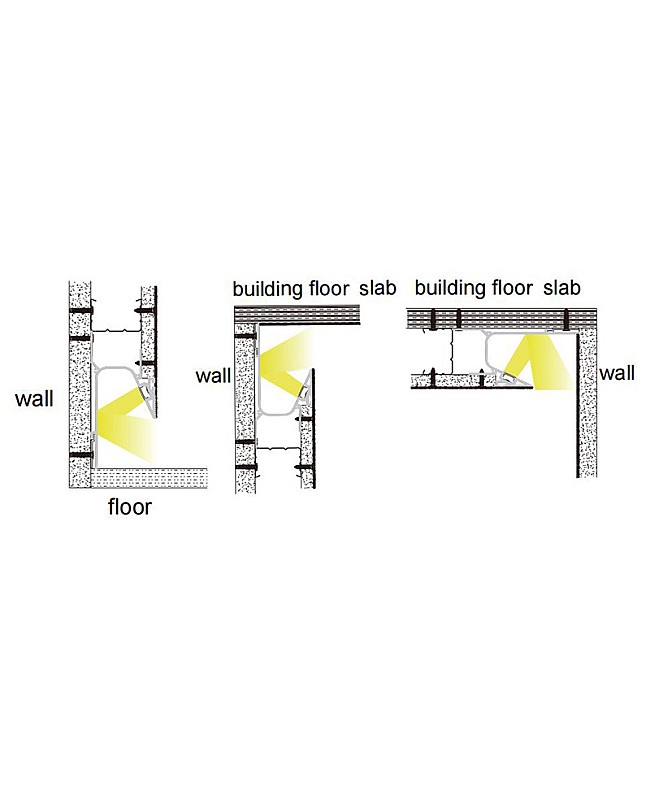

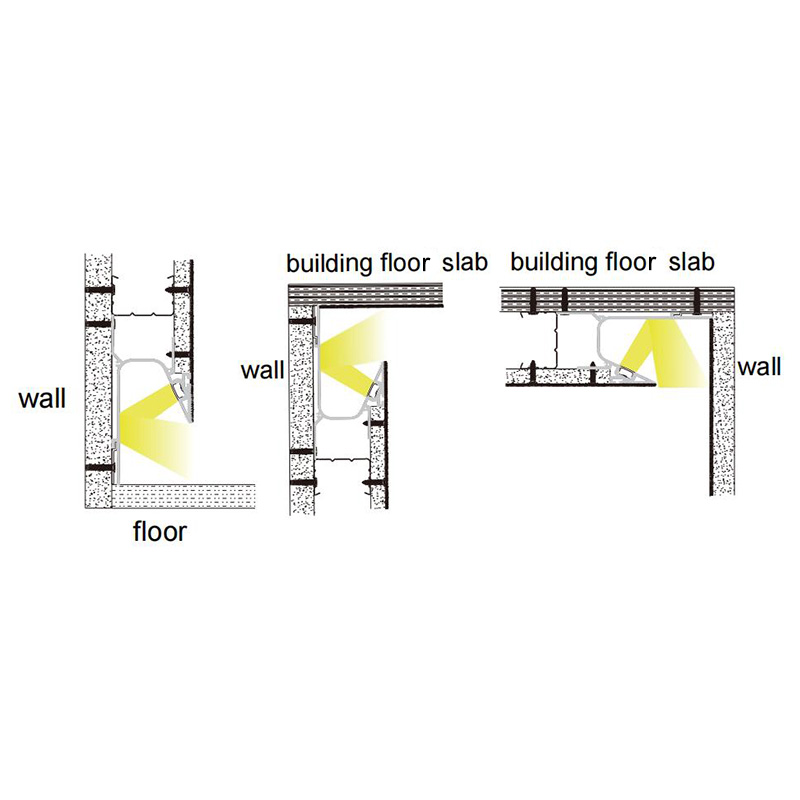

- Applications: Cove lighting, toe kick lighting, etc
- 5-year warranty
Includes:
1 * Aluminum profile with diffusers

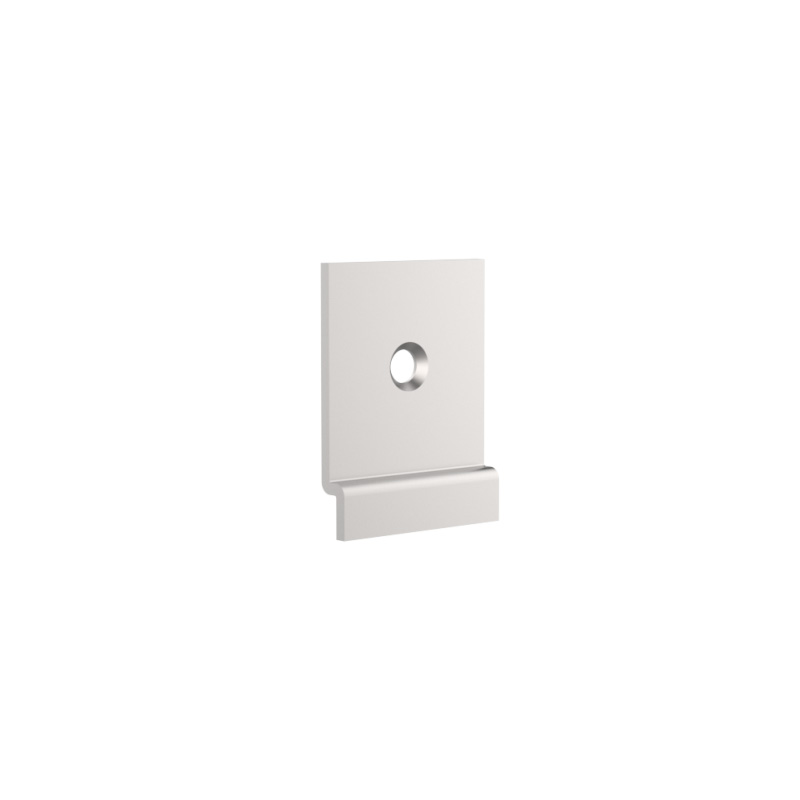

End Caps(With and without wire holes)

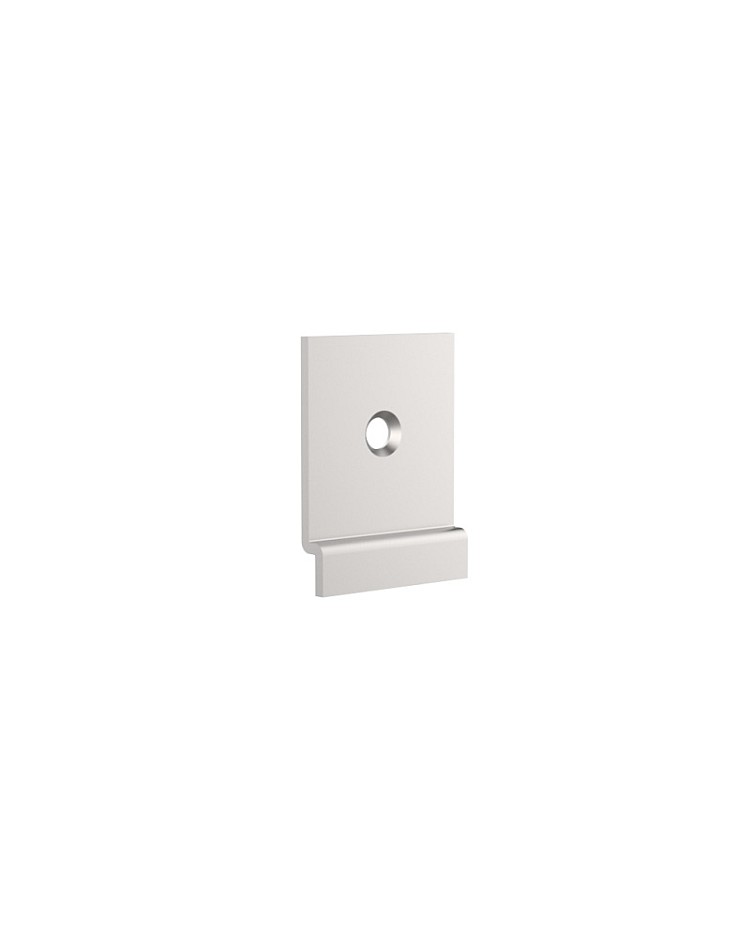

Metal brackets
