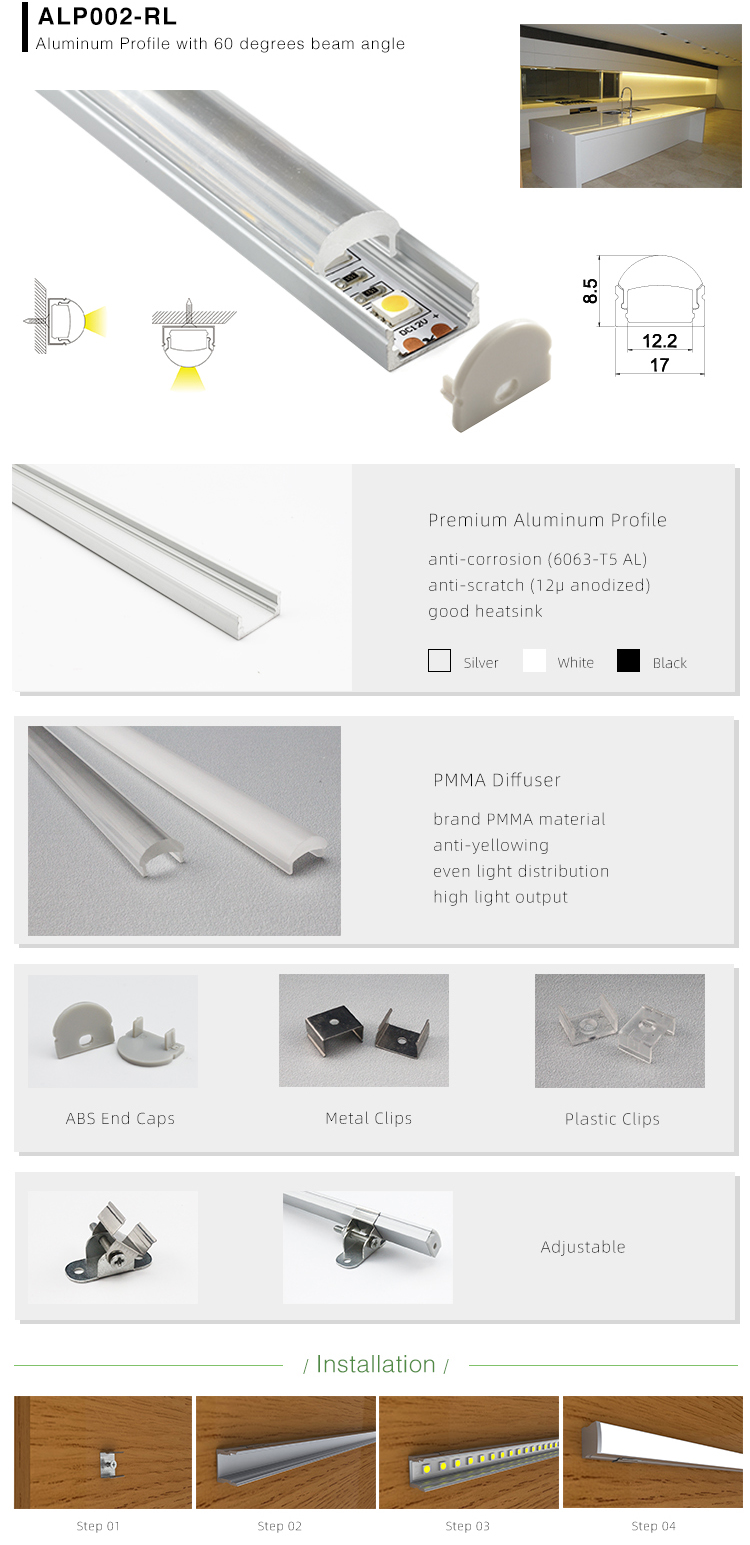

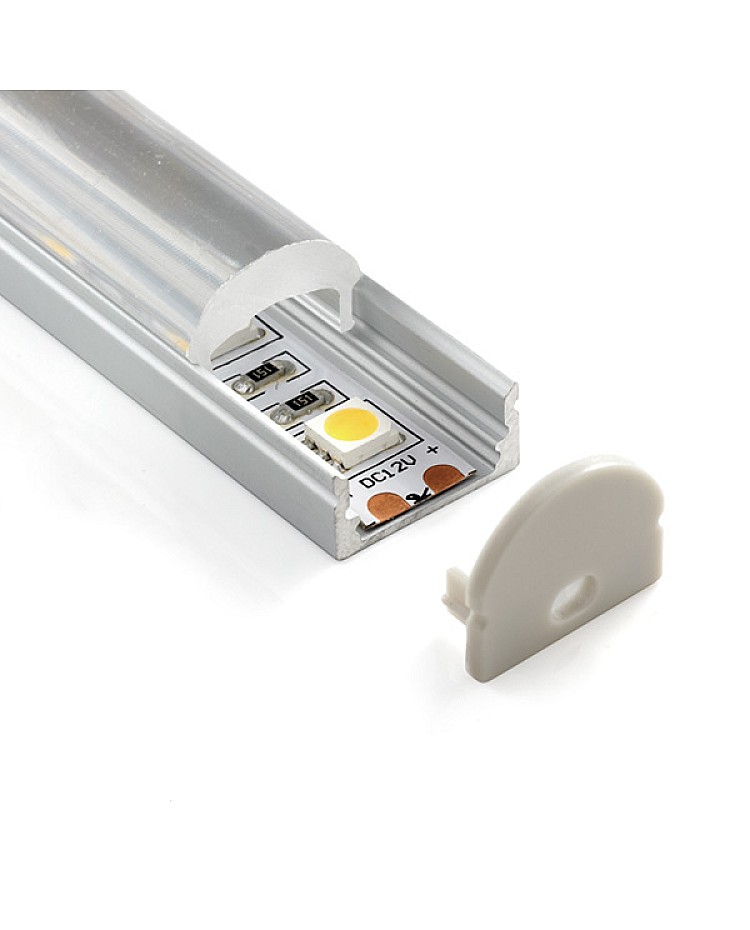

Slim Linear Aluminium LED Profile With 60 Degree Lens

The Slim Linear Aluminum LED Profiles, featuring a 60-degree lens, can accommodate LED Strips, providing a wide and even distribution of light to illuminate display cabinets, hallways, shelves, walls, shop cases, workspaces, and more. The Slim LED Profiles are made of 6063-T5 aluminum alloy material with a silver anodized surface treatment, providing anti-oxidation resistance and a longer lifespan compared to similar products. The standard lengths are 1 m and 2 m, and you can cut to any length you prefer. PMMA series lenses and PC series lenses are available, made from stable materials that are anti-yellowing and feature perfect light distribution. Designed to provide a uniform and even distribution of light across the desired area. The inner width is 12.2mm, allowing a maximum width of 12 mm for Strip Lights. Recommend using high-density COB LED Strip Lights as the light source, as they produce uniform light without hot spots. The Aluminum LED Profiler base can be used as a heat sink to enhance heat dissipation, thereby allowing the White LED Strip to have a longer lifespan. The slim design allows it to be installed in tight spaces without compromising performance. It is suitable for residential and commercial applications, whether to illuminate a kitchen, office, or retail store.

Specifications:

• Material: 6063-T5 Aluminum Alloy
• Surface Treatment: Silver Anodized
• Color: Silver(Default), White, Black

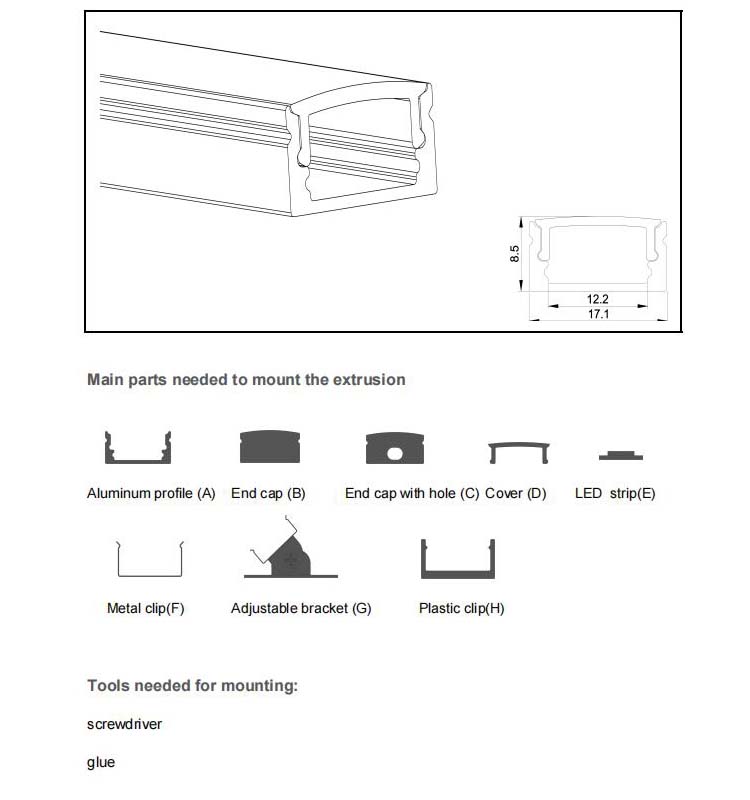

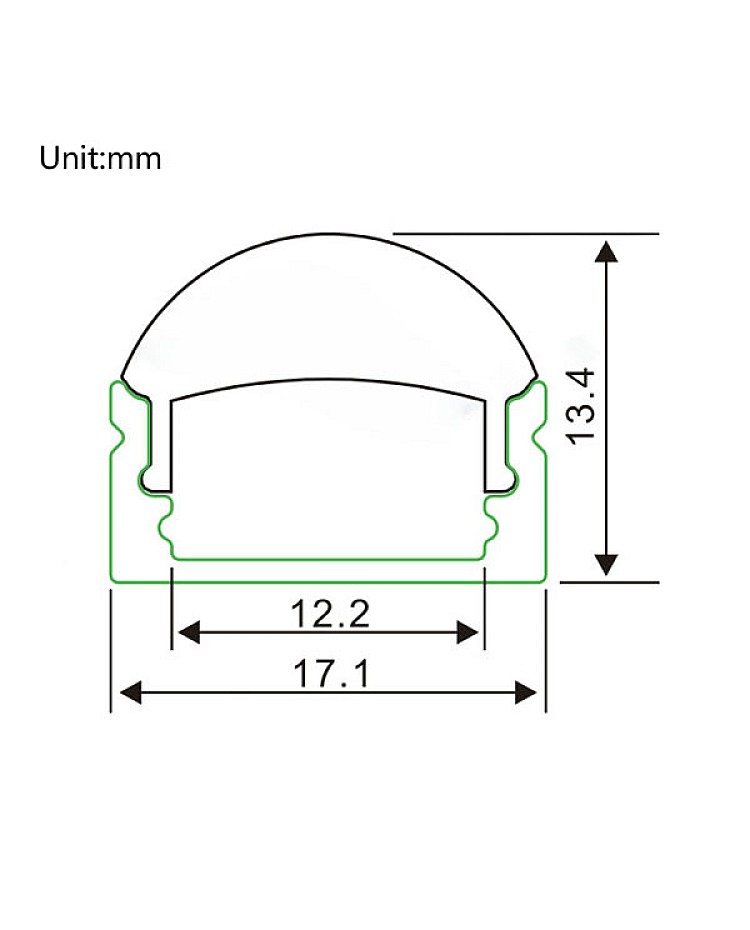

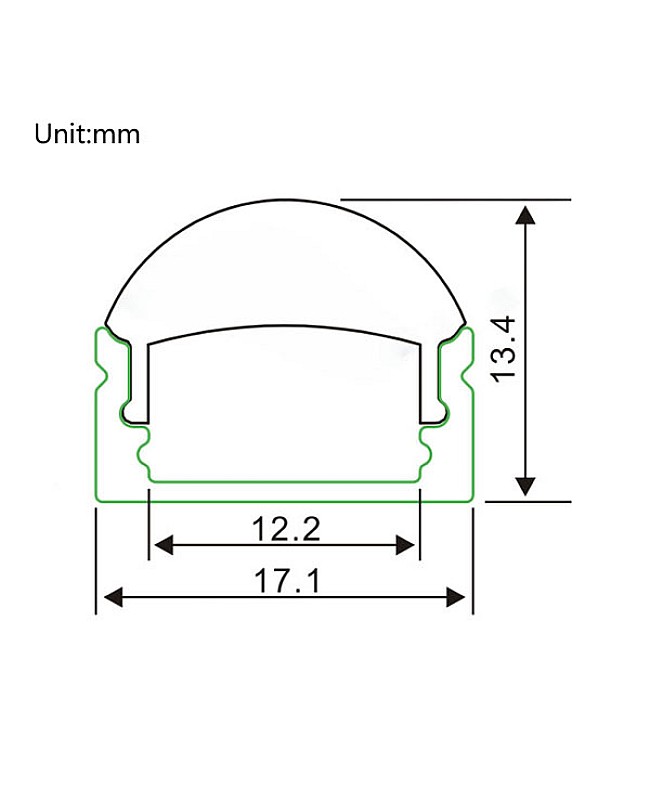

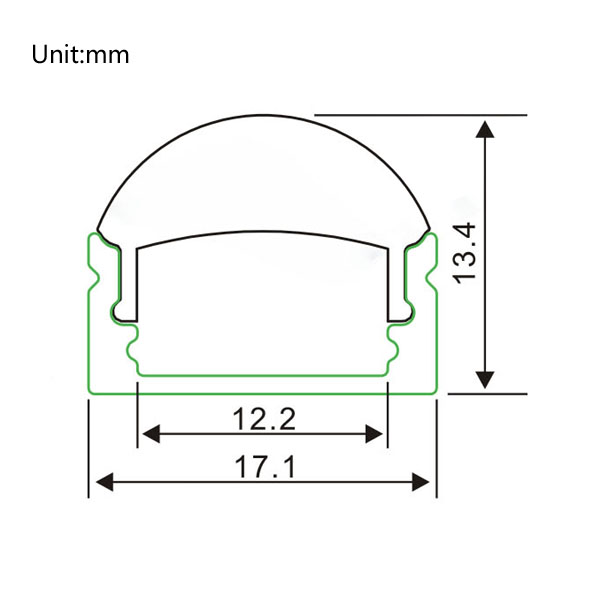

• Size: 17.1(W)*13.4mm(H)
• Inner Width: 12.2mm
• Allows The Max Width Of Strip Lights To Be 12mm
• Max Power: <15W/M

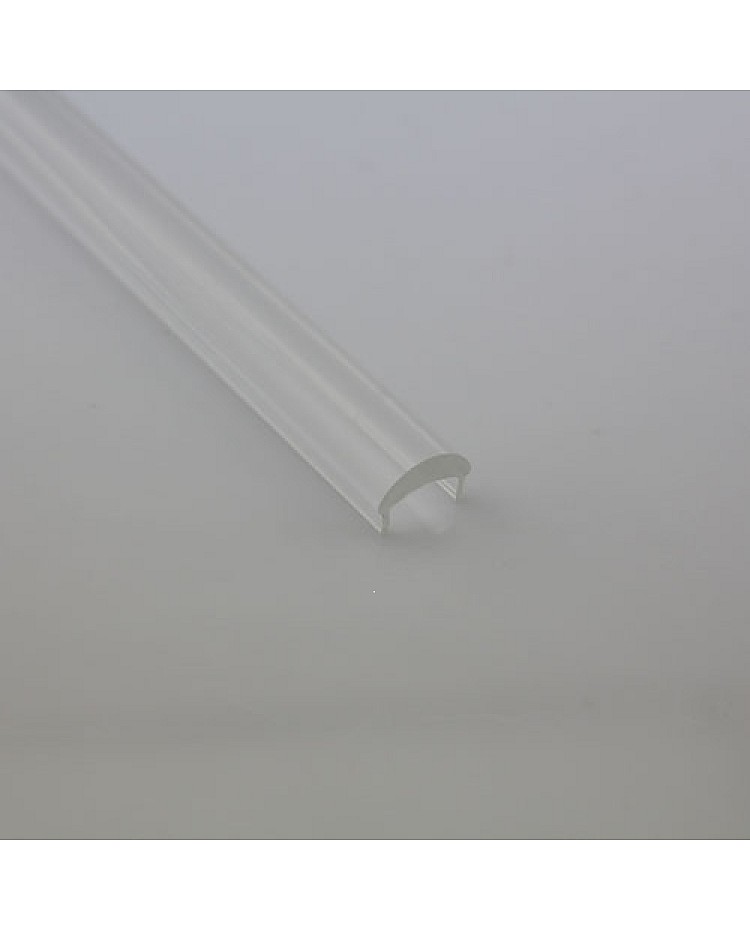

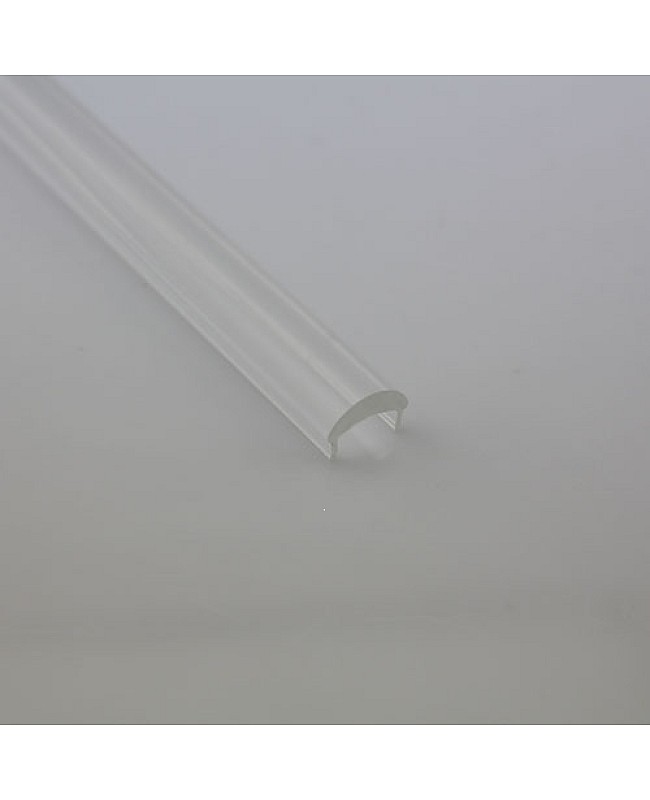

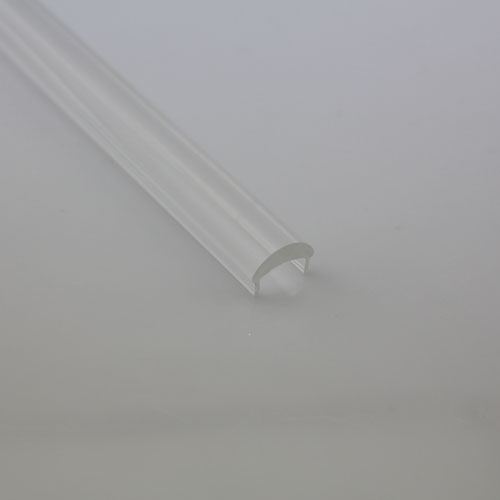

• Diffusers: PMMA Opal Matte Cover/PMMA Semi-Clear Cover / PMMA Clear Cover / PC Opal Matte Cover / PC Semi-clear Cover / PC Clear Cover
• Default Length: 1Meter
• Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
• Max Length: 2 Meters/Piece
• Custom length: YES
• Recommend Adding High-density COB, 3528, And 5050 LED Strip Lights

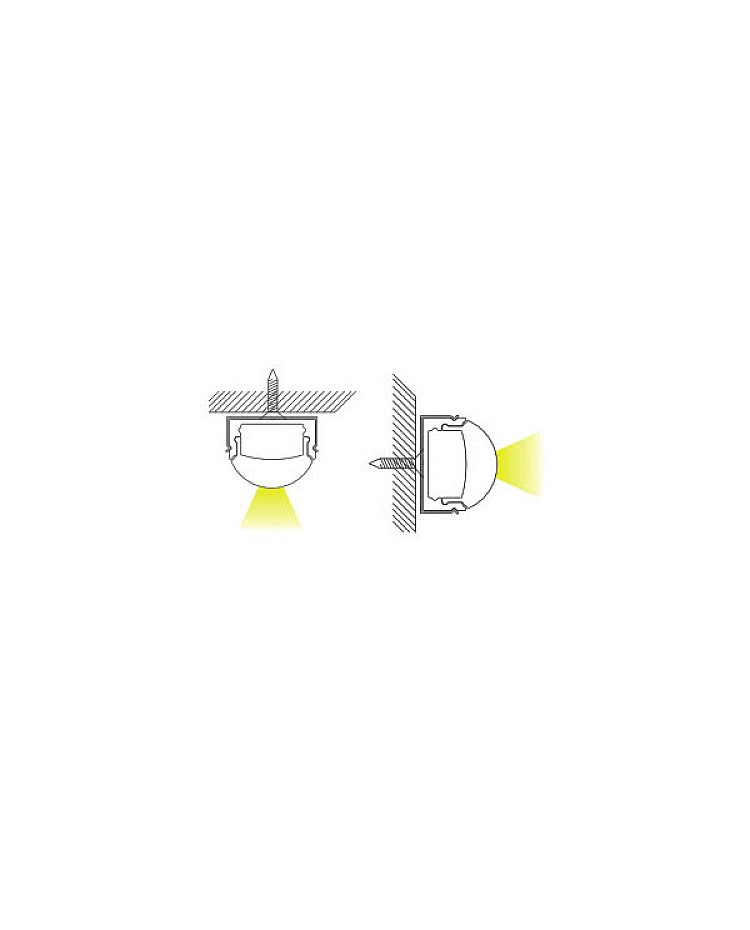

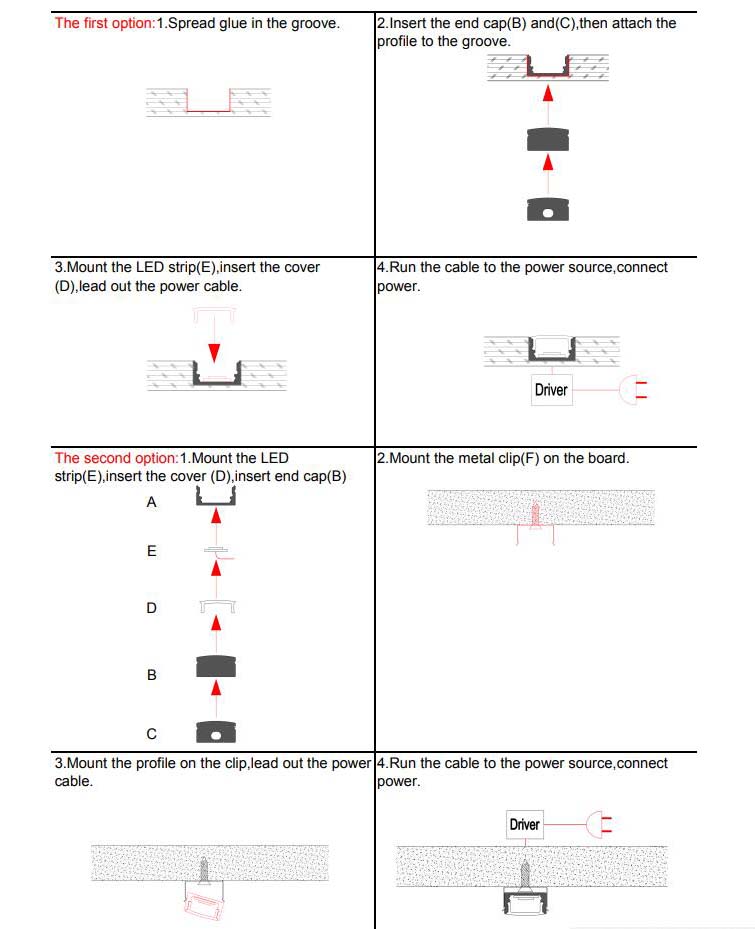

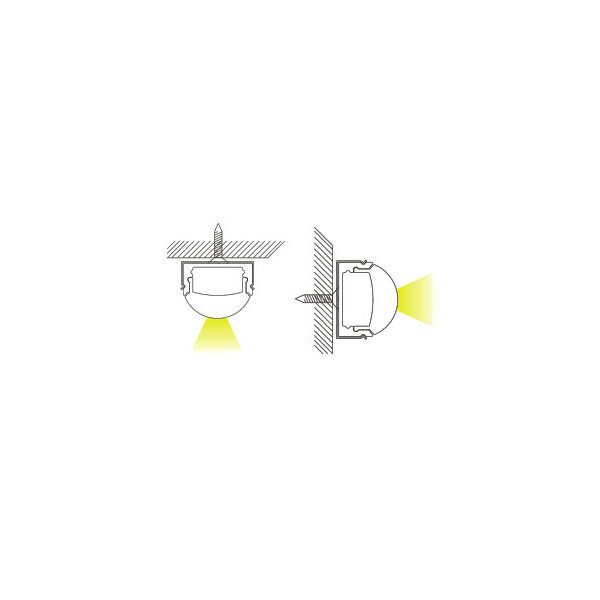

• Aluminum LED Profile For Surface Mounted

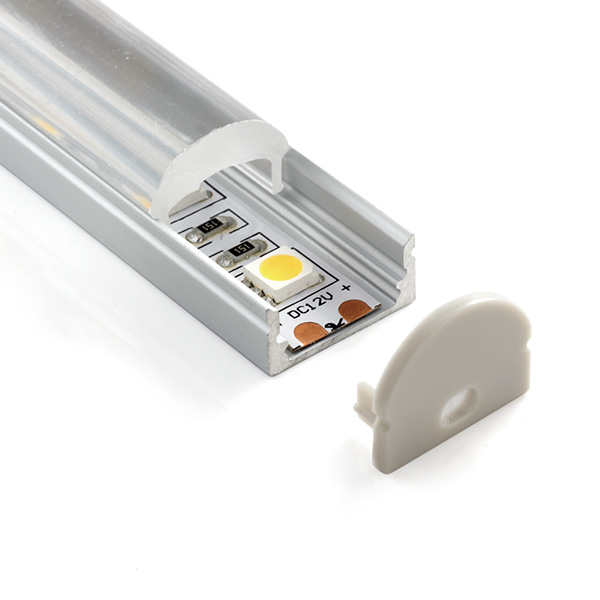

• End Caps With Wire Hole And Plastic Mounting Clips Included
• LED Strip Lights And Adjustable Brackets Sold Separately
• 90° And 180° Connectors Sold Separately
• 5 Years Warranty

Package:

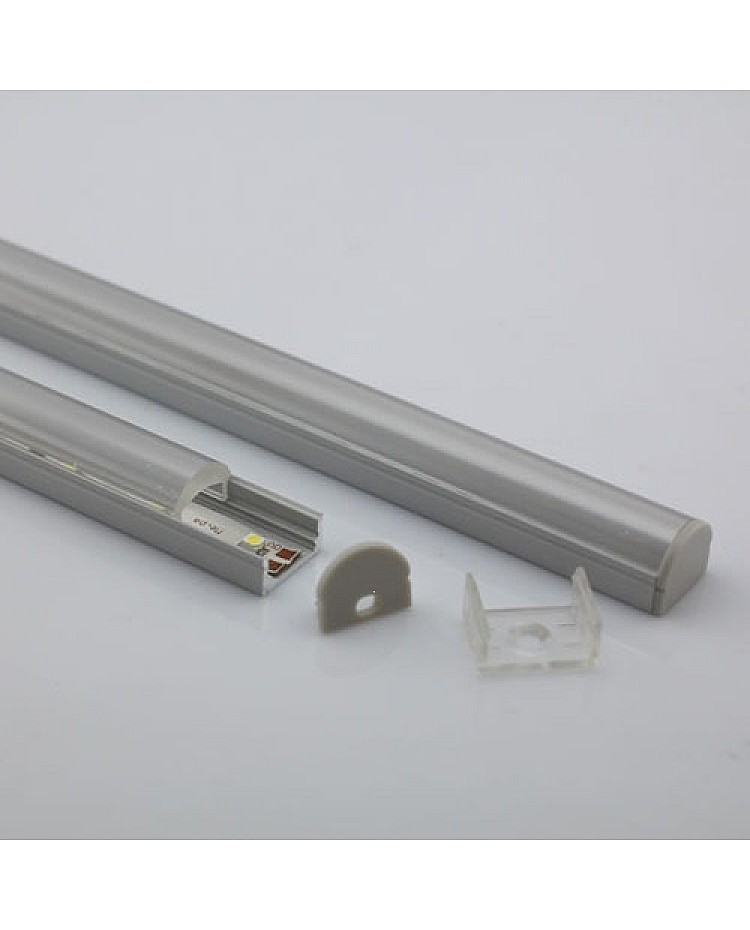

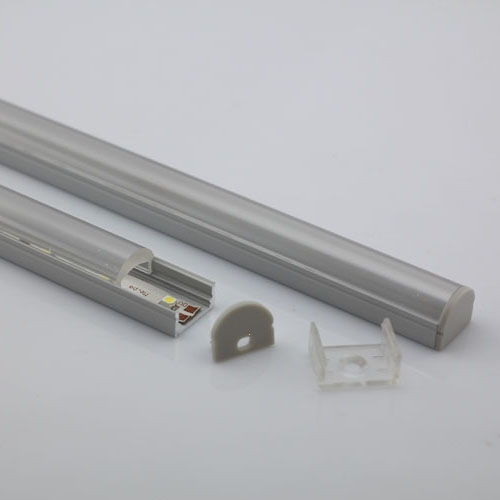

1 * Aluminium LED Profile With Diffuser

End Caps（With Wire Holes / Without Wire Holes）

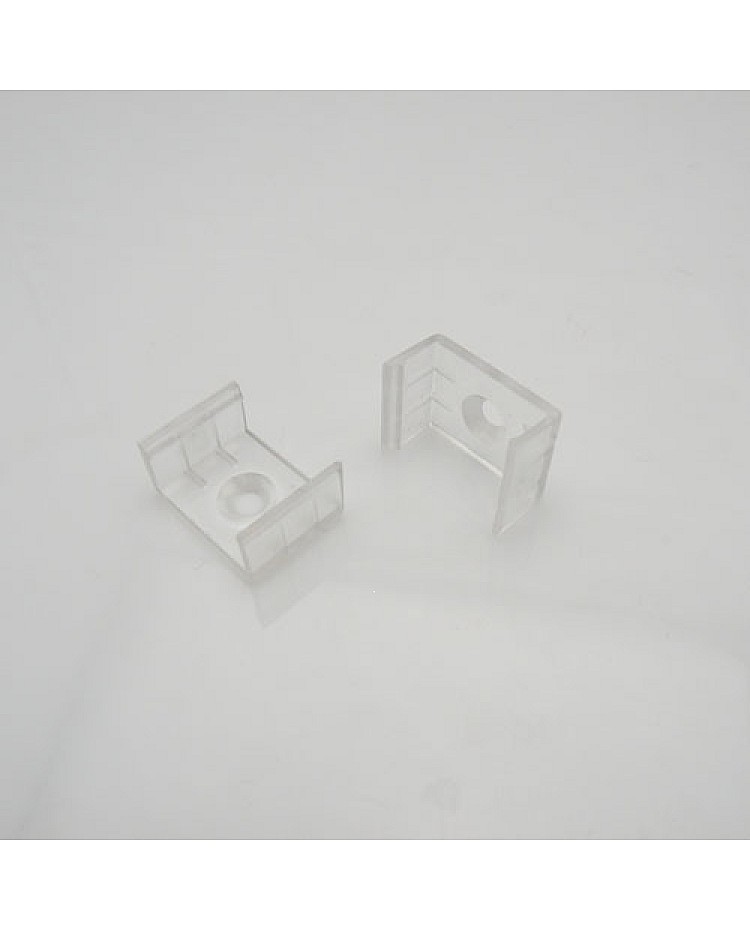

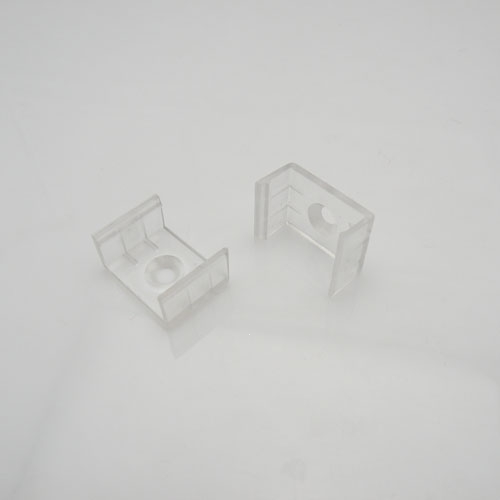

Plastic LED Light Mounting Clips

Applications:

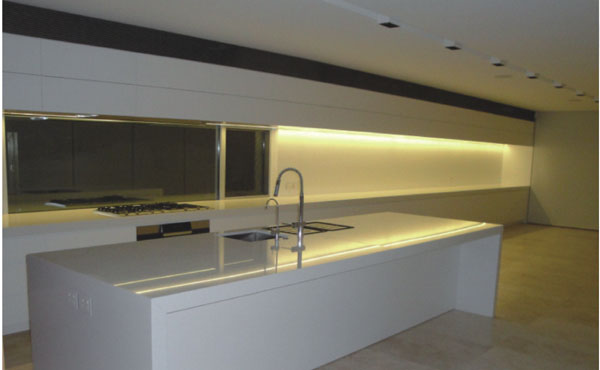

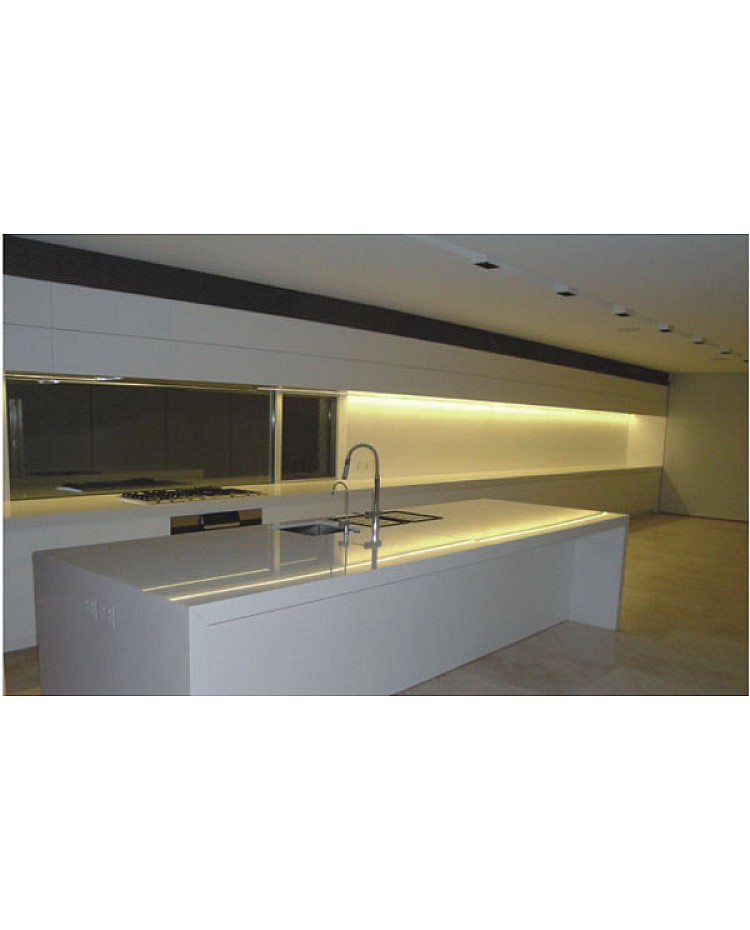

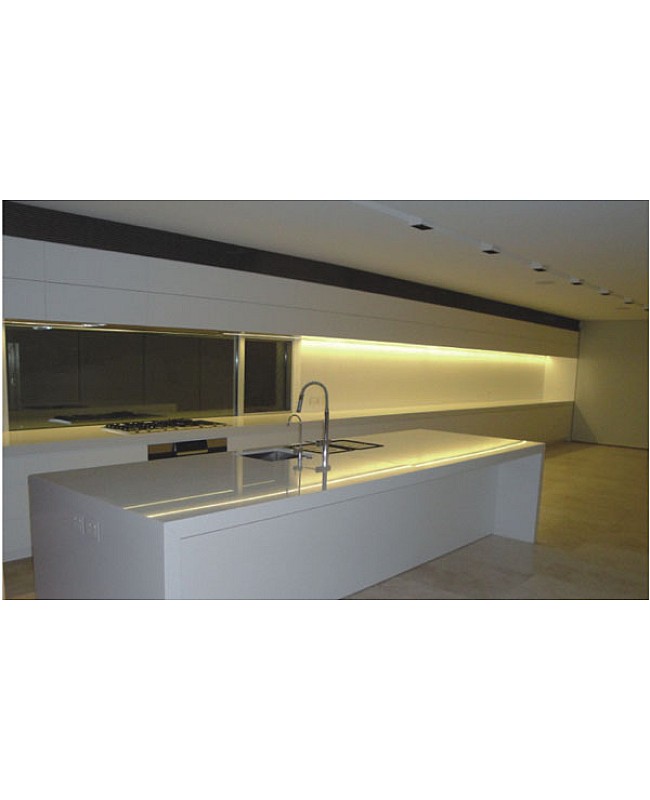

Surface Mounted On The Walls, Shelves, Shop Cases, In Cabinets, etc.
