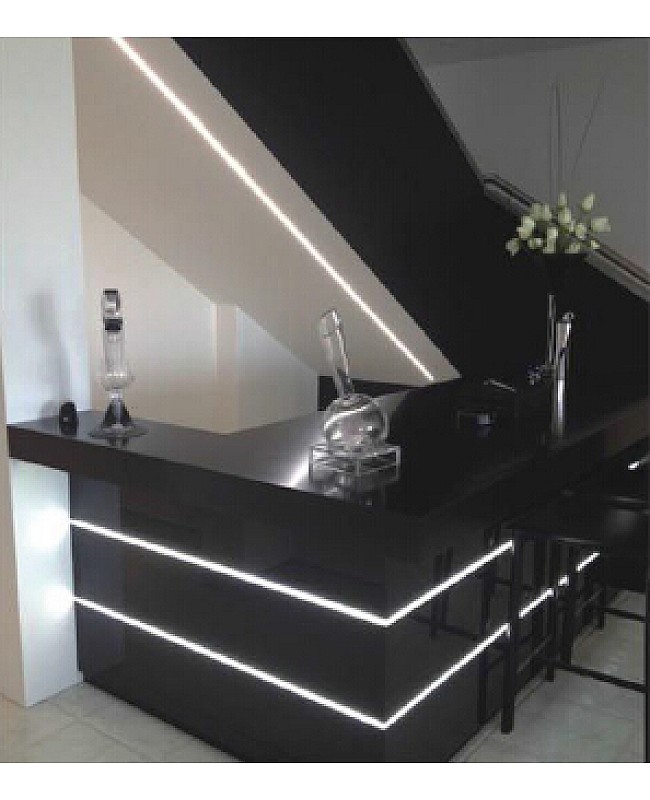

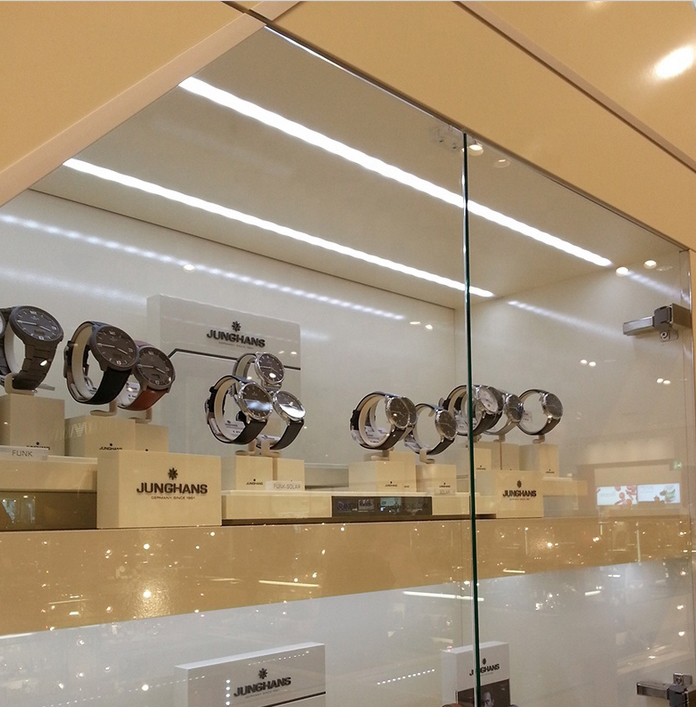

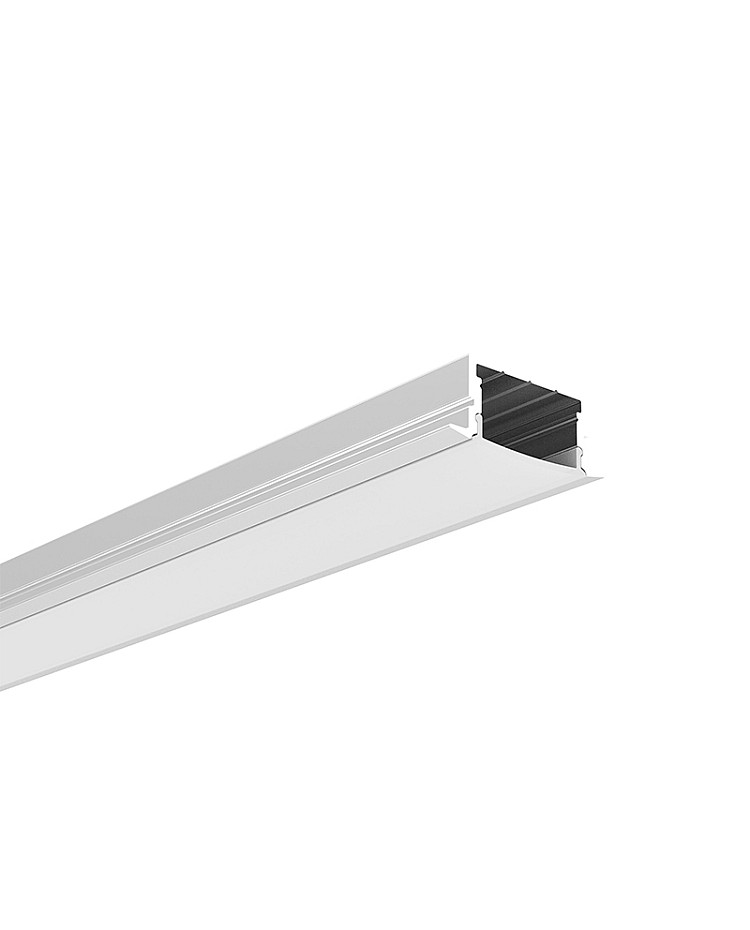

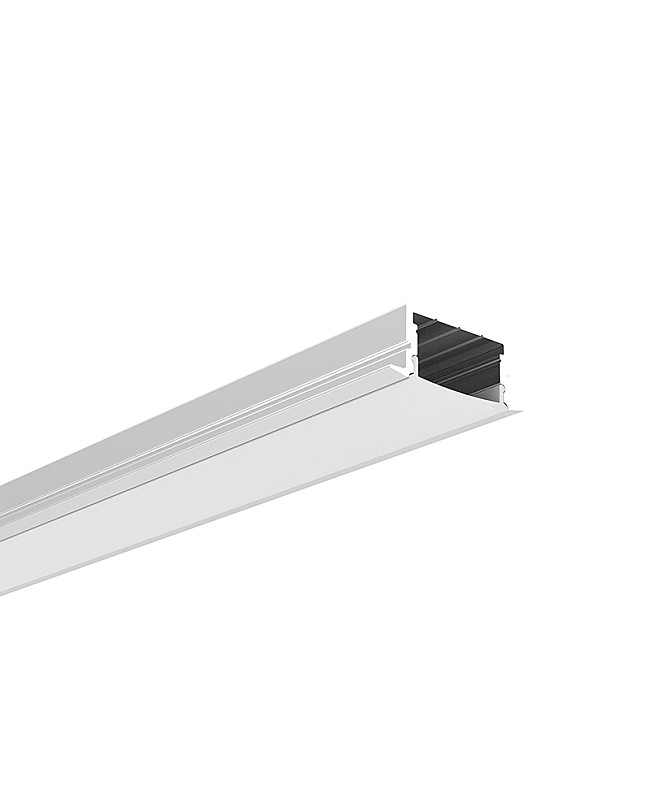

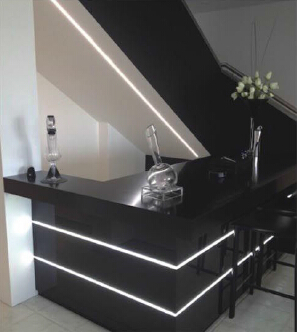

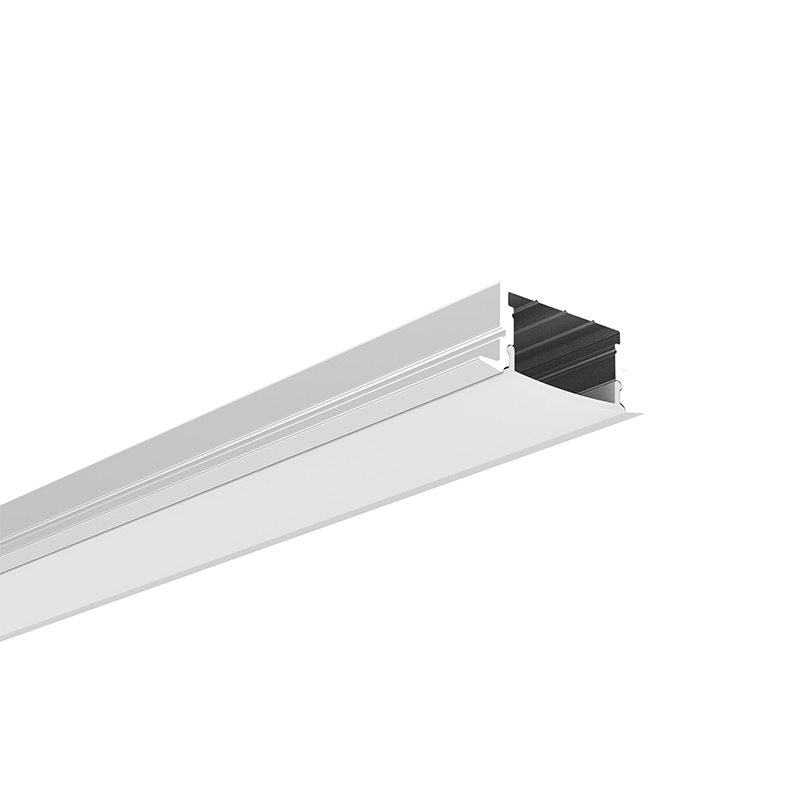

The ALP013-R is a sleek, flush-mount aluminum profile with a built-in flange, engineered to deliver a clean, professional finish and a smooth, uniform line of light. With a depth of 12.8mm, it offers extra space between the LED lights and diffused cover, effectively reducing visible LED dots for a seamless glow. The integrated flange holds the profile securely in place while giving your installation a neat, built-in look. It's a go-to solution for modern kitchens, wardrobes, display cabinets, retail shelving, sign backlighting, and custom furniture projects.
Manufactured from premium 6063-T5 anodized aluminum, this profile resists oxidation and corrosion, extending lifespan. It doubles as an efficient heat sink to keep your LEDs cooler and extend their performance, while also protecting the strips from dust, moisture, and physical damage.
With an inner width of 18.7 mm, the channel fits strip lights up to 18mm wide. For the smoothest results, we recommend high-density double-row COB or SMD flexible LED strips as your light source to eliminate visible dots. Available in standard 1m and 2m lengths with custom sizing supported, the profile adapts to any project.

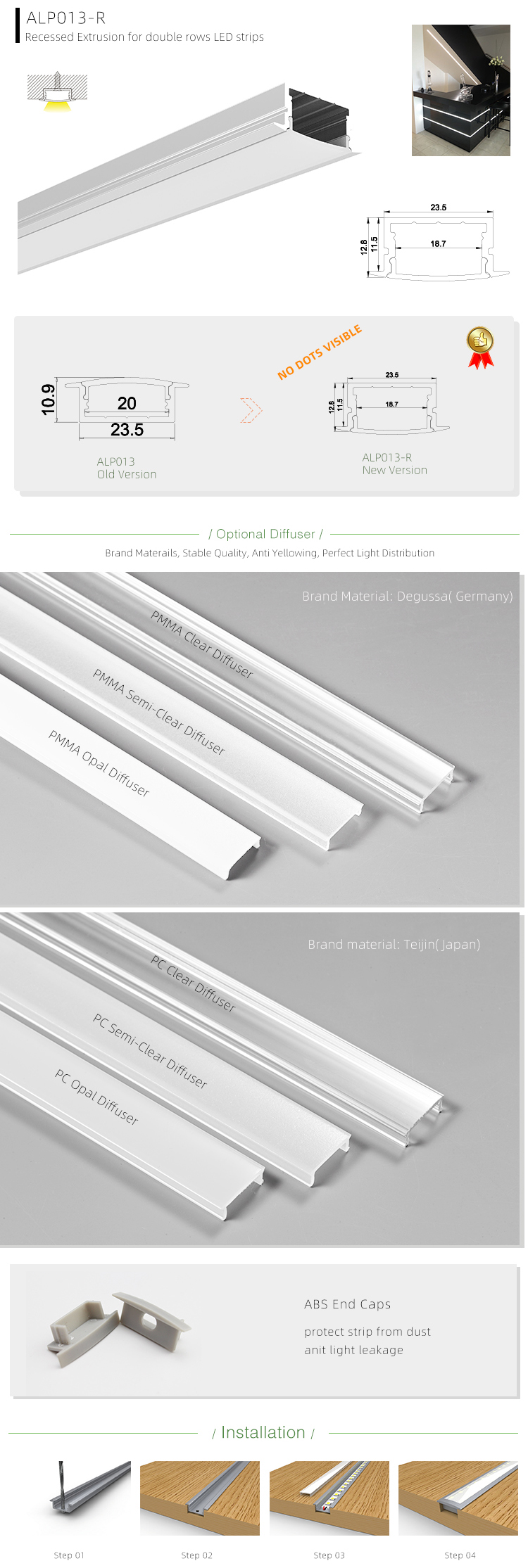

Choose from six diffused covers across our PMMA and PC series. The PMMA covers are crafted from Degussa material from Germany, while the PC covers use Teijin material from Japan—both are anti-yellowing and offer excellent light distribution. These diffusers deliver more uniform light output while minimizing the visibility of LED dots.
Specifications:
- Model: ALP013-R
- Material: 6063-T5 Aluminum alloy
- Surface treatment: Anodized

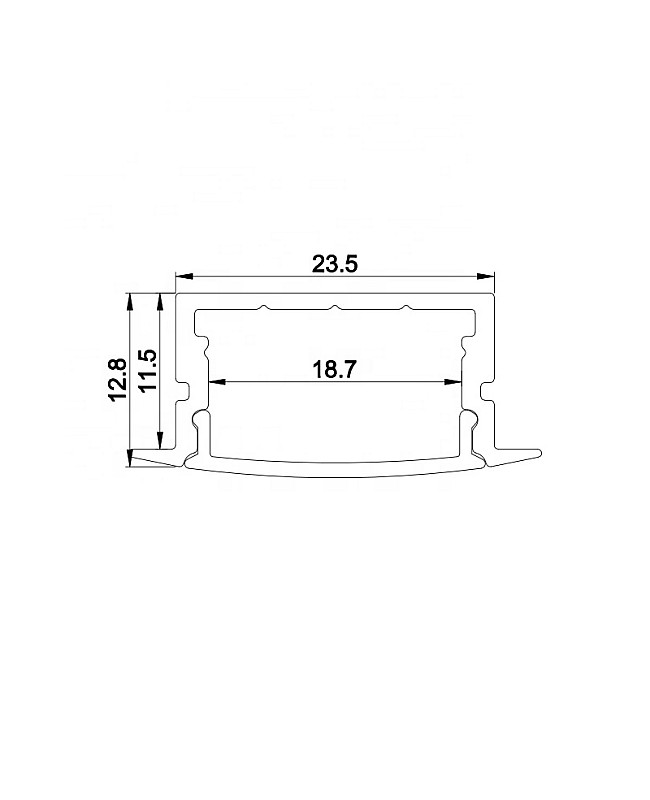

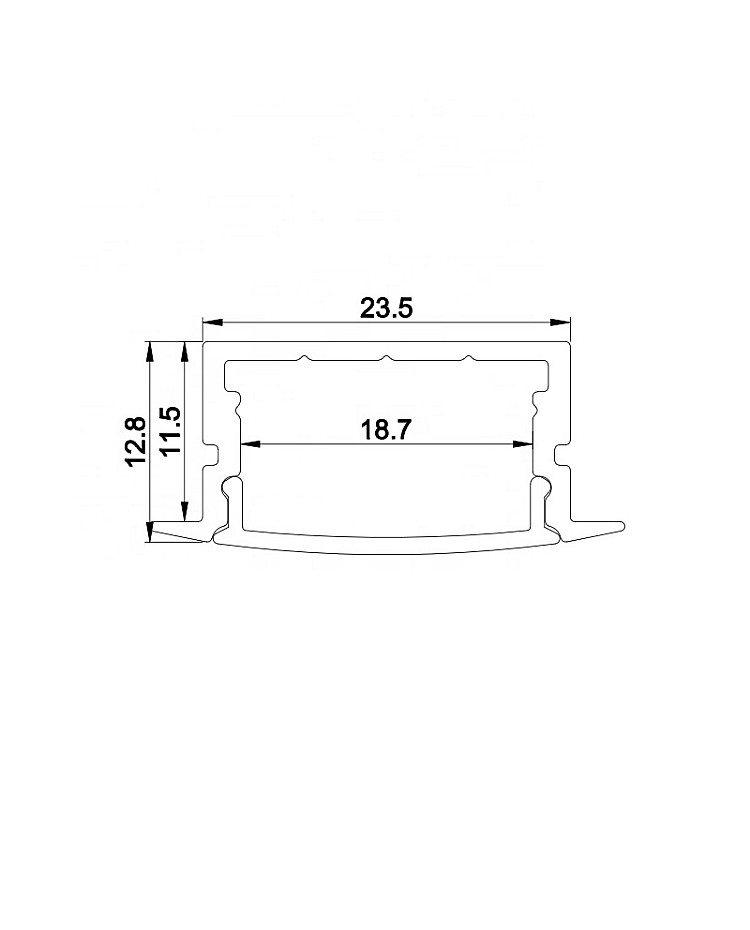

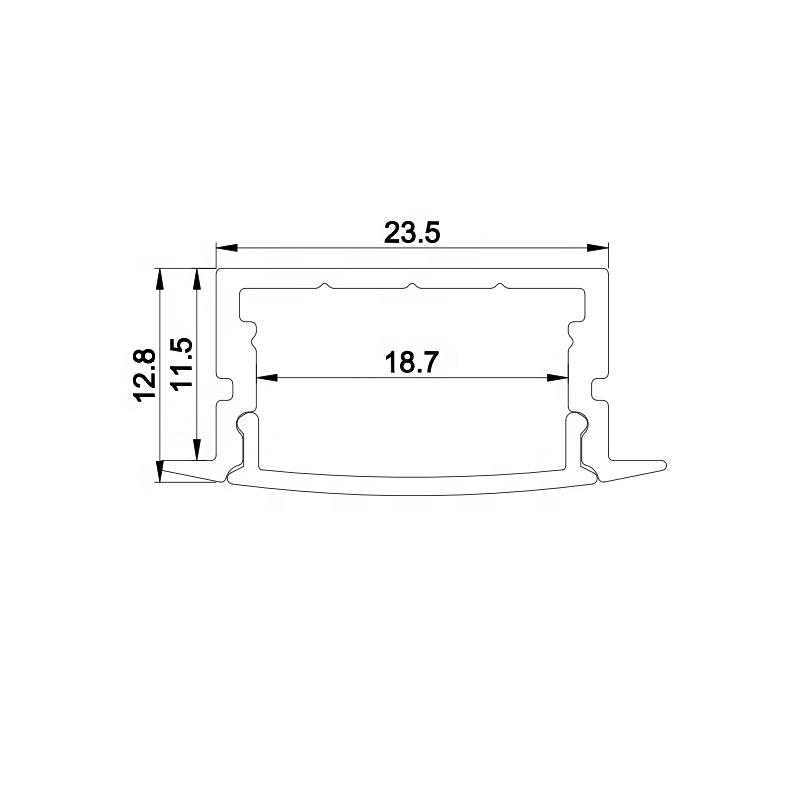

- Size ( Width x Height ): 30.5mm x 12.8mm (1.2" x 0.5")
- Standard lengths: 1 m ( 39.37" ), 2 m ( 78.74" )
- Custom length available: YES
- Inner width: 18.7mm/0.74"
- Max power: <20W/m
- Covers: PMMA opal matte cover, PMMA semi-clear cover, PC diffused cover, PMMA clear cover
- Beam angle: 100°

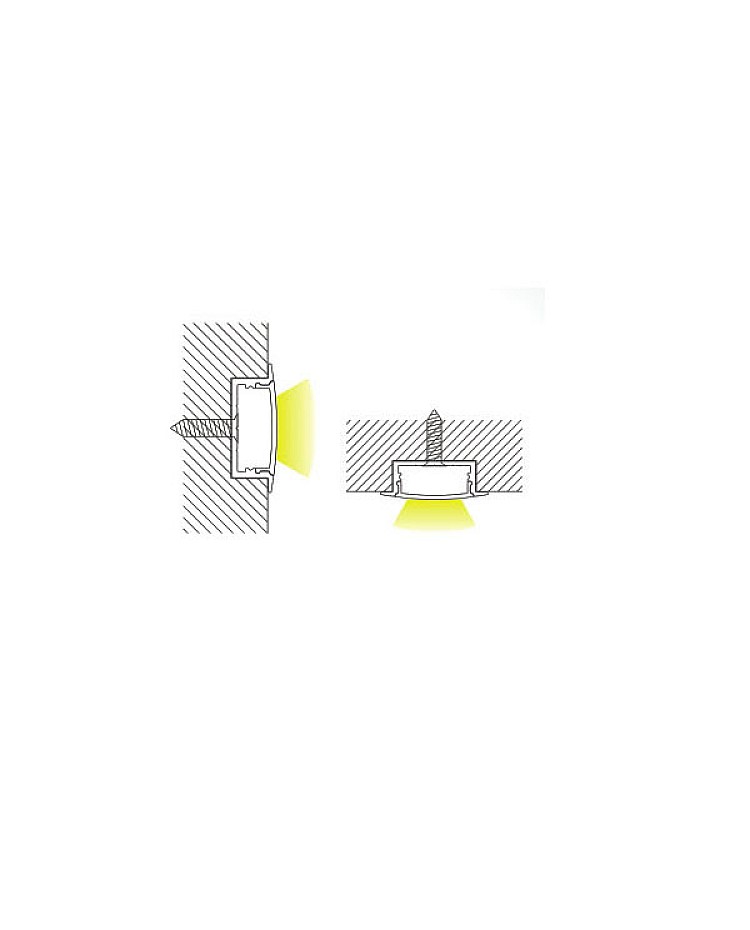

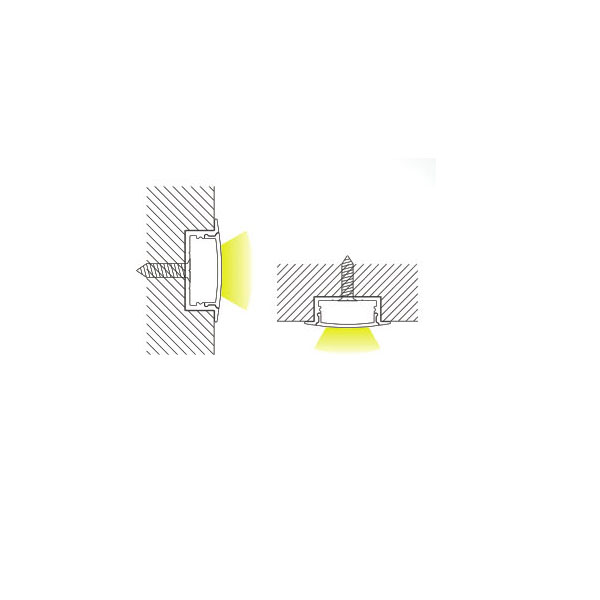

- Application: Recessed mounted

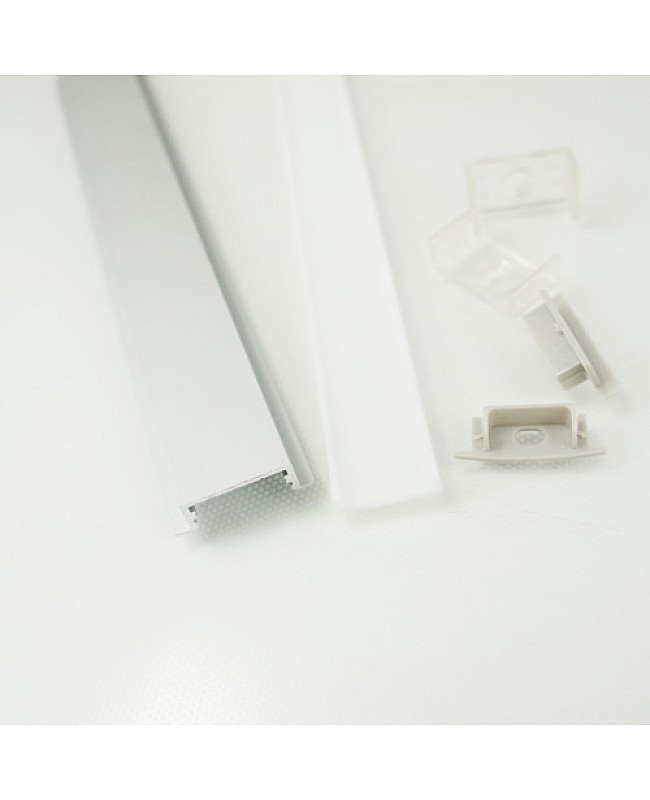

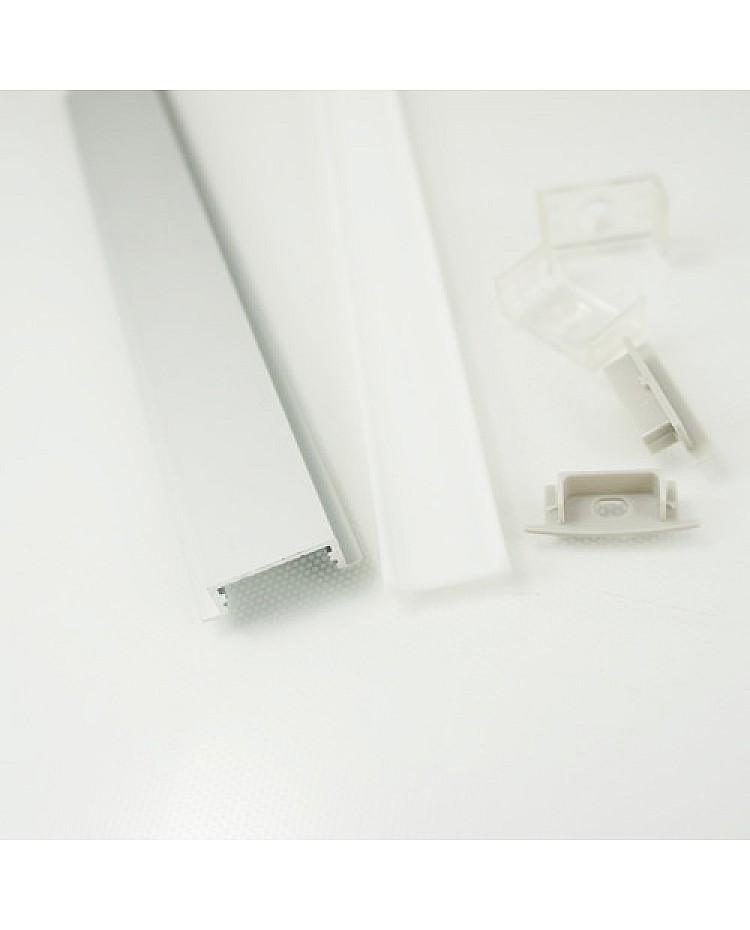

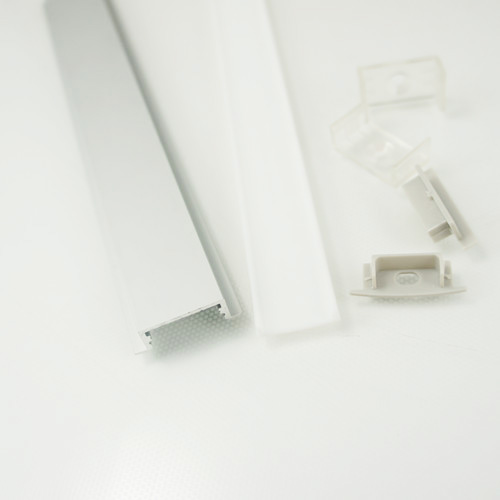

- End caps with and without wire holes included
- LED strip lights sold separately
- 5 years warranty
Package:

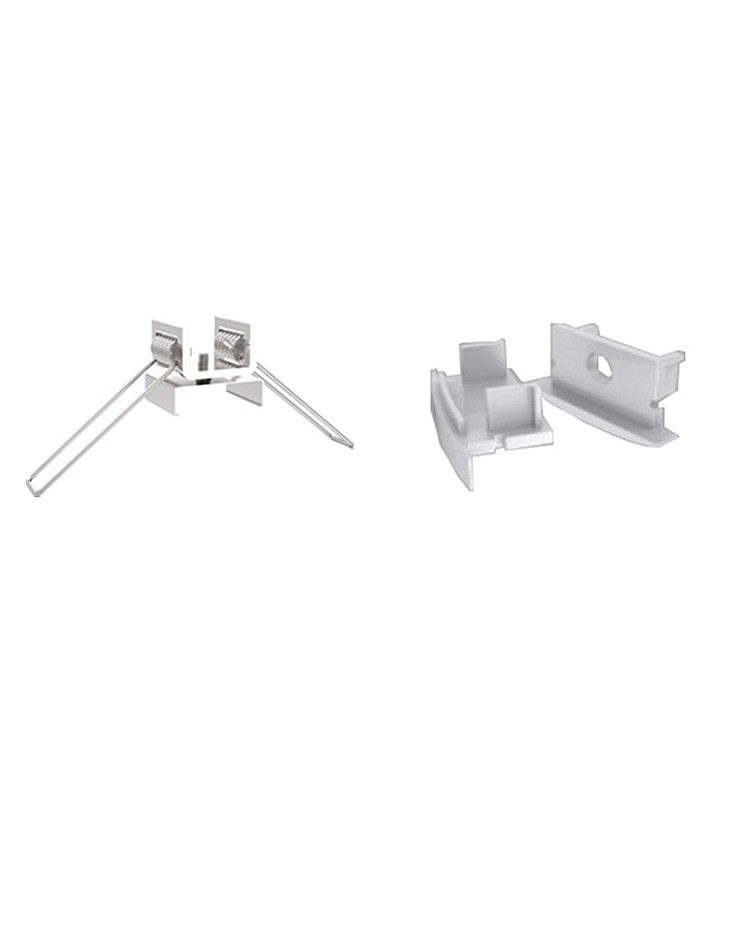

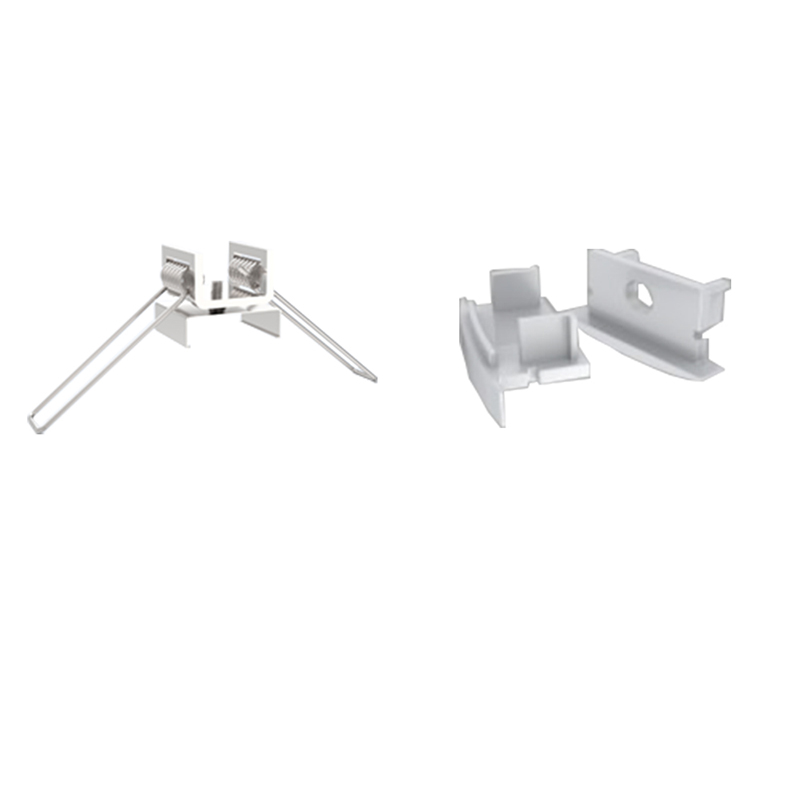

End caps(With and without wire hole)
