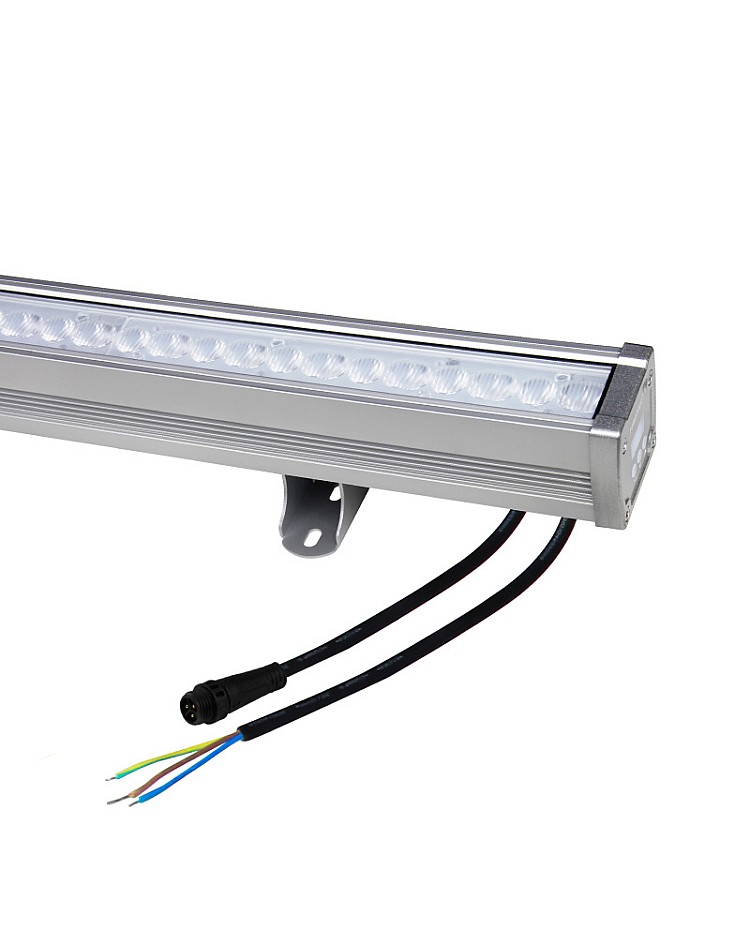

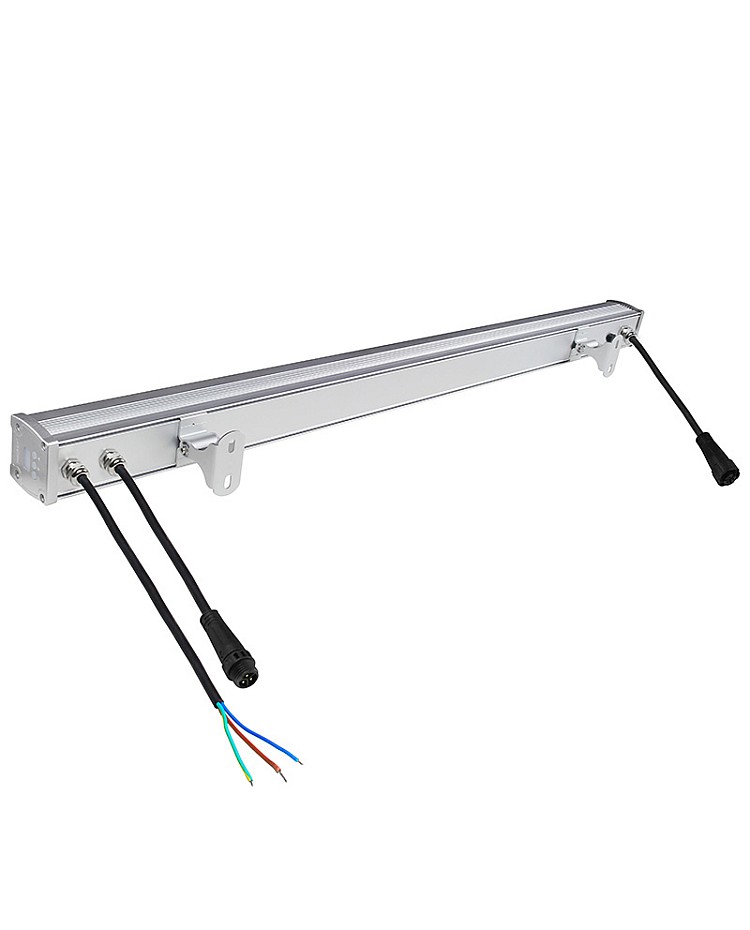

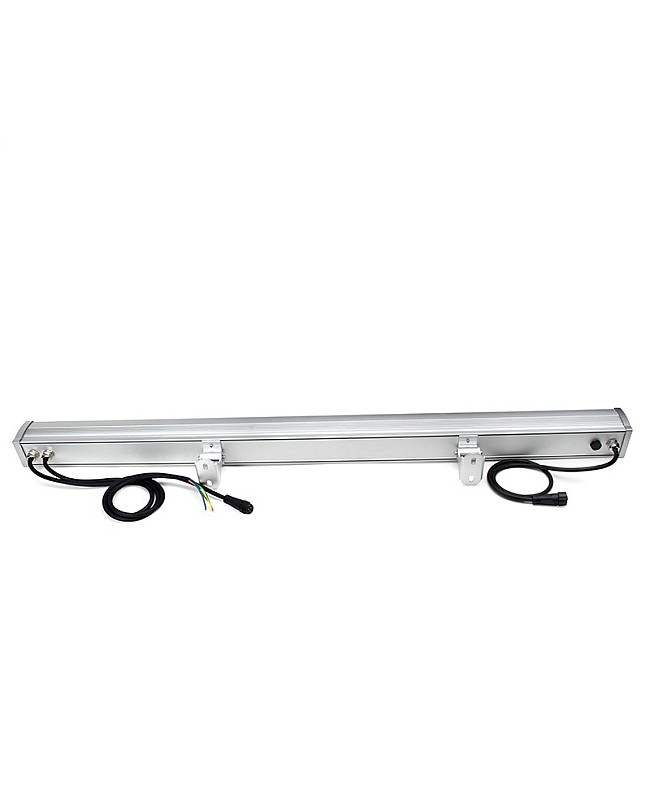

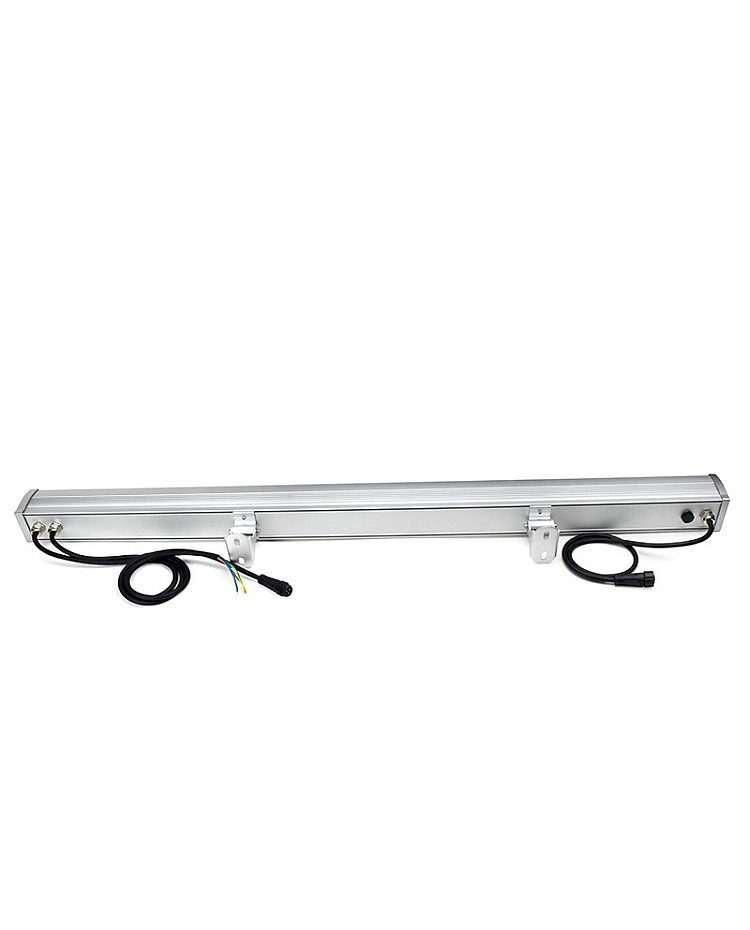

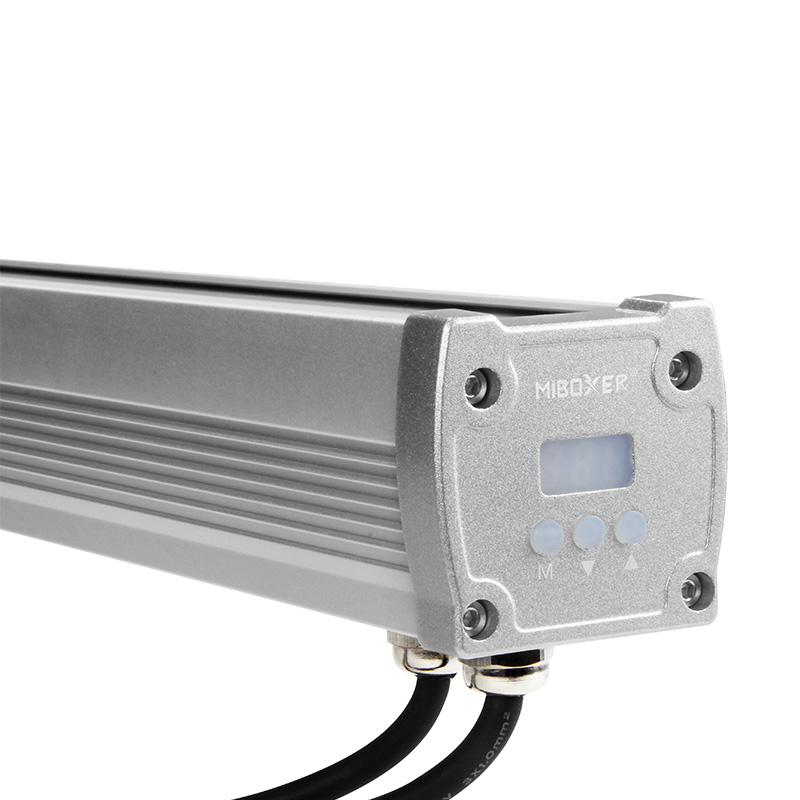

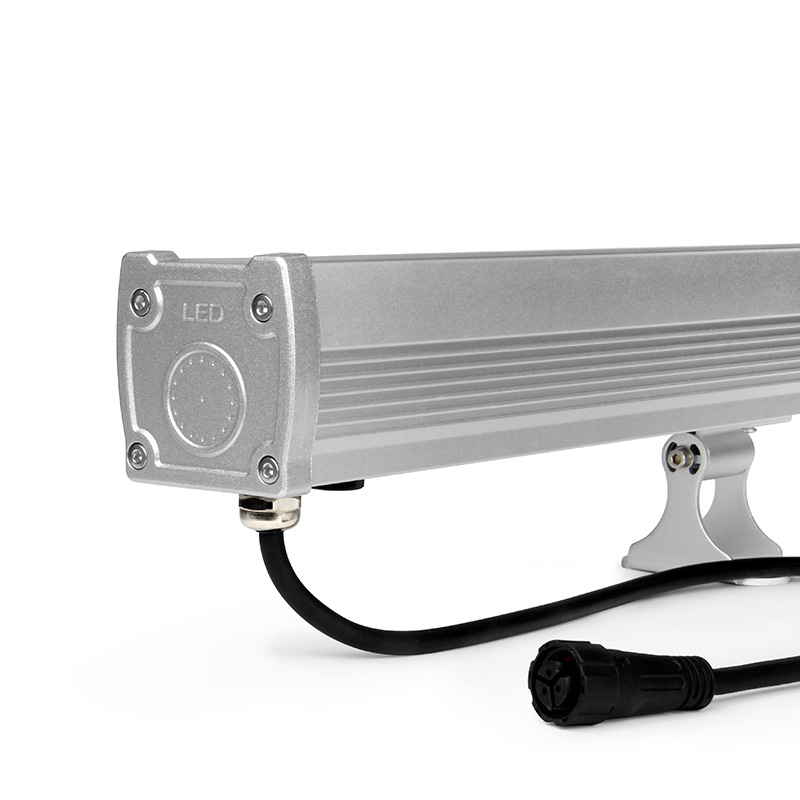

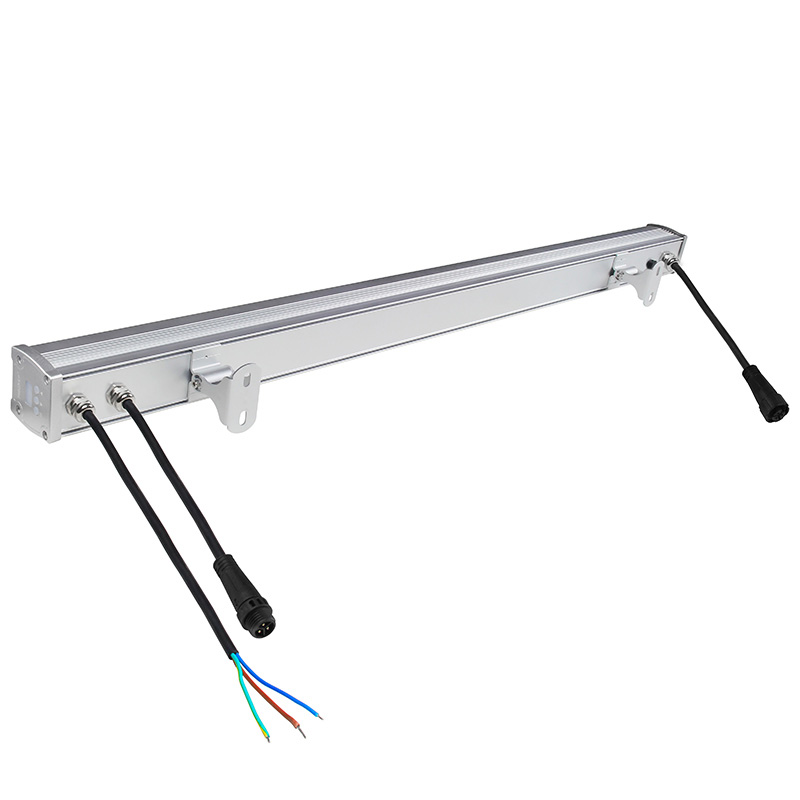

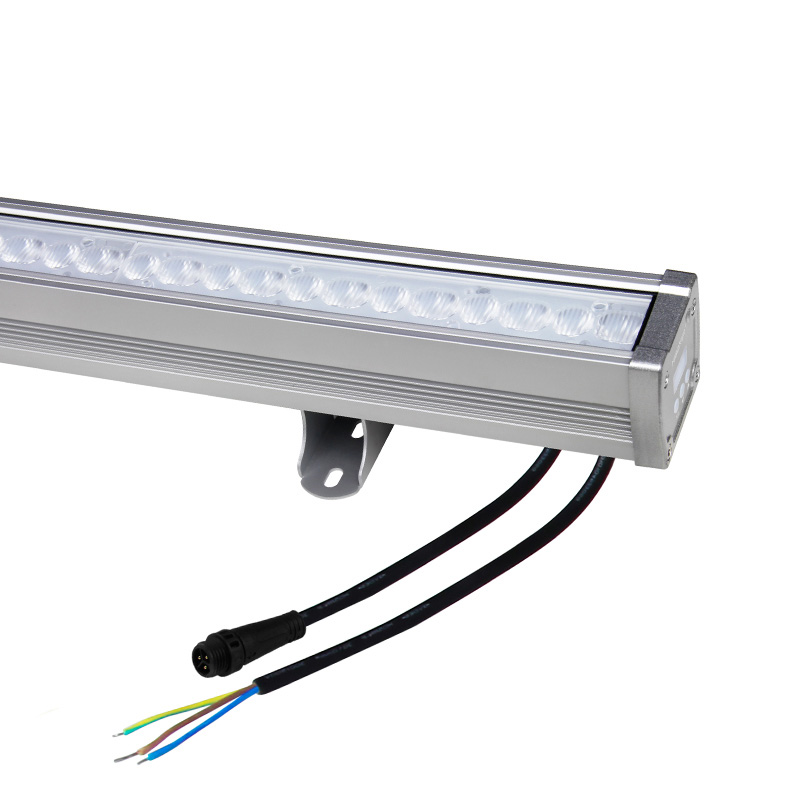

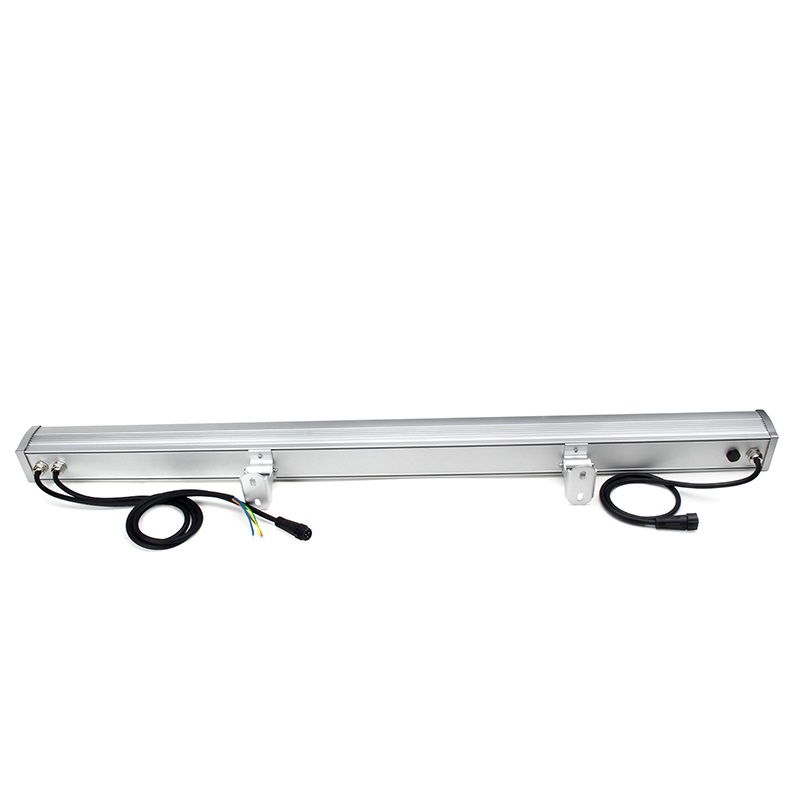

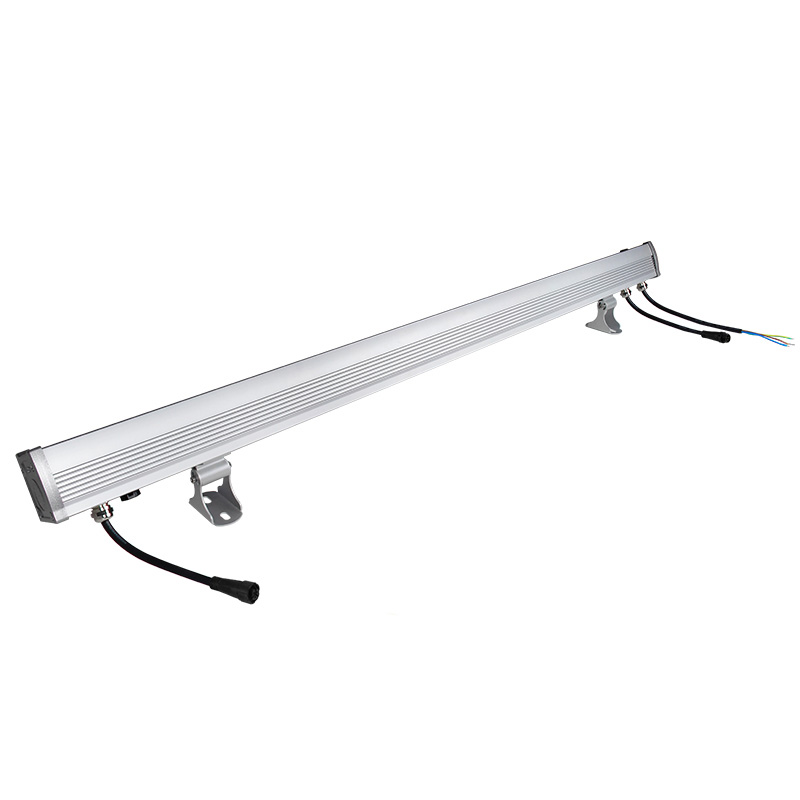

The MiBoxer D5-W72 RGB CCT Wall Wash Lighting Outdoor is perfect for bringing a unique atmosphere to any outdoor space. Which comply with DMX512, DMX512(1990), DMX512-A, RDM V1.0 international standard agreement, can work with DMX512 Console and DMX RGBWW Controller Panel to set the color or dynamic modes, the side with a digital display, easy to set the DMX address or choose the dimming curve. The Wall Wash Lighting combines RGB and CCT lighting in one fixture, allowing you to create dynamic lighting effects and multi-zone control. Low power consumption decreases luminance, bright color, and high brightness. The surface with optical lens for high lighting transmitting rate, wide beam angle, and long illumination distance. The aluminum alloy housing for fast heat dissipation and anti-corrosion. The 180° rotatable brackets for easy installation, adjustable randomly, and easy-adjust the beam angle. The waterproof level is IP66; you can install them in a water location and use them on rainy days. These Wall Wash Lighting Fixtures are perfect for lighting various outdoor spaces such as hotels, buildings, bridges, parks, restaurants, etc.

Quick Links:

MiBoxer D5-W72 Manual


Features:

  • Model: D5-W72
  • Size: 1020mm*64mm*62mm(L*W*H)
  • Input Voltage: AC100-240V, 50/60Hz
  • Power: 72W
  • Emitting Color: RGB+CCT
  • Color Temperature Adjustable: 2700K-6500K
  • Luminous Flux: 280LM(Red), 540LM(Green), 150LM(Blue), 1800LM(Cool White), 1650LM(Warm White)
  • CRI: >80Ra
  • PF: >0.9
  • Beam Angle: 15*60°
  • Accord With DMX512 Standard Protocol
  • Support RDM Function
  • Occupy 5 DMX Address
  • 2 Dimming Curves Available
  • Compatible With DMX512 Console And MiBoxer X5 RGBWW DMX Controller Panel
  • IP Rate: IP66

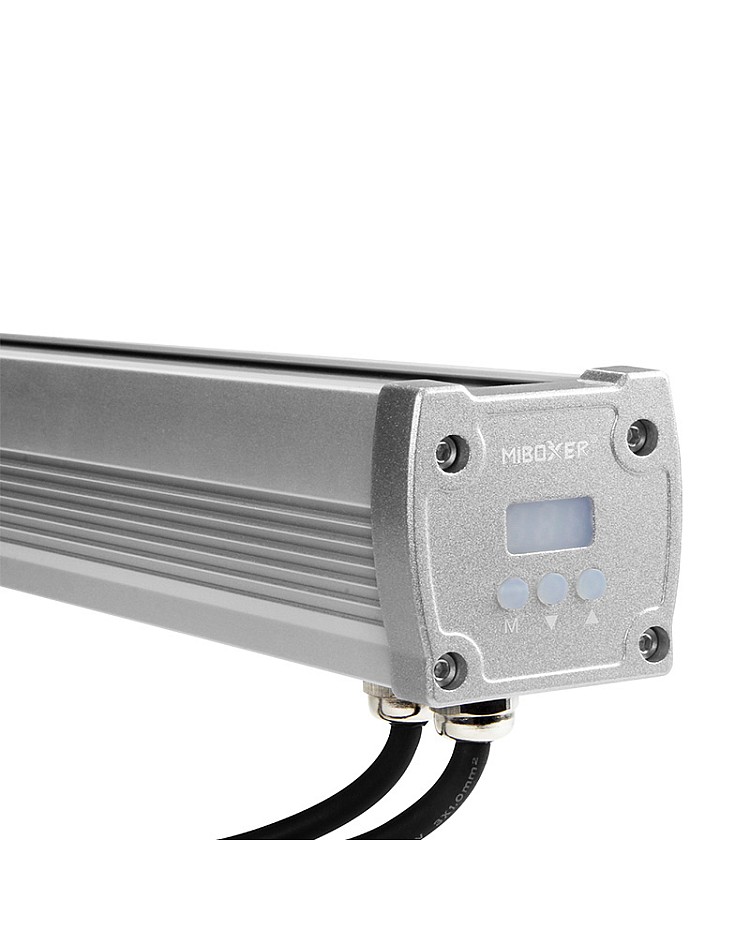

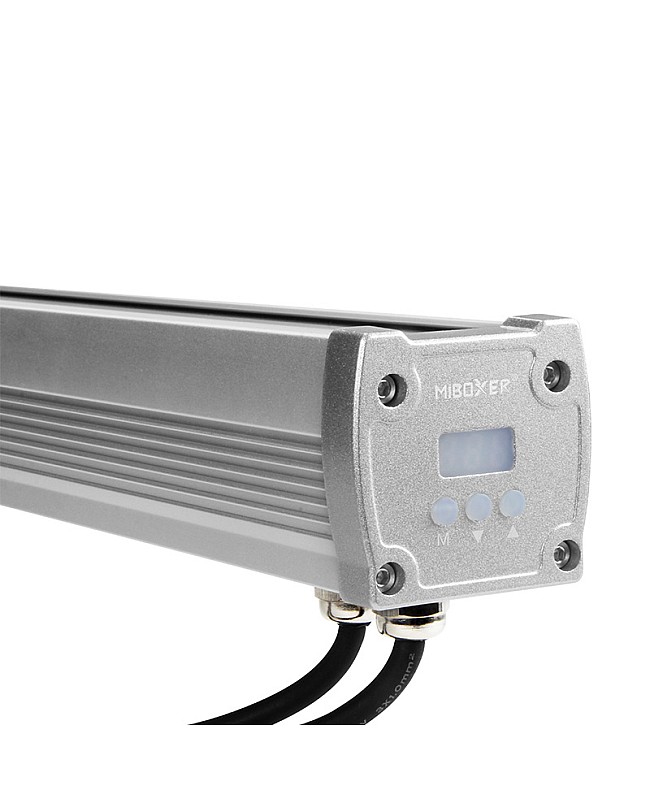

  • Intuitive Digital Display

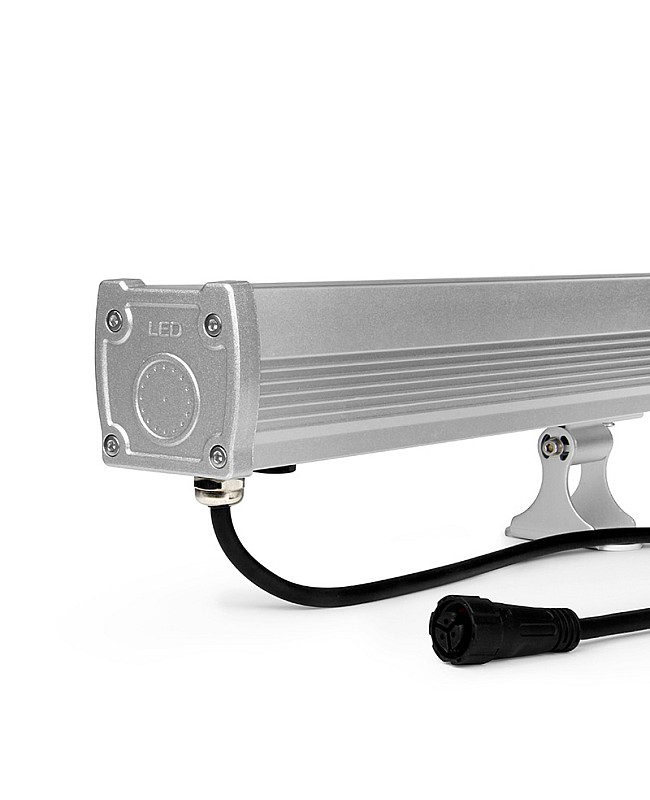

  • 180° Rotatable Brackets
  • Working Temperature: -20℃-+45℃
  • Lifespan: 50,000 Hours
  • 3 Years Warranty


Includes:

1*RGB CCT Wall Wash Lighting Outdoor

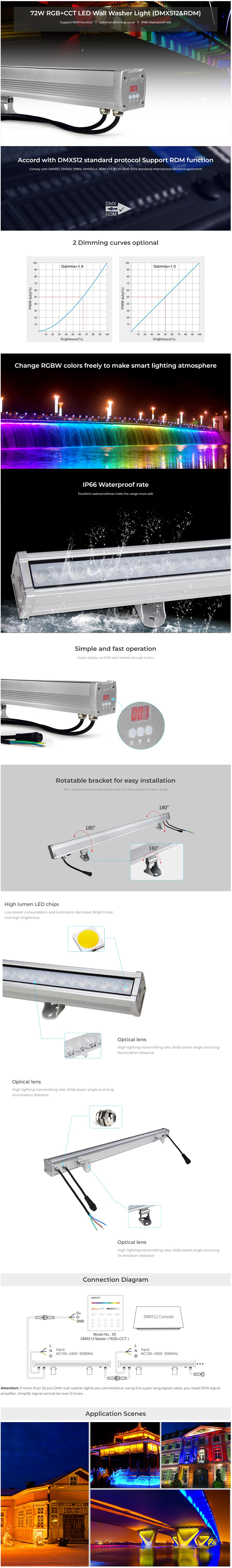

DMX512 Outdoor Wall Wash Lighting Fixtures
