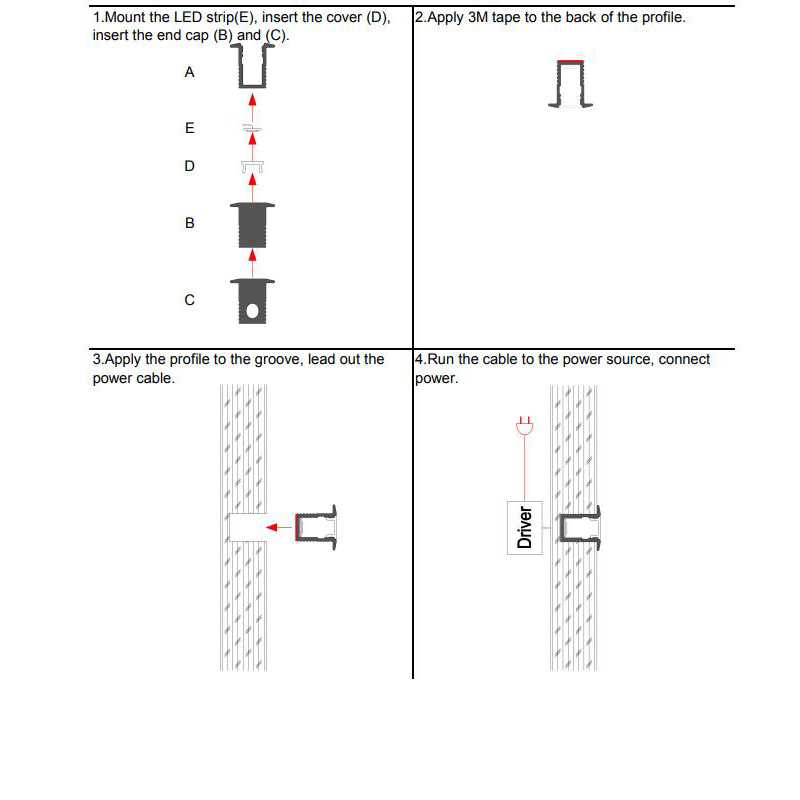

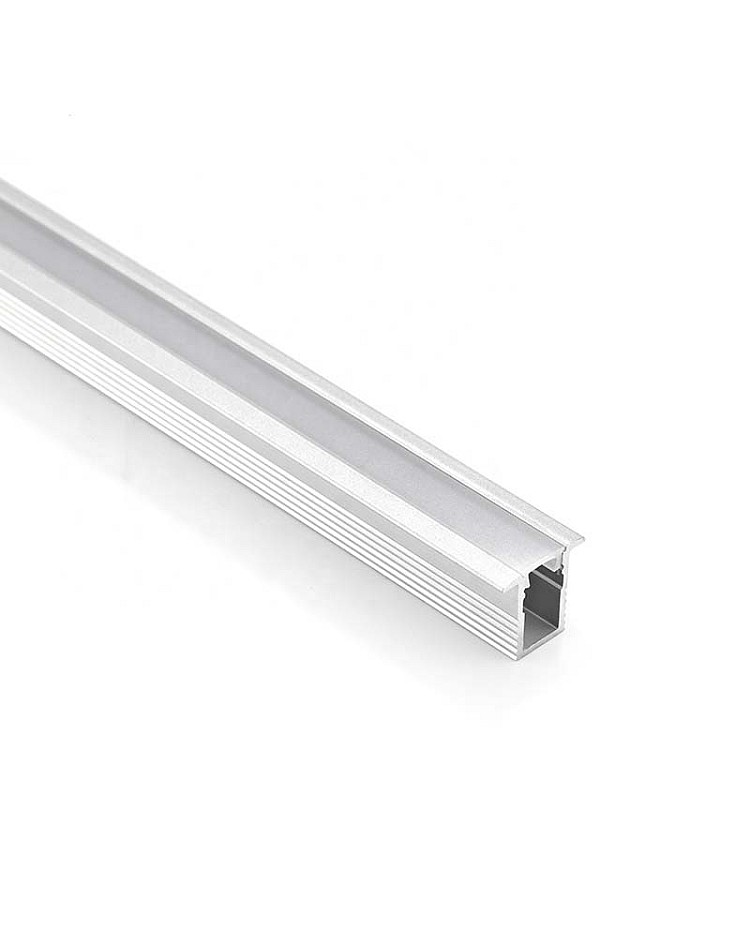

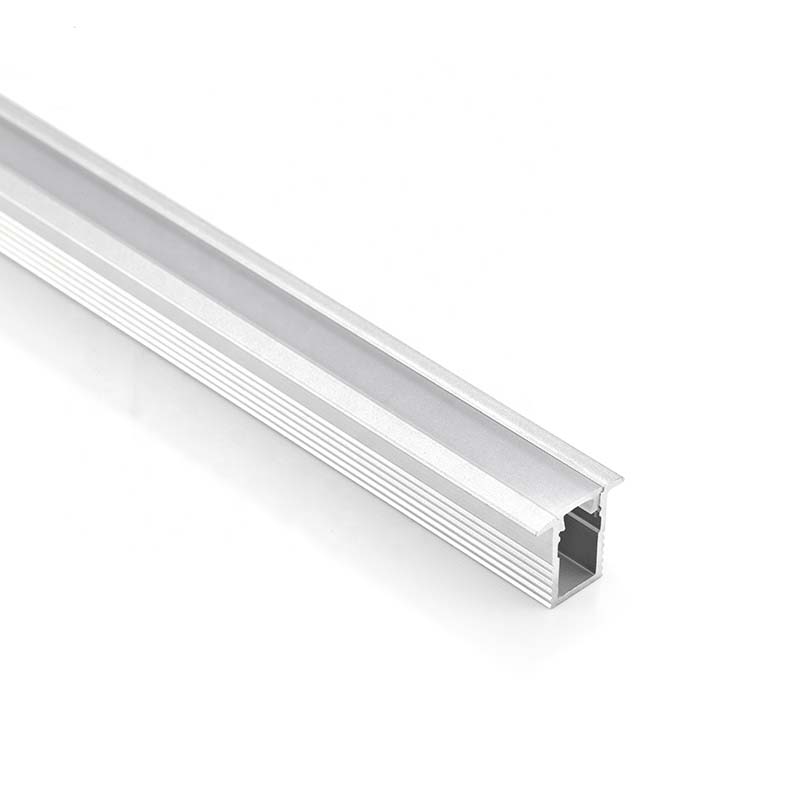

The super-slim LED channel system is advantageous for its slim design and low-profile installation, providing a neat, discreet lighting solution for various applications. It's easy to mount under cabinets, on ceilings, on shelves, on countertops, etc. It can be used for linear, cabinet, and under-cabinet lighting. They are made of high-quality aluminum with an anodized finish, are resistant to oxidation, durable, and long-lasting. The standard lengths are 1M and 2M; you can cut to any size. Only one type of diffuser is available: the PC opal diffuser, made of brand material and anti-yellowing, has perfect light distribution and provides bright, even illumination. The inner width is 5.5mm, allowing a maximum strip light width of 5mm. You can use our 4mm or 5mm COB strip lights as the light source, without visible light dots or dark areas. End caps with wire holes are included, and the LED strips can be easily connected to the LED power supply to light them up, or to the LED dimmer to adjust the brightness. The LED recessed channels with small flanges allow flush mount installation.
Specifications:
- Material: AL6063-T5 Aluminium
- Surface Treatment: Silver Anodized

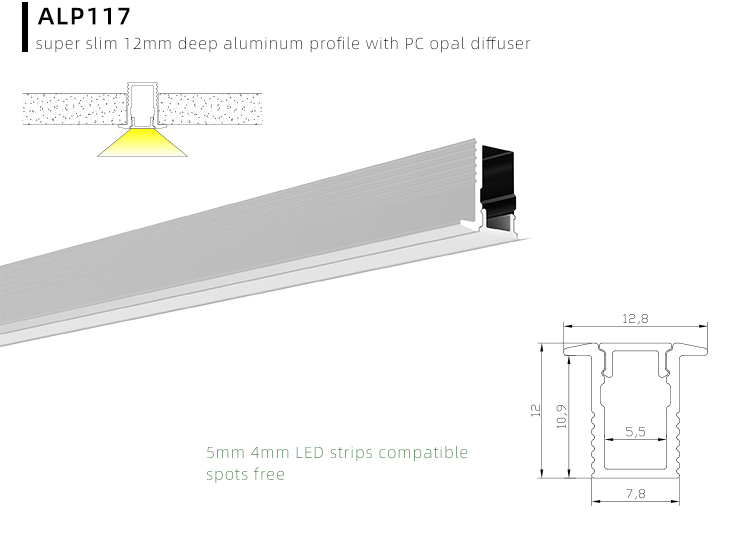

- Model: ALP117
- Color: Silver

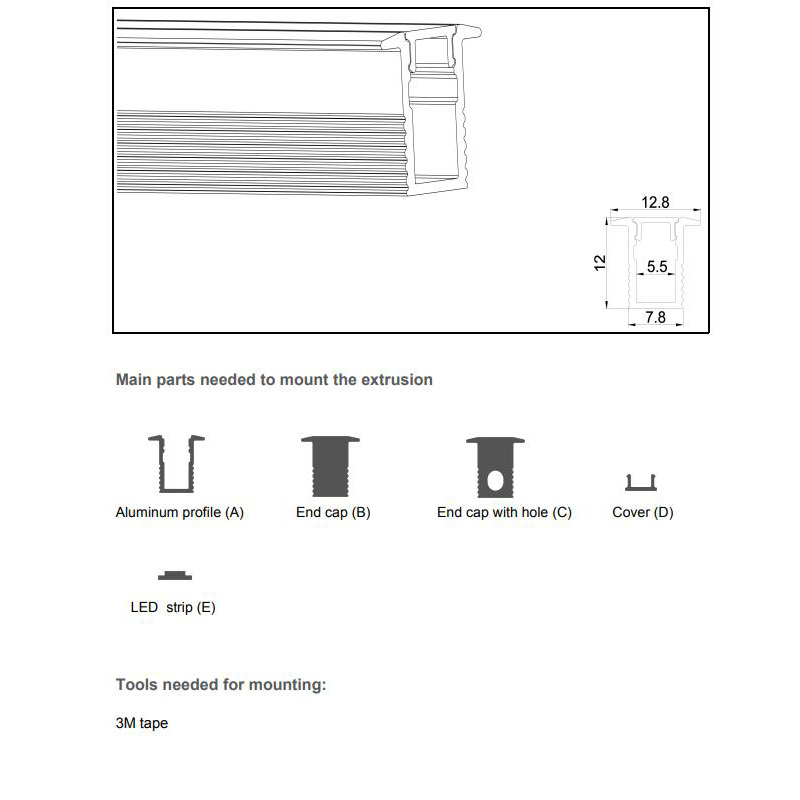

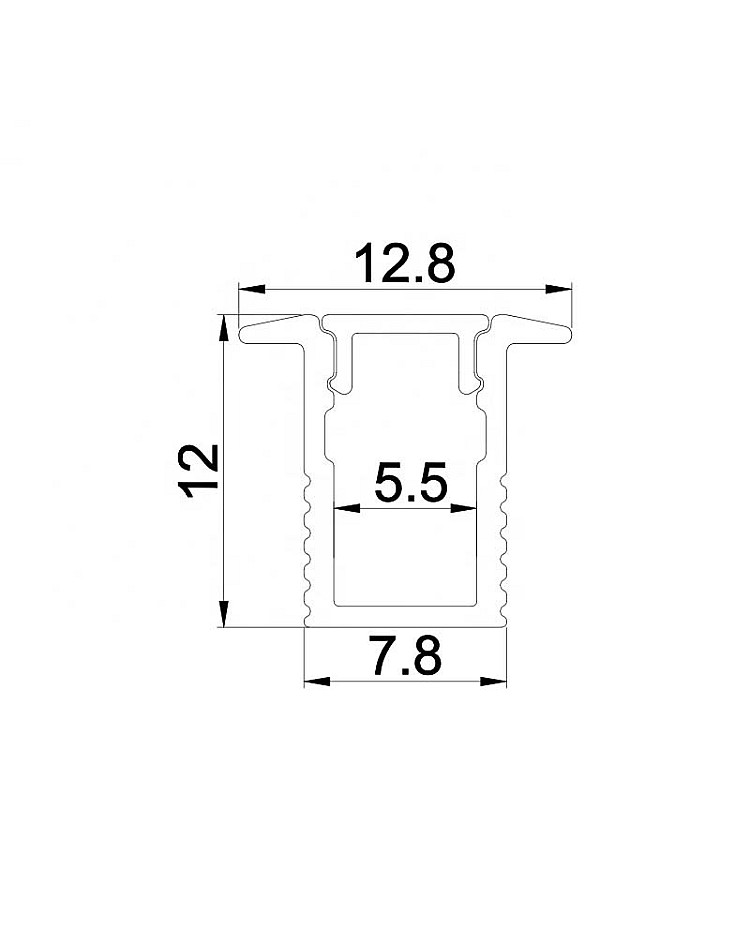

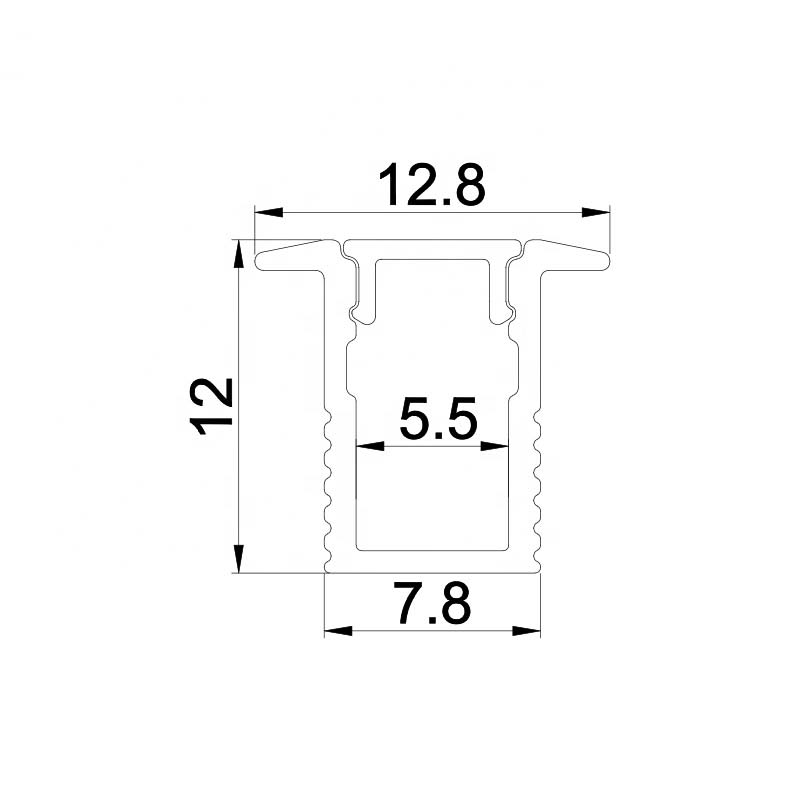

- Size: 12.8*12mm(W*H)
- Diffuser: PC Opal Diffuser
- Inner Width: 5.5mm
- Allow The Max Width Of Strip Lights To Be 5mm
- Max Power: 10W/Meter
- Standard Length: 1 Meter
- Other Length Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
- Custom Length Available: YES

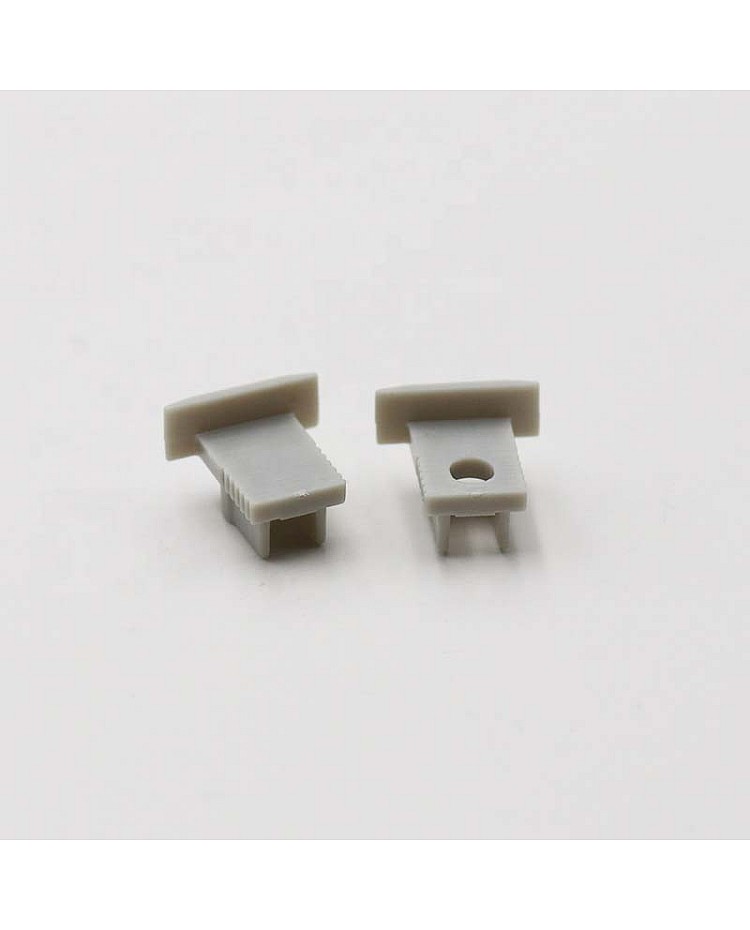

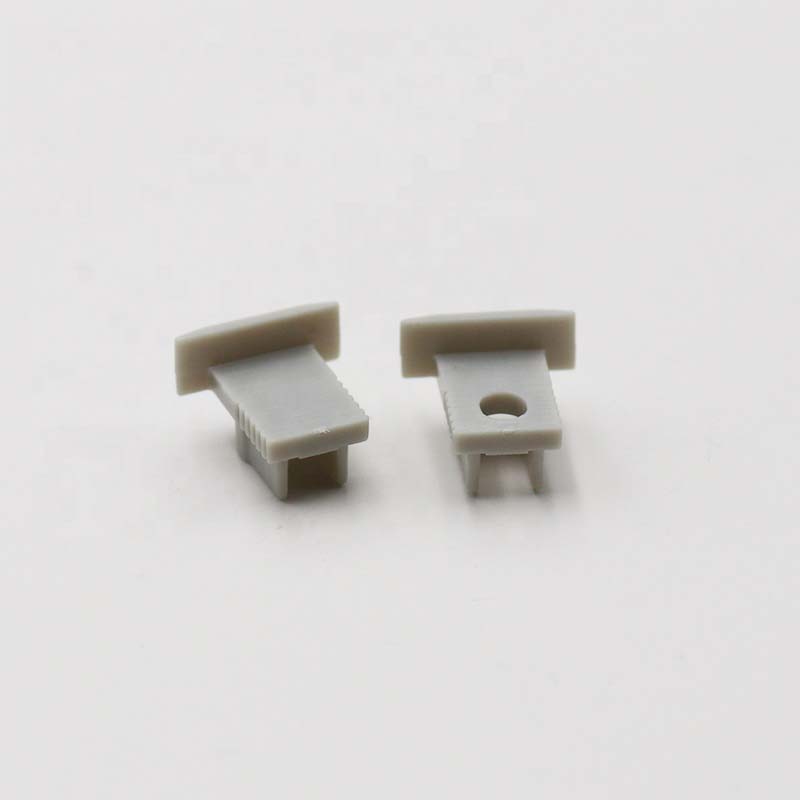

- End Caps With Wire Holes And Without Wire Holes Included
- Installation: Recessed
- Applications: Under Cabinet, Under Shelves, Ceilings
- Warranty: 5 Years
Includes:
1 * narrow LED profile with diffuser
End caps(With and without wire holes)
