  • Brand: Ledbe
  • Product Code: ALP143

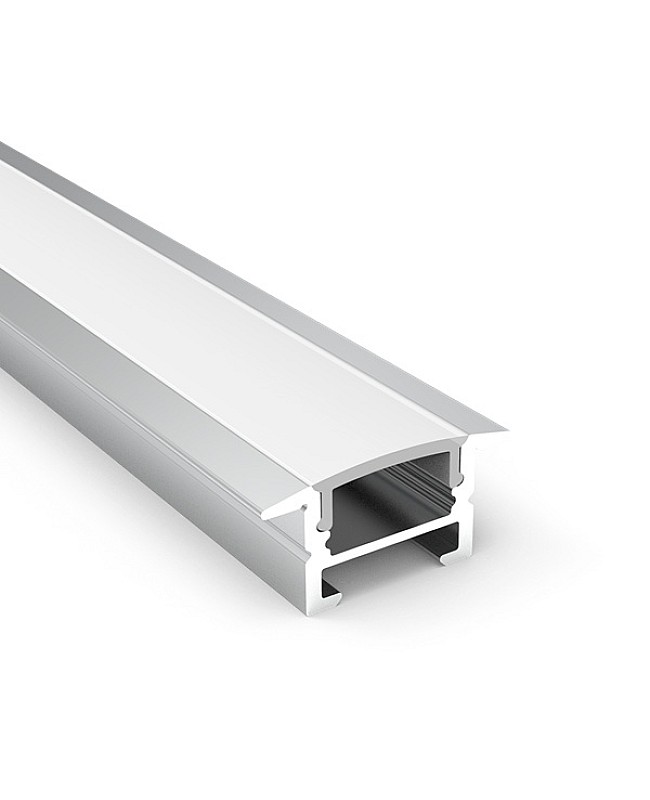

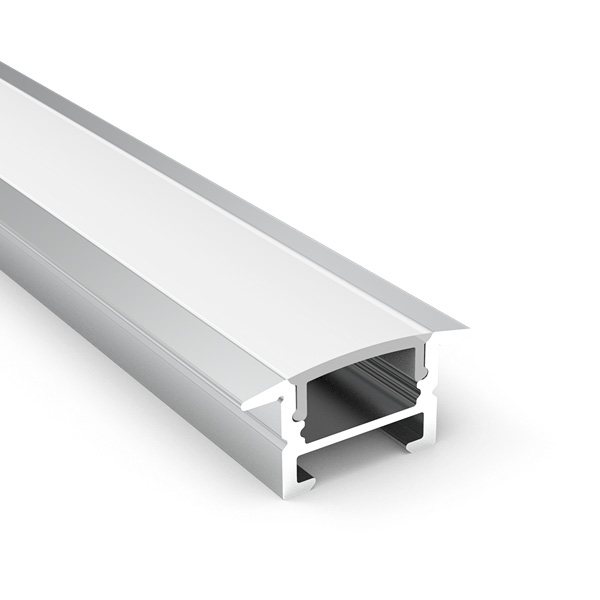

The Recessed Aluminium LED Profiles with flange are easy to be recessed into the wall or ceiling for architectural lighting. The inner width is 12mm, easy to install the SMD LED Strips or COB Strip Lights as light sources, allowing the max width of LED Strips to be 12mm. The standard length is 1M and 2M, cuttable and custom lengths are available. Recessed LED Profiles are made of 6063-T5 aluminum material with a silver anodized finish for anti-oxidation resistance and a longer lifespan than other similar products. There are six types of diffusers available for various lighting transmittance. The PMMA series and PC series are made of imported brand material, anti-yellowing, and perfect lighting distribution. End caps with holes included, easy to connect to the LED Strips to Power Supply to light up. The straight and vertical Connectors are sold separately, you can use them to design the lighting project for indoor applications.


  • Model: ALP143
  • Material: Extruded Aluminum
  • Surface Treatment: Anodized Silver
  • Size: 25.1*11.9mm(W*H)
  • Colors: Silver(Default), White, Black
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M
  • Custom Length Available: YES

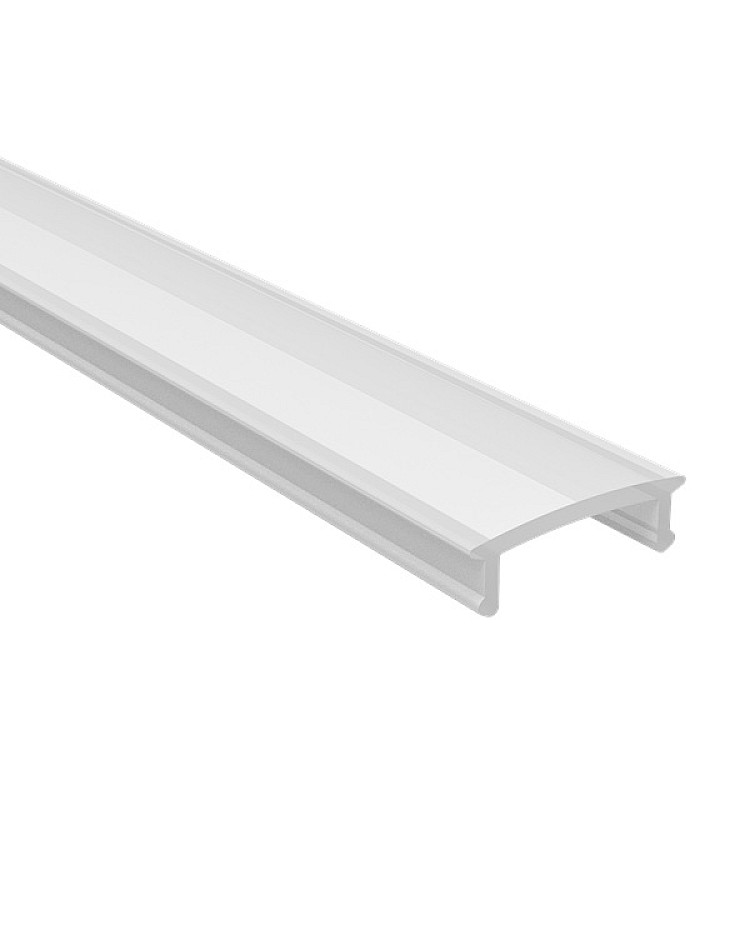

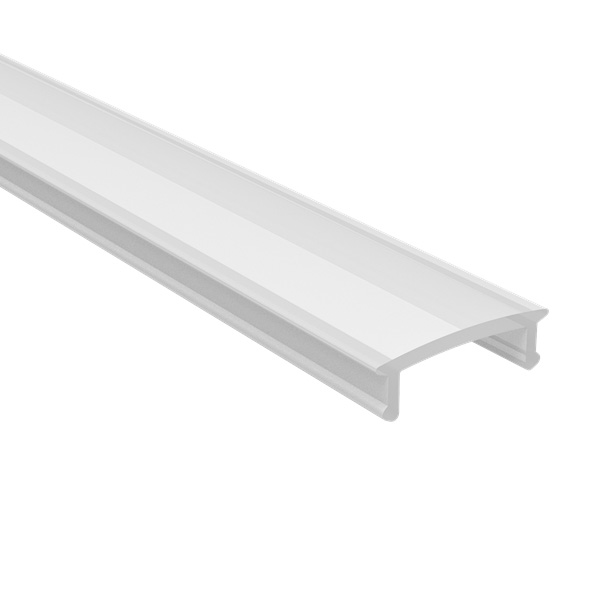

  • Diffusers: PMMA Opal Matte, PMMA Semi-Clear, PMMA Clear, PC Diffused, PC Semi-Clear, PC Clear
  • Inner Width: 12.3mm
  • Compatible With SMD LED Strips And Strip LED COB Light(The Max Width Of PCB Board Not Over 12mm)
  • IP Rating: IP20 Non-Waterproof
  • Tolerance: ±1%
  • Spring Clips Sold Separately
  • 90° Vertical Connectors, 180° Connectors, 90° Connectors, 135° Connectors And 135° Vertical Connectors Sold Separately
  • Installation: Recessed/Surface Mounted
  • 5 Years Warranty


1*Recessed LED Profile With Cover

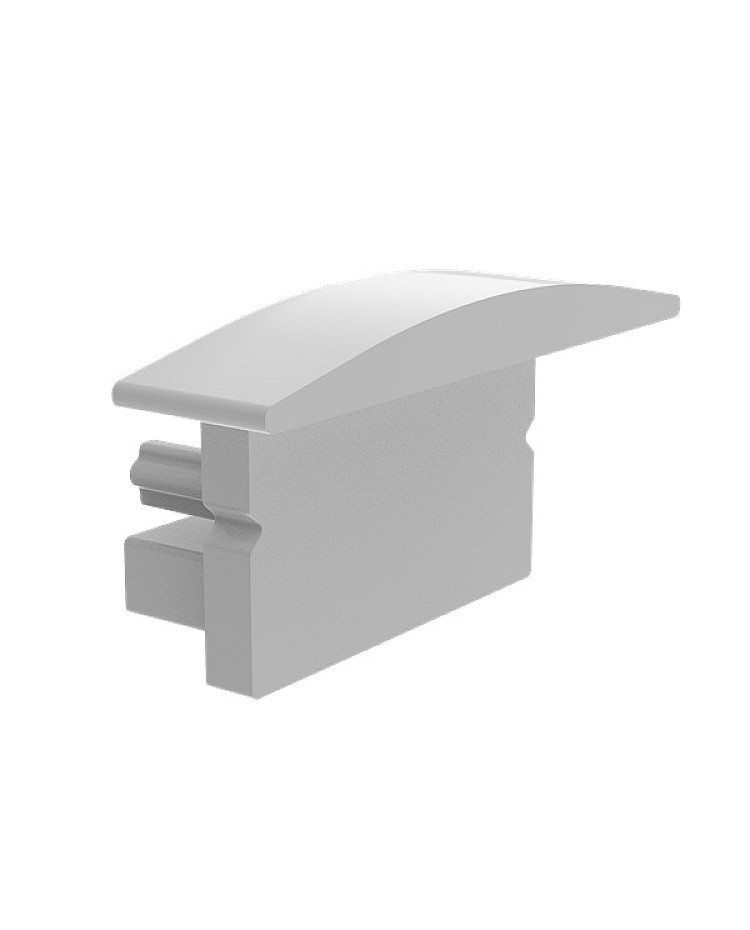

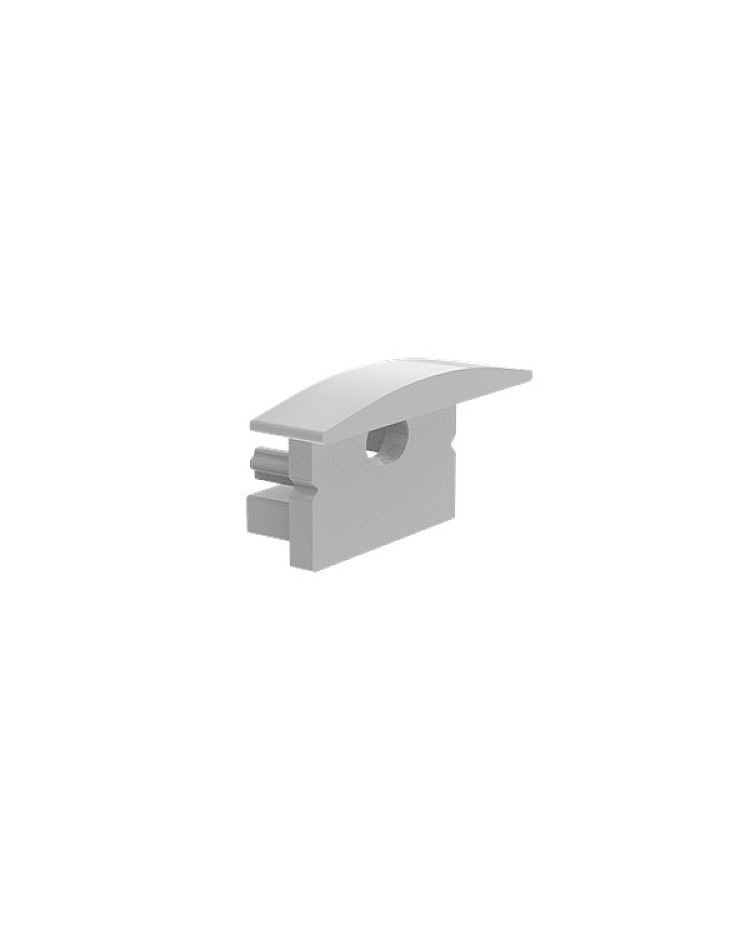

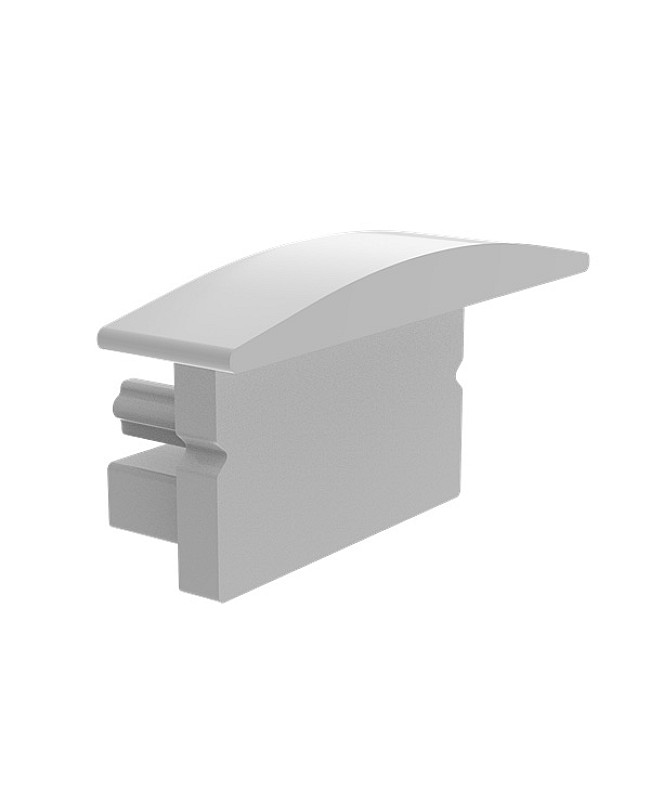

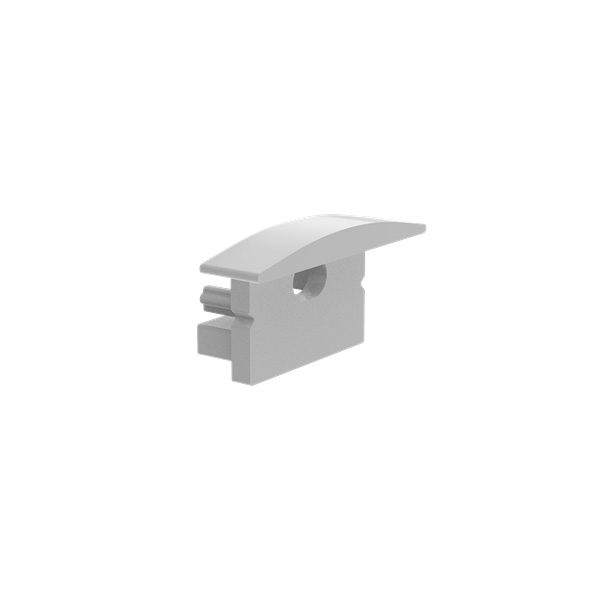

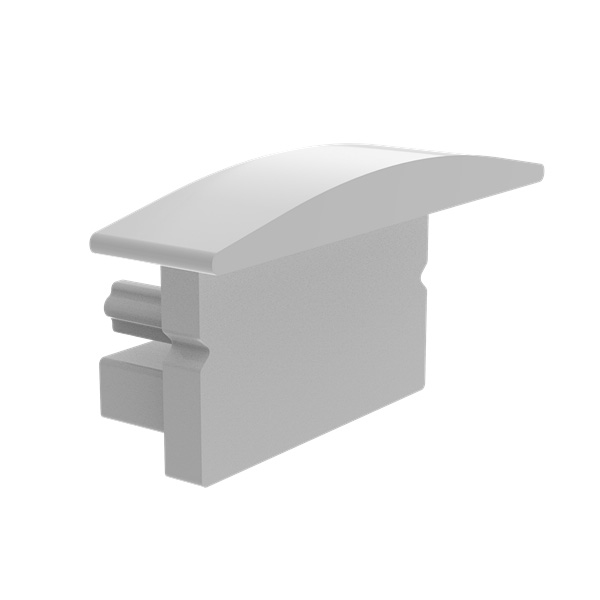

End Caps(With Wire Hole And Without Wire Hole)

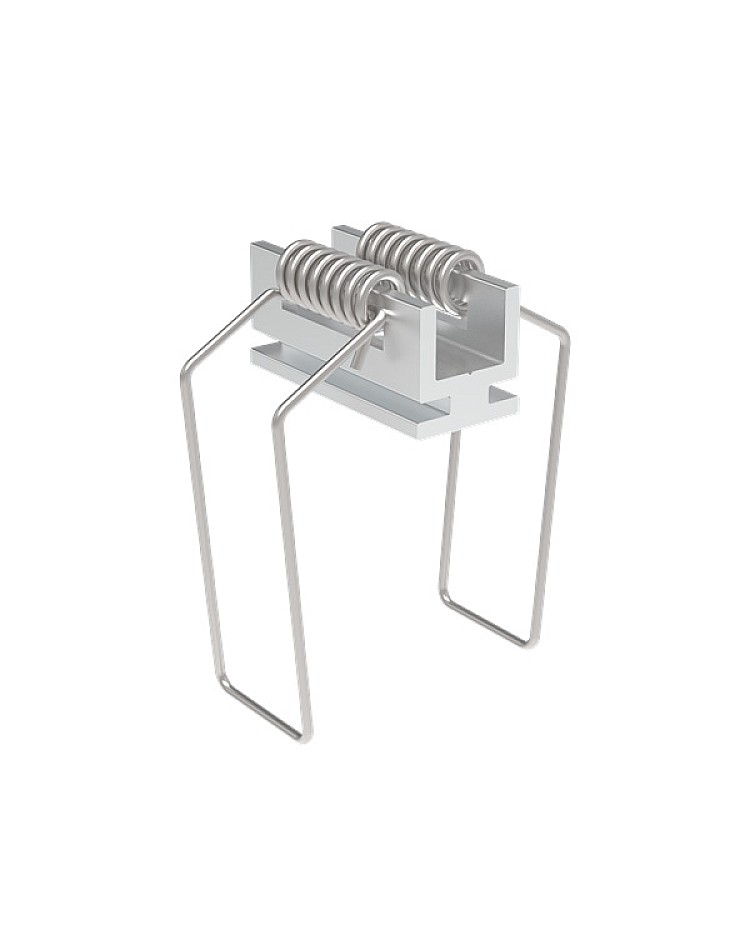

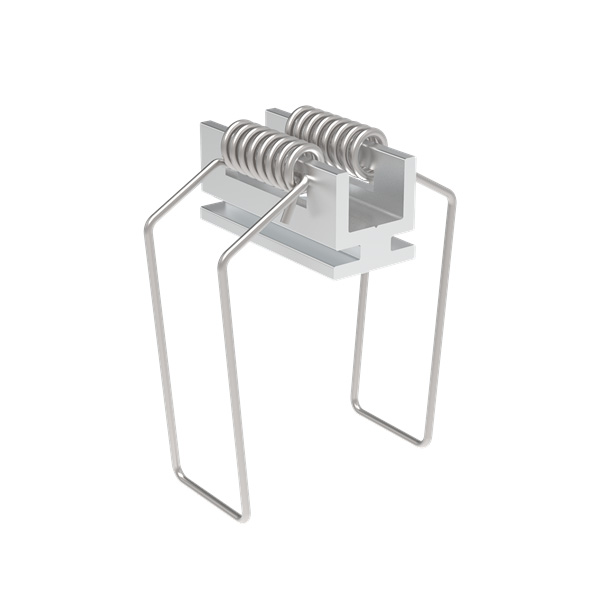

Spring Clips

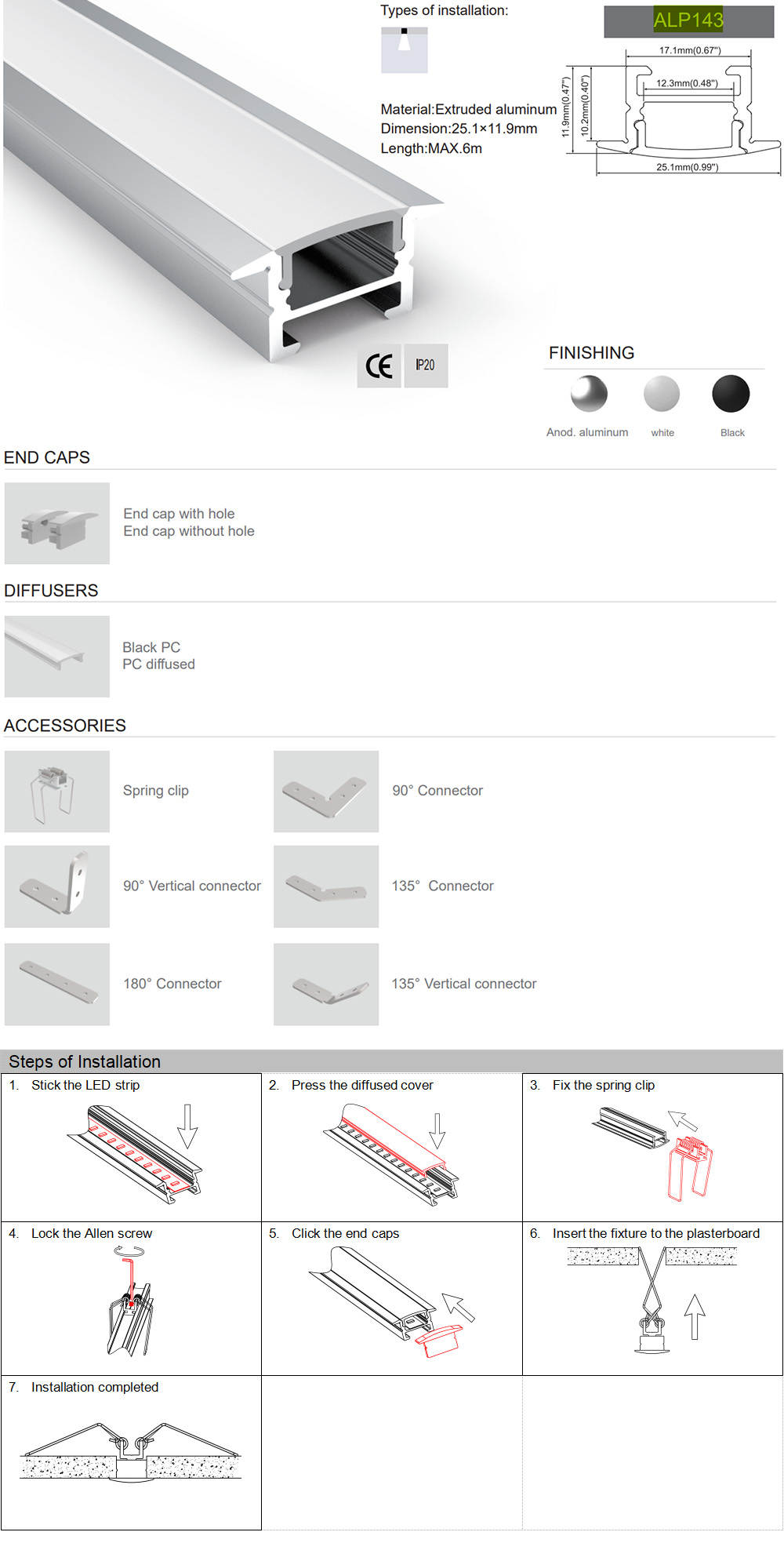

Recessed LED Channels
