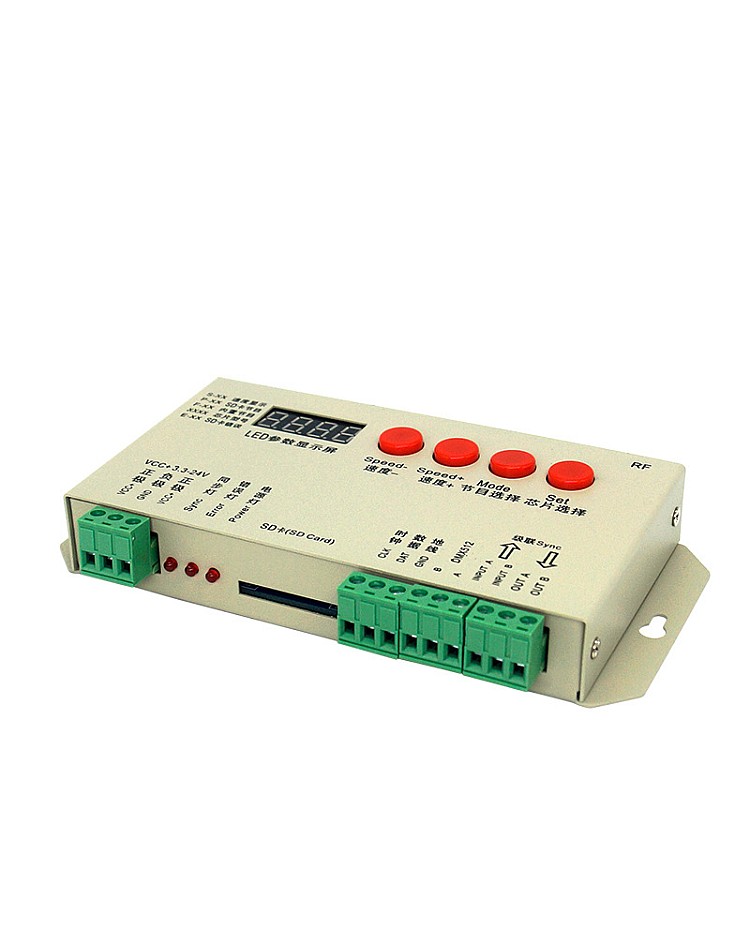

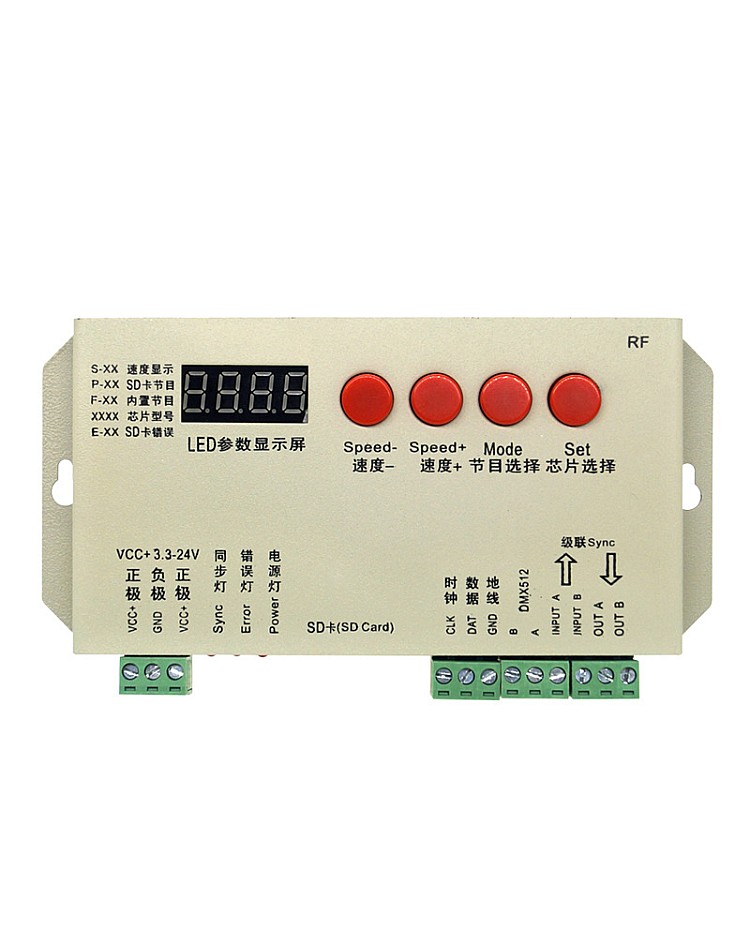

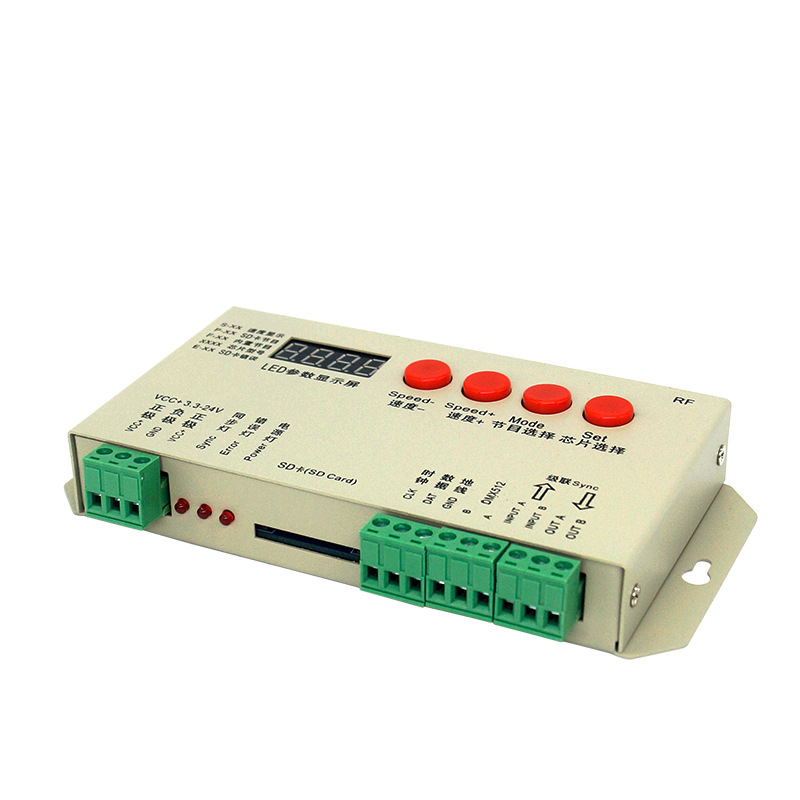

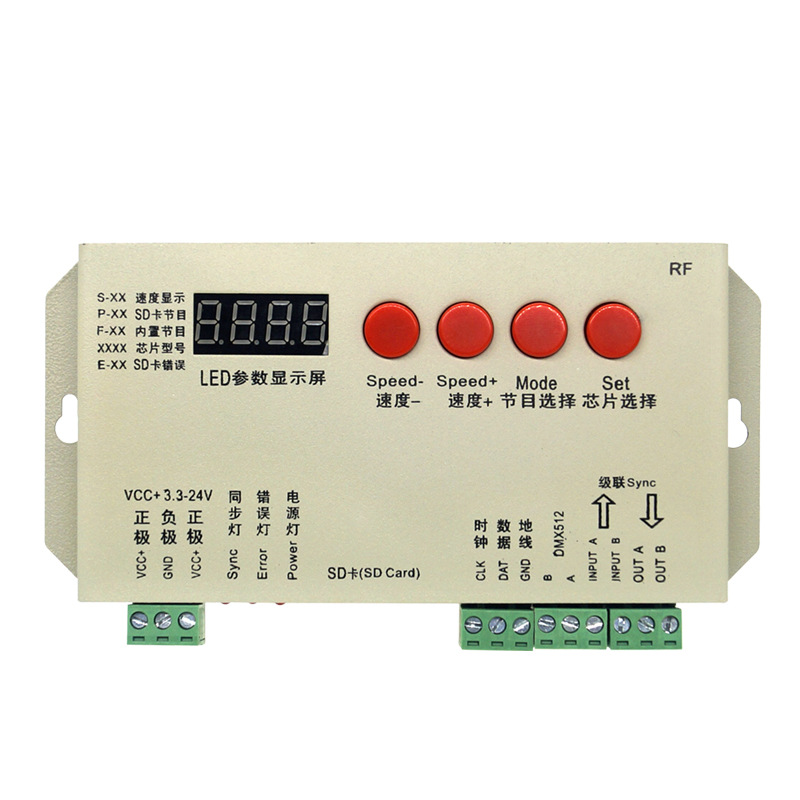

Check the T1000S Pixel Addressable RGB Controller, which with single port output design and max loading pixels up to 2048PCS, compatible with many types of smart ICs, like WS2811, WS2801, 1903, LPD6803, etc to achieve hundreds of lighting effects, like a firework, chasing, rainbow, waterdrop, horse running, etc. supports 32 to 65536 gray levels, supports software gamma correction, compatible with a single line or double line LED Chips. you can use them for point, line, surface, rules and special-shaped Pixel WS2801 Light Strips. the T1000S supports storing the animation file in the SD card and supports the capacity of the high-speed SD card up to 8GB, you can use the software LedEdit to edit the animation file on your computer and store up to 16 files in the SD card. THE T1000S LED Controller with one output port only, when control 512 pixels the speed can reach 30fps, more than 512PCS pixels, the frame speed will be slow down automatically.


Features:

  • Size: 159*90*24mm(L*W*H)
  • Input Voltage: DC5V/7.5V-24V
  • Working Power: 3W
  • Singal Port: 3Pin Port
  • Connecting Method: Common Anode
  • Max Loading Pixels: 2048 PCS
  • Working Temperature: -20℃-+60℃
  • Capacity Of SD Card Supported: 256MB-8GB
  • 256MB High-Speed Card Included
  • Storage File Format: *.led
  • File Format: FAT
  • Compatible With WS2811, WS2801, WS2803, TM1803, TM1804, TM1809, TM1812, TM1903, TM1904, UCS1903, P9813, P6803, DMX512, etc
  • Can Use LedEdit2014/2019 To Edit The Animation File
  • 32-65536 Gray, Support Software Gamma Correction
  • Off-Line Control Supported, Play Back Content Stored In The SD Card

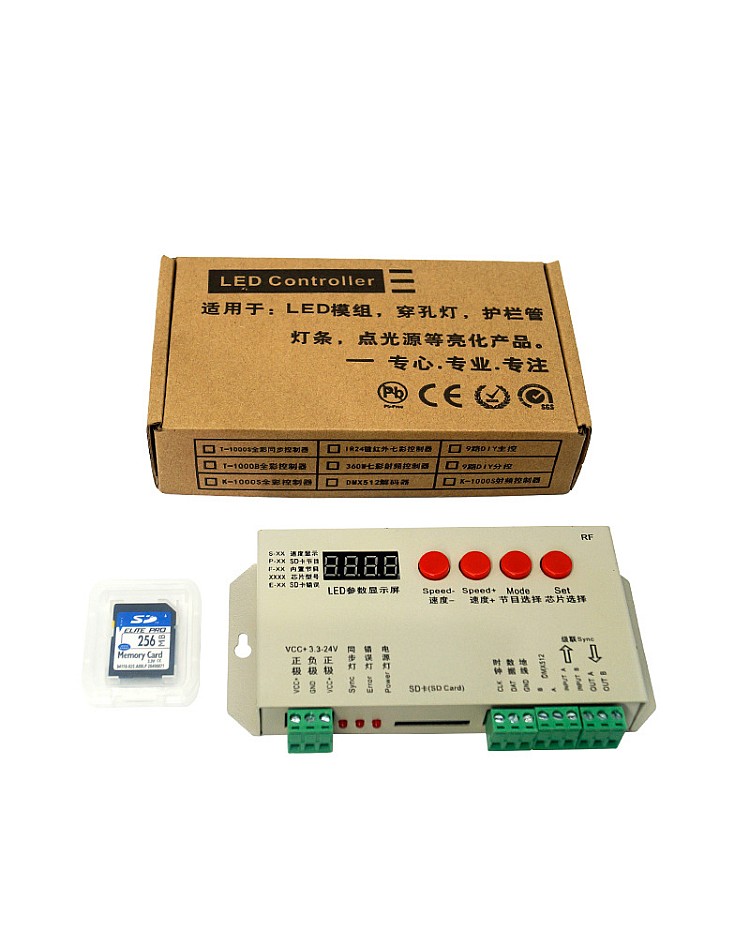

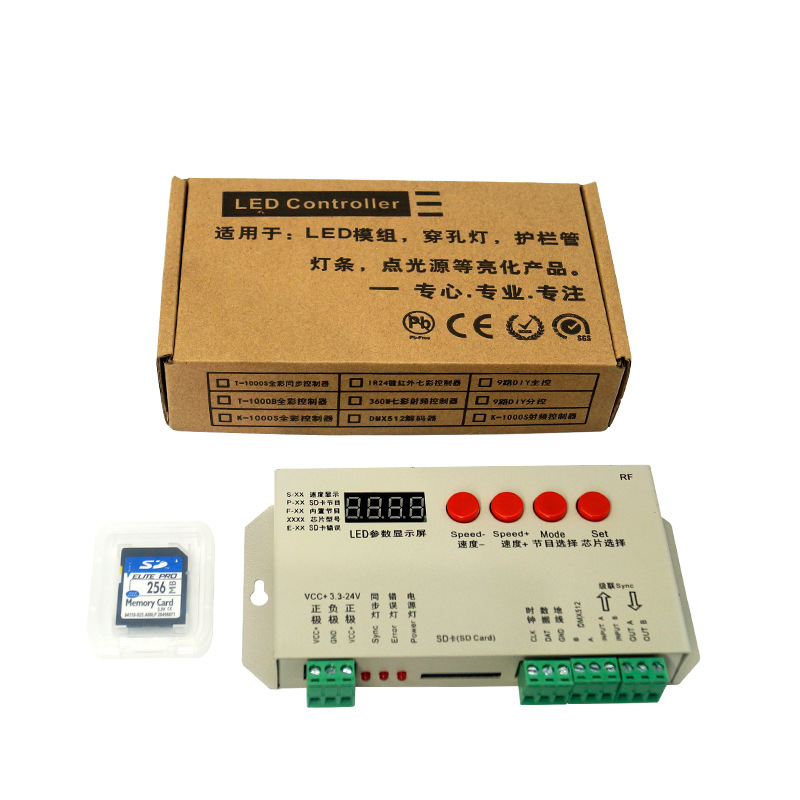

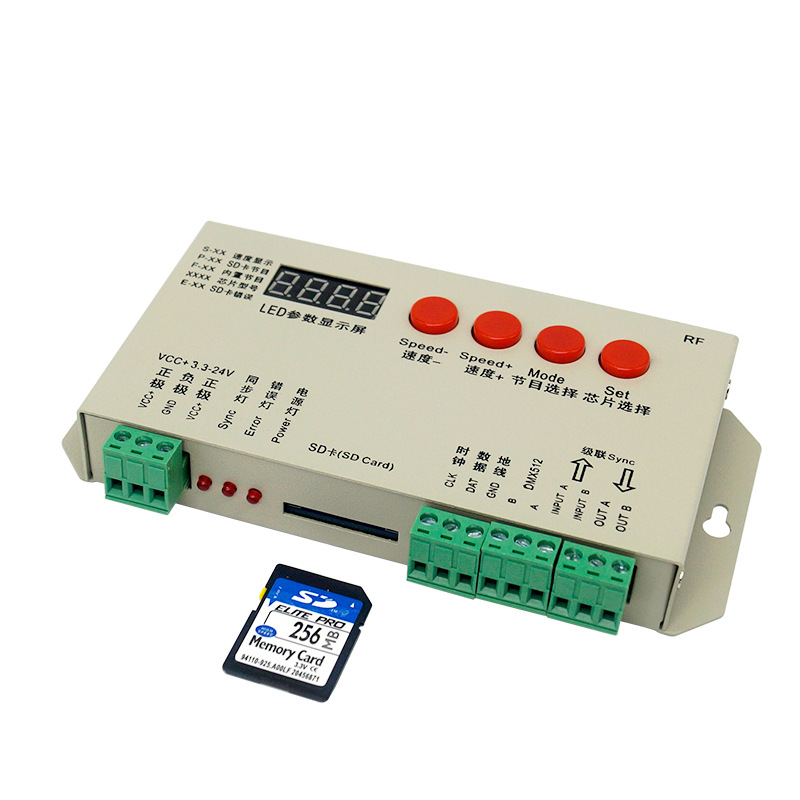

Includes:

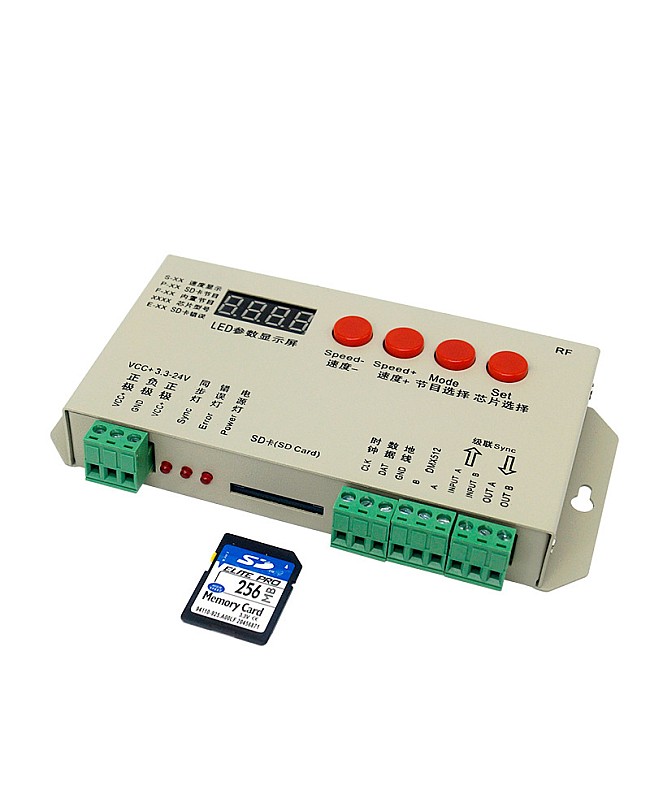

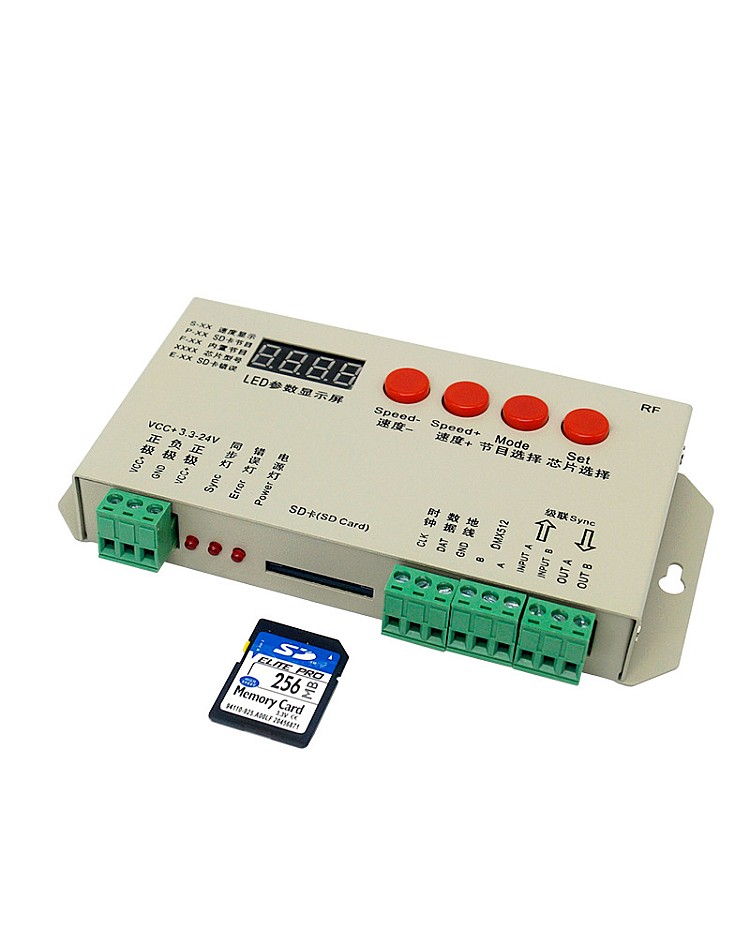

1*T1000S Addressable RGB Controller

1*256MB SD Card

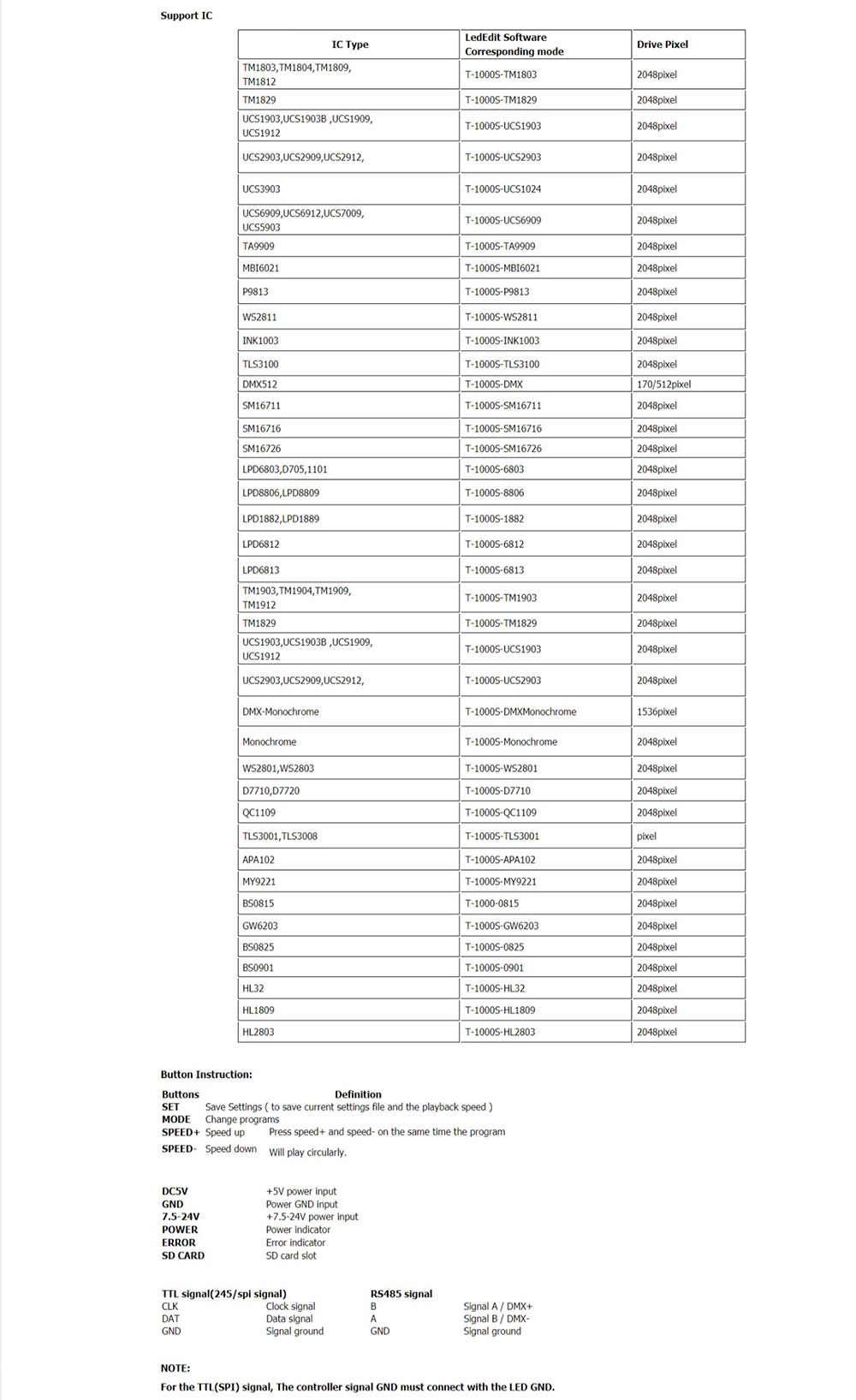

T1000S LED Light Controller Supports SD Card
