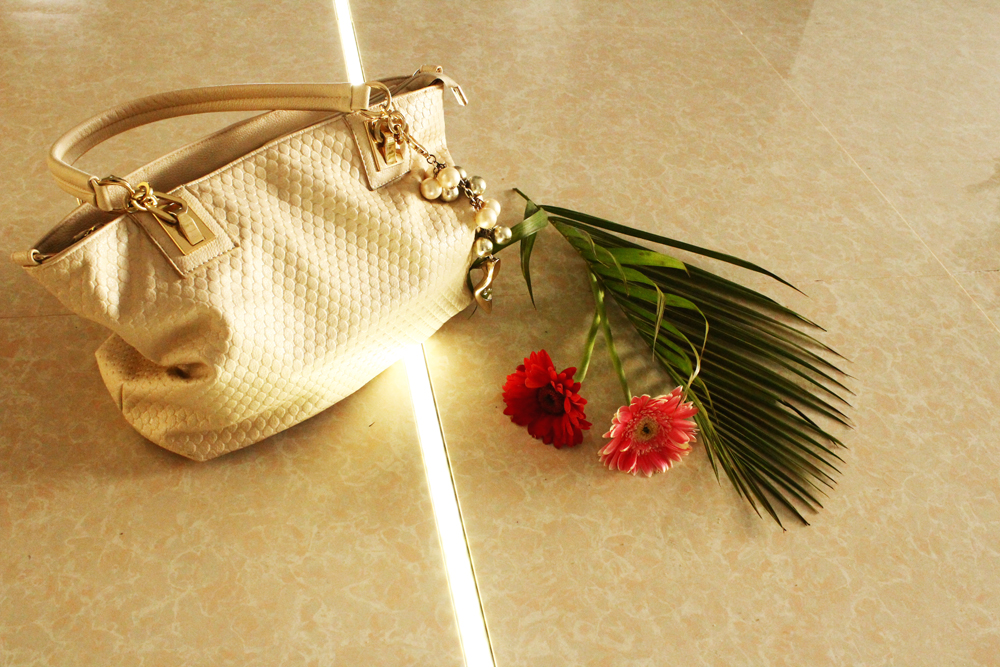

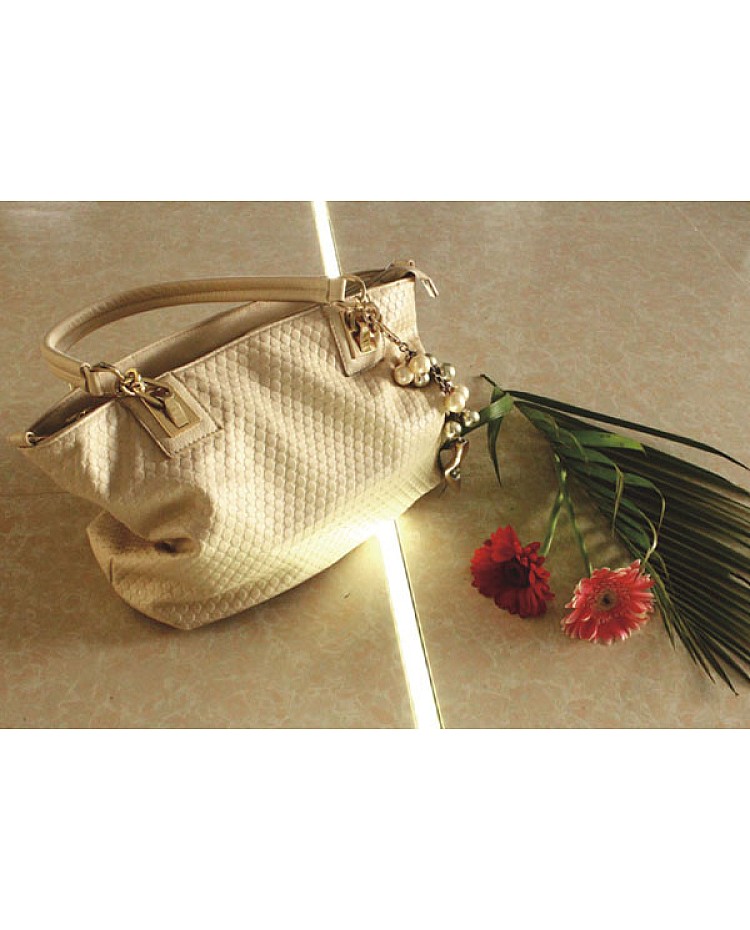

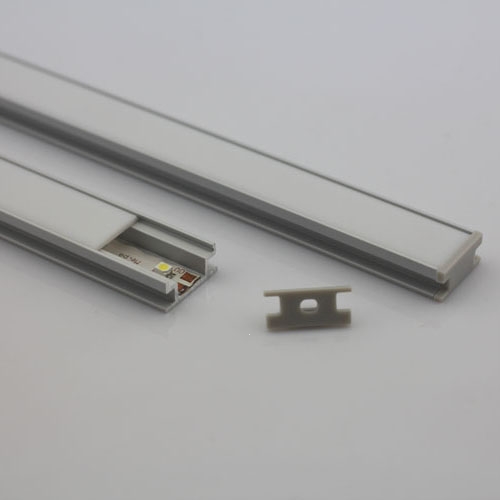

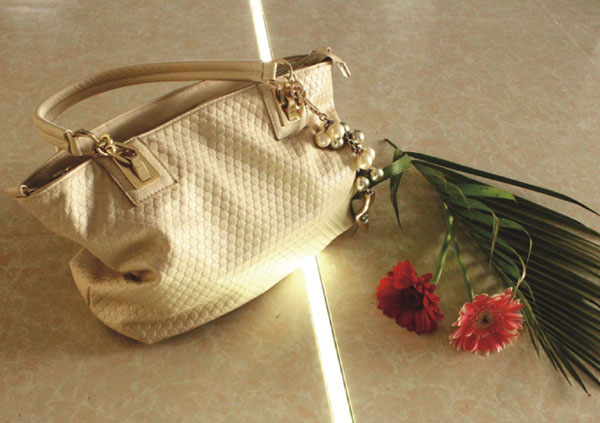

The low-profile LED extrusions are specifically designed for floor lighting, offering durability and smooth light distribution. With their slim, flat design, they can be seamlessly recessed into floors, walkways, and steps, delivering a sleek, modern look and bright, even illumination. Ideal for pathways, corridors, walkways, steps, and more.

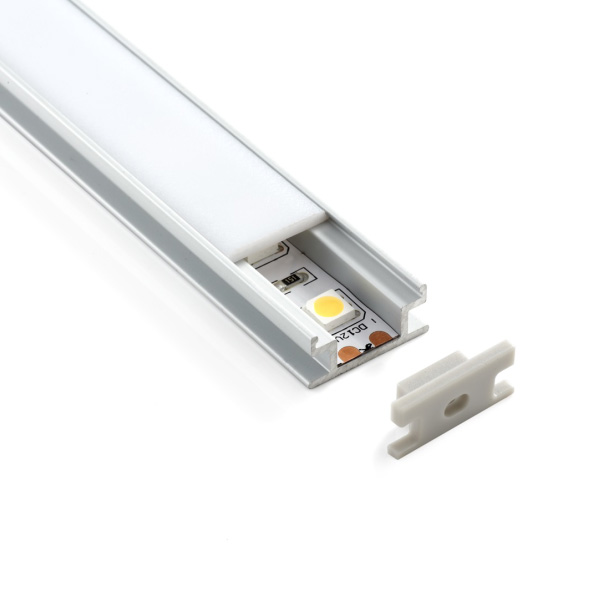

There is only a PMMA opal matte diffuser available, which produces soft, uniform, and glare-free light. The diffusers effectively eliminate visible LED dots, creating a warm lighting effect that adds a touch of sophistication to the floor. The end caps (with and without wire holes) are included, allowing LED strip power cables to exit and connect to LED drivers or LED dimmers.
Specifications:
- Model: ALP009
- Color: Silver
- Material: 6063-T5 aluminum alloy
- Surface treatment: Anodized

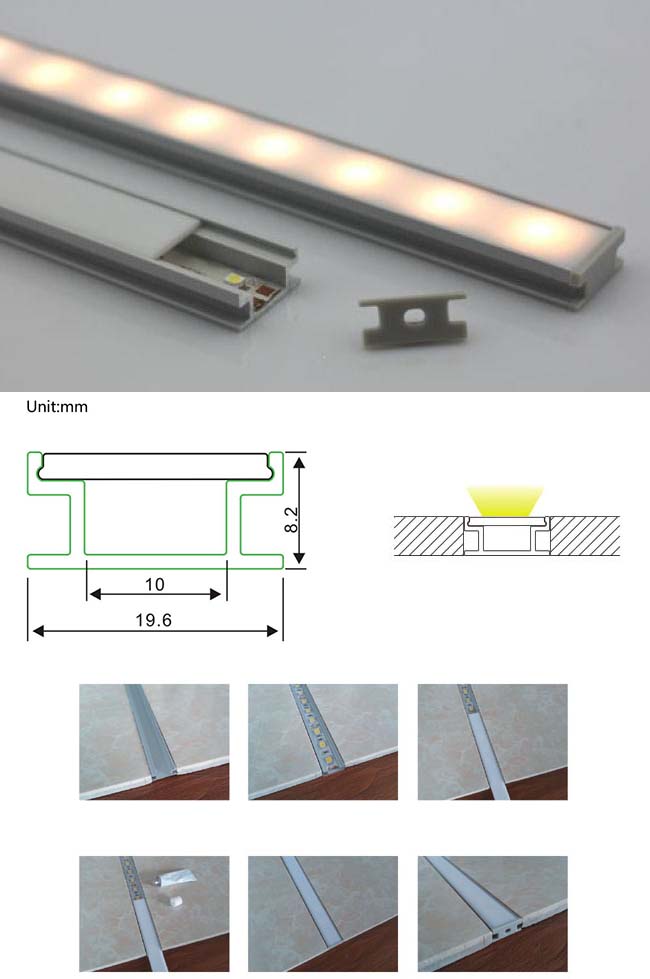

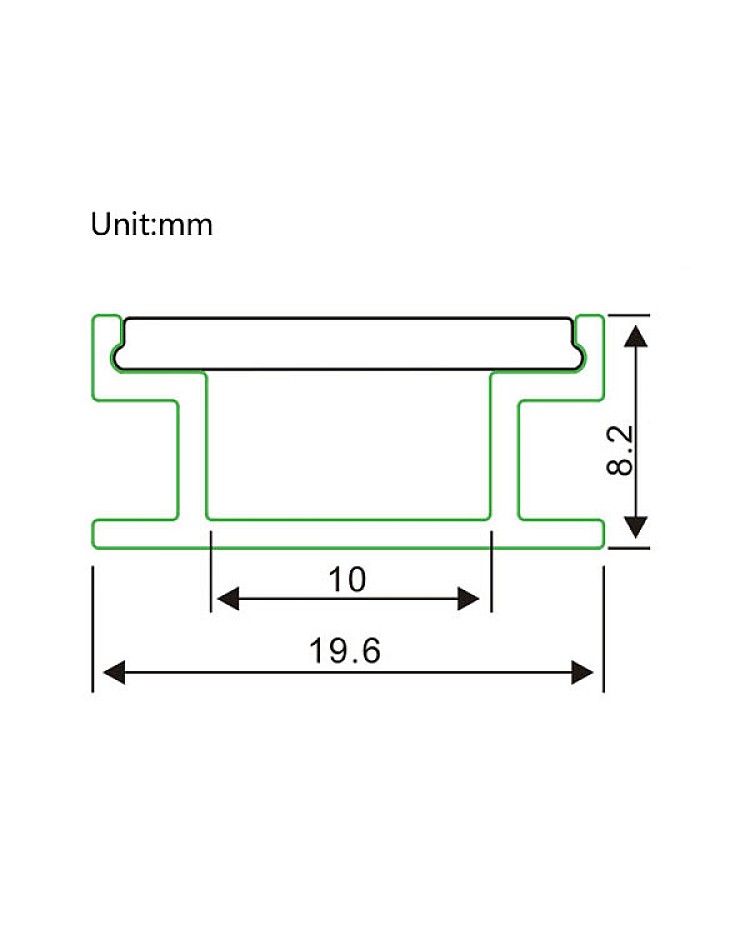

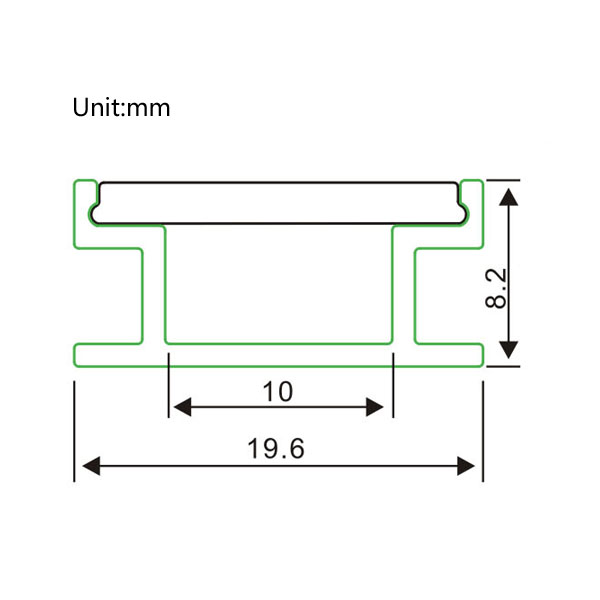

- Size ( Width x Height ): 19.1mm x 8.2mm / 0.75" x 0.32"
- Inner width: 10mm / 0.39"
- Allows the maximum width of LED strips to be 10 mm / 0.39"
- Max power: ≤15W/Meter
- Cover: PMMA opal matte cover
- Standard length: 1 m, 2 m
- Custom length available: YES

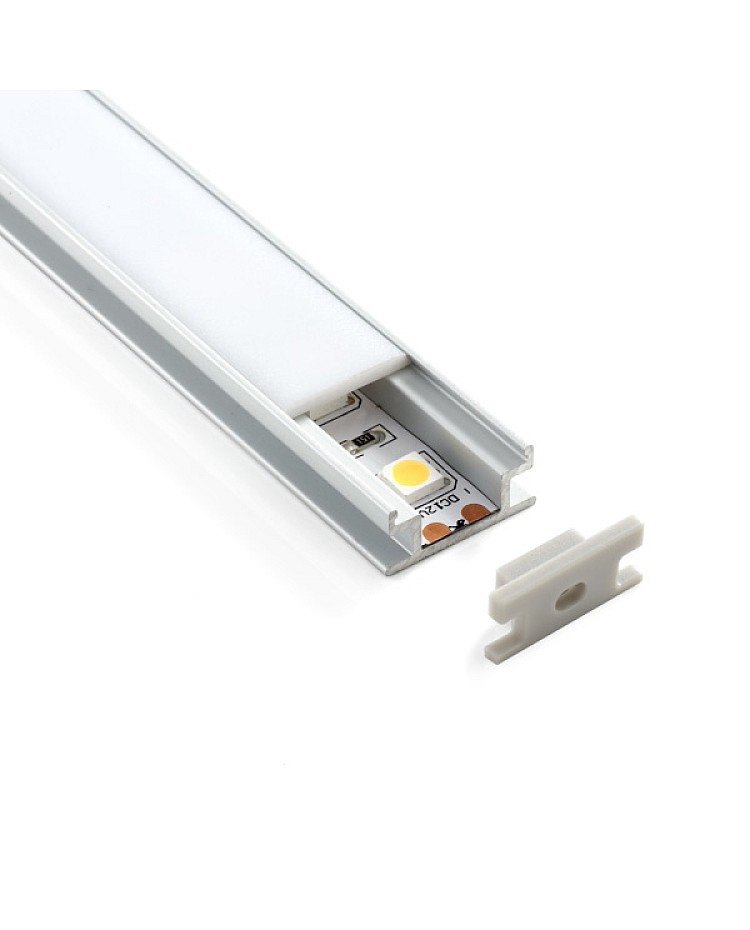

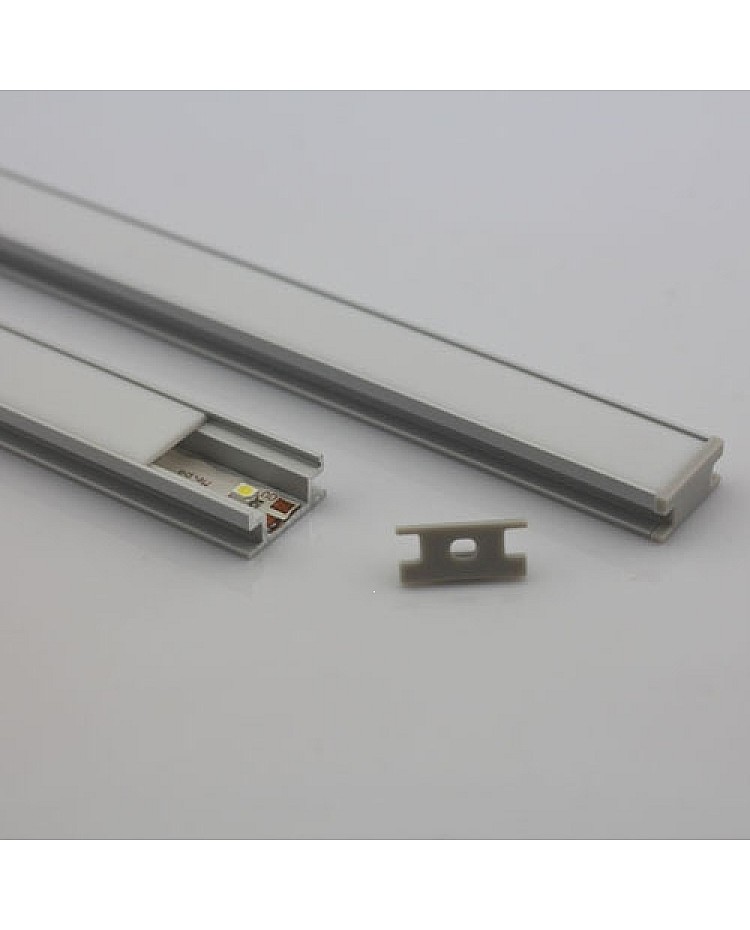

- End caps ( With and without wire hole ) are included

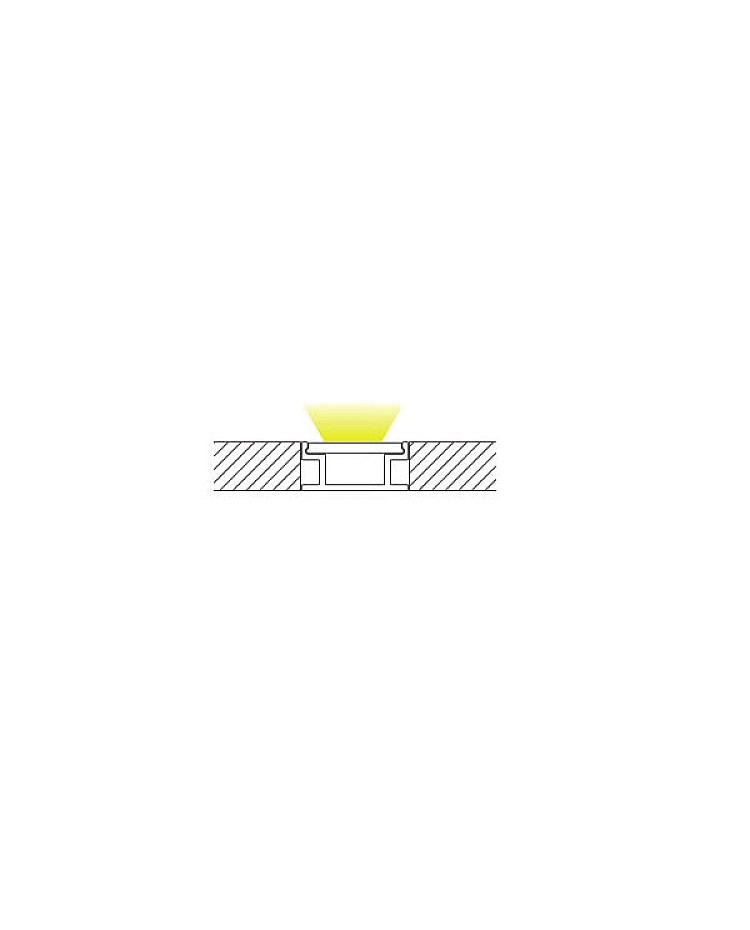

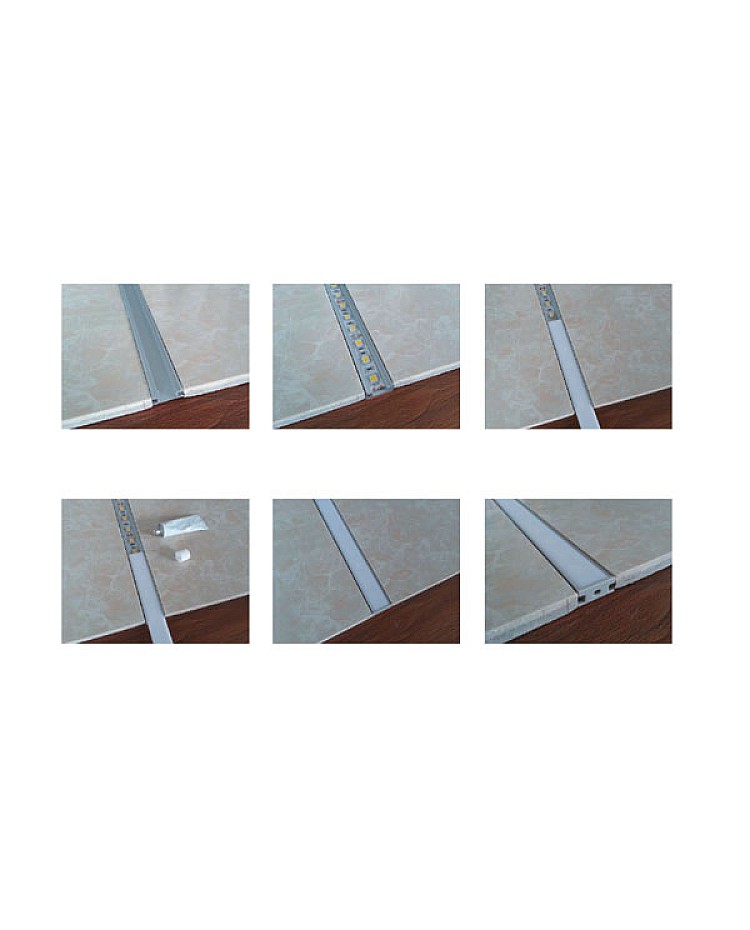

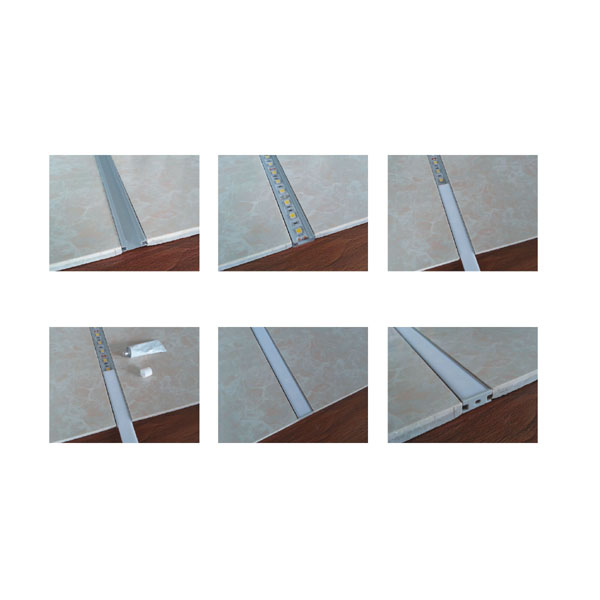

- Installation: Recessed
- Application: Floor lighting
- Warranty: 5 years
Package:
1 x Floor lighting LED extrusion with PMMA diffusers
End caps(With and without wire hole)
